Locking and unlocking
1-19
1

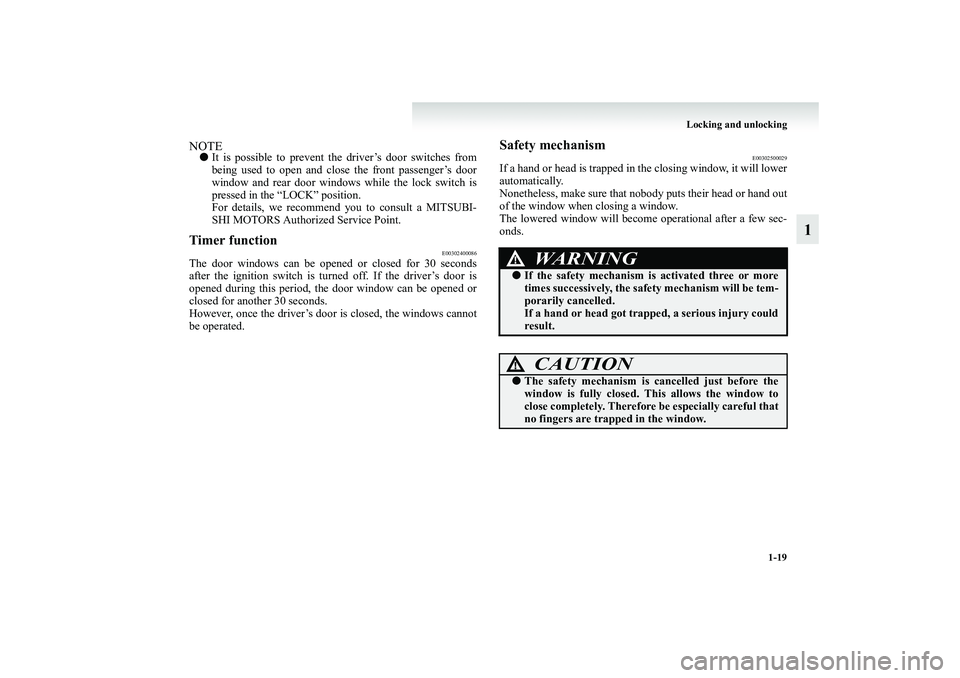

NOTE●It is possible to prevent the driver’s door switches from
being used to open and close the front passenger’s door
window and rear door windows while the lock switch is
pressed in the “LOCK” position.
For details, we recommend you to consult a MITSUBI-
SHI MOTORS Authorized Service Point.Timer function
E00302400086
The door windows can be opened or closed for 30 seconds
after the ignition switch is turned off. If the driver’s door is
opened during this period, the door window can be opened or
closed for another 30 seconds.
However, once the driver’s door is closed, the windows cannot
be operated.
Safety mechanism
E00302500029
If a hand or head is trapped in the closing window, it will lower
automatically.
Nonetheless, make sure that nobody puts their head or hand out
of the window when closing a window.
The lowered window will become operational after a few sec-
onds.
WARNING
!●If the safety mechanism is activated three or more
times successively, the safety mechanism will be tem-
porarily cancelled.
If a hand or head got trapped, a serious injury could
result.
CAUTION
!●The safety mechanism is cancelled just before the
window is fully closed. This allows the window to
close completely. Therefore be especially careful that
no fingers are trapped in the window.
BK-XP08E1ENUK.en-uk.book Page 19 Monday, August 13, 2007 2:20 PM

1-20 Locking and unlocking
1
NOTE●The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the door windows to
be subjected to a physical shock similar to that caused by
a trapped hand or head.
●If the safety mechanism is activated three or more times in
a row, the safety mechanism will be cancelled and the
door window will not close correctly.
In such a case, the following procedure should be imple-
mented to rectify this situation. If the window is open,
repeatedly raise the appropriate window switch until that
window has been fully closed. Following this, release the
switch, raise the switch once again and hold it in this con-
dition for at least one second, then release it. You should
now be able to operate all windows in the normal fashion.
Sunroof
*
E00302700496

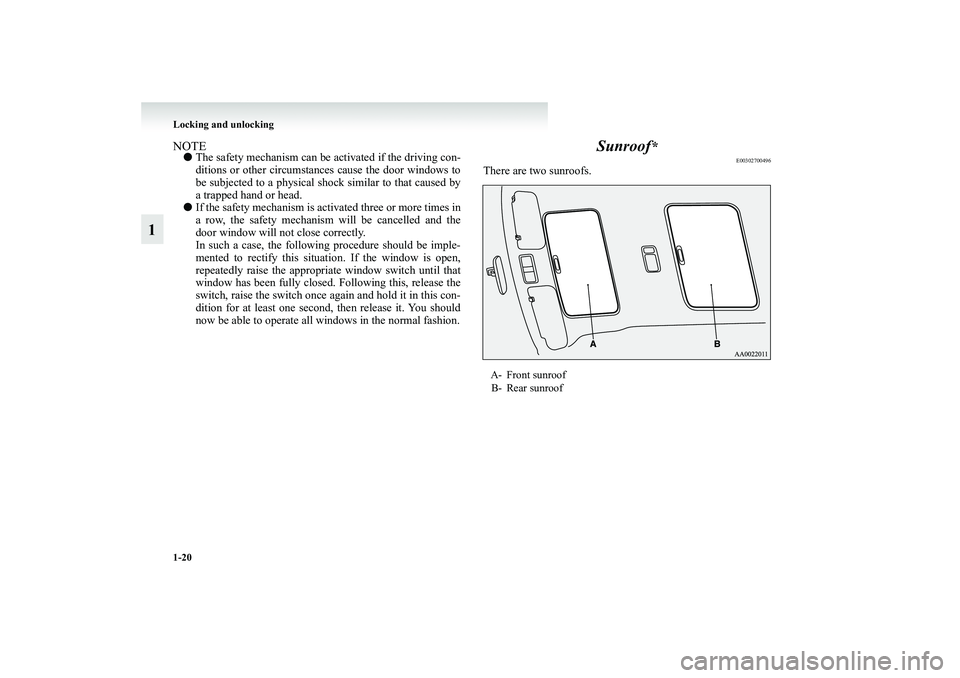

There are two sunroofs.A- Front sunroof
B- Rear sunroof
BK-XP08E1ENUK.en-uk.book Page 20 Monday, August 13, 2007 2:20 PM

Locking and unlocking
1-21
1

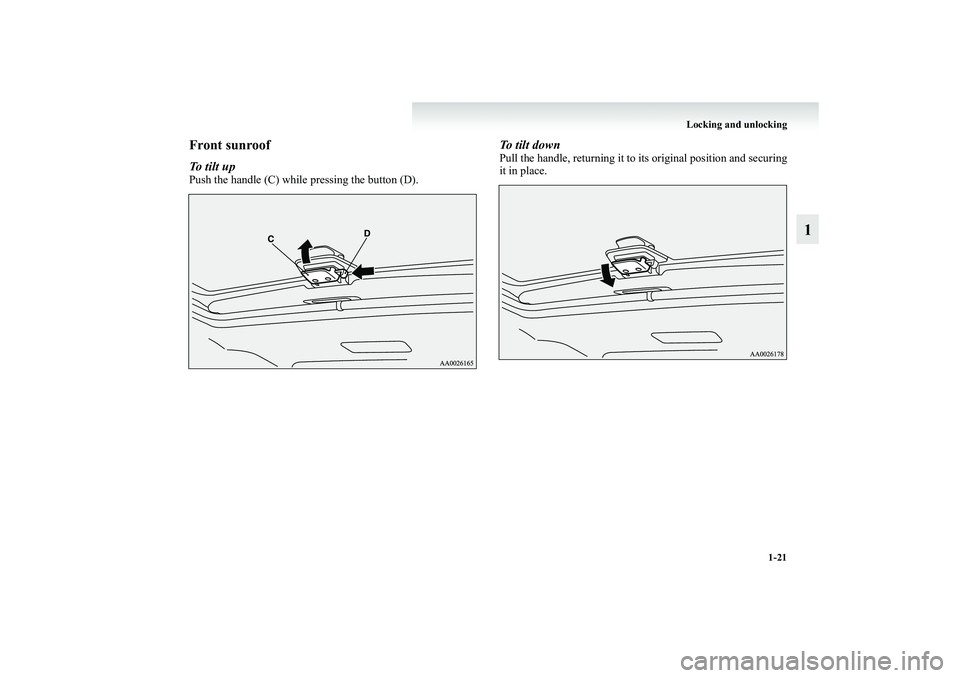

Front sunroofTo tilt upPush the handle (C) while pressing the button (D).
To tilt downPull the handle, returning it to its original position and securing
it in place.
BK-XP08E1ENUK.en-uk.book Page 21 Monday, August 13, 2007 2:20 PM

1-22 Locking and unlocking
1

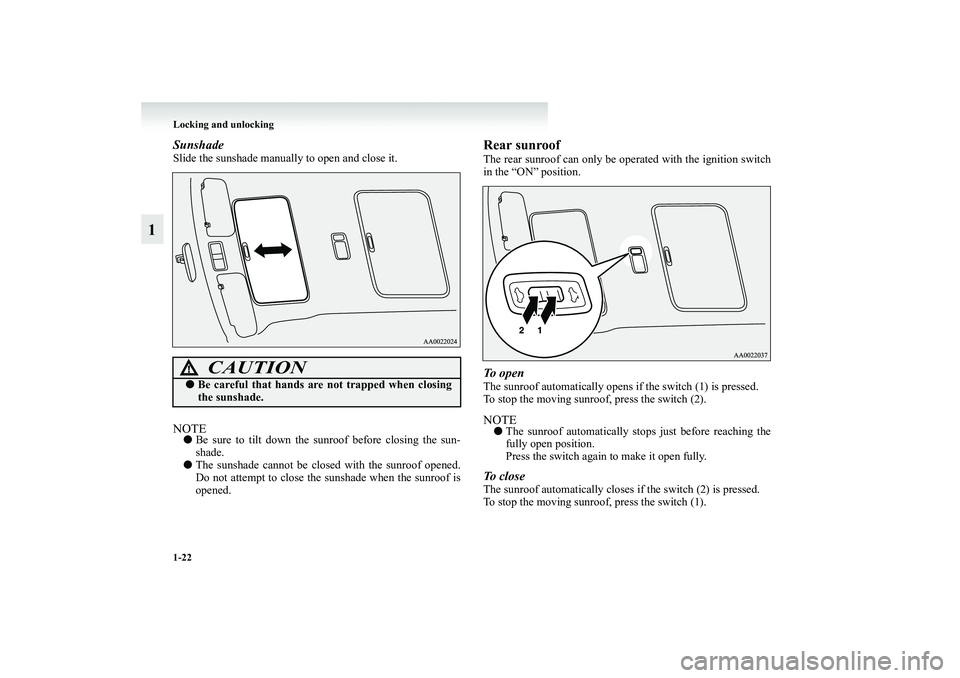

SunshadeSlide the sunshade manually to open and close it.NOTE●Be sure to tilt down the sunroof before closing the sun-
shade.
●The sunshade cannot be closed with the sunroof opened.
Do not attempt to close the sunshade when the sunroof is
opened.
Rear sunroofThe rear sunroof can only be operated with the ignition switch
in the “ON” position.To o p e nThe sunroof automatically opens if the switch (1) is pressed.
To stop the moving sunroof, press the switch (2).NOTE●The sunroof automatically stops just before reaching the
fully open position.
Press the switch again to make it open fully.To c l o s eThe sunroof automatically closes if the switch (2) is pressed.
To stop the moving sunroof, press the switch (1).
CAUTION
!●Be careful that hands are not trapped when closing
the sunshade.
BK-XP08E1ENUK.en-uk.book Page 22 Monday, August 13, 2007 2:20 PM

Locking and unlocking
1-23
1

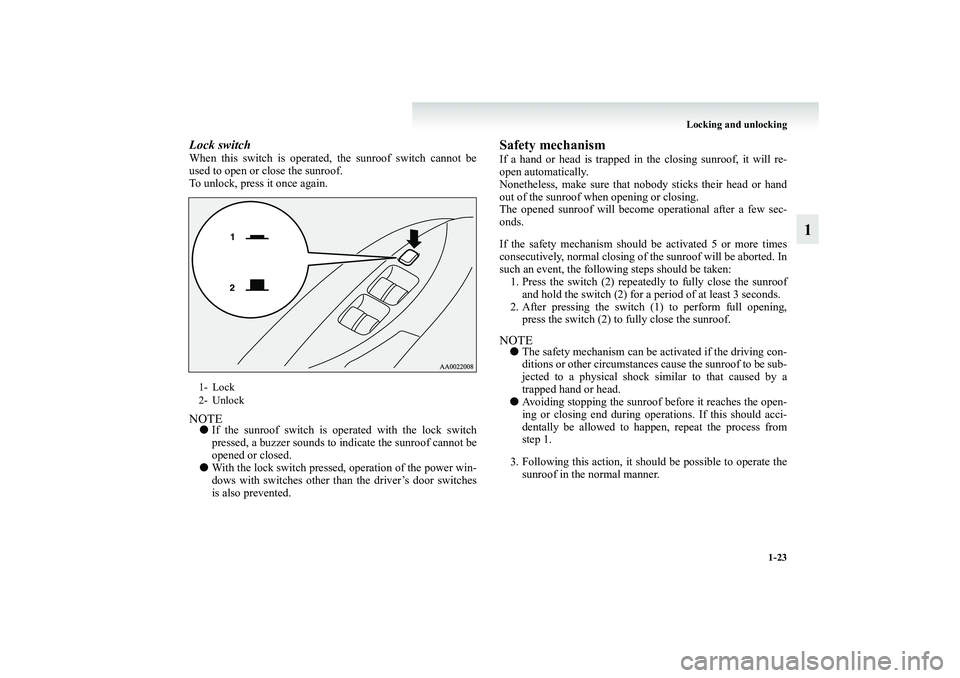

Lock switchWhen this switch is operated, the sunroof switch cannot be
used to open or close the sunroof.
To unlock, press it once again.NOTE●If the sunroof switch is operated with the lock switch
pressed, a buzzer sounds to indicate the sunroof cannot be
opened or closed.
●With the lock switch pressed, operation of the power win-
dows with switches other than the driver’s door switches
is also prevented.
Safety mechanismIf a hand or head is trapped in the closing sunroof, it will re-
open automatically.
Nonetheless, make sure that nobody sticks their head or hand
out of the sunroof when opening or closing.
The opened sunroof will become operational after a few sec-
onds.
If the safety mechanism should be activated 5 or more times
consecutively, normal closing of the sunroof will be aborted. In
such an event, the following steps should be taken:
1. Press the switch (2) repeatedly to fully close the sunroof
and hold the switch (2) for a period of at least 3 seconds.
2. After pressing the switch (1) to perform full opening,
press the switch (2) to fully close the sunroof.NOTE●The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the sunroof to be sub-
jected to a physical shock similar to that caused by a
trapped hand or head.
●Avoiding stopping the sunroof before it reaches the open-
ing or closing end during operations. If this should acci-
dentally be allowed to happen, repeat the process from
step 1.
3. Following this action, it should be possible to operate the
sunroof in the normal manner.
1- Lock
2- Unlock
BK-XP08E1ENUK.en-uk.book Page 23 Monday, August 13, 2007 2:20 PM

1-24 Locking and unlocking
1

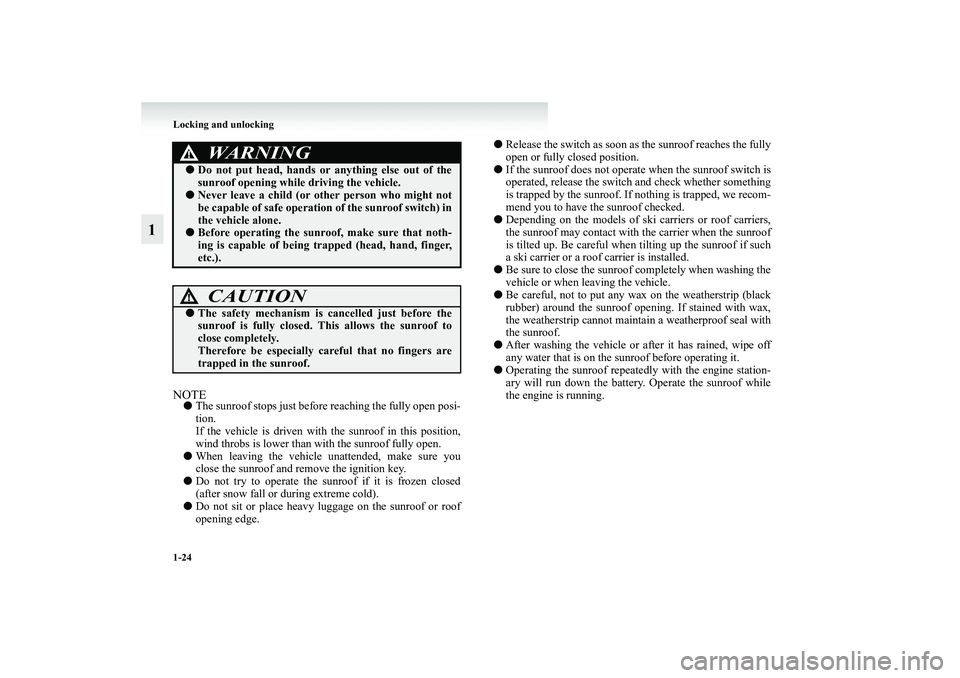

NOTE●The sunroof stops just before reaching the fully open posi-
tion.
If the vehicle is driven with the sunroof in this position,
wind throbs is lower than with the sunroof fully open.
●When leaving the vehicle unattended, make sure you
close the sunroof and remove the ignition key.
●Do not try to operate the sunroof if it is frozen closed
(after snow fall or during extreme cold).
●Do not sit or place heavy luggage on the sunroof or roof
opening edge.●Release the switch as soon as the sunroof reaches the fully
open or fully closed position.
●If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, we recom-
mend you to have the sunroof checked.
●Depending on the models of ski carriers or roof carriers,
the sunroof may contact with the carrier when the sunroof
is tilted up. Be careful when tilting up the sunroof if such
a ski carrier or a roof carrier is installed.
●Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.
●Be careful, not to put any wax on the weatherstrip (black
rubber) around the sunroof opening. If stained with wax,
the weatherstrip cannot maintain a weatherproof seal with
the sunroof.
●After washing the vehicle or after it has rained, wipe off
any water that is on the sunroof before operating it.
●Operating the sunroof repeatedly with the engine station-
ary will run down the battery. Operate the sunroof while
the engine is running.
WARNING
!●Do not put head, hands or anything else out of the
sunroof opening while driving the vehicle.●Never leave a child (or other person who might not
be capable of safe operation of the sunroof switch) in
the vehicle alone.●Before operating the sunroof, make sure that noth-
ing is capable of being trapped (head, hand, finger,
etc.).
CAUTION
!●The safety mechanism is cancelled just before the
sunroof is fully closed. This allows the sunroof to
close completely.
Therefore be especially careful that no fingers are
trapped in the sunroof.
BK-XP08E1ENUK.en-uk.book Page 24 Monday, August 13, 2007 2:20 PM

Locking and unlocking
1-25
1

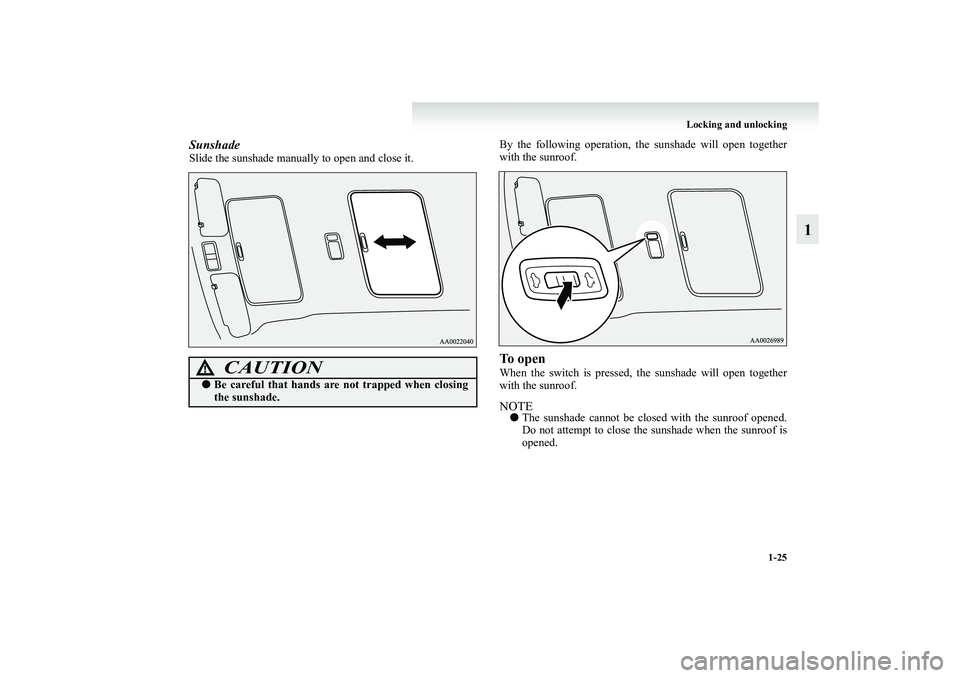

SunshadeSlide the sunshade manually to open and close it.By the following operation, the sunshade will open together
with the sunroof.
To openWhen the switch is pressed, the sunshade will open together
with the sunroof.NOTE●The sunshade cannot be closed with the sunroof opened.
Do not attempt to close the sunshade when the sunroof is
opened.
CAUTION
!●Be careful that hands are not trapped when closing
the sunshade.
BK-XP08E1ENUK.en-uk.book Page 25 Monday, August 13, 2007 2:20 PM
