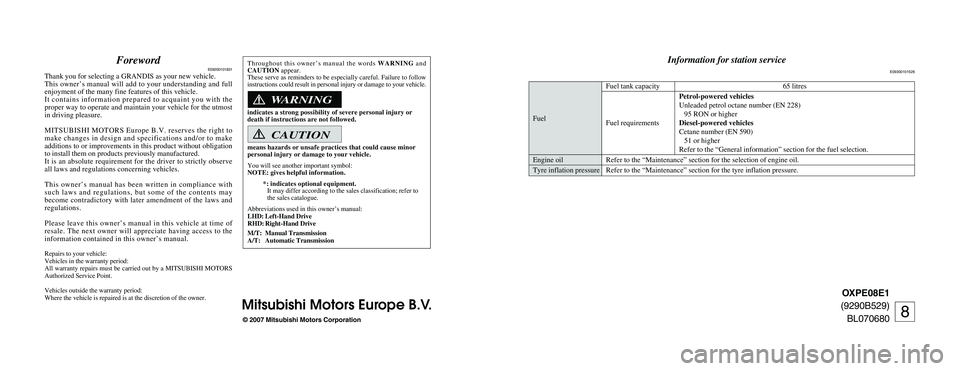

ForewordE09200101831
Thank you for selecting a GRANDIS as your new vehicle.
This owner’s manual will add to your understanding and full
enjoyment of the many fine features of this vehicle.
It contains information prepared to acquaint you with the
proper way to operate and maintain your vehicle for the utmost
in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to
make changes in design and specifications and/or to make
additions to or improvements in this product without obligation
to install them on products previously manufactured.
It is an absolute requirement for the driver to strictly observe
all laws and regulations concerning vehicles.
This owner’s manual has been written in compliance with
such laws and regulations, but some of the contents may
become contradictory with later amendment of the laws and
regulations.
Please leave this owner’s manual in this vehicle at time of
resale. The next owner will appreciate having access to the
information contained in this owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS
Authorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.Throughout this owner’s manual the words WARNINGand
CAUTIONappear.
These serve as reminders to be especially careful. Failure to follow
instructions could result in personal injury or damage to your vehicle.
indicates a strong possibility of severe personal injury or
death if instructions are not followed.
means hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE: gives helpful information.
*: indicates optional equipment.
It may differ according to the sales classification; refer to
the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic Transmission
WARNING
CAUTION
Information for station service
E09300101526
Fuel tank capacity 65 litres
Petrol-powered vehicles
Unleaded petrol octane number (EN 228)
Fuel95 RON or higher
Fuel requirementsDiesel-powered vehicles
Cetane number (EN 590)
51 or higher
Refer to the “General information” section for the fuel selection.
Engine oil Refer to the “Maintenance” section for the selection of engine oil.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
8
eng270680_XP08_cv 05-07-2007 12:31 Page 2
Page 3 of 458

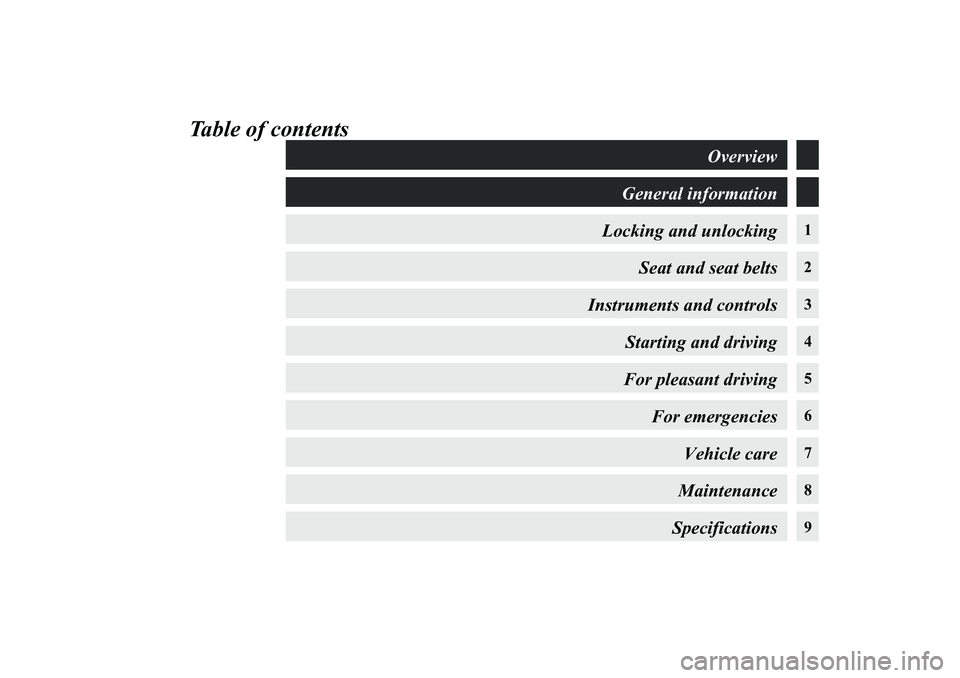

Table of contents
1
2
3
4
5
6
7
8
9
Overview
General information
Locking and unlocking
Seat and seat belts
Instruments and controls
Starting and driving
For pleasant driving
For emergencies
Vehicle care
Maintenance
Specifications
BK-XP08E1ENUK.en-uk.book Page 1 Monday, August 13, 2007 2:20 PM
Page 4 of 458
Overview

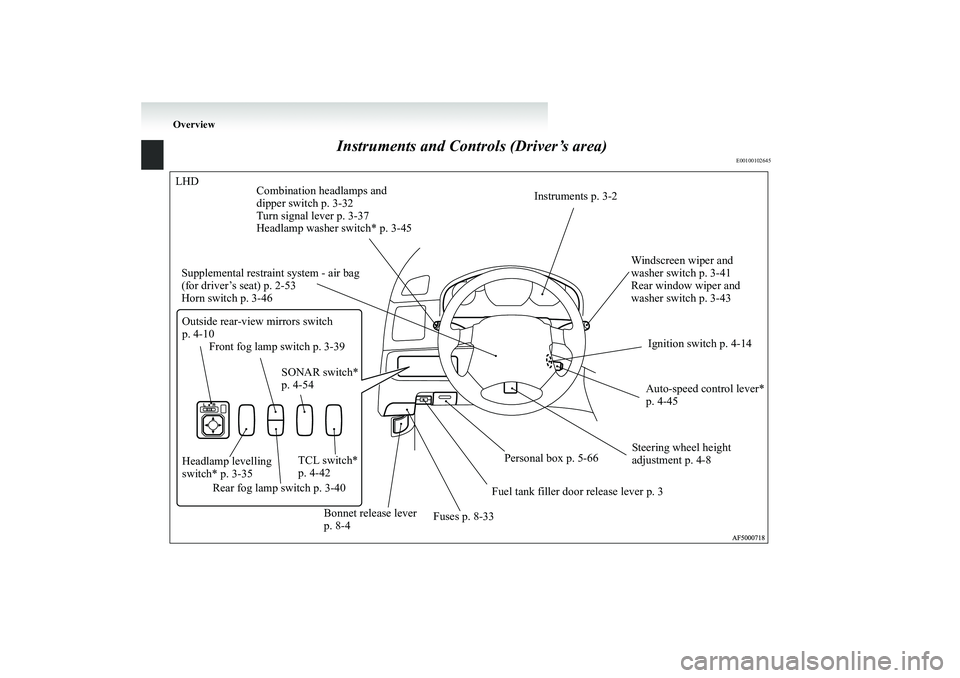

Instruments and Controls (Driver’s area)
E00100102645
LHD
Instruments p. 3-2
Windscreen wiper and
washer switch p. 3-41
Rear window wiper and
washer switch p. 3-43 Supplemental restraint system - air bag
(for driver’s seat) p. 2-53
Horn switch p. 3-46Combination headlamps and
dipper switch p. 3-32
Turn signal lever p. 3-37
Headlamp washer switch* p. 3-45
Ignition switch p. 4-14
Personal box p. 5-66
Bonnet release lever
p. 8-4 Outside rear-view mirrors switch
p. 4-10
Front fog lamp switch p. 3-39
Fuses p. 8-33Fuel tank filler door release lever p. 3 Headlamp levelling
switch* p. 3-35TCL switch*
p. 4-42
Rear fog lamp switch p. 3-40Auto-speed control lever*
p. 4-45 SONAR switch*
p. 4-54
Steering wheel height
adjustment p. 4-8BK-XP08E1ENUK.en-uk.book Page 1 Monday, August 13, 2007 2:20 PM
Page 5 of 458
Overview
RHD

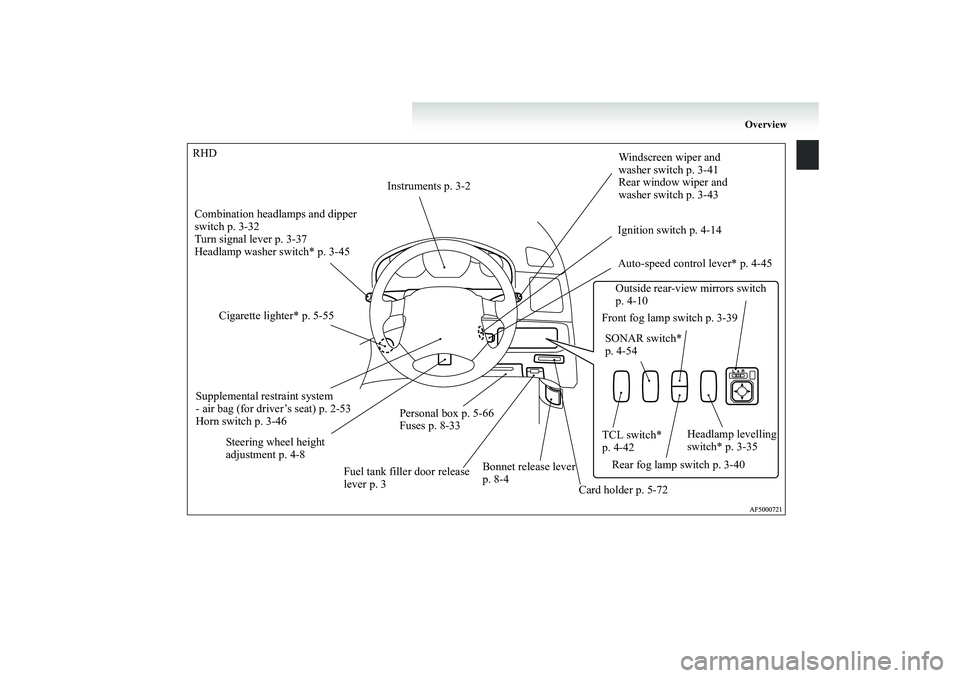

Instruments p. 3-2Windscreen wiper and
washer switch p. 3-41
Rear window wiper and
washer switch p. 3-43
Supplemental restraint system
- air bag (for driver’s seat) p. 2-53
Horn switch p. 3-46 Combination headlamps and dipper
switch p. 3-32
Turn signal lever p. 3-37
Headlamp washer switch* p. 3-45Ignition switch p. 4-14
Personal box p. 5-66
Fuses p. 8-33
Bonnet release lever
p. 8-4Outside rear-view mirrors switch
p. 4-10
Front fog lamp switch p. 3-39
Steering wheel height
adjustment p. 4-8
Fuel tank filler door release
lever p. 3 Cigarette lighter* p. 5-55
Card holder p. 5-72Headlamp levelling
switch* p. 3-35 TCL switch*
p. 4-42
Rear fog lamp switch p. 3-40Auto-speed control lever* p. 4-45
SONAR switch*
p. 4-54
BK-XP08E1ENUK.en-uk.book Page 2 Monday, August 13, 2007 2:20 PM
Page 6 of 458
Overview

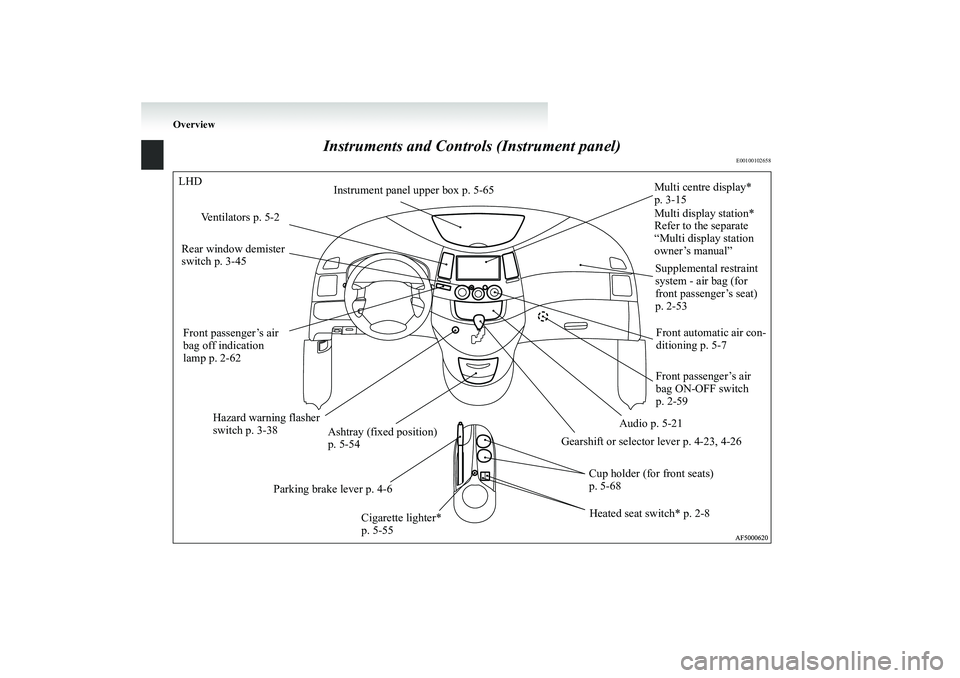

Instruments and Controls (Instrument panel)
E00100102658
LHD
Multi centre display*
p. 3-15
Ventilators p. 5-2
Rear window demister
switch p. 3-45
Hazard warning flasher
switch p. 3-38
Ashtray (fixed position)
p. 5-54
Cup holder (for front seats)
p. 5-68 Gearshift or selector lever p. 4-23, 4-26
Parking brake lever p. 4-6
Cigarette lighter*
p. 5-55Supplemental restraint
system - air bag (for
front passenger’s seat)
p. 2-53
Front automatic air con-
ditioning p. 5-7
Audio p. 5-21 Instrument panel upper box p. 5-65
Heated seat switch* p. 2-8Front passenger’s air
bag ON-OFF switch
p. 2-59 Front passenger’s air
bag off indication
lamp p. 2-62Multi display station*
Refer to the separate
“Multi display station
owner’s manual”BK-XP08E1ENUK.en-uk.book Page 3 Monday, August 13, 2007 2:20 PM
Page 7 of 458

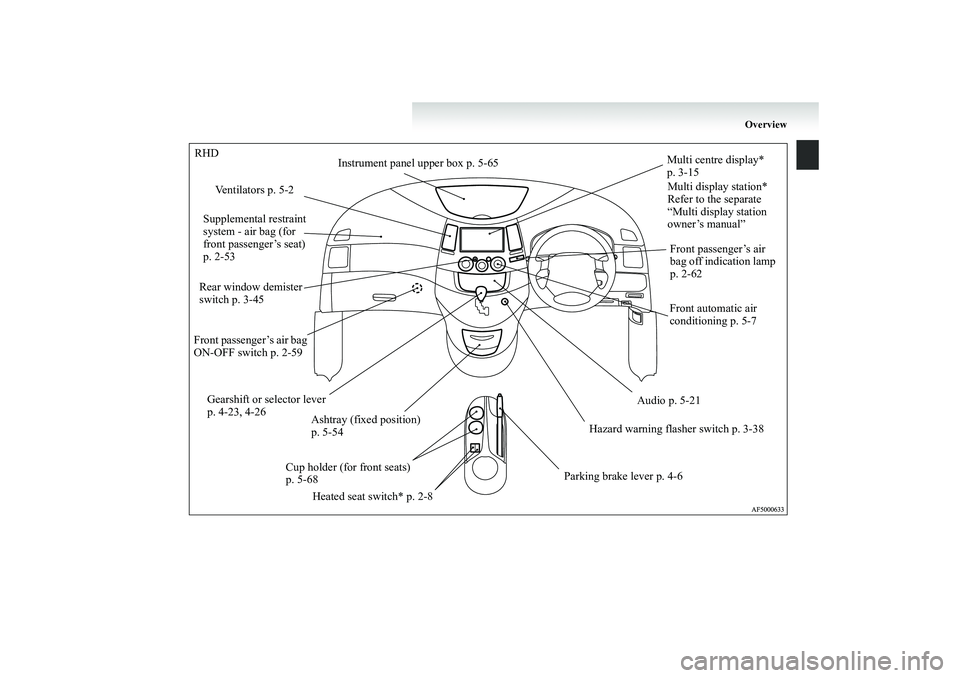

Overview
RHD
Instrument panel upper box p. 5-65
Ventilators p. 5-2
Supplemental restraint
system - air bag (for
front passenger’s seat)
p. 2-53
Rear window demister
switch p. 3-45
Front passenger’s air bag
ON-OFF switch p. 2-59
Gearshift or selector lever
p. 4-23, 4-26
Ashtray (fixed position)
p. 5-54
Cup holder (for front seats)
p. 5-68
Heated seat switch* p. 2-8Hazard warning flasher switch p. 3-38
Parking brake lever p. 4-6Front automatic air
conditioning p. 5-7
Audio p. 5-21Multi centre display*
p. 3-15
Front passenger’s air
bag off indication lamp
p. 2-62 Multi display station*
Refer to the separate
“Multi display station
owner’s manual”
BK-XP08E1ENUK.en-uk.book Page 4 Monday, August 13, 2007 2:20 PM
Page 8 of 458
Overview

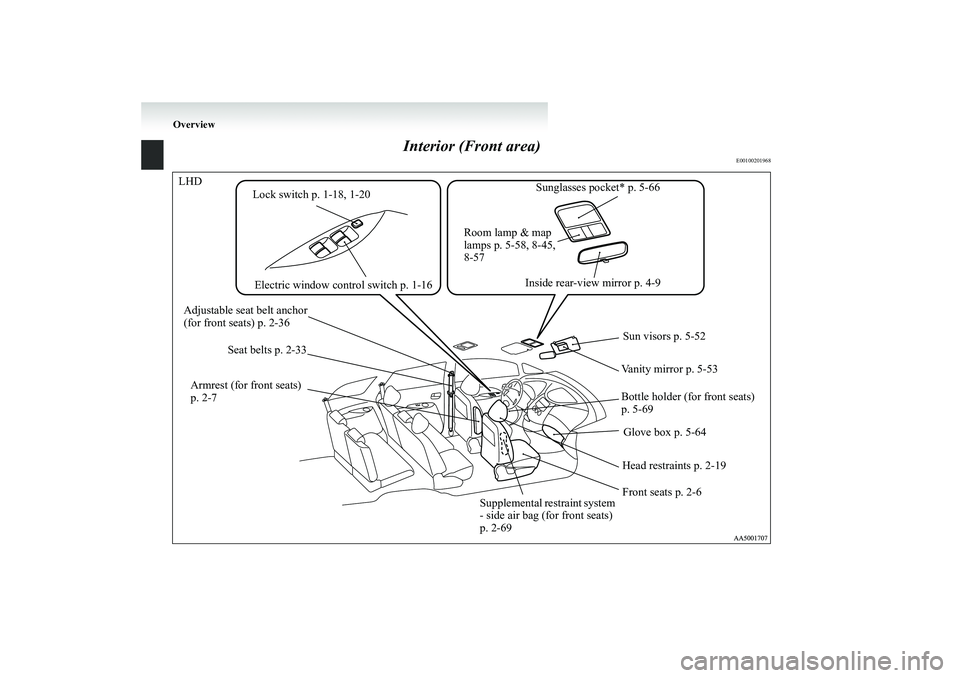

Interior (Front area)
E00100201968
LHD
Lock switch p. 1-18, 1-20
Electric window control switch p. 1-16Room lamp & map
lamps p. 5-58, 8-45,
8-57
Seat belts p. 2-33 Adjustable seat belt anchor
(for front seats) p. 2-36
Sun visors p. 5-52
Vanity mirror p. 5-53 Inside rear-view mirror p. 4-9
Supplemental restraint system
- side air bag (for front seats)
p. 2-69 Armrest (for front seats)
p. 2-7
Front seats p. 2-6Glove box p. 5-64
Head restraints p. 2-19 Bottle holder (for front seats)
p. 5-69 Sunglasses pocket* p. 5-66BK-XP08E1ENUK.en-uk.book Page 5 Monday, August 13, 2007 2:20 PM
Page 9 of 458
Overview
RHD

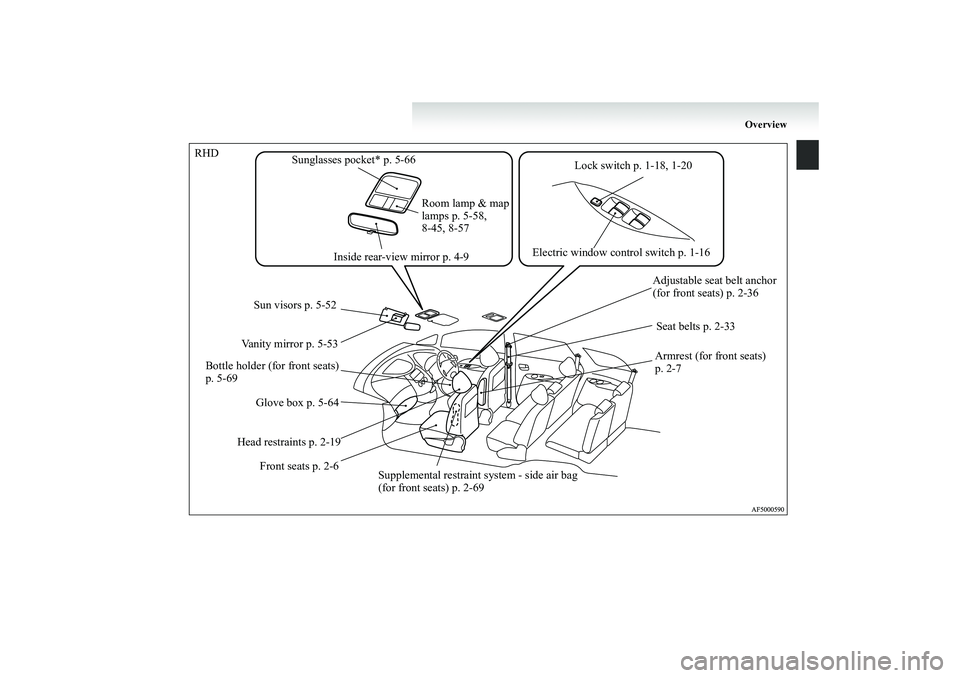

Lock switch p. 1-18, 1-20
Electric window control switch p. 1-16 Room lamp & map
lamps p. 5-58,
8-45, 8-57
Seat belts p. 2-33 Adjustable seat belt anchor
(for front seats) p. 2-36
Sun visors p. 5-52
Vanity mirror p. 5-53Inside rear-view mirror p. 4-9
Supplemental restraint system - side air bag
(for front seats) p. 2-69Armrest (for front seats)
p. 2-7
Front seats p. 2-6 Glove box p. 5-64
Head restraints p. 2-19 Bottle holder (for front seats)
p. 5-69Sunglasses pocket* p. 5-66
BK-XP08E1ENUK.en-uk.book Page 6 Monday, August 13, 2007 2:20 PM
Page 10 of 458
Overview

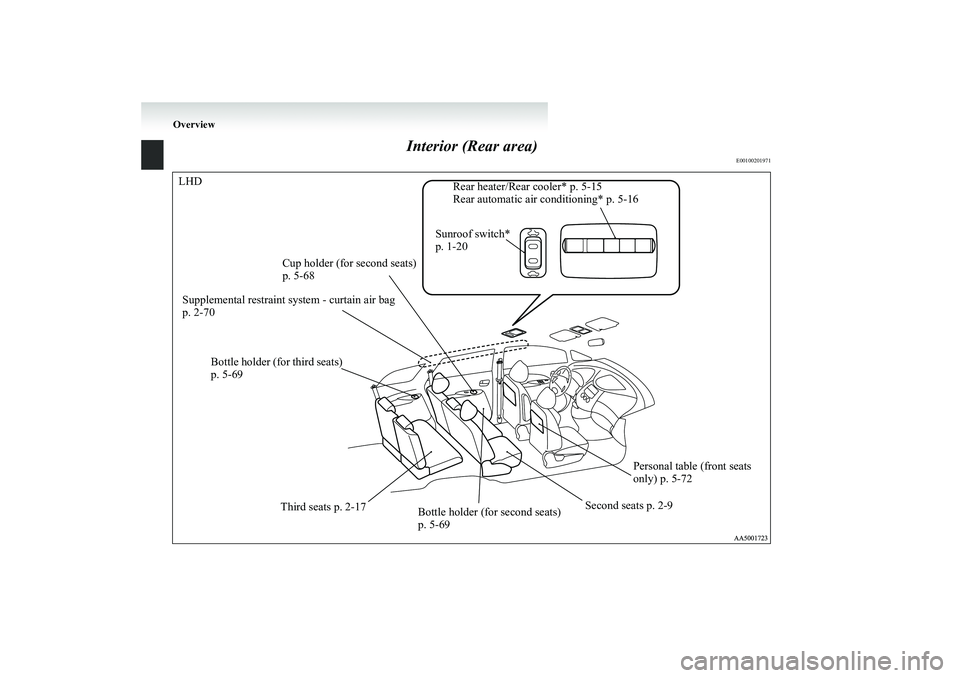

Interior (Rear area)
E00100201971
LHD
Supplemental restraint system - curtain air bag
p. 2-70Cup holder (for second seats)
p. 5-68
Bottle holder (for third seats)
p. 5-69
Third seats p. 2-17Second seats p. 2-9
Bottle holder (for second seats)
p. 5-69Sunroof switch*
p. 1-20Rear heater/Rear cooler* p. 5-15
Rear automatic air conditioning* p. 5-16
Personal table (front seats
only) p. 5-72BK-XP08E1ENUK.en-uk.book Page 7 Monday, August 13, 2007 2:20 PM
