MITSUBISHI GRANDIS 2010 (in English) Service Manual

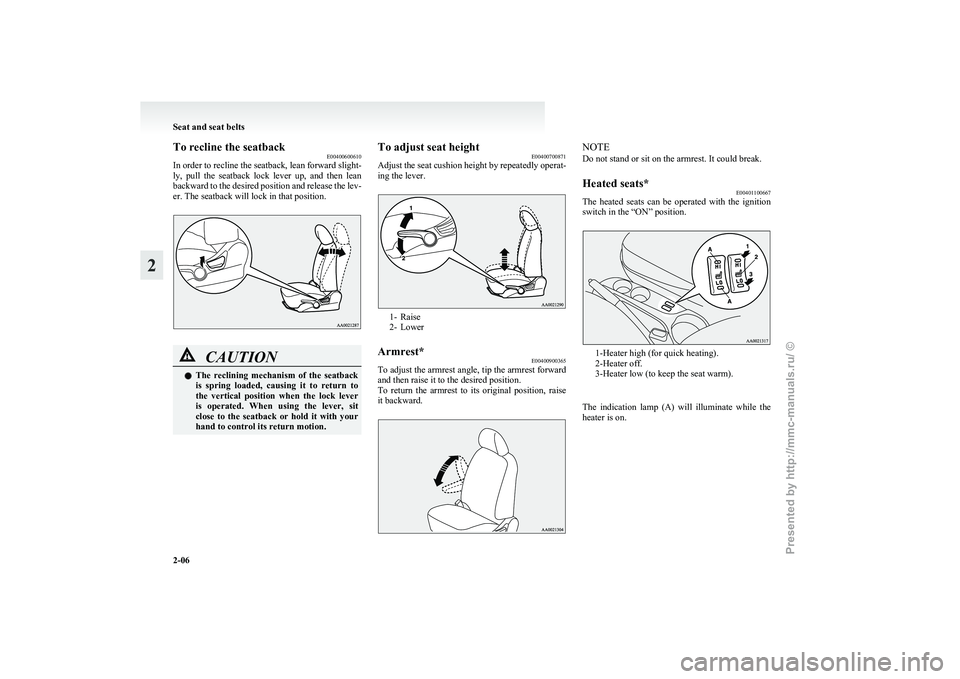

To recline the seatback
E00400600610
In
order to recline the seatback, lean forward slight-
ly, pull the seatback lock lever up, and then lean
backward to the desired position and release the lev-
er. The seatback will lock in that position. CAUTION
l
The
reclining mechanism of the seatback
is spring loaded, causing it to return to
the vertical position when the lock lever
is operated. When using the lever, sit
close to the seatback or hold it with your
hand to control its return motion. To adjust seat height
E00400700871
Adjust

the seat cushion height by repeatedly operat-
ing the lever. 1- Raise
2-

Lower
Armrest* E00400900365
To adjust the armrest angle, tip the armrest forward
and then raise it to the desired position.
To

return the armrest to its original position, raise
it backward. NOTE
Do not stand or sit on the armrest. It could break.
Heated seats*
E00401100667
The heated seats can be operated with the ignition
switch in the “ON” position. 1-Heater high (for quick heating).
2-Heater off.
3-Heater low (to keep the seat warm).

The

indication lamp (A) will illuminate while the
heater is on. Seat and seat belts
2-06
2
Presented by http://mmc-manuals.ru/ \251

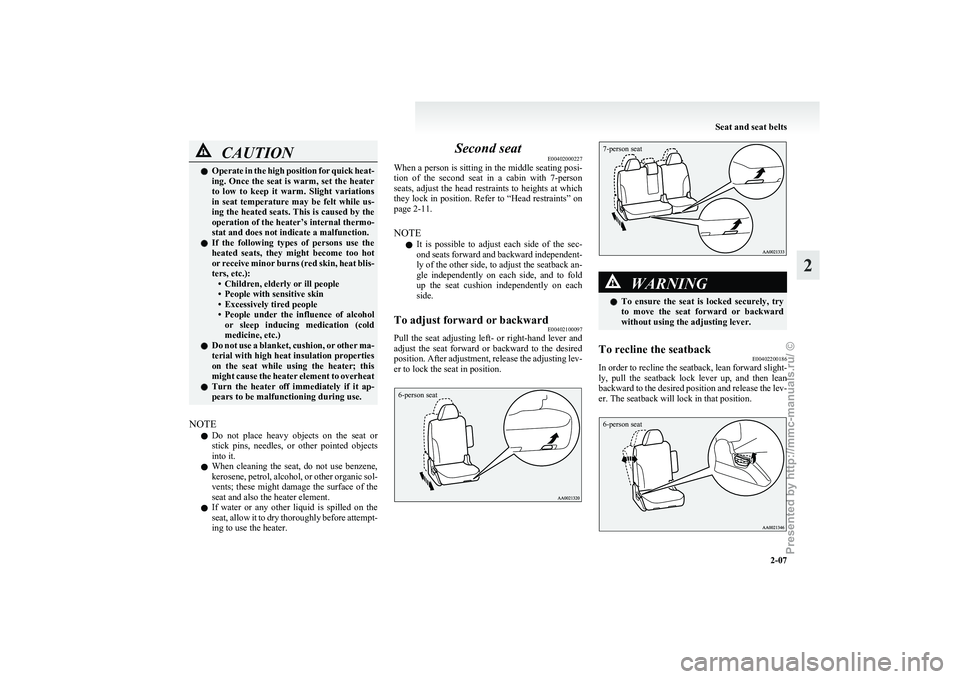

CAUTION
l
Operate in the high position for quick heat-
ing. Once the seat is warm, set the heater
to low to keep it warm. Slight variations
in seat temperature may be felt while us-
ing the heated seats. This is caused by the
operation of the heater’s internal thermo-
stat and does not indicate a malfunction.
l If the following types of persons use the
heated seats, they might become too hot
or receive minor burns (red skin, heat blis-
ters, etc.):
• Children, elderly or ill people
• People with sensitive skin
• Excessively tired people
• People under the influence of alcoholor sleep inducing medication (cold
medicine, etc.)
l Do not use a blanket, cushion, or other ma-
terial with high heat insulation properties
on the seat while using the heater; this
might cause the heater element to overheat
l Turn the heater off immediately if it ap-
pears to be malfunctioning during use.
NOTE l Do

not place heavy objects on the seat or
stick pins, needles, or other pointed objects
into it.
l When cleaning the seat, do not use benzene,
kerosene, petrol, alcohol, or other organic sol-
vents; these might damage the surface of the
seat and also the heater element.
l If water or any other liquid is spilled on the
seat, allow it to dry thoroughly before attempt-
ing to use the heater. Second seat
E00402000227
When

a person is sitting in the middle seating posi-
tion of the second seat in a cabin with 7-person
seats, adjust the head restraints to heights at which
they lock in position. Refer to “Head restraints” on
page 2-11.
NOTE
l It is possible to adjust each side of the sec-
ond seats forward and backward independent-
ly of the other side, to adjust the seatback an-
gle independently on each side, and to fold
up the seat cushion independently on each
side.
To adjust forward or backward E00402100097
Pull the seat adjusting left- or right-hand lever and
adjust

the seat forward or backward to the desired
position. After adjustment, release the adjusting lev-
er to lock the seat in position.
6-person seat
7-person seat WARNING
l To
ensure the seat is locked securely, try
to move the seat forward or backward
without using the adjusting lever.
To recline the seatback E00402200186
In order to recline the seatback, lean forward slight-
ly,

pull the seatback lock lever up, and then lean
backward to the desired position and release the lev-
er. The seatback will lock in that position.
6-person seat Seat and seat belts
2-07 2
Presented by http://mmc-manuals.ru/ \251

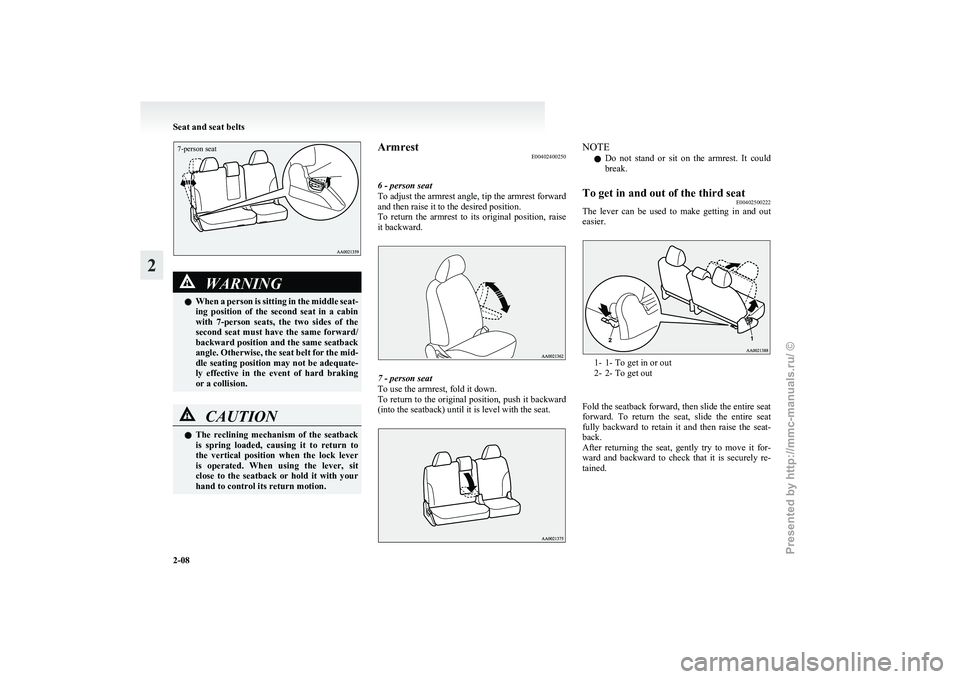

7-person seatWARNING
l When
a person is sitting in the middle seat-
ing position of the second seat in a cabin
with 7-person seats, the two sides of the
second seat must have the same forward/
backward position and the same seatback
angle. Otherwise, the seat belt for the mid-
dle seating position may not be adequate-
ly effective in the event of hard braking
or a collision. CAUTION
l
The
reclining mechanism of the seatback
is spring loaded, causing it to return to
the vertical position when the lock lever
is operated. When using the lever, sit
close to the seatback or hold it with your
hand to control its return motion. Armrest
E00402400250

6 - person seat
To

adjust the armrest angle, tip the armrest forward
and then raise it to the desired position.
To return the armrest to its original position, raise
it backward. 7 - person seat
To use the armrest, fold it down.
To

return to the original position, push it backward
(into the seatback) until it is level with the seat. NOTE
l Do

not stand or sit on the armrest. It could
break.
To get in and out of the third seat E00402500222
The lever can be used to make getting in and out
easier. 1- 1- To get in or out
2-

2- To get out

Fold the seatback forward, then slide the entire seat
forward. To return the seat, slide the entire seat
fully backward to retain it and then raise the seat-
back.
After returning the seat, gently try to move it for-
ward and backward to check that it is securely re-
tained. Seat and seat belts
2-08
2
Presented by http://mmc-manuals.ru/ \251

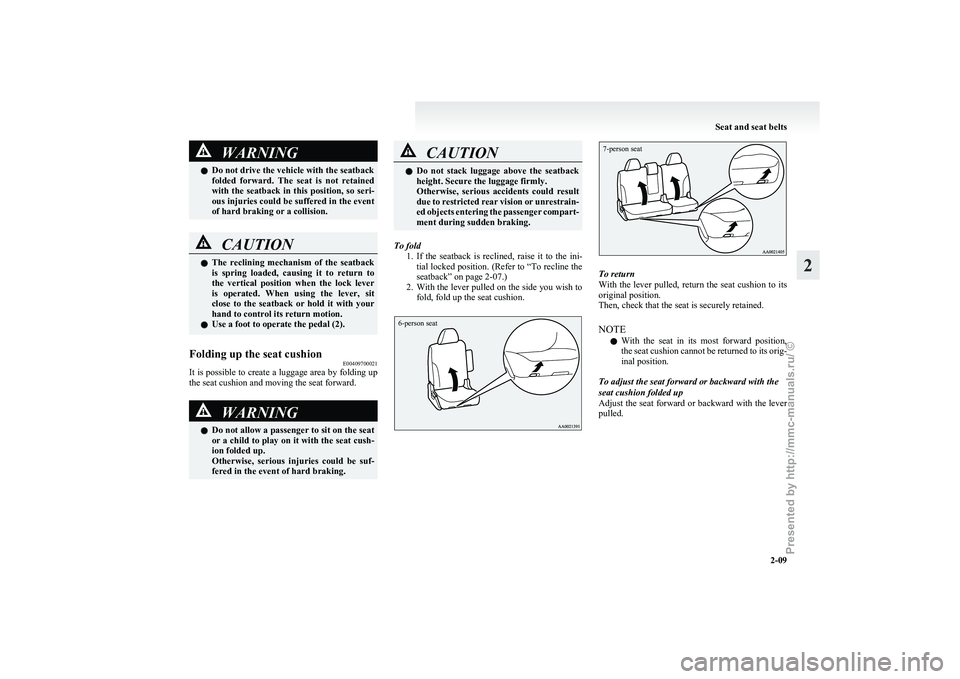

WARNING
l Do not drive the vehicle with the seatback
folded
forward. The seat is not retained
with the seatback in this position, so seri-
ous injuries could be suffered in the event
of hard braking or a collision. CAUTION
l
The
reclining mechanism of the seatback
is spring loaded, causing it to return to
the vertical position when the lock lever
is operated. When using the lever, sit
close to the seatback or hold it with your
hand to control its return motion.
l Use a foot to operate the pedal (2).
Folding up the seat cushion E00409700021
It is possible to create a luggage area by folding up
the seat cushion and moving the seat forward. WARNING
l Do
not allow a passenger to sit on the seat
or a child to play on it with the seat cush-
ion folded up.
Otherwise, serious injuries could be suf-
fered in the event of hard braking. CAUTION
l
Do
not stack luggage above the seatback
height. Secure the luggage firmly.
Otherwise, serious accidents could result
due to restricted rear vision or unrestrain-
ed objects entering the passenger compart-
ment during sudden braking.
To fold 1. If
the seatback is reclined, raise it to the ini-
tial locked position. (Refer to “To recline the
seatback” on page 2-07.)
2. With the lever pulled on the side you wish to fold, fold up the seat cushion.
6-person seat
7-person seat To return
With

the lever pulled, return the seat cushion to its
original position.
Then, check that the seat is securely retained.
NOTE
l With the seat in its most forward position,
the seat cushion cannot be returned to its orig-
inal position.
To adjust the seat forward or backward with the
seat cushion folded up
Adjust the seat forward or backward with the lever
pulled. Seat and seat belts
2-09 2
Presented by http://mmc-manuals.ru/ \251

After making the adjustment, gently try to move it
forward
and backward to check that it is securely re-
tained.
6-person seat
7-person seat NOTE
l The

seat can slide further forward only when
the seat cushion is folded up. To adjust the seat cushion angle
E00410300014
If,

while raising the seat cushion, you release the
lever when the seat cushion reaches some desired
angle, the seat cushion will be held at that angle.
6-person seat
7-person seat Third seat*
E00402700282
When

sitting in the third seat, adjust the head re-
straints to heights at which they lock in position. Re-
fer to “Head restraints” on page 2-11.
To recline the seatback E00402800140
In order to recline the seatback, lean forward slight-
ly,

pull the seatback lock lever up, and then lean
backward to the desired position and release the lev-
er. The seatback will lock in that position. NOTE
l It

is possible to adjust the seatback angle in-
dependently on each side of the seats. Seat and seat belts
2-10
2
Presented by http://mmc-manuals.ru/ \251

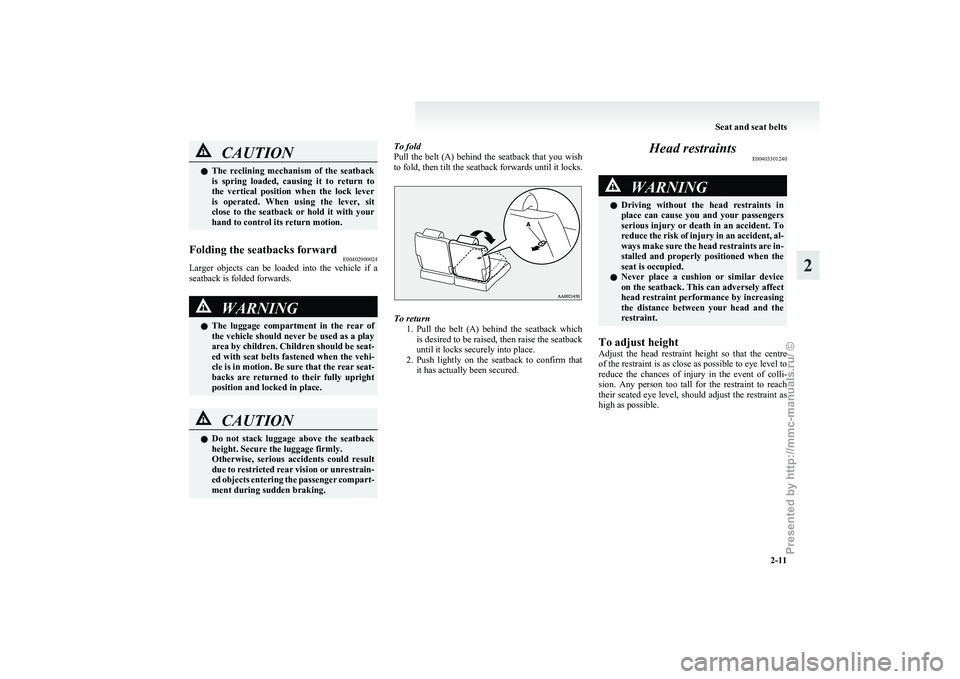

CAUTION
l
The reclining mechanism of the seatback
is spring loaded, causing it to return to
the vertical position when the lock lever
is operated. When using the lever, sit
close to the seatback or hold it with your
hand to control its return motion.
Folding the seatbacks forward E00402900024
Larger objects can be loaded into the vehicle if a
seatback is folded forwards. WARNING
l The
luggage compartment in the rear of
the vehicle should never be used as a play
area by children. Children should be seat-
ed with seat belts fastened when the vehi-
cle is in motion. Be sure that the rear seat-
backs are returned to their fully upright
position and locked in place. CAUTION
l
Do
not stack luggage above the seatback
height. Secure the luggage firmly.
Otherwise, serious accidents could result
due to restricted rear vision or unrestrain-
ed objects entering the passenger compart-
ment during sudden braking. To fold
Pull

the belt (A) behind the seatback that you wish
to fold, then tilt the seatback forwards until it locks. To return
1. Pull
the belt (A) behind the seatback which
is desired to be raised, then raise the seatback
until it locks securely into place.
2. Push lightly on the seatback to confirm that it has actually been secured. Head restraints
E00403301240 WARNING
l Driving
without the head restraints in
place can cause you and your passengers
serious injury or death in an accident. To
reduce the risk of injury in an accident, al-
ways make sure the head restraints are in-
stalled and properly positioned when the
seat is occupied.
l Never place a cushion or similar device
on the seatback. This can adversely affect
head restraint performance by increasing
the distance between your head and the
restraint.
To adjust height
Adjust
the head restraint height so that the centre
of the restraint is as close as possible to eye level to
reduce the chances of injury in the event of colli-
sion. Any person too tall for the restraint to reach
their seated eye level, should adjust the restraint as
high as possible. Seat and seat belts
2-11 2
Presented by http://mmc-manuals.ru/ \251

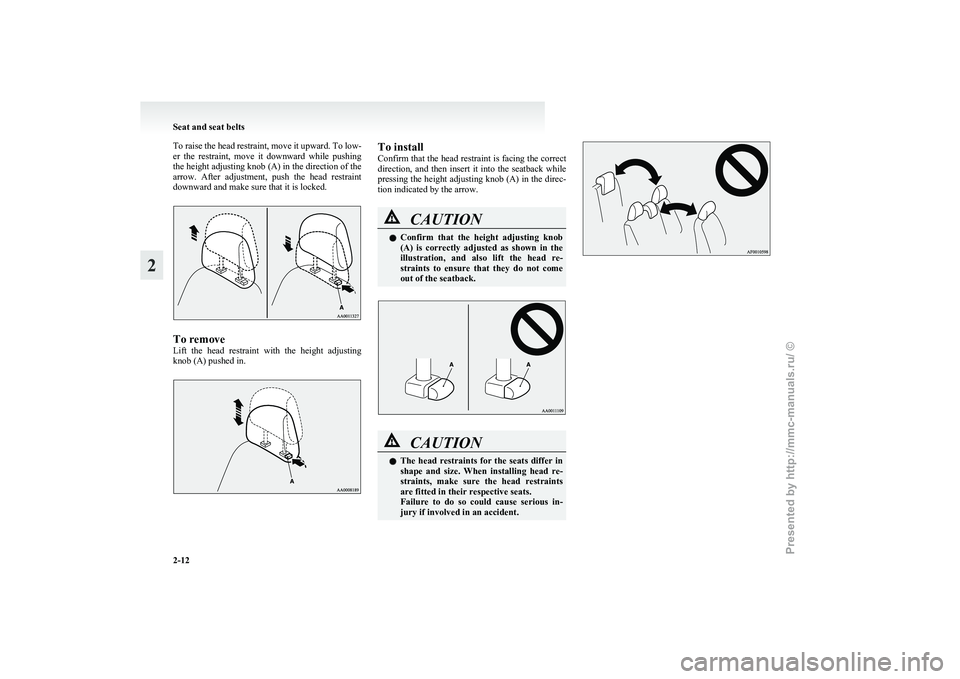

To raise the head restraint, move it upward. To low-
er
the restraint, move it downward while pushing
the height adjusting knob (A) in the direction of the
arrow. After adjustment, push the head restraint
downward and make sure that it is locked. To remove
Lift

the head restraint with the height adjusting
knob (A) pushed in. To install
Confirm

that the head restraint is facing the correct
direction, and then insert it into the seatback while
pressing the height adjusting knob (A) in the direc-
tion indicated by the arrow. CAUTION
l
Confirm
that the height adjusting knob
(A) is correctly adjusted as shown in the
illustration, and also lift the head re-
straints to ensure that they do not come
out of the seatback. CAUTION
l
The
head restraints for the seats differ in
shape and size. When installing head re-
straints, make sure the head restraints
are fitted in their respective seats.
Failure to do so could cause serious in-
jury if involved in an accident. Seat and seat belts
2-12
2
Presented by http://mmc-manuals.ru/ \251

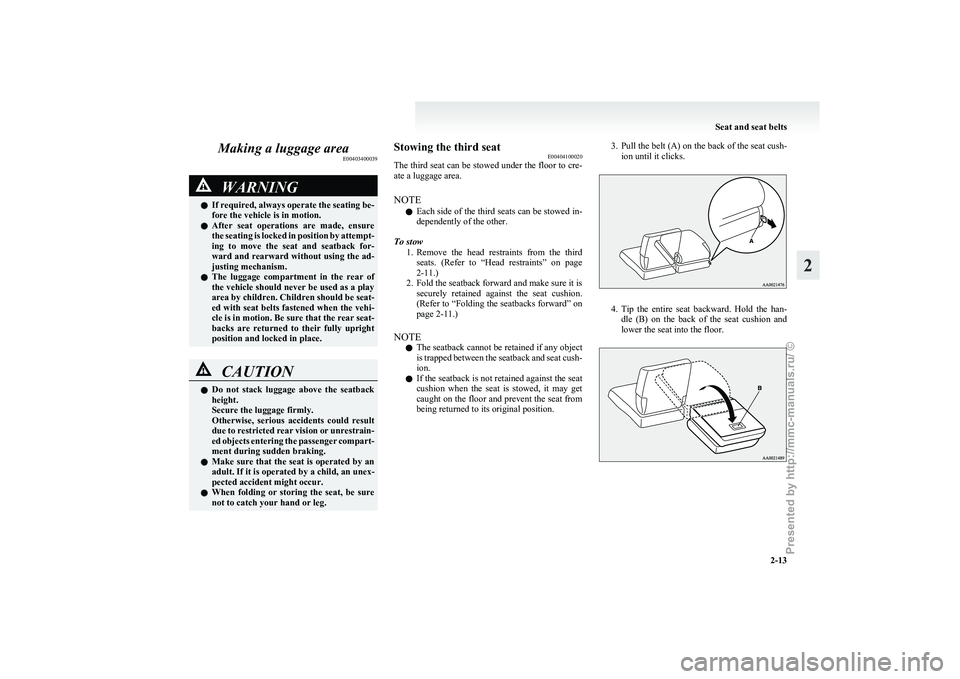

Making a luggage area
E00403400039WARNING
l If required, always operate the seating be-
fore the vehicle is in motion.
l After seat operations are made, ensure
the seating is locked in position by attempt-
ing to move the seat and seatback for-
ward and rearward without using the ad-
justing mechanism.
l The luggage compartment in the rear of
the vehicle should never be used as a play
area by children. Children should be seat-
ed with seat belts fastened when the vehi-
cle is in motion. Be sure that the rear seat-
backs are returned to their fully upright
position and locked in place. CAUTION
l
Do
not stack luggage above the seatback
height.
Secure the luggage firmly.
Otherwise, serious accidents could result
due to restricted rear vision or unrestrain-
ed objects entering the passenger compart-
ment during sudden braking.
l Make sure that the seat is operated by an
adult. If it is operated by a child, an unex-
pected accident might occur.
l When folding or storing the seat, be sure
not to catch your hand or leg. Stowing the third seat
E00404100020
The

third seat can be stowed under the floor to cre-
ate a luggage area.
NOTE
l Each side of the third seats can be stowed in-
dependently of the other.
To stow 1. Remove the head restraints from the thirdseats. (Refer to “Head restraints” on page
2-11.)
2. Fold the seatback forward and make sure it is securely retained against the seat cushion.
(Refer to “Folding the seatbacks forward” on
page 2-11.)
NOTE l The seatback cannot be retained if any object
is trapped between the seatback and seat cush-
ion.
l If the seatback is not retained against the seat
cushion when the seat is stowed, it may get
caught on the floor and prevent the seat from
being returned to its original position. 3. Pull the belt (A) on the back of the seat cush-
ion until it clicks. 4. Tip
the entire seat backward. Hold the han-
dle (B) on the back of the seat cushion and
lower the seat into the floor. Seat and seat belts
2-13 2
Presented by http://mmc-manuals.ru/ \251

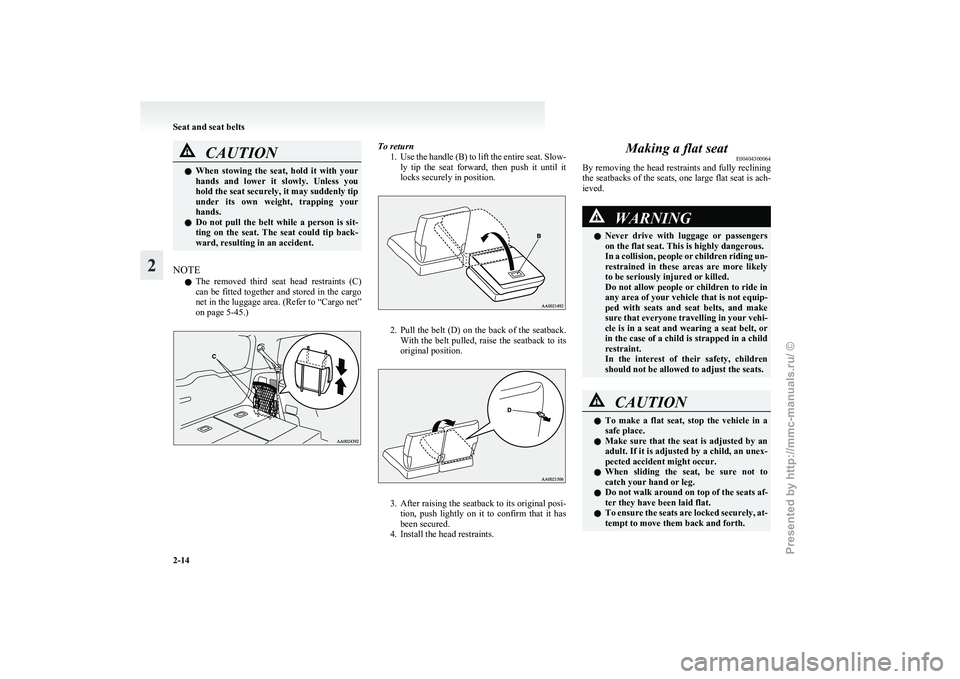

CAUTION
l
When stowing the seat, hold it with your
hands and lower it slowly. Unless you
hold the seat securely, it may suddenly tip
under its own weight, trapping your
hands.
l Do not pull the belt while a person is sit-
ting on the seat. The seat could tip back-
ward, resulting in an accident.
NOTE l The

removed third seat head restraints (C)
can be fitted together and stored in the cargo
net in the luggage area. (Refer to “Cargo net”
on page 5-45.) To return
1. Use
the handle (B) to lift the entire seat. Slow-
ly tip the seat forward, then push it until it
locks securely in position. 2. Pull
the belt (D) on the back of the seatback.
With the belt pulled, raise the seatback to its
original position. 3. After
raising the seatback to its original posi-
tion, push lightly on it to confirm that it has
been secured.
4. Install the head restraints. Making a flat seat
E00404300064
By

removing the head restraints and fully reclining
the seatbacks of the seats, one large flat seat is ach-
ieved. WARNING
l Never
drive with luggage or passengers
on the flat seat. This is highly dangerous.
In a collision, people or children riding un-
restrained in these areas are more likely
to be seriously injured or killed.
Do not allow people or children to ride in
any area of your vehicle that is not equip-
ped with seats and seat belts, and make
sure that everyone travelling in your vehi-
cle is in a seat and wearing a seat belt, or
in the case of a child is strapped in a child
restraint.
In the interest of their safety, children
should not be allowed to adjust the seats. CAUTION
l
To
make a flat seat, stop the vehicle in a
safe place.
l Make sure that the seat is adjusted by an
adult. If it is adjusted by a child, an unex-
pected accident might occur.
l When sliding the seat, be sure not to
catch your hand or leg.
l Do not walk around on top of the seats af-
ter they have been laid flat.
l To ensure the seats are locked securely, at-
tempt to move them back and forth. Seat and seat belts
2-14
2
Presented by http://mmc-manuals.ru/ \251

CAUTION
l
Do not jump on, or impact the seatbacks
heavily.
l To raise the seatback, sit on the seat and
put a hand on the seatback and raise slow-
ly. Never have a child do this operation,
or an unexpected accident may result.

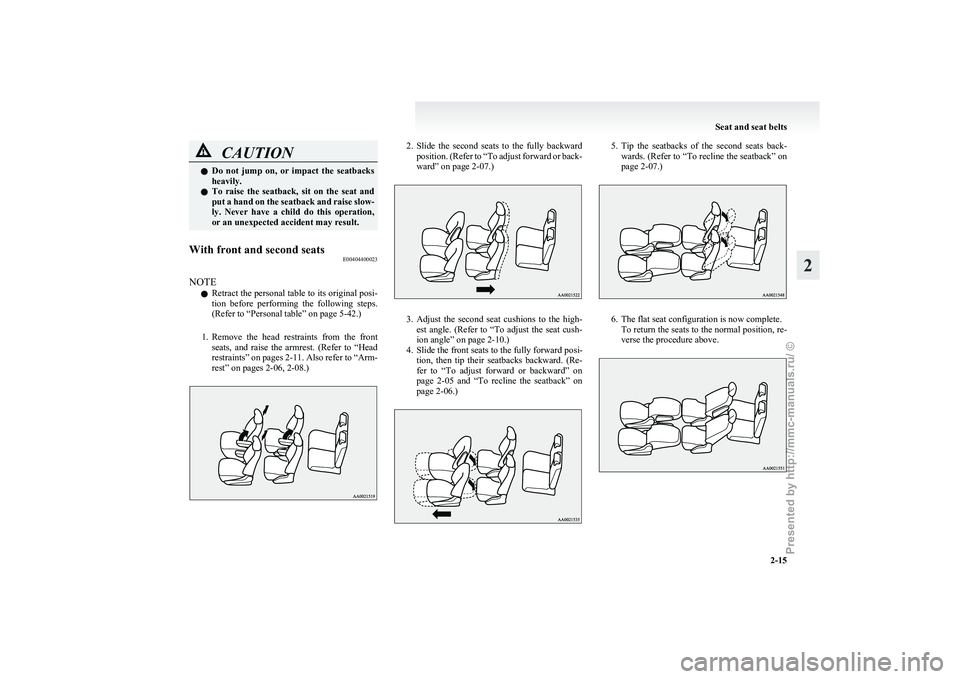

With front and second seats E00404400023
NOTE l Retract

the personal table to its original posi-
tion before performing the following steps.
(Refer to “Personal table” on page 5-42.)
1. Remove the head restraints from the front seats, and raise the armrest. (Refer to “Head
restraints” on pages 2-11. Also refer to “Arm-
rest” on pages 2-06, 2-08.) 2. Slide
the second seats to the fully backward
position. (Refer to “To adjust forward or back-
ward” on page 2-07.) 3. Adjust
the second seat cushions to the high-
est angle. (Refer to “To adjust the seat cush-
ion angle” on page 2-10.)
4. Slide the front seats to the fully forward posi- tion, then tip their seatbacks backward. (Re-
fer to “To adjust forward or backward” on
page 2-05 and “To recline the seatback” on
page 2-06.) 5. Tip
the seatbacks of the second seats back-
wards. (Refer to “To recline the seatback” on
page 2-07.) 6. The flat seat configuration is now complete.
To
return the seats to the normal position, re-
verse the procedure above. Seat and seat belts
2-15 2
Presented by http://mmc-manuals.ru/ \251
