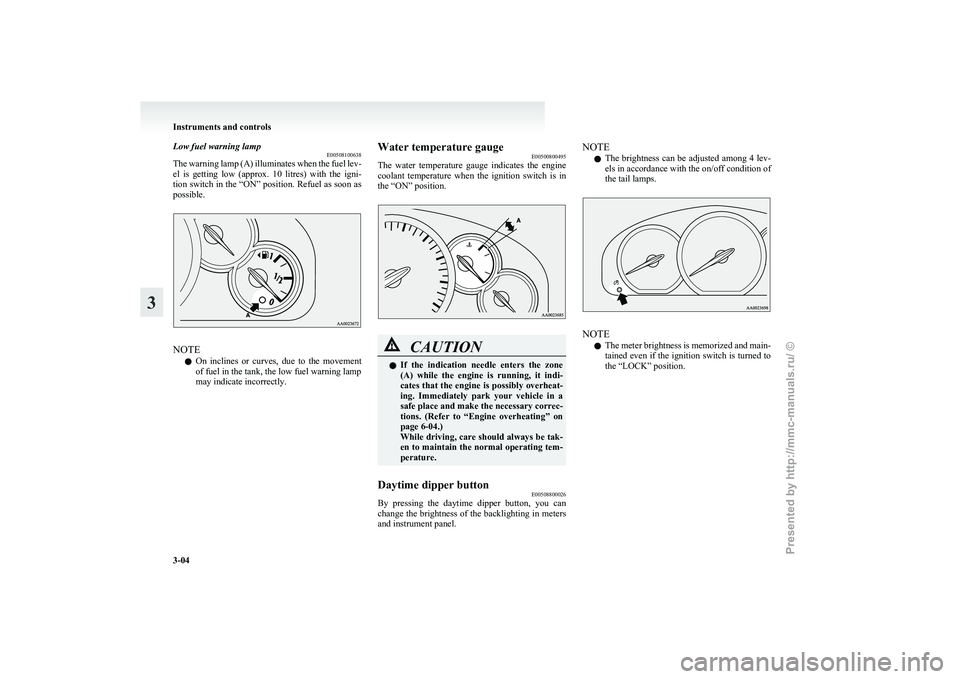

Low fuel warning lamp
E00508100638
The
warning lamp (A) illuminates when the fuel lev-
el is getting low (approx. 10 litres) with the igni-
tion switch in the “ON” position. Refuel as soon as
possible. NOTE
l On

inclines or curves, due to the movement
of fuel in the tank, the low fuel warning lamp
may indicate incorrectly. Water temperature gauge
E00500800495
The

water temperature gauge indicates the engine
coolant temperature when the ignition switch is in
the “ON” position. CAUTION
l
If
the indication needle enters the zone
(A) while the engine is running, it indi-
cates that the engine is possibly overheat-
ing. Immediately park your vehicle in a
safe place and make the necessary correc-
tions. (Refer to “Engine overheating” on
page 6-04.)
While driving, care should always be tak-
en to maintain the normal operating tem-
perature.
Daytime dipper button E00508800026
By pressing the daytime dipper button, you can
change

the brightness of the backlighting in meters
and instrument panel. NOTE
l The

brightness can be adjusted among 4 lev-
els in accordance with the on/off condition of
the tail lamps. NOTE
l The

meter brightness is memorized and main-
tained even if the ignition switch is turned to
the “LOCK” position. Instruments and controls
3-04
3
Presented by http://mmc-manuals.ru/ \251

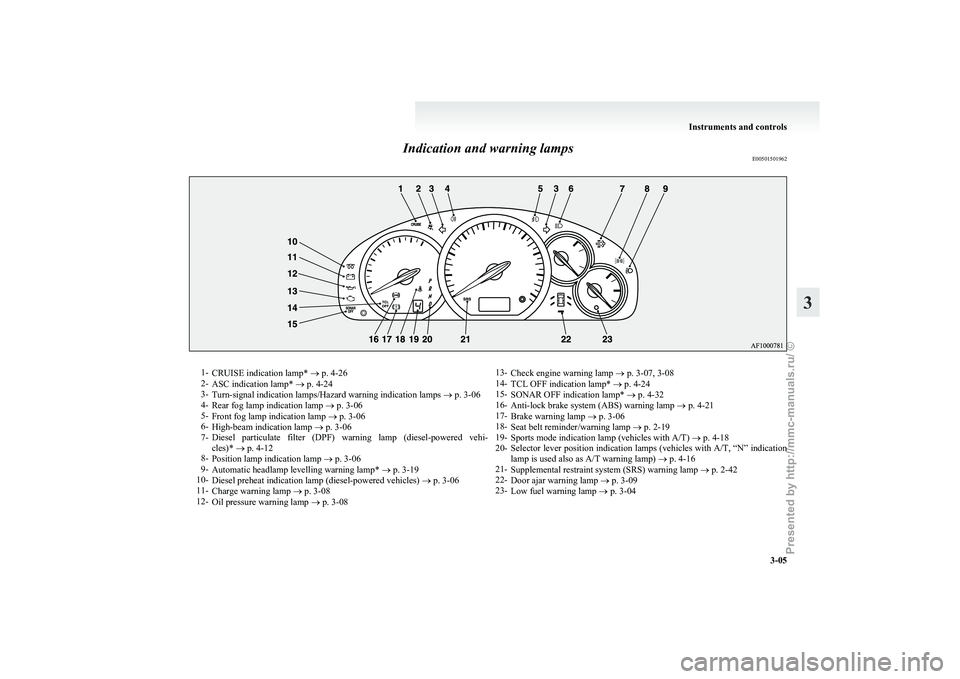

Indication and warning lamps
E005015019621-
CRUISE indication lamp* ® p. 4-26
2- ASC indication lamp* ® p. 4-24
3- Turn-signal indication lamps/Hazard warning indication lamps ® p. 3-06
4- Rear fog lamp indication lamp ® p. 3-06
5- Front fog lamp indication lamp ® p. 3-06
6- High-beam indication lamp ® p. 3-06
7- Diesel particulate filter (DPF) warning lamp (diesel-powered vehi-
cles)* ® p. 4-12
8- Position lamp indication lamp ® p. 3-06
9- Automatic headlamp levelling warning lamp* ® p. 3-19
10- Diesel preheat indication lamp (diesel-powered vehicles) ® p. 3-06
11- Charge warning lamp ® p. 3-08
12- Oil pressure warning lamp ® p. 3-08 13-
Check engine warning lamp ® p. 3-07, 3-08
14- TCL OFF indication lamp* ® p. 4-24
15- SONAR OFF indication lamp* ® p. 4-32
16- Anti-lock brake system (ABS) warning lamp ® p. 4-21
17- Brake warning lamp ® p. 3-06
18- Seat belt reminder/warning lamp ® p. 2-19
19- Sports mode indication lamp (vehicles with A/T) ® p. 4-18
20- Selector lever position indication lamps (vehicles with A/T, “N” indication
lamp is used also as A/T warning lamp) ® p. 4-16
21- Supplemental restraint system (SRS) warning lamp ® p. 2-42
22- Door ajar warning lamp ® p. 3-09
23- Low fuel warning lamp ® p. 3-04 Instruments and controls
3-05 3
Presented by http://mmc-manuals.ru/ \251

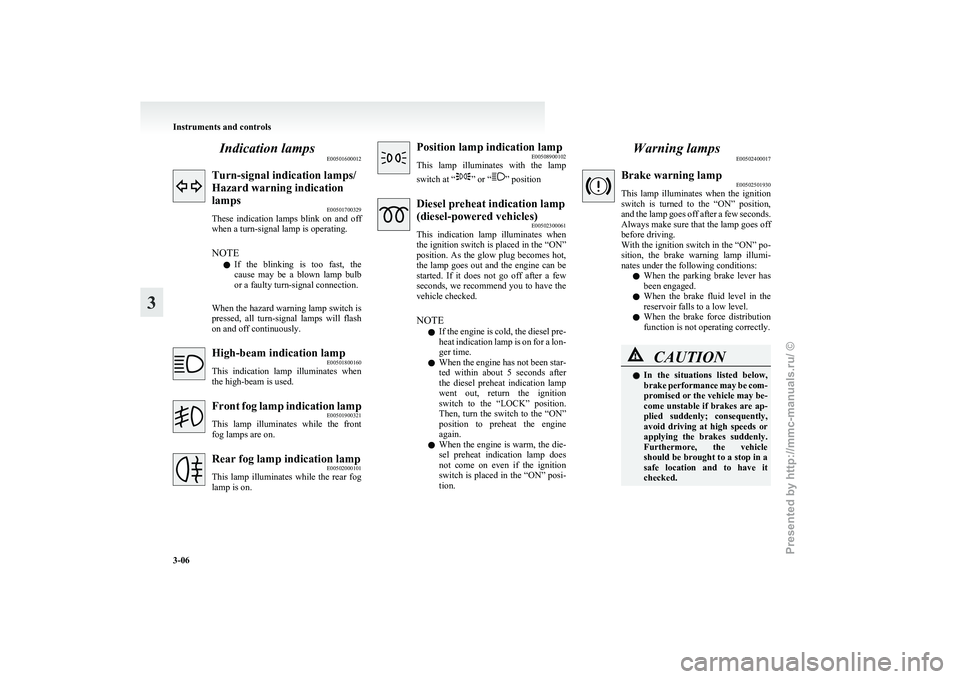

Indication lamps
E00501600012Turn-signal indication lamps/
Hazard warning indication
lamps
E00501700329
These
indication lamps blink on and off
when a turn-signal lamp is operating.
NOTE
l If the blinking is too fast, the
cause may be a blown lamp bulb
or a faulty turn-signal connection.
When the hazard warning lamp switch is
pressed, all turn-signal lamps will flash
on and off continuously. High-beam indication lamp
E00501800160
This

indication lamp illuminates when
the high-beam is used. Front fog lamp indication lamp
E00501900321
This

lamp illuminates while the front
fog lamps are on. Rear fog lamp indication lamp
E00502000101
This

lamp illuminates while the rear fog
lamp is on. Position lamp indication lamp
E00508900102
This

lamp illuminates with the lamp
switch at “ ” or “ ” position
Diesel preheat indication lamp
(diesel-powered vehicles)
E00502300061
This

indication lamp illuminates when
the ignition switch is placed in the “ON”
position. As the glow plug becomes hot,
the lamp goes out and the engine can be
started. If it does not go off after a few
seconds, we recommend you to have the
vehicle checked.
NOTE
l If the engine is cold, the diesel pre-
heat indication lamp is on for a lon-
ger time.
l When the engine has not been star-
ted within about 5 seconds after
the diesel preheat indication lamp
went out, return the ignition
switch to the “LOCK” position.
Then, turn the switch to the “ON”
position to preheat the engine
again.
l When the engine is warm, the die-
sel preheat indication lamp does
not come on even if the ignition
switch is placed in the “ON” posi-
tion. Warning lamps
E00502400017 Brake warning lamp
E00502501930
This

lamp illuminates when the ignition
switch is turned to the “ON” position,
and the lamp goes off after a few seconds.
Always make sure that the lamp goes off
before driving.
With the ignition switch in the “ON” po-
sition, the brake warning lamp illumi-
nates under the following conditions:
l When the parking brake lever has
been engaged.
l When the brake fluid level in the
reservoir falls to a low level.
l When the brake force distribution
function is not operating correctly. CAUTION
l
In
the situations listed below,
brake performance may be com-
promised or the vehicle may be-
come unstable if brakes are ap-
plied suddenly; consequently,
avoid driving at high speeds or
applying the brakes suddenly.
Furthermore, the vehicle
should be brought to a stop in a
safe location and to have it
checked. Instruments and controls
3-06
3
Presented by http://mmc-manuals.ru/ \251

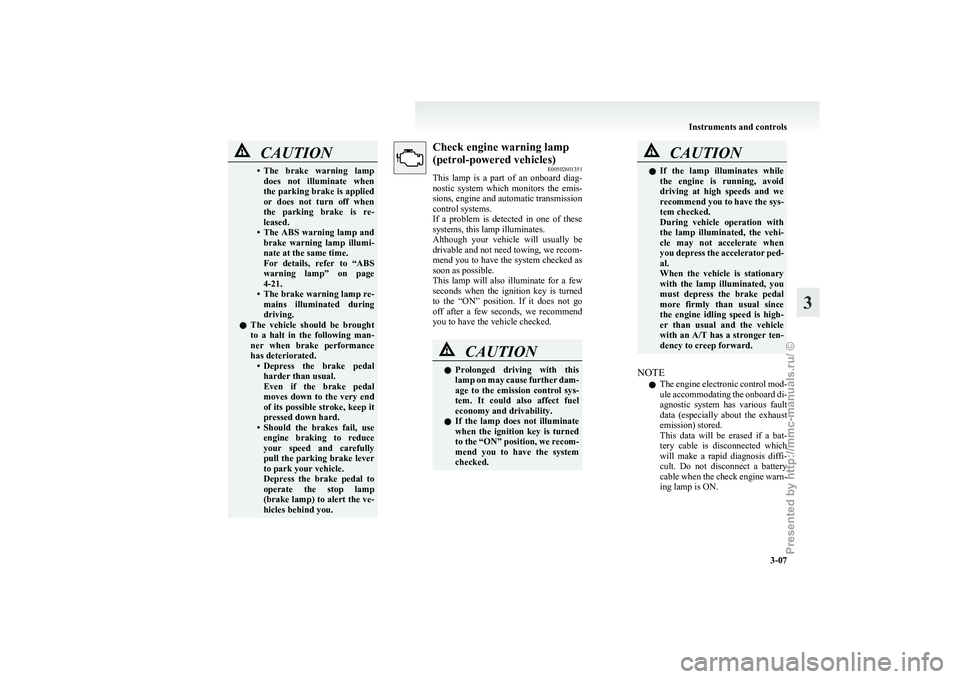

CAUTION
• The brake warning lamp
does not illuminate when
the parking brake is applied
or does not turn off when
the parking brake is re-
leased.
• The ABS warning lamp and brake warning lamp illumi-
nate at the same time.
For details, refer to “ABS
warning lamp” on page
4-21.
• The brake warning lamp re- mains illuminated during
driving.
l The vehicle should be brought
to a halt in the following man-
ner when brake performance
has deteriorated.
• Depress the brake pedalharder than usual.
Even if the brake pedal
moves down to the very end
of its possible stroke, keep it
pressed down hard.
• Should the brakes fail, use engine braking to reduce
your speed and carefully
pull the parking brake lever
to park your vehicle.
Depress the brake pedal to
operate the stop lamp
(brake lamp) to alert the ve-
hicles behind you. Check engine warning lamp
(petrol-powered vehicles)
E00502601351
This

lamp is a part of an onboard diag-
nostic system which monitors the emis-
sions, engine and automatic transmission
control systems.
If a problem is detected in one of these
systems, this lamp illuminates.
Although your vehicle will usually be
drivable and not need towing, we recom-
mend you to have the system checked as
soon as possible.
This lamp will also illuminate for a few
seconds when the ignition key is turned
to the “ON” position. If it does not go
off after a few seconds, we recommend
you to have the vehicle checked. CAUTION
l
Prolonged
driving with this
lamp on may cause further dam-
age to the emission control sys-
tem. It could also affect fuel
economy and drivability.
l If the lamp does not illuminate
when the ignition key is turned
to the “ON” position, we recom-
mend you to have the system
checked. CAUTION
l
If
the lamp illuminates while
the engine is running, avoid
driving at high speeds and we
recommend you to have the sys-
tem checked.
During vehicle operation with
the lamp illuminated, the vehi-
cle may not accelerate when
you depress the accelerator ped-
al.
When the vehicle is stationary
with the lamp illuminated, you
must depress the brake pedal
more firmly than usual since
the engine idling speed is high-
er than usual and the vehicle
with an A/T has a stronger ten-
dency to creep forward.
NOTE l The

engine electronic control mod-
ule accommodating the onboard di-
agnostic system has various fault
data (especially about the exhaust
emission) stored.
This data will be erased if a bat-
tery cable is disconnected which
will make a rapid diagnosis diffi-
cult. Do not disconnect a battery
cable when the check engine warn-
ing lamp is ON. Instruments and controls
3-07 3
Presented by http://mmc-manuals.ru/ \251

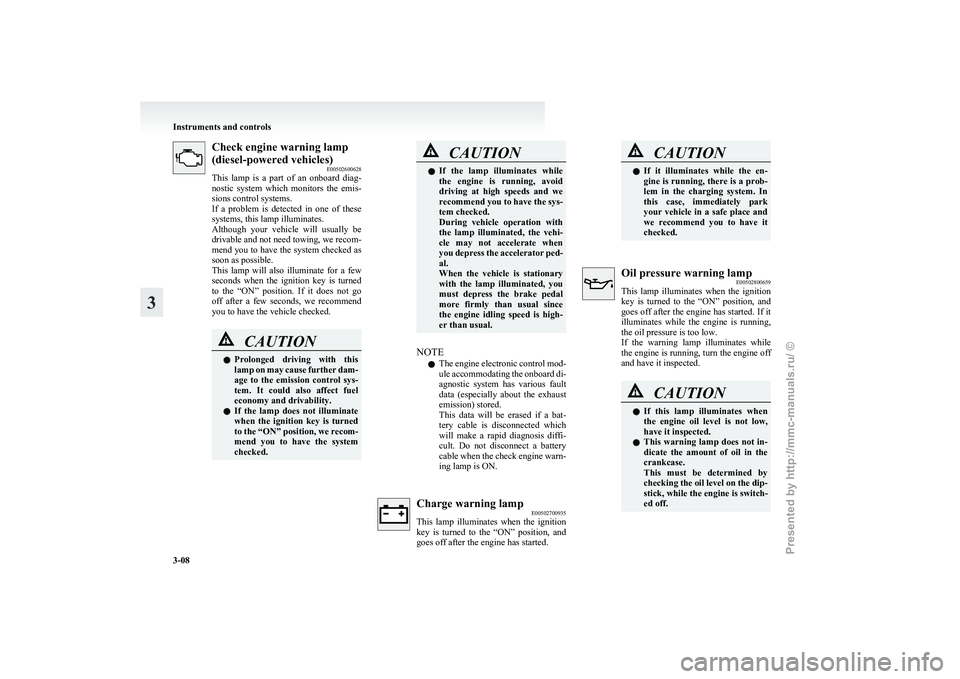

Check engine warning lamp
(diesel-powered vehicles)
E00502600628
This
lamp is a part of an onboard diag-
nostic system which monitors the emis-
sions control systems.
If a problem is detected in one of these
systems, this lamp illuminates.
Although your vehicle will usually be
drivable and not need towing, we recom-
mend you to have the system checked as
soon as possible.
This lamp will also illuminate for a few
seconds when the ignition key is turned
to the “ON” position. If it does not go
off after a few seconds, we recommend
you to have the vehicle checked. CAUTION
l
Prolonged
driving with this
lamp on may cause further dam-
age to the emission control sys-
tem. It could also affect fuel
economy and drivability.
l If the lamp does not illuminate
when the ignition key is turned
to the “ON” position, we recom-
mend you to have the system
checked. CAUTION
l
If
the lamp illuminates while
the engine is running, avoid
driving at high speeds and we
recommend you to have the sys-
tem checked.
During vehicle operation with
the lamp illuminated, the vehi-
cle may not accelerate when
you depress the accelerator ped-
al.
When the vehicle is stationary
with the lamp illuminated, you
must depress the brake pedal
more firmly than usual since
the engine idling speed is high-
er than usual.
NOTE l The

engine electronic control mod-
ule accommodating the onboard di-
agnostic system has various fault
data (especially about the exhaust
emission) stored.
This data will be erased if a bat-
tery cable is disconnected which
will make a rapid diagnosis diffi-
cult. Do not disconnect a battery
cable when the check engine warn-
ing lamp is ON. Charge warning lamp
E00502700935
This

lamp illuminates when the ignition
key is turned to the “ON” position, and
goes off after the engine has started. CAUTION
l
If
it illuminates while the en-
gine is running, there is a prob-
lem in the charging system. In
this case, immediately park
your vehicle in a safe place and
we recommend you to have it
checked. Oil pressure warning lamp
E00502800659
This

lamp illuminates when the ignition
key is turned to the “ON” position, and
goes off after the engine has started. If it
illuminates while the engine is running,
the oil pressure is too low.
If the warning lamp illuminates while
the engine is running, turn the engine off
and have it inspected. CAUTION
l
If
this lamp illuminates when
the engine oil level is not low,
have it inspected.
l This warning lamp does not in-
dicate the amount of oil in the
crankcase.
This must be determined by
checking the oil level on the dip-
stick, while the engine is switch-
ed off. Instruments and controls
3-08
3
Presented by http://mmc-manuals.ru/ \251

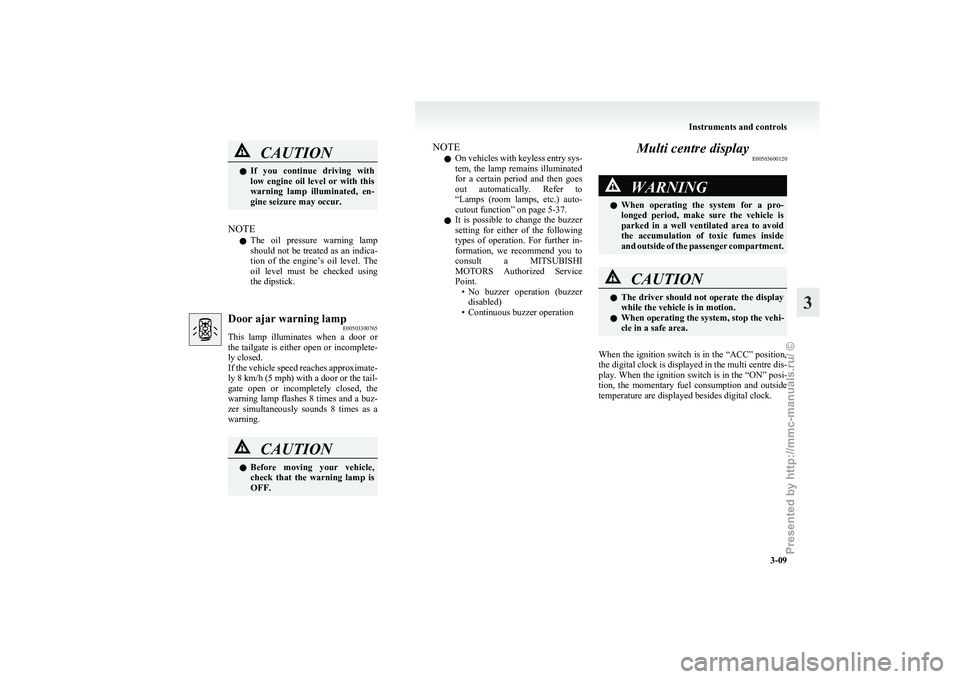

CAUTION
l
If you continue driving with
low engine oil level or with this
warning lamp illuminated, en-
gine seizure may occur.
NOTE l The

oil pressure warning lamp
should not be treated as an indica-
tion of the engine’s oil level. The
oil level must be checked using
the dipstick. Door ajar warning lamp
E00503300765
This

lamp illuminates when a door or
the tailgate is either open or incomplete-
ly closed.
If the vehicle speed reaches approximate-
ly 8 km/h (5 mph) with a door or the tail-
gate open or incompletely closed, the
warning lamp flashes 8 times and a buz-
zer simultaneously sounds 8 times as a
warning. CAUTION
l
Before
moving your vehicle,
check that the warning lamp is
OFF. NOTE
l On

vehicles with keyless entry sys-
tem, the lamp remains illuminated
for a certain period and then goes
out automatically. Refer to
“Lamps (room lamps, etc.) auto-
cutout function” on page 5-37.
l It is possible to change the buzzer
setting for either of the following
types of operation. For further in-
formation, we recommend you to
consult a MITSUBISHI
MOTORS Authorized Service
Point.
• No buzzer operation (buzzerdisabled)
• Continuous buzzer operation Multi centre display
E00503600120 WARNING
l When
operating the system for a pro-
longed period, make sure the vehicle is
parked in a well ventilated area to avoid
the accumulation of toxic fumes inside
and outside of the passenger compartment. CAUTION
l
The
driver should not operate the display
while the vehicle is in motion.
l When operating the system, stop the vehi-
cle in a safe area.
When the ignition switch is in the “ACC” position,
the
digital clock is displayed in the multi centre dis-
play. When the ignition switch is in the “ON” posi-
tion, the momentary fuel consumption and outside
temperature are displayed besides digital clock. Instruments and controls
3-09 3
Presented by http://mmc-manuals.ru/ \251

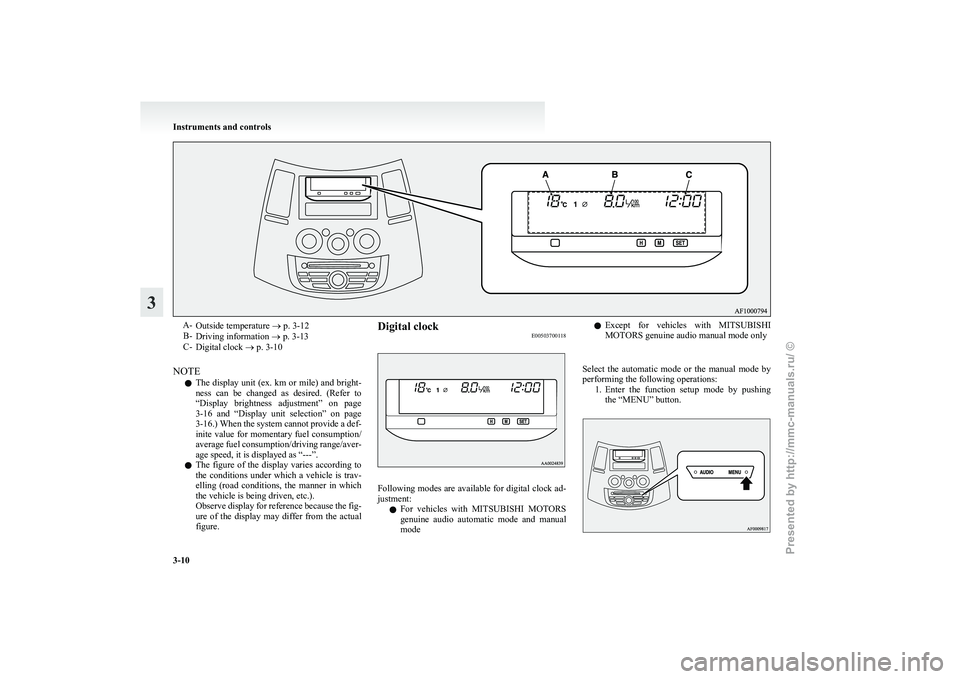

A-
Outside temperature ® p. 3-12
B- Driving information ® p. 3-13
C- Digital clock ® p. 3-10
NOTE l The display unit (ex. km or mile) and bright-
ness can be changed as desired. (Refer to
“Display brightness adjustment” on page
3-16 and “Display unit selection” on page
3-16.) When the system cannot provide a def-
inite value for momentary fuel consumption/
average fuel consumption/driving range/aver-
age speed, it is displayed as “---”.
l The figure of the display varies according to
the conditions under which a vehicle is trav-
elling (road conditions, the manner in which
the vehicle is being driven, etc.).
Observe display for reference because the fig-
ure of the display may differ from the actual
figure. Digital clock
E00503700118 Following modes are available for digital clock ad-
justment:
l For

vehicles with MITSUBISHI MOTORS
genuine audio automatic mode and manual
mode l
Except
for vehicles with MITSUBISHI
MOTORS genuine audio manual mode only

Select the automatic mode or the manual mode by
performing the following operations: 1. Enter the function setup mode by pushingthe “MENU” button. Instruments and controls
3-10
3
Presented by http://mmc-manuals.ru/ \251

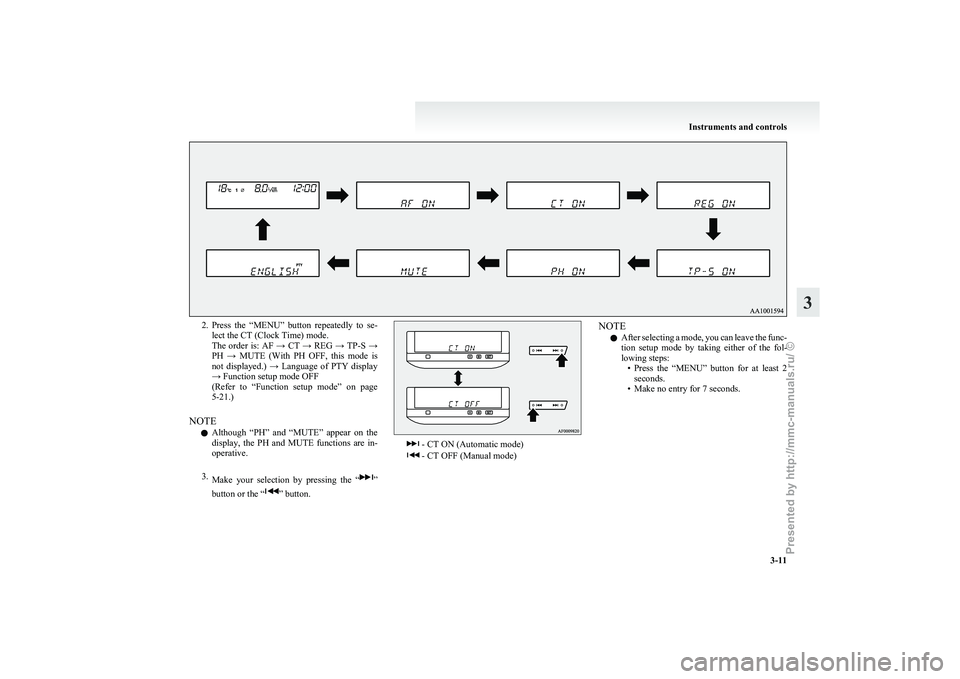

2. Press the “MENU” button repeatedly to se-
lect the CT (Clock Time) mode.
The order is: AF → CT → REG → TP-S →
PH → MUTE (With PH OFF, this mode is
not displayed.) → Language of PTY display
→ Function setup mode OFF
(Refer to “Function setup mode” on page
5-21.)
NOTE l Although “PH” and “MUTE” appear on the
display, the PH and MUTE functions are in-
operative.
3. Make your selection by pressing the “ ”
button or the “ ” button. - CT ON (Automatic mode)
- CT OFF (Manual mode)NOTE
l After
selecting a mode, you can leave the func-
tion setup mode by taking either of the fol-
lowing steps: • Press the “MENU” button for at least 2seconds.
• Make no entry for 7 seconds. Instruments and controls
3-11 3
Presented by http://mmc-manuals.ru/ \251

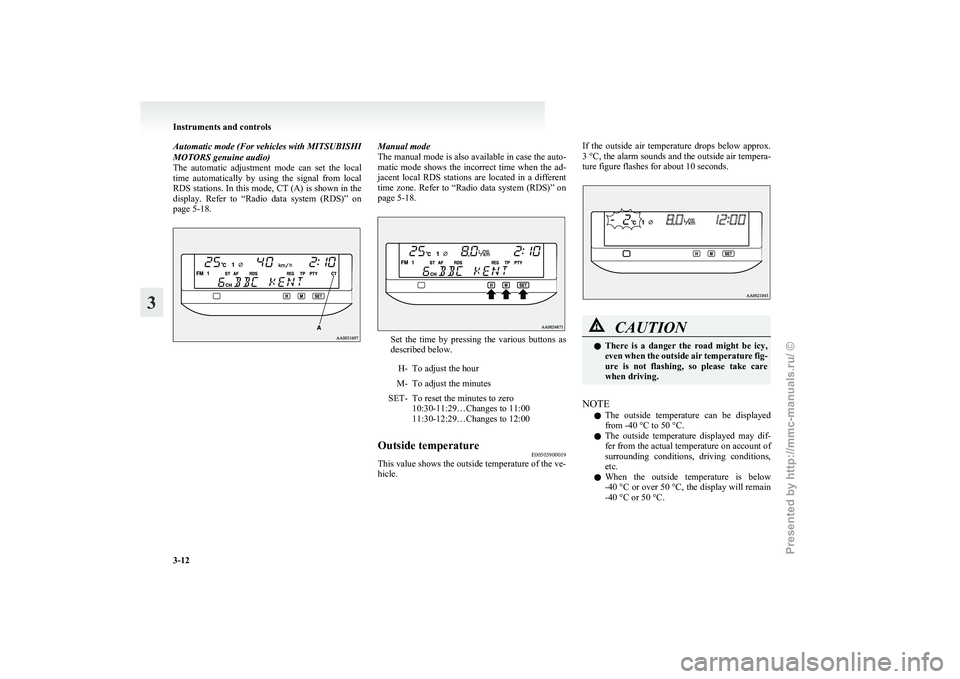

Automatic mode (For vehicles with MITSUBISHI
MOTORS genuine audio)
The
automatic adjustment mode can set the local
time automatically by using the signal from local
RDS stations. In this mode, CT (A) is shown in the
display. Refer to “Radio data system (RDS)” on
page 5-18. Manual mode
The
manual mode is also available in case the auto-
matic mode shows the incorrect time when the ad-
jacent local RDS stations are located in a different
time zone. Refer to “Radio data system (RDS)” on
page 5-18. Set the time by pressing the various buttons as
described below.
H- To adjust the hour
M- To adjust the minutes
SET- To reset the minutes to zero 10:30-11:29…Changes to 11:00
11:30-12:29…Changes to 12:00
Outside temperature E00503900019
This value shows the outside temperature of the ve-
hicle. If the outside air temperature drops below approx.
3 °C,
the alarm sounds and the outside air tempera-
ture figure flashes for about 10 seconds. CAUTION
l
There
is a danger the road might be icy,
even when the outside air temperature fig-
ure is not flashing, so please take care
when driving.
NOTE l The

outside temperature can be displayed
from -40 °C to 50 °C.
l The outside temperature displayed may dif-
fer from the actual temperature on account of
surrounding conditions, driving conditions,
etc.
l When the outside temperature is below
-40 °C or over 50 °C, the display will remain
-40 °C or 50 °C. Instruments and controls
3-12
3
Presented by http://mmc-manuals.ru/ \251

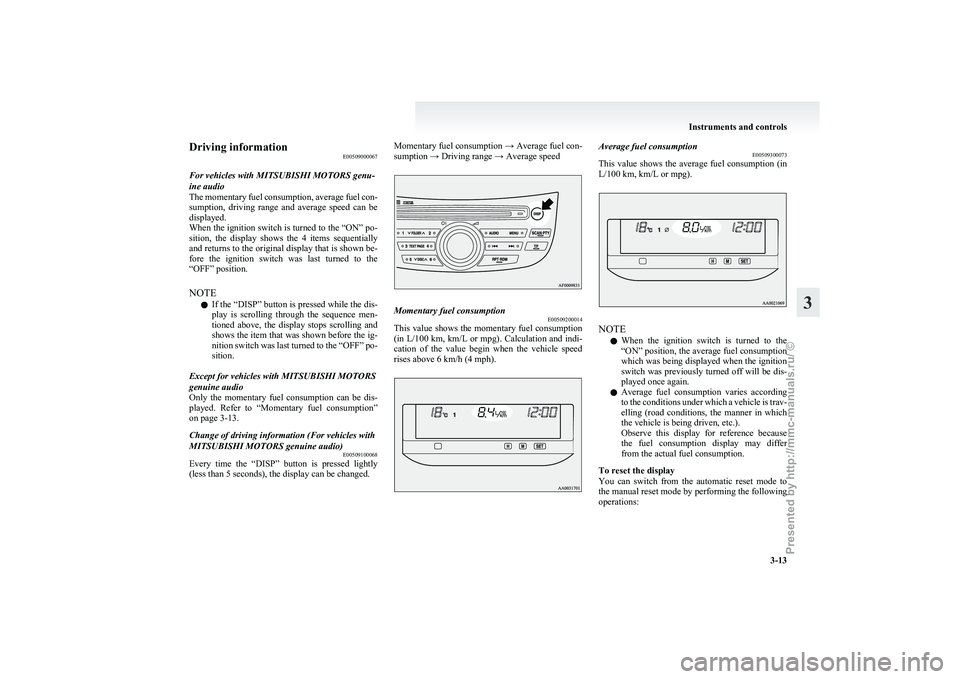

Driving information
E00509000067
For vehicles with MITSUBISHI MOTORS genu-
ine audio
The
momentary fuel consumption, average fuel con-
sumption, driving range and average speed can be
displayed.
When the ignition switch is turned to the “ON” po-
sition, the display shows the 4 items sequentially
and returns to the original display that is shown be-
fore the ignition switch was last turned to the
“OFF” position.
NOTE
l If the “DISP” button is pressed while the dis-
play is scrolling through the sequence men-
tioned above, the display stops scrolling and
shows the item that was shown before the ig-
nition switch was last turned to the “OFF” po-
sition.
Except for vehicles with MITSUBISHI MOTORS
genuine audio
Only the momentary fuel consumption can be dis-
played. Refer to “Momentary fuel consumption”
on page 3-13.
Change of driving information (For vehicles with
MITSUBISHI MOTORS
genuine audio)E00509100068
Every time the “DISP” button is pressed lightly
(less than 5 seconds), the display can be changed. Momentary fuel consumption → Average fuel con-
sumption → Driving range → Average speed
Momentary fuel consumption
E00509200014
This value shows the momentary fuel consumption
(in

L/100 km, km/L or mpg). Calculation and indi-
cation of the value begin when the vehicle speed
rises above 6 km/h (4 mph). Average fuel consumption
E00509300073
This

value shows the average fuel consumption (in
L/100 km, km/L or mpg). NOTE
l When

the ignition switch is turned to the
“ON” position, the average fuel consumption
which was being displayed when the ignition
switch was previously turned off will be dis-
played once again.
l Average fuel consumption varies according
to the conditions under which a vehicle is trav-
elling (road conditions, the manner in which
the vehicle is being driven, etc.).
Observe this display for reference because
the fuel consumption display may differ
from the actual fuel consumption.
To reset the display
You can switch from the automatic reset mode to
the manual reset mode by performing the following
operations: Instruments and controls
3-13 3
Presented by http://mmc-manuals.ru/ \251
