B- Fuse is OK
C- Blown fuse
NOTE l If
any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle checked.

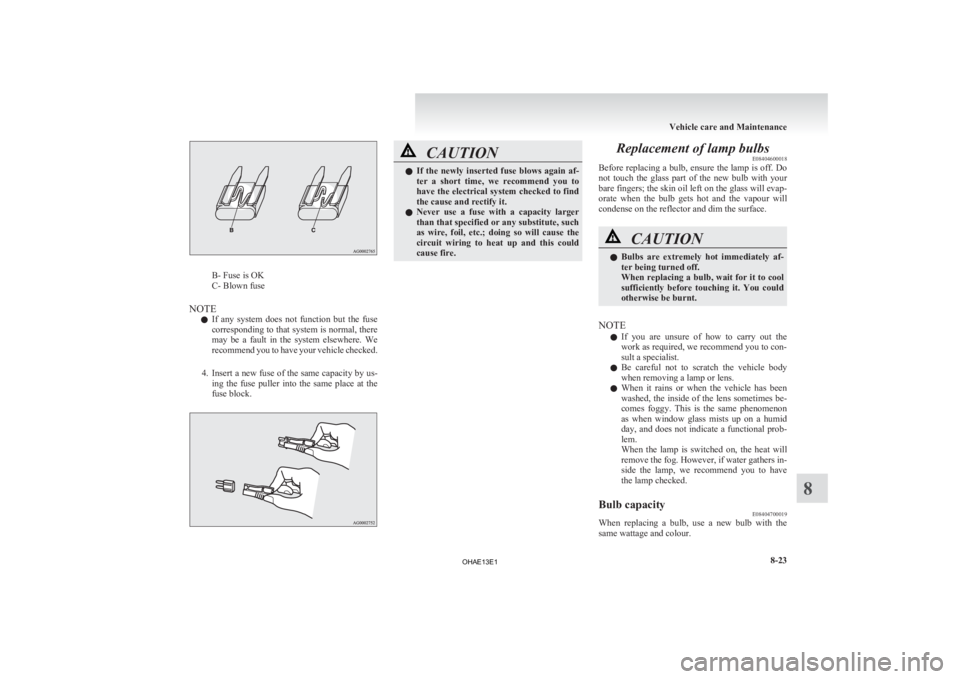

4. Insert a new fuse of the same capacity by us- ing the fuse puller into the same place at the
fuse block. CAUTION
l
If
the newly inserted fuse blows again af-
ter a short time, we recommend you to
have the electrical system checked to find
the cause and rectify it.
l Never use a fuse with a capacity larger
than that specified or any substitute, such
as wire, foil, etc.; doing so will cause the
circuit wiring to heat up and this could
cause fire. Replacement of lamp bulbs
E08404600018
Before

replacing a bulb, ensure the lamp is off. Do
not touch the glass part of the new bulb with your
bare fingers; the skin oil left on the glass will evap-
orate when the bulb gets hot and the vapour will
condense on the reflector and dim the surface. CAUTION
l
Bulbs
are extremely hot immediately af-
ter being turned off.
When replacing a bulb, wait for it to cool
sufficiently before touching it. You could
otherwise be burnt.
NOTE l If

you are unsure of how to carry out the
work as required, we recommend you to con-
sult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp or lens.
l When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon
as when window glass mists up on a humid
day, and does not indicate a functional prob-
lem.
When the lamp is switched on, the heat will
remove the fog. However, if water gathers in-
side the lamp, we recommend you to have
the lamp checked.
Bulb capacity E08404700019
When replacing a bulb, use a new bulb with the
same wattage and colour. Vehicle care and Maintenance
8-23 8
OHAE13E1

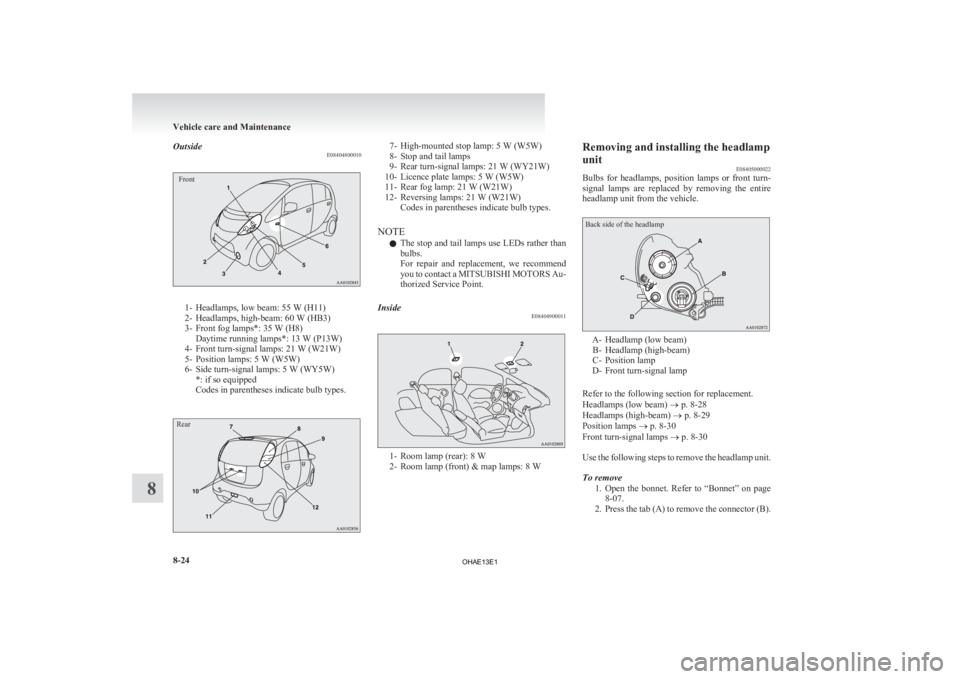

Outside
E08404800010Front1- Headlamps, low beam: 55 W (H11)
2-

Headlamps, high-beam: 60 W (HB3)
3- Front fog lamps*: 35 W (H8) Daytime running lamps*: 13 W (P13W)
4- Front turn-signal lamps: 21 W (W21W)
5- Position lamps: 5 W (W5W)
6- Side turn-signal lamps: 5 W (WY5W) *: if so equipped
Codes in parentheses indicate bulb types.

Rear 7- High-mounted stop lamp: 5 W (W5W)
8-

Stop and tail lamps
9- Rear turn-signal lamps: 21 W (WY21W)
10- Licence plate lamps: 5 W (W5W)
11- Rear fog lamp: 21 W (W21W)
12- Reversing lamps: 21 W (W21W) Codes in parentheses indicate bulb types.
NOTE l The stop and tail lamps use LEDs rather than
bulbs.
For repair and replacement, we recommend
you to contact a MITSUBISHI MOTORS Au-
thorized Service Point.
Inside E08404900011 1- Room lamp (rear): 8 W
2-

Room lamp (front) & map lamps: 8 W Removing and installing the headlamp
unit
E08405000022
Bulbs

for headlamps, position lamps or front turn-
signal lamps are replaced by removing the entire
headlamp unit from the vehicle.
Back side of the headlamp A- Headlamp (low beam)
B-
Headlamp (high-beam)
C- Position lamp
D- Front turn-signal lamp
Refer to the following section for replacement.
Headlamps (low beam) ® p. 8-28
Headlamps (high-beam) ® p. 8-29
Position lamps ® p. 8-30
Front turn-signal lamps ® p. 8-30

Use the following steps to remove the headlamp unit.
To remove
1. Open the bonnet. Refer to “Bonnet” on page8-07.

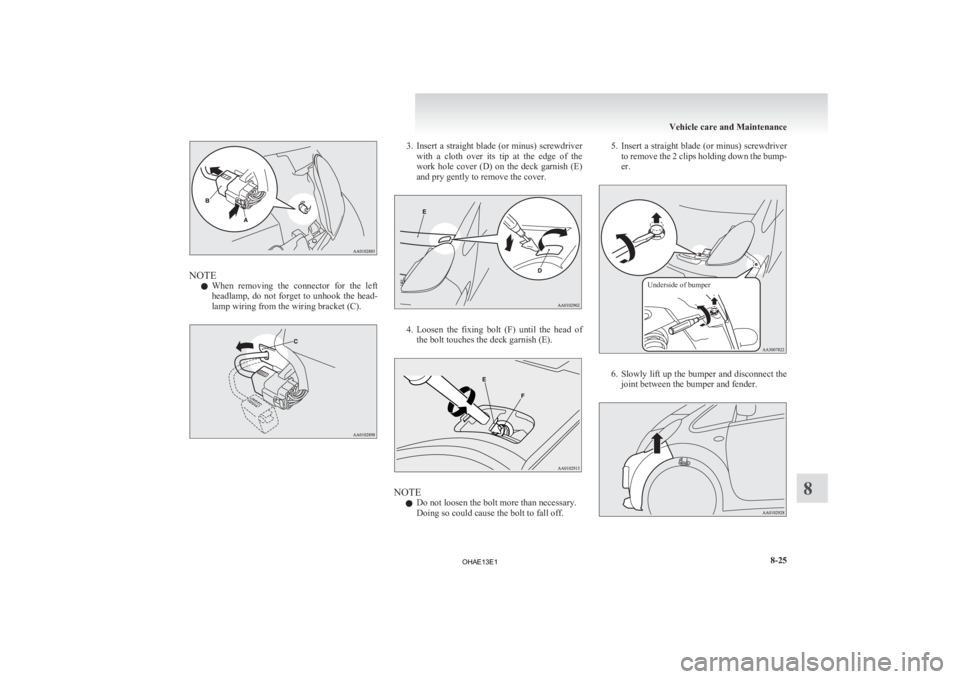

2. Press the tab (A) to remove the connector (B). Vehicle care and Maintenance
8-24
8
OHAE13E1

NOTE
l When
removing the connector for the left
headlamp, do not forget to unhook the head-
lamp wiring from the wiring bracket (C). 3. Insert
a straight blade (or minus) screwdriver
with a cloth over its tip at the edge of the
work hole cover (D) on the deck garnish (E)
and pry gently to remove the cover. 4. Loosen
the fixing bolt (F) until the head of
the bolt touches the deck garnish (E). NOTE
l Do not loosen the bolt more than necessary.
Doing so could cause the bolt to fall off. 5. Insert
a straight blade (or minus) screwdriver
to remove the 2 clips holding down the bump-
er.

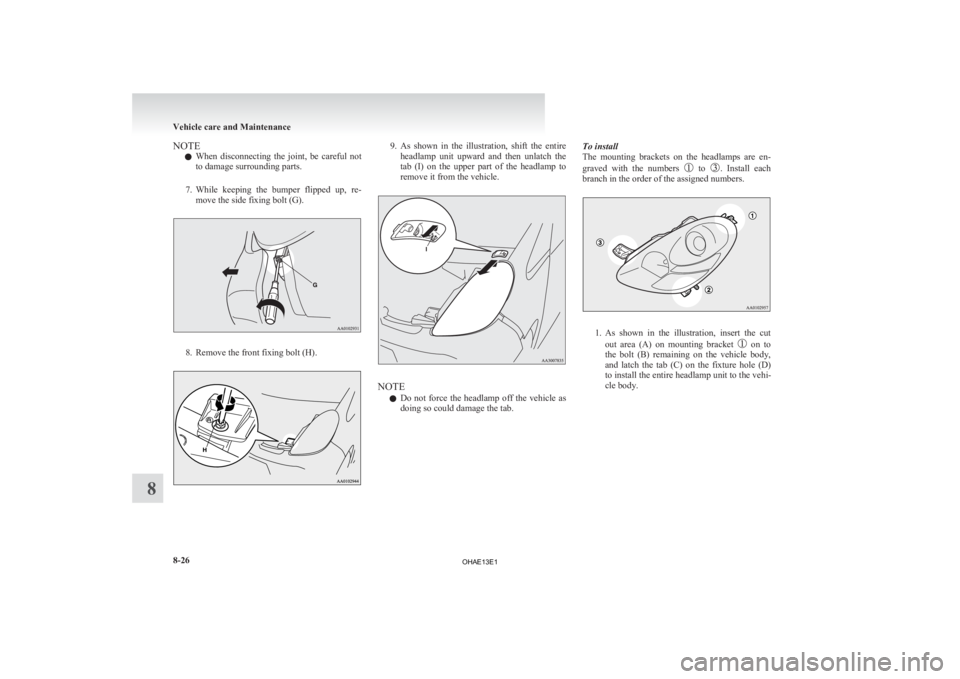

Underside of bumper 6. Slowly
lift up the bumper and disconnect the
joint between the bumper and fender. Vehicle care and Maintenance
8-25 8
OHAE13E1

NOTE
l When
disconnecting the joint, be careful not
to damage surrounding parts.
7. While keeping the bumper flipped up, re- move the side fixing bolt (G). 8. Remove the front fixing bolt (H). 9. As shown in the illustration, shift the entire
headlamp unit upward and then unlatch the
tab (I) on the upper part of the headlamp to
remove it from the vehicle. NOTE
l Do

not force the headlamp off the vehicle as
doing so could damage the tab. To install
The

mounting brackets on the headlamps are en-
graved with the numbers to . Install each
branch in the order of the assigned numbers. 1. As
shown in the illustration, insert the cut
out area (A) on mounting bracket on to
the
bolt (B) remaining on the vehicle body,
and latch the tab (C) on the fixture hole (D)
to install the entire headlamp unit to the vehi-
cle body. Vehicle care and Maintenance
8-26
8
OHAE13E1

NOTE
l Use
the work hole (E) on the deck garnish to
confirm that the tab (C) on the upper part of
the headlamp is firmly fixed in place.
Upper part of headlamp 2. Make
sure that the tip (F) of the mounting
bracket is hooked on the body edge (G).
3. Make
sure that the pin (H) is inside the hole
on the mounting bracket . 4. Firmly
tighten the headlamp mounting bolts
in the following order: to .
5. After
pressing down on the bumper and fend-
er joint from above to fit it in, fix it in place
with the clip. NOTE
l Secure

the bumper clip by first inserting it in-
to the mounting hole and then pressing the
centre (I) of the clip in. Vehicle care and Maintenance
8-27 8
OHAE13E1

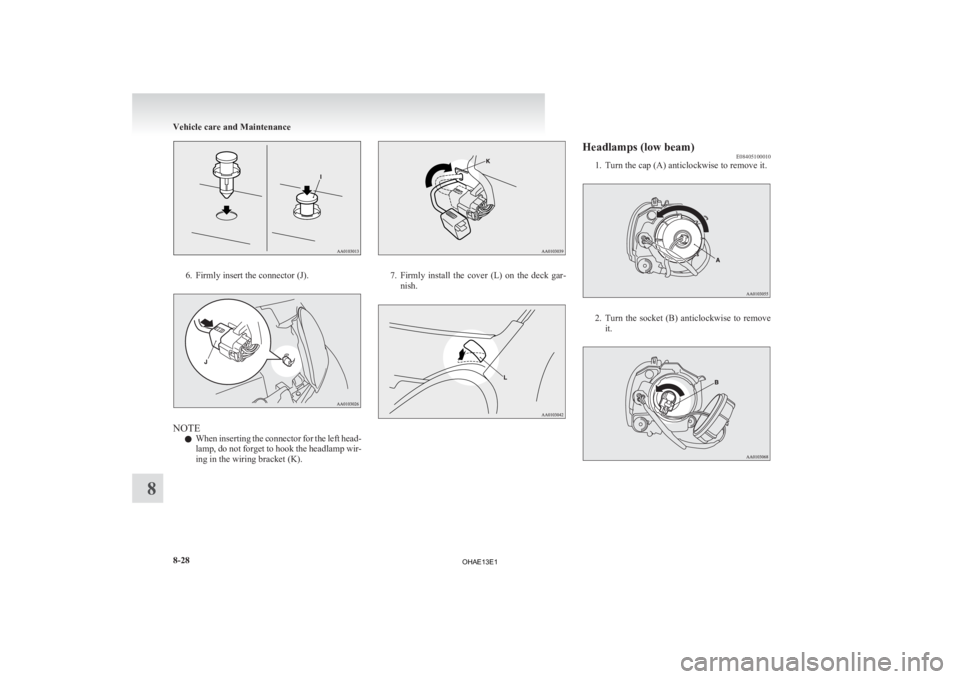

6. Firmly insert the connector (J).
NOTE
l When
inserting the connector for the left head-
lamp, do not forget to hook the headlamp wir-
ing in the wiring bracket (K). 7. Firmly
install the cover (L) on the deck gar-
nish. Headlamps (low beam)
E08405100010
1.

Turn the cap (A) anticlockwise to remove it. 2. Turn
the socket (B) anticlockwise to remove
it. Vehicle care and Maintenance
8-28
8
OHAE13E1

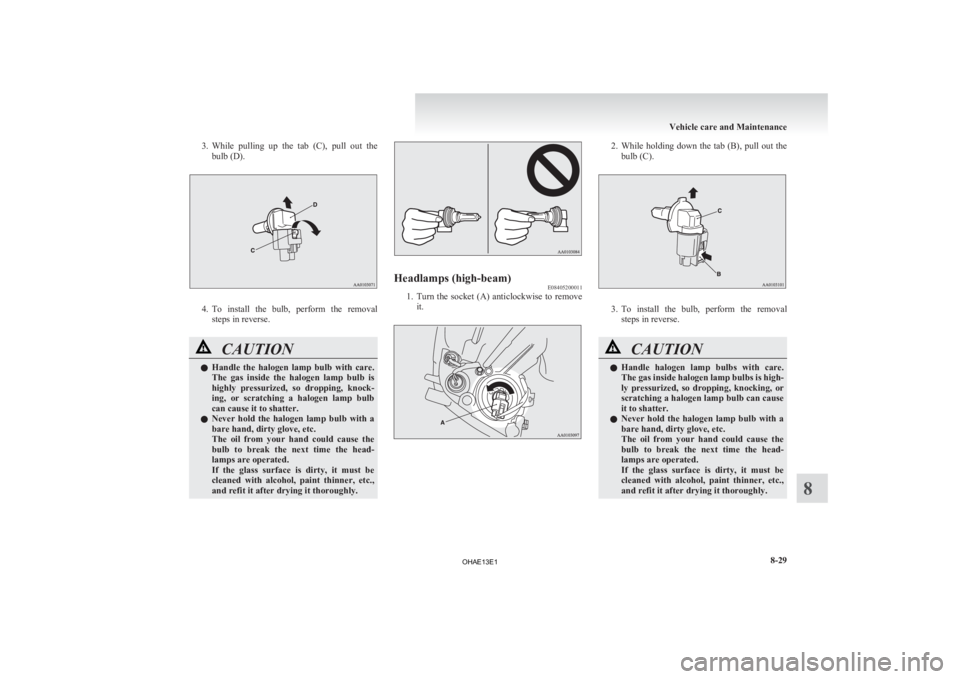

3. While pulling up the tab (C), pull out the
bulb (D). 4. To
install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle
the halogen lamp bulb with care.
The gas inside the halogen lamp bulb is
highly pressurized, so dropping, knock-
ing, or scratching a halogen lamp bulb
can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Headlamps (high-beam)
E08405200011
1. Turn
the socket (A) anticlockwise to remove
it. 2. While
holding down the tab (B), pull out the
bulb (C). 3. To
install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle
halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Vehicle care and Maintenance
8-29 8
OHAE13E1

Position lamps
E08405300012
1. Turn the socket (A) anticlockwise to remove
it. 2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal
steps in reverse.
Front turn-signal lamps E08405400013
1. Turn
the socket (A) anticlockwise to remove
it. 2. Pull the bulb out of the socket.
3. To
install the bulb, perform the removal
steps in reverse.
Side turn-signal lamps E08405500014
1. To
remove a side turn-signal lamp, insert a
straight blade (or minus) screwdriver with a
cloth over its tip at the end of the lamp near
the rear of the body and use it to gently lever
the lamp out of the body. *: Front of the vehicleVehicle care and Maintenance
8-30
8 *
OHAE13E1

2. Remove the socket and bulb assemblies by
turning it anticlockwise. 3. Pull the bulb out of the socket.
4. To
install the bulb, perform the removal
steps in reverse.
NOTE l When installing the lamp assembly, push in
the end facing the front of the vehicle first. *: Front of the vehicle
Front fog lamps* / Daytime running
lamps* E08405600015
1. To
create enough work space, turn the steer-
ing wheel all the way in the same direction to
the side you wish to replace.
2. Remove the clips (A) by a screwdriver, then lift the cover (B). 3. Turn
the socket (C or D) anticlockwise to re-
move it. C- Front fog lamp
D- Daytime running lamp
4. While

holding down the tab (E), pull out the
bulb (F).
Front fog lamp Daytime running lamp 5. To
install the bulb, perform the removal
steps in reverse. Vehicle care and Maintenance
8-31 8
OHAE13E1

CAUTION
l
Handle the halogen lamp bulb with care.
The gas inside a halogen lamp bulb is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the fog lamps
are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Rear fog lamp
E08405700016
1.

When removing the lamp unit (A), push it to-wards the left side of the vehicle body. 2. Remove
the socket (B) and bulb assembly by
turning it anticlockwise. 3. Pull the bulb out of the socket.
4. To
install the bulb, perform the removal
steps in reverse.
NOTE l If the wiring harness is pulled off the harness
guides (C) on the lamp unit while replacing
the bulb, make sure to secure the wiring har-
ness to the harness guides. Vehicle care and Maintenance
