MITSUBISHI iMiEV 2016 1.G Owners Manual

Important facts to know
in case of an accident
Customer assistance/Reporting Safety Defects 10-3
10
If NHTSA receives similar com- plaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it mayorder a recall and remedy campaign. However, NHTSA cannot become involved in individual problemsbetween you, your dealer, or Mit- subishi Motors Corporation. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1- 888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: You can also obtain other informa- tion about motor vehicle safety from http://www.safercar.gov.
To contact Mitsubishi Motors North America, Inc. call 1-888-648-7820 or write to: If you live in Canada, and you believe that your vehicle has a safety defect, you should immediatelynotify Transport Canada, in addition to notifying Mitsubishi Motor Sales of Canada, Inc. You may write to:
To contact Mitsubishi Motor Sales of Canada, Inc. call 1-888-576-4878 or write to:
N01047300098
We hope you will never be involved in an accident, but there is
always that potential
danger. So, please be sure to buckle up and drive safely.  Remain calm.  Check for injuries. Report all injuries to the police, and, if
necessary, call for an
ambulance.
NHTSA Headquarters 1200 New Jersey Avenue, SEWest Building Washington, DC 20590
For vehicles sold in U.S.A.
Mitsubishi Motors North Amer- ica, Inc. Customer Relations Department P.O. Box 6400Cypress, CA 90630-0064
For vehicles sold in Canada
Tr a n s p o r t C a n a d a330 Sparks StreetTower C Ottawa, Ontario K1A 0N5
Mitsubishi Motor Sales of Can- ada, Inc.Customer Relations Department P.O. Box 41009 4141 Dixie RoadMississauga, ON L4W 5C9Important facts to know in case of an accident In the event of an accident
BK0220401US.book 3 ページ ２０１５年６月３日　水曜日　午前７時４２分

Important facts to know
in case of an accident
10-4 Customer assistance/Re
porting Safety Defects
10
Record all the details of the accident. This will provide you with accurate records ofthe accident for discussions with your insurance company and other persons who may be acting on your behalf.  Understand your repa
ir estimate before
approving repairs.  Choosing the repair shop and the brands of parts that they use on your vehicle isyour decision.  Ask for genuine Mits
ubishi Motors parts.
Many times, to save
money, your insur-
ance company will recommend imitation parts that do not meet the original specifi- cations of fit, finish, corrosion resistanceor workmanship.
The strength and integrity built into your Mitsubishi vehicle is the result of a specific design referred to as
“Energy Management”.
Individual body parts are designed to act as one unit in the event of an accident. Shock waves are absorbed by protective panels orare channeled around the passenger compart-
ment. This important feature is possible because high tensile
steel is used in
Mitsubishi panels and stru
ctural parts, some-
thing that cannot be
guaranteed by the manu-
facturers of imitati
on parts. All Genuine
Mitsubishi body panels and support brackets are designed and cons
tructed as important
protection features in the event of an acci-dent. By replacing body
parts with imitations,
your vehicle may no longer meet original equipment specifications. As a consumer reque
sting repair on your
vehicle, you have cons
umer rights. Across the
country, State Insuranc
e Commissioners have
begun considering rules on the use of non- OEM parts. This could
mean that repair shops
will have to disclose to the consumer, whenthey intend to use non-OEM parts. Since reg- ulations are not cons
istent on this point,
remember you have a choice. So, if you wantgenuine Mitsubishi Mo
tors parts, you may
have to specifically
request them. Make cer-
tain your insurance company understandsimitations are not to be used in the repair of your vehicle. You deserve the best genuine Mitsubishi Motors parts.
Genuine Mitsubishi Motors parts are built with the high quality a
nd durability standards
you expect. Genuine Mitsubishi Motors replacements parts are your guarantee that your vehicle will have
all the technological
advantages and maintain
the style and protec-
tion of a brand new Mitsubishi Motors. Remember to ask for genuine Mitsubishi Motors parts.
Key information to discuss with your insurance company Mitsubishi Motors built-in pro- tection
Consumer rights (For vehicles sold in U.S.A.)
Genuine Mitsubishi Motors parts
BK0220401US.book 4 ページ ２０１５年６月３日　水曜日　午前７時４２分

11
SpecificationsVehicle labeling ............................................................................. 11-2 Vehicle dimensions ........................................................................ 11-4 Vehicle weights .............................................................................. 11-4Charging system specifications ..................................................... 11-5 Electric motor specifications ......................................................... 11-6 12V starter battery ......................................................................... 11-6Tires and wheels ............................................................................ 11-6 Refill capacities ............................................................................. 11-7
BK0220401US.book 1 ページ ２０１５年６月３日　水曜日　午前７時４２分

Vehicle labeling 11-2 Specifications
11
N01147400739
Keep a record of the chassis number and vehicle identification
number. This informa-
tion will assist the pol
ice if your vehicle is
ever stolen. The vehicle emission control information label is affixed in th
e location shown in the
illustration.
The vehicle identificati
on number is stamped
in the location shown in the illustration. It is visible from outside of the vehicle throughthe windshield. The air conditioning label is affixed on the bulkhead as shown in the illustration.
The vehicle information
code plate is located
on the driver’s door sill. The chassis number is stamped behind the lid on the right side of the luggage room.

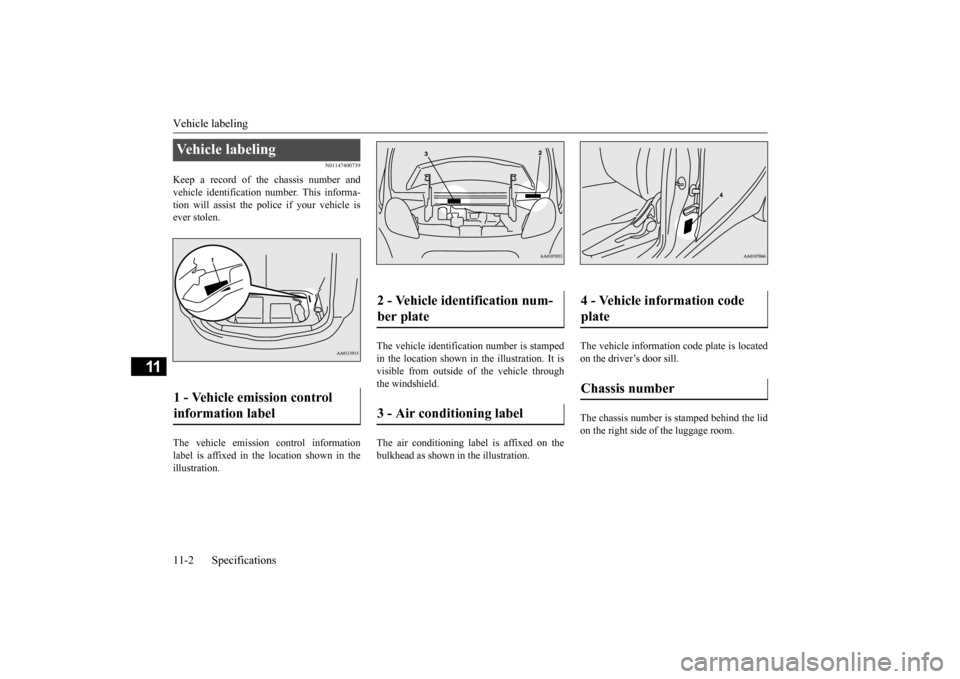

Vehicle labeling 1 - Vehicle emission control information label
2 - Vehicle identification num- ber plate 3 - Air conditioning label
4 - Vehicle information code plate Chassis number
BK0220401US.book 2 ページ ２０１５年６月３日　水曜日　午前７時４２分

Vehicle labeling
Specifications 11-3
11

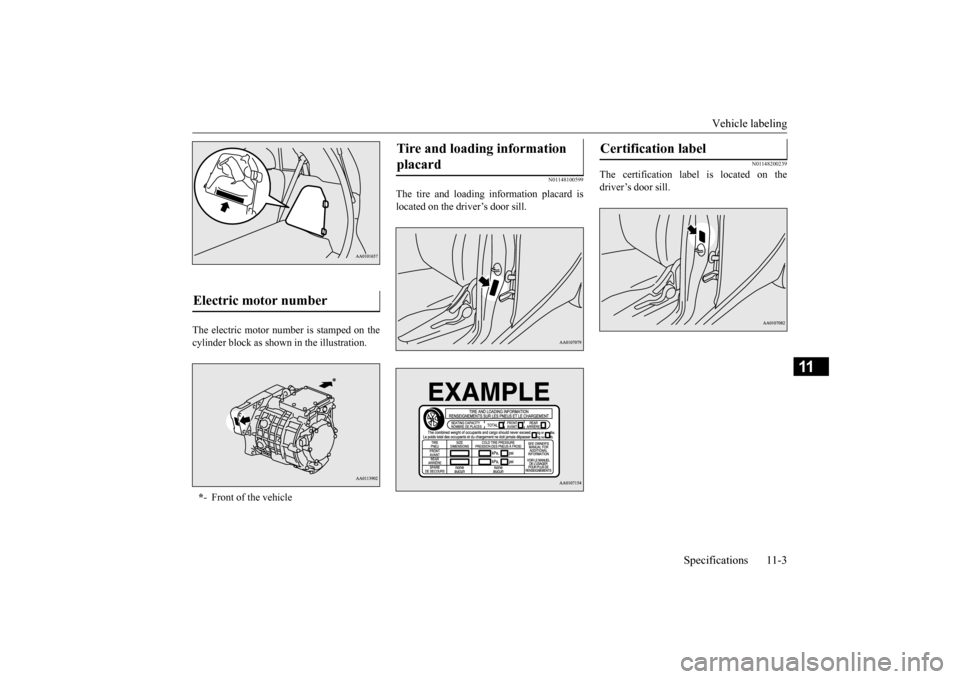

The electric motor number is stamped on the cylinder block as shown
in the illustration.
N01148100599
The tire and loading information placard is located on the driver’s door sill.
N01148200239
The certification label is located on the driver’s door sill.
Electric motor number * - Front of the vehicle
Tire and loading information placard
Certification label
BK0220401US.book 3 ページ ２０１５年６月３日　水曜日　午前７時４２分

Vehicle dimensions 11-4 Specifications
11
N01147501580 N01147601943
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the numbe
r of maximum occupants
Vehicle dimensions Overall length
144.7 in (3,675 mm)
Overall width
62.4 in (1,585 mm)
Overall height
63.6 in (1,615 mm)
Wheel base
100.4 in (2,550 mm)
Ve h i c l e w e i g h t s Gross vehicle wei
ght rating (GVWR) 3,329 lb (1,510 kg)
Front 1,488 lb (675 kg)Rear 1,962 lb (890 kg)
Vehicle capacity weight 661 lb (300 kg)Seating capacity
4 persons
BK0220401US.book 4 ページ ２０１５年６月３日　水曜日　午前７時４２分

Charging system specifications
Specifications 11-5
11
N01148501037
*1: When using a genuine charging cable with control box *2: When using a home or public charging device
(EVSE: Electric Vehicles Supply Equipment)
Charging system specifications Regular charging system
Rated input voltage AC 240V (singl
e phase) AC 120V (single phase)
Rated input frequency 50 Hz/60 HzRated current 15 A (max)
8 A/12 A (max)
*1
Maximum power consumption
3.3 kVA
*2
1.8 kVA
*2
Applicable standards
UL2594: Electric Vehi
cle Supply Equipment
SAE J1772: (R) SAE Electric Vehicl
e and Plug in Hybrid Electric
Vehicle Conductive
Charge Coupler
CSA C22.2 No.107.1-01: Ge
neral use power supplies
Leakage current sensitivity in cable control box
20 mA
Quick charging system
Applicable standards CHAdeMOMaximum input current 125 A
Regular charging/ Quick charging system
Enclosure type
Charge connector: Type 3s Control box (CCID): Type 3
BK0220401US.book 5 ページ ２０１５年６月３日　水曜日　午前７時４２分

Electric motor specifications 11-6 Specifications
11
N01147301038 N01147801307
Battery is a 12 volt type.
N01147900734
PCD: Pitch Circle Diameter (installation holes)Electric motor specifications Electric motor model
Y51
Maximum output
49 kW
Maximum torque
196 N•m
12V starter battery
34B19L(S)
Tires and wheels
Item
Front
Rear
Tire 145/65R15 72H 175/60R15 81HWheel
Size 15x4J 15x5JPCD 3.93 in (100 mm)Offset 1.37 in (35 mm)
NOTE
Contact a certified i-MiEV dealer for deta
ils on the combination used on your vehicle.
 These tires satisfy vehicle loading condit
ions described in th
is owner’s manual.
BK0220401US.book 6 ページ ２０１５年６月３日　水曜日　午前７時４２分

Refill capacities
Specifications 11-7
11
N01148002143
* : similar high quality ethylene
glycol based non-silicate, non-am
ine, non-nitrate and non-borate c
oolant with long life hybrid
organic acid tech-
nologyRefill capacities No.
Item
Capacity
Lubricants
1
Windshield washer fluid 2.0 qt (1.9 L) —Brake As required Conforming to Brake fluid DOT3 or DOT4
3
Hot water heater fluid [Includes .42 qt (0.4
L) in reservoir]
2.0 qt (1.9 L)
Mitsubishi Motors Genuine Super Long Life Coolant Premium or an equivalent
*
4
Coolant [Includes 1.2 qt (1.1
L) in reservoir]
5.4 qt (5.1 L)
5
Transmission .79 qt (0.75 L) Mits
ubishi Motors Genuine ATF SPIII
6
Refrigerant (air conditioning)
Refer to the “Air con- ditioning label” on
page 11-2
HFC-134a
BK0220401US.book 7 ページ ２０１５年６月３日　水曜日　午前７時４２分
