MITSUBISHI L200 2011 Owner's Manual (in English)

Digital clock*E00711700193
The digital clock indicates the time with the igni-
tion switch in either “ON” or “ACC” position.
To set the time
Set the time by pressing the various buttons as de-
scribed below.
1- To adjust the hour
2- To adjust the minutes
3- To reset the minutes to zero

10:30 - 11:29...... Changes to 11:00
11:30 - 12:29...... Changes to 12:00
NOTE l If the battery cables are disconnected during
repairs or for any other reason, reset the
clock to the correct time after they are recon-
nected.
Interior lamps E00712000917
1- Room lamp (Front)*
Personal lamps*
2- Room lamp (Rear)*
3- Door courtesy lamps*
4- Centre console downlight
NOTE l If you leave the lamps on without running
the engine, you will run down the battery. Be-
fore you leave the vehicle, make sure that all
the lamps are off.
Room lamps E00712101016Front*Rear (Type 1)*
For pleasant driving
5-39
5

Rear (Type 2)*1 (ON) -The lamp illuminates.2 () -[Vehicles without central door locks
system]
The room lamp goes on when a door
is opened. When all doors are
closed, the room lamp is illuminated
and dimmed gradually for 7 seconds
then goes out.
However, the lamp goes out immedi-
ately without being dimmed when
the ignition switch is turned to the
“ON” position.
[ Vehicles with central door locks sys-
tem]
The room lamp goes on when a door
is opened. When all doors are
closed, the room lamp is illuminated
and dimmed gradually for 15 sec-
onds then goes out.
However, the lamp goes out immedi-
ately without being dimmed in case
of the followings:
l All doors are closed and the ig-
nition switch is turned to the
“ON” position.
l All doors are locked using the
key mechanism of the driver’s
door, the lock knob of the driv-
er’s door, or the remote con-
trol switch of the keyless entry
system (if so equipped). NOTE
l On vehicles with keyless entry
system, when the ignition key
is removed with the doors
closed, the lamp is illuminated
and after about 15 seconds it
goes off.
The dimming period is also ad-
justable.
For further information, we
recommend you to consult a
MITSUBISHI MOTORS Au-
thorized Service Point.3 (OFF) -The lamp goes off.Personal lamps* E00712500156
Push the switch (A) to turn on the lamp. Push it
again to turn it off.
For pleasant driving
5-40
5

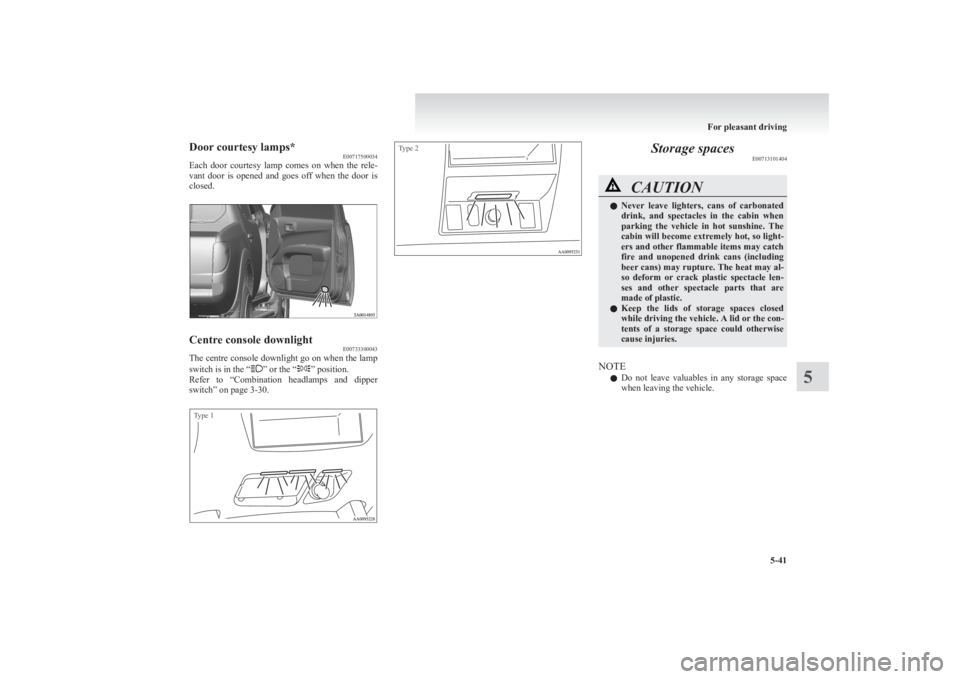

Door courtesy lamps*E00717500034
Each door courtesy lamp comes on when the rele-
vant door is opened and goes off when the door is
closed.Centre console downlight E00733300043
The centre console downlight go on when the lamp
switch is in the “” or the “” position.
Refer to “Combination headlamps and dipper
switch” on page 3-30.
Type 1Type 2
Storage spaces E00713101404CAUTIONlNever leave lighters, cans of carbonated
drink, and spectacles in the cabin when
parking the vehicle in hot sunshine. The
cabin will become extremely hot, so light-
ers and other flammable items may catch
fire and unopened drink cans (including
beer cans) may rupture. The heat may al-
so deform or crack plastic spectacle len-
ses and other spectacle parts that are
made of plastic.
l Keep the lids of storage spaces closed
while driving the vehicle. A lid or the con-
tents of a storage space could otherwise
cause injuries.
NOTE
l Do not leave valuables in any storage space
when leaving the vehicle.
For pleasant driving
5-41
5

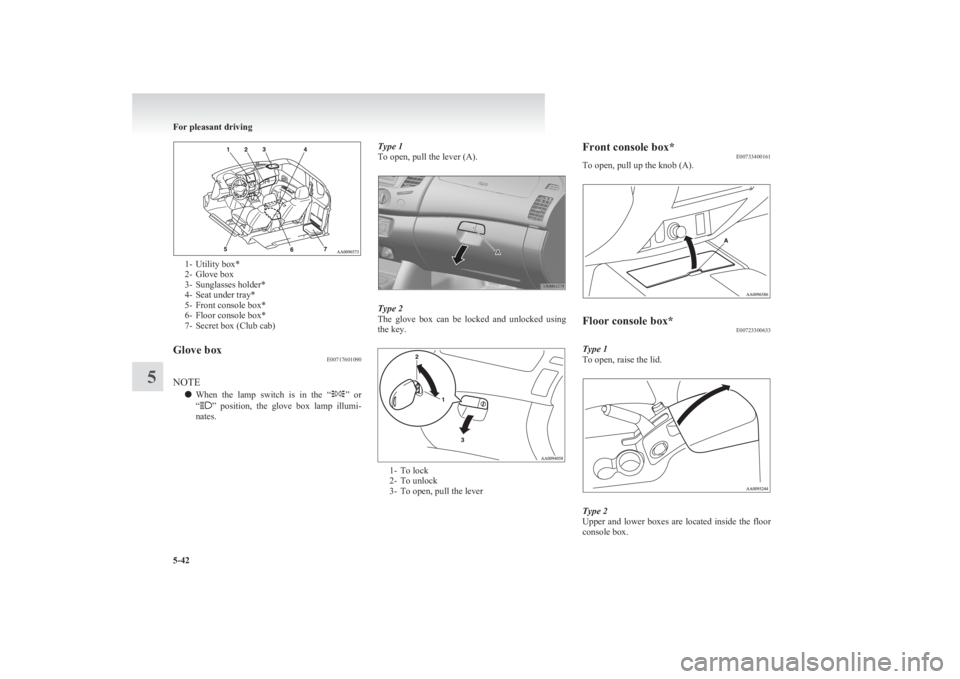

1- Utility box*
2- Glove box
3- Sunglasses holder*
4- Seat under tray*
5- Front console box*
6- Floor console box*
7- Secret box (Club cab)
Glove box E00717601090
NOTE
l When the lamp switch is in the “
”
or
“” position, the glove box lamp illumi-
nates.
Type 1
To open, pull the lever (A).
Type 2
The glove box can be locked and unlocked using
the key.
1- To lock
2- To unlock
3- To open, pull the lever
Front console box* E00733400161
To open, pull up the knob (A).Floor console box* E00723300633
Type 1
To open, raise the lid.
Type 2
Upper and lower boxes are located inside the floor
console box.
For pleasant driving
5-42
5

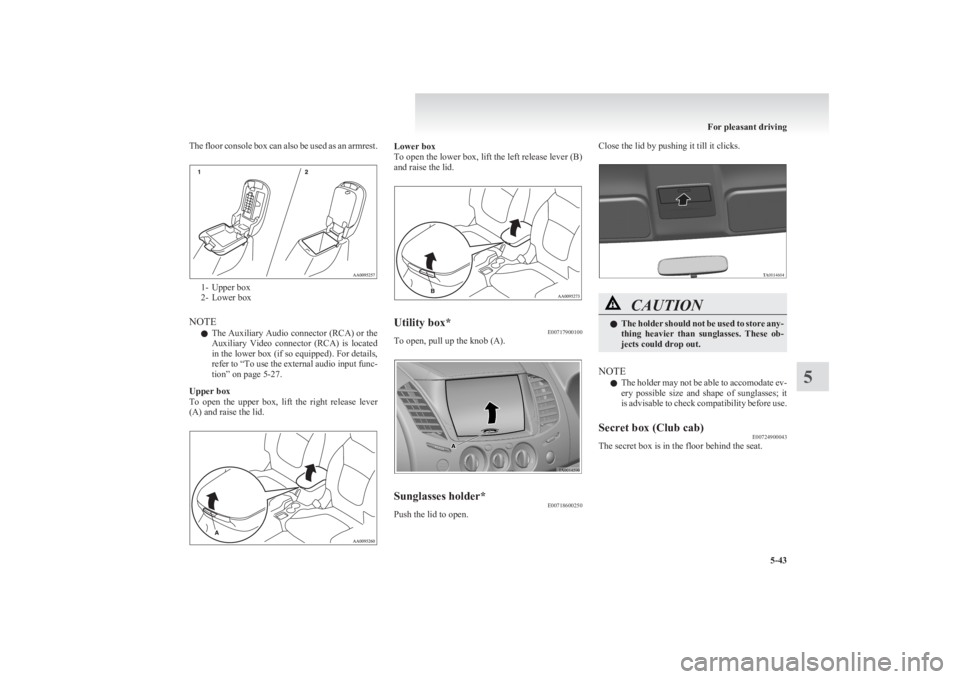

The floor console box can also be used as an armrest.
1- Upper box
2- Lower box
NOTE l The Auxiliary Audio connector (RCA) or the
Auxiliary Video connector (RCA) is located
in the lower box (if so equipped). For details,
refer to “To use the external audio input func-
tion” on page 5-27.
Upper box
To open the upper box, lift the right release lever
(A) and raise the lid.
Lower box
To open the lower box, lift the left release lever (B)
and raise the lid.Utility box* E00717900100
To open, pull up the knob (A).
Sunglasses holder*E00718600250
Push the lid to open.
Close the lid by pushing it till it clicks.CAUTIONlThe holder should not be used to store any-
thing heavier than sunglasses. These ob-
jects could drop out.
NOTE
l The holder may not be able to accomodate ev-
ery possible size and shape of sunglasses; it
is advisable to check compatibility before use.
Secret box (Club cab) E00724900043
The secret box is in the floor behind the seat.
For pleasant driving
5-43
5

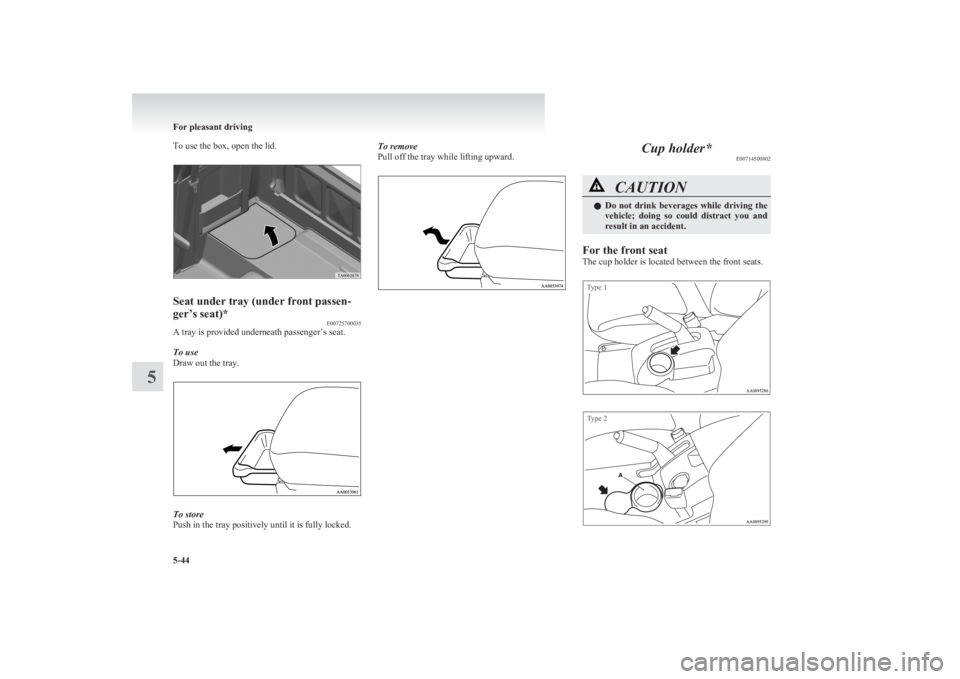

To use the box, open the lid.Seat under tray (under front passen-
ger’s seat)* E00725700035
A tray is provided underneath passenger’s seat.
To use
Draw out the tray.
To store
Push in the tray positively until it is fully locked.
To remove
Pull off the tray while lifting upward.Cup holder* E00714500802CAUTIONlDo not drink beverages while driving the
vehicle; doing so could distract you and
result in an accident.
For the front seat
The cup holder is located between the front seats.
Type 1Type 2
For pleasant driving
5-44
5

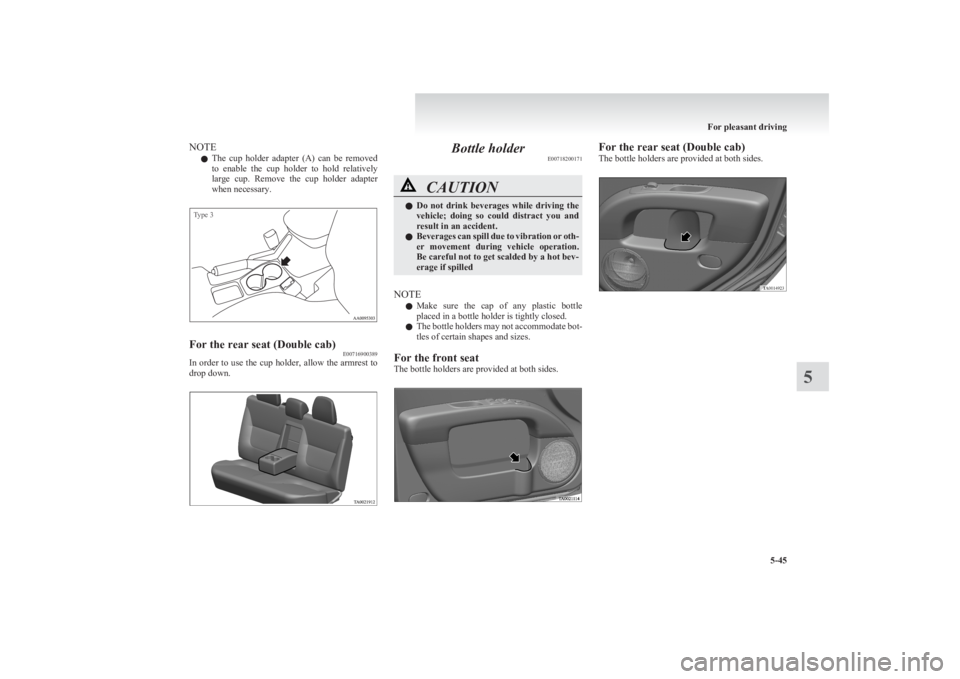

NOTEl The cup holder adapter (A) can be removed
to enable the cup holder to hold relatively
large cup. Remove the cup holder adapter
when necessary.Type 3For the rear seat (Double cab) E00716900389
In order to use the cup holder, allow the armrest to
drop down.
Bottle holder E00718200171CAUTIONlDo not drink beverages while driving the
vehicle; doing so could distract you and
result in an accident.
l Beverages can spill due to vibration or oth-
er movement during vehicle operation.
Be careful not to get scalded by a hot bev-
erage if spilled
NOTE
l Make sure the cap of any plastic bottle
placed in a bottle holder is tightly closed.
l The bottle holders may not accommodate bot-
tles of certain shapes and sizes.
For the front seat
The bottle holders are provided at both sides.
For the rear seat (Double cab)
The bottle holders are provided at both sides.
For pleasant driving
5-45
5

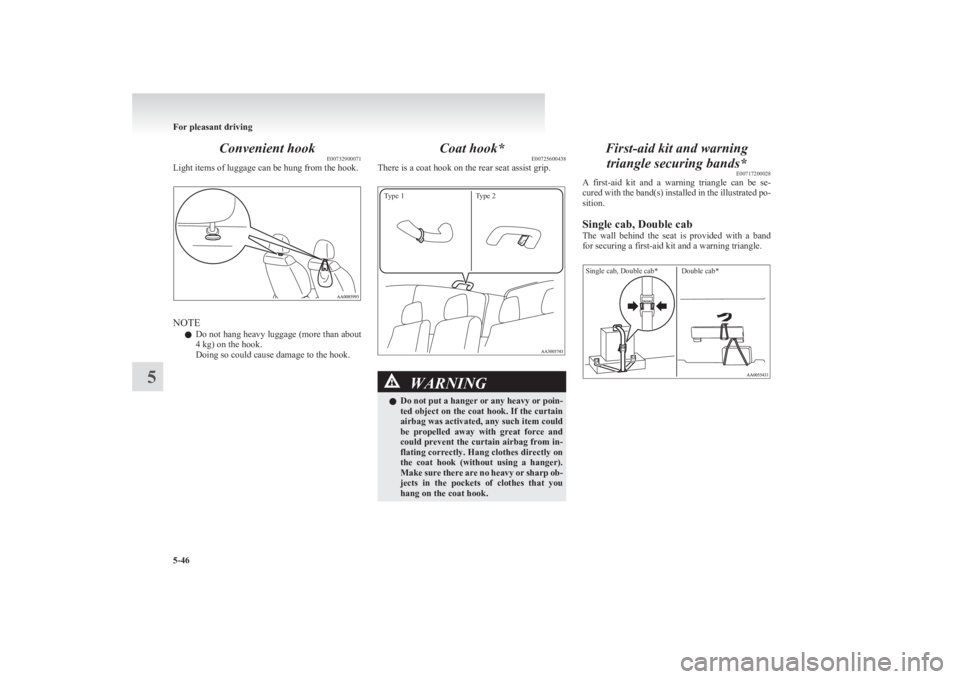

Convenient hookE00732900071
Light items of luggage can be hung from the hook.
NOTE
l Do not hang heavy luggage (more than about
4 kg) on the hook.
Doing so could cause damage to the hook.
Coat hook* E00725600438
There is a coat hook on the rear seat assist grip.
Type 1Type 2
WARNINGl Do not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be propelled away with great force and
could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on
the coat hook (without using a hanger).
Make sure there are no heavy or sharp ob-
jects in the pockets of clothes that you
hang on the coat hook.First-aid kit and warning
triangle securing bands* E00717200028
A first-aid kit and a warning triangle can be se-
cured with the band(s) installed in the illustrated po-
sition.
Single cab, Double cab
The wall behind the seat is provided with a band
for securing a first-aid kit and a warning triangle.
Single cab, Double cab*Double cab*
For pleasant driving
5-46
5

Club cab
A band for securing a first-aid kit is installed in the
secret box.
A band for securing a warning triangle is installed
left under the rear seat.
