Vehicles with A/T
Shift point
Speed limit2WDVehicles with Easy select 4WDVehicles with Super select 4WD II2H, 4H4L2H, 4H, 4HLc4LLc1st
gear15 km/h (9 mph)15 km/h (9 mph)5 km/h (3 mph)20 km/h (12 mph)5 km/h (3 mph)2nd
gear35 km/h (22 mph)35 km/h (22 mph)15 km/h (9 mph)40 km/h (25 mph)15 km/h (9 mph)3rd
gear55 km/h (34 mph)55 km/h (34 mph)20 km/h (12 mph)60 km/h (37 mph)20 km/h (12 mph)4th
gear85 km/h (53 mph)85 km/h (53 mph)30 km/h (19 mph)85 km/h (53 mph)30 km/h (19 mph)5th
gear110 km/h (68 mph)110 km/h (68 mph)45 km/h (28 mph)115 km/h (71 mph)45 km/h (28 mph)CAUTIONl On 4WD vehicles, the “4L” (Easy select 4WD), “4LLc” (Super select 4WD II) range gives maximum torque for low-speed driving on steep slopes, as well
as sandy, muddy, and other difficult surfaces. On vehicles with A/T, do not exceed speeds of approximately 70 km/h (43 mph) in “4L” (Easy select 4WD),
“4LLc” (Super select 4WD II) range.

Parking brake
E00600502817
To park the vehicle, first bring it to a com- plete stop, fully apply the parking brake suf-
ficiently to hold the vehicle.
Parking brake
6-05OKTE17E1Starting and driving6

To apply
1-Firmly depress and hold the brake pedal,
then pull the lever up without pushing
the button at the end of hand grip.
CAUTIONl When you intend to apply the parking brake,
firmly press the brake pedal to bring the ve-hicle to a complete stop before pulling theparking brake lever.
Pulling the parking brake lever with the ve- hicle moving could make the rear wheels
lock up, thereby making the vehicle unsta- ble. It could also make the parking brake
malfunction.NOTEl Apply sufficient force to the parking brake
lever to hold the vehicle stationary after the foot brake is released.NOTEl If the parking brake does not hold the vehi-
cle stationary after the foot brake is released,
have your vehicle checked immediately.
To release
1- Firmly depress and hold the brake pedal,
then pull the lever up slightly.
2- Push the button at the end of hand grip.
3- Lower the lever fully.
CAUTIONl Before driving, be sure that the parking
brake is fully released and brake warning
lamp is off.
If a vehicle is driven without releasing the
parking brake, the brake will be overheated, resulting in ineffective braking and possible
brake failure.CAUTIONl If the brake warning lamp does not extin-
guish when the parking brake is fully re- leased, the brake system may be abnormal.
Have your vehicle checked immediately.
For details, refer to “Brake warning lamp” on page 5-15.NOTEl To prevent the parking brake from being re-
leased unintentionally, the lever must be
pulled up slightly before it can be pushed down. Simply pressing the button does not
enable the lever to be pushed down.Parking
E00600602704
To park the vehicle, fully engage the parkingbrake, and then move the gearshift lever to 1 st
or “R” (Reverse) position for vehicles equip-
ped with M/T, or set the selector lever to “P”
(PARK) position for vehicles equipped with
A/T.
Parking on a hill
To prevent the vehicle from rolling, follow these procedures:
Parking
6-06OKTE17E1Starting and driving6

Parking on a downhill slope
Turn the front wheels towards the kerb and
move the vehicle forward until the kerb side
wheel gently touches the kerb.
On vehicles equipped with M/T, apply the
parking brake and place the gearshift lever into the “R” (Reverse) position.
On vehicles equipped with A/T, apply the
parking brake and place the selector lever in-
to the “P” (PARK) position.
If necessary, apply chocks to wheels.
Parking on an uphill slope Turn the front wheels away from the kerb
and
move the vehicle back until the kerb side
wheel gently touches the kerb.
On vehicles equipped with M/T, apply the
parking brake and place the gearshift lever
into the 1 st
position.
On vehicles equipped with A/T, apply the
parking brake and place the selector lever in- to the “P” (PARK) position.
If necessary, apply chocks to wheels. NOTE
l
If
your vehicle is equipped with A/T, be sure
to apply the parking brake before moving se-
lector lever to the “P” (PARK) position. If
you move selector lever to the “P” (PARK) position before applying the parking brake,
it may be difficult to disengage selector lev- er from the “P” (PARK) position when next
you drive the vehicle, requiring application
of a strong force the selector lever to move
from the “P” (PARK) position. Parking with the engine run-
ning Never leave the engine running while you
take
a short sleep/rest. Also, never leave the
engine running in a closed or poorly ventila-
ted place. WARNING
l
Leaving
the engine running risks injury
or death from accidentally moving the
gearshift lever (with M/T) or the selector
lever (with A/T) or the accumulation of toxic exhaust fumes on the passenger
compartment. Where you park
WARNING
l
Do
not park your vehicle in areas where
combustible materials such as dry grass
or leaves can come in contact with a hot exhaust, since a fire could occur. When leaving the vehicle
Always carry the key and lock all doors when
leaving the vehicle unattended.
Always

try to park your vehicle in a well lit
area. Steering wheel height and

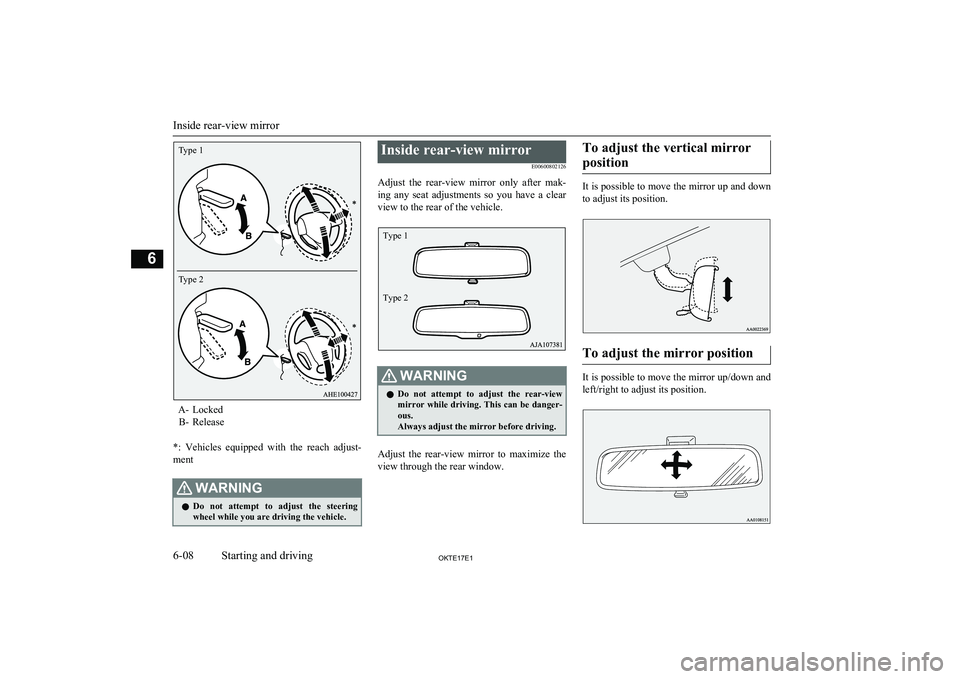

reach adjustment E00600701708
1. Release
the lever while holding the steering wheel up.
2. Adjust the steering wheel to the desired position.
3. Securely lock the steering wheel by pull- ing the lever fully upward.
Steering wheel height and reach adjustment
6-07
OKTE17E1 Starting and driving 6

A- LockedB- Release
*: Vehicles equipped with the reach adjust- ment
WARNINGl Do not attempt to adjust the steering
wheel while you are driving the vehicle.Inside rear-view mirror
E00600802126
Adjust the rear-view mirror only after mak-
ing any seat adjustments so you have a clear
view to the rear of the vehicle.WARNINGl Do not attempt to adjust the rear-view
mirror while driving. This can be danger-
ous.
Always adjust the mirror before driving.
Adjust the rear-view mirror to maximize the
view through the rear window.
To adjust the vertical mirror
position
It is possible to move the mirror up and down
to adjust its position.
To adjust the mirror position
It is possible to move the mirror up/down and left/right to adjust its position.
Inside rear-view mirror
6-08OKTE17E1Starting and driving6Type 1
Type 2 Type 2
Type 1

To reduce the glare
Type 1
The lever (A) at the bottom of the mirror can be used to adjust the mirror to reduce the
glare from the headlamps of vehicles behind
you during night driving.
1- Normal
2- Anti-glare
Type 2
When the headlamps of the vehicles behind you are very bright, the reflection factor ofthe rear-view mirror is automatically changed
to reduce the glare.
When the ignition switch is turned to the
“ON” position or the operation mode is put in
ON, the reflection factor of the mirror is au- tomatically changed.
NOTEl Do not hang items on, or spray glass cleaner
on the sensor (1), as reduced sensitivitycould result.Outside rear-view mirrors
E00600900628To adjust the mirror position
E00601001971WARNINGlDo not attempt to adjust the rear-view
mirrors while driving. This can be dan-
gerous.
Always adjust the mirrors before driving.
l Your vehicle is equipped with convex type
mirrors.
Please take into consideration, that ob- jects you see in the mirror will look small-er and farther away compared to a nor-mal flat mirror.
Do not use this mirror to estimate dis-
tance of following vehicles when changing lanes.
Outside rear-view mirrors
6-09OKTE17E1Starting and driving6

Manual outside rear-view mir-rors*
Adjust the mirror surface by hands as indica-
ted by the arrows.

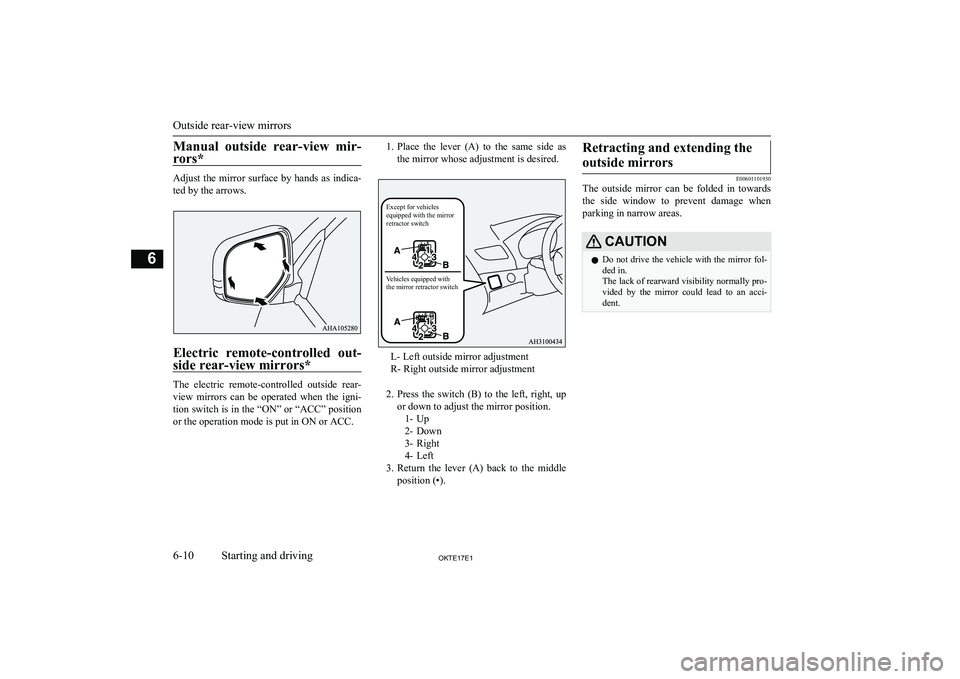

Electric remote-controlled out- side rear-view mirrors*
The electric remote-controlled outside rear-view mirrors can be operated when the igni-
tion switch is in the “ON” or “ACC” position or the operation mode is put in ON or ACC.
1. Place the lever (A) to the same side as
the mirror whose adjustment is desired.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
2. Press the switch (B) to the left, right, up
or down to adjust the mirror position. 1- Up
2- Down
3- Right
4- Left
3. Return the lever (A) back to the middle
position (•).
Retracting and extending the
outside mirrors
E00601101930
The outside mirror can be folded in towards
the side window to prevent damage when
parking in narrow areas.
CAUTIONl Do not drive the vehicle with the mirror fol-
ded in.
The lack of rearward visibility normally pro-
vided by the mirror could lead to an acci- dent.
Outside rear-view mirrors

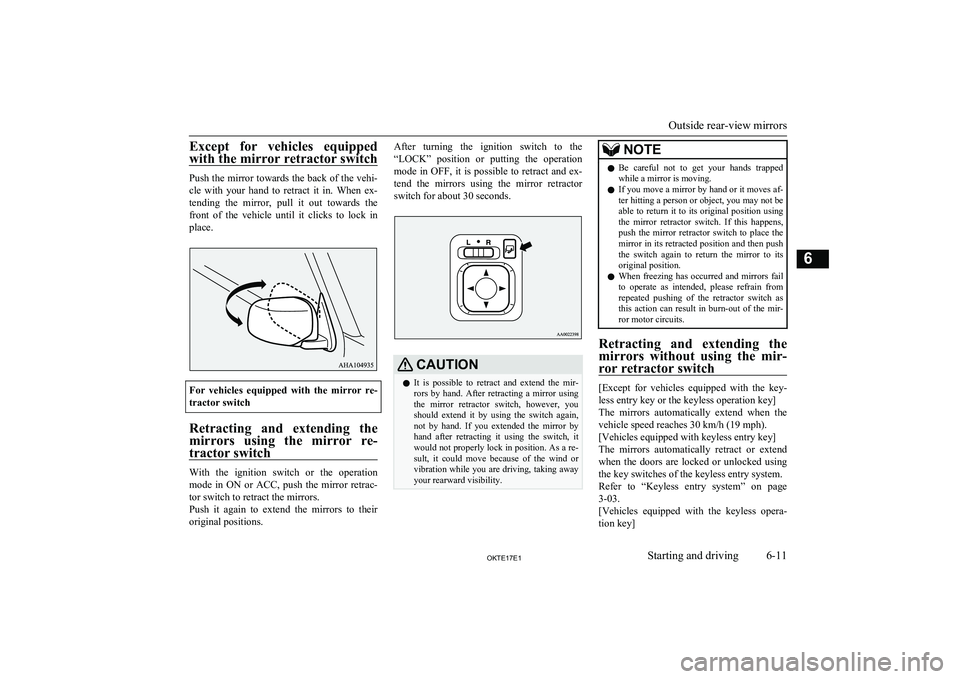

6-10OKTE17E1Starting and driving6 Except for vehicles
equipped with the mirror
retractor switch
Vehicles equipped with
the mirror retractor switch

Except for vehicles equippedwith the mirror retractor switch
Push the mirror towards the back of the vehi- cle with your hand to retract it in. When ex-
tending the mirror, pull it out towards the
front of the vehicle until it clicks to lock in
place.
For vehicles equipped with the mirror re-
tractor switch
Retracting and extending the
mirrors using the mirror re-
tractor switch
With the ignition switch or the operation
mode in ON or ACC, push the mirror retrac-
tor switch to retract the mirrors.
Push it again to extend the mirrors to their original positions.
After turning the ignition switch to the
“LOCK” position or putting the operation
mode in OFF, it is possible to retract and ex- tend the mirrors using the mirror retractor
switch for about 30 seconds.CAUTIONl It is possible to retract and extend the mir-
rors by hand. After retracting a mirror using
the mirror retractor switch, however, you should extend it by using the switch again,
not by hand. If you extended the mirror by
hand after retracting it using the switch, it would not properly lock in position. As a re-
sult, it could move because of the wind or
vibration while you are driving, taking away your rearward visibility.NOTEl Be careful not to get your hands trapped
while a mirror is moving.
l If you move a mirror by hand or it moves af-
ter hitting a person or object, you may not be
able to return it to its original position using the mirror retractor switch. If this happens,
push the mirror retractor switch to place the mirror in its retracted position and then push
the switch again to return the mirror to its original position.
l When freezing has occurred and mirrors fail
to operate as intended, please refrain from repeated pushing of the retractor switch as
this action can result in burn-out of the mir- ror motor circuits.
Retracting and extending the
mirrors without using the mir- ror retractor switch
[Except for vehicles equipped with the key-less entry key or the keyless operation key]
The mirrors automatically extend when the
vehicle speed reaches 30 km/h (19 mph).
[Vehicles equipped with keyless entry key]
The mirrors automatically retract or extend when the doors are locked or unlocked using the key switches of the keyless entry system.
Refer to “Keyless entry system” on page 3-03.
[Vehicles equipped with the keyless opera-
tion key]

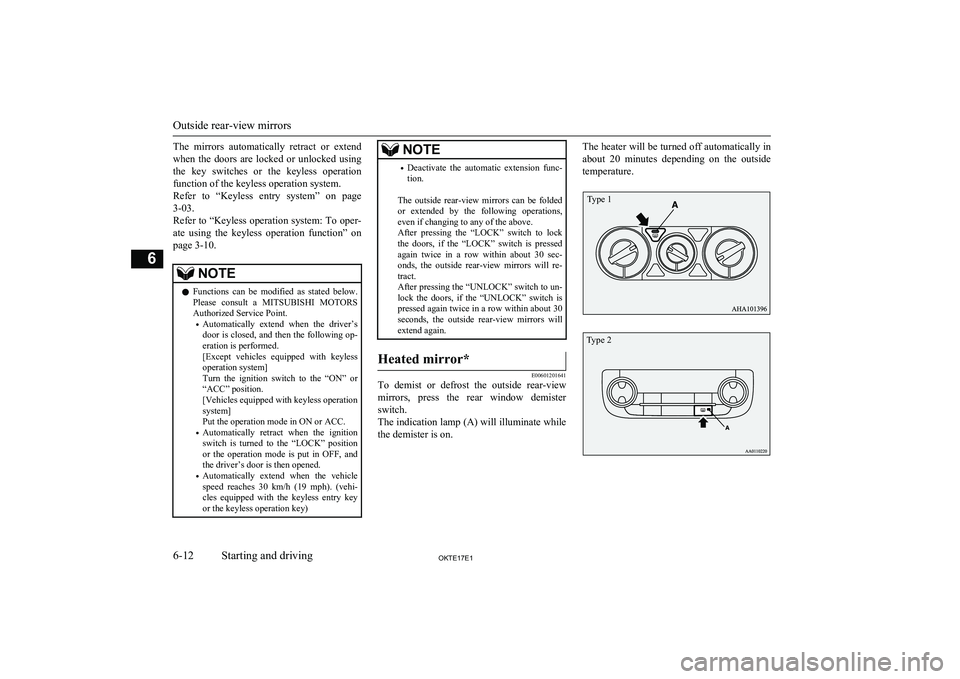

Outside rear-view mirrors
6-11OKTE17E1Starting and driving6

The mirrors automatically retract or extendwhen the doors are locked or unlocked using the key switches or the keyless operation
function of the keyless operation system.
Refer to “Keyless entry system” on page 3-03.
Refer to “Keyless operation system: To oper- ate using the keyless operation function” on
page 3-10.NOTEl Functions can be modified as stated below.
Please consult a MITSUBISHI MOTORS
Authorized Service Point.
• Automatically extend when the driver’s
door is closed, and then the following op- eration is performed.
[Except vehicles equipped with keyless operation system]
Turn the ignition switch to the “ON” or
“ACC” position.
[Vehicles equipped with keyless operation
system]
Put the operation mode in ON or ACC.
• Automatically retract when the ignition
switch is turned to the “LOCK” position
or the operation mode is put in OFF, and the driver’s door is then opened.
• Automatically extend when the vehicle
speed reaches 30 km/h (19 mph). (vehi-
cles equipped with the keyless entry key
or the keyless operation key)NOTE• Deactivate the automatic extension func-
tion.

The outside rear-view mirrors can be folded
or extended by the following operations,
even if changing to any of the above.
After pressing the “LOCK” switch to lock the doors, if the “LOCK” switch is pressed
again twice in a row within about 30 sec-
onds, the outside rear-view mirrors will re- tract.
After pressing the “UNLOCK” switch to un-
lock the doors, if the “UNLOCK” switch is
pressed again twice in a row within about 30 seconds, the outside rear-view mirrors will
extend again.Heated mirror*
E00601201641
To demist or defrost the outside rear-view
mirrors, press the rear window demister
switch.
The indication lamp (A) will illuminate while
the demister is on.
The heater will be turned off automatically in
about 20 minutes depending on the outside temperature.
Outside rear-view mirrors
6-12OKTE17E1Starting and driving6 Type 1 Type 2

NOTElThe heater mirrors can be turned on auto-
matically.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.Ignition switch*
E00601403302
LOCK
The engine is stopped and the steering wheel
locked. The key can only be inserted and re- moved in this position.
ACC
The engine is stopped, but the audio system
and other electric devices can be operated.
ON
All the vehicle’s electrical devices can be op-
erated.
START
The starter motor operates. After the engine has started, release the key and it will auto-
matically return to the “ON” position.
NOTEl If your vehicle is equipped with an electron-
ic immobilizer.
To start the engine, the ID code transmitted
by the transponder inside the key must match the code registered in the immobilizer
computer.
Refer to “Electronic immobilizer (Anti-theft starting system)” on page 3-03.To remove the key
E00620401538
For vehicles equipped with a M/T, when re-
moving the key, push the key in at the
“ACC” position and keep it depressed until it
is turned to the “LOCK” position and remove it.
For vehicles equipped with A/T, when re-
moving the key, first set the selector lever to
the “P” (PARK) position, and push the key in at the “ACC” position and keep it depressed
until it is turned to the “LOCK” position, and
remove it.CAUTIONl Do not remove the ignition key from the ig-
nition switch while driving. The steeringwheel will be locked, causing loss of con-
trol.
l If the engine is stopped while driving, the
brake servomechanism will cease to function and braking efficiency will deteriorate. Also,
the power steering system will not function
and it will require greater manual effort to
operate the steering.
Ignition switch*
6-13OKTE17E1Starting and driving6

CAUTIONlDo not leave the key in the “ON” position
for a long time when the engine is not run-
ning, doing so will cause the battery to be discharged.
l Do not turn the key to the “START” position

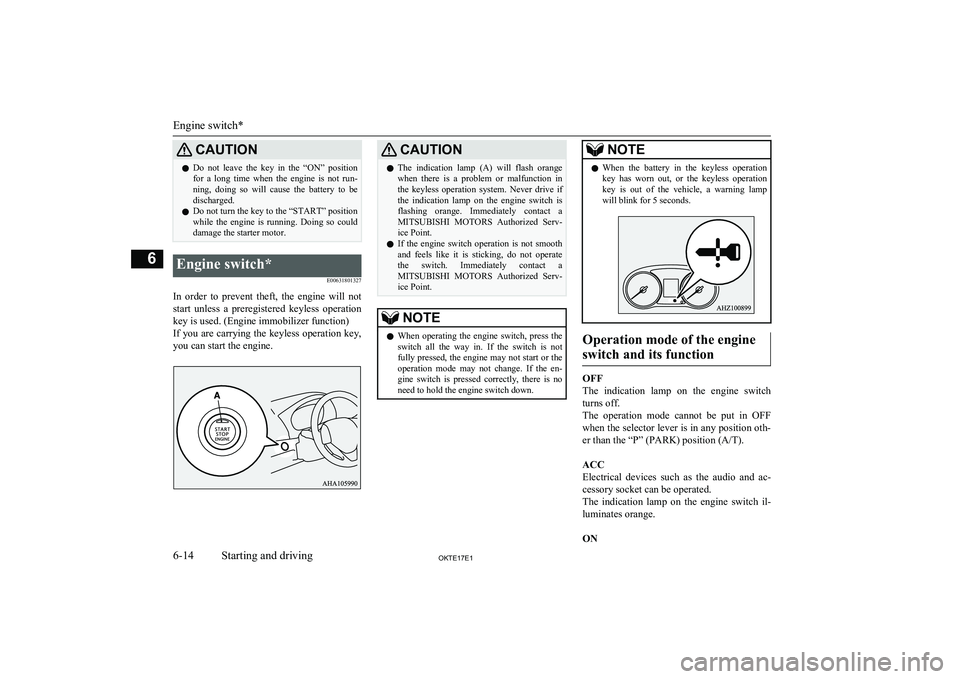

while the engine is running. Doing so could damage the starter motor.Engine switch*
E00631801327
In order to prevent theft, the engine will notstart unless a preregistered keyless operation
key is used. (Engine immobilizer function)
If you are carrying the keyless operation key, you can start the engine.
CAUTIONl The indication lamp (A) will flash orange
when there is a problem or malfunction inthe keyless operation system. Never drive if
the indication lamp on the engine switch is
flashing orange. Immediately contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
l If the engine switch operation is not smooth
and feels like it is sticking, do not operate the switch. Immediately contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.NOTEl When operating the engine switch, press the
switch all the way in. If the switch is not fully pressed, the engine may not start or theoperation mode may not change. If the en-
gine switch is pressed correctly, there is no need to hold the engine switch down.NOTEl When the battery in the keyless operation
key has worn out, or the keyless operationkey is out of the vehicle, a warning lampwill blink for 5 seconds.
Operation mode of the engine
switch and its function
OFF
The indication lamp on the engine switch
turns off.
The operation mode cannot be put in OFF when the selector lever is in any position oth-
er than the “P” (PARK) position (A/T).

ACC
Electrical devices such as the audio and ac-
cessory socket can be operated.
The indication lamp on the engine switch il-
luminates orange.

ON
Engine switch*
6-14OKTE17E1Starting and driving6
