NOTElTo turn the rear fog lamp on again, turn the
knob twice in the “ON” direction after turn-ing on the headlamps. (Vehicle with frontfog lamps)Wiper and washer switch
E00507102824
The windscreen wipers and washer can be
operated with the ignition switch or the oper- ation mode in ON or ACC.
If the blades are frozen to the windscreen, do
not operate the wipers until the ice has mel- ted and the blades are freed, otherwise thewiper motor may be damaged.
CAUTIONl If the washer is used in cold weather, the
washer fluid sprayed against the glass may freeze, which may hinder visibility. Warm
the glass with the defroster or rear window demister before using the washer.Windscreen wipers
E00516900127
Except for vehicles equipped
with rain sensor
E00527001268
MIST-Misting function
The wipers will operate once.OFF-OffINT-Intermittent (Speed sensitive)LO-SlowHI-FastTo adjust intermittent intervals
With the lever in the “INT” (speed sensitive intermittent operation) position, the intermit-
tent intervals can be adjusted by turning the knob (A).
1- Fast
2- Slow
NOTEl The speed-sensitive-operation function of
the windscreen wipers can be deactivated.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Misting function
Move the lever in the direction of the arrow
and release, to operate the wipers once.
Wiper and washer switch
5-23OKTE17E1Instruments and controls5

Use this function when you are driving in
mist or drizzle.Vehicles with rain sensor
E00526401845
MIST-Misting function
The wipers will operate once.OFF-OffAUTO-Auto-wiper control
Rain sensor
The wipers will automatically
operate depending on the degree
of wetness on the windscreen.LO-SlowHI-Fast
Rain sensor
Can only be used when the ignition switch or the operation mode is in ON.
If the lever is put in the “AUTO” position,
the rain sensor (A) will detect the extent of rain (or snow, other moisture, dust, etc.) and the wipers will operate automatically.
Keep the lever in the “OFF” position if the
windscreen is dirty and the weather is dry.
Wiper operation under these conditions can scratch the windscreen and damage the wip-
ers.
CAUTIONl With the ignition switch or the operation
mode in ON and the lever in the “AUTO”
position, the wipers may automatically oper-
ate in the situations described below.
If your hands get trapped, you could suffer injuries or the wipers could malfunction. Be sure to turn the ignition switch to the
“LOCK” position or put the operation mode
in OFF, or move lever to the “OFF” position to deactivate the rain sensor.
• When cleaning the outside surface of the
windscreen, if you touch on top of the rain sensor.
• When cleaning the outside surface of the
windscreen, if you wipe with a cloth on
top of the rain sensor.
• When using an automatic car wash.
• A physical shock is applied to the wind-
screen.
• A physical shock is applied to the rain
sensor.NOTEl To protect the rubber parts of the wipers,
this operation of the wipers does not take
place even if the lever is put in the “AUTO” position when the vehicle is stationary and
the ambient temperature is about 0 °C or lower.
Wiper and washer switch
5-24OKTE17E1Instruments and controls5

NOTElDo not cover the sensor by affixing a sticker
or label to the windscreen. Also, do not put
any water-repellent coating on the wind- screen. The rain sensor would not be able to
detect the extent of rain, and the wipers might stop working normally.
l In the following cases, the rain sensor may
be malfunctioning.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
• When the wipers operate at a constant in-
terval despite changes in the extent of rain.
• When the wipers do not operate even
though it is raining.
l The wipers may automatically operate when
things such as insects or foreign objects are affixed to the windscreen on top of the rainsensor or when the windscreen is frozen.
Objects affixed to the windscreen will stop
the wipers when the wipers cannot remove them. To operate the wipers again, move the
lever in the “LO” or “HI” position.
Also, the wipers may operate automatically
due to strong direct sunlight or electromag- netic wave. To stop the wipers, place thelever in the “OFF” position.
l Contact a
MITSUBISHI MOTORS Author-
ized Service Point when replacing the wind- screen or reinforcing the glass around the
sensor.To adjust the sensitivity of the rain sensor
With the lever in the “AUTO” (rain sensor)
position, it is possible to adjust the sensitivity of the rain sensor by turning the knob (B).
“+”- Higher sensitivity to rain
“−”- Lower sensitivity to rain
NOTEl It is possible to activate the following func-
tions.
• Automatic operation (rain droplet sensi-
tive) can be changed to intermittent opera-
tion (vehicle-speed sensitive).
• Automatic operation (rain droplet sensi-
tive) can be changed to intermittent opera-
tion (except vehicle-speed sensitive).
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.Misting function
Move the lever in the direction of the arrow
and release, to operate the wipers once.

Use this function when you are driving in
mist or drizzle.
The wipers will operate once if the lever is raised to the “MIST” position and released
when the ignition switch or the operation
mode is in the “ON” or “ACC” position. The wipers will continue to operate while the lev-
er is held in the “MIST” position.Wiper and washer switch
5-25OKTE17E1Instruments and controls5

The wipers will operate once if the lever ismoved to the “AUTO” position and the knob
(C) is turned in the “+” direction when the ig- nition switch is in the “ON” position or the operation mode is in ON.Windscreen washer
E00507202421

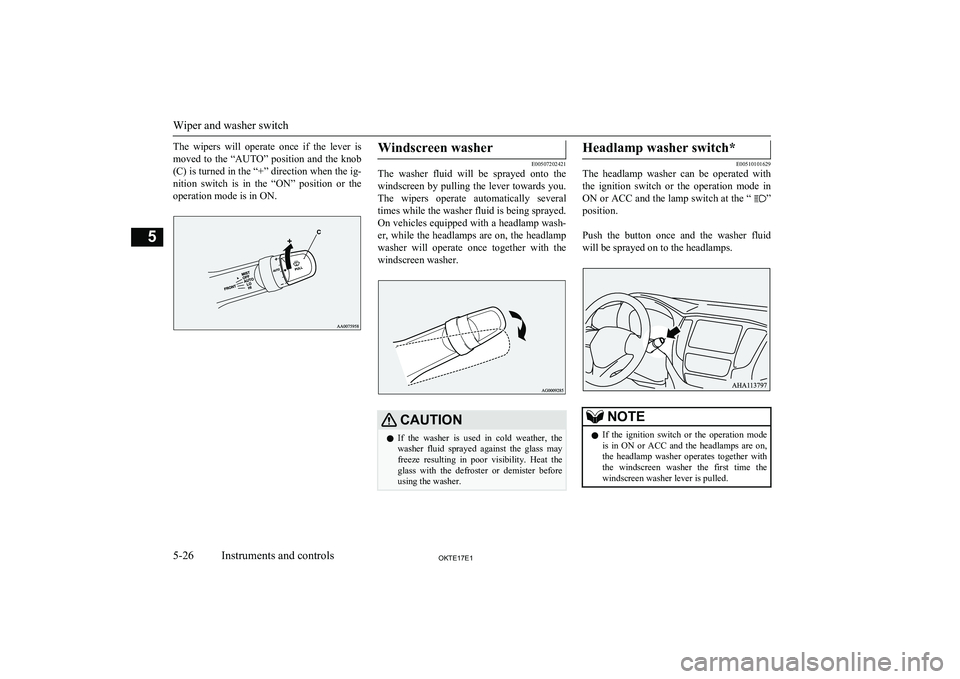

The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.The wipers operate automatically several
times while the washer fluid is being sprayed.
On vehicles equipped with a headlamp wash- er, while the headlamps are on, the headlamp
washer will operate once together with the windscreen washer.
CAUTIONl If the washer is used in cold weather, the
washer fluid sprayed against the glass may
freeze resulting in poor visibility. Heat the
glass with the defroster or demister before using the washer.Headlamp washer switch*
E00510101629
The headlamp washer can be operated with
the ignition switch or the operation mode in ON or ACC and the lamp switch at the “
”
position.

Push the button once and the washer fluid will be sprayed on to the headlamps.
NOTEl If the ignition switch or the operation mode
is in ON or ACC and the headlamps are on,the headlamp washer operates together with the windscreen washer the first time thewindscreen washer lever is pulled.
Wiper and washer switch
5-26OKTE17E1Instruments and controls5

Precautions to observe whenusing wipers and washers
E00507601473
l If the moving wipers become blocked
partway through a sweep by ice or other deposits on the glass, the wipers maytemporarily stop operating to prevent the
motor from overheating. In this case,
park the vehicle in a safe place, turn the ignition switch to the “LOCK” position
or put the operation mode in OFF, and
then remove the ice or other deposits.
The wipers will start operating again af- ter the wiper motor cools down, so
check that the wipers operate before us-
ing them.
l Do not use the wipers when the glass is
dry.
They may scratch the glass surface and the blades wear out prematurely.
l Before using the wipers in cold weather,
check that the wiper blades are not fro-zen onto the glass. The motor may burn
out if the wipers are used with the blades
frozen onto the glass.
l Avoid using the washer continuously for
more than 20 seconds. Do not operate the washer when the fluid reservoir isempty.
Otherwise, the motor may burn out.
l Periodically check the level of washer
fluid in the reservoir and refill if re-
quired.
During cold weather, add a recommen- ded washer solution that will not freeze
in the washer reservoir. Failure to do so
could result in loss of washer function and frost damage to the system compo- nents.Rear window demister
switch E00507902604
The rear window demister switch can be op-erated when the engine is running.
Push the switch to turn on the rear window
demister. It will be turned off automatically
in about 20 minutes. To turn off the demister
within about 20 minutes, push the switch again.
The indication lamp (A) will illuminate while
the demister is on.
Rear window demister switch
5-27OKTE17E1Instruments and controls5Type 1 Type 2

NOTElOn vehicles equipped with heated mirrors,
when the rear window demister switch is
pressed, the outside rear-view mirrors are defogged or defrosted. Refer to “Heated mir-
ror*” on page 6-12.
l The demister switch is not to melt snow but
to clear mist. Remove snow before use of the demister switch.
l To avoid unnecessary discharge of the bat-
tery, do not use the rear window demister during starting of the engine or when the en-
gine is not running. Turn the demister off
immediately after the window is clear.
l When cleaning the inside of the rear win-
dow, use a soft cloth and wipe gently along
the heater wires, being careful not to damage
the wires.
l Do not allow objects to touch the inside of
the rear window glass, damaged or broken wires may result.
Customizing the automatic
rear window demister (Vehi-cles equipped with the rear
window demister switch - Type 2)
Function can be changed as desired, as stated below.
l Enable automatic rear window demister
If the outside air temperature drops be-
low approx. 3 °C (37 °F), the rear win-
dow demister operates once automatical-
ly after the engine starts.
The heated mirrors will also operate once automatically at the same time.
l Disable automatic rear window demister
The rear window demister does not op-
erate automatically.
The heated mirrors will not operate auto- matically as well.

l Setting change method

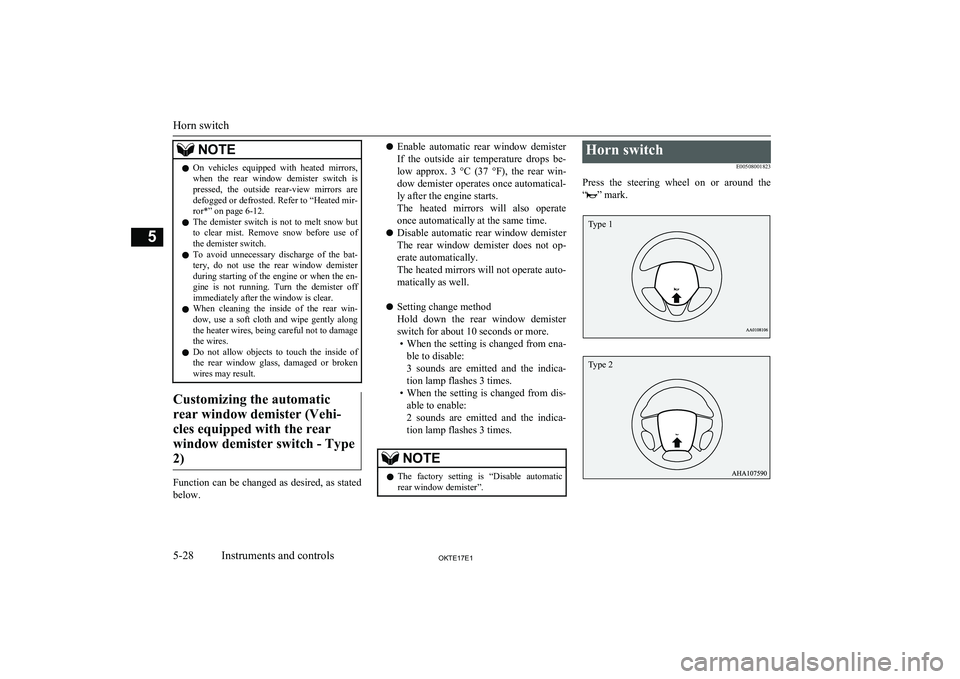

Hold down the rear window demister
switch for about 10 seconds or more. • When the setting is changed from ena-
ble to disable:
3 sounds are emitted and the indica- tion lamp flashes 3 times.
• When the setting is changed from dis-
able to enable:
2 sounds are emitted and the indica- tion lamp flashes 3 times.NOTEl The factory setting is “Disable automatic
rear window demister”.Horn switch
E00508001823
Press the steering wheel on or around the
“
” mark.
Horn switch
5-28OKTE17E1Instruments and controls5 Type 1 Type 2

Economical driving............................................................................. 6-02
Driving, alcohol and drugs.................................................................. 6-02
Safe driving techniques....................................................................... 6-03
Running-in recommendations............................................................. 6-04 Parking brake...................................................................................... 6-05
Parking................................................................................................ 6-06
Steering wheel height and reach adjustment....................................... 6-07
Inside rear-view mirror....................................................................... 6-08 Outside rear-view mirrors................................................................... 6-09
Ignition switch*...................................................................................6-13 Engine switch*.................................................................................... 6-14
Steering wheel lock............................................................................. 6-16
Starting and stopping the engine......................................................... 6-17
Diesel particulate filter (DPF)............................................................. 6-21 Turbocharger operation*..................................................................... 6-22Auto Stop & Go (AS&G) system*..................................................... 6-23
Manual transmission*......................................................................... 6-27 Automatic transmission Sports Mode 5A/T........................................6-28Easy select 4WD*............................................................................... 6-35
Super select 4WD II*.......................................................................... 6-40
Rear differential lock*........................................................................ 6-45 4-wheel drive operation*.................................................................... 6-49
Inspection and maintenance following rough road operation............. 6-52
Cautions on handling of 4-wheel drive vehicles................................. 6-52
Braking................................................................................................ 6-53
Hill start assist..................................................................................... 6-55
Brake assist system............................................................................. 6-56
Emergency stop signal system*.......................................................... 6-56
Anti-lock brake system (ABS)............................................................ 6-57Power steering system.........................................................................6-59
Active Stability & Traction Control (ASTC)*....................................6-59
Trailer Stability Assist (TSA)............................................................. 6-63 Cruise control*.................................................................................... 6-63
Speed Limiter...................................................................................... 6-69
Lane Departure Warning (LDW)*...................................................... 6-76
Rear-view camera*............................................................................. 6-79
Cargo loads......................................................................................... 6-83Trailer towing......................................................................................6-83Starting and driving
OKTE17E16

Economical drivingE00600102318
For economical driving, there are some tech- nical requirements that have to be met. Theprerequisite for low fuel consumption is a
properly adjusted engine. In order to achieve longer life of the vehicle and the most eco- nomical operation, we recommend you tohave the vehicle checked at regular intervals in accordance with the service standards.
Fuel economy and generation of exhaust gas
and noise are highly influenced by personal
driving habits as well as the particular operat- ing conditions. The following points shouldbe observed in order to minimize wear of
brakes, tyres and engine as well as to reduce
environmental pollution.
Starting the engine
Avoid sudden acceleration and sudden starts,
as they will increase fuel consumption.
Shifting
Shift only at an appropriate speed and engine speed. Always use the highest shift position
possible.
The transfer shift lever or the drive mode-se-
lector should be set to “2H” when driving 4WD vehicles on normal roads and express
ways to obtain best possible fuel economy.
City traffic
Frequent starting and stopping increases the
average fuel consumption. Use roads with smooth traffic flow whenever possible. When driving on congested roads, avoid use of a
low shift position at high engine speeds.
Idling
The vehicle consumes fuel even during idling. Avoid extended idling whenever pos-
sible.
Speed
At higher vehicle speed, more fuel is con-
sumed. Avoid driving at full speed. Even a slight release of the accelerator pedal willsave a significant amount of fuel.
Tyre inflation pressure
Check the tyre inflation pressures at regularintervals. Low tyre inflation pressure increa-ses road resistance and fuel consumption. In
addition, low tyre pressures adversely affect tyre wear and driving stability.
Cargo loads
Do not drive with unnecessary articles in the
luggage compartment. Especially during city
driving where frequent starting and stopping is necessary, the increased weight of the ve-
hicle will greatly affect fuel consumption. Al- so avoid driving with unnecessary luggage or carriers, etc., on the roof; the increased air re- sistance will increase fuel consumption.
Cold engine starting
Starting of a cold engine consumes more fuel. Unnecessary fuel consumption is alsocaused by keeping a hot engine running. Af-
ter the engine is started, commence driving as soon as possible.
Cooler or air conditioning
The use of the air conditioner will increase the fuel consumption.
Driving, alcohol and drugs
E00600200070
Driving after drinking alcohol is one of the
most frequent causes of accidents.
Economical driving
6-02OKTE17E1Starting and driving6

Your driving ability can be seriously im-
paired even with blood alcohol levels far be- low the legal minimum. If you have beendrinking, don’t drive. Ride with a designated
non-drinking driver, call a cab or a friend, or
use public transportation. Drinking coffee or taking a cold shower will not make you so-ber.
Similarly, prescription and nonprescription
drugs affect your alertness, perception and re- action time. Consult with your doctor or
pharmacist before driving while under the in- fluence of any of these medications.WARNINGl NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your reflexes are slower and your judgment is
impaired.Safe driving techniques
E00600300446
Driving safety and protection against injury
cannot be fully ensured. However, we recom- mend that you pay extra attention to the fol-
lowing:
Seat belts
Before starting the vehicle, make sure that
you and your passengers have fastened your seat belts.
Floor mats
WARNINGl Keep floor mats clear of the pedals by
correctly laying floor mats that are suita-
ble for the vehicle.
To prevent the floor mats from slipping out of position, securely retain them usingthe hook etc.
Note that laying a floor mat over a pedal
or laying one floor mat on top of another can obstruct pedal operation and lead to a
serious accident.Carrying children in the vehi-
cle
l Never leave your vehicle unattended
with the key and children inside the ve-hicle. Children may play with the driv-
ing controls and this could lead to an ac- cident.
l Make sure that infants and small chil-
dren are properly restrained in accord-
ance with the laws and regulations, and
for maximum protection in case of an accident.
l Prevent children from playing in the lug-
gage compartment. It is quite dangerous
to allow them to play there while the ve- hicle is moving.
Loading luggage
When loading luggage, be careful not to load above the height of seats. This is dangerous
not only because rearward vision will be ob- structed, but also the luggage may be projec-ted into the passenger compartment underhard braking.
Safe driving techniques
6-03OKTE17E1Starting and driving6

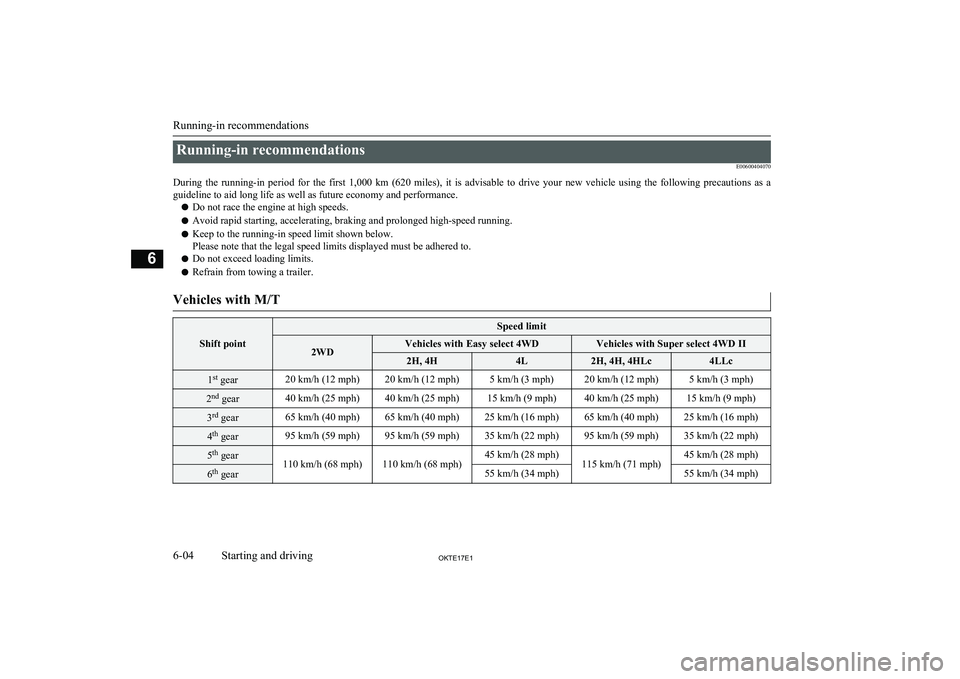

Running-in recommendationsE00600404070
During the running-in period for the first 1,000 km (620 miles), it is advisable to drive your new vehicle using the following precautions as a guideline to aid long life as well as future economy and performance.
l Do not race the engine at high speeds.
l Avoid rapid starting, accelerating, braking and prolonged high-speed running.
l Keep to the running-in speed limit shown below.
Please note that the legal speed limits displayed must be adhered to.
l Do not exceed loading limits.
l Refrain from towing a trailer.Vehicles with M/T
Shift point
Speed limit2WDVehicles with Easy select 4WDVehicles with Super select 4WD II2H, 4H4L2H, 4H, 4HLc4LLc1st
gear20 km/h (12 mph)20 km/h (12 mph)5 km/h (3 mph)20 km/h (12 mph)5 km/h (3 mph)2nd
gear40 km/h (25 mph)40 km/h (25 mph)15 km/h (9 mph)40 km/h (25 mph)15 km/h (9 mph)3rd
gear65 km/h (40 mph)65 km/h (40 mph)25 km/h (16 mph)65 km/h (40 mph)25 km/h (16 mph)4th
gear95 km/h (59 mph)95 km/h (59 mph)35 km/h (22 mph)95 km/h (59 mph)35 km/h (22 mph)5th
gear110 km/h (68 mph)110 km/h (68 mph)
45 km/h (28 mph)
115 km/h (71 mph)
45 km/h (28 mph)6th
gear55 km/h (34 mph)55 km/h (34 mph)
Running-in recommendations
6-04OKTE17E1Starting and driving6
