NOTE•Electric power consumption is high, such
as when the rear window demister or oth-
er electrical components are operating or
the blower speed is set to a high setting.
• Battery voltage or battery performance is
low.
• Check engine warning lamp is illuminated
or the
indication lamp is blinking.
• On 4WD vehicles, the drive mode-selec-
tor in “4H” or “4L” (Easy select 4WD),
“4HLc” or “4LLc” (Super select 4WD II).
l In the following cases, the engine will not
stop automatically even if “AS&G” indica-
tion lamp turn on.
• Push the accelerator pedal.
• Brake booster vacuum pressure is low.
• Operate the steering wheel.
• Parking on steep hill.
l Do not rest your foot on the clutch pedal
while driving because this will cause detec-
tion of clutch pedal malfunction and blink-
ing of AS&G OFF display/indicator, and AS&G system will not operate.
l If the AS&G system operates while the air
conditioner is operating, both the engine and
the air conditioning compressor will stop.
Therefore, only the blower will operate, the windows may start to fog up. If this occurs,
press the demister switch to restart the en- gine.
Refer to “Demister switch” on page 7-15.
NOTEl If the windows become fogged up each time
the engine is stopped, we recommend you to
deactivate the AS&G system by pressing the
“AS&G OFF” switch. Refer to “To deacti- vate” on page 6-26.
l If the air conditioner is operating, set the
temperature control higher to lengthen the
time that the engine is stopped automatical- ly.Automatically restarting the
engine
E00627601265
Depress the clutch pedal while the gearshift lever is in the “N” (Neutral) position. The in- dication lamp turns off and the engine restarts
automatically.
NOTEl Do not move the gearshift lever to a position
other than the “N” (Neutral) position or do
not release the clutch pedal while the engine is restarting automatically. The starter motor will stop and the engine will not restart auto-
matically.NOTEl If the engine does not restart automatically
or if the engine stalls, the charge warning lamp and check engine warning lamp will il-
luminate.
If this occurs, the engine will not restart even if the clutch pedal is depressed again. While depressing the brake pedal, fully de-press the clutch pedal and turn the ignition
switch to the “START” position or press the engine switch to start the engine.
For details, refer to “Starting and stopping
the engine” on page 6-17.CAUTIONl In the following cases, the engine will restart
automatically even if the engine was stopped
by the AS&G system. Pay attention, other- wise an unexpected accident might occur
when the engine restarts.
• Vehicle speed is 3 km/h (2 mph) or higher
when coasting down a slope.
• Brake booster vacuum pressure is low be-
cause the brake pedal is depressed repeat- edly or depressed harder than usual.
• Engine coolant temperature is low.
• When the air conditioner is operated by
pressing the air conditioning switch.
• When the preset temperature of the air
conditioner is changed significantly.
Auto Stop & Go (AS&G) system*
6-25OKTE17E1Starting and driving6

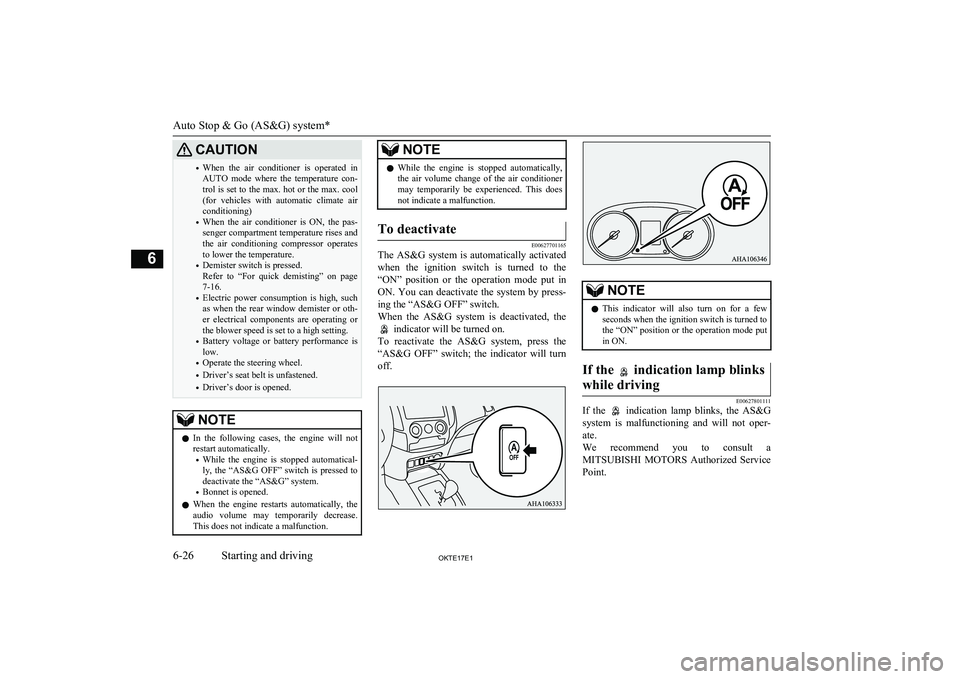

CAUTION•When the air conditioner is operated in
AUTO mode where the temperature con- trol is set to the max. hot or the max. cool
(for vehicles with automatic climate air conditioning)
• When the air conditioner is ON, the pas-
senger compartment temperature rises and the air conditioning compressor operatesto lower the temperature.
• Demister switch is pressed.
Refer to “For quick demisting” on page
7-16.
• Electric power consumption is high, such
as when the rear window demister or oth- er electrical components are operating or
the blower speed is set to a high setting.
• Battery voltage or battery performance is
low.
• Operate the steering wheel.
• Driver’s seat belt is unfastened.
• Driver’s door is opened.NOTEl In the following cases, the engine will not
restart automatically.
• While the engine is stopped automatical-
ly, the “AS&G OFF” switch is pressed to
deactivate the “AS&G” system.
• Bonnet is opened.
l When the engine restarts automatically, the
audio volume may temporarily decrease.
This does not indicate a malfunction.NOTEl While the engine is stopped automatically,
the air volume change of the air conditioner
may temporarily be experienced. This does not indicate a malfunction.To deactivate
E00627701165
The AS&G system is automatically activated
when the ignition switch is turned to the
“ON” position or the operation mode put in
ON. You can deactivate the system by press- ing the “AS&G OFF” switch.
When the AS&G system is deactivated, the
indicator will be turned on.
To reactivate the AS&G system, press the “AS&G OFF” switch; the indicator will turn
off.
NOTEl This indicator will also turn on for a few
seconds when the ignition switch is turned to
the “ON” position or the operation mode put in ON.If the indication lamp blinks
while driving
E00627801111
If the indication lamp blinks, the AS&G
system is malfunctioning and will not oper-
ate.
We recommend you to consult a MITSUBISHI MOTORS Authorized Service
Point.
Auto Stop & Go (AS&G) system*
6-26OKTE17E1Starting and driving6

The selector lever (A) has 2 gates; the maingate (B) and the manual gate (C).While depressing the brake pedal,
move the selector lever through the gate.Move the selector lever throughthe gate.WARNINGl Always depress the brake pedal when
shifting the selector lever into a gear from the “P” (PARK) or “N” (NEUTRAL) po-sition.
Never put your foot on the accelerator
pedal while shifting the selector lever
from the “P” (PARK) or “N” (NEU- TRAL) position.NOTEl To avoid erroneous operation, move the se-
lector lever firmly into each position and
briefly hold it there. Always check the posi- tion shown by the selector lever position dis-
play after moving the selector lever.
l If the brake pedal is not depressed and held,
the shift-lock device activates to prevent the selector lever from being moved from the “P” (PARK) position.When the selector lever cannot
be shifted from the “P” (PARK)position
E00629101192
When the selector lever cannot be shifted from the “P” (PARK) position to another po-
sition while the brake pedal is pressed and
held down with the ignition switch at the “ON” position or the operation mode in ON,the battery may be flat or the shift-lock
mechanism may be malfunctioning. Immedi-
ately have your vehicle checked by a MITSUBISHI MOTORS Authorized Service
Point.
If you need to move the vehicle, shift the se- lector lever as follows.
For LHD vehicles
1. Make sure the parking brake is applied. 2. Stop the engine if it is running.
Automatic transmission Sports Mode 5A/T
6-29OKTE17E1Starting and driving6LHD RHD LHD
RHD

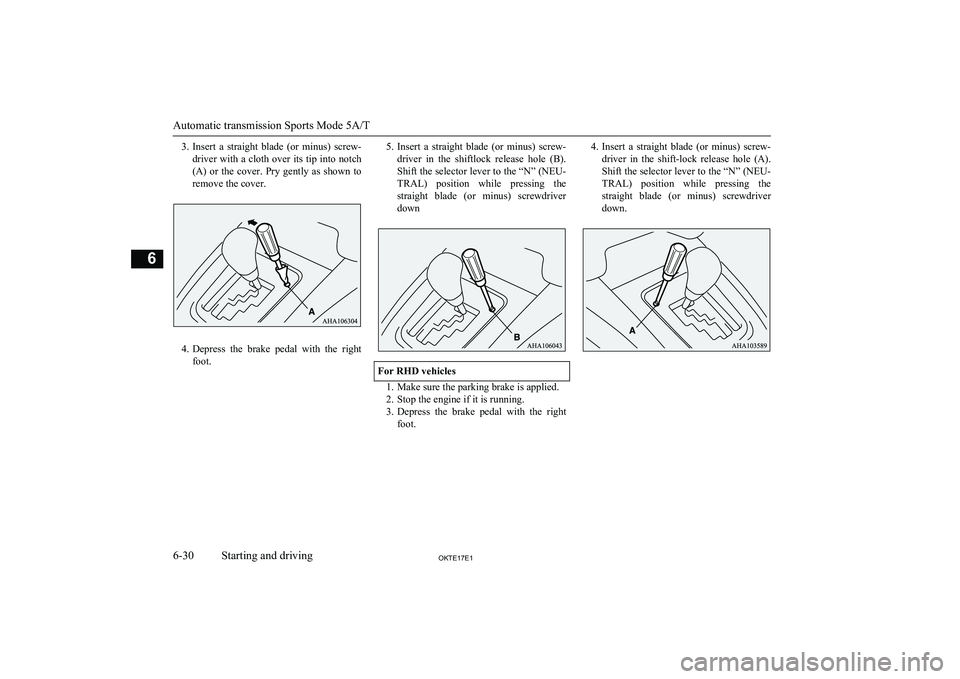

3.Insert a straight blade (or minus) screw-
driver with a cloth over its tip into notch (A) or the cover. Pry gently as shown to remove the cover.
4. Depress the brake pedal with the right
foot.
5. Insert a straight blade (or minus) screw-
driver in the shiftlock release hole (B).Shift the selector lever to the “N” (NEU-
TRAL) position while pressing the straight blade (or minus) screwdriver
down
For RHD vehicles
1. Make sure the parking brake is applied.
2. Stop the engine if it is running.
3. Depress the brake pedal with the right
foot.
4. Insert a straight blade (or minus) screw-
driver in the shift-lock release hole (A).
Shift the selector lever to the “N” (NEU-
TRAL) position while pressing the straight blade (or minus) screwdriver
down.
Automatic transmission Sports Mode 5A/T
6-30OKTE17E1Starting and driving6

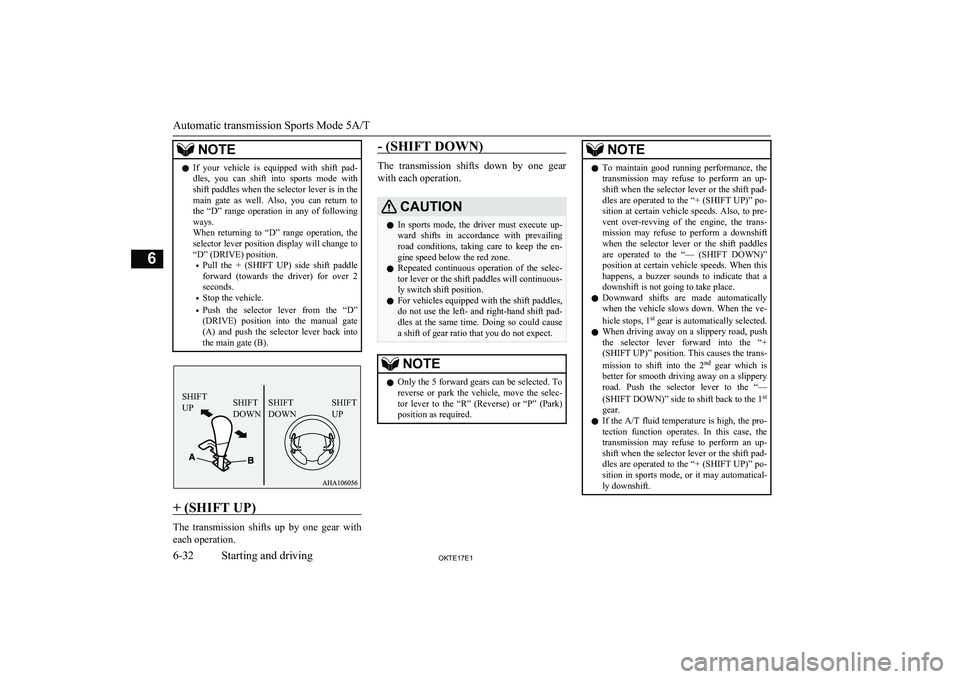

NOTElIf your vehicle is equipped with shift pad-
dles, you can shift into sports mode with
shift paddles when the selector lever is in the main gate as well. Also, you can return to
the “D” range operation in any of following ways.
When returning to “D” range operation, the selector lever position display will change to
“D” (DRIVE) position.
• Pull the + (SHIFT UP) side shift paddle
forward (towards the driver) for over 2
seconds.
• Stop the vehicle.
• Push the selector lever from the “D”
(DRIVE) position into the manual gate
(A) and push the selector lever back into the main gate (B).
+ (SHIFT UP)
The transmission shifts up by one gear with
each operation.
- (SHIFT DOWN)
The transmission shifts down by one gear
with each operation.
CAUTIONl In sports mode, the driver must execute up-
ward shifts in accordance with prevailing road conditions, taking care to keep the en-
gine speed below the red zone.
l Repeated continuous operation of the selec-
tor lever or the shift paddles will continuous-ly switch shift position.
l For vehicles equipped with the shift paddles,
do not use the left- and right-hand shift pad- dles at the same time. Doing so could cause
a shift of gear ratio that you do not expect.NOTEl Only the 5 forward gears can be selected. To
reverse or park the vehicle, move the selec-
tor lever to the “R” (Reverse) or “P” (Park)
position as required.NOTEl To maintain good running performance, the
transmission may refuse to perform an up- shift when the selector lever or the shift pad-dles are operated to the “+ (SHIFT UP)” po-
sition at certain vehicle speeds. Also, to pre- vent over-revving of the engine, the trans-
mission may refuse to perform a downshift when the selector lever or the shift paddlesare operated to the “— (SHIFT DOWN)”
position at certain vehicle speeds. When this
happens, a buzzer sounds to indicate that a downshift is not going to take place.
l Downward shifts are made automatically
when the vehicle slows down. When the ve-
hicle stops, 1 st
gear is automatically selected.
l When driving away on a slippery road, push
the selector lever forward into the “+(SHIFT UP)” position. This causes the trans-
mission to shift into the 2 nd
gear which is
better for smooth driving away on a slippery
road. Push the selector lever to the “—
(SHIFT DOWN)” side to shift back to the 1 st
gear.
l If the
A/T fluid temperature is high, the pro-
tection function operates. In this case, the
transmission may refuse to perform an up- shift when the selector lever or the shift pad-
dles are operated to the “+ (SHIFT UP)” po- sition in sports mode, or it may automatical-
ly downshift.
Automatic transmission Sports Mode 5A/T
6-32OKTE17E1Starting and driving6 SHIFT
UPSHIFT
DOWNSHIFT
DOWN SHIFT
UP

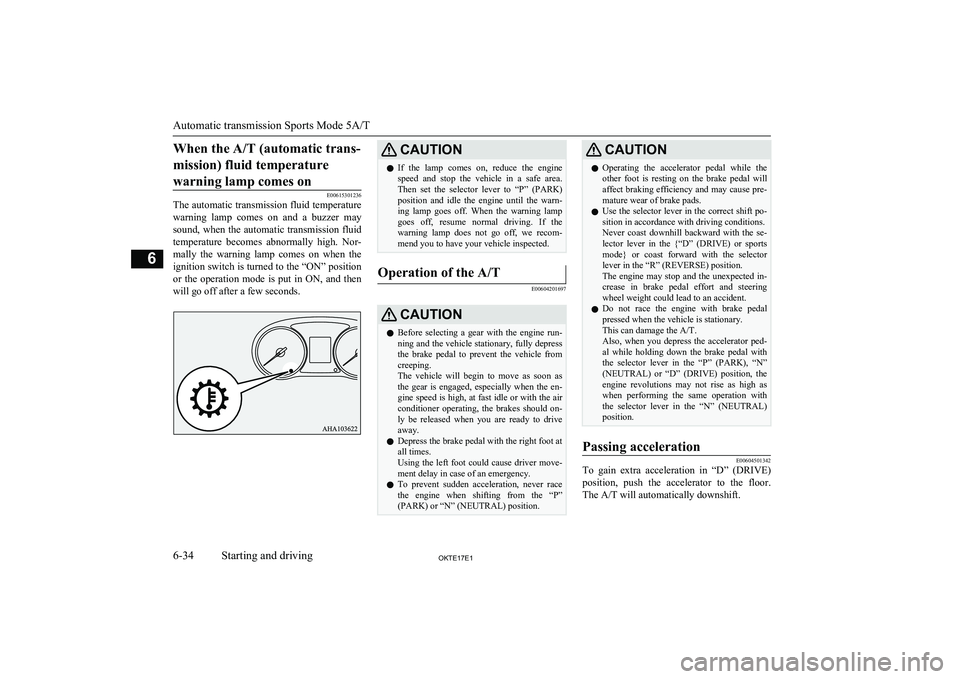

When the A/T (automatic trans-mission) fluid temperature warning lamp comes on
E00615301236
The automatic transmission fluid temperature
warning lamp comes on and a buzzer may
sound, when the automatic transmission fluid
temperature becomes abnormally high. Nor- mally the warning lamp comes on when the
ignition switch is turned to the “ON” position or the operation mode is put in ON, and then
will go off after a few seconds.
CAUTIONl If the lamp comes on, reduce the engine
speed and stop the vehicle in a safe area.Then set the selector lever to “P” (PARK)
position and idle the engine until the warn-
ing lamp goes off. When the warning lamp goes off, resume normal driving. If the
warning lamp does not go off, we recom- mend you to have your vehicle inspected.Operation of the A/T
E00604201697
CAUTIONl Before selecting a gear with the engine run-
ning and the vehicle stationary, fully depress
the brake pedal to prevent the vehicle from
creeping.
The vehicle will begin to move as soon as the gear is engaged, especially when the en- gine speed is high, at fast idle or with the airconditioner operating, the brakes should on-
ly be released when you are ready to drive
away.
l Depress the brake pedal with the right foot at
all times.
Using the left foot could cause driver move- ment delay in case of an emergency.
l To prevent sudden acceleration, never race
the engine when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.CAUTIONl Operating the accelerator pedal while the
other foot is resting on the brake pedal will affect braking efficiency and may cause pre-
mature wear of brake pads.
l Use the selector lever in the correct shift po-
sition in accordance with driving conditions.Never coast downhill backward with the se-
lector lever in the {“D” (DRIVE) or sports mode} or coast forward with the selector
lever in the “R” (REVERSE) position.
The engine may stop and the unexpected in- crease in brake pedal effort and steering
wheel weight could lead to an accident.
l Do not race the engine with brake pedal
pressed when the vehicle is stationary.
This can damage the A/T.
Also, when you depress the accelerator ped- al while holding down the brake pedal withthe selector lever in the “P” (PARK), “N”
(NEUTRAL) or “D” (DRIVE) position, the
engine revolutions may not rise as high as when performing the same operation with
the selector lever in the “N” (NEUTRAL)
position.Passing acceleration
E00604501342
To gain extra acceleration in “D” (DRIVE)
position, push the accelerator to the floor.The A/T will automatically downshift.
Automatic transmission Sports Mode 5A/T
6-34OKTE17E1Starting and driving6

NOTElIn sports mode, downshifts do not take place
when the accelerator is depressed all the way to the floor.Waiting
E00604601372
For short waiting periods, such as at traffic
signals, the vehicle can be left in gear and held stationary with the service brake.
For longer waiting periods with the engine
running, place the selector lever in the “N” (NEUTRAL) position and apply the parking
brake, while holding the vehicle stationary with the service brake.
CAUTIONl Never hold the vehicle stationary on a hill
using the accelerator pedal (without using
the brake pedal). Always apply the parking brake and/or service brakes.Parking
E00604700187
To park the vehicle, first bring it to a com-
plete stop, fully engage the parking brake,and then move the selector lever to the “P”
(PARK) position.
If you are going to leave the vehicle unatten-
ded, always switch off the engine and carry the key.
NOTEl On a slope, be sure to apply the parking
brake before moving the selector lever to the
“P” (PARK) position. If you move the selec- tor lever to the “P” (PARK) position before applying the parking brake, it may be diffi-
cult to disengage the selector lever from the
“P” (PARK) position when next you drive the vehicle, requiring application of a strong
force to the selector lever to move from the
“P” (PARK) position.When the automatic transmis-
sion makes no speed change
E00604801882
If the transmission does not change speeds
while driving, or your vehicle does not pick up enough speed when starting on an uphillslope, it may be that there is something un-
usual happening in the transmission, causing a safety device to activate. Immediately have
your vehicle checked at a MITSUBISHI
MOTORS Authorized Service Point. 1. If your vehicle has difficulty moving up-
hill, shift the selector lever into 2 nd
gear
of the sports mode. This method might
not work depending on the transmission malfunction.
2. Once the vehicle is moving on a level
road, move the selector lever back to“D” (DRIVE).
NOTEl When the selector lever position display in
the instrument panel blinks, it means that
there is an abnormal condition in the trans- mission.
Refer to “When the selector lever position
display blinks” on page 6-33.Easy select 4WD*
E00614701204
Shifting to rear-wheel drive or 4-wheel drivecan be made by operating the drive mode-se-
lector (A). Set the drive mode-selector to an appropriate position according to the roadsurface conditions. In addition, the 2WD/4WD operation indication lamp and the
low-range indication lamp indicates the drive
mode-selector setting state. Refer to “2WD/4WD operation indication lamp and low-range indication lamp” on page 6-38.
Easy select 4WD*
6-35OKTE17E1Starting and driving6

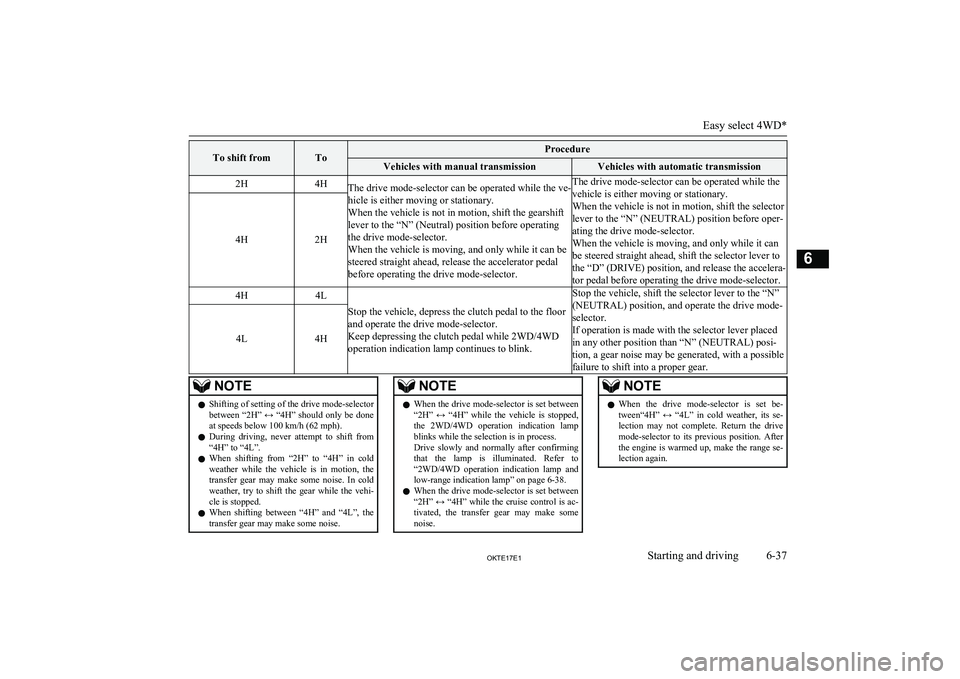

To shift fromToProcedureVehicles with manual transmissionVehicles with automatic transmission2H4HThe drive mode-selector can be operated while the ve-
hicle is either moving or stationary.
When the vehicle is not in motion, shift the gearshift
lever to the “N” (Neutral) position before operating
the drive mode-selector.
When the vehicle is moving, and only while it can be steered straight ahead, release the accelerator pedal
before operating the drive mode-selector.The drive mode-selector can be operated while the
vehicle is either moving or stationary.
When the vehicle is not in motion, shift the selector
lever to the “N” (NEUTRAL) position before oper-
ating the drive mode-selector.
When the vehicle is moving, and only while it can
be steered straight ahead, shift the selector lever to
the “D” (DRIVE) position, and release the accelera- tor pedal before operating the drive mode-selector.
4H2H
4H4L
Stop the vehicle, depress the clutch pedal to the floor
and operate the drive mode-selector.
Keep depressing the clutch pedal while 2WD/4WD
operation indication lamp continues to blink.
Stop the vehicle, shift the selector lever to the “N”
(NEUTRAL) position, and operate the drive mode-
selector.
If operation is made with the selector lever placed
in any other position than “N” (NEUTRAL) posi-
tion, a gear noise may be generated, with a possible
failure to shift into a proper gear.
4L4H
NOTEl Shifting of setting of the drive mode-selector
between “2H” ↔ “4H” should only be doneat speeds below 100 km/h (62 mph).
l During driving, never attempt to shift from
“4H” to “4L”.
l When shifting from “2H” to “4H” in cold
weather while the vehicle is in motion, the transfer gear may make some noise. In cold
weather, try to shift the gear while the vehi-
cle is stopped.
l When shifting between “4H” and “4L”, the
transfer gear may make some noise.NOTEl When the drive mode-selector is set between
“2H” ↔ “4H” while the vehicle is stopped,
the 2WD/4WD operation indication lamp blinks while the selection is in process.
Drive slowly and normally after confirming that the lamp is illuminated. Refer to “2WD/4WD operation indication lamp and
low-range indication lamp” on page 6-38.
l When the drive mode-selector is set between
“2H” ↔ “4H” while the cruise control is ac-
tivated, the transfer gear may make some
noise.NOTEl When the drive mode-selector is set be-
tween“4H” ↔ “4L” in cold weather, its se-
lection may not complete. Return the drive mode-selector to its previous position. After
the engine is warmed up, make the range se- lection again.
Easy select 4WD*
6-37OKTE17E1Starting and driving6

CAUTIONlDo not operate the drive mode-selector
while the rear wheels of the vehicle are slip-

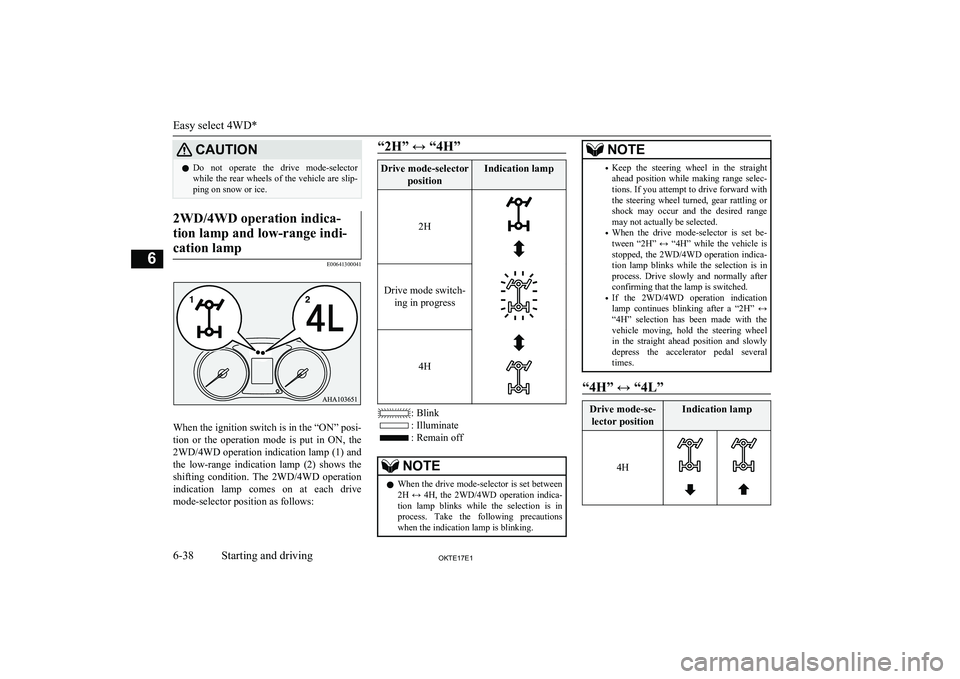

ping on snow or ice.2WD/4WD operation indica-
tion lamp and low-range indi- cation lamp
E00641300041
When the ignition switch is in the “ON” posi-
tion or the operation mode is put in ON, the
2WD/4WD operation indication lamp (1) andthe low-range indication lamp (2) shows the
shifting condition. The 2WD/4WD operation
indication lamp comes on at each drive mode-selector position as follows:
“2H” ↔ “4H”Drive mode-selector
positionIndication lamp
2HDrive mode switch-ing in progress4H
: Blink
: Illuminate
: Remain off
NOTEl When the drive mode-selector is set between
2H ↔ 4H, the 2WD/4WD operation indica-tion lamp blinks while the selection is in
process. Take the following precautions
when the indication lamp is blinking.NOTE• Keep the steering wheel in the straight
ahead position while making range selec-
tions. If you attempt to drive forward with the steering wheel turned, gear rattling or
shock may occur and the desired range may not actually be selected.
• When the drive mode-selector is set be-
tween “2H” ↔ “4H” while the vehicle isstopped, the 2WD/4WD operation indica-
tion lamp blinks while the selection is in
process. Drive slowly and normally after confirming that the lamp is switched.
• If the 2WD/4WD operation indication
lamp continues blinking after a “2H” ↔ “4H” selection has been made with thevehicle moving, hold the steering wheel in the straight ahead position and slowly
depress the accelerator pedal several
times.
“4H” ↔ “4L”
Drive mode-se-
lector positionIndication lamp
4HEasy select 4WD*
6-38OKTE17E1Starting and driving6

Drive mode-se-lector positionIndication lamp
Drive mode
switching in pro- gress
and
4Landand
: Blink
: Illuminate
: Remain off
NOTElThe 2WD/4WD operation indication lamp
will blink during shifting process from “4H”to “4L” or vice versa, as the transfer passes
through the neutral position.
Be sure to operate the drive mode-selector
until the 2WD/4WD operation indication lamp illuminates again.
l When parking, apply the parking brake be-
fore stopping the engine and make sure that the 2WD/4WD operation indicator and the
low range lamp are not blinking during shift- ing process between “4H” ↔ “4L”. Other- wise, the vehicle could unexpectedly move
even if the automatic transmission is in the “P” (PARK) position.
l If, after a “4H” ↔ “4L” selection has been
made, the 2WD/4WD operation indicator continues blinking and the desired range isnot actually selected, return the drive mode- selector to its previous position. Place the
steering wheel in the straight ahead position, drive the vehicle forward, and release the ac-
celerator pedal. Next, hold down the clutch pedal (with manual transmission) or place
the selector lever in the “N” (NEUTRAL)
position (with automatic transmission) and make the range selection again.NOTEl If the low range lamp blinks when you at-
tempt to make a “4H” ↔ “4L” selection, a
“4H” ↔ “4L” selection cannot be made.
Stop the vehicle and release the accelerator pedal. Next, hold down the clutch pedal(with manual transmission) or place the se-lector lever in the “N” (NEUTRAL) position(with automatic transmission) and make the
range selection again.
l The Active Stability Control function is sus-
pended while “4L” is selected.
indication
lamp is illuminated while these functions are suspended. It does not indicate a problem.
When “2H” or “4H” is selected, this lamp goes out and function again. Refer to “ASTCindication lamp, ASTC OFF indication
lamp” on page 6-62.
CAUTIONl If a problem is detected in the transfer sys-
tem, a safety device will activate. The 2WD/4WD operation indicator blinks (twiceper second), and transfer shifting will be-
come impossible. Park your vehicle in a safe place, turn off the engine for a few moments.Restart the engine. The lamp should resume normal operation. If the lamps continue to
blink, have the vehicle checked by a MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible.
Easy select 4WD*
6-39OKTE17E1Starting and driving6
