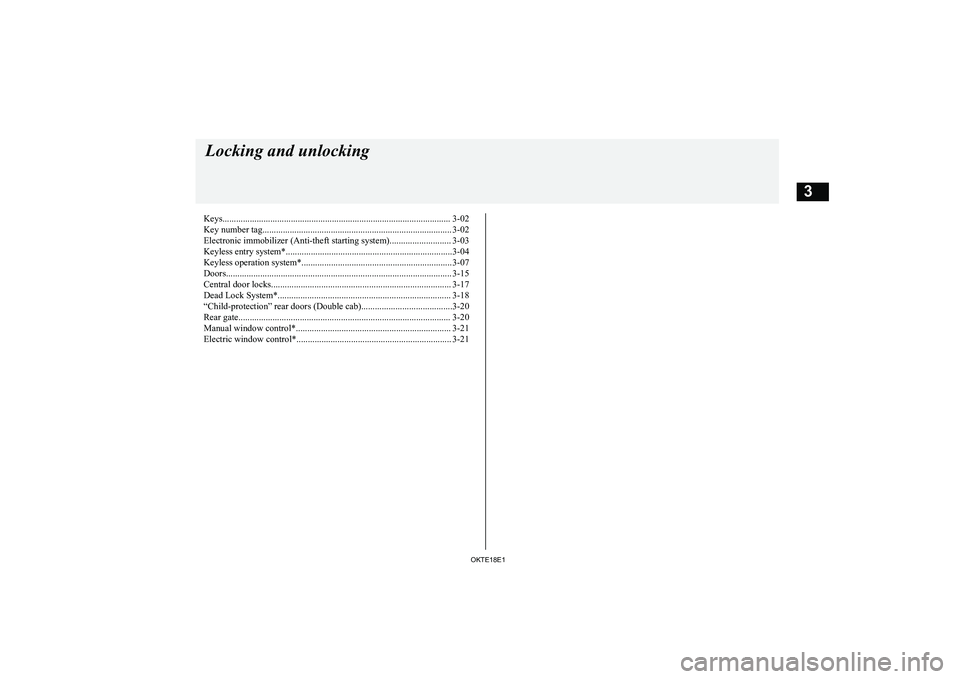

MITSUBISHI L200 2018 (in English) Owner's Guide

Keys.................................................................................................... 3-02Key number tag................................................................................... 3-02
Electronic immobilizer (Anti-theft starting system)........................... 3-03
Keyless entry system*.........................................................................3-04
Keyless operation system*.................................................................. 3-07
Doors................................................................................................... 3-15
Central door locks............................................................................... 3-17
Dead Lock System*............................................................................ 3-18
“Child-protection” rear doors (Double cab)........................................3-20
Rear gate............................................................................................. 3-20
Manual window control*.................................................................... 3-21
Electric window control*.................................................................... 3-21Locking and unlocking
OKTE18E13

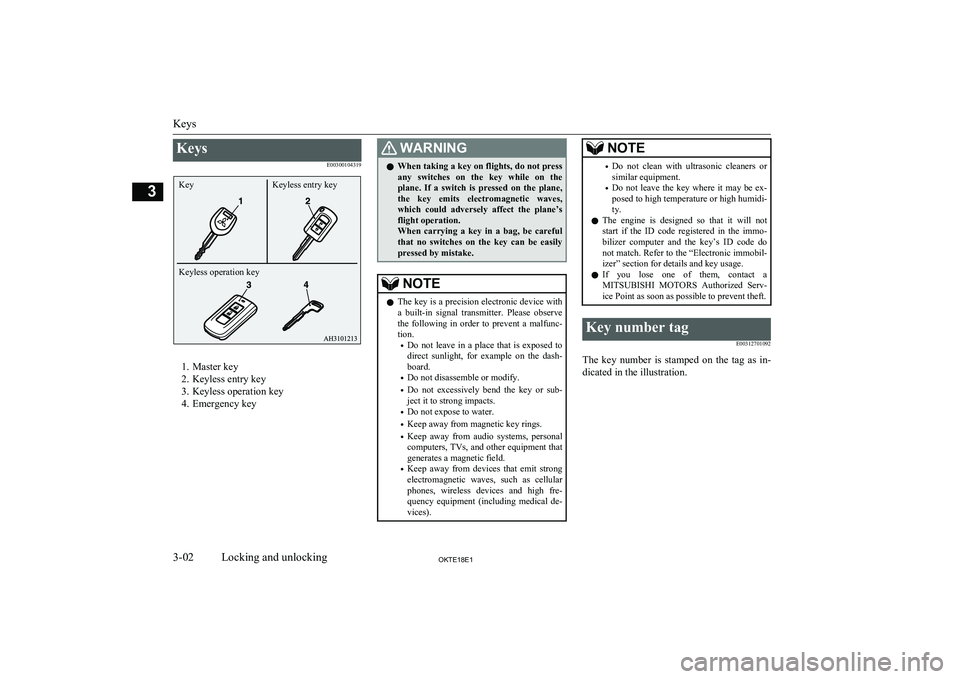

KeysE00300104319
1. Master key
2. Keyless entry key
3. Keyless operation key
4. Emergency key
WARNINGl When taking a key on flights, do not press
any switches on the key while on the plane. If a switch is pressed on the plane,the key emits electromagnetic waves,which could adversely affect the plane’s
flight operation.
When carrying a key in a bag, be careful that no switches on the key can be easily
pressed by mistake.NOTEl The key is a precision electronic device with
a built-in signal transmitter. Please observe
the following in order to prevent a malfunc- tion.
• Do not leave in a place that is exposed to
direct sunlight, for example on the dash- board.
• Do not disassemble or modify.
• Do not excessively bend the key or sub-
ject it to strong impacts.
• Do not expose to water.
• Keep away from magnetic key rings.
• Keep away from audio systems, personal
computers, TVs, and other equipment that generates a magnetic field.
• Keep away from devices that emit strong
electromagnetic waves, such as cellular phones, wireless devices and high fre-
quency equipment (including medical de- vices).NOTE• Do not clean with ultrasonic cleaners or
similar equipment.
• Do not leave the key where it may be ex-
posed to high temperature or high humidi-
ty.
l The engine is designed so that it will not
start if the ID code registered in the immo-
bilizer computer and the key’s ID code do
not match. Refer to the “Electronic immobil- izer” section for details and key usage.
l If you lose one of them, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible to prevent theft.Key number tag
E00312701092
The key number is stamped on the tag as in-
dicated in the illustration.
Keys
3-02OKTE18E1Locking and unlocking3Key Keyless operation keyKeyless entry key

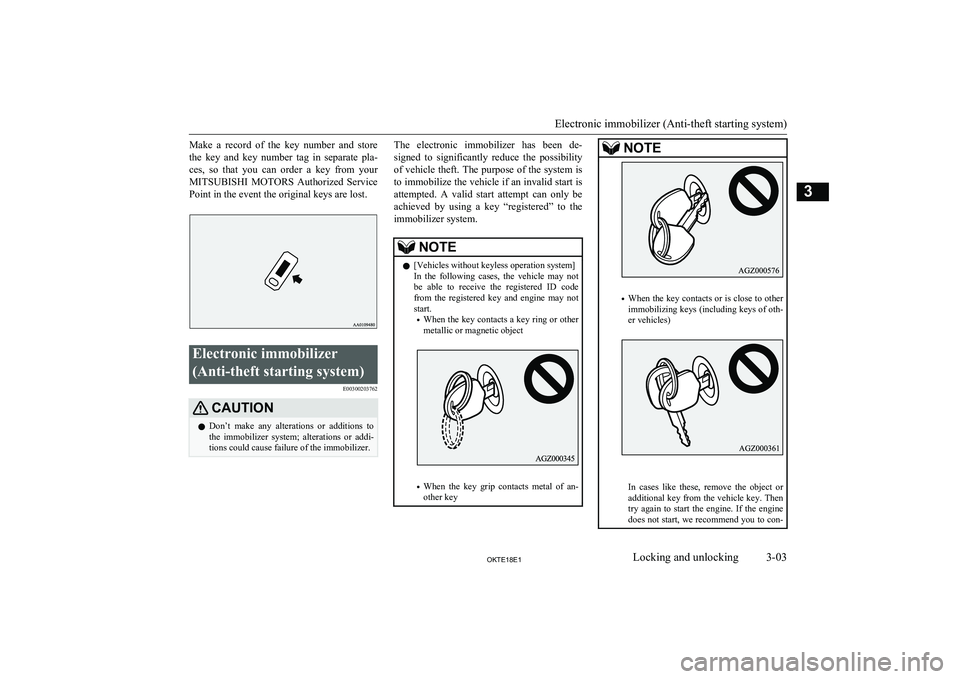

Make a record of the key number and storethe key and key number tag in separate pla-
ces, so that you can order a key from your MITSUBISHI MOTORS Authorized Service
Point in the event the original keys are lost.Electronic immobilizer
(Anti-theft starting system) E00300203762CAUTIONlDon’t make any alterations or additions to
the immobilizer system; alterations or addi-tions could cause failure of the immobilizer.The electronic immobilizer has been de-
signed to significantly reduce the possibility of vehicle theft. The purpose of the system is
to immobilize the vehicle if an invalid start is
attempted. A valid start attempt can only be achieved by using a key “registered” to the immobilizer system.NOTEl [Vehicles without keyless operation system]
In the following cases, the vehicle may not be able to receive the registered ID code from the registered key and engine may not
start.
• When the key contacts a key ring or other
metallic or magnetic object
• When the key grip contacts metal of an-
other key
NOTE
• When the key contacts or is close to other
immobilizing keys (including keys of oth-er vehicles)

In cases like these, remove the object or additional key from the vehicle key. Then
try again to start the engine. If the engine
does not start, we recommend you to con-
Electronic immobilizer (Anti-theft starting system)
3-03OKTE18E1Locking and unlocking3

NOTEtact a MITSUBISHI MOTORS Author-
ized Service Point.
l [Vehicles equipped with keyless operation
system]
If the engine does not start, we recommend you to contact a MITSUBISHI MOTORS
Authorized Service Point.
l If you lose one of the master keys, the key-
less entry keys or the keyless operation keys,
contact a MITSUBISHI MOTORS Author-
ized Service Point as soon as possible. Refer to “Keys” on page 3-02.
To obtain a key, take your vehicle and all re-
maining keys to a MITSUBISHI MOTORS
Authorized Service Point.
If you need an extra spare key, take your ve-
hicle and all the keys to a MITSUBISHI
MOTORS Authorized Service Point. All the
keys have to be re-registered in the immobil-
izer computer unit.
For further information, please contact a MITSUBISHI MOTORS Authorized Serv-

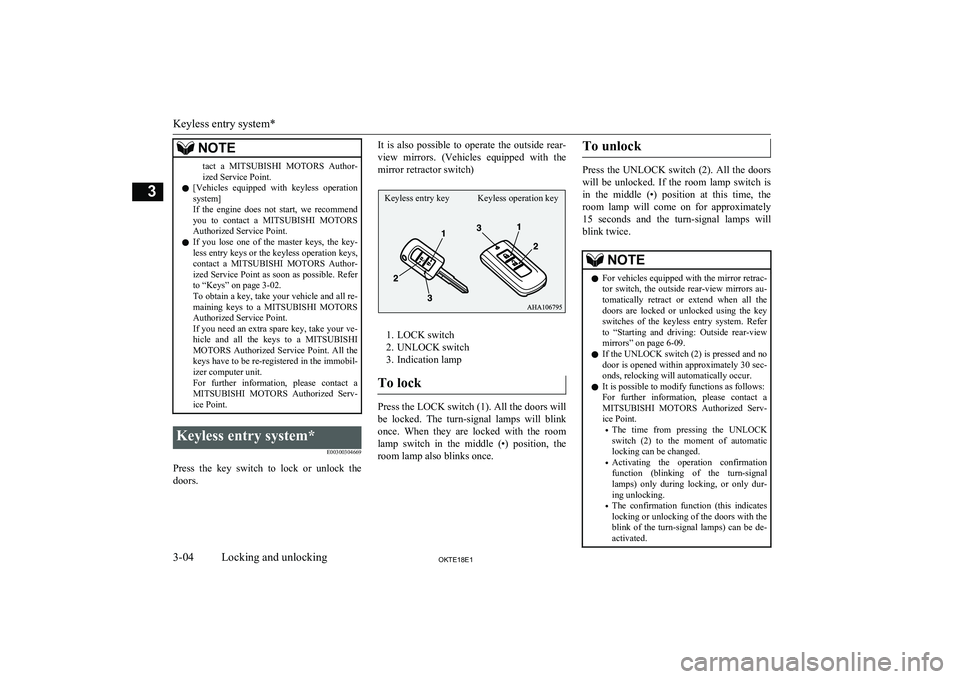

ice Point.Keyless entry system*
E00300304669
Press the key switch to lock or unlock thedoors.
It is also possible to operate the outside rear-
view mirrors. (Vehicles equipped with the mirror retractor switch)
1. LOCK switch
2. UNLOCK switch
3. Indication lamp
To lock
Press the LOCK switch (1). All the doors will be locked. The turn-signal lamps will blink once. When they are locked with the room
lamp switch in the middle (•) position, the room lamp also blinks once.
To unlock
Press the UNLOCK switch (2). All the doors
will be unlocked. If the room lamp switch is in the middle (•) position at this time, the
room lamp will come on for approximately 15 seconds and the turn-signal lamps will
blink twice.
NOTEl For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically retract or extend when all the doors are locked or unlocked using the key
switches of the keyless entry system. Refer to “Starting and driving: Outside rear-viewmirrors” on page 6-09.
l If the UNLOCK switch (2) is pressed and no
door is opened within approximately 30 sec-
onds, relocking will automatically occur.
l It is possible to modify functions as follows:
For further information, please contact a MITSUBISHI MOTORS Authorized Serv-
ice Point.
• The time from pressing the UNLOCK
switch (2) to the moment of automatic locking can be changed.
• Activating the operation confirmation
function (blinking of the turn-signal
lamps) only during locking, or only dur- ing unlocking.
• The confirmation function (this indicates
locking or unlocking of the doors with the
blink of the turn-signal lamps) can be de- activated.
Keyless entry system*
3-04OKTE18E1Locking and unlocking3 Keyless entry key Keyless operation key

NOTE•The number of times the turn-signal
lamps are flashed by the confirmation function can be changed.
Operation of the Dead Lock
System*
With a vehicle that has a Dead Lock System, it is possible to set the Dead Lock System by
pressing the LOCK switch (1) two times.
Refer to “Dead Lock System*” on page 3-18 for details.
Operation of the outside rear-
view mirrors (Vehicles equip- ped with mirror retractor
switch)
E00310801507
To fold
Locking the doors using the LOCK switch
(1), the outside rear-view mirrors are folded
automatically.
To extend
Unlocking the doors using the UNLOCK
switch (2), the outside rear-view mirrors are
extended automatically.
NOTEl Functions can be modified as stated below.
Please consult a MITSUBISHI MOTORS
Authorized Service Point.
• Automatically extend when the driver’s
door is closed, and then the following op- eration is performed.
[Except vehicles equipped with keyless operation system]
Turn the ignition switch to the “ON” or
“ACC” position.
[Vehicles equipped with keyless operation
system]
Put the operation mode in ON or ACC.
• Automatically retract when the ignition
switch is turned to the “LOCK” position
or the operation mode is put in OFF, and the driver’s door is then opened.
• Automatically extend when the vehicle
speed reaches 30 km/h. NOTE• Deactivate the automatic extension func-
tion.

The outside rear-view mirrors can be fol-
ded or extended by the following opera-
tions, even if changing to any of the above.
After pressing the “LOCK” switch to lock
the doors, if the “LOCK” switch is press- ed again twice in a row within about 30
seconds, the outside rear-view mirrors will retract.
After pressing the “UNLOCK” switch to
unlock the doors, if the “UNLOCK”
switch is pressed again twice in a row within about 30 seconds, the outside rear-
view mirrors will extend again.
l The keyless entry system does not operate in
the following conditions:
• The key is left in the ignition switch. (ex-
cept for vehicles with keyless operation system)
• The operation mode is not in OFF. (vehi-
cles with keyless operation system)
• The door is open.
l The key switch will operate within approxi-
mately 4 m from the vehicle. However, the operating range of the key switch may
change if the vehicle is located near a TV
transmitting tower, power station, or radio
broadcasting station.
l If either of the following problems occurs,
the battery may be exhausted.
Keyless entry system*
3-05OKTE18E1Locking and unlocking3

NOTE•The key switch is operated at the correct
distance from the vehicle, but the doorsare not locked/unlocked in response.
• The indication lamp (3) is dim or does not
come on.

For further information, please contact a MITSUBISHI MOTORS Authorized
Service Point.
If you replace the battery yourself, refer to
“Procedure for replacing the key battery” on page 3-06.
l If your key is lost or damaged, please con-
tact a MITSUBISHI MOTORS Authorized
Service Point for a replacement key.
l If you wish to add key, please contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
The following numbers of the keys are avail- able.
• Keyless entry key: up to 4 keys.
• Keyless operation key: up to 4 keys.Procedure for replacing the
key battery
E00309501849
Before replacing the battery, remove static
electricity from your body by touching a met- al grounded object.
WARNINGl Danger of explosion if battery is incor-
rectly replaced.
Replace only with the same battery or an equivalent type.CAUTIONl When the key case is opened, be careful to
keep water, dust, etc. out. Also, do not touch
the internal components.NOTEl You may purchase a replacement battery at
an electric appliance store.
l A
MITSUBISHI MOTORS Authorized
Service Point can replace the battery for you
if you prefer.
1. Remove the screw (A) from the key.
(Keyless entry key only)
2. Remove the emergency key from the
key. (Keyless operation key only)
Refer to “Emergency key” on page
3-11.
3. With the MITSUBISHI mark facing
you, insert the cloth-covered tip of a
straight blade (or minus) screwdriver in-
to the notch in the key case and use it to open the case.
Keyless entry system*
3-06OKTE18E1Locking and unlocking3 Keyless entry key Keyless entry key Keyless operation key

NOTElBe sure to perform the procedure with the
MITSUBISHI mark facing you. If the
MITSUBISHI mark is not facing you when
you open the key case, the switches may
come out.
4. Remove the old battery.
5. Install a new battery with the + side (B)
up.
6. Close the key case firmly.
7. Attach the screw (A) removed in step 1.
(Keyless entry key only)
8. Install the emergency key removed in
step 2. (Keyless operation key only)
9. Check the keyless entry system to see
that it works.Keyless operation system*
E00305602230
The keyless operation system allows you tolock and unlock the doors, start the engine
and change the operation mode simply by
carrying the keyless operation key with you. The switches on the keyless operation key can also be used as the key switch of keyless
entry system.
Refer to “Starting and stopping the engine” on page 6-18.
Refer to “Keyless entry system*” on page 3-04.

The driver should always carry the keyless operation key. This key is necessary for lock- ing and unlocking the doors, starting the en-
gine and otherwise operating the vehicle, so before locking and leaving the vehicle, be
sure to check that you have the keyless oper- ation key.
WARNINGl People with implantable cardiac pace-
makers or implantable cardiovascular-de- fibrillators should not go near the exterior
transmitters (A) or the interior transmit-
ters (B). The radio waves used by the key-
less operation system could adversely af- fect implantable cardiac pacemakers orimplantable cardiovascular-defibrillators.
Keyless operation system*
3-07OKTE18E1Locking and unlocking3 Keyless entry key+ side - side
Coin type battery CR1620 Keyless operation key+ side - side
Coin type battery CR2032 Club cab

WARNINGlWhen using electro-medical devices other
than implantable cardiac pacemakers or implantable cardiovascular-defibrillators,
contact the electro-medical device manu- facturer ahead of time to determine theaffects of radio waves on the devices. Elec-
tro-medical device operations could be af- fected by radio waves.
You can limit the possible operations of the
keyless operation system in the following ways. (The keyless operation system can be
used as a keyless entry system.) Please con-
sult a MITSUBISHI MOTORS Authorized
Service Point.
l You can limit operations to locking and
unlocking the doors.
l You can limit operations to starting the
engine.
l The keyless operation system can be dis-
abled.
When keyless operation system operations are modified, the operating transmitters are as
follows.
l Only locking and unlocking doors: exte-
rior transmitter and interior transmitter
l Only starting the engine: interior trans-
mitterNOTEl The keyless operation key uses an ultra-
weak electromagnetic wave. In the following
cases, the keyless operation system may not
operate properly or may be unstable.
• When there is equipment nearby that
emits strong radio waves, such as: a pow-
er station, a radio/TV broadcasting station or an airport.
• The keyless operation system is carried
together with a communications device such as a cellular phone or radio set, or
with an electronic device such as a per- sonal computer.
• The keyless operation key is touching or
covered by a metal object.
• A keyless entry system is being used
nearby.
• When the keyless operation key battery is
worn out.NOTE• When the keyless operation key is placed
in an area with strong radio waves or noise.
In such cases, use the emergency key.
Refer to “To lock/unlock without using
the keyless operation function” on page 3-11.
l Because the keyless operation key receives
signals in order to communicate with the transmitters in the vehicle, the battery con-tinually wears down regardless of keylessoperation key use. The battery life is 1 to 2
years, depending on usage conditions. When the battery wears out, replace the battery ac-cording to the description in this manual or
have it replaced a MITSUBISHI MOTORS
Authorized Service Point.
Refer to “Procedure for replacing the key battery” on page 3-06.
l Because the keyless operation key continual-
ly receives signals, strong radio wave recep- tion could affect battery wear. Do not leave
the key near a TV, personal computer, or
other electronic device.Operating range of the keyless
operation system
E00305701609
If you are carrying the keyless operation key, enter the operating range of the keyless oper-ation system, and press the driver’s or front
passenger’s door lock/unlock switch, the ID
code for your key is verified.
Keyless operation system*
3-08OKTE18E1Locking and unlocking3Double cab

You can lock and unlock the doors, start theengine and change the operation mode only if
the ID codes of your keyless operation key
and the vehicle match.NOTEl If the keyless operation key battery is wear-
ing out or there are strong electromagnetic
waves or noise present, the operating range
may become smaller and operation may be-
come unstable.Operating range for locking
and unlocking the doors
E00306201568
The operating range is approximately 70 cm from the driver’s or front passenger’s door
lock/unlock switch.
*: Forward direction: Operating rangeNOTEl Locking and unlocking operates only when
you press a door switch that detects the key-
less operation key.
l Operation may not be possible if you are too
close to the front door, door window.
l Even if the keyless operation key is within
70 cm of the driver’s or front passenger’s
door lock/unlock switch, if the key is near to the ground or high up, the system may not operate.
l If the keyless operation key is within the op-
erating range, even someone not carrying the key can lock and unlock the doors by press-ing the driver’s or front passenger’s door
lock/unlock switch.Operating range for starting the
engine and changing the opera-tion mode
E00306301338
The operating range is the interior of the ve-
hicle.
*:Forward direction:Operating rangeNOTEl Even if it is within the operating range, if the
keyless operation key is in a small item
holder such as the glove box, on top of the instrument panel, door pocket or in the lug-gage compartment, it may be impossible to
start the engine and change the operation
mode.
Keyless operation system*
3-09OKTE18E1Locking and unlocking3

NOTElIf a keyless operation key is too close to the
door or door window, it may be possible to start the engine or change the operation
mode even when the key is outside the vehi- cle.To operate using the keyless
operation function
E00305802173
Locking the doors
When you are carrying the keyless operation
key, if you press the driver’s or front passen- ger’s door lock/unlock switch (A), within theoperating range, the doors are locked.
The turn-signal lamps will blink once.
Also refer to “Locking and unlocking: Doors,
Central door locks” on pages 3-15, and
3-17.
Unlocking the doors
When you are carrying the keyless operation
key, if you press the driver’s or front passen- ger’s door lock/unlock switch (A), within theoperating range, all the doors are unlocked.
If the room lamp switch is in the middle (•)
position at this time, the room lamp will turn
on for 15 seconds. The turn-signal lamps will blink twice.
If the driver’s or front passenger’s door lock/
unlock switch is pressed and any of the doors
is not opened within approximately 30 sec-
onds, relocking will automatically occur. Refer to “Locking and unlocking: Doors, Central door locks” on pages 3-15, and
3-17.
NOTEl For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically retract/extend when all the doors are locked/unlocked using the keyless opera-tion function. Refer to “Starting and driving:
Outside rear-view mirrors” on page 6-09.
l For vehicles equipped with the Dead Lock
System, pressing the driver’s or front pas-
senger’s door lock/unlock switch (A) two times in succession causes the Dead Lock
System to be set. (Refer to “Setting the sys-
tem” on page 3-18.)
l The keyless operation function does not op-
erate under the following conditions:NOTE• The keyless operation key is inside the
vehicle.
• A door is open or ajar.
• The operation mode is not in OFF.
l The time between unlocking and automatic
locking can be adjusted. Please consult a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
Operation confirmation when locking and
unlocking
Operation can be confirmed as shown below. However, the room lamp will illuminate only if the room lamp switch is in the middle (•)position.
When locking:The turn-signal
lamps will blink
once.When unlocking:The room lamp illu-
minates for approxi-
mately 15 seconds,
the turn-signal lamps
blink twice.NOTEl Functions can be modified as stated below.
For further information, please contact a
Keyless operation system*
3-10OKTE18E1Locking and unlocking3
