GENERAL INFORMATION
FRONT AXLE26-2
GENERAL INFORMATION
M1261000100347
The front axle consists of front hubs, knuckles, wheel
bearings and driveshafts, and has the following
features:
•The wheel bearing is a double-row angular
contact ball bearing which incorporates the oil
seals and is highly resistant to thrust loads.
•The driveshaft incorporates BJ-TJ type constant
velocity joints with high transmission efficiency for
low vibration and noise.•The dynamic damper has been mounted on the
driveshaft to reduce differential gear noise.
•ABS rotor for detecting the wheel speed is
press-fitted to the BJ.
NOTE: .
•TJ: Tripod Joint
•BJ: Birfield Joint
SPECIFICATIONS
CONSTRUCTION DIAGRAM
Item 1.3L, 1.6L 2.0L
Wheel bearing Type Double-row angular contact ball bearing
Bearing (OD x ID) mm 80 x 40 80 x 40
Driveshaft Joint type Outer BJ BJ
Inner TJ TJ
Length (joint to joint) ×
diameter mm LH 375.9 × 23.2 375.9 × 23.2
RH 699 × 23.2 (1.6L-M/T),
703.2 × 22 (1.3L-M/T,
1.6L-A/T)700 × 23.2
AC303569
Front hubKnuckleStrut assembly
TJ (LH)
Drive shaft (LH)
Dynamic damper
BJ
Wheel bearing
Drive shaft (RH) TJ (RH)
AB
ABS rotorDynamic damper

GENERAL INFORMATION
REAR AXLE27-2
GENERAL INFORMATION
M1271000100304
The rear axle has the following features:
•The wheel bearing is a unit ball bearing
(double-row angular contact ball bearing) which
incorporates the oil seals and is highly resistant
to a thrust load.•ABS rotor for detecting the wheel speeds is
press-fitted to the rear hub in vehicles with ABS.
CONSTRUCTION DIAGRAM
SERVICE SPECIFICATIONS
M1271000300483
SEALANT
M1271000500261
AC300617AB
Rear hub Oil seal
Wheel bearing
ABS rotor Trailing arm spindle
Item Limit
Wheel bearing axial play mm 0.05
Rear hub rotary-sliding resistance N 19
Item Specified sealant Remark
Hub cap 3M ATD Part No.8663 or equivalent Semi-drying sealant

GENERAL INFORMATION
POWER PLANT MOUNT32-2
GENERAL INFORMATION
M1321000100340The engine mounting system employs the inertial
axis four-point suspension method, which is field
proven.
•The optimised locations of the front and rear roll
mounts well distribute their loads thereby
reducing engine idling vibrations.•The fore-and-aft, liquid-filled engine mount of
cylinder type is adopted to reduce engine shake
for improved riding comfort.
CONSTRUCTION DIAGRAM
AC107318
Y0290AU
AC303563
Engine front
mounting bracketTransmission mounting
body side bracket
Engine rear roll stopper bracket
Engine front roll stopper bracket
AB

GENERAL INFORMATION
FRONT SUSPENSION33-2
GENERAL INFORMATION
M1332000100407
The front suspension is a McPherson strut with coil
spring. The shock absorber is gas-filled hydraulic
double-acting type.
CONSTRUCTION DIAGRAM
SPECIFICATIONS
COIL SPRING
NOTE: .
•The*mark indicates optional item.
AC304023
AC304022
AC304754
Lower arm assembly
Front axle No.1
crossmember Stabilizer bar
Strut (shock absorber) Coil spring
AB

Strut cover Strut damper
Strut damper
Item Sedan Wagon
Comfort Sport Comfort Sport
Wire diameter mm 13 13 13 <1600-M/T>
14 1600-A/T,
2000>14
13 <1600>
*
14 <2000>*
Average diameter mm 160 160 160 160
Free length mm 330 321 330 <1600-M/T>
338 <1600-A/T>
338 <2000>314 <1600>
321 <2000>
330 <1600>
*
338 <2000>*

GENERAL INFORMATION
REAR SUSPENSION34-2
GENERAL INFORMATION
M1341000100353
A trailing arm type multi-link suspension has been
adopted as the rear suspension. The shock absorber
is a hydraulic, cylindrical double-acting type.
CONSTRUCTION DIAGRAM
AC304024AB
Shock absorber
Coil spring
Trailing arm bushing Lower arm assembly Control link Trailing armUpper arm assembly
Stabilizer barRear shock
absorber damper


Rear shock
absorber damper
Rear shock
absorber cover
AC304025AB
Shock absorber
Trailing arm bushing Control link Trailing armStabilizer bar

Coil spring
Lower arm assembly
Rear shock
absorber damper Upper arm assembly

GENERAL INFORMATION
PARKING BRAKES36-2
GENERAL INFORMATION
M1361000100496
The parking brake is of a mechanical rear-wheel
acting type, and its operation utilises a parking brake
lever.
SPECIFICATIONS
CONSTRUCTION DIAGRAM
SERVICE SPECIFICATIONS
M1361000300382
Item Specification
Type Drum-in disc
Clearance adjustment Manual
AC211553
AC104333
AC304152
Parking brake lever assembly
Parking brake cable
AB
Drum-in-disc brake
Item Standard value Limit
Parking brake lever stroke 5 − 7 notches
−
Rear brake lining thickness mm 2.8 1.0
Rear drum inside diameter mm 168.0 169.0

GENERAL INFORMATION
POWER STEERING37-4

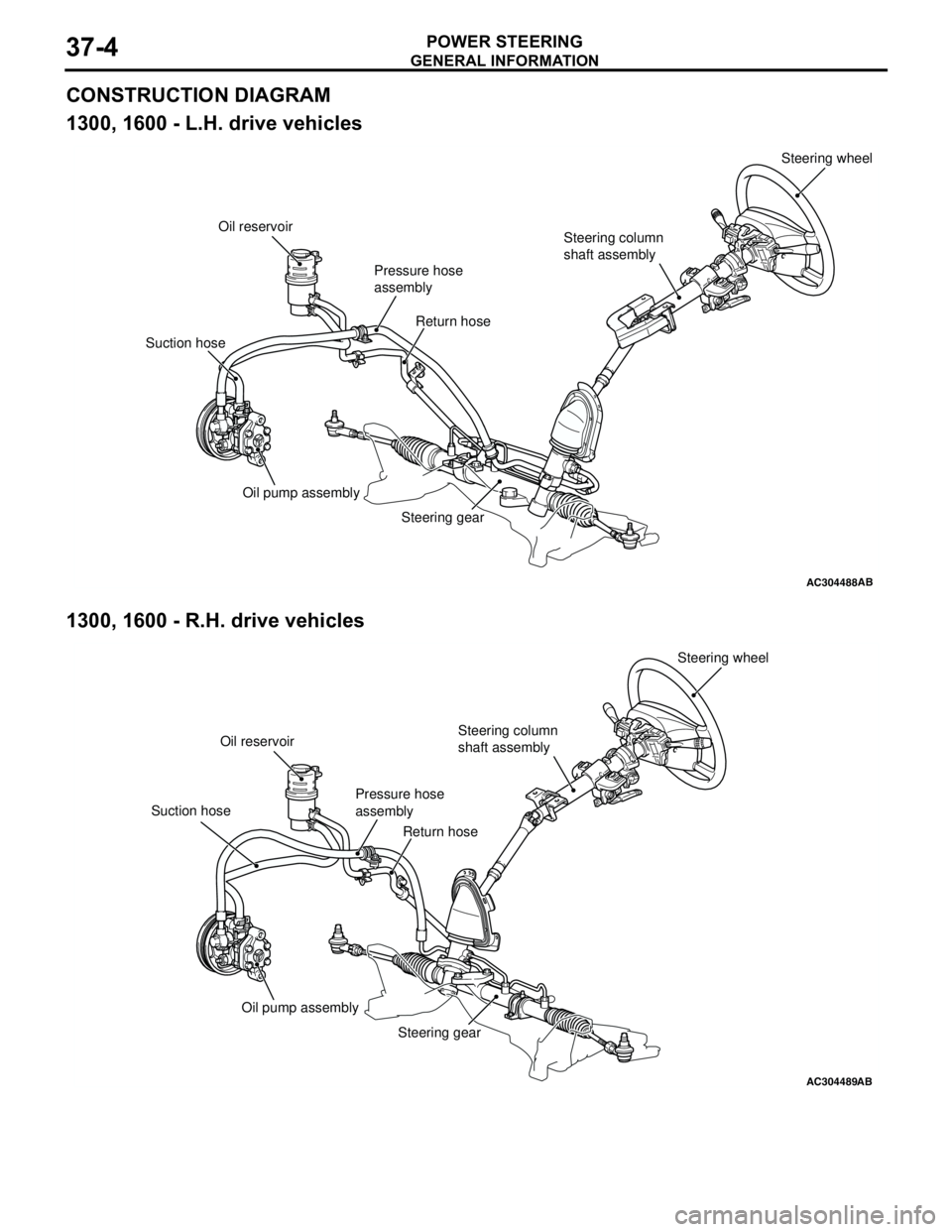

CONSTRUCTION DIAGRAM
1300, 1600 - L.H. drive vehicles
1300, 1600 - R.H. drive vehicles
AC304488AB
Steering wheel
Steering column
shaft assembly
Pressure hose
assembly Oil reservoir
Suction hoseReturn hose
Oil pump assembly
Steering gear
AC304489AB
Steering wheel
Steering column
shaft assembly
Pressure hose
assembly Oil reservoir
Suction hose
Return hose
Oil pump assembly
Steering gear

EVAPORATOR ASSEMBLY
HEATER, AIR CONDITIONER AND VENTILATION55-90
REMOVAL SERVICE POINT
<> FLEXIBLE SUCTION HOSE AND
LIQUID PIPE B DISCONNECTION
CAUTION
As the compressor oil and receiver are highly
moisture absorbent, use a non-porous material
to plug the hose and nipples.
To prevent the entry of dust or other foreign bodies,
plug the dismantled hose and the nipples of the
expansion valves.
<> EVAPORATOR REMOVAL
CAUTION
Do not cut the upper side of the pad.
1. When removing the evaporator, cut and fold back
the dashboard pad as in the diagram. (The
thickness of the pad interferes with the removal of
the evaporator.)
2. Remove the evaporator.
INSPECTIONM1552014300938
AIR THERMO SENSOR INSPECTION
Measure the resistance between connector terminals
4 and 5 under at least two different temperatures.
The resistance values should generally match those
in the graph.
NOTE: The temperature at the check should not
exceed the range in the graph.
AC305312AB
Dashboard pad
Blower unit
AC103376
Resistance
Temperature (˚C) -10 01020
30
40 (kΩ)
05 10 152025
AB
