Immo MITSUBISHI LANCER 2005 Workshop Manual

54A-1
GROUP 54A
CHASSIS
ELECTRICAL
CONTENTS
BATTERY. . . . . . . . . . . . . . . . . .
54A-4
SERVICE SPECIFICATIONS. . . . .
54A-4
ON-VEHICLE SERVICE. . . . . . . . .54A-4
FLUID LEVEL AND SPECIFIC
GRAVITY CHECK . . . . . . . . . . . . . . . . . 54A-4
CHARGING . . . . . . . . . . . . . . . . . . . . . . 54A-4
BATTERY TEST . . . . . . . . . . . . . . . . . . 54A-5
IGNITION SWITCH* . . . . . . . . . .54A-6
GENERAL INFORMATION . . . . . .
54A-6
SPECIAL TOOLS. . . . . . . . . . . . . .54A-8
TROUBLESHOOTING . . . . . . . . . .54A-9
IGNITION KEY REMINDER BUZZER AND
DOOR LOCK PREVENTION FUNCTION
TROUBLESHOOTING . . . . . . . . . . . . . . 54A-9
IMMOBILIZER SYSTEM
TROUBLESHOOTING . . . . . . . . . .
54A-9
DIAGNOSIS CODE CHART . . . . . . . . . . 54A-9
DIAGNOSTIC TROUBLE CODE
PROCEDURES . . . . . . . . . . . . . . . .
54A-10
SYMPTOM CHART. . . . . . . . . . . . .54A-11
SYMPTOM PROCEDURES . . . . . .54A-12
DATA LIST REFERENCE TABLE .54A-19
CHECK IMMOBILIZER-ECU . . . . .54A-19
ON-VEHICLE SERVICE . . . . . . . . .54A-20
HOW TO REGISTER ENCRYPTED
CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . 54A-20
IGNITION SWITCH . . . . . . . . . . . . . . . . 54A-27
REMOVAL AND INSTALLATION . . . . . . 54A-27
INSPECTION . . . . . . . . . . . . . . . . . . . . . 54A-28
Continued on next page
WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES
WARNING
•Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to
personal injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and
paassenger (from rendering the SRS inoperative).
•Service or maintenance of any SRS component or SRS-related component must be performed only at an
authorized MITSUBISHI dealer.
•MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B - Supplemental
Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any
SRS-related component.
NOTE
The SRS includes the following components: SRS air bag control unit, SRS warning light, front impact sensors, air bag module,
clock spring, and interconnecting wiring. Other SRS-related components (that may have to be removed/installed in connection
with SRS service or maintenance) are indicated in the table of contents by an asterisk (*).

IGNITION SWITCH
CHASSIS ELECTRICAL54A-6
IGNITION SWITCH
GENERAL INFORMATIONM1543009901274
IGNITION KEY REMINDER BUZZER
The ignition key reminder buzzer will sound under
the following condition, and warn the driver to
remove the ignition key.
•The driver's door is opened when the ignition
switch is at "LOCK" (OFF) or "ACC" position
without removing the ignition key.
However, the lamp reminder buzzer will take
precedence over this function.
DOOR LOCK PREVENTION FUNCTION
If the key is left in the ignition switch while the driver’s
door opened or the assistant door opened, all door
are automatically unlock to prevent locking the
ignition key in the vehicle after door is locked.
IMMOBILIZER SYSTEM
The immobilizer system consists of the ignition key
with a transponder, the immobilizer-ECU, and the
engine-ECU or engine-A/T-ECU . Only
the registered ignition key permits the engine to start,
therefore, the engine can never be started by means
of a forged key or by connecting the ignition wiring
directly. The system is significantly safe and reliable
against theft. In addition, the driver has only to turn
the ignition switch to the "ON" position to activate the
immobilizer system. If the requirements for starting the engine are not satisfied, the engine will be
immobilized. If a registered ignition key is lost, all
your ignition keys need to be registered again using
MUT-II/III to ensure security (Refer to P.54A-20). An
additional ignition key can be registered as follows
(only if no ignition keys are lost):
•Using MUT-II/III (Refer to P.54A-20).
OPERATION
1. When the ignition switch is turned to "ON"
position, the engine-ECU or
engine-A/T-ECU sends a requirement for
the encrypted code to the immobilizer-ECU (at
this time, the engine is remobilized).
2. When the immobilizer-ECU receives the
requirement from the engine-ECU or
engine-A/T-ECU , the immobilizer-ECU
supplies power to the transponder inside the
ignition key via the antenna. The energized
transponder sends the encrypted code back to the
immobilizer-ECU via the antenna.
3. The immobilizer-ECU judges the encrypted code
with its code logic in itself. If they are identical, the
immobilizer-ECU sends the encrypted code to the
engine-ECU or engine-A/T-ECU.
4. If the engine-ECU or engine-A/T-ECU can
not receive the encrypted code, the engine will be
immobilized.
AC304482AB
Power
(Wireless)
Encrypted code
(Wireless) Ignition keyControl signal
Encrypted
code
TransponderImmobilizer-ECU
with an antenna
Steering lockCPU
MUT-II/III Memory Engine-ECU
Engine-A/T-ECU
CPUInjector
Ignition

IGNITION SWITCH
CHASSIS ELECTRICAL54A-7
Encrypted code registration criteria table
The ignition key contains a transponder (small
transmitter), which retains an unique encrypted code.
Under any of the conditions below, the encrypted
code should be registered in the immobilizer-ECU
again. The immobilizer-ECU can retain maximum
eight different encrypted codes. This means that
maximum eight ignition keys can be registered.
Component to be replaced Engine-A/T-ECU Immobilizer-ECU Ignition key
When engine-A/T-ECU is
replaced−Should not be
replacedShould not be replaced
Should be registered
again
When engine-A/T-ECU is
overwritten−Should not be
replacedShould not be replaced
Should be registered
again
When immobilizer-ECU is
replaceShould not be
replaced−Should not be replaced
All ignition keys should be
registered again
When ignition key is added Should not be
replacedShould not be
replaced•Additional ignition key
should be registered
•All ignition keys should
be registered again
When ignition key is lost Should not be
replacedShould not be
replacedAll the ignition keys other
than the lost one should
be registered again

IGNITION SWITCH
CHASSIS ELECTRICAL54A-8
SPECIAL TOOLSM1543000601641
Tool Number Name Use
MB991502 MUT-II sub
assembly•Immobilizer system check
•Encrypted code
registration
MB991955
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826MUT-III
sub-assembly
A: (V. C. I.) Vehicle
communication
interface
B: MUT-III USB
cable
C: MUT-III Main
harness A (Vehicles
with CAN
communication
system)
D: MUT-III Main
harness B (Vehicles
without CAN
communication
system)
E: MUT-III
Measurement
adapter
F: MUT-III Trigger
harness•Immobilizer system check
•Encrypted code
registration
B991502
MB991910
MB991826
MB991955
MB991911
MB991824
MB991827
MB991825
A
B
C
D
E
F
DO NOT USE

IGNITION SWITCH
CHASSIS ELECTRICAL54A-9
TROUBLESHOOTING
IGNITION KEY REMINDER BUZZER AND
DOOR LOCK PREVENTION FUNCTION
TROUBLESHOOTING
M1543000701002
The ignition key reminder buzzers are controlled by
the Smart Wiring System (SWS). For
troubleshooting, refer to respective Groups below.
•Not using SWS monitor: GROUP 54B, SWS
Diagnosis P.54B-38.
•Using SWS monitor: GROUP 54C, SWS
Diagnosis P.54C-22.
IMMOBILIZER SYSTEM
TROUBLESHOOTING
DIAGNOSIS CODE CHARTM1543007100417
CAUTION
During diagnosis, a diagnosis code associated
with other system may be set when the ignition
switch is turned on with connector(s)
disconnected. On completion, confirm all
systems for diagnosis code code(s). If diagnosis
code code(s) are set, erase them all.
Use the following chart to develop proper diagnostic
strategy. MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222Harness set
A: Test harness
B: LED harness
C: LED harness
adapter
D: ProbeMaking voltage and
resistance measurements
during troubleshooting
A: Connect pin contact
pressure inspection
B: Power circuit inspection
C: Power circuit inspection
D: Commercial tester
connection Tool Number Name Use
MB991223
A
B
C
D
AC
Diagnosis code No. Diagnosis item Reference page
11 Transponder communication system or radio interference
of encrypted codeP.54A-10.
12 Encrypted codes are not the same or are not registered
P.54A-11.

IGNITION SWITCH
CHASSIS ELECTRICAL54A-10
DIAGNOSTIC TROUBLE CODE
PROCEDURES
Code No.11: Transponder Communication System or Radio Interference of Encrypted Code
DIAGNOSIS CODE SET CONDITION
•Diagnosis code No.11 may be set if other ignition
keys are in the vicinity of the vehicle as it is being
started.
•The transponder’s encrypted code is not sent to
the immobilizer-ECU immediately after the
ignition switch is turned to "ON" position.NOTE: Diagnosis code No.11 is always set together
with MPI system diagnosis code No.P0513.TROUBLESHOOTING HINTS
•Radio interference of the encrypted code.
•Malfunction of the transponder.
•Malfunction of the immobilizer-ECU.
HIGH-FREQUENCY
CIRCUIT IMMOBILIZER-ECU
IGNITION KEY
IGNITION KEY
RING ANTENNA
Ignition Key Ring and Immobilizer-ECU Circuit

IGNITION SWITCH
CHASSIS ELECTRICAL54A-11

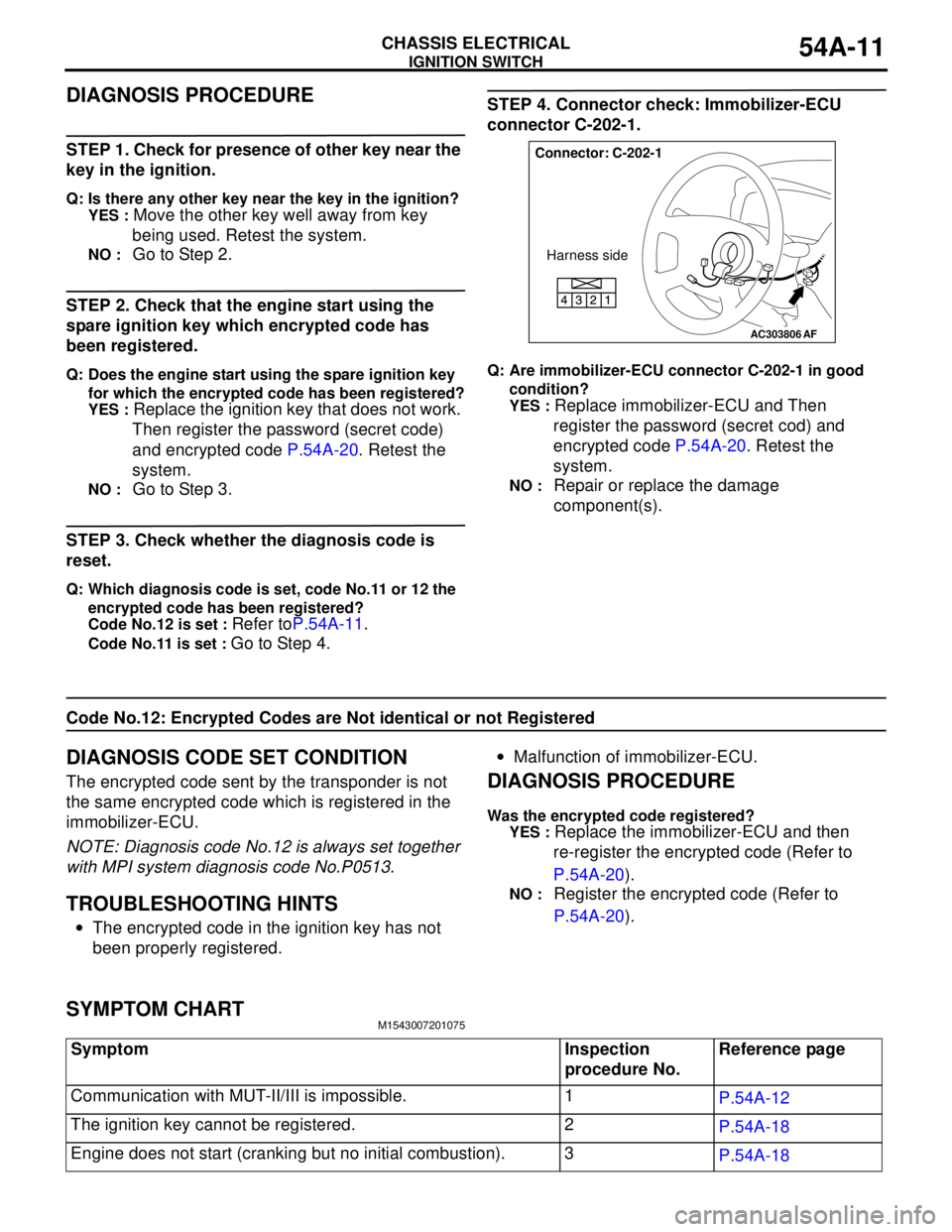

DIAGNOSIS PROCEDURE
STEP 1. Check for presence of other key near the
key in the ignition.
Q: Is there any other key near the key in the ignition?
YES :
Move the other key well away from key
being used. Retest the system.
NO : Go to Step 2.
STEP 2. Check that the engine start using the
spare ignition key which encrypted code has
been registered.
Q: Does the engine start using the spare ignition key
for which the encrypted code has been registered?
YES :
Replace the ignition key that does not work.
Then register the password (secret code)
and encrypted code P.54A-20. Retest the
system.
NO : Go to Step 3.
STEP 3. Check whether the diagnosis code is
reset.
Q: Which diagnosis code is set, code No.11 or 12 the
encrypted code has been registered?
Code No.12 is set :
Refer toP.54A-11.
Code No.11 is set : Go to Step 4.
STEP 4. Connector check: Immobilizer-ECU
connector C-202-1.
Q: Are immobilizer-ECU connector C-202-1 in good
condition?
YES :
Replace immobilizer-ECU and Then
register the password (secret cod) and
encrypted code P.54A-20. Retest the
system.
NO : Repair or replace the damage
component(s).
Code No.12: Encrypted Codes are Not identical or not Registered
DIAGNOSIS CODE SET CONDITION
The encrypted code sent by the transponder is not
the same encrypted code which is registered in the
immobilizer-ECU.
NOTE: Diagnosis code No.12 is always set together
with MPI system diagnosis code No.P0513.
TROUBLESHOOTING HINTS
•The encrypted code in the ignition key has not
been properly registered.•Malfunction of immobilizer-ECU.
DIAGNOSIS PROCEDURE
Was the encrypted code registered?
YES :
Replace the immobilizer-ECU and then
re-register the encrypted code (Refer to
P.54A-20).
NO : Register the encrypted code (Refer to
P.54A-20).
SYMPTOM CHARTM1543007201075
AC303806
Connector: C-202-1
Harness side
AF
Symptom Inspection
procedure No.Reference page
Communication with MUT-II/III is impossible. 1
P.54A-12
The ignition key cannot be registered. 2
P.54A-18
Engine does not start (cranking but no initial combustion). 3
P.54A-18

IGNITION SWITCH
CHASSIS ELECTRICAL54A-12
SYMPTOM PROCEDURES
INSPECTION PROCEDURE 1: Communication with MUT-II/III is Impossible.
TECHNICAL DESCRIPTION (COMMENT)
•This malfunction may be caused by a defective
immobilizer-ECU, engine-ECU or
engine-A/T-ECU , or a defect in the
communication line between the
immobilizer-ECU and engine-ECU or
engine-A/T-ECU . If this malfunction
appears when the MPI system and MUT-II/III can
communicate each other, MPI system diagnosis
code No.P0513 will reset.•If the MPI system is normal, the engine control
relay can be determined as normal. In addition, if
the MPI system and MUT-II/III can communicate
each other, the circuits between the diagnosis
connector and the engine-ECU or
engine-A/T-ECU can determined as
normal.
NOTE: If this malfunction appears, MPI system
diagnosis code No.P0513 will be set.
ENGINE-ECU ENGINE
CONTROL
RELAY
ENGINE-
A/T-ECU
IMMOBILIZER-
ECU
Wire colour code
B : Black LG : Light green G : Green L : Blue
W : White Y : Yellow SB : Sky blue BR : Brown
O : Orange GR : Gray R : Red P : Pink V : Violet POWER
SOURCE
M/T
A/T NOTE
LH drive vehicles
RH drive vehicles
Immobilizer-ECU Power Source, Earth and Engine-ECU*3 or Engine-A/T-ECU
*4
Communication Line Circuit

IGNITION SWITCH
CHASSIS ELECTRICAL54A-13

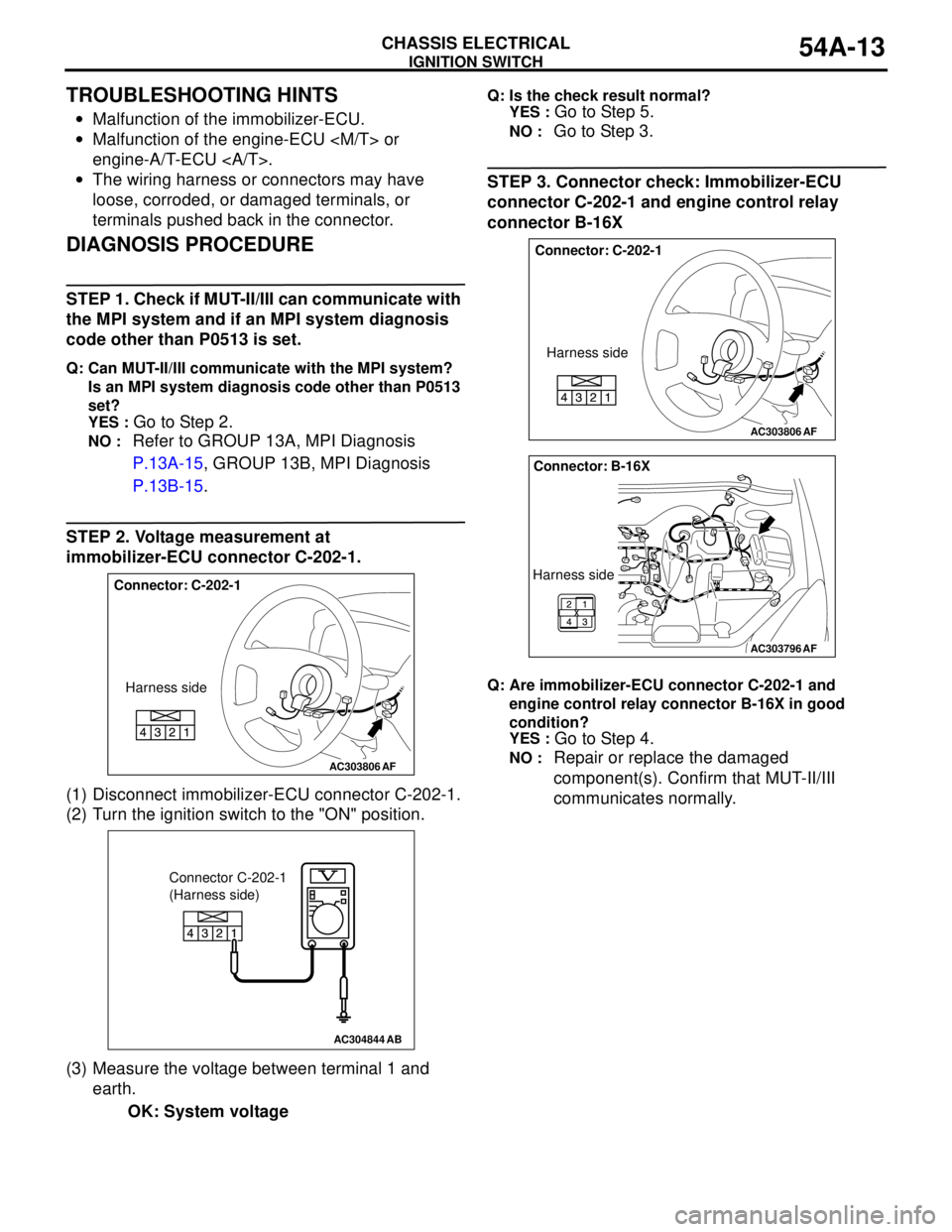

TROUBLESHOOTING HINTS
•Malfunction of the immobilizer-ECU.
•Malfunction of the engine-ECU or
engine-A/T-ECU .
•The wiring harness or connectors may have
loose, corroded, or damaged terminals, or
terminals pushed back in the connector.
DIAGNOSIS PROCEDURE
STEP 1. Check if MUT-II/III can communicate with
the MPI system and if an MPI system diagnosis
code other than P0513 is set.
Q: Can MUT-II/III communicate with the MPI system?
Is an MPI system diagnosis code other than P0513
set?
YES :
Go to Step 2.
NO : Refer to GROUP 13A, MPI Diagnosis
P.13A-15, GROUP 13B, MPI Diagnosis
P.13B-15.
STEP 2. Voltage measurement at
immobilizer-ECU connector C-202-1.
(1) Disconnect immobilizer-ECU connector C-202-1.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 1 and
earth.
OK: System voltage
Q: Is the check result normal?
YES :
Go to Step 5.
NO : Go to Step 3.
STEP 3. Connector check: Immobilizer-ECU
connector C-202-1 and engine control relay
connector B-16X
Q: Are immobilizer-ECU connector C-202-1 and
engine control relay connector B-16X in good
condition?
YES :
Go to Step 4.
NO : Repair or replace the damaged
component(s). Confirm that MUT-II/III
communicates normally.AC303806
Connector: C-202-1
Harness side
AF
AC304844AB
Connector C-202-1
(Harness side)
AC303806
Connector: C-202-1
Harness side
AF
AC303796
Connector: B-16X
Harness side
AF

IGNITION SWITCH
CHASSIS ELECTRICAL54A-14
STEP 4. Check the harness wires between
immobilizer-ECU connector C-202-1 (terminal 1)
and engine control relay connector B-16X
(terminal 4).
NOTE:
Prior to the wiring harness inspection, check
intermediate connector C-13 ,
C-137 , joint connector C-12
, C-134 and
key reminder switch connector C-202, and repair if
necessary.
Q: Are the harness wires between immobilizer-ECU
connector C-202-1 (terminal 1) and engine control
relay connector B-16X (terminal 4) in good
condition?
YES :
There is no action to be taken.
NO : Replace damaged component(s). Confirm
that MUT-II/III communicates normally.
AC303806
Connector: C-202-1
Harness side
AF
AC303796
Connector: B-16X
Harness side
AF
AC303801
Connector: C-12, C-13
C-12
C-13
C-12
C-13
AC
AC303819
Connector: C-134, C-137
C-134
C-137
C-134
C-137
AC
AC303806
Connector: C-202
Harness side
AG
