TURN-SIGNAL LAMP AND HAZARD WARNING LAMP
CIRCUIT DIAGRAMS90-175
1FUSIBLE
LINK
DIAGNOSIS
CONNECTOR (FUSE )
22
ETACS-ECU
RELAY BOX
COLUMN-ECUCOLUMN
SWITCH
NOTE
::·FRONT FOG LAMP
·HEADLAMP TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER ·HEADLAMP WASHER ·HEADLAMP LEVELLING
SYSTEM
·REAR FOG LAMP
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 643 of 800
TURN-SIGNAL LAMP AND HAZARD WARNING LAMP
CIRCUIT DIAGRAMS90-179
1FUSIBLE
LINK
DIAGNOSIS
CONNECTOR (FUSE )
22RELAY BOX
COLUMN-ECUCOLUMN
SWITCH
NOTE
:: :·FRONT FOG LAMP
·HEADLAMP TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER ·HEADLAMP WASHER ·HEADLAMP LEVELLING
SYSTEM
·REAR FOG LAMP·ABS
·BRAKE WARNING LAMP
·CHARGING SYSTEM
·ENGINE CONTROL
SYSTEM
·INVECS-II 4A/T
·METER AND GAUGE ·FUEL WARNING LAMP
·OIL PRESSURE WARNING
LAMP
ETACS-ECU
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 654 of 800
METER AND GAUGE
CIRCUIT DIAGRAMS90-190
METER AND GAUGE (CONTINUED)
VEHICLE
SPEED
SENSOR(FUSE )
2
(FUSE )3
ENGINE
CONTROL
SYSTEMINVECS-II 4A/T
ENGINE-A/T-ECU
OUTPUT
SHAFT
SPEED
SENSORA/T
CONTROL
RELAY
INVECS-II 4A/T
NOTE
:
: 4G1
4G6
Page 655 of 800
METER AND GAUGE
CIRCUIT DIAGRAMS90-191
COMBINATION
METER
COMBINATION
METER
RHEOSTATRHEOSTAT
(FUSE )
21(FUSE )21
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 658 of 800
METER AND GAUGE
CIRCUIT DIAGRAMS90-194
METER AND GAUGE (CONTINUED)
VEHICLE
SPEED
SENSOR
ENGINE
CONTROL
SYSTEMINVECS-II 4A/T
ENGINE-A/T-ECU
OUTPUT
SHAFT
SPEED
SENSORA/T
CONTROL
RELAY
INVECS-II 4A/T
(FUSE )2
COMBINATION
METER(FUSE )3
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple

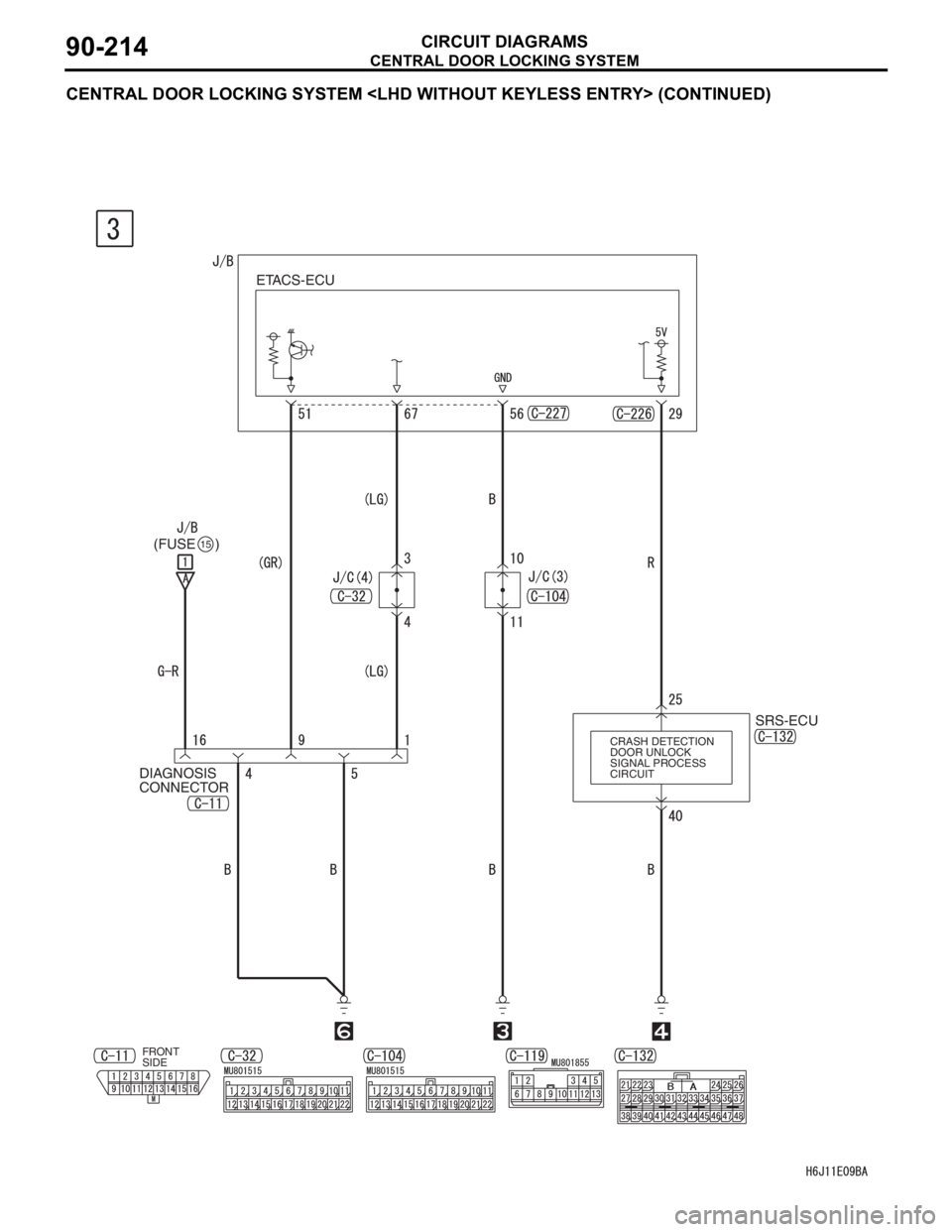

Page 678 of 800
CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-214
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
ETACS-ECU
(FUSE )
15
DIAGNOSIS
CONNECTORSRS-ECU
CRASH DETECTION
DOOR UNLOCK
SIGNAL PROCESS
CIRCUIT
FRONT
SIDE

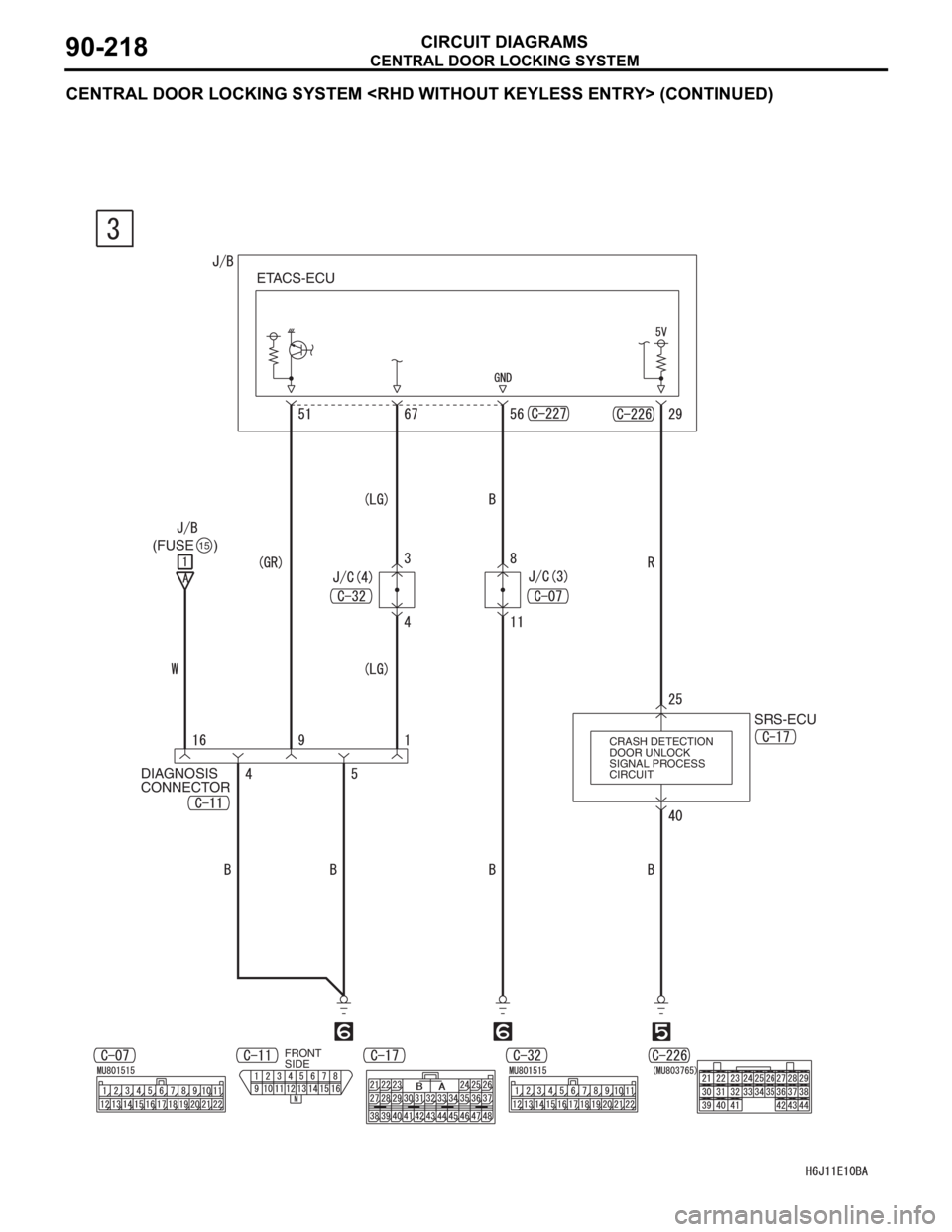

Page 682 of 800
CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-218
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
ETACS-ECU
(FUSE )
15
DIAGNOSIS
CONNECTORSRS-ECU
CRASH DETECTION
DOOR UNLOCK
SIGNAL PROCESS
CIRCUIT
FRONT
SIDE

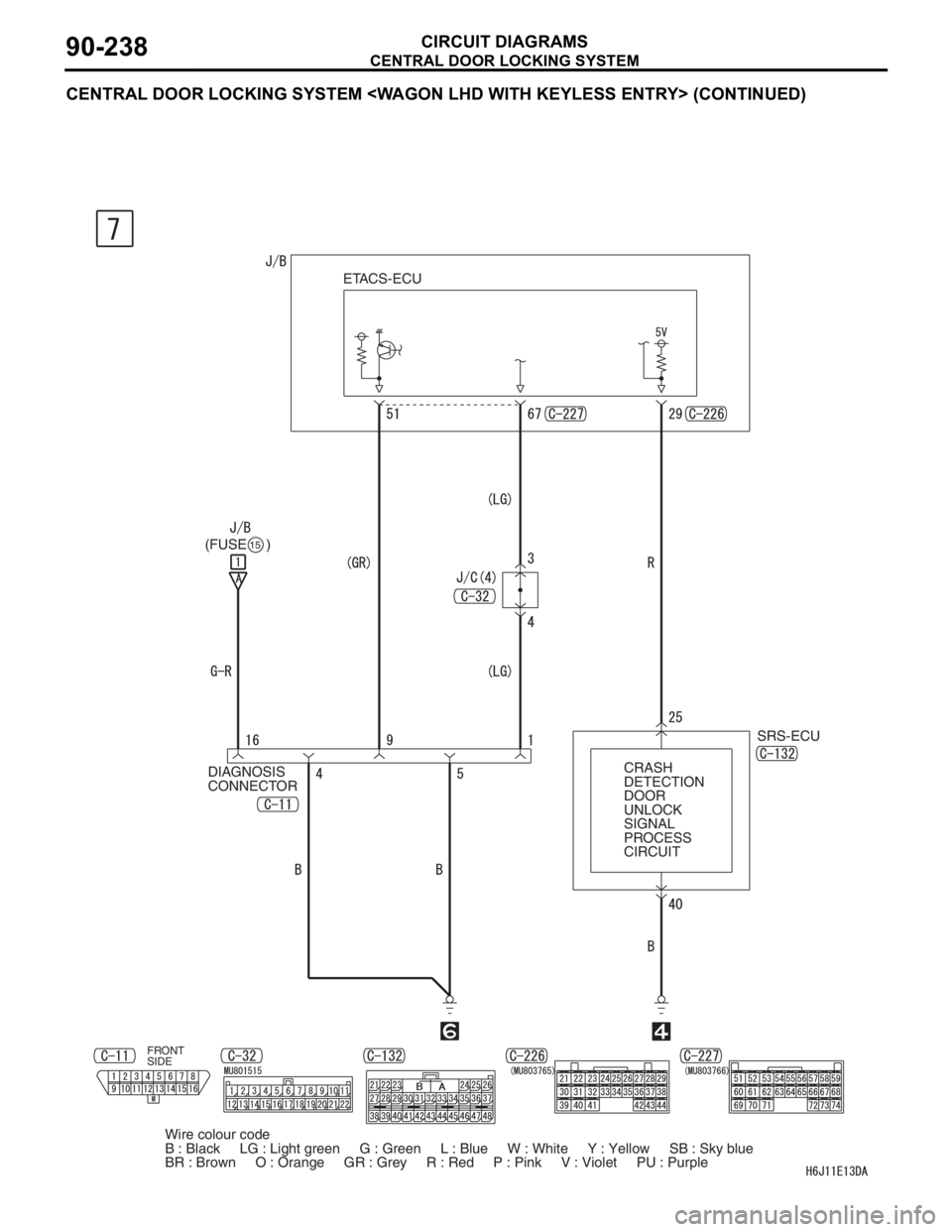

Page 702 of 800
CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-238
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
ETACS-ECU
FRONT
SIDE
(FUSE )15
DIAGNOSIS
CONNECTORSRS-ECU
CRASH
DETECTION
DOOR
UNLOCK
SIGNAL
PROCESS
CIRCUIT
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 710 of 800
CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-246
CENTRAL DOOR LOCKING SYSTEM (CONTINUED)
ETACS-ECU
FRONT
SIDE
(FUSE )15
DIAGNOSIS
CONNECTORSRS-ECU
CRASH
DETECTION
DOOR
UNLOCK
SIGNAL
PROCESS
CIRCUIT
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 714 of 800
HEATER
CIRCUIT DIAGRAMS90-250
HEATER (CONTINUED)
A/C
COMPRESSOR
RELAYHEATER
CONTROL UNIT
NO
CONNECTION BATTERY
RELAY
BOX
NO
CONNECTION
ENGINE-
ECU(FUSE )
5
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
