MITSUBISHI LANCER 2010 8.G MMCS Manual

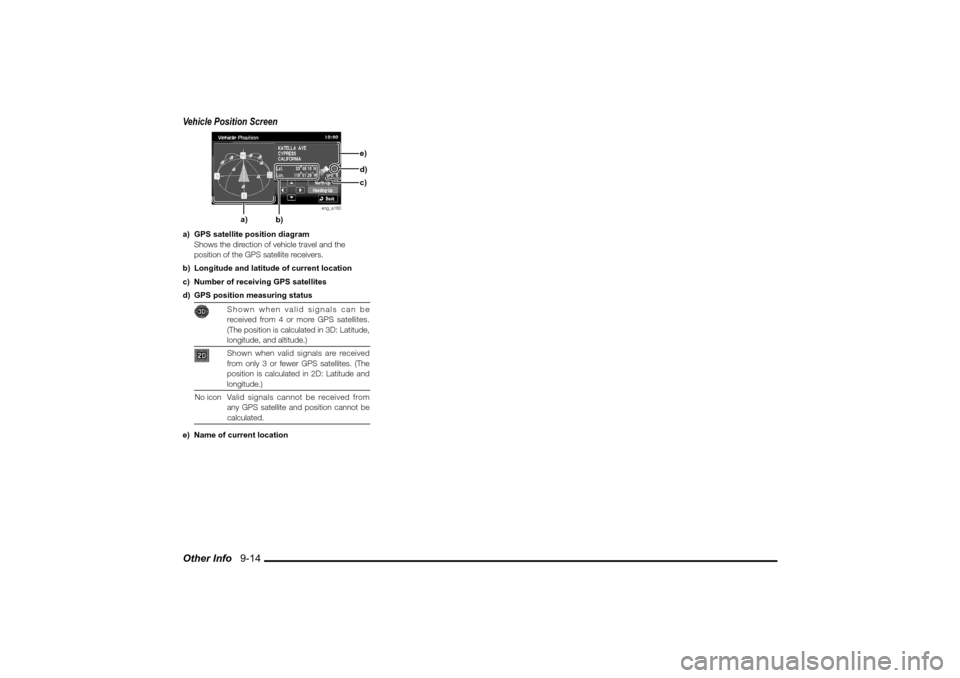

Other Info 9-14 Vehicle Position Screen
eng_a160
a) GPS satellite position diagram
Shows the direction of vehicle travel and the
position of the GPS satellite receivers.
b) Longitude and latitude of current location
c) Number of receiving GPS satellites
d) GPS position measuring status
Shown when valid signals can be
received from 4 or more GPS satellites.
(The position is calculated in 3D: Latitude,
longitude, and altitude.)Shown when valid signals are received
from only 3 or fewer GPS satellites. (The
position is calculated in 2D: Latitude and
longitude.)
No icon Valid signals cannot be received from
any GPS satellite and position cannot be
calculated.
e) Name of current location
a)
b)
c) d)e)





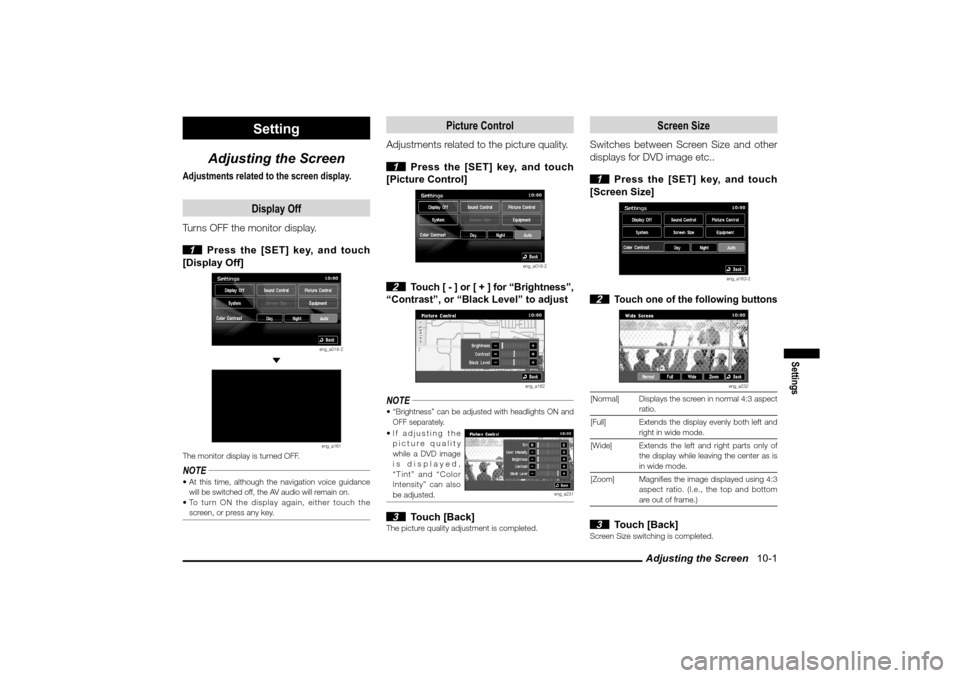

Adjusting the Screen 10-1
Settings
Setting
Adjusting the Screen
Adjustments related to the screen display.
Display Off
Turns OFF the monitor display.
1 Press the [SET] key, and touch
[Display Off]
eng_a018-2

eng_a161
The monitor display is turned OFF.NOTE At this time, although the navigation voice guidance
will be switched off, the AV audio will remain on. To turn ON the display again, either touch the
screen, or press any key.
Picture Control
Adjustments related to the picture quality.
1 Press the [SET] key, and touch
[Picture Control]
eng_a018-2
2
Touch [ - ] or [ + ] for “Brightness”,
“Contrast”, or “Black Level” to adjust
eng_a162
NOTE “Brightness” can be adjusted with headlights ON and
OFF separately. If adjusting the
picture quality
while a DVD image
is displayed,
“Tint” and “Color
Intensity” can also
be adjusted.
eng_a231
3 Touch [Back]
The picture quality adjustment is completed.
Screen Size
Switches between Screen Size and other
displays for DVD image etc..
1 Press the [SET] key, and touch
[Screen Size]
eng_a163-2
2
Touch one of the following buttons
eng_a232
[Normal] Displays the screen in normal 4:3 aspect
ratio.
[Full] Extends the display evenly both left and
right in wide mode.
[Wide]Extends the left and right parts only of
the display while leaving the center as is
in wide mode.
[Zoom] Magni es the image displayed using 4:3
aspect ratio. (I.e., the top and bottom
are out of frame.) 3 Touch [Back]
Screen Size switching is completed.





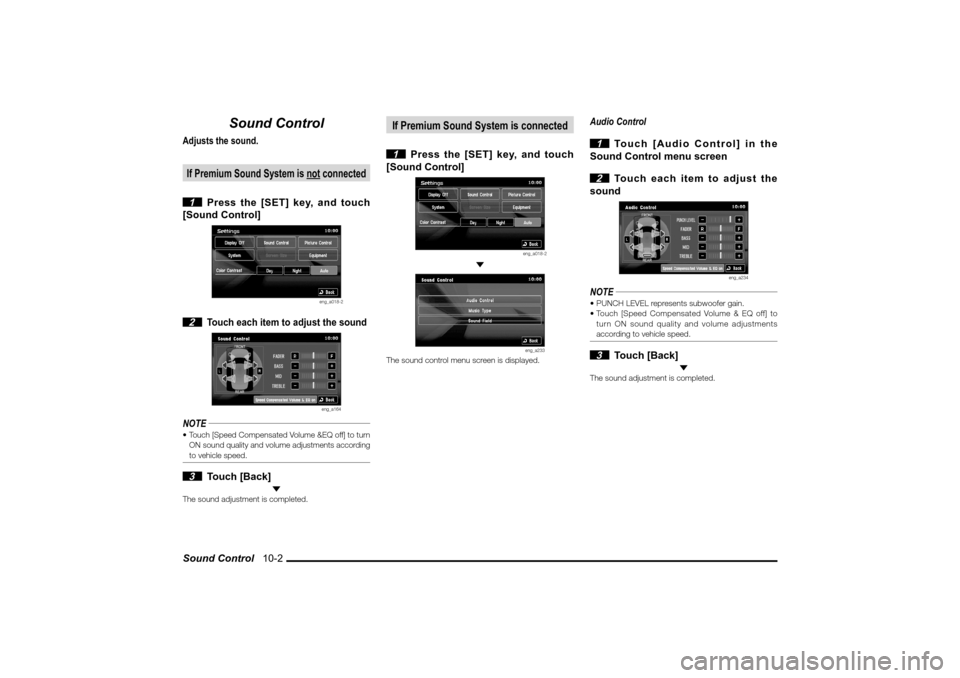

Sound Control 10-2
Sound Control
Adjusts the sound.If Premium Sound System is not connected 1 Press the [SET] key, and touch
[Sound Control]
eng_a018-2
2
Touch each item to adjust the sound
eng_a164
NOTE Touch [Speed Compensated Volume &EQ off] to turn
ON sound quality and volume adjustments according
to vehicle speed. 3 Touch [Back]
The sound adjustment is completed.
If Premium Sound System is connected 1 Press the [SET] key, and touch
[Sound Control]
eng_a018-2

eng_a233
The sound control menu screen is displayed.
Audio Control
1 Touch [Audio Control] in the
Sound Control menu screen
2 Touch each item to adjust the
sound
eng_a234
NOTE PUNCH LEVEL represents subwoofer gain.
 Touch [Speed Compensated Volume & EQ off] to
turn ON sound quality and volume adjustments
according to vehicle speed. 3 Touch [Back]
The sound adjustment is completed.





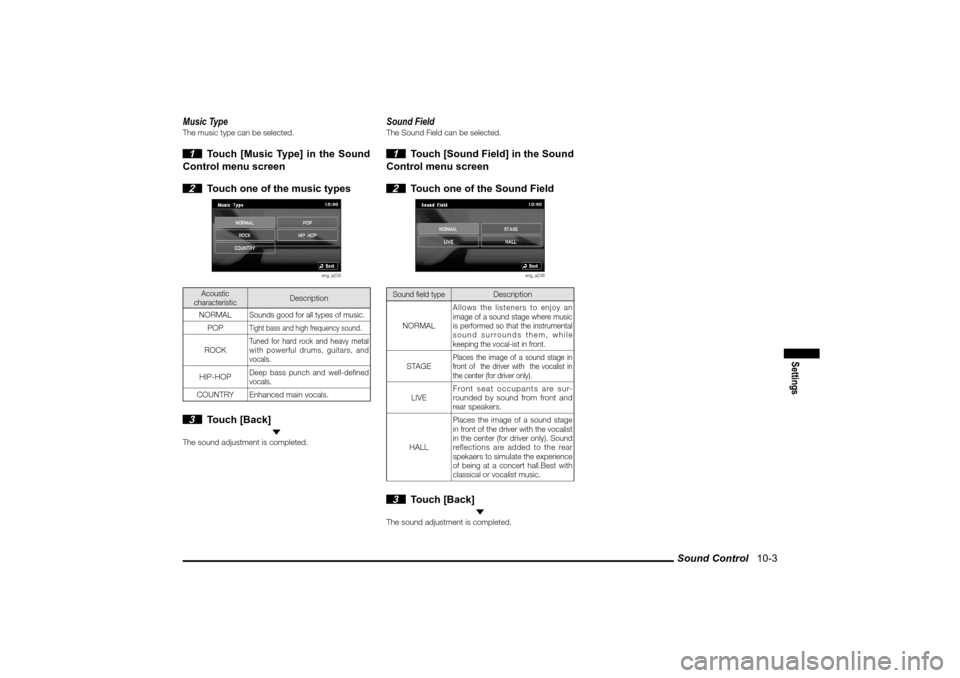

Sound Control 10-3
Settings
Music TypeThe music type can be selected. 1 Touch [Music Type] in the Sound
Control menu screen
2 Touch one of the music types
eng_a235
Acoustic
characteristic
Description
NORMAL
Sounds good for all types of music.
POP
Tight bass and high frequency sound.
ROCK
Tuned for hard rock and heavy metal
with powerful drums, guitars, and
vocals.
HIP-HOP
Deep bass punch and well-defined
vocals.
COUNTRY Enhanced main vocals.
3 Touch [Back]
The sound adjustment is completed.
Sound FieldThe Sound Field can be selected. 1 Touch [Sound Field] in the Sound
Control menu screen
2 Touch one of the Sound Field
eng_a236
Sound eld type
Description
NORMAL
Allows the listeners to enjoy an
image of a sound stage where music
is performed so that the instrumental
sound surrounds them, while
keeping the vocal-ist in front.
STAGE
Places the image of a sound stage in
front of the driver with the vocalist in
the center (for driver only).
LIVEFront seat occupants are sur-
rounded by sound from front and
rear speakers.
HALL
Places the image of a sound stage
in front of the driver with the vocalist
in the center (for driver only). Sound
reflections are added to the rear
spekaers to simulate the experience
of being at a concert hall.Best with
classical or vocalist music.
3 Touch [Back]
The sound adjustment is completed.









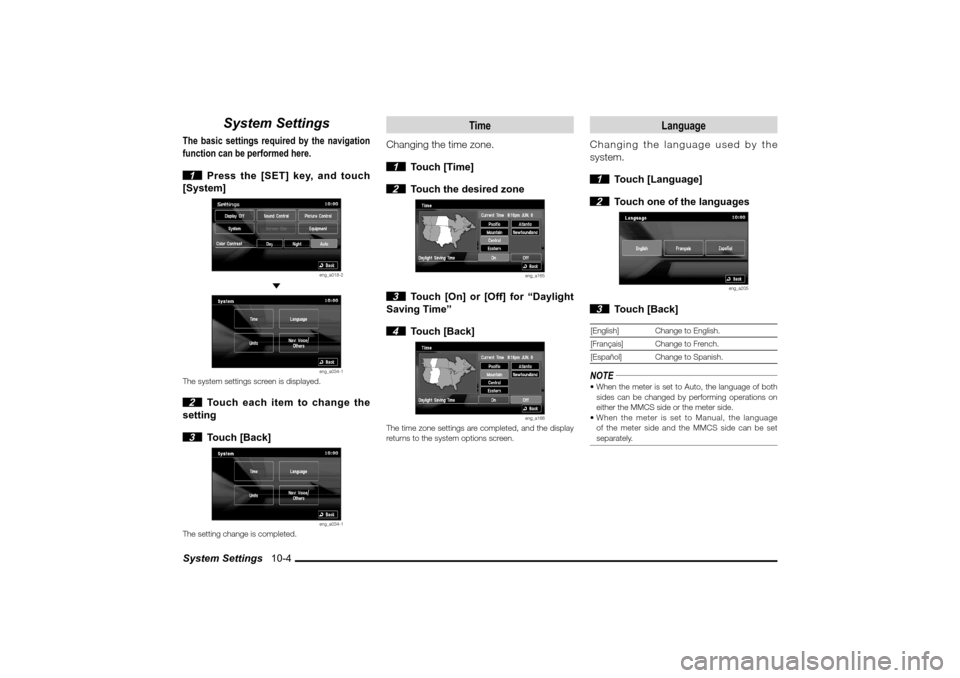

System Settings 10-4
System Settings
The basic settings required by the navigation
function can be performed here.
1 Press the [SET] key, and touch
[System]
eng_a018-2

eng_a034-1
The system settings screen is displayed. 2 Touch each item to change the
setting
3 Touch [Back]
eng_a034-1
The setting change is completed.
Time
Changing the time zone.
1 Touch [Time]
2 Touch the desired zone
eng_a165
3 Touch [On] or [Off] for “Daylight
Saving Time”
4 Touch [Back]
eng_a166
The time zone settings are completed, and the display
returns to the system options screen.
Language
Changing the language used by the
system.
1 Touch [Language]
2 Touch one of the languages
eng_a205
3 Touch [Back]
[English] Change to English.
[Français] Change to French.
[Español] Change to Spanish.NOTE When the meter is set to Auto, the language of both
sides can be changed by performing operations on
either the MMCS side or the meter side.
 When the meter is set to Manual, the language
of the meter side and the MMCS side can be set
separately.





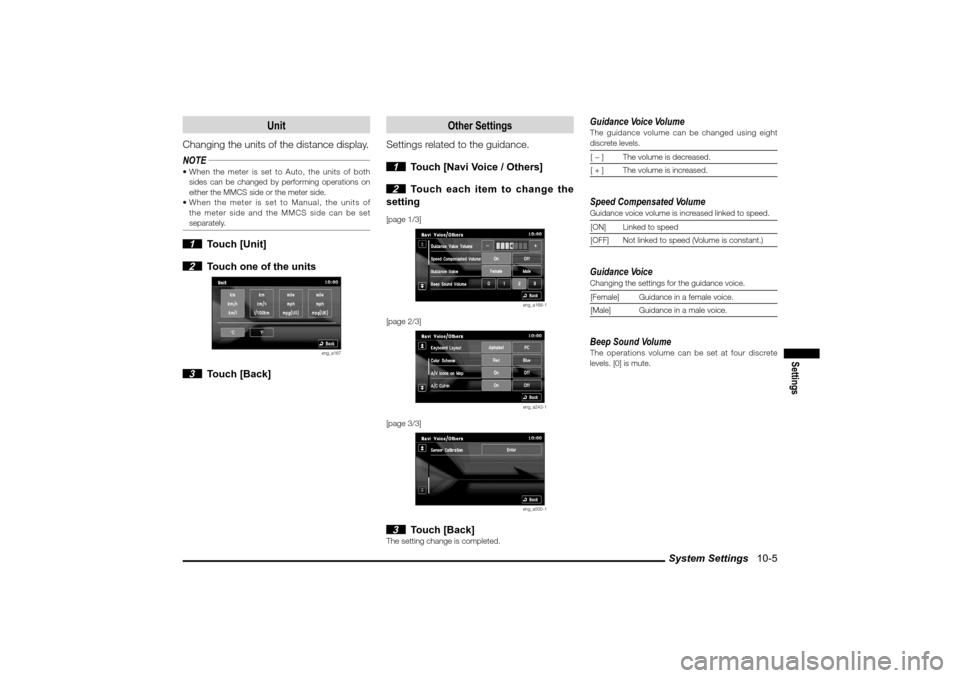

System Settings 10-5
Settings
Unit
Changing the units of the distance display.
NOTE When the meter is set to Auto, the units of both
sides can be changed by performing operations on
either the MMCS side or the meter side.
 When the meter is set to Manual, the units of
the meter side and the MMCS side can be set
separately. 1 Touch [Unit]
2 Touch one of the units
eng_a167
3 Touch [Back]
Other Settings
Settings related to the guidance.
1 Touch [Navi Voice / Others]
2 Touch each item to change the
setting
[page 1/3]
eng_a168-1
[page 2/3]
eng_a243-1
[page 3/3]
eng_a500-1
3 Touch [Back]
The setting change is completed.
Guidance Voice VolumeThe guidance volume can be changed using eight
discrete levels.[ ] The volume is decreased.
[ + ] The volume is increased.Speed Compensated VolumeGuidance voice volume is increased linked to speed.
[ON] Linked to speed
[OFF] Not linked to speed (Volume is constant.)Guidance VoiceChanging the settings for the guidance voice.
[Female] Guidance in a female voice.
[Male] Guidance in a male voice.Beep Sound VolumeThe operations volume can be set at four discrete
levels. [0] is mute.









System Settings 10-6 Keyboard LayoutChanging the layout of the keyboard.
[Alphabet]
eng_a169
[PC]
eng_a170
Color SchemeSet the color scheme for the menu screen, etc.
[Red] The menu is displayed using a red color
scheme.
[Blue]The menu is displayed using a blue
color scheme.A/V Icons on MapIt is possible to set whether or not to display on screen
icons displaying the audio status.
[On] Display.
[Off] Do not display.
Sensor CalibrationThe level of the vehicle speed sensor and gyro sensor
can be checked and the learning levels can be reset.
eng_a206
NOTE When tires are replaced, etc., delete the data by
touching [Clear].
The learning levels can be reset.A/C Cut inSetting whether or not to use an interrupt display
during air conditioning operations.
[On] Interrupt is displayed.
[Off] Interrupt is not displayed.










Equipment 10-7
Settings
Equipment
Set the vehicle equipment.
1 Press the [SET] key, touch
[Equipment]
eng_a018
The equipment screen is displayed. 2 Touch the name of the equipment
group
eng_a237
3 Touch the item name
eng_a239
4 Touch the condition
eng_a240
5 Touch [Back]
The equipment settings are completed.
Equipment Items that Can Be Set
Refer to the section titled “Features and
Controls” in the vehicle owner’s manual for
details on setting these items.
Keyless Entry System Turn Signal Lights Answerback
 Horn Answerback Sounds at Keyless Entry Lock
 Duration of Horn Answerback SoundsF.A.S.T.*-key (Keyless Operation System)*:Free-hand Advanced Security Transmitter
 Turn Signal Lights Answerback
 Horn Answerback Sounds at keyless Entry Lock
 Duration of Horn Answerback Sounds
 Door Entry and Engine Start Function
 Keyless Operation Answerback Beep Sounds
 Time for Remote Unlock Inactivated after LockingNOTE Either “Keyless Entry System” or “Keyless Operation
System” will be displayed, depending on the equipment.
Wipers Windshield Wipers Intermittent Operation
 Wipers Linked to Washer
 Rear Wiper Intermittent Interval
 Rear Wiper Continuous OperationExterior Lights/Interior Lights Headlight Auto-cutout Function
 Interior Light Auto-cutout Time
 Duration Dome Light Remains On after Door is
ClosedTheft Alarm Panic AlarmTurn Signal Operation in Key Position
 Lane-change Signals (Flash Three Times with 1
Touch)Power Door Locks Automatic Relocking after Unlocked by Remote
 Unlock Operation
 Automatic Unlock when Transmission Shifted to ParkOthers Auto Cut of ACC Power









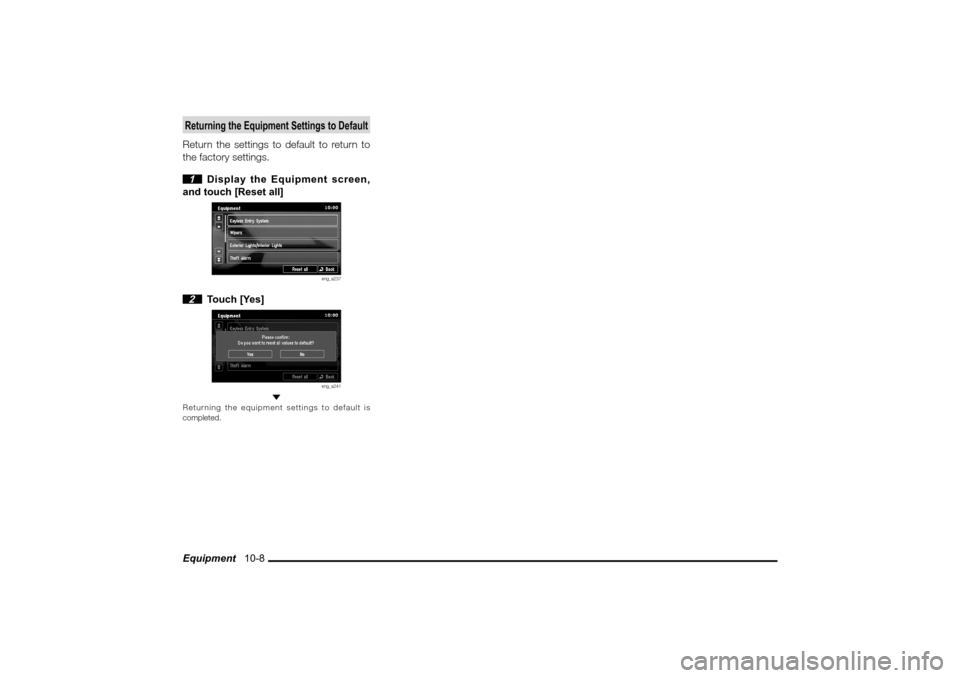

Equipment 10-8Returning the Equipment Settings to DefaultReturn the settings to default to return to
the factory settings.
1 Display the Equipment screen,
and touch [Reset all]
eng_a237
2 Touch [Yes]
eng_a241

Returning the equipment settings to default is
completed.









Navi Screen Options 10-9
Settings
Navi Screen Options
Settings related to the display.
1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a004-2
2 Touch [Screen]
eng_a016-1

eng_a017-1
The screen options screen is displayed.
3 Touch each item to change the
setting
4 Touch [Back]
eng_a017-1
The setting change is completed.NOTE Touch [Default] to return to the factory settings.
One/Two Maps
Changing between the one map screen
and two maps screen.[One Map]
eng_a007
[Two Maps]
eng_a010
