MITSUBISHI LANCER 2010 8.G MMCS Manual

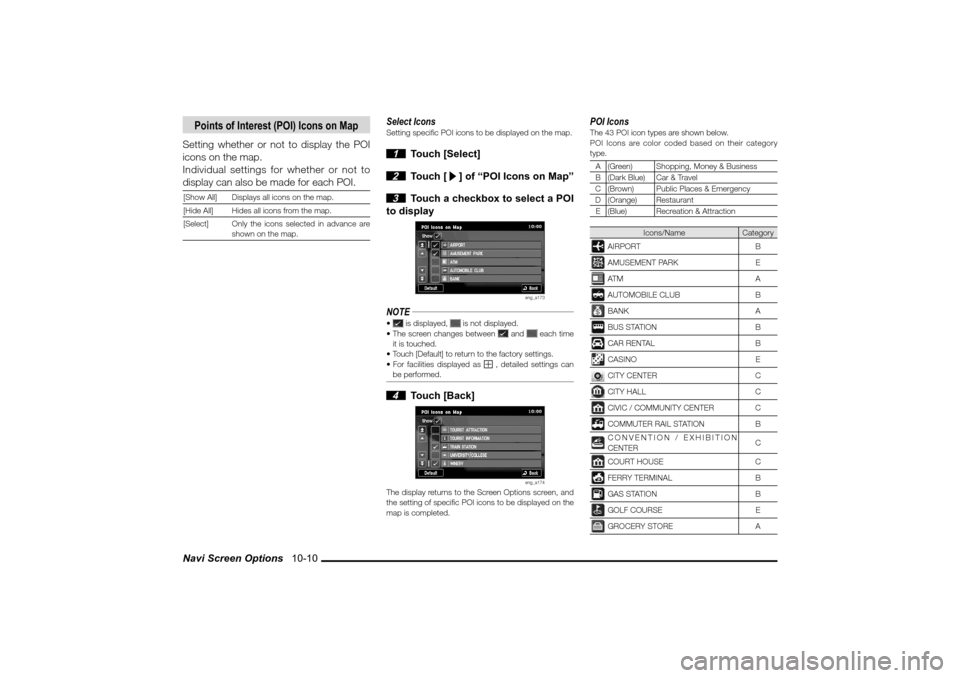

Navi Screen Options 10-10
Points of Interest (POI) Icons on Map
Setting whether or not to display the POI
icons on the map.
Individual settings for whether or not to
display can also be made for each POI.[Show All] Displays all icons on the map.
[Hide All] Hides all icons from the map.
[Select] Only the icons selected in advance are
shown on the map.
Select IconsSetting speci c POI icons to be displayed on the map. 1 Touch [Select]
2 Touch [
] of “POI Icons on Map”

3 Touch a checkbox to select a POI
to display
eng_a173
NOTE
is displayed,
is not displayed.
 The screen changes between
and
each time
it is touched.
 Touch [Default] to return to the factory settings.
 For facilities displayed as , detailed settings can
be performed.
4 Touch [Back]
eng_a174
The display returns to the Screen Options screen, and
the setting of speci c POI icons to be displayed on the
map is completed.
POI IconsThe 43 POI icon types are shown below.
POI Icons are color coded based on their category
type.
A (Green) Shopping, Money & Business
B (Dark Blue) Car & Travel
C (Brown) Public Places & Emergency
D (Orange) Restaurant
E (Blue) Recreation & Attraction
Icons/Name Category
AIRPORT BAMUSEMENT PARK EAT M AAUTOMOBILE CLUB BBANK ABUS STATION BCAR RENTAL BCASINO ECITY CENTER CCITY HALL CCIVIC / COMMUNITY CENTER CCOMMUTER RAIL STATION BCONVENTION / EXHIBITION
CENTERCCOURT HOUSE CFERRY TERMINAL BGAS STATION BGOLF COURSE EGROCERY STORE A









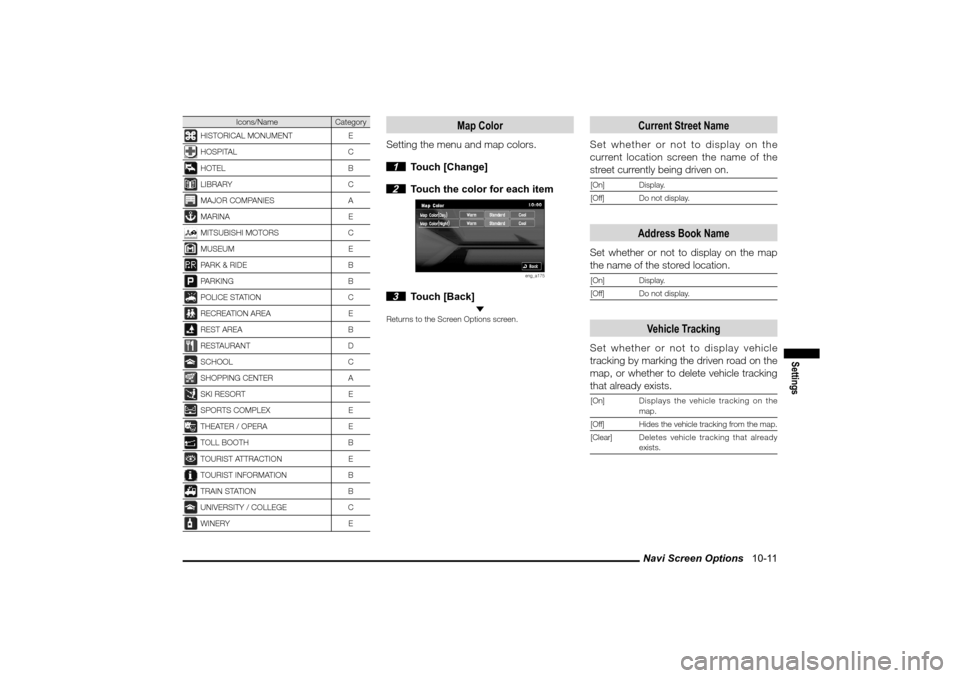

Navi Screen Options 10-11
Settings
Icons/Name Category
HISTORICAL MONUMENT EHOSPITAL CHOTEL BLIBRARY CMAJOR COMPANIES AMARINA EMITSUBISHI MOTORS CMUSEUM EPARK & RIDE BPARKING BPOLICE STATION CRECREATION AREA EREST AREA BRESTAURANT DSCHOOL CSHOPPING CENTER ASKI RESORT ESPORTS COMPLEX ETHEATER / OPERA ETOLL BOOTH BTOURIST ATTRACTION ETOURIST INFORMATION BTRAIN STATION BUNIVERSITY / COLLEGE CWINERY E
Map Color
Setting the menu and map colors.
1 Touch [Change]
2 Touch the color for each item
eng_a175
3 Touch [Back]
Returns to the Screen Options screen.
Current Street Name
Set whether or not to display on the
current location screen the name of the
street currently being driven on.[On] Display.
[Off] Do not display.
Address Book Name
Set whether or not to display on the map
the name of the stored location.[On] Display.
[Off] Do not display.
Vehicle Tracking
Set whether or not to display vehicle
tracking by marking the driven road on the
map, or whether to delete vehicle tracking
that already exists.[On]Displays the vehicle tracking on the
map.
[Off] Hides the vehicle tracking from the map.
[Clear]Deletes vehicle tracking that already
exists.









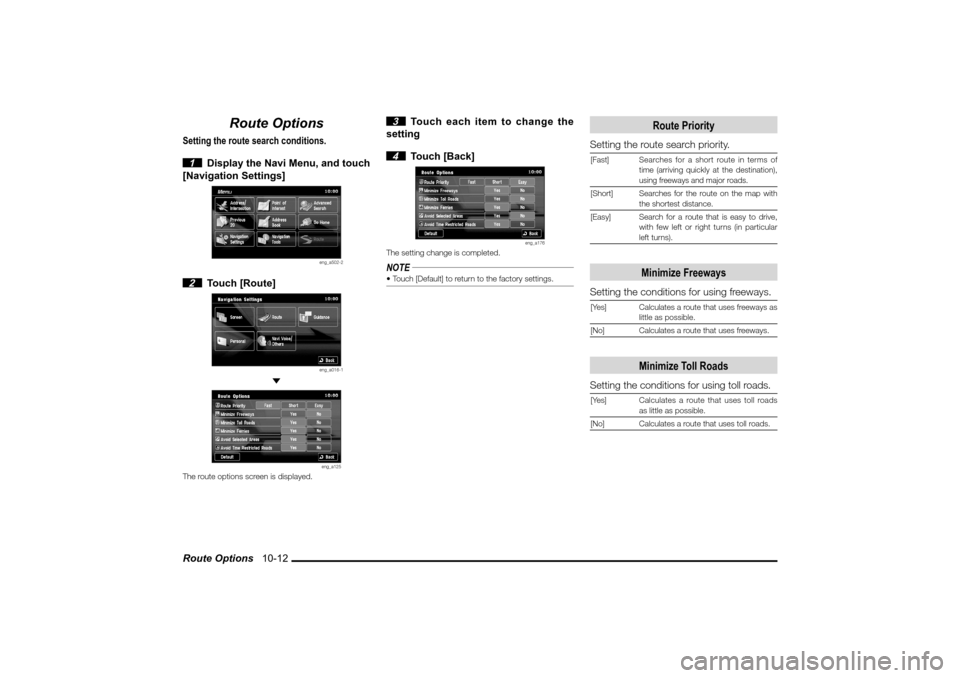

Route Options 10-12
Route Options
Setting the route search conditions.
1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Route]
eng_a016-1

eng_a125
The route options screen is displayed.
3 Touch each item to change the
setting
4 Touch [Back]
eng_a176
The setting change is completed.NOTE Touch [Default] to return to the factory settings.
Route Priority
Setting the route search priority.[Fast]
Searches for a short route in terms of
time (arriving quickly at the destination),
using freeways and major roads.
[Short] Searches for the route on the map with
the shortest distance.
[Easy] Search for a route that is easy to drive,
with few left or right turns (in particular
left turns).
Minimize Freeways
Setting the conditions for using freeways.[Yes] Calculates a route that uses freeways as
little as possible.
[No] Calculates a route that uses freeways.
Minimize Toll Roads
Setting the conditions for using toll roads.[Yes] Calculates a route that uses toll roads
as little as possible.
[No] Calculates a route that uses toll roads.









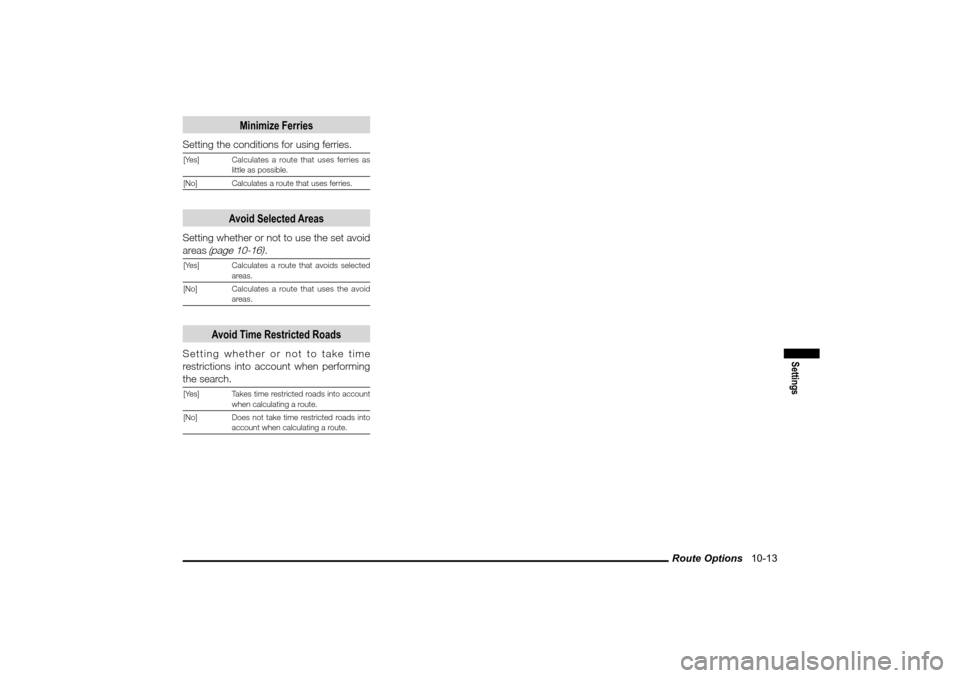

Route Options 10-13
Settings
Minimize Ferries
Setting the conditions for using ferries.[Yes] Calculates a route that uses ferries as
little as possible.
[No] Calculates a route that uses ferries.
Avoid Selected Areas
Setting whether or not to use the set avoid
areas
(page 10-16)
.
[Yes] Calculates a route that avoids selected
areas.
[No]Calculates a route that uses the avoid
areas.
Avoid Time Restricted Roads
Setting whether or not to take time
restrictions into account when performing
the search.[Yes] Takes time restricted roads into account
when calculating a route.
[No] Does not take time restricted roads into
account when calculating a route.









Guidance 10-14
Guidance
Setting the route guidance, and the display for
the route search results.
1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Guidance]
eng_a016-1

eng_a177-2
The guidance screen is displayed.
3 Touch each item to change the
setting
4 Touch [Back]
eng_a178-2
The setting change is completed.NOTE Touch [Default] to return to the factory settings.
Guidance Mode
Setting the guidance mode.
1 Touch [Change]
The guidance mode setting screen is displayed. 2 Touch one of the modes
eng_a180
Refer to
“Intersection Guidance” (page 2-10)
for details
on each mode.
3 Touch [Back]
eng_a181









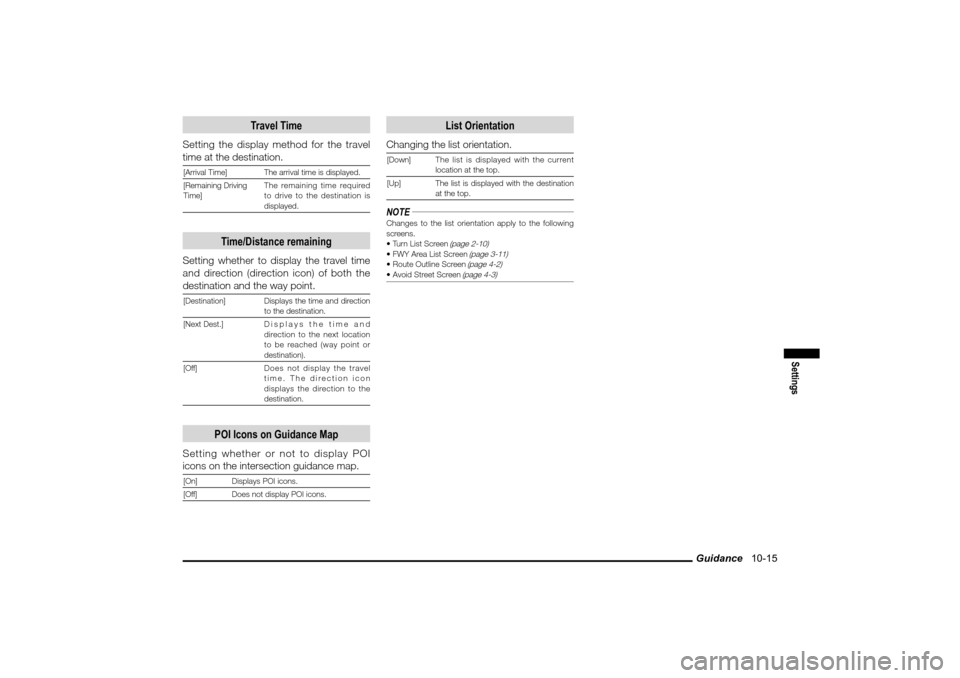

Guidance 10-15
Settings
Travel Time
Setting the display method for the travel
time at the destination.[Arrival Time] The arrival time is displayed.
[Remaining Driving
Time]The remaining time required
to drive to the destination is
displayed.
Time/Distance remaining
Setting whether to display the travel time
and direction (direction icon) of both the
destination and the way point.[Destination] Displays the time and direction
to the destination.
[Next Dest.]Displays the time and
direction to the next location
to be reached (way point or
destination).
[Off] Does not display the travel
time. The direction icon
displays the direction to the
destination.
POI Icons on Guidance Map
Setting whether or not to display POI
icons on the intersection guidance map.[On] Displays POI icons.
[Off] Does not display POI icons.
List Orientation
Changing the list orientation.[Down]The list is displayed with the current
location at the top.
[Up] The list is displayed with the destination
at the top.NOTEChanges to the list orientation apply to the following
screens.
 Turn List Screen
(page 2-10)
 FWY Area List Screen
(page 3-11)
 Route Outline Screen
(page 4-2)
 Avoid Street Screen
(page 4-3)









Personal Settings 10-16
Personal Settings
Individual user settings such as the address
book, home location, and avoid areas can be
stored and edited.
1 Display the Navi Menu, and touch
[Navigation Setting]
eng_a502-2
2 Touch [Personal]
eng_a016-1

eng_a190-1
The personal settings screen is displayed. 3 Touch each item to change the
setting
Address Book
If frequently visited locations are stored in
advance in the address book, the route to
the stored location can be calculated. The
locations can be stored or edited in the
address book. A maximum of 99 items
can be stored.[New] A new location can be stored. Touch
[New], and then use the same
operations as
“Storing a New Location”
(page 5-1)
[Edit]Editing information about a stored
location.
>>> “Editing a Location” (page
5-4)
[Delete] Deleting a stored location.
>>> “Deleting” (page 5-5)
Home Location
Storing the home location and editing the
information.[New]Storing the home location. When a
home location has already been stored,
a new one cannot be stored until the old
location is deleted with [Delete].
>>> “When Storing Your Home” (page
5-2)
[Edit] Editing the home information. The
operations are the same as from step 3
of
“Editing” (page 5-4)
[Delete]Deleting the home location. The
operations are the same as from step 4
of
“Deleting” (page 5-5)
Avoid Areas
Areas to be avoided in a route search can
be stored and edited. A maximum of 5
items can be stored.
RegisteringStoring a new avoid area. 1 Touch [New]
2
Touch one of the [Empty] displays
eng_a182
3
Touch [Near Current Area] or [Jump
to Other Area]
eng_a183
NOTE When touching [Jump to Other Area], refer to “Destination” (page 3-1)
to search for the location of
the avoid area.









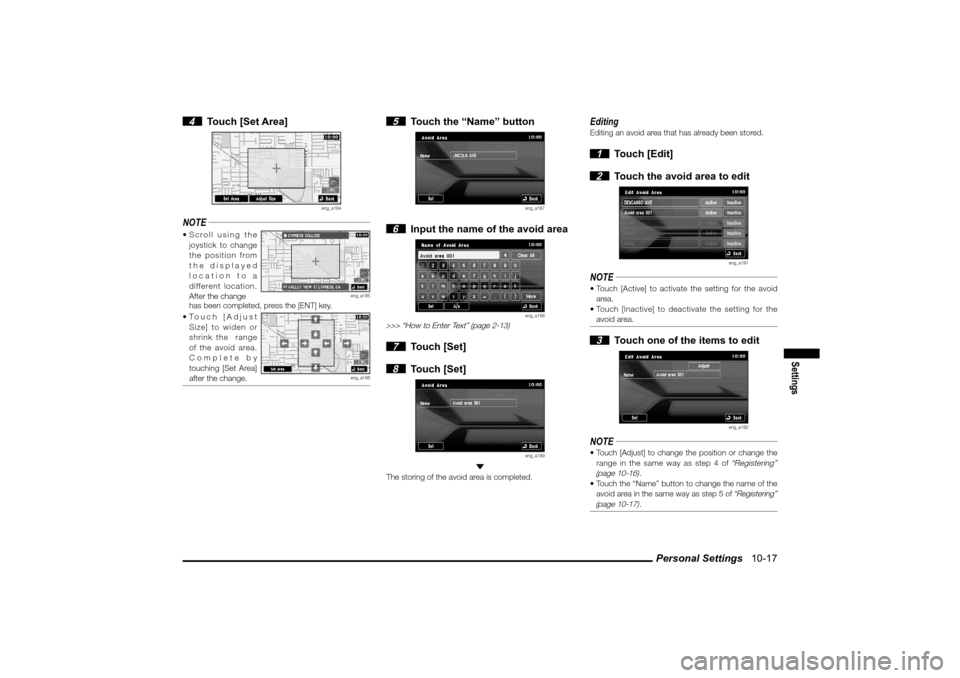

Personal Settings 10-17
Settings
4 Touch [Set Area]
eng_a184
NOTE Scroll using the
joystick to change
the position from
the displayed
location to a
different location.
After the change
eng_a185
has been completed, press the [ENT] key.
 Touch [Adjust
Size] to widen or
shrink the range
of the avoid area.
Complete by
touching [Set Area]
after the change.
eng_a186
5 Touch the “Name” button
eng_a187
6 Input the name of the avoid area
eng_a188
>>> “How to Enter Text” (page 2-13) 7 Touch [Set]
8 Touch [Set]
eng_a189

The storing of the avoid area is completed.
EditingEditing an avoid area that has already been stored. 1 Touch [Edit]
2 Touch the avoid area to edit
eng_a191
NOTE Touch [Active] to activate the setting for the avoid
area.
 Touch [Inactive] to deactivate the setting for the
avoid area. 3 Touch one of the items to edit
eng_a192
NOTE Touch [Adjust] to change the position or change the
range in the same way as step 4 of
“Registering”
(page 10-16)
.
 Touch the “Name” button to change the name of the
avoid area in the same way as step 5 of
“Registering”
(page 10-17)
.









Personal Settings 10-18 4 Touch [Set]
5 Touch [Set]
eng_a192
The editing of the avoid area is completed.DeletingDeleting a stored avoid area. 1 Touch [Delete]
2 Touch the avoid area to delete
eng_193
NOTE The avoid areas targeted for deletion are displayed
with a highlight.Touch a location again to remove it
from the deletion list.
 Multiple locations can be selected at the same time.
 Touch [Select All] to delete all avoid areas at the
same time.
 Touch [Info] to
display the map
of the avoid area
vicinity.
eng_a194
3 Touch [Done]
eng_a195
4 Touch [Yes]
eng_a196
The deletion of the selected avoid areas is completed.
My Categories
Frequently used POI categories can be
stored in “My Categories”.
A maximum of six category items can be
stored in “My Categories”.
1 Touch [Edit]
A list is displayed of all categories.
The remaining operations are the same as from
“Editing
My Categories” (page 3-6)
.









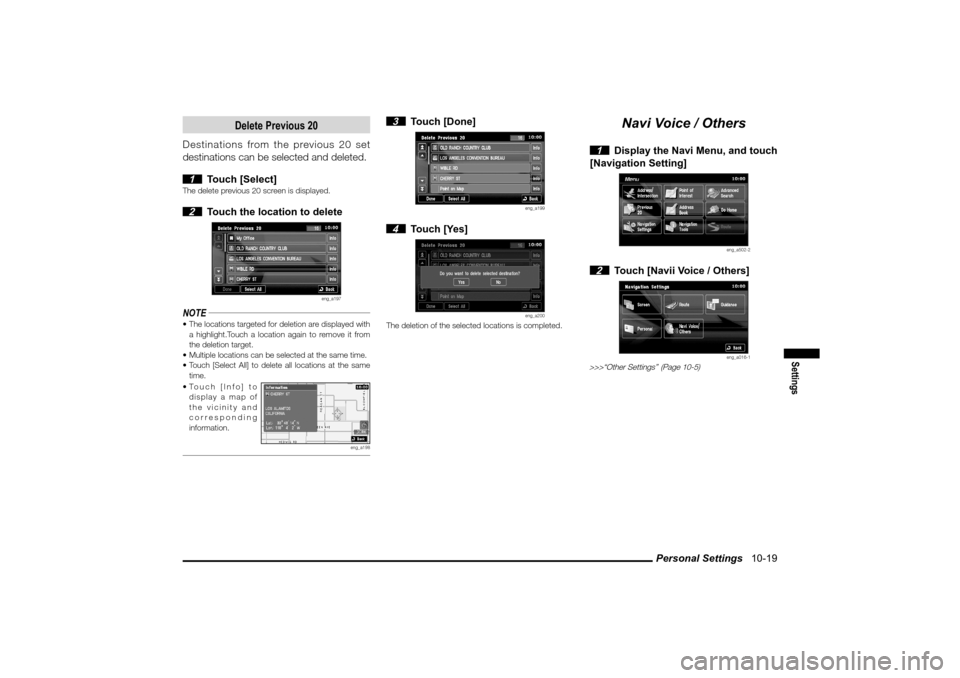

Personal Settings 10-19
Settings
Delete Previous 20
Destinations from the previous 20 set
destinations can be selected and deleted.
1 Touch [Select]
The delete previous 20 screen is displayed. 2 Touch the location to delete
eng_a197
NOTE The locations targeted for deletion are displayed with
a highlight.Touch a location again to remove it from
the deletion target.
 Multiple locations can be selected at the same time.
 Touch [Select All] to delete all locations at the same
time.
 Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_a198
3 Touch [Done]
eng_a199
4 Touch [Yes]
eng_a200
The deletion of the selected locations is completed.
Navi Voice / Others
1 Display the Navi Menu, and touch
[Navigation Setting]
eng_a502-2
2 Touch [Navii Voice / Others]
eng_a016-1
>>>“Other Settings” (Page 10-5)
