Anti-lock braking system 5-92 Features and controls
5
N00531600573
Warning light Warning display type 1 Warning display type 2 If there is a malfunction in the system, the anti-lock braking system warning light willcome on and the warning display will appearon the information screen in the multi-infor- mation display. Under normal conditions, the anti-lock brak-ing system warning light only comes on when the ignition switch is turned to the “ON” position and goes off a few seconds later.
N00531700503
 Avoid hard braking and high-speed driv- ing. Stop the vehicle in a safe place.Test the system by restarting the engine and driving at a speed
of about 12 mph
(20 km/h) or higher.If the warning light / display then remain off during driving, there is no problem.
CAUTION The anti-lock braking system cannot prevent accidents. It is your responsibility to take safety precautions and to drive carefully.  To prevent failure of the anti-lock braking system, be sure all four wheels and tires are the same size and the same type. Never install a limited slip differential as the ABS may not function normally. Please consult an authorized MitsubishiMotors dealer.NOTE
 After your vehicle is driven a short distance after starting the engine, you will hear thesound coming from the engine compartment. These are the normal sounds the anti-lock braking system makes when performing aself-check. It does not indicate a malfunc- tion.  The anti-lock braking system can be used after the vehicle has reached a speed over approximately 6 mph (10 km/h). It stopsworking when the vehicle slows below approximately 3 mph (5 km/h).
Anti-lock braking system warn- ing light / display
CAUTION Any of the following warning light/display behavior indicates that the anti-lock braking system is not functioning and only the stan- dard brake system is working. (The standard brake system will still work properly.) If thishappens, take your vehicle to an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.• When the ignition switch is in the “ON”position, the warning light does not comeon or it remains on and does not go off• The warning light comes on while driving• The warning display appears while driving
If the warning light / display comes on while driving If only the anti-lock braking sys- tem warning light / display comes on
BK0210300US.bo
ok 92 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Anti-lock braking system
Features and controls 5-93
5
However, if the warning light / display do not disappear, or if they come on again when the vehicle is driven, have the vehi- cle checked by an authorized MitsubishiMotors dealer or repair facility of your choice as soon as possible.
Warning light

Warning display type 1
Warning display type 2 The anti-lock braking system and brake force distribution function may not work, so hard braking could make the vehicle unstable. Avoid hard braking and high-speed driving.Stop the vehicle in a safe place and contact an authorized Mitsubishi Motors dealer or repair facility of your choice.
N00529200022
After driving on snow or icy roads, removeany snow and ice which may have been left around the wheels. On vehicles that have an
anti-lock braking system, be careful not to damage the wheel speed sensors (A) or the cables located at each wheel.
If the anti-lock braking system warning light / display and brake warning light / display come on at the same time
NOTE
 The anti-lock braking system warning light and brake warning light illuminate at thesame time and the warning displays appear alternately on the information screen in the multi-information display.
After driving on icy roads
FrontRear
BK0210300US.bo
ok 93 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Active Stability Control (ASC) (if so equipped) 5-94 Features and controls
5
N00559100118
The Active Stability Control (ASC) takes overall control of the anti-lock braking sys- tem, traction control function and skid control function to help maintain the vehicle’s controland traction. Please read
this section in con-
junction with the page on the anti-lock brak- ing system, traction control function and skidcontrol function. Anti-lock braking system (ABS)
 P.5-91
Traction control function
 P.5-94
Skid control function
 P.5-94
N00559200034
On slippery surfaces, the traction control function prevents the drive wheels from spin-ning excessive, thus helping the vehicle to start moving from a stop
ped condition. It also
provides sufficient driving force and steering performance as the vehicle turns while press- ing the acceleration pedal.
N00559300035
The skid control function is designed to helpthe driver maintain control of the vehicle on slippery roads or during rapid steeringmaneuvers. It works by controlling the engine output and the brake on each wheel.
N00559400179
The ASC is automatically activated when the ignition switch is turned to the “ON” posi- tion. You can deactivate the system by press- ing down the “ASC OFF” switch for 3seconds or longer.
Active Stability Control (ASC)
(if so equipped)
CAUTION Do not over-rely on the ASC. Even the ASC cannot prevent the natural laws of physicsfrom acting on the vehicl
e. This system, like
any other system, has limits and cannot help you to maintain traction and control of thevehicle in all circumstances. Reckless driv- ing can lead to accidents. It is the driver’s responsibility to drive carefully, This means taking into account the traffic, road and envi- ronmental conditions. Be sure to use the same specified type and size of tire on all four wheels. Otherwise, theASC may not work properly.
 Do not install any aftermarket limited slip differential (LSD) on your vehicle. The ASC may stop functioning properly.NOTE
 An operation noise may be emitted from the engine compartment in the following situa- tions. The sound is associated with checkingthe operations of the ASC. At this time, you may feel a shock from the brake pedal if you depress it. These do not indicate a malfunc-tion. • When the ignition switch is set to the “ON” position. • When the vehicle is driven for a while after the engine is turned on.
 When the ASC is activated, you may feel a vibration in the vehicle body or hear a whin- ing sound from the engine compartment. This indicates that the system is operatingnormally. It does not indicate a malfunction.  When the anti-lock braking system warning light is illuminated, the ASC is not active.
Traction control function

CAUTION
CAUTION When driving a vehicle on a snowy or icy road, be sure to install snow tires and drive the vehicle at moderate speeds.
Skid control function

NOTE
 The skid control function operates at speeds of about 9 mph (15 km/h) or higher.
“ASC OFF” switch

BK0210300US.bo
ok 94 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Active Stability Control (ASC) (if so equipped)
Features and controls 5-95
5
When the ASC is deactivated, the dis- play/indicator will turn on. To reactivate the ASC, momentarily press the “ASC OFF” switch ; the display/indicator is turned off.
N00559500183
CAUTION For safety reasons, the “ASC OFF” switch should be operated when your vehicle isstopped.  Be sure to keep the ASC on while driving in normal circumstances.NOTE
 Using the “ASC OFF” switch turns off both the skid control function and the tractioncontrol function.
 When moving out of mud, sand or fresh snow, pressing the accelerator pedal may not allow the engine speed to increase. In such situations, temporarily turning off ASC with the “ASC OFF” switch will make it easier tomove out your vehicle.  If you continue to press the “ASC OFF” switch after the ASC is turned off, the “mis- taken operation protection function” will activate and the ASC will turn back on.
ASC operation display or ASC OFF display

-
ASC operation display/ASC indicator The display/indicator will blink whenthe ASC is operating.
-
ASC OFF display/ASC OFF indicator This display/incicator will turn onwhen the ASC is turned off with the “ASC OFF” switch.NOTE
 The combination of items shown on the dis- play varies depending on the vehicle model.NOTE
CAUTION When display/indicator blinks, ASC is operating, which means that the road is slip- pery or that your vehicle’s wheels are begin- ning to slip. If this happens, drive slower. If the temperature in the braking system con- tinues to increase due to continuous brake control on a slippery road surface, the display/indicator will blink. To prevent the brake system from overheating, the brake control of the traction control function willbe temporarily suspended. The engine con- trol of the traction control function and nor- mal brake operation will not be affected.Park your vehicle in a safe place. When the temperature in the braking system has come down, the display/indicator will be turned off and the traction control function will start operating again.NOTE
 The display/indicator may come on when you start the engine. This means that the bat- tery voltage momentarily dropped when theengine was started. It does not indicate a malfunction, provided that the display goes out immediately.  When a spare tire has been put on your vehi- cle, the gripping ability of the tire will be lower, making it more likely that the dis- play/indicator will blink.
BK0210300US.bo
ok 95 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Power steering system 5-96 Features and controls
5
N00559500196
If an abnormal condition occurs in the sys- tem, the following disp
lay/indicator will turn
on. Warning display type 1 Warning display type 2
N00546300015
N00518000310
The power steering system operates while the engine is running. It helps reduce the effortneeded to turn the steering wheel. The power steering system has mechanical steering capability in case the power assist islost. If the power assist is lost for some rea- son, you will still be able to steer your vehi- cle, but you will notice it takes much moreeffort to steer. If this happens, have your vehi-cle inspected at an authorized Mitsubishi Motors dealer or a repair facility of your choice.
N00547100052
ASC warning display

-
ASC indicator
-
ASC OFF display/ASC OFF indicatorNOTE
 The combination of items shown on the dis- play varies depending on the vehicle model.
CAUTION  The system may be malfunctioning. Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the dis- play/indicator goes out. If they go out, thereis no abnormal condition. If they do not go out or if they turn on frequently, it is not nec- essary to stop the vehicle immediately, butyou should have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as pos-sible.
To w i n g

CAUTION When towing the vehicle with only the front wheels or only the rear wheels raised off theground, do not place the ignition switch in the “ON” position. Placing the ignition switch in the “ON” position could cause theASC to operate, resulting in an accident. Note that the correct towing method depends on the transmission type and the vehicle’s drive configuration. For details, refer to
“Towing” on page 8-12.
Power steering system
WA R N I N GDo not stop the engine while the vehicle is moving. Stopping the engine would make the steering wheel extremely hard to turn,possibly resulting in an accident.
Hydraulic power steering sys- tem (HPS)
(if so equipped)
CAUTION Do not leave the steering wheel turned all the way in one direction. This can cause damage to the power steering system.
BK0210300US.bo
ok 96 ページ ２０１４年４月８日　火曜日　午前１０時４６分

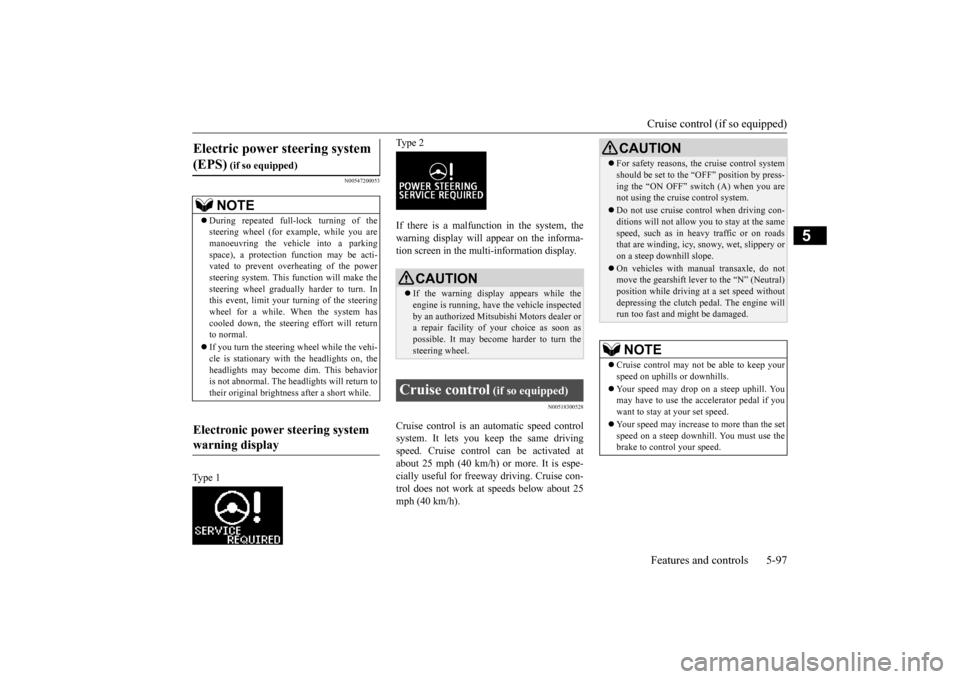

Cruise control (if so equipped) Features and controls 5-97
5
N00547200053
Type 1
Type 2 If there is a malfunction in the system, the warning display will appear on the informa- tion screen in the multi-information display.
N00518300528
Cruise control is an automatic speed control system. It lets you keep the same driving speed. Cruise control can be activated atabout 25 mph (40 km/h) or more. It is espe-cially useful for freeway driving. Cruise con- trol does not work at speeds below about 25 mph (40 km/h).
Electric power steering system (EPS)
(if so equipped)NOTE
 During repeated full-lock turning of the steering wheel (for example, while you are manoeuvring the vehicle into a parkingspace), a protection function may be acti- vated to prevent overheating of the power steering system. This function will make thesteering wheel gradually harder to turn. In this event, limit your tu
rning of the steering
wheel for a while. When the system hascooled down, the steering effort will return to normal.  If you turn the steering wheel while the vehi- cle is stationary with the headlights on, the headlights may become dim. This behavioris not abnormal. The headlights will return to their original brightness after a short while.
Electronic power steering system warning display

CAUTION If the warning display appears while the engine is running, have the vehicle inspected by an authorized Mitsubishi Motors dealer ora repair facility of your choice as soon as possible. It may become harder to turn the steering wheel.
Cruise control
(if so equipped)
CAUTION For safety reasons, the cruise control system should be set to the “OFF” position by press- ing the “ON OFF” switch (A) when you are not using the cruise control system. Do not use cruise control when driving con- ditions will not allow you to stay at the same speed, such as in heavy traffic or on roadsthat are winding, icy, snowy, wet, slippery or on a steep downhill slope. On vehicles with manual transaxle, do not move the gearshift lever to the “N” (Neutral) position while driving at a set speed withoutdepressing the clutch pedal. The engine will run too fast and might be damaged. NOTE
 Cruise control may not be able to keep your speed on uphills or downhills.  Your speed may drop on a steep uphill. You may have to use the accelerator pedal if you want to stay at your set speed.  Your speed may increase to more than the set speed on a steep downhill. You must use the brake to control your speed.
BK0210300US.bo
ok 97 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Cruise control (if so equipped) 5-98 Features and controls
5
To activate and deactivate the cruise control function. To reduce the set speed and to set the speed of constant-speed driving. To increase the set speed and to resume to the previous set speed.
To terminate constant-speed driving.
N00550100245
This indicator will come on when the cruise control “ON OFF” switch (A) is pressed to turn on the cruise control system.
N00518400343
1. Lightly press the “ON OFF” switch (A).
Cruise control switches

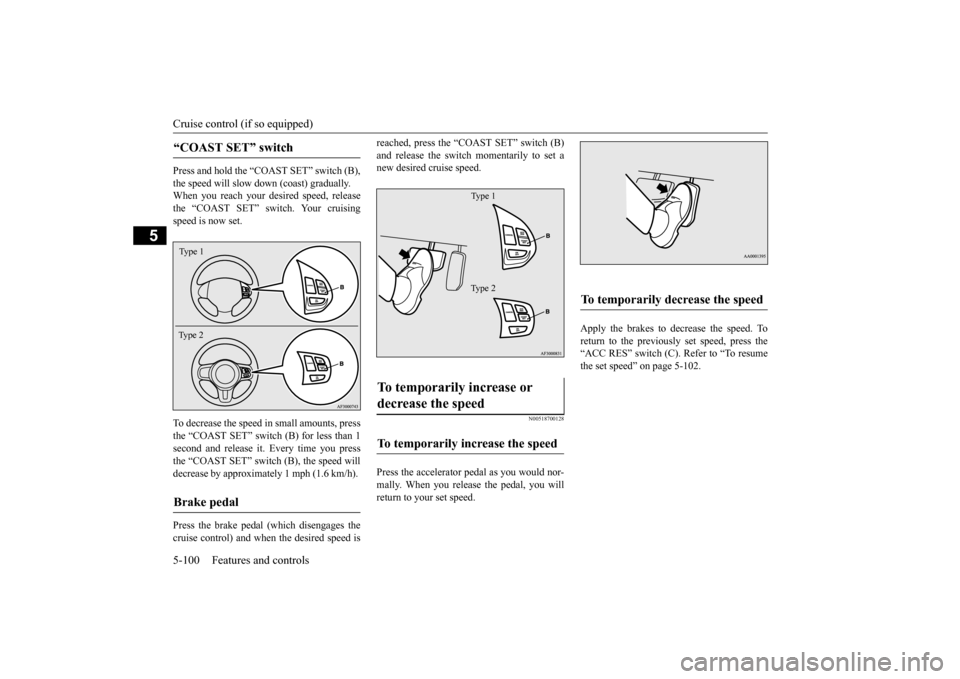

A- “ON OFF” switch B- “COAST SET” switch C- “ACC RES” switchType 1 Type 2
D- “CANCEL” switch
NOTE
 When operating the cruise control switches, correctly press each cruise control switch.The cruise control may be turned off auto- matically if two or more of the cruise control switches are pressed at the same time.
Cruise control indicator

To activate

NOTE
 If the cruise control is on when the ignition switch is turned to “OFF” position, cruise control will turn on automatically and the “CRUISE” control indicator will illuminatethe next time you start the engine.  If the battery voltage is insufficient, the memory data for the cruise control will be erased. As a result, the “CRUISE” control indicator may not come on when you restartthe engine. If this happens, press the “ON OFF” switch once again to activate the cruise control.Type 1 Type 2
BK0210300US.bo
ok 98 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Cruise control (if so equipped) Features and controls 5-99
5
2. Confirm that the Twin Clutch SST control mode is set to “Normal” (on vehicles with Twin Clutch SST). Refer to “Twin Clutch SST control mode”on page 5-74. 3. Accelerate or decelerate to your desired speed, then press and release the “COAST SET” switch (B) when the “CRUISE”indicator light is illuminated. The vehicle will then maintain the desired speed.
N00518500331

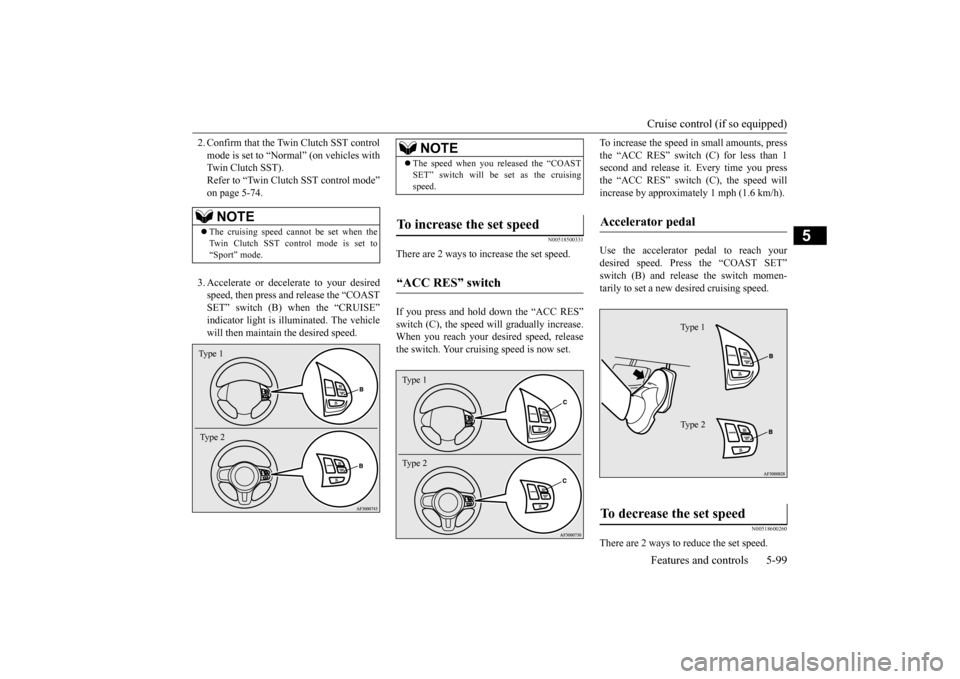

There are 2 ways to increase the set speed. If you press and hold down the “ACC RES” switch (C), the speed will gradually increase. When you reach your desired speed, releasethe switch. Your cruising speed is now set.
To increase the speed in small amounts, press the “ACC RES” switch (C) for less than 1 second and release it. Every time you press the “ACC RES” switch (C), the speed willincrease by approximately 1 mph (1.6 km/h). Use the accelerator pedal to reach your desired speed. Press the “COAST SET”switch (B) and release the switch momen- tarily to set a new desired cruising speed.
N00518600260
There are 2 ways to reduce the set speed.
NOTE
 The cruising speed cannot be set when the Twin Clutch SST control mode is set to“Sport” mode.Type 1 Type 2
NOTE
 The speed when you released the “COAST SET” switch will be set as the cruising speed.
To increase the set speed

“ACC RES” switch

Type 1 Type 2
Accelerator pedal

To decrease the set speed

Type 1 Type 2
BK0210300US.bo
ok 99 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Cruise control (if so equipped) 5-100 Features and controls
5
Press and hold the “COAST SET” switch (B), the speed will slow down (coast) gradually. When you reach your desired speed, releasethe “COAST SET” switch. Your cruising speed is now set. To decrease the speed in small amounts, press the “COAST SET” switch (B) for less than 1 second and release it. Every time you press the “COAST SET” switch (B), the speed willdecrease by approximately 1 mph (1.6 km/h). Press the brake pedal (which disengages the cruise control) and wh
en the desired speed is
reached, press the “COAST SET” switch (B) and release the switch momentarily to set a new desired cruise speed.
N00518700128
Press the accelerator pedal as you would nor- mally. When you release the pedal, you willreturn to your set speed.
Apply the brakes to decrease the speed. To return to the previously set speed, press the“ACC RES” switch (C). Refer to “To resume the set speed” on page 5-102.
“COAST SET” switch

Brake pedal

Type 1 Ty p e 2
To temporarily increase or decrease the speed

To temporarily increase the speed

Type 1 Ty p e 2
To temporarily decrease the speed

BK0210300US.book
100 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Cruise control (if so equipped) Features and controls 5-101
5
N00518800493

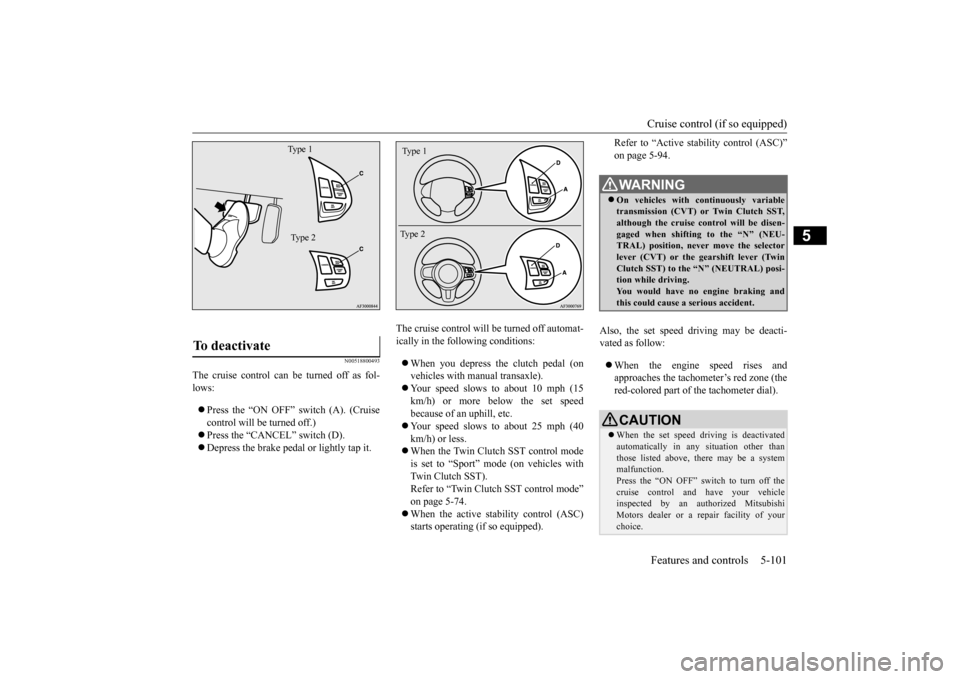

The cruise control can be turned off as fol- lows:  Press the “ON OFF” switch (A). (Cruise control will be turned off.)  Press the “CANCEL” switch (D).  Depress the brake pedal or lightly tap it.
