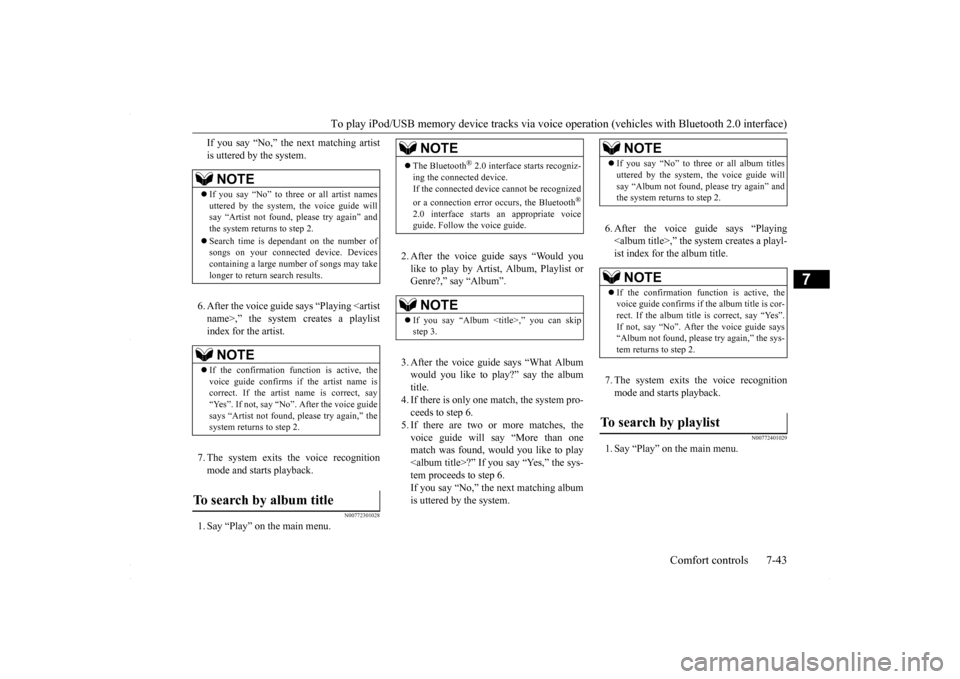

To play iPod/USB memory device tracks via voice
operation (vehicles with Bluetooth 2.0 interface)
Comfort controls 7-43
7
If you say “No,” the next matching artist is uttered by the system. 6. After the voice guide says “Playing ,” the system creates a playlist index for the artist. 7. The system exits the voice recognition mode and starts playback.
N00772301028
1. Say “Play” on the main menu.
2. After the voice guide says “Would you like to play by Artist, Album, Playlist or Genre?,” say “Album”. 3. After the voice guide says “What Album would you like to play?” say the albumtitle. 4. If there is only one match, the system pro- ceeds to step 6.5. If there are two or more matches, the voice guide will say “More than one match was found, would you like to play?” If you say “Yes,” the sys- tem proceeds to step 6. If you say “No,” the next matching albumis uttered by the system.
6. After the voice guide says “Playing ,” the system creates a playl- ist index for the album title. 7. The system exits the voice recognition mode and starts playback.
N00772401029
1. Say “Play” on the main menu.
NOTE
If you say “No” to three or all artist names uttered by the system, the voice guide willsay “Artist not found, please try again” and the system returns to step 2. Search time is dependant on the number of songs on your connected device. Devices containing a large number of songs may takelonger to return search results.NOTE
If the confirmation function is active, the voice guide confirms if the artist name is correct. If the artist name is correct, say “Yes”. If not, say “No”. After the voice guidesays “Artist not found, please try again,” the system returns to step 2.
To search by album title
NOTE
The Bluetooth
® 2.0 interface starts recogniz-
ing the connected device.If the connected device cannot be recognized or a connection error occurs, the Bluetooth
®
2.0 interface starts an appropriate voice guide. Follow the voice guide.NOTE
If you say “Album ,” you can skip step 3.<br />
NOTE<br />
If you say “No” to three or all album titles uttered by the system, the voice guide will say “Album not found, please try again” and the system returns to step 2.NOTE<br />
If the confirmation f<br />
unction is active, the <br />
voice guide confirms if the album title is cor- rect. If the album title is correct, say “Yes”.If not, say “No”. After the voice guide says “Album not found, please try again,” the sys- tem returns to step 2.<br />
To search by playlist <br />
BK0230300US.bo <br />
ok 43 ページ ２０１５年７月３０日 木曜日 午後８時３８分 <p></div><script>$(document).on('click', '#a293', function(){
$(this).hide();
$('#b293').height($('#a293').height()-22);
$('#b293').show();
});
$(document).on('click', '#b293', function(){
$(this).hide();
$('#a293').show();
});
$(document).ready(function(){
$('#b293').height($('#a293').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>

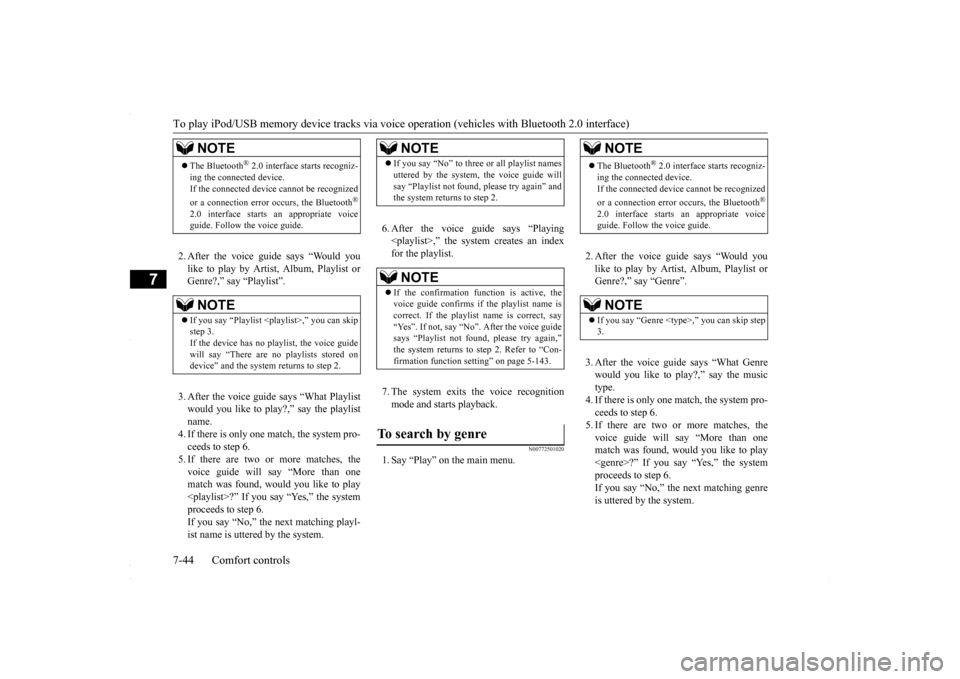

<a name='294'></a><h3>Page 294 of 392</h3><div id='a294'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI LANCER 2016 8.G Owners Manual To play iPod/USB memory device tracks via voice
operation (vehicles with
Bluetooth 2.0 interface)
7-44 Comfort controls
7
2. After the voice guide says “Would you like to play by Artist, Album, P' title='MITSUBISHI LANCER 2016 8.G Owners Manual To play iPod/USB memory device tracks via voice
operation (vehicles with
Bluetooth 2.0 interface)
7-44 Comfort controls
7
2. After the voice guide says “Would you like to play by Artist, Album, P' src='/img/19/7463/w960_7463-293.png' /></div><div id='b294' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>To play iPod/USB memory device tracks via voice <br />
operation (vehicles with<br />
Bluetooth 2.0 interface) <br />
7-44 Comfort controls<br />
7<br />
2. After the voice guide says “Would you like to play by Artist, Album, Playlist or Genre?,” say “Playlist”. 3. After the voice guide says “What Playlist would you like to play?,” say the playlistname. 4. If there is only one match, the system pro- ceeds to step 6.5. If there are two or more matches, the voice guide will say “More than one match was found, would you like to play<playlist>?” If you say “Yes,” the system proceeds to step 6. If you say “No,” the next matching playl-ist name is uttered by the system. <br />
6. After the voice guide says “Playing <playlist>,” the system creates an index for the playlist. 7. The system exits the voice recognition mode and starts playback.<br />
N00772501020<br />
1. Say “Play” on the main menu. <br />
2. After the voice guide says “Would you like to play by Artist, Album, Playlist or Genre?,” say “Genre”. 3. After the voice guide says “What Genre would you like to play?,” say the musictype. 4. If there is only one match, the system pro- ceeds to step 6.5. If there are two or more matches, the voice guide will say “More than one match was found, would you like to play<genre>?” If you say “Yes,” the system proceeds to step 6. If you say “No,” the next matching genreis uttered by the system.<br />
NOTE<br />
The Bluetooth<br />
® 2.0 interface starts recogniz- <br />
ing the connected device.If the connected device cannot be recognized or a connection error occurs, the Bluetooth<br />
®<br />
2.0 interface starts an appropriate voice guide. Follow the voice guide.NOTE<br />
If you say “Playlist <playlist>,” you can skip step 3. If the device has no playlist, the voice guidewill say “There are no playlists stored on device” and the system returns to step 2.<br />
NOTE<br />
If you say “No” to three or all playlist names uttered by the system, the voice guide will say “Playlist not found, please try again” and the system returns to step 2.NOTE<br />
If the confirmation function is active, the voice guide confirms if the playlist name is correct. If the playlist <br />
name is correct, say <br />
“Yes”. If not, say “No”. After the voice guide says “Playlist not found, please try again,” the system returns to step 2. Refer to “Con-firmation function setting” on page 5-143.<br />
To search by genre <br />
NOTE<br />
The Bluetooth<br />
® 2.0 interface starts recogniz- <br />
ing the connected device.If the connected device cannot be recognized or a connection error occurs, the Bluetooth<br />
®<br />
2.0 interface starts an appropriate voice guide. Follow the voice guide.NOTE<br />
If you say “Genre <type>,” you can skip step 3.<br />
BK0230300US.bo <br />
ok 44 ページ ２０１５年７月３０日 木曜日 午後８時３８分 <p></div><script>$(document).on('click', '#a294', function(){
$(this).hide();
$('#b294').height($('#a294').height()-22);
$('#b294').show();
});
$(document).on('click', '#b294', function(){
$(this).hide();
$('#a294').show();
});
$(document).ready(function(){
$('#b294').height($('#a294').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>

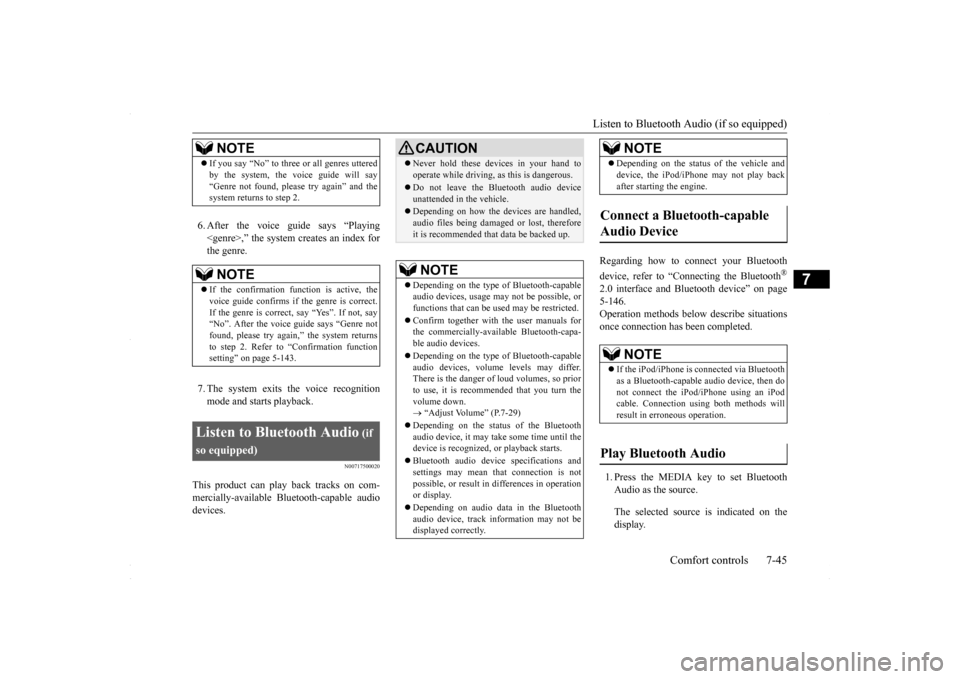

<a name='295'></a><h3>Page 295 of 392</h3><div id='a295'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI LANCER 2016 8.G Owners Manual Listen to Bluetooth Audio (if so equipped)
Comfort controls 7-45
7
6. After the voice guide says “Playing <genre>,” the system creates an index for the genre. 7. The system exits the voice recogn' title='MITSUBISHI LANCER 2016 8.G Owners Manual Listen to Bluetooth Audio (if so equipped)
Comfort controls 7-45
7
6. After the voice guide says “Playing <genre>,” the system creates an index for the genre. 7. The system exits the voice recogn' src='/img/19/7463/w960_7463-294.png' /></div><div id='b295' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>Listen to Bluetooth Audio (if so equipped) <br />
Comfort controls 7-45<br />
7<br />
6. After the voice guide says “Playing <genre>,” the system creates an index for the genre. 7. The system exits the voice recognition mode and starts playback.<br />
N00717500020<br />
This product can play back tracks on com- mercially-available Bluetooth-capable audiodevices. <br />
Regarding how to connect your Bluetooth device, refer to “Connecting the Bluetooth<br />
®<br />
2.0 interface and Bluetooth device” on page 5-146. Operation methods below describe situationsonce connection has been completed. 1. Press the MEDIA key to set Bluetooth Audio as the source. The selected source is indicated on the display.<br />
NOTE<br />
If you say “No” to three or all genres uttered by the system, the voice guide will say “Genre not found, please try again” and the system returns to step 2.NOTE<br />
If the confirmation function is active, the voice guide confirms if the genre is correct. If the genre is correct, say “Yes”. If not, say “No”. After the voice guide says “Genre notfound, please try again,” the system returns to step 2. Refer to “Confirmation function setting” on page 5-143.<br />
Listen to Bluetooth Audio<br />
(if <br />
so equipped)<br />
CAUTION Never hold these devices in your hand to operate while driving, as this is dangerous. Do not leave the Bluetooth audio device unattended in the vehicle. Depending on how the devices are handled, audio files being damaged or lost, thereforeit is recommended that data be backed up.NOTE<br />
Depending on the type of Bluetooth-capable audio devices, usage may not be possible, orfunctions that can be used may be restricted. Confirm together with the user manuals for the commercially-available Bluetooth-capa- ble audio devices. Depending on the type of Bluetooth-capable audio devices, volume levels may differ. There is the danger of loud volumes, so priorto use, it is recommended that you turn the volume down. “Adjust Volume” (P.7-29) <br />
Depending on the status of the Bluetooth audio device, it may take some time until thedevice is recognized, or playback starts. Bluetooth audio device specifications and settings may mean that connection is not possible, or result in differences in operationor display. Depending on audio data in the Bluetooth audio device, track information may not be displayed correctly.<br />
Depending on the status of the vehicle and device, the iPod/iPhone may not play back after starting the engine.<br />
Connect a Bluetooth-capable Audio Device<br />
<br />
NOTE<br />
If the iPod/iPhone is connected via Bluetooth as a Bluetooth-capable audio device, then do not connect the iPod/iPhone using an iPod cable. Connection using both methods willresult in erroneous operation.<br />
Play Bluetooth Audio<br />
<br />
NOTE<br />
BK0230300US.bo <br />
ok 45 ページ ２０１５年７月３０日 木曜日 午後８時３８分 <p></div><script>$(document).on('click', '#a295', function(){
$(this).hide();
$('#b295').height($('#a295').height()-22);
$('#b295').show();
});
$(document).on('click', '#b295', function(){
$(this).hide();
$('#a295').show();
});
$(document).ready(function(){
$('#b295').height($('#a295').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>

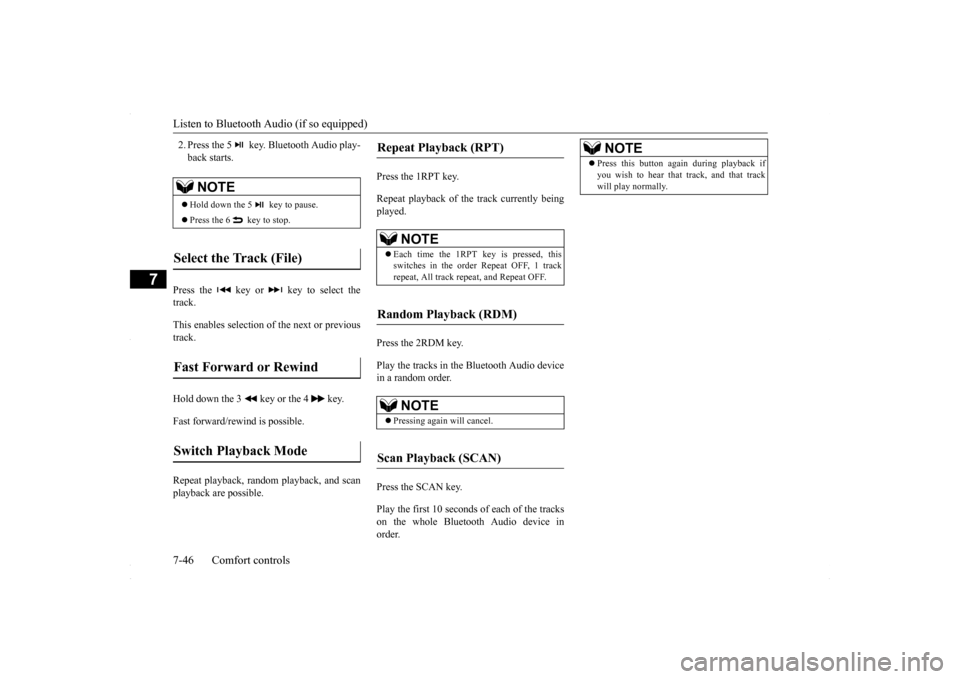

<a name='296'></a><h3>Page 296 of 392</h3><div id='a296'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI LANCER 2016 8.G Owners Manual Listen to Bluetooth Audio (if so equipped) 7-46 Comfort controls
7
2. Press the 5 key. Bluetooth Audio play- back starts.
Press the key or key to select the track. This enables selection of the ' title='MITSUBISHI LANCER 2016 8.G Owners Manual Listen to Bluetooth Audio (if so equipped) 7-46 Comfort controls
7
2. Press the 5 key. Bluetooth Audio play- back starts.
Press the key or key to select the track. This enables selection of the ' src='/img/19/7463/w960_7463-295.png' /></div><div id='b296' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>Listen to Bluetooth Audio (if so equipped) 7-46 Comfort controls<br />
7<br />
2. Press the 5 key. Bluetooth Audio play- back starts. <br />
Press the key or key to select the track. This enables selection of the next or previous track. Hold down the 3 key or the 4 key. Fast forward/rewind is possible. Repeat playback, random playback, and scan playback are possible. <br />
Press the 1RPT key. Repeat playback of th <br />
e track currently being <br />
played. Press the 2RDM key. Play the tracks in the Bluetooth Audio device in a random order. Press the SCAN key. Play the first 10 seconds of each of the tracks on the whole Bluetooth Audio device inorder.<br />
NOTE<br />
Hold down the 5 key to pause. Press the 6 key to stop.<br />
Select the Track (File)<br />
<br />
Fast Forward or Rewind<br />
<br />
Switch Playback Mode<br />
<br />
Repeat Playback (RPT)<br />
<br />
NOTE<br />
Each time the 1RPT key is pressed, this switches in the order Repeat OFF, 1 trackrepeat, All track repeat, and Repeat OFF.<br />
Random Playback (RDM)<br />
<br />
NOTE<br />
Pressing again will cancel.<br />
Scan Playback (SCAN)<br />
<br />
NOTE<br />
Press this button again during playback if you wish to hear that track, and that track will play normally.<br />
BK0230300US.bo <br />
ok 46 ページ ２０１５年７月３０日 木曜日 午後８時３８分 <p></div><script>$(document).on('click', '#a296', function(){
$(this).hide();
$('#b296').height($('#a296').height()-22);
$('#b296').show();
});
$(document).on('click', '#b296', function(){
$(this).hide();
$('#a296').show();
});
$(document).ready(function(){
$('#b296').height($('#a296').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='297'></a><h3>Page 297 of 392</h3><div id='a297'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI LANCER 2016 8.G Owners Manual Display Indicator
Comfort controls 7-47
7
N00717700022

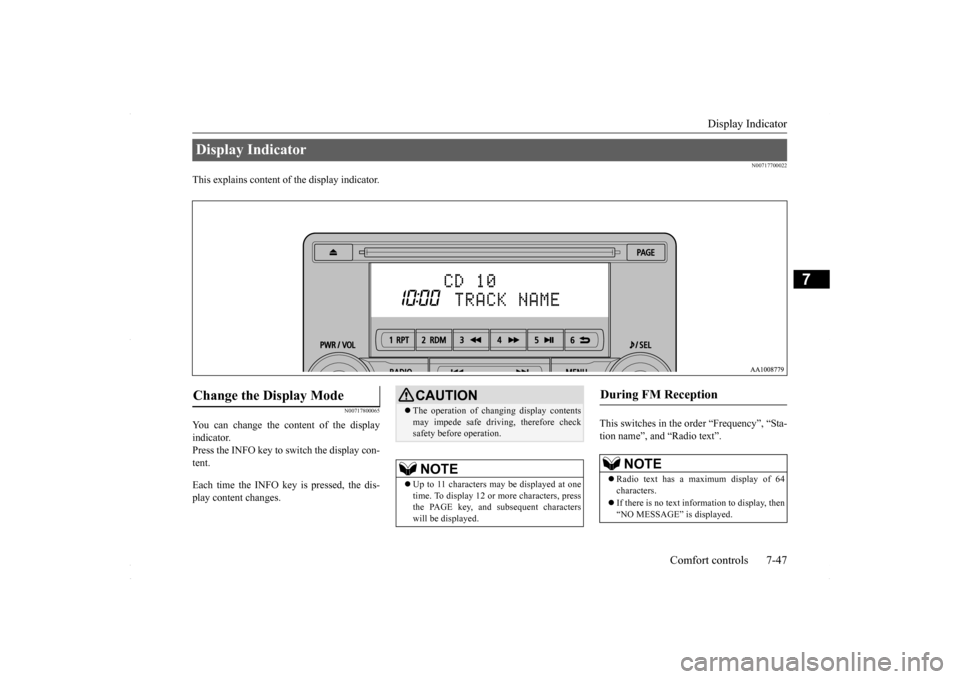

This explains content of the display indicator.
N00717800065
You can change the content of the display indicator. Press the INFO key to switch t' title='MITSUBISHI LANCER 2016 8.G Owners Manual Display Indicator
Comfort controls 7-47
7
N00717700022
This explains content of the display indicator.
N00717800065
You can change the content of the display indicator. Press the INFO key to switch t' src='/img/19/7463/w960_7463-296.png' /></div><div id='b297' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>Display Indicator <br />
Comfort controls 7-47<br />
7<br />
N00717700022<br />
This explains content of the display indicator.<br />
N00717800065<br />
You can change the content of the display indicator. Press the INFO key to switch the display con- tent. Each time the INFO key is pressed, the dis- play content changes. <br />
This switches in the order “Frequency”, “Sta- tion name”, and “Radio text”.<br />
Display Indicator Change the Display Mode <br />
CAUTION The operation of changing display contents may impede safe driving, therefore check safety before operation.NOTE<br />
Up to 11 characters may be displayed at one time. To display 12 or more characters, press the PAGE key, and subsequent characterswill be displayed.<br />
During FM Reception <br />
NOTE<br />
Radio text has a maximum display of 64 characters. If there is no text information to display, then “NO MESSAGE” is displayed.<br />
BK0230300US.bo <br />
ok 47 ページ ２０１５年７月３０日 木曜日 午後８時３８分 <p></div><script>$(document).on('click', '#a297', function(){
$(this).hide();
$('#b297').height($('#a297').height()-22);
$('#b297').show();
});
$(document).on('click', '#b297', function(){
$(this).hide();
$('#a297').show();
});
$(document).ready(function(){
$('#b297').height($('#a297').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>

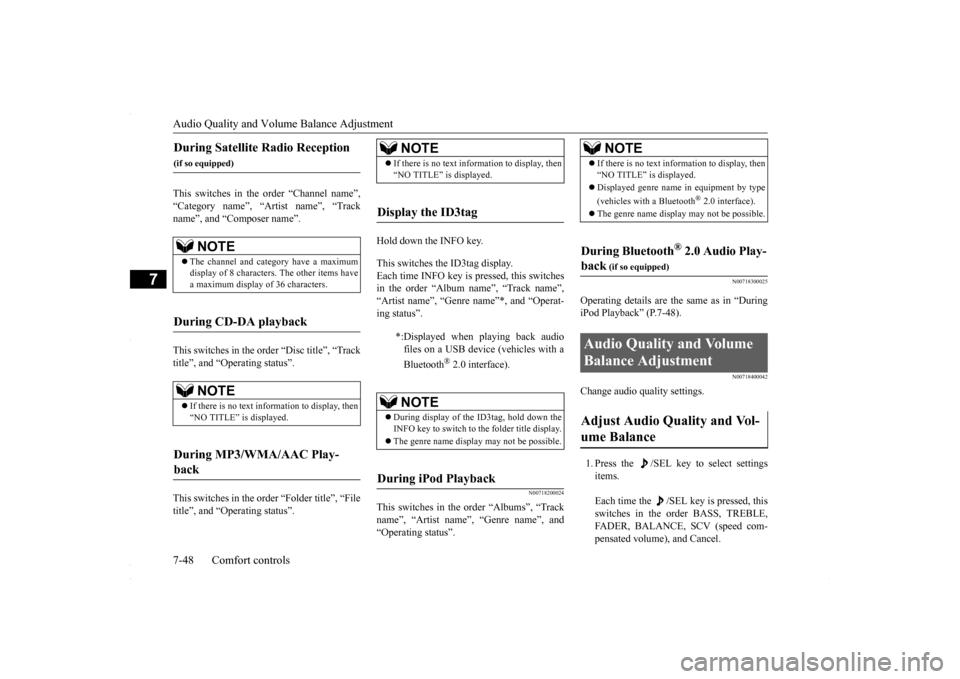

<a name='298'></a><h3>Page 298 of 392</h3><div id='a298'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI LANCER 2016 8.G Owners Manual Audio Quality and Volume Balance Adjustment 7-48 Comfort controls
7
This switches in the order “Channel name”, “Category name”, “Artist name”, “Trackname”, and “Composer name”. Thi' title='MITSUBISHI LANCER 2016 8.G Owners Manual Audio Quality and Volume Balance Adjustment 7-48 Comfort controls
7
This switches in the order “Channel name”, “Category name”, “Artist name”, “Trackname”, and “Composer name”. Thi' src='/img/19/7463/w960_7463-297.png' /></div><div id='b298' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>Audio Quality and Volume Balance Adjustment 7-48 Comfort controls<br />
7<br />
This switches in the order “Channel name”, “Category name”, “Artist name”, “Trackname”, and “Composer name”. This switches in the order “Disc title”, “Track title”, and “Operating status”. This switches in the order “Folder title”, “File title”, and “Operating status”. <br />
Hold down the INFO key. This switches the ID3tag display. Each time INFO key is pressed, this switches in the order “Album name”, “Track name”, “Artist name”, “Genre name”*, and “Operat-ing status”.<br />
N00718200024<br />
This switches in the order “Albums”, “Trackname”, “Artist name”, “Genre name”, and “Operating status”.<br />
N00718300025<br />
Operating details are the same as in “DuringiPod Playback” (P.7-48).<br />
N00718400042<br />
Change audio quality settings. 1. Press the /SEL key to select settings items. Each time the /SEL key is pressed, this switches in the order BASS, TREBLE, FADER, BALANCE, SCV (speed com- pensated volume), and Cancel.<br />
During Satellite Radio Reception<br />
<br />
(if so equipped)<br />
NOTE<br />
The channel and category have a maximum display of 8 characters. The other items have a maximum display of 36 characters.<br />
During CD-DA playback <br />
NOTE<br />
If there is no text information to display, then “NO TITLE” is displayed.<br />
During MP3/WMA/AAC Play- back <br />
NOTE<br />
If there is no text information to display, then “NO TITLE” is displayed.<br />
Display the ID3tag <br />
*:Displayed when playing back audio files on a USB device (vehicles with a Bluetooth<br />
® 2.0 interface).<br />
NOTE<br />
During display of the ID3tag, hold down the INFO key to switch to the folder title display. The genre name display may not be possible.<br />
During iPod Playback <br />
NOTE<br />
If there is no text information to display, then “NO TITLE” is displayed. Displayed genre name in equipment by type (vehicles with a Bluetooth<br />
® 2.0 interface). <br />
The genre name display may not be possible.<br />
During Bluetooth<br />
® 2.0 Audio Play- <br />
back<br />
(if so equipped)<br />
Audio Quality and Volume Balance Adjustment Adjust Audio Quality and Vol- ume Balance <br />
BK0230300US.bo <br />
ok 48 ページ ２０１５年７月３０日 木曜日 午後８時３８分 <p></div><script>$(document).on('click', '#a298', function(){
$(this).hide();
$('#b298').height($('#a298').height()-22);
$('#b298').show();
});
$(document).on('click', '#b298', function(){
$(this).hide();
$('#a298').show();
});
$(document).ready(function(){
$('#b298').height($('#a298').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>

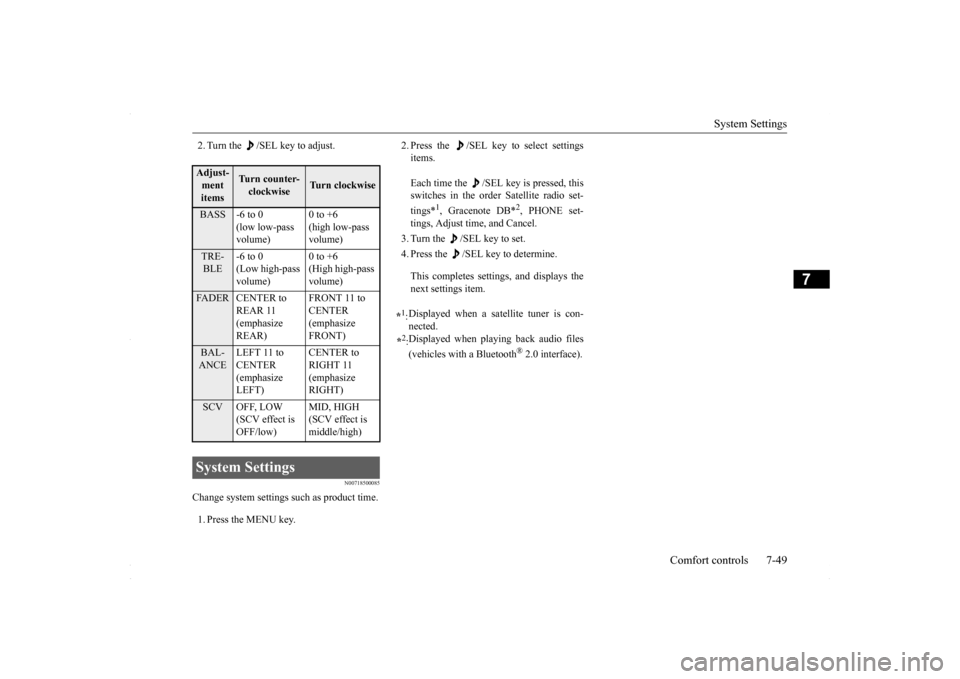

<a name='299'></a><h3>Page 299 of 392</h3><div id='a299'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI LANCER 2016 8.G Owners Manual System Settings
Comfort controls 7-49
7
2. Turn the /SEL key to adjust.
N00718500085
Change system settings such as product time. 1. Press the MENU key.
2. Press the /SEL key to select settings it' title='MITSUBISHI LANCER 2016 8.G Owners Manual System Settings
Comfort controls 7-49
7
2. Turn the /SEL key to adjust.
N00718500085
Change system settings such as product time. 1. Press the MENU key.
2. Press the /SEL key to select settings it' src='/img/19/7463/w960_7463-298.png' /></div><div id='b299' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>System Settings <br />
Comfort controls 7-49<br />
7<br />
2. Turn the /SEL key to adjust.<br />
N00718500085<br />
Change system settings such as product time. 1. Press the MENU key. <br />
2. Press the /SEL key to select settings items. Each time the /SEL key is pressed, this switches in the order Satellite radio set- tings*<br />
1, Gracenote DB*<br />
2, PHONE set- <br />
tings, Adjust time, and Cancel. 3. Turn the /SEL key to set.4. Press the /SEL key to determine. This completes settings, and displays the next settings item.<br />
Adjust-ment items<br />
Turn counter- clockwise<br />
Turn clockwise<br />
BASS -6 to 0<br />
(low low-pass volume) <br />
0 to +6 (high low-pass volume)<br />
TRE- BLE <br />
-6 to 0 (Low high-pass volume) <br />
0 to +6 (High high-pass volume)<br />
FADER CENTER to <br />
REAR 11 (emphasize REAR) <br />
FRONT 11 to CENTER (emphasize FRONT)<br />
BAL- ANCE <br />
LEFT 11 to CENTER (emphasize LEFT) <br />
CENTER to RIGHT 11 (emphasize RIGHT)<br />
SCV OFF, LOW <br />
(SCV effect is OFF/low) <br />
MID, HIGH (SCV effect is middle/high)<br />
System Settings <br />
*1: Displayed when a satellite tuner is con- nected. <br />
*2: Displayed when playing back audio files (vehicles with a Bluetooth<br />
® 2.0 interface).<br />
BK0230300US.bo <br />
ok 49 ページ ２０１５年７月３０日 木曜日 午後８時３８分 <p></div><script>$(document).on('click', '#a299', function(){
$(this).hide();
$('#b299').height($('#a299').height()-22);
$('#b299').show();
});
$(document).on('click', '#b299', function(){
$(this).hide();
$('#a299').show();
});
$(document).ready(function(){
$('#b299').height($('#a299').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>

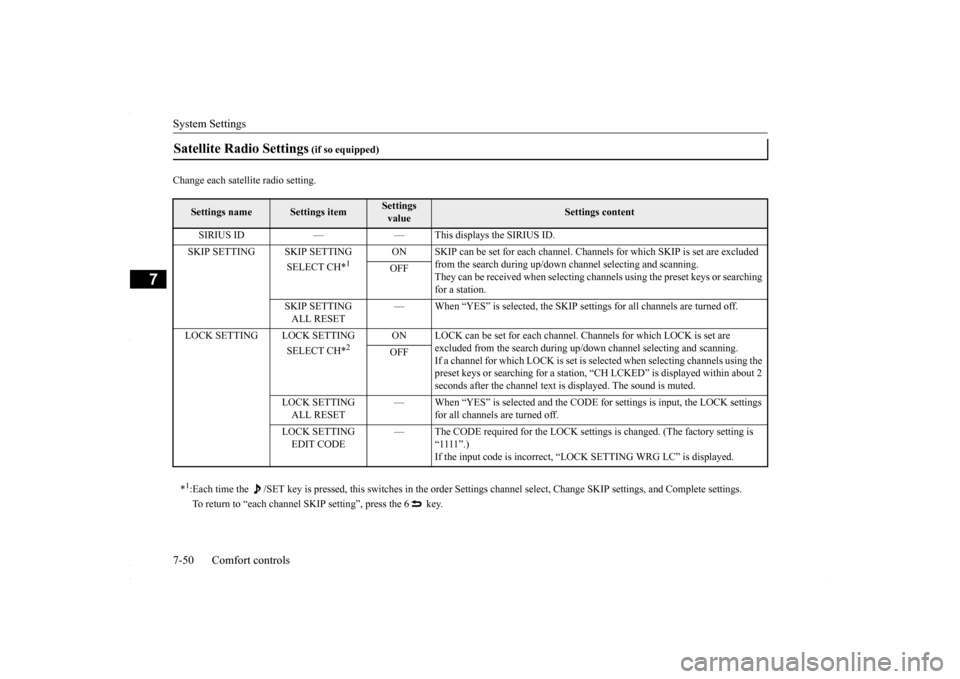

<a name='300'></a><h3>Page 300 of 392</h3><div id='a300'><img loading='lazy' width='960' height='679' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI LANCER 2016 8.G Owners Manual System Settings 7-50 Comfort controls
7
Change each satellite radio setting.Satellite Radio Settings
(if so equipped)
Settings name
Settings item
Settings value
Settings content
SIRIUS ID — — T' title='MITSUBISHI LANCER 2016 8.G Owners Manual System Settings 7-50 Comfort controls
7
Change each satellite radio setting.Satellite Radio Settings
(if so equipped)
Settings name
Settings item
Settings value
Settings content
SIRIUS ID — — T' src='/img/19/7463/w960_7463-299.png' /></div><div id='b300' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>System Settings 7-50 Comfort controls<br />
7<br />
Change each satellite radio setting.Satellite Radio Settings<br />
(if so equipped)<br />
Settings name<br />
Settings item<br />
Settings value<br />
Settings content <br />
SIRIUS ID — — This displays the SIRIUS ID. SKIP SETTING SKIP SETTING <br />
SELECT CH*<br />
1<br />
ON SKIP can be set for each channel. Channe <br />
ls for which SKIP is set are excluded <br />
from the search during up/down channel selecting and scanning.They can be received when selecting chan <br />
nels using the preset keys or searching <br />
for a station. <br />
OFF <br />
SKIP SETTING ALL RESET <br />
— When “YES” is selected, the SKIP settings for all channels are turned off. <br />
LOCK SETTING LOCK SETTING <br />
SELECT CH*<br />
2<br />
ON LOCK can be set for each channel. Channels for which LOCK is set are <br />
excluded from the search during up/do <br />
wn channel selecting and scanning. <br />
If a channel for which LOCK is set is sel <br />
ected when selecting channels using the <br />
preset keys or searching for a station, “CH LCKED” is displayed within about 2 seconds after the channel text is displayed. The sound is muted. <br />
OFF <br />
LOCK SETTING ALL RESET <br />
— When “YES” is selected and the CODE <br />
for settings is input, the LOCK settings <br />
for all channels are turned off. <br />
LOCK SETTING EDIT CODE <br />
— The CODE required for the LOCK settings is changed. (The factory setting is <br />
“1111”.)If the input code is incorrect, “LOCK SETTING WRG LC” is displayed. <br />
*1: Each time the /SET key is pressed, this switches in the order Sett <br />
ings channel select, Change SKIP settings, and Complete setti<br />
ngs. <br />
To return to “each channel SKIP setting”, press the 6 key.<br />
BK0230300US.bo <br />
ok 50 ページ ２０１５年７月３０日 木曜日 午後８時３８分 <p></div><script>$(document).on('click', '#a300', function(){
$(this).hide();
$('#b300').height($('#a300').height()-22);
$('#b300').show();
});
$(document).on('click', '#b300', function(){
$(this).hide();
$('#a300').show();
});
$(document).ready(function(){
$('#b300').height($('#a300').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<ul class="actions" style="text-align:center;">
<li><a href="/mitsubishi-lancer-2016-8-g-owners-manual/31" class="button">Load next 10 pages</a></li>
</ul>
<div style="text-align: center" class="text-center my-2">
<span class="article-section">
Page:
</span><a href="/mitsubishi-lancer-2016-8-g-owners-manual/29">< prev</a> <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/">1-10</a> ... <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/26">251-260</a> <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/27">261-270</a> <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/28">271-280</a> <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/29">281-290</a> <strong>291-300</strong> <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/31">301-310</a> <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/32">311-320</a> <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/33">321-330</a> <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/34">331-340</a> ... <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/40">400</a> <a class='text-dark' href="/mitsubishi-lancer-2016-8-g-owners-manual/31">next ></a></div><div class="clear"></div><form action="/mitsubishi-lancer-2016-8-g-owners-manual/" method="get"><span class="byline">Search: <input type="text" pattern=".{3,}" required title="3 characters minimum" name="srch" placeholder="search in this manual" /> <input type="submit" value="search" /> (<a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=trunk'>trunk</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=bluetooth'>bluetooth</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=radio'>radio</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=fuel+pump'>fuel pump</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=steering+wheel'>steering wheel</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=brake+fluid'>brake fluid</a>)</span></form>
<span>Trending: <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=catalytic+converter'>catalytic converter</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=height'>height</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=wiring'>wiring</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=AUX'>AUX</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=check+oil'>check oil</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=fuel+pressure'>fuel pressure</a>, <a href='/mitsubishi-lancer-2016-8-g-owners-manual/?srch=instrument+panel'>instrument panel</a></span>
<form action="/mitsubishi-lancer-2016-8-g-owners-manual" method="post"><span class="byline">Jump to page (1-392): <input type="text" value="291" size="4" name="jumpto" /> <input type="submit" value="go" /></span></form> <script>
ga('send', 'event', 'view', 'MITSUBISHI', 'mitsubishi-lancer-2016-8-g-owners-manual', {
nonInteraction: true
});</script>
<div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
</section>
</div>
</div>
</div>
</div>
<!-- Footer -->
<div id="footer">
<div class="container">
<br/>
<h2><a href='/b/mitsubishi'>MITSUBISHI Owners Manuals</a></h2>
<div class="row">
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-verada-1995">1995 MITSUBISHI VERADA Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-lancer-2015-8-g">2015 MITSUBISHI LANCER 8.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-sport-2015-3-g">2015 MITSUBISHI OUTLANDER SPORT 3.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-montero-1991">1991 MITSUBISHI MONTERO Owners Manual</a></li>
</ul>
</section>
</div>
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-lancer-evolution-ix-2005">2005 MITSUBISHI LANCER EVOLUTION IX Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-shogun-2017">2017 MITSUBISHI SHOGUN Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-lancer-sportback-2010-8-g">2010 MITSUBISHI LANCER SPORTBACK 8.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-eclipse-1993">1993 MITSUBISHI ECLIPSE Owners Manual</a></li>
</ul>
</section>
</div>
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-lancer-evolution-2009">2009 MITSUBISHI LANCER EVOLUTION Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-carisma-1996">1996 MITSUBISHI CARISMA Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-asx-2009-1-g">2009 MITSUBISHI ASX 1.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-lancer-2012-8-g">2012 MITSUBISHI LANCER 8.G Owners Manual</a></li>
</ul>
</section>
</div>
</div>
</div>
</div>
<!-- Copyright -->
<div id="copyright">
<div class="container">

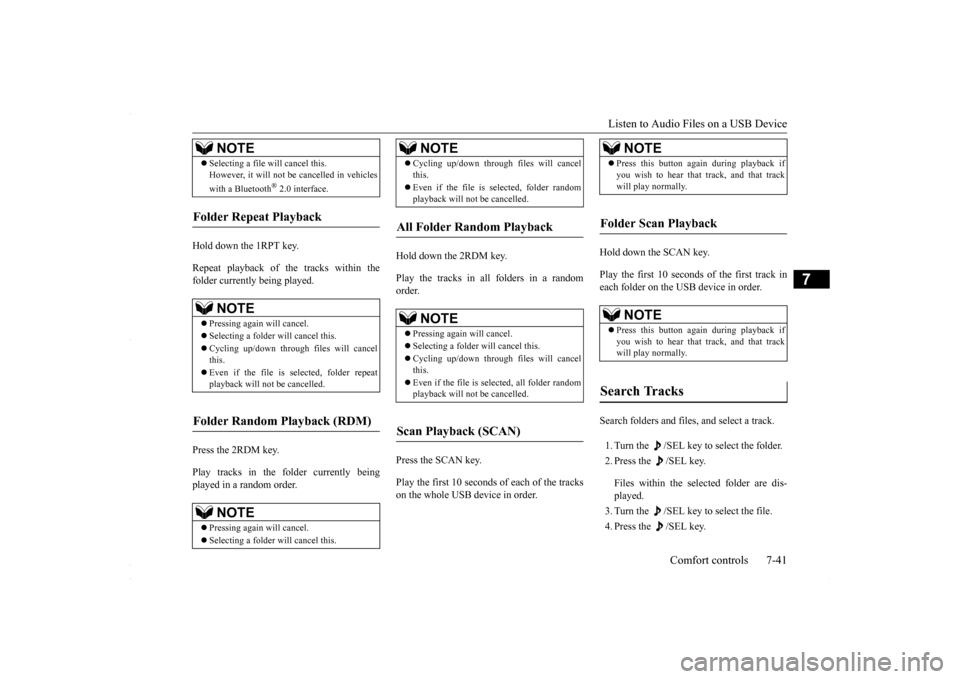

<p>View, print and download for free: MITSUBISHI LANCER 2016 8.G Owners Manual, 392 Pages, PDF Size: 13.12 MB. Search in MITSUBISHI LANCER 2016 8.G Owners Manual online. CarManualsOnline.info is the largest online database of car user manuals. MITSUBISHI LANCER 2016 8.G Owners Manual PDF Download. Listen to Audio Files on a USB Device
Comfort controls 7-41
7
Hold down the 1RPT key. Repeat playback of the tracks within the folder currently being played. P</p>
<p>All product names, logos, and brands are property of their respective owners.</p>
<p><a href='/privacy-policy'>Privacy Policy</a> | <a href='/about-us-contact'>About Us & Contact</a></p>
</div>
</div>
<script type="text/javascript">
function chooserbrand() {
$('#brand').prop('disabled', true);
if($('#year')) {
$('#year').prop('disabled', true);
}
if($('#vehicle')) {
$('#vehicle').prop('disabled', true);
}
$.ajax({
url: 'https://www.carmanualsonline.info/chooser.php',
type: 'POST',
data: {
brand: $('#brand').val()
},
success: function(responseText) {
$('#chooser').html(responseText);
}
});
}
function chooser() {
$('#brand').prop('disabled', true);
if($('#year')) {
$('#year').prop('disabled', true);
}
if($('#vehicle')) {
$('#vehicle').prop('disabled', true);
}
$.ajax({
url: 'https://www.carmanualsonline.info/chooser.php',
type: 'POST',
data: {
brand: $('#brand').val(),
year: $('#year').val(),
vehicle: $('#vehicle').val()
},
success: function(responseText) {
$('#chooser').html(responseText);
}
});
}
</script>
<script>
// var style = document.createElement('style');
// style.innerHTML = '#content div,img{'
// +'max-width: 100%;'
// +'display:block;'
// +'height: auto;'
// +'}'
// +'.logotop {'
// +'font-size: 80%;'
// +'display:block;'
// +'height: auto;'
// +'}';
// var ref = document.querySelector('script');
// ref.parentNode.insertBefore(style,ref);
var meta = document.createElement('meta');
meta.name = "viewport";
meta.content = "width=device-width, maximum-scale=5.0, minimum-scale=.25, user-scalable=yes";
document.getElementsByTagName('head')[0].appendChild(meta);
</script>
</body>
</html>
