View of the engine compartment
Vehicle care and maintenance 9-5
9
N00937601752
N00937702066
It is normal for an engi
ne to use oil. You may
need to add oil between the recommended oilchange intervals. Before starting the engine, check the engine oil level. Refill if necessary. To check the oil level, remove the dipstick, wipe it off, and gently insert it all the way into the crankcase. Slowly remove it again.The oil level must not go above the line on the dipstick. If the level does not reach the line, which shows the smallest amount of oil required,remove the oil filler cap on the engine valve cover, and fill to with
in the “Good” range.
Do not push down strongly on the engine hood. Depending on how strongly or where you push down, you could create a dent in the vehicle body.  For vehicles equipped with the theft-alarm system, if you drive with the engine hood left open, warning display is displayed on theinformation screen in the multi-information display. Type 1 Type 2NOTE
View of the engine compart- ment 1- Power steering fluid reservoir (if so
equipped)
2- Air cleaner filter 3- Brake fluid/Clutch
fluid reservoir (if so
equipped)
4- Engine coolant reservoir 5- Windshield washer fluid reservoir 6- Engine oil level dipstick 7- Radiator cap8- Engine oil filler cap 9- Battery
Engine oil and oil filter To check and refill engine oil Except for vehicles with engine cover
Good
BK0230300US.bo
ok 5 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Engine oil and oil filter 9-6 Vehicle care and maintenance
9
Mitsubishi Motors recommends using only engine oils with the ILSAC certification sym- bol on the front of the container. If you cannot find oils with the ILSAC certi- fication symbol, use an API classification SNor higher oil with the following label.
This mark appears on th
e top of the oil con-
tainer and tells you two important things about the oil.
N00955001149
Use engine oil with the proper thickness for the outdoor temperatures where you will be driving.
CAUTION Overfilling the crankcase will cause oil aera- tion and loss of oil pressure, which could damage the engine.WA R N I N G Used engine oil is poisonous, and can dam- age your skin. Prolonged and repeated contact may cause serious skin disorders, including dermatitis and cancer. Don’t letused oil touch your skin. Wash thoroughly after working with it. Keep used oil out of the reach of children.NOTE
Engine oil consumption is greatly influenced by payload, engine speed, etc.Vehicles with engine cover
Good
 The engine oil will deteriorate rapidly if the vehicle is subjected to severe conditions (for example, repeated operation on rough roads, in mountainous regions, on roads with many uphill and downhill gradients, or over shortdistances). Consequently, the oil will require earlier replacement in accordance with the schedule in the “WARRANTY AND MAIN-TENANCE MANUAL”.

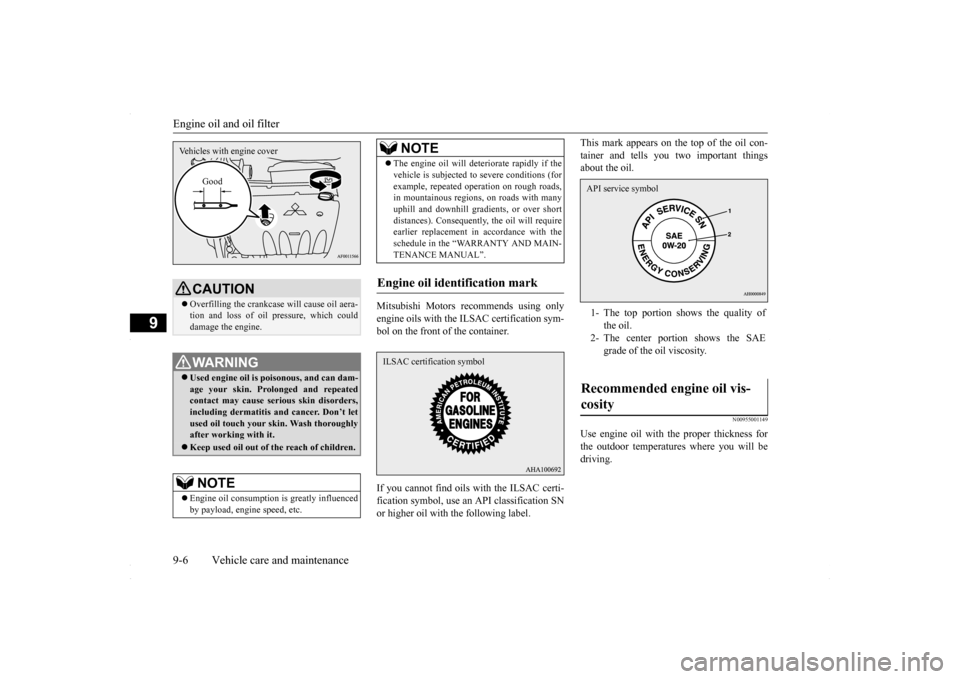

Engine oil identification mark
NOTE
ILSAC certification symbol
1- The top portion shows the quality of
the oil.
2- The center portion shows the SAE
grade of the oil viscosity.
Recommended engine oil vis- cosity API service symbol
BK0230300US.bo
ok 6 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Engine coolant
Vehicle care and maintenance 9-7
9
Mitsubishi Motors Genuine 0W-20 Synthetic Engine Oil is recommended for optimum fueleconomy and cold weather starting. If Mitsubishi Motors Genuine 0W-20 Syn- thetic Engine Oil is not available, 5W-20grade oils displaying the ILSAC certification can be used. However, Mitsubishi Motors Genuine 0W-20 Synthetic Engine Oil shouldbe used at the next oil change to maintainoptimum fuel economy and cold weather starting.
N00955100042
The oil filter should be replaced at the time ormileage specified in the “WARRANTY AND MAINTENANCE MANUAL”.Only use high quality replacement filters on this vehicle. The manufacturer’s specifica- tions for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi (1.8 MPa). A Genuine Mitsubishi oil filter is the best replacement filter. Follow the installation
instructions printed on
the filter.
N00937801611
The coolant reserve tank (A) lets you quickly see when you need to add coolant. When the engine is cold, the level in the reserve tankshould be between the “FULL” and “LOW” marks. The radiator usually stays full so there is no reason to remove
the radiator cap (B)
except when you check the coolant freeze point or replace the antifreeze coolant.
Mitsubishi Motors Genuine Coolant provides excellent protection against corrosion andrust formation on all metals, including alumi- num, and prevents blockages in some parts of engine.If you need to add co
olant often, or if the
level in the reserve tank does not drop when the engine cools, the cooling system shouldbe pressure-tested for leaks. Take your vehi- cle to an authorized Mitsubishi Motors dealer or a repair facility of your choice for testing.
To replace the oil filter
Engine coolant To check the coolant level * - Front of the vehicle
FULL LOW
To add coolant Use “Mitsubishi Motors Genuine Super Long Life Coolant Premium” or an equivalent
*.
* : similar high quality ethylene glycol
based non-silicate, non-amine, non- nitrate and non-borate coolant with long life hybrid organic acid technologyCAUTION Do not use alcohol or methanol antifreeze or any engine coolants that contain them. Using the wrong antifreeze can corrode aluminum parts.
BK0230300US.bo
ok 7 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Air cleaner filter 9-8 Vehicle care and maintenance
9
The radiator cap must be tight sealed to pre- vent losing coolant which may result in engine damage. Only use a Genuine Mitsubi-shi Parts radiator cap, or an approved equiva- lent.
 Do not overfill the reserve tank.  Your vehicle uses a special radiator cap that stays sealed and lets the coolant flow from the reserve tank back to the radiatorwhen the engine cools down. If you need to change the cap, use the exact same kind.  Check the coolant freeze point in the radi- ator with the proper gauge, and only when it is safe. If you add antifreeze, the con-tents of the reserve tank must be protected against freezing.  Keep the front of the radiator and con- denser clean.  If the temperature of the engine coolant does not rise after the engine is warmed-up, take your vehicle to an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice to have the thermostatchecked, and replaced if necessary.
N00937901508
The air cleaner filter will get dirty and dustyfrom use and not filter properly. Replace itwith a new filter using the schedule in the “WARRANTY AND MAINTENANCE MANUAL”. 1. Remove the clips (A), then remove the duct (B). 2. While holding down the tab (C), pull out the connector (D).
 The required concentration of anti-freeze dif- fers depending on the expected ambient tem- perature. Above -31 °F (-35 °C) : 50 % concentration of anti-freezeBelow -31 °F (-35 °C) : 60% concentration of anti-freeze You can check the concentration level with agauge from an automotive supply store, or your authorized Mitsubishi Motors dealer or service station can check it for you. Do not use water to adjust the concentration of coolant.  Do not top off the tank with plain water only. Water by itself boils at a lower temperatureand does not stop rust or freezing. If the water freezes, it will damage your cooling system. Do not use tapwater. It can causecorrosion and rust.
Radiator cap
CAUTION
WA R N I N G Wait for the engine to cool down before opening the radiator cap. Otherwise hot steam or boiling coolant could spray up from the radiator and scald you.
Points to remember
Air cleaner filter
BK0230300US.bo
ok 8 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Manual transaxle oil (if so equipped) Vehicle care and maintenance 9-9
9

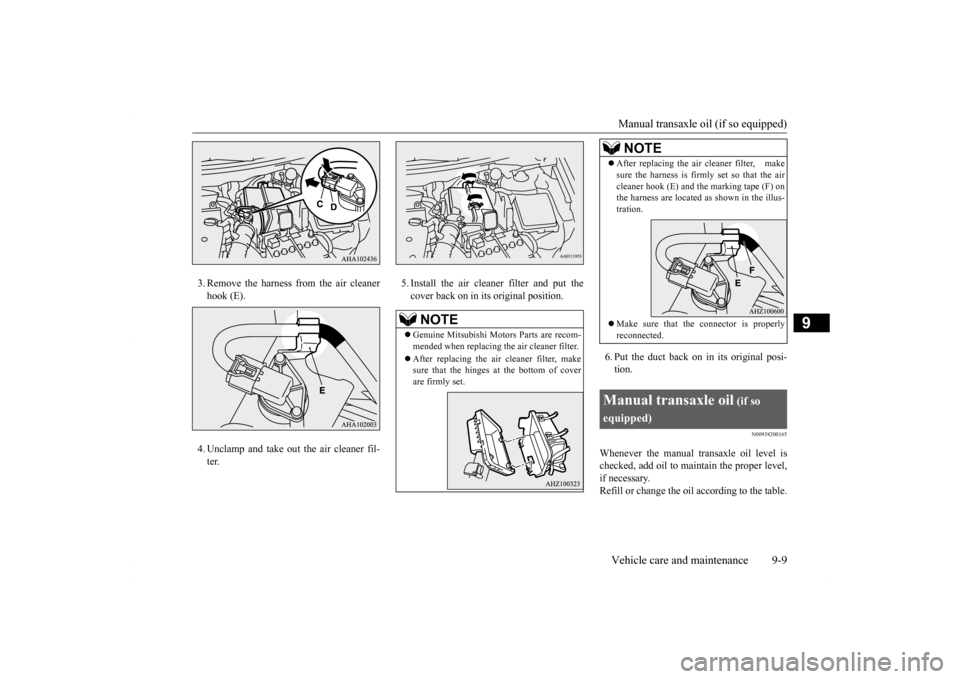

3. Remove the harness from the air cleaner hook (E). 4. Unclamp and take out the air cleaner fil- ter.
5. Install the air cleaner filter and put the cover back on in its original position.
6. Put the duct back on in its original posi- tion.
N00938200165
Whenever the manual transaxle oil level is checked, add oil to maintain the proper level, if necessary.Refill or change the oil according to the table.
NOTE
 Genuine Mitsubishi Motors Parts are recom- mended when replacing the air cleaner filter.  After replacing the air cleaner filter, make sure that the hinges at the bottom of cover are firmly set.
 After replacing the air cleaner filter, make sure the harness is firmly set so that the air cleaner hook (E) and the marking tape (F) on the harness are located as shown in the illus- tration.  Make sure that the connector is properly reconnected.
Manual transaxle oil
(if so
equipped)
NOTE
BK0230300US.bo
ok 9 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Continuously variable transmissi
on (CVT) fluid (if so equipped)
9-10 Vehicle care and maintenance
9
N00938101116
The continuously variable transmission (CVT) should be maintained and serviced by an authorized Mitsubishi Motors dealer or a repair facility of your choice to obtain thebest performance and longest life. It is impor- tant that the transmission fluid is kept at the correct level. Use only “Mitsubishi Motors Genuine CVTF-J4” transmission fluid to ensure opti-mum transmission performance.
Mitsubishi Motors Corporation does not rec- ommend the addition of any fluid additives to the transmission.
N00938400239
Whenever the transfer oil level is checked, add oil as necessary to maintain the proper level. Fill or change the oil according to thetable.
N00915200227
Whenever the oil level is checked, add oil asnecessary to maintain the proper level.Fill or change oil according to the table.
N00938600273
The windshield washer fluid reservoir is in the engine compartment.
Oil type

Lubricant
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API
Classification GL-3
Viscosity range
SAE 75W-80
Continuously variable transmission (CVT) fluid
(if
so equipped)Fluid type

CAUTION Using the improper transmission fluid may damage the transaxle.
Special additives

Transfer oil (All-wheel drive models) Oil type Lubri- cant
Mitsubishi Motors Genuine LSD
gear oil or equivalent
Rear axle oil (All-wheel drive models) Oil type Lubri- cant
Mitsubishi Motors Genuine LSD
gear oil or equivalent
Washer fluid
BK0230300US.bo
ok 10 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Brake fluid/Clutch fluid (if so equipped) Vehicle care and maintenance 9-11
9
Check the washer fluid level at regular inter- vals and add washer fluid to reservoir if nec- essary. Open the reservoir cap and check the fluidlevel with the dipstick. When freezing weather is anticipated, flush out the water in the reservoir by operating thepump. Fill the reservoir with windshield anti- freeze (not radiator antifreeze), and operate the system for a few seconds to flush out theresidual water.
N00938700186
The brake fluid and the clutch fluid share thereservoir tank. The fluid level must be between the “MAX” and “MIN” marks on the reservoir. The fluid level falls slightly with wear of the brake pads, but this does not indicate any abnormality. The fluid in the master cylinder should be checked when doing other work under the engine hood. The brake
system should also be
checked for leaks at the same time.
If the fluid level falls markedly in a short length of time, it indicates leaks from the brake system. If this occurs, have the vehicle checked by anauthorized Mitsubishi Motors dealer or a repair facility of your choice. Use the recommended brake fluid conform- ing to DOT 3 or DOT 4. The reservoir cap must be tightly sealed to keep dirt and water out.
During cold weather
Brake fluid/Clutch fluid
(if so
equipped)To check the fluid level

MAX MIN
Fluid type

CAUTION Do not let any petroleum-based fluid touch, mix with, or get into
the brake fluid. This
will damage the seals. Be careful when handling brake fluid. It can damage painted surfaces. Use only the listed brake fluid. Different brands of brake fluid have different addi-tives, and these can cause a chemical reac- tion. Do not mix bra
nds of brake fluid.
Keep the reservoir tank cap closed to keep the brake fluid from evaporating.
BK0230300US.bo
ok 11 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Power steering fluid (if so equipped) 9-12 Vehicle care and maintenance
9
N00939000388
Check the fluid level in the reservoir while the engine is idling. Check to make certain that the power steering fluid level is always between the “MAX” and“MIN” level markings on the fluid reservoirand refill the fluid, if necessary.
N00939100783
The condition of the battery is very importantfor quick starting and to keep the vehicle’selectrical system working properly. Check the battery regularly.
N00901501082
The electrolyte level must be between the limits shown on the outside of the battery. Fillit with distilled water as needed. The inside of the battery is divided into several compart- ments. Take the cap off of each compartmentand fill to the mark. Do not fill above the top line because a spill during driving could cause damage.
N00901600015
The battery is weaker in cold temperatures.This has to do with its chemical and physical properties and is why a very cold battery, especially one with a low charge, will have ahard time starting your vehicle. It is recommended that you have your battery and charging system checked by an autho-rized Mitsubishi Motors dealer or a repair
Power steering fluid
(if so
equipped)To check the fluid level

Fluid type

Lubricant
Mitsubishi Motors Genuine
Power Steering Fluid
Battery
WA R N I N G An SRS airbag sensor is located in the front of the engine compartment near the battery. When checking or replacing the battery,or when working around this area, do not strike or damage this sensor.
Checking battery electrolyte level
WA R N I N G If the battery goes flat, be sure to check the battery electrolyte level before con- necting booster cables. After checking the battery electrolyte level, make sure the caps are fitted securely. If any of the caps has a loose fit, replace the battery.
During cold weather
BK0230300US.bo
ok 12 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Battery
Vehicle care and maintenance 9-13
9
facility of your choice before the start of cold weather. If necessary, have it charged. This will guarantee more reliable starting, and lon- ger battery life.
N00901701143
To disconnect the battery cable, stop theengine. Disconnect the negative (-) terminalfirst, then the positive (+) terminal. To recon-nect the battery, first connect the positive (+) terminal and then the negative (-) terminal, before starting the vehicle. Disconnection and connection
NOTE
 Open the terminal cover (A) before discon- necting or connecting the positive (+) termi- nal of the battery.
WA R N I N G Never disconnect the battery while the engine is running, or you could damage the vehicle’s electrical parts.  Never short-circuit the battery. This could cause it to overheat and be damaged.  Keep sparks, cigarettes, and flames away from the battery because the battery could explode.  Electrolyte (battery acid) is made of corro- sive diluted sulfuric
acid. If it spills on
nearby parts, it can crack, stain, or dis-color them. And if gets on your skin or in your eyes, it can cause burns or blindness. Please observe the following handlinginstructions:• If electrolyte gets on plastic parts orother nearby parts, wi
pe it off with a soft
cloth or chamois soaked in a solution of water and neutral detergent then imme-diately rinse the affected parts with plenty of water.• If electrolyte gets on your hands orclothes, rinse thoroughly with water. If electrolyte gets in your eyes, flush themwith water immediately and get immedi- ate medical attention.
 Open doors and windows in any closed space where you may be charging or working with the battery.  Always wear protective clothing and gog- gles when working with the battery, or have a skilled automobile technician do it.
 If you are quick-charging your battery, first disconnect the
battery cables.
In order to prevent a short circuit, be sure to disconnect the negative (-) terminalfirst, and reconnect it last. If the electrolyte level is very low, have the battery checked at an authorized Mitsubi- shi Motors dealer or a repair facility of your choice. Battery terminals and related accessories contain lead and lead compounds. Washhands after handling. NOTE
 Check each battery terminal for corrosion. You can stop more corrosion by washing with a solution of baking soda and water.Grease the posts and clamps after cleaning or tightening them.  Check to see that the battery is securely installed and cannot be moved. Also check each terminal for tightness.  If you will not be driving your vehicle for a long period of time, remove the battery and store it in a place where the battery fluid will not freeze. Memory data for settings madeby the user may be erased when the battery is removed. If this happens, reset the settings again using the relevant procedures. The bat-tery only should be stored with a full charge.  Before cleaning the battery, tighten all the filler port caps to keep dirt and moisture out.WA R N I N G
