MITSUBISHI LANCER 2016 8.G Owners Manual

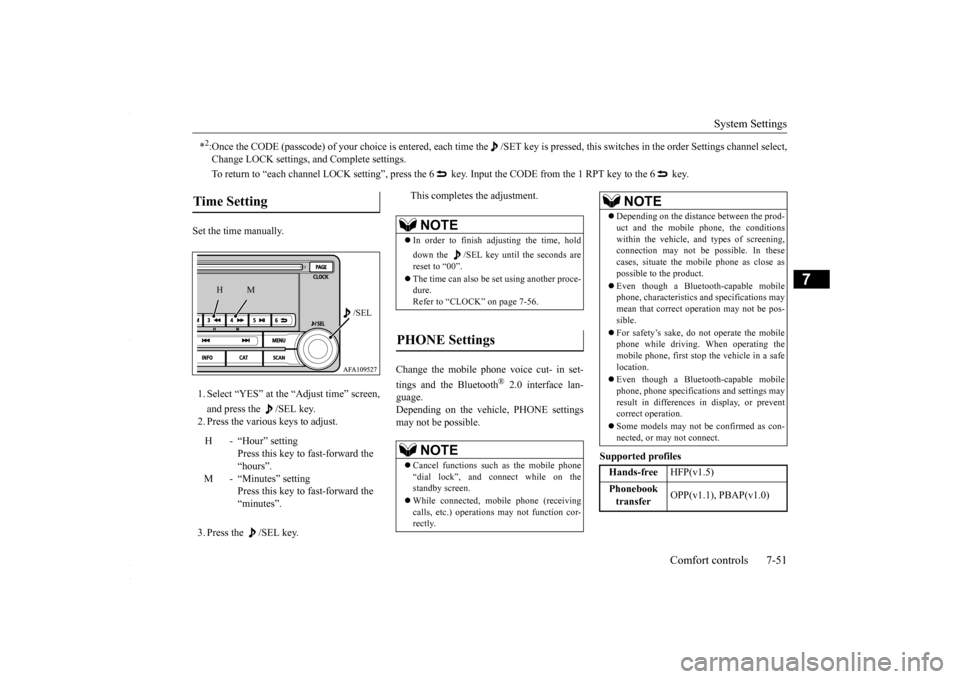

System Settings
Comfort controls 7-51
7
Set the time manually. 1. Select “YES” at the “Adjust time” screen, and press the /SEL key. 2. Press the various keys to adjust. 3. Press the /SEL key.
This completes the adjustment.
Change the mobile phone voice cut- in set- tings and the Bluetooth
® 2.0 interface lan-
guage. Depending on the vehicle, PHONE settingsmay not be possible.
Supported profiles
*2:Once the CODE (passcode) of your choice is entered, each time th
e /SET key is pressed, this switches in the order Settings chan
nel select,
Change LOCK settings, and Complete settings. To return to “each channel LOCK setting”, press the 6
key. Input the CODE from the 1 RPT key to the 6 key.
Time Setting
H - “Hour” setting
Press this key to fast-forward the “hours”.
M - “Minutes” setting
Press this key to fast-forward the “minutes”.
/SEL
M
H
NOTE
 In order to finish adjusting the time, hold down the /SEL key until the seconds are reset to “00”.  The time can also be set using another proce- dure. Refer to “CLOCK” on page 7-56.
PHONE Settings
NOTE
 Cancel functions such as the mobile phone “dial lock”, and connect while on the standby screen.  While connected, mobile phone (receiving calls, etc.) operations may not function cor- rectly.
 Depending on the distance between the prod- uct and the mobile phone, the conditions within the vehicle, and types of screening,connection may not be possible. In these cases, situate the mobile phone as close as possible to the product.  Even though a Bluetooth-capable mobile phone, characteristics and specifications may mean that correct operation may not be pos- sible.  For safety’s sake, do not operate the mobile phone while driving. When operating themobile phone, first stop the vehicle in a safe location.  Even though a Bluetooth-capable mobile phone, phone specifications and settings may result in differences in display, or preventcorrect operation.  Some models may not be confirmed as con- nected, or may not connect.Hands-free
HFP(v1.5)
Phonebook transfer
OPP(v1.1), PBAP(v1.0)
NOTE
BK0230300US.bo
ok 51 ページ ２０１５年７月３０日　木曜日　午後８時３８分

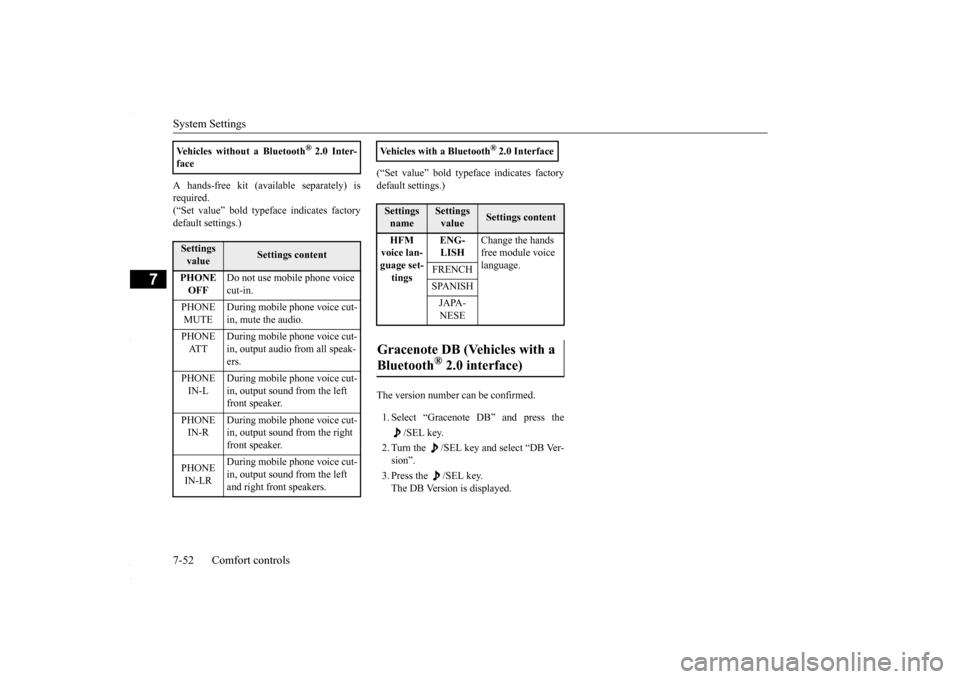

System Settings 7-52 Comfort controls
7
A hands-free kit (available separately) is required. (“Set value” bold typeface indicates factorydefault settings.)
(“Set value” bold typeface indicates factory default settings.) The version number can be confirmed. 1. Select “Gracenote DB” and press the
/SEL key.
2. Turn the /SEL key and select “DB Ver- sion”. 3. Press the /SEL key. The DB Version is displayed.
Vehicles without a Bluetooth
® 2.0 Inter-
faceSettings value
Settings content
PHONE OFF
Do not use mobile phone voice cut-in.
PHONE MUTE
During mobile phone voice cut- in, mute the audio.
PHONE AT T
During mobile phone voice cut- in, output audio from all speak-ers.
PHONE IN-L
During mobile phone voice cut- in, output sound from the left front speaker.
PHONE IN-R
During mobile phone voice cut- in, output sound from the right front speaker.
PHONE IN-LR
During mobile phone voice cut- in, output sound from the left and right front speakers.
Vehicles with a Bluetooth
® 2.0 Interface
Settings name
Settings value
Settings content
HFM voice lan- guage set- tings
ENG- LISH
Change the hands free module voice language.
FRENCH SPANISHJAPA- NESE
Gracenote DB (Vehicles with a Bluetooth
® 2.0 interface)
BK0230300US.bo
ok 52 ページ ２０１５年７月３０日　木曜日　午後８時３８分

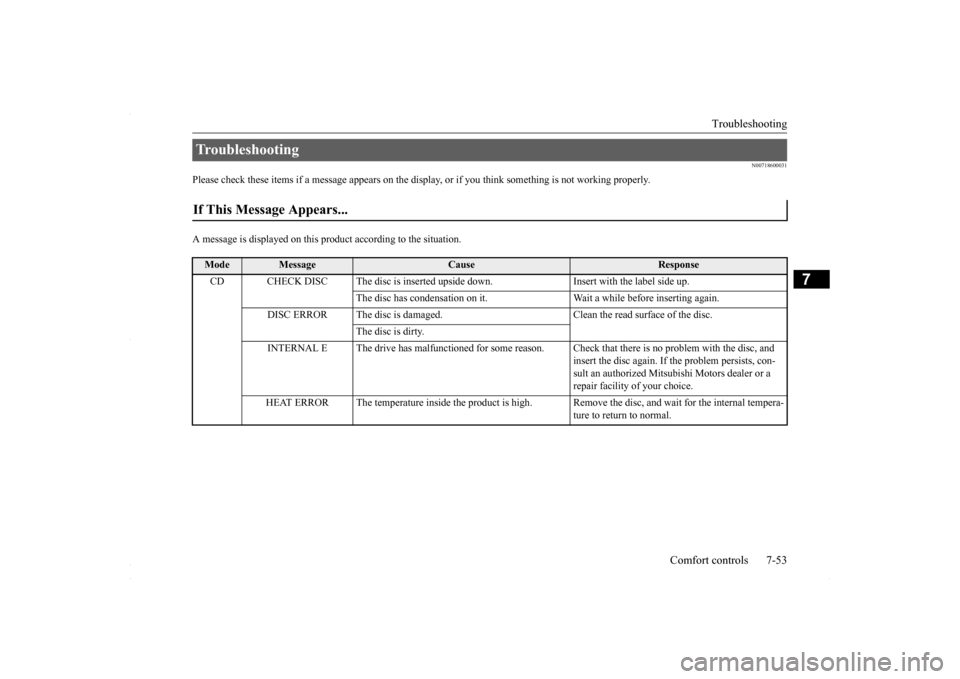

Troubleshooting
Comfort controls 7-53
7
N00718600031
Please check these items if a message appears on the disp
lay, or if you think something is not working properly.
A message is displayed on this
product according to the situation.
Troubleshooting If This Message Appears...
Mode
Message
Cause
Response
CD CHECK DISC The disc is inserted upsi
de down. Insert with the label side up.
The disc has condensation on it. Wait a while before inserting again.
DISC ERROR The disc is damaged. Clean the read surface of the disc.
The disc is dirty.
INTERNAL E The drive has malfunctioned for some reason. Check that there is no problem with the disc, and
insert the disc again. If the problem persists, con-sult an authorized Mitsubishi Motors dealer or a repair facility of your choice.
HEAT ERROR The temperature inside the product is high.
Remove the disc, and wait for the internal tempera- ture to return to normal.
BK0230300US.bo
ok 53 ページ ２０１５年７月３０日　木曜日　午後８時３８分

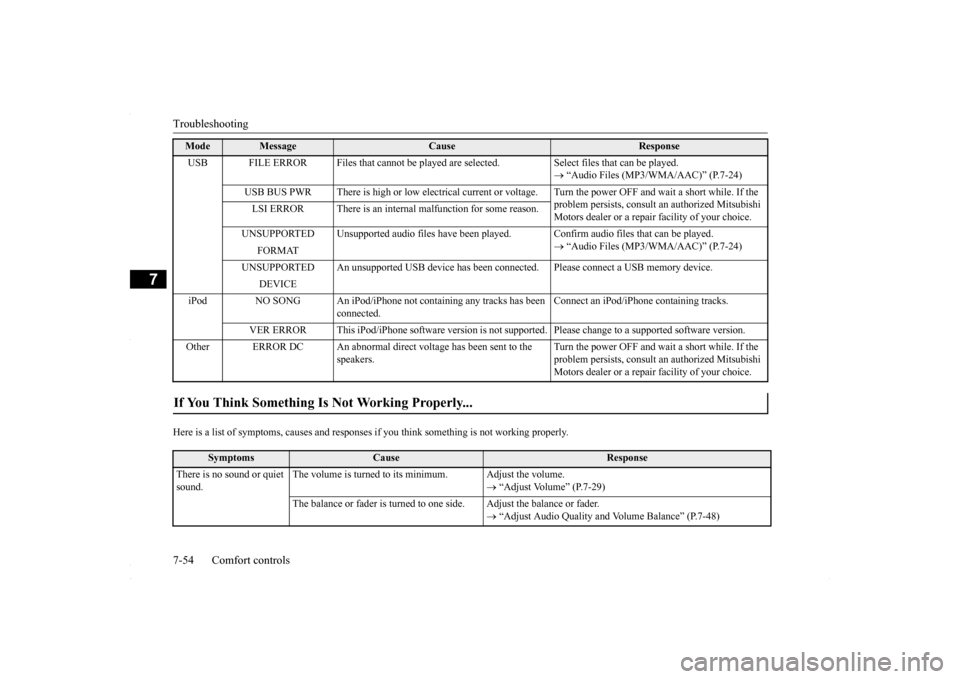

Troubleshooting 7-54 Comfort controls
7
Here is a list of symptoms, causes and responses
if you think something is not working properly.
USB FILE ERROR Files that cannot be played are
selected. Select files that can be played.
 “Audio Files (MP3/WMA/AAC)” (P.7-24)
USB BUS PWR There is high or low electrical current or
voltage. Turn the power OFF and wait a short while. If the
problem persists, consult an authorized Mitsubishi Motors dealer or a repair facility of your choice.
LSI ERROR There is an internal malfunction for some reason. UNSUPPORTED Unsupported audio files have been pl
ayed. Confirm audio files that can be played.
 “Audio Files (MP3/WMA/AAC)” (P.7-24)
FORMAT
UNSUPPORTED An unsupported USB device has been co
nnected. Please connect a USB memory device.
DEVICE
iPod NO SONG An iPod/iPhone not containing any tracks has been
connected.
Connect an iPod/iPhone containing tracks.
VER ERROR This iPod/iPhone software version is not su
pported. Please change to a supported software version.
Other ERROR DC An abnormal direct voltage has been sent to the
speakers.
Turn the power OFF and wait a short while. If the problem persists, consult an authorized Mitsubishi Motors dealer or a repair facility of your choice.
If You Think Something Is Not Working Properly...
Symptoms
Cause
Response
There is no sound or quiet sound.
The volume is turned to its minimum. Adjust the volume.
 “Adjust Volume” (P.7-29)
The balance or fader is turned to one side. Adjust the balance or fader.
 “Adjust Audio Quality and Volume Balance” (P.7-48)
Mode
Message
Cause
Response
BK0230300US.bo
ok 54 ページ ２０１５年７月３０日　木曜日　午後８時３８分

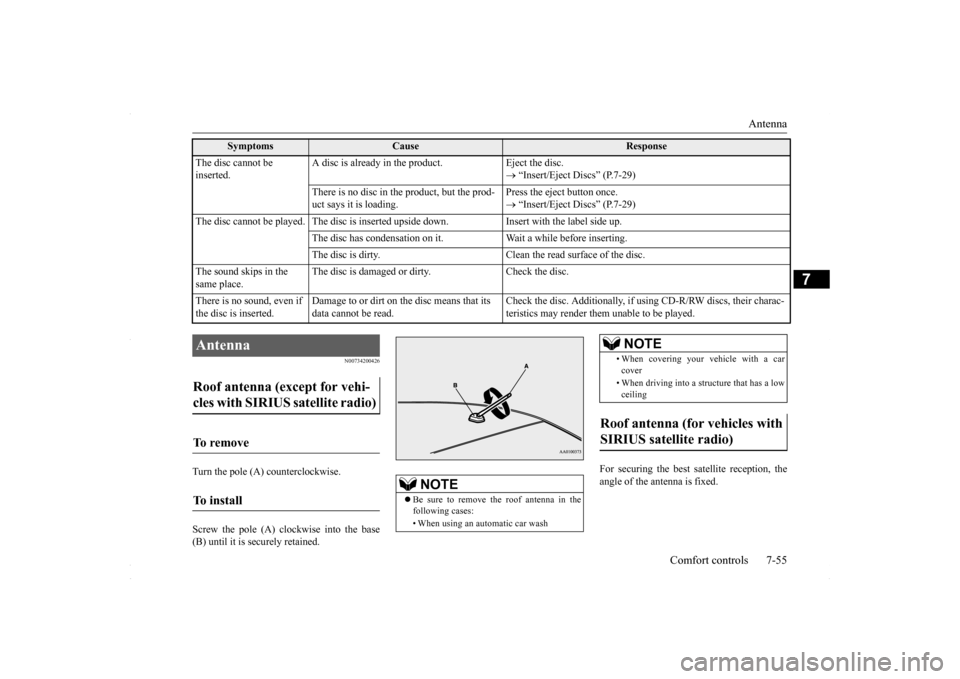

Antenna
Comfort controls 7-55
7
N00734200426
Turn the pole (A) counterclockwise. Screw the pole (A) clockwise into the base (B) until it is securely retained.
For securing the best satellite reception, the angle of the antenna is fixed.
The disc cannot be inserted.
A disc is already in the product. Eject the disc.
 “Insert/Eject Discs” (P.7-29)
There is no disc in the product, but the prod- uct says it is loading.
Press the eject button once.  “Insert/Eject Discs” (P.7-29)
The disc cannot be played. The disc is inserted upside down. Insert with the label side up.
The disc has condensation on it. Wait a while before inserting.The disc is dirty. Clean the read surface of the disc.
The sound skips in the same place.
The disc is damaged or dirty. Check the disc.
There is no sound, even if the disc is inserted.
Damage to or dirt on the disc means that its data cannot be read.
Check the disc. Additionally, if using CD-R/RW discs, their charac- teristics may render them unable to be played.
Symptoms
Cause
Response
Antenna Roof antenna (except for vehi- cles with SIRIUS satellite radio) To remove To install
NOTE
 Be sure to remove the roof antenna in the following cases: • When using an automatic car wash
• When covering your vehicle with a car cover • When driving into a structure that has a low ceiling
Roof antenna (for vehicles with SIRIUS satellite radio)
NOTE
BK0230300US.bo
ok 55 ページ ２０１５年７月３０日　木曜日　午後８時３８分

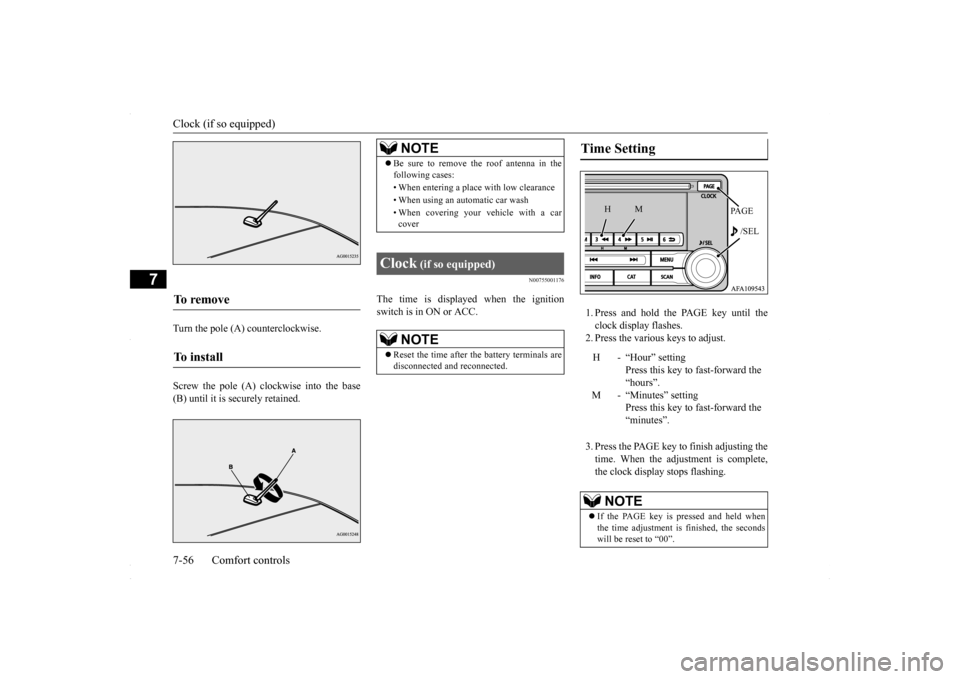

Clock (if so equipped) 7-56 Comfort controls
7
Turn the pole (A) counterclockwise. Screw the pole (A) clockwise into the base (B) until it is securely retained.
N00755001176
The time is displayed when the ignitionswitch is in ON or ACC.
1. Press and hold the PAGE key until the clock display flashes.2. Press the various keys to adjust. 3. Press the PAGE key to finish adjusting the time. When the adjustment is complete, the clock display stops flashing.
To remove To i n s t a l l
NOTE
 Be sure to remove the roof antenna in the following cases: • When entering a place with low clearance • When using an automatic car wash • When covering your vehicle with a car cover
Clock
(if so equipped)
NOTE
 Reset the time after the battery terminals are disconnected and reconnected.
Time Setting

H - “Hour” setting
Press this key to fast-forward the“hours”.
M - “Minutes” setting
Press this key to fast-forward the “minutes”.
NOTE
 If the PAGE key is pressed and held when the time adjustment is finished, the seconds will be reset to “00”.
PA G E /SEL
M
H
BK0230300US.bo
ok 56 ページ ２０１５年７月３０日　木曜日　午後８時３８分

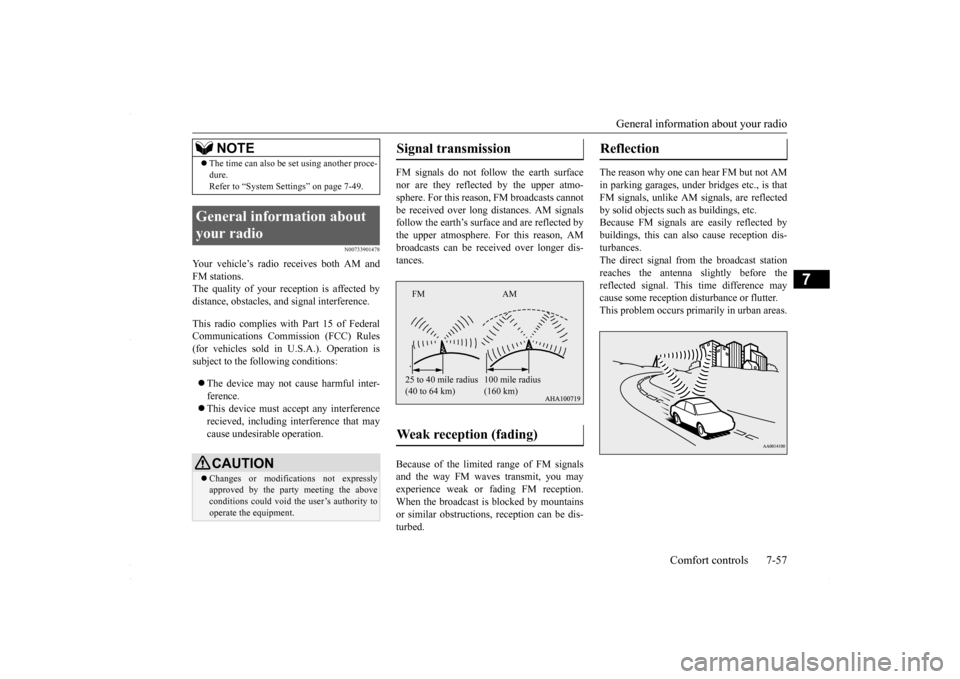

General information about your radio
Comfort controls 7-57
7
N00733901478
Your vehicle’s radio receives both AM and FM stations. The quality of your reception is affected bydistance, obstacles, and signal interference. This radio complies with Part 15 of Federal Communications Commission (FCC) Rules (for vehicles sold in U.S.A.). Operation issubject to the following conditions:  The device may not cause harmful inter- ference.  This device must accept any interference recieved, including interference that may cause undesirable operation.
FM signals do not follow the earth surface nor are they reflected by the upper atmo- sphere. For this reason, FM broadcasts cannotbe received over long distances. AM signals follow the earth’s surface and are reflected by the upper atmosphere. For this reason, AMbroadcasts can be received over longer dis- tances. Because of the limited range of FM signals and the way FM waves transmit, you mayexperience weak or fading FM reception. When the broadcast is blocked by mountains or similar obstructions, reception can be dis-turbed.
The reason why one can hear FM but not AM in parking garages, under bridges etc., is that FM signals, unlike AM signals, are reflectedby solid objects such as buildings, etc. Because FM signals are easily reflected by buildings, this can also cause reception dis-turbances. The direct signal from
the broadcast station
reaches the antenna slightly before thereflected signal. This time difference maycause some reception disturbance or flutter. This problem occurs primarily in urban areas.
 The time can also be set using another proce- dure. Refer to “System Settings” on page 7-49.
General information about your radio
CAUTION Changes or modifications not expressly approved by the party meeting the above conditions could void the user’s authority to operate the equipment.NOTE
Signal transmission Weak reception (fading)
FM AM 25 to 40 mile radius (40 to 64 km)
100 mile radius (160 km)
Reflection
BK0230300US.bo
ok 57 ページ ２０１５年７月３０日　木曜日　午後８時３８分

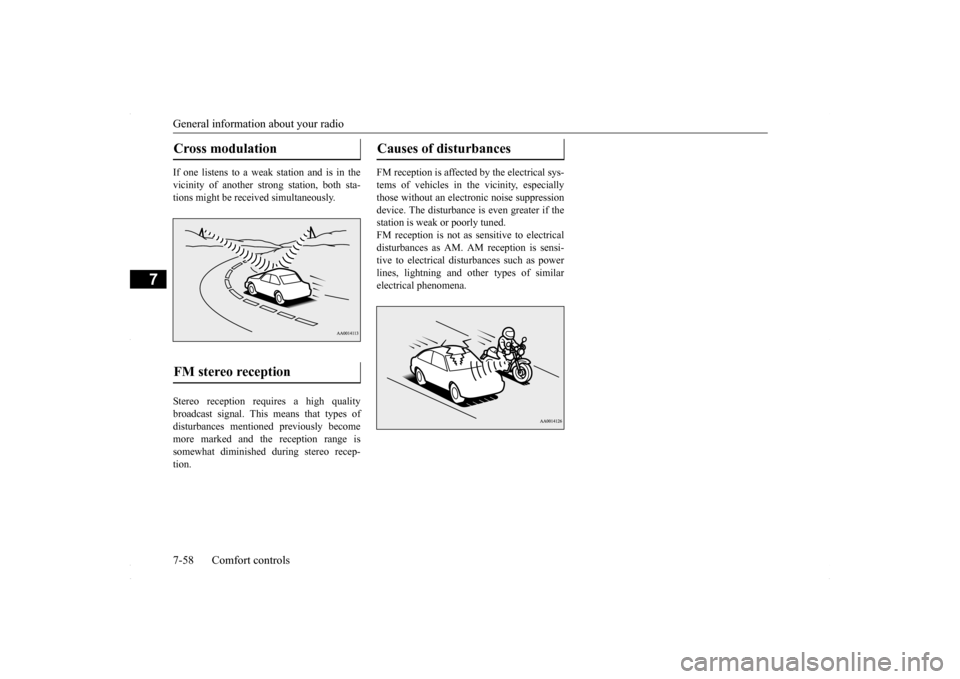

General information about your radio 7-58 Comfort controls
7
If one listens to a weak station and is in the vicinity of another strong station, both sta- tions might be received simultaneously. Stereo reception requires a high quality broadcast signal. This means that types of disturbances mentioned previously become more marked and the reception range issomewhat diminished during stereo recep- tion.
FM reception is affected by the electrical sys- tems of vehicles in the vicinity, especially those without an electro
nic noise suppression
device. The disturbance is even greater if the station is weak or poorly tuned. FM reception is not as sensitive to electricaldisturbances as AM. AM reception is sensi- tive to electrical disturbances such as power lines, lightning and other types of similarelectrical phenomena.
Cross modulation FM stereo reception
Causes of disturbances
BK0230300US.bo
ok 58 ページ ２０１５年７月３０日　木曜日　午後８時３８分
