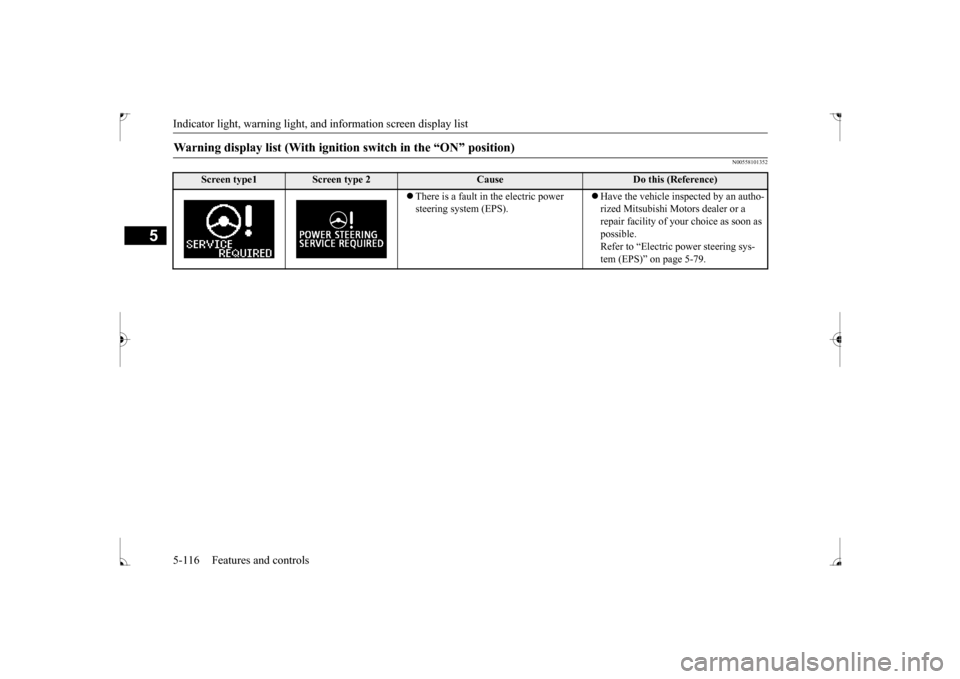

Warning display list (With ignition switch in the “ON” position)
Screen type1
Screen type 2
Cause
Do this (Reference)
 There is a fault in the electric power steering system (EPS).
 Have the vehicle inspected by an autho- rized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. Refer to “Electric power steering sys- tem (EPS)” on page 5-79.
BK0237700US.book
116 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list Features and controls 5-117
5

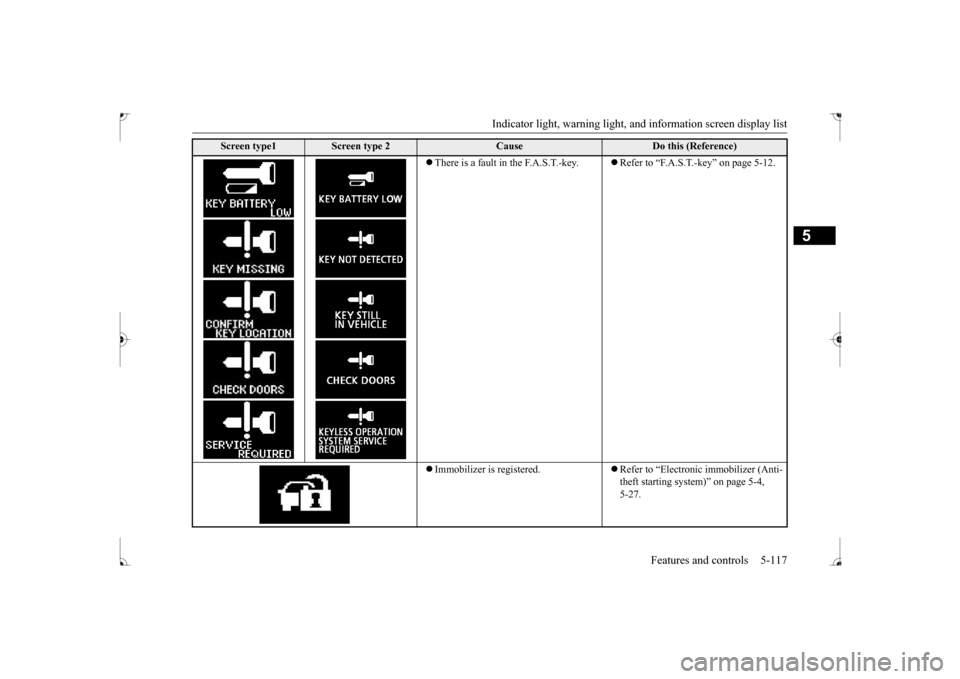

 There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 5-12.
 Immobilizer is registered.
Refer to “Electronic immobilizer (Anti- theft starting system)” on page 5-4, 5-27.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0237700US.book
117 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list
5-118 Features and controls
5

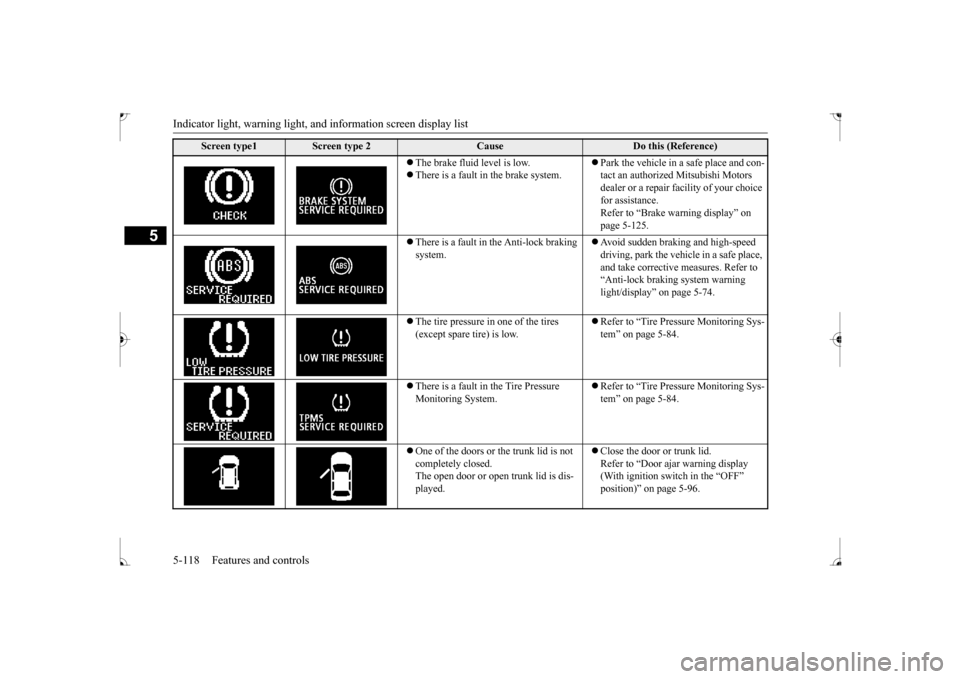

 The brake fluid level is low.  There is a fault in the brake system.
 Park the vehicle in a safe place and con- tact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance. Refer to “Brake warning display” on page 5-125.
 There is a fault in the Anti-lock braking system.
 Avoid sudden braking and high-speed driving, park the vehicle in a safe place, and take corrective measures. Refer to “Anti-lock braking system warning light/display” on page 5-74.
 The tire pressure in one of the tires (except spare tire) is low.
 Refer to “Tire Pressure Monitoring Sys- tem” on page 5-84.
 There is a fault in the Tire Pressure Monitoring System.
 Refer to “Tire Pressure Monitoring Sys- tem” on page 5-84.
 One of the doors or the trunk lid is not completely closed. The open door or open trunk lid is dis- played.
 Close the door or trunk lid. Refer to “Door ajar warning display (With ignition switch in the “OFF” position)” on page 5-96.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0237700US.book
118 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list Features and controls 5-119
5
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 8-4.
 The continuously variable transmission (CVT) fluid temperature is increased.
 Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable trans- mission (CVT)” on page 5-59.
 The seat belt is not fastened when the ignition switch is in the “ON” position.
 Fasten your seat belt properly. Refer to “Driver’s seat belt reminder/warning light and display” on page 4-10.
 There is a fault in the fuel system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The vehicle is being driven with the parking brake still applied.
 Release the parking brake. Refer to “Brake warning display” on page 5-125.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0237700US.book
119 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list
5-120 Features and controls
5
 There is a fault in the engine oil circula- tion system.
 Park your vehicle in a safe place as soon as possible and contact an autho- rized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Oil pressure warning display” on page 5-126.
 There is a fault in the charging system.
Park your vehicle in a safe place as soon as possible and contact an autho- rized Mitsubishi Motors dealer or a repair facility of your choice for assis- tance. Refer to “Charging system warning dis-play” on page 5-126.
 There is a fault in the SRS airbag or the seat belt pre-tensioner system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked, immediately. Refer to “SRS warning light/display” on page 4-26.
 There is a fault in the Active Stability Control (ASC).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Active Stability Control (ASC)” on page 5-76.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0237700US.book
120 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list Features and controls 5-121
5

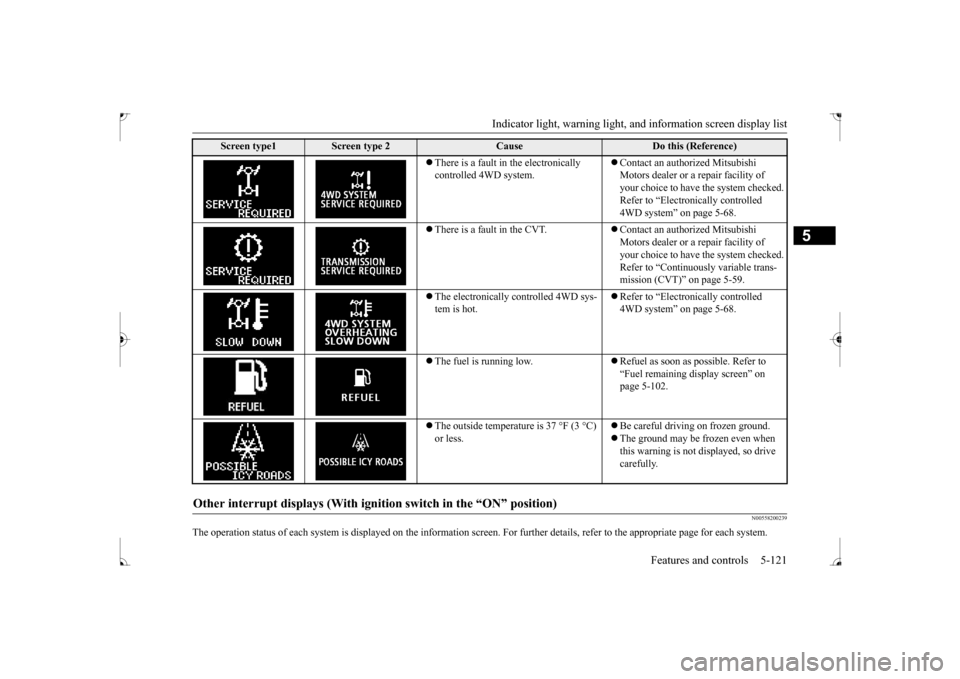

N00558200239
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page
for each system.
 There is a fault in the electronically controlled 4WD system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “Electronically controlled 4WD system” on page 5-68.
 There is a fault in the CVT.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Continuously variable trans- mission (CVT)” on page 5-59.
 The electronically controlled 4WD sys- tem is hot.
 Refer to “Electronically controlled 4WD system” on page 5-68.
 The fuel is running low.
Refuel as soon as possible. Refer to “Fuel remaining display screen” on page 5-102.
 The outside temperature is 37 °F (3 °C)
 Be careful driving on frozen ground.  The ground may be frozen even when this warning is not displayed, so drive carefully.
Other interrupt displays (With igniti
on switch in the “ON” position)
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0237700US.book
121 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list
5-122 Features and controls
5
This informs you that a periodic inspection is due.
Screen type 1
Screen type 2
System operation status
Reference
 When “2WD” drive mode is selected with the drive mode selector.
 Refer to “Electronically controlled 4WD system” on page 5-68.
 When “4WD AUTO” mode is selected with the drive mode selector.  When “4WD LOCK” mode is selected with the drive mode selector.  When the Active Stability Control (ASC) is operating.
 Refer to “Active Stability Control (ASC) ”on page 5-76.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized M
itsubishi Motors dealer. For further details,
refer to “Service reminder” on page 5-103.
BK0237700US.book
122 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Indicators
Features and controls 5-123
5
The rest time can be set.
N00519900127 N00520001255
The arrows will flash in
time with the corre-
sponding exterior turn signals when the turnsignal lever is used. Both arrows will flas
h when the hazard warn-
ing flasher switch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520201260
This indicator comes on while the front fog lights are on.
N00551301052
This indicator light illuminates while theparking lights are on.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide for taking rests during a long drive. The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings (With
ignition switch in the “ON” position)” on
page 5-105. The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds
about every 5 minutes to encourage you to
take a rest.  In the following cases, the time driven is re
set and the display returns to the previous
display screen. After this, when the set time
is reached again, the display and buzzer
encourage you to take a rest. • The buzzer sounds 3 times.• The ignition switch is turned to the “OFF” position. • The multi-information meter switch is
held (for about 2 seconds or more).
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, checkfor a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator
Front fog light indicator
(if so
equipped)Position indicator
BK0237700US.book
123 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Warning lights 5-124 Features and controls
5
N00520300147 N00520400467
When the ignition switch is turned to the “ON” position, this indicator normally comeson and goes out a few seconds later. A warn- ing is also displayed in the multi-information display.The warning light also illuminates after start-ing the engine under the following condi- tions:  When the parking brake is still applied.  When the brake fluid level is low.  When the brake force distribution func- tion is not operating correctly.
Before driving, be sure that the parking brake is fully released and brake warning light isoff.
N00520501830
This indicator is a part of the onboard diag- nostic (OBD) system which monitors the emissions, engine contro
l system or continu-
ously variable transmission (CVT) control system. If a problem is detected in one of these systems, this indicator illuminates orflashes. When the ignition switch is turned tothe “ON” position, this indicator normally comes on and goes off after the engine has started. This indicator will come on if the fuel tank filler cap is not properly tightened. If this indicator comes on and stays on after refuel- ing, stop the engine and check that the cap isproperly tightened. (Turn the cap clockwise until you hear clicking sounds.) If this indicator does not go off after severalseconds or lights up while driving, have the system checked as soon as possible at an authorized Mitsubishi Motors dealer or arepair facility of your choice.
Warning lights Brake warning light
CAUTION If the brake warning light and the anti-lock braking system warning light are illuminated at the same time, the braking force distribu-tion function will not operate, so the vehicle may be destabilized during sudden braking under the following conditions.
• When the brake warning light does not go out even when the parking brake is released.• When the brake warning light stays onwhile driving.• If the above occurs, avoid sudden brakingand high-speed driving. Park the vehicle in a safe place, and contact an authorized Mit- subishi Motors dealer or a repair facility ofyour choice as soon as possible.
 The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harder than usual. In some cases, the brake pedalmay go all the way to the floor.• Should the brakes fail, use engine brakingto reduce your speed and slowly apply the parking brake. Depress the brake pedal to illuminate thestop lights to alert the vehicles behind you.
 Do not suddenly apply the parking brake while driving. This may cause the rear wheels to lock and cause an accident.CAUTION
Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”)
BK0237700US.book
124 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Information screen display
Features and controls 5-125
5
N00520600296
This light comes on in the event of a malfunc- tion in the charging system or when the igni- tion switch is turned to the “ON” position (engine off). A warning is also displayed inthe multi-information display. When the engine is started,
the light should go out.
Check to make sure that the light has goneout before driving.
N00558300025 N00558400084
Type 1 Type 2 This warning is displayed if the vehicle is being driven with the parking brake still applied. The warning light in the instrumentcluster only comes on when the parking brake is applied.
CAUTION Driving for a long time with the engine mal- function indicator on may cause more dam- age to the emission control system. This could also affect fuel economy and drivabil- ity. If this indicator does not come on when the ignition key is turned to the “ON” position,have the system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice. If the engine malfunction indicator comes on while the engine is running, avoid driving athigh speeds. During vehicle operation with the indicator on, the vehicle may not accelerate when youdepress the accelerator pedal. When the vehicle is stationary with the indi- cator on, you must depress the brake pedalmore firmly than usual since the engine idling speed is higher than usual and a vehi- cle with a CVT has a stronger tendency tocreep forward.
NOTE
 Do not disconnect the battery cable when the engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) is on. The engine electronic control module storescritical OBD information (especially exhaust emission data), which may be lost if the bat- tery cable is disconnected while the enginemalfunction indicator is on. This will make it difficult to diagnose the cause of future prob- lems.
Charging system warning light
CAUTION If the warning light stays on while the engine is running, park your vehicle in a safe place as soon as possible and contact an authorizedMitsubishi Motors dealer or a repair facility of your choice to have the system checked.
Information screen display Brake warning display
CAUTION If a vehicle is driven without releasing the parking brake, the brakes will overheat, resulting in ineffective braking and possible brake failure.If this warning is displayed while driving, release the parking brake.
