MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual

Editing the Route (Itinerary) 4-6

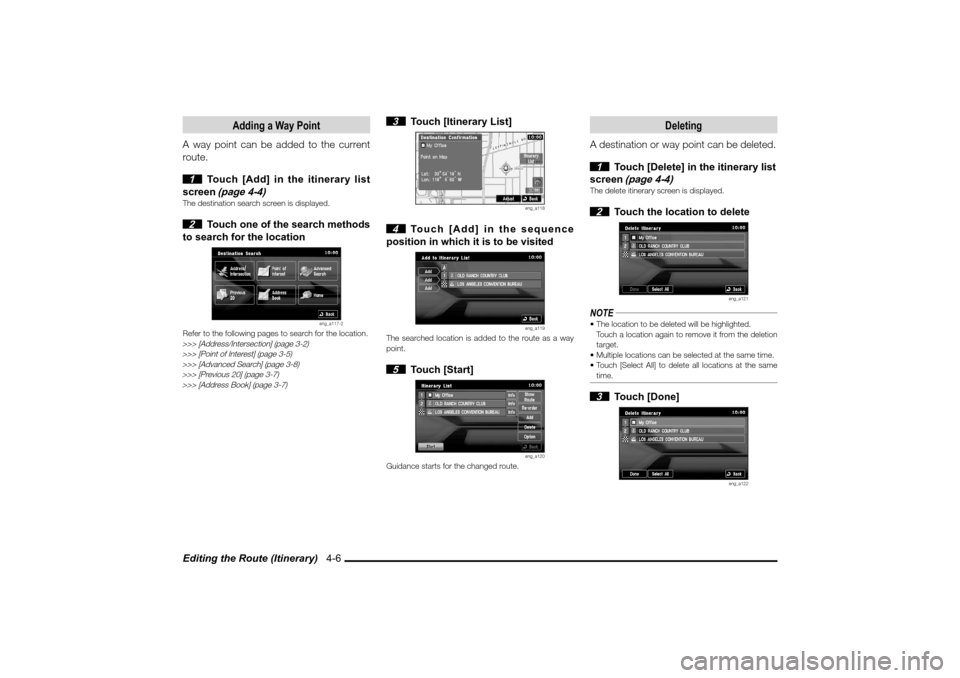

Adding a Way Point
A way point can be added to the current
route.
1 Touch [Add] in the itinerary list
screen
(page 4-4)
The destination search screen is displayed. 2 Touch one of the search methods
to search for the location
eng_a117-2
Refer to the following pages to search for the location.>>> [Address/Intersection] (page 3-2)
>>> [Point of Interest] (page 3-5)
>>> [Advanced Search] (page 3-8)
>>> [Previous 20] (page 3-7)
>>> [Address Book] (page 3-7)
3 Touch [Itinerary List]
eng_a118
4 Touch [Add] in the sequence
position in which it is to be visited
eng_a119
The searched location is added to the route as a way
point. 5 Touch [Start]
eng_a120
Guidance starts for the changed route.
Deleting
A destination or way point can be deleted.
1 Touch [Delete] in the itinerary list
screen
(page 4-4)
The delete itinerary screen is displayed. 2 Touch the location to delete
eng_a121
NOTE The location to be deleted will be highlighted.
Touch a location again to remove it from the deletion
target.
 Multiple locations can be selected at the same time.
 Touch [Select All] to delete all locations at the same
time. 3 Touch [Done]
eng_a122









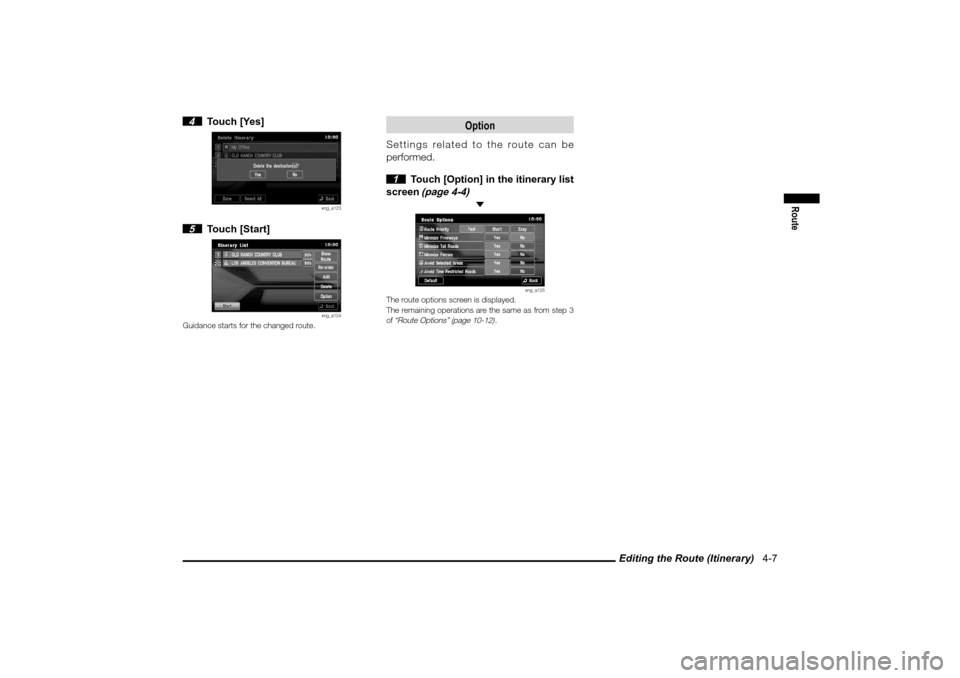

Editing the Route (Itinerary) 4-7
Route
4 Touch [Yes]
eng_a123
5 Touch [Start]
eng_a124
Guidance starts for the changed route.
Option
Settings related to the route can be
performed.
1 Touch [Option] in the itinerary list
screen
(page 4-4)

eng_a125
The route options screen is displayed.
The remaining operations are the same as from step 3
of “Route Options” (page 10-12)
.









Start Demo 4-8
Start Demo
The set route can be viewed with a demo.
1 Display the Navi Menu, and touch
[Navigation Tools]
eng_a004-2
The navigation tools screen is displayed 2 Touch [Start Demo]
eng_a104

eng_a105
The demo is started.
Stop DemoStopping the demo that is operating. 1 Display the Navigation Tools
screen during the demo
2 Touch [Stop Demo]
eng_a106
The demo is stopped.









Deleting the Route 4-9
Route
Deleting the Route
Deleting a created route.
1 Touch [Route] on the current
location screen
eng_a074
The route menu is displayed. 2 Touch [Delete Route]
eng_a500-2
3 Touch [Yes]
eng_a126

The route is deleted.










Deleting the Route 4-10









Storing a New Location 5-1
Address Book
Address Book
Storing a New Location
If frequently visited locations are stored in
advance in the address book, the route to the
stored location can be calculated.
A maximum of 99 locations can be stored.
From the Navi Menu
Storing a location from the Navi Menu.
1 Search for the location
>>> “Destination” (page 3-1) 2 Touch [Address Book]
eng_a093
The information screen for the location to be stored is
displayed. 3 Touch [Set to Address Book]
eng_a098
The displayed location is stored in the address book.NOTE Stored information other than “State” can be edited.
When editing an icon or name, perform in the same
way as from
“Editing a Location” (page 5-4)
.
From the Scroll Menu
Storing a location from the scroll menu.
1 Scroll the map and place the
cursor on the stored location, and
press the [ENT] key
eng_a023
2 Touch [Address Book]
eng_a024-2
The information screen for the location to be stored is
displayed.NOTE If there are several
POIs in the scroll,
a list is displayed,
and the POIs to be
registered can be
selected.
eng_a127









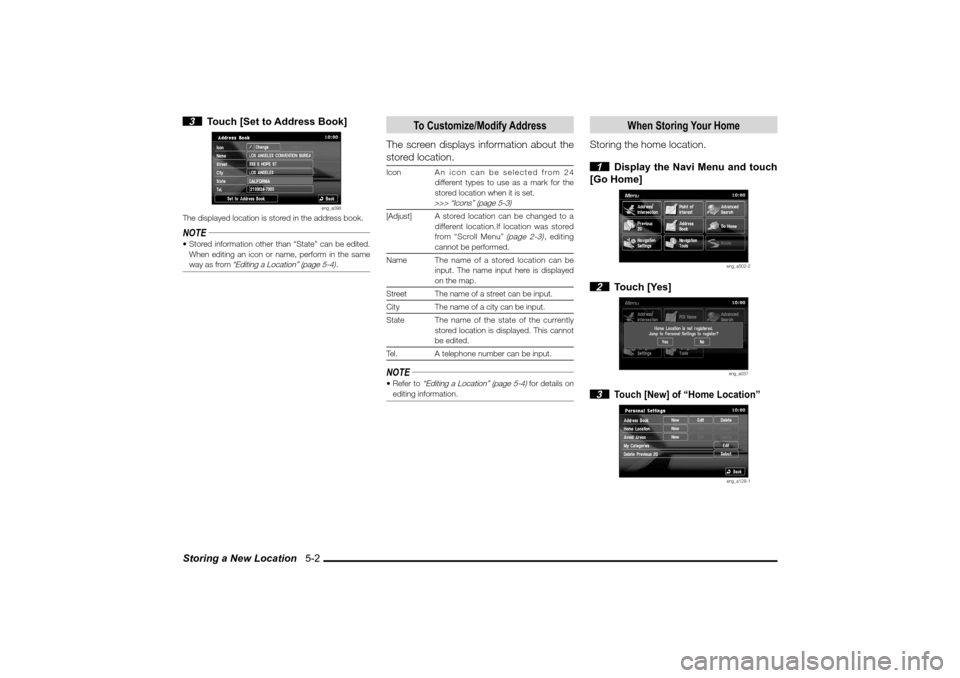

Storing a New Location 5-2 3 Touch [Set to Address Book]
eng_a098
The displayed location is stored in the address book.NOTE Stored information other than “State” can be edited.
When editing an icon or name, perform in the same
way as from
“Editing a Location” (page 5-4)
.
To Customize/Modify Address
The screen displays information about the
stored location.Icon A n icon can be selected from 24
different types to use as a mark for the
stored location when it is set.
>>> “Icons” (page 5-3)
[Adjust] A stored location can be changed to a
different location.If location was stored
from “Scroll Menu”
(page 2-3)
, editing
cannot be performed.
NameThe name of a stored location can be
input. The name input here is displayed
on the map.
Street The name of a street can be input.
City The name of a city can be input.
StateThe name of the state of the currently
stored location is displayed. This cannot
be edited.
Tel. A telephone number can be input.
NOTE Refer to
“Editing a Location” (page 5-4)
for details on
editing information.
When Storing Your Home
Storing the home location.
1 Display the Navi Menu and touch
[Go Home]
eng_a502-2
2 Touch [Yes]
eng_a037
3
Touch [New] of “Home Location”
eng_a128-1









Storing a New Location 5-3
Address Book
4 Touch one of the search methods
to search for the location
eng_a129-2
Refer to the following pages to search for the location.>>> [Address/Intersection] (page 3-2)
>>> [Point of Interest] (page 3-5)
>>> [Advanced Search] (page 3-8)
>>> [Previous 20] (page 3-7)
>>> [Address Book] (page 3-7) 5 Touch [Set]
eng_a130
6
Touch each item to input information
eng_a131
NOTE Touch [Edit] of “Home Location” in
“Personal
Settings” (page 10-16)
to change home information.
 Touch [Delete] of “Home Location” in
“Personal
Settings” (page 10-16)
to delete the home location.
7 Touch [Set as Home]
The storing of the home location is completed.
Icons
25 icon types can be set for the stored
location; the 24 types shown below and
“HOME”.HOME1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NOTE Only one location can be set as “HOME”.
 The number to the side of the icon shows the priority
when the icons are ordered in a list.









Editing a Location 5-4
Editing a Location
The information about stored locations in the
address book can be edited or deleted.
1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Personal]
eng_a016-1

eng_a128-1
The personal settings screen is displayed.
NOTE Touch [New] of “Address Book” to create a new
location to store. Store using the same operations as “Storing a New Location” (page 5-1)
.
Editing
Editing information about a stored
location.
1 Touch [Edit] of “Address Book”
in the Personal Settings screen
2
Touch the stored location to change
eng_a132
NOTE Touch [Icon] to order the locations in icon sequence.
Refer to
“Icons” (page 5-3)
for details on the icon
priority.
 Touch [Name] to order the stored location names in
alphabetical sequence.
 Touch [Date] to order the registration dates with the
newest at the top.
3 Touch the item to change
eng_a133
NOTE Refer to
“To Customize/Modify Address” (page 5-2)

for details on the items to change.
4 Touch [Set] after changing the
item
eng_a134
Repeat steps 3 and 4 until all the desired items have
been changed.NOTE [Set] is not available
for “Icon”. The change is set
by touching the
icon button.
eng_a135









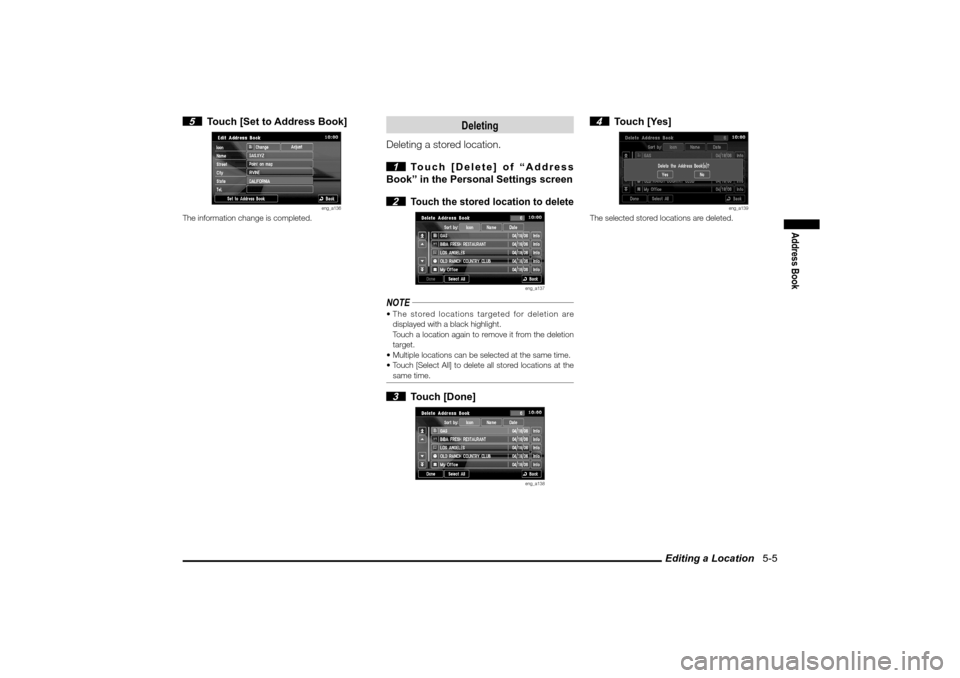

Editing a Location 5-5
Address Book
5 Touch [Set to Address Book]
eng_a136
The information change is completed.
Deleting
Deleting a stored location.
1 Touch [Delete] of “Address
Book” in the Personal Settings screen
2
Touch the stored location to delete
eng_a137
NOTE The stored locations targeted for deletion are
displayed with a black highlight.
Touch a location again to remove it from the deletion
target.
 Multiple locations can be selected at the same time.
 Touch [Select All] to delete all stored locations at the
same time. 3 Touch [Done]
eng_a138
4 Touch [Yes]
eng_a139
The selected stored locations are deleted.
