Page 511 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 6-14 For emergencies
6

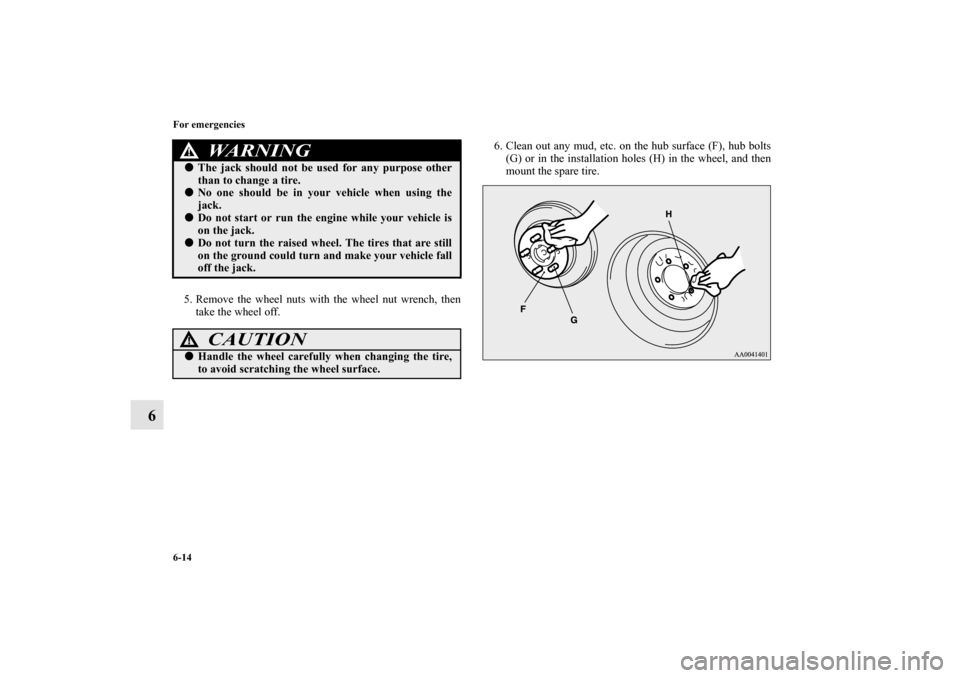

5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off. 6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in

Page 512 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual For emergencies
6-15
6

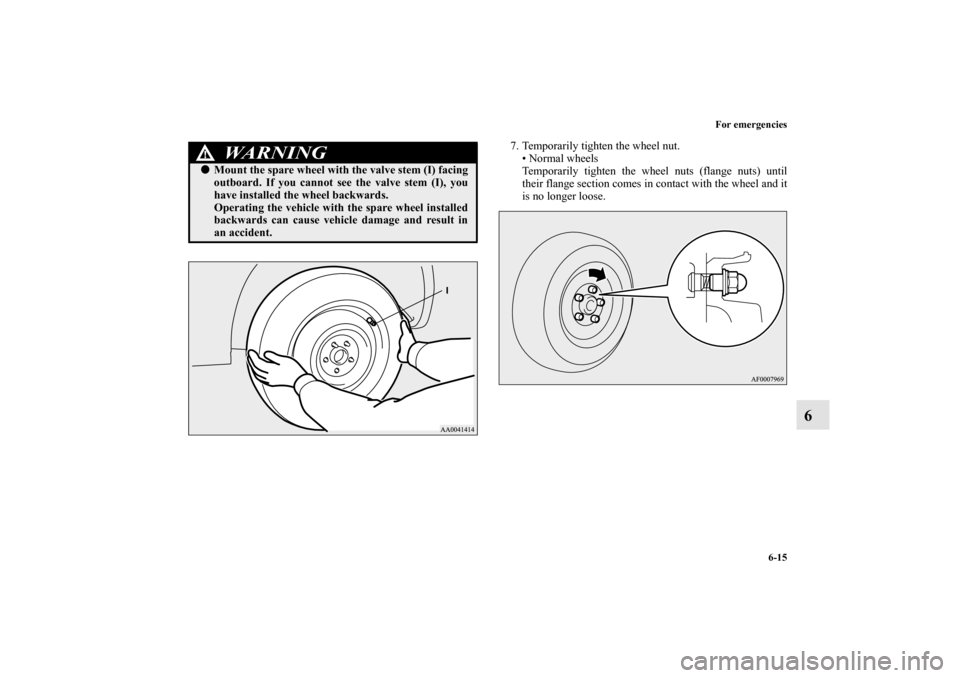

7. Temporarily tighten the wheel nut.
• Normal wheels
Temporarily tighten the wheel nuts (flange nuts) until
their flange section comes in contact with the wheel and it
is no

Page 513 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 6-16 For emergencies
6

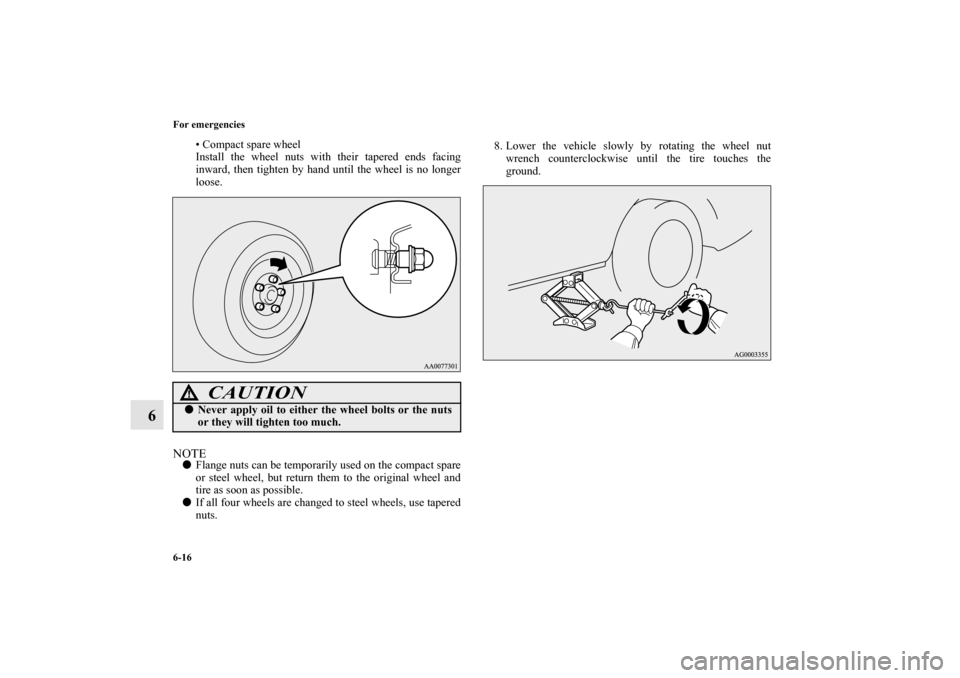

• Compact spare wheel
Install the wheel nuts with their tapered ends facing
inward, then tighten by hand until the wheel is no longer
loose.
NOTEFlange nuts can be temporaril

Page 514 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual For emergencies
6-17
6
9. Tighten the nuts in the order shown in the illustration until
each nut has been tightened to the torque listed here.
65 to 80 ft-lb (88 to 108 N•m)
10. Lower the jack all t

Page 515 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 6-18 For emergencies
6

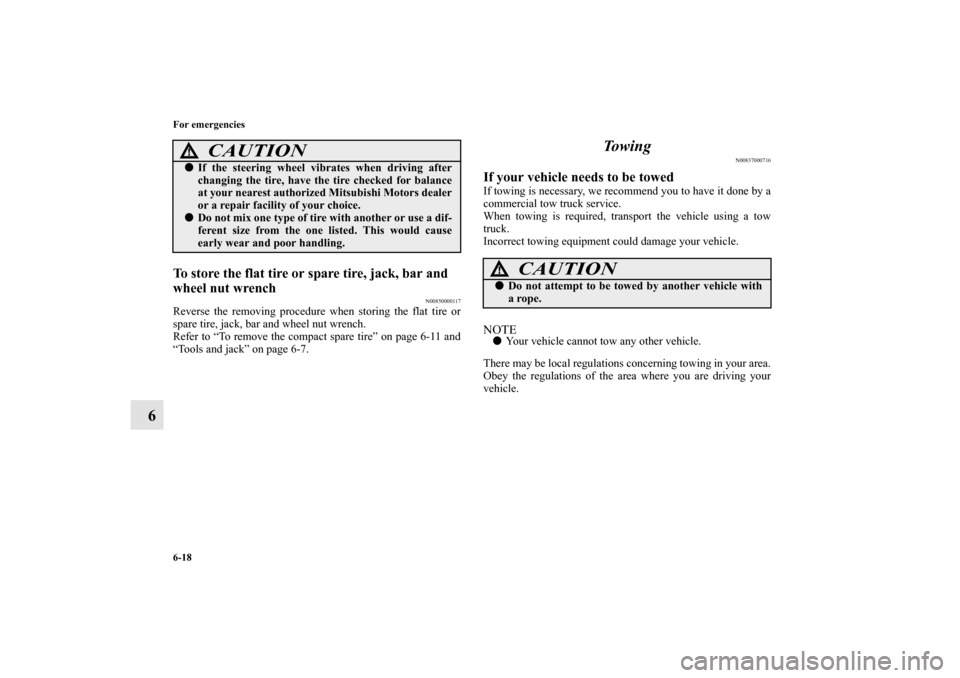

To store the flat tire or spare tire, jack, bar and
wheel nut wrench
N00850000117
Reverse the removing procedure when storing the flat tire or
spare tire, jack, bar and wheel n

Page 516 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual For emergencies
6-19
6

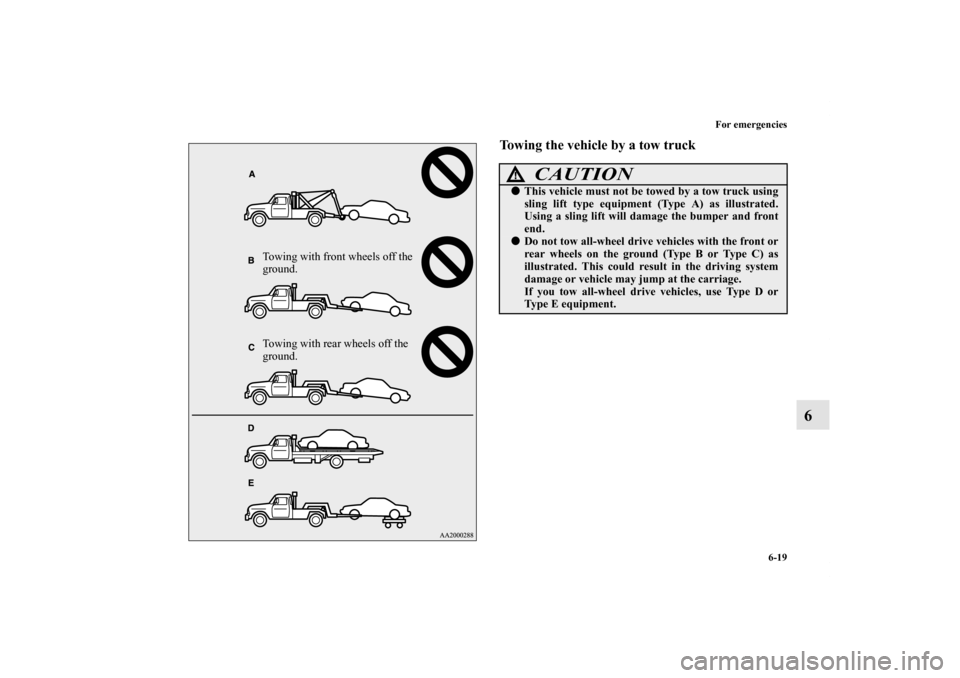

Towing the vehicle by a tow truck
Towing with front wheels off the
ground.
Towing with rear wheels off the
ground.
CAUTION
!This vehicle must not be towed by a tow truck usin

Page 517 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 6-20 For emergencies

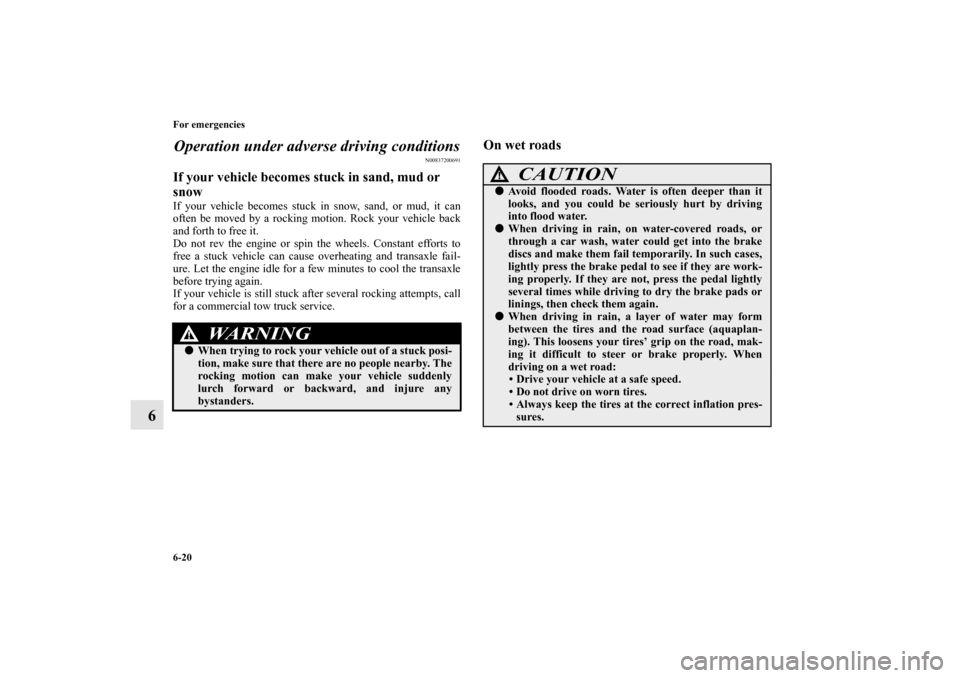

6Operation under adverse driving conditions
N00837200691
If your vehicle becomes stuck in sand, mud or
snow If your vehicle becomes stuck in snow, sand, or mud, it can
often be m

Page 518 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual For emergencies
6-21
6

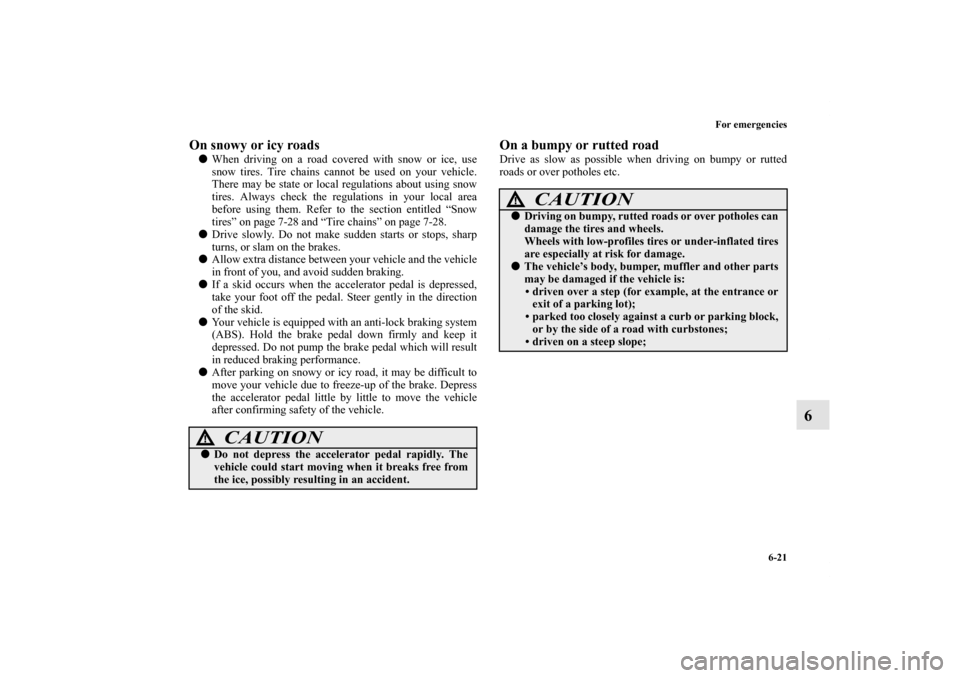

On snowy or icy roads When driving on a road covered with snow or ice, use
snow tires. Tire chains cannot be used on your vehicle.
There may be state or local regulations about

Page 519 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual BK0150900US.book  22 ページ  2012年5月7日 月曜日 午後12時9分

Page 520 of 626

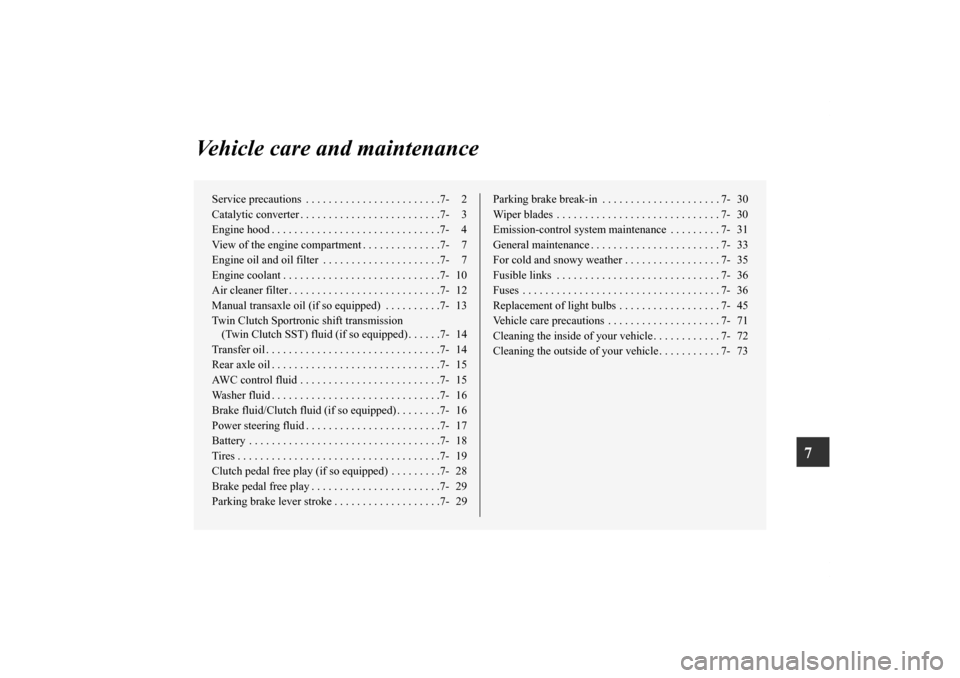

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 7
Vehicle care and maintenance
Service precautions  . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . .
