Page 501 of 626

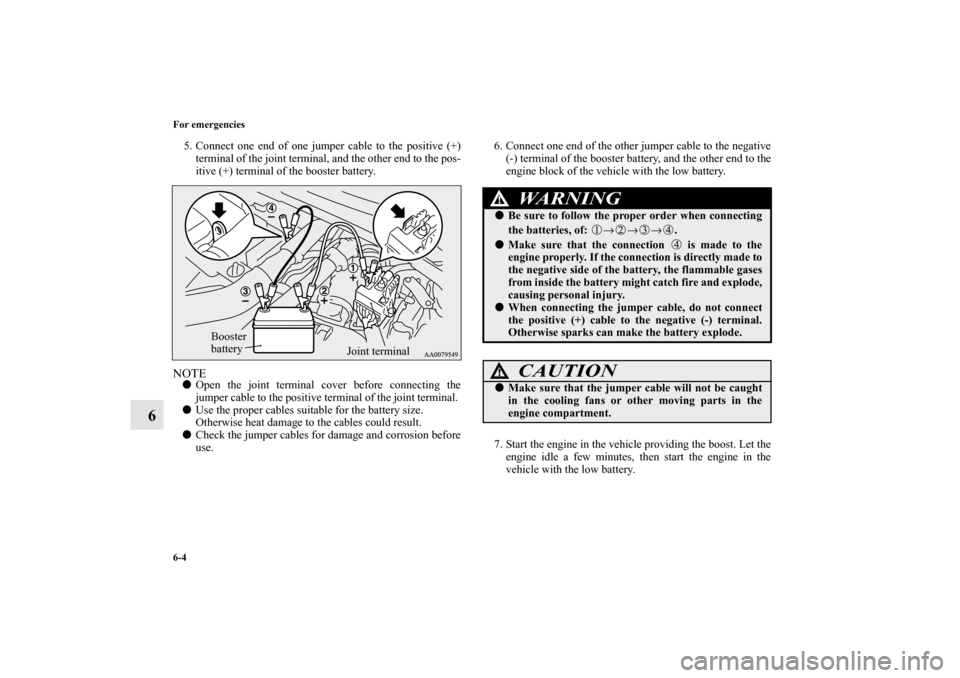

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 6-4 For emergencies
6
5. Connect one end of one jumper cable to the positive (+)
terminal of the joint terminal, and the other end to the pos-
itive (+) terminal of the booster battery.NOTEOpen the j

Page 502 of 626

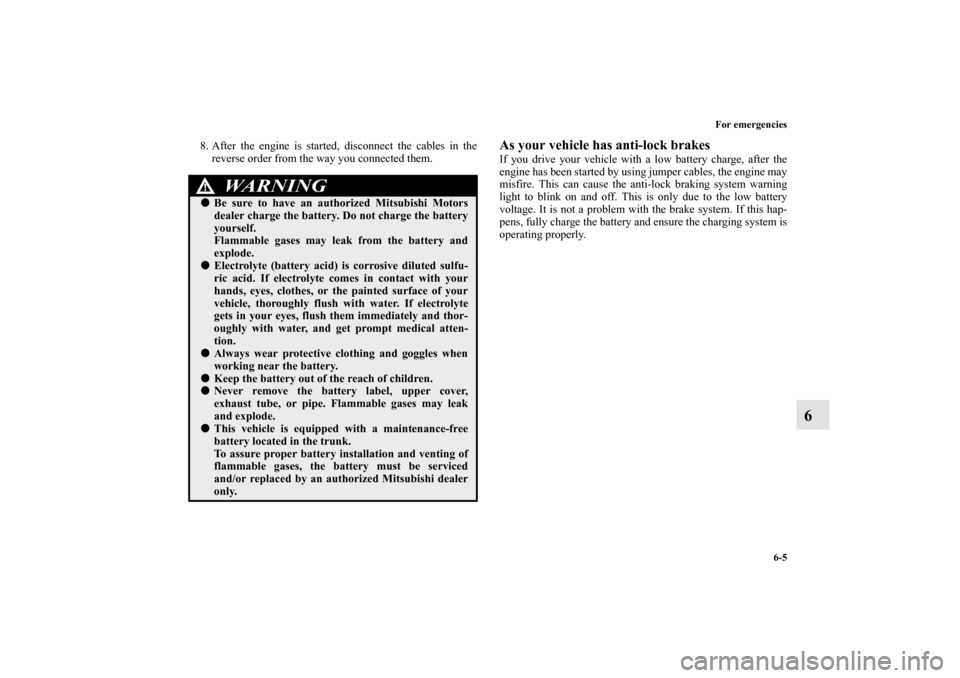

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual For emergencies
6-5
6
8. After the engine is started, disconnect the cables in the
reverse order from the way you connected them.
As your vehicle has anti-lock brakesIf you drive your vehicle with a l

Page 503 of 626

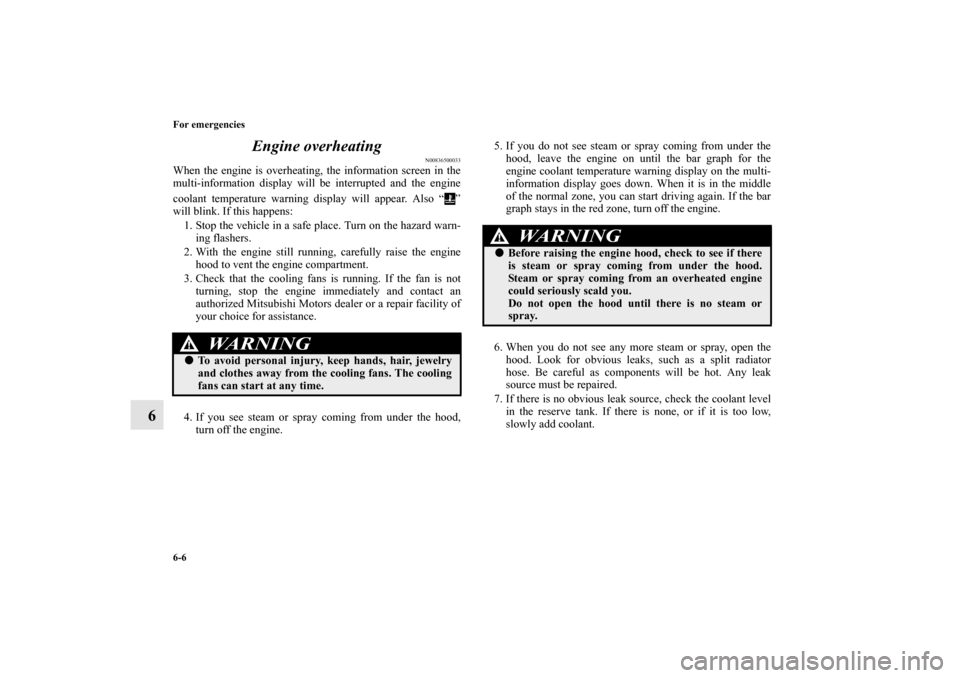

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 6-6 For emergencies
6Engine overheating
N00836500033
When the engine is overheating, the information screen in the
multi-information display will be interrupted and the engine
coolant temperature warn

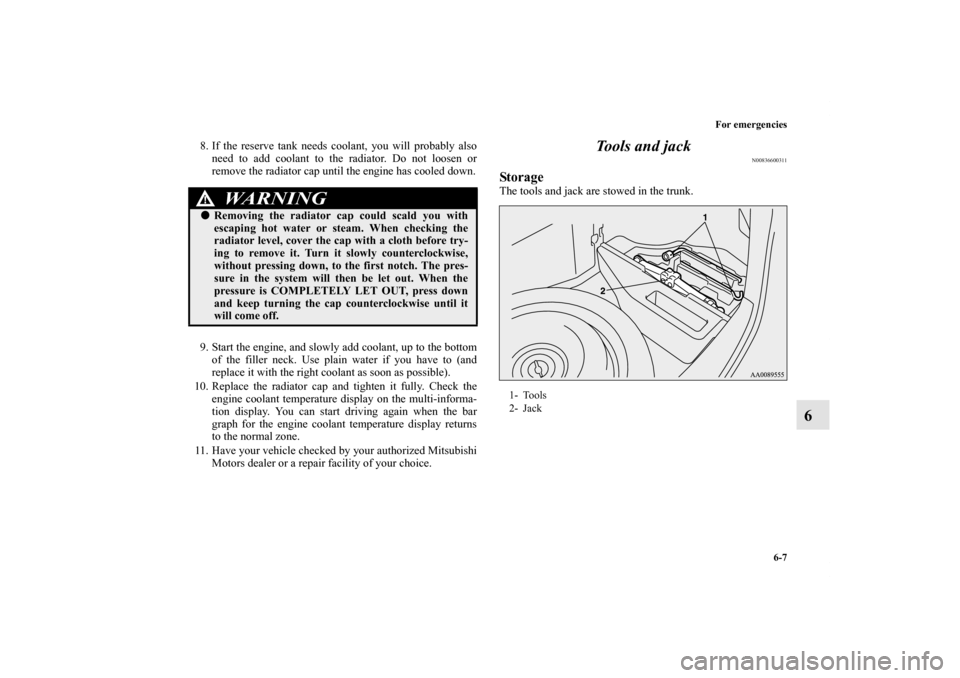

Page 504 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual For emergencies
6-7
6
8. If the reserve tank needs coolant, you will probably also
need to add coolant to the radiator. Do not loosen or
remove the radiator cap until the engine has cooled down.
9. St

Page 505 of 626

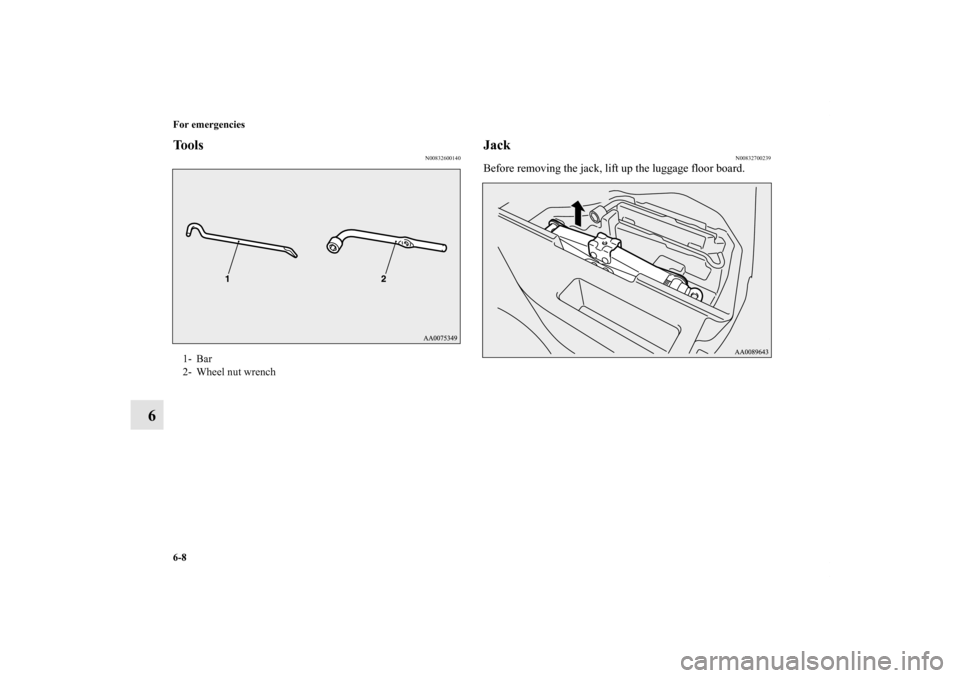

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 6-8 For emergencies
6
Tools
N00832600140
Jack
N00832700239
Before removing the jack, lift up the luggage floor board.
1- Bar
2- Wheel nut wrench
BK0150900US.book  8 ページ  2012年5月7

Page 506 of 626

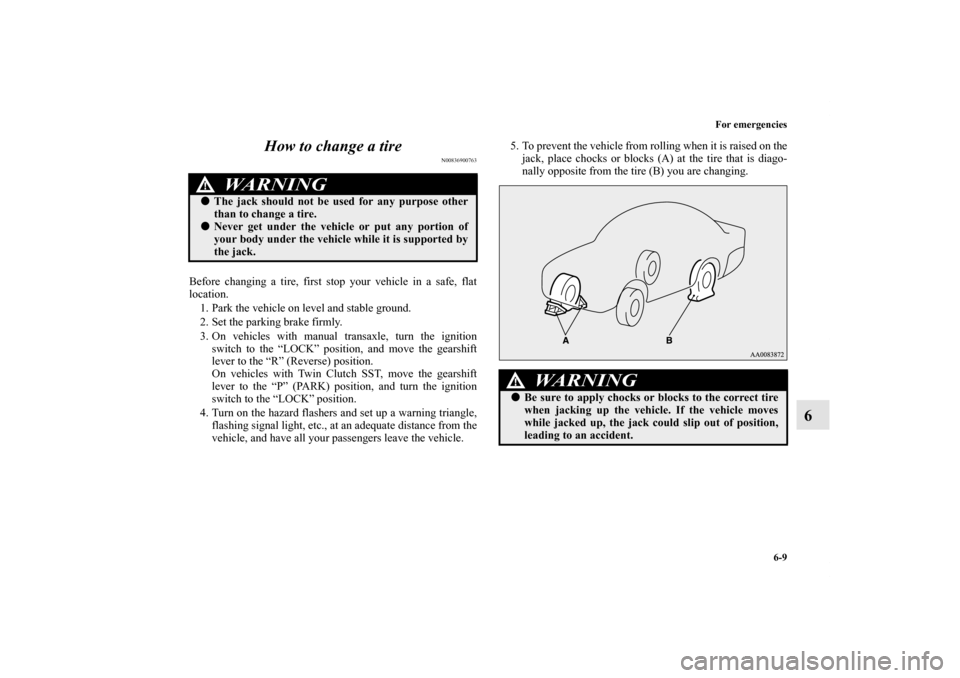

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual For emergencies
6-9
6 How to change a tire
N00836900763
Before changing a tire, first stop your vehicle in a safe, flat
location.
1. Park the vehicle on level and stable ground.
2. Set the parking br

Page 507 of 626

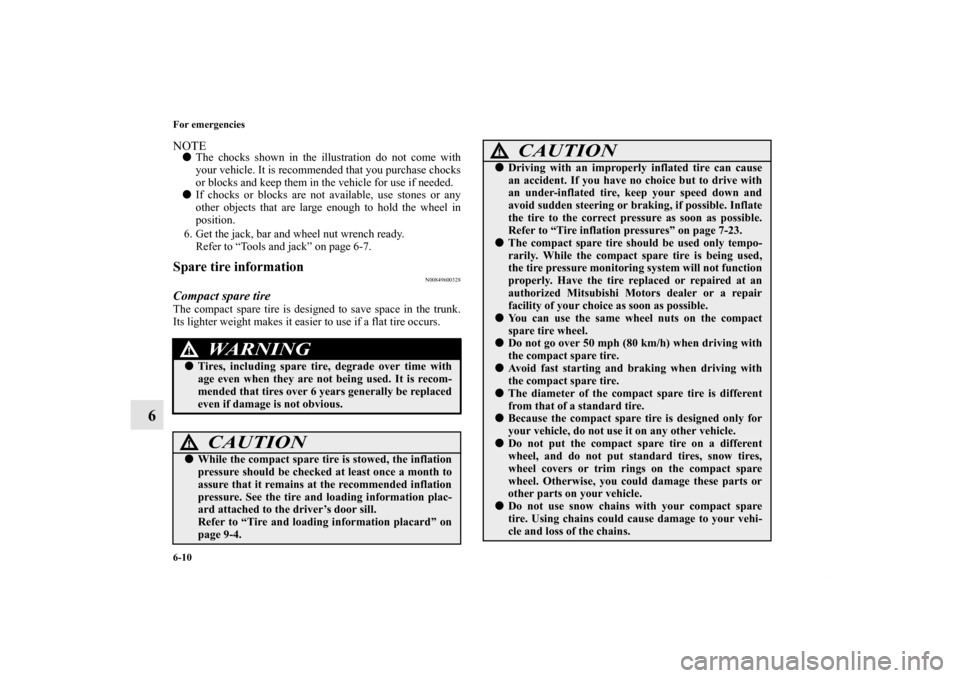

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 6-10 For emergencies
6
NOTEThe chocks shown in the illustration do not come with
your vehicle. It is recommended that you purchase chocks
or blocks and keep them in the vehicle for use if needed.
I

Page 508 of 626

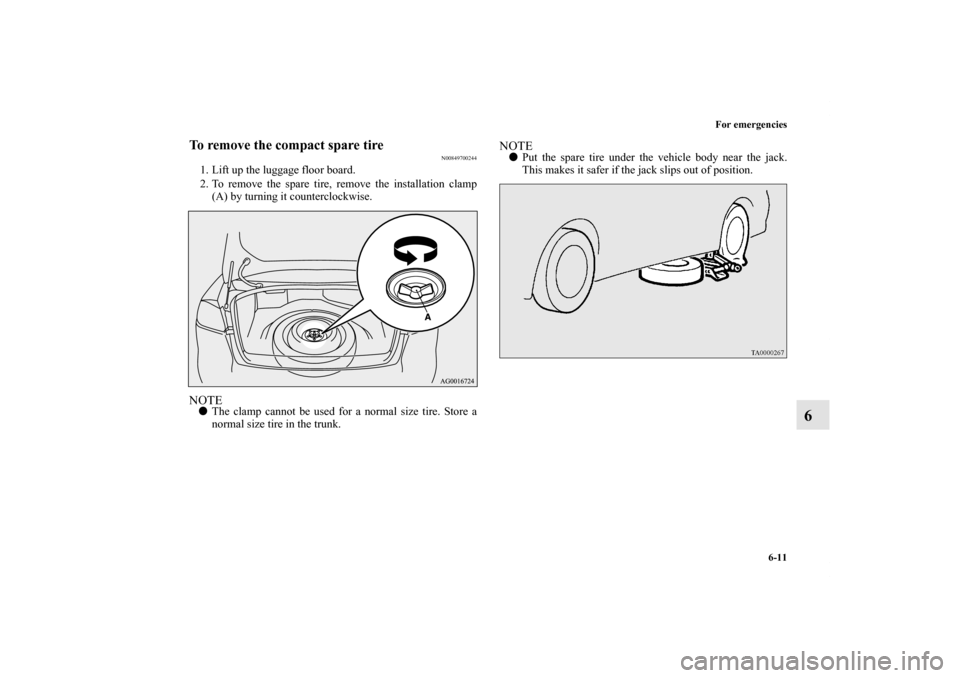

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual For emergencies
6-11
6
To remove the compact spare tire
N00849700244
1. Lift up the luggage floor board.
2. To remove the spare tire, remove the installation clamp
(A) by turning it counterclockwise.N

Page 509 of 626

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual 6-12 For emergencies
6
To change a tire
N00849800405
1. Loosen the wheel nuts with the wheel nut wrench. Do not
remove the wheel nuts yet.2. Place the jack under one of the jacking points (A) shown
in

Page 510 of 626

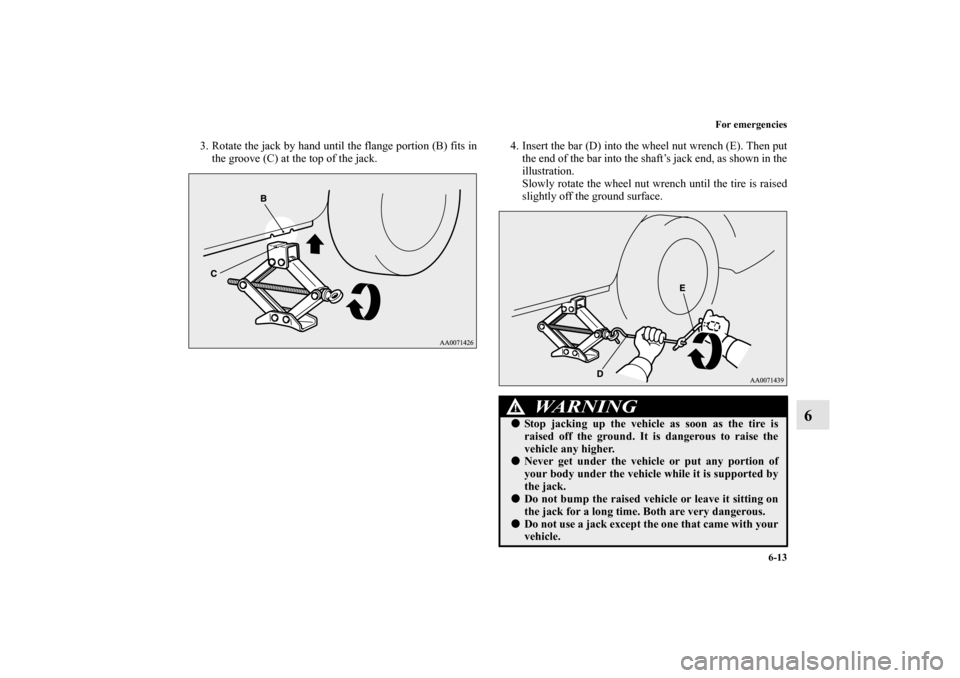

MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual For emergencies
6-13
6
3. Rotate the jack by hand until the flange portion (B) fits in
the groove (C) at the top of the jack. 4. Insert the bar (D) into the wheel nut wrench (E). Then put
the end of t
