7-42 Vehicle care and maintenance
7
*- Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of
these capacities blows, replace it temporarily by borrowing one
of the fuses indicated below.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio amplifier fuse
Replace the borrowed fuse with a fuse that has the correct
capacity as soon as possible.
18Headlight
(low beam)
(left)Halogen 10 A
19Headlight
(low beam)
(right)Halogen 10 A
20 I/C SPRAY 10 A
21 Ignition coil 10 A
22 ENG/POWER 20 A
23 Fuel pump 20 A
24 Starter 30 A*
25 — — —
26 Anti-lock braking system 40 A*
27 Anti-lock braking system 30 A*
28Air conditioning condenser fan
motor30 A*
29 Radiator fan motor 40 A*
30 IOD IOD 30 A
31 Audio amplifier 30 A
32 Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 ANo.
Symbol
Electrical system
Capacity
35 — Spare fuse 20 ANo.
Symbol
Electrical system
Capacity
BK0150900US.book 42 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-43
7
Identification of fuse
N00901100052
Fuse replacement
N00954900027
1. Before replacing a fuse, always turn off the electrical item
connected to the fuse and turn the ignition switch to the
“LOCK” position.

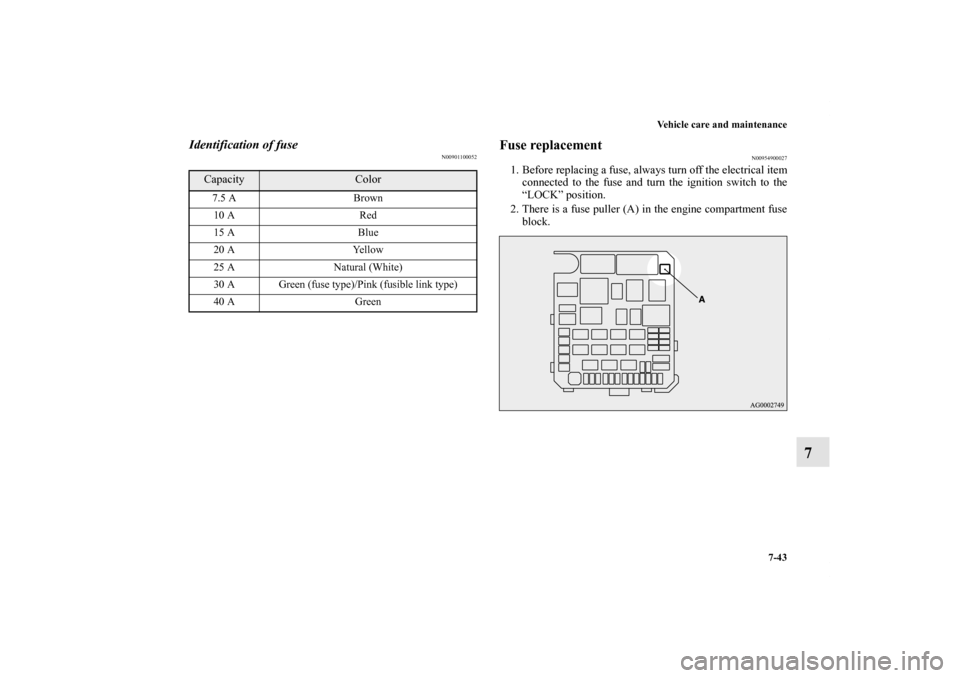

2. There is a fuse puller (A) in the engine compartment fuse
block.
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A Green (fuse type)/Pink (fusible link type)
40 A Green
BK0150900US.book 43 ページ ２０１２年５月７日　月曜日　午後１２時９分

7-44 Vehicle care and maintenance
7

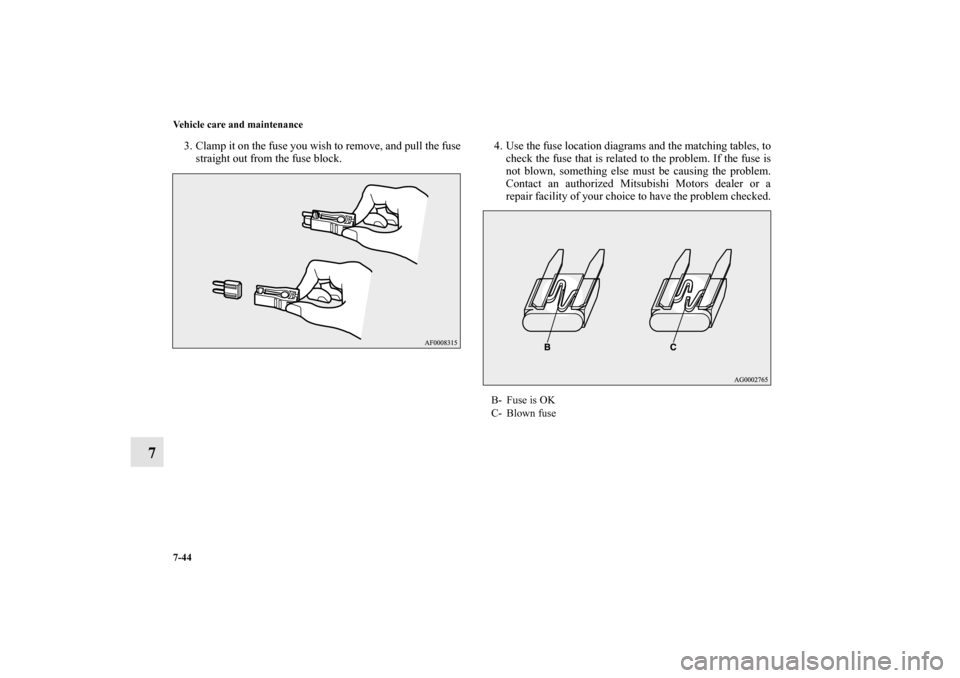

3. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice to have the problem checked.
B- Fuse is OK
C- Blown fuse
BK0150900US.book 44 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-45
7

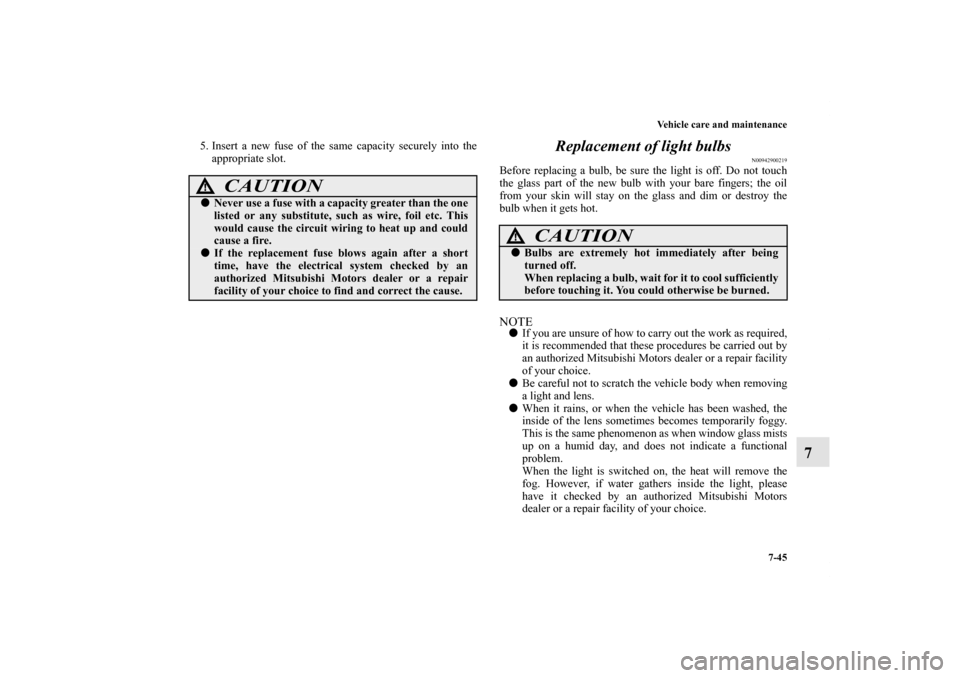

5. Insert a new fuse of the same capacity securely into the
appropriate slot.
Replacement of light bulbs
N00942900219
Before replacing a bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing a bulb, wait for it to cool sufficiently
before touching it. You could otherwise be burned.
BK0150900US.book 45 ページ ２０１２年５月７日　月曜日　午後１２時９分

7-46 Vehicle care and maintenance
7

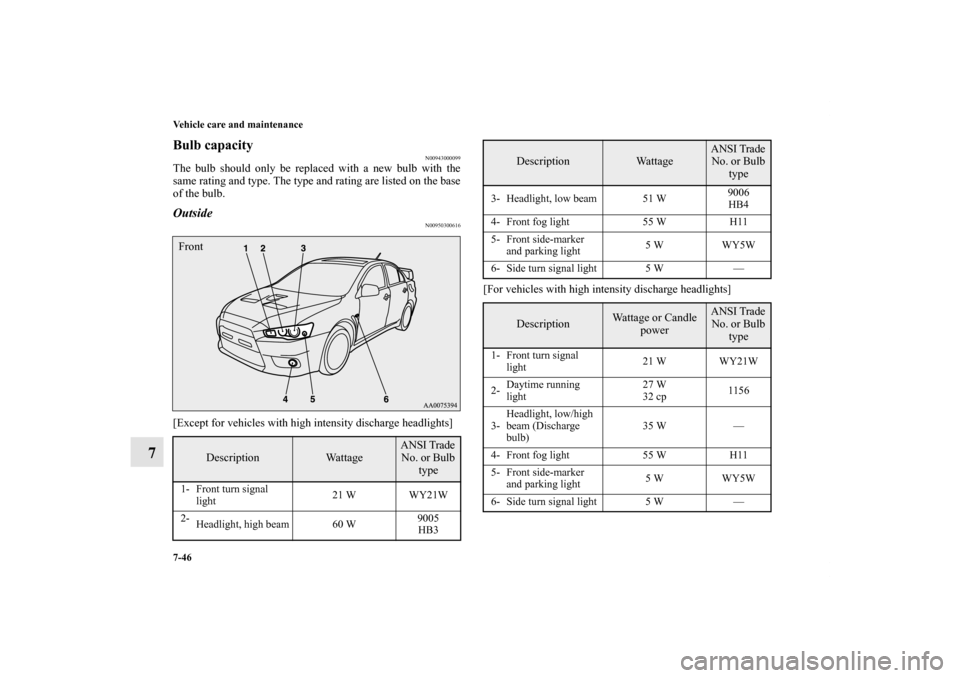

Bulb capacity
N00943000099
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300616
[Except for vehicles with high intensity discharge headlights][For vehicles with high intensity discharge headlights]
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
1- Front turn signal
light 21 W WY21W
2-
Headlight, high beam 60 W9005
HB3Front
3- Headlight, low beam 51 W9006
HB4
4- Front fog light 55 W H11
5- Front side-marker
and parking light5 W WY5W
6- Side turn signal light 5 W —
Description
Wattage or Candle
power
ANSI Trade
No. or Bulb
type
1- Front turn signal
light 21 W WY21W
2-Daytime running
light27 W
32 cp1156
3-Headlight, low/high
beam (Discharge
bulb)35 W —
4- Front fog light 55 W H11
5- Front side-marker
and parking light5 W WY5W
6- Side turn signal light 5 W —
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
BK0150900US.book 46 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-47
7
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
WA R N I N G
!
Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a discharge headlight or to replace the
bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe electrical shock.
Description
Wattage
ANSI Trade
No. or Bulb
type

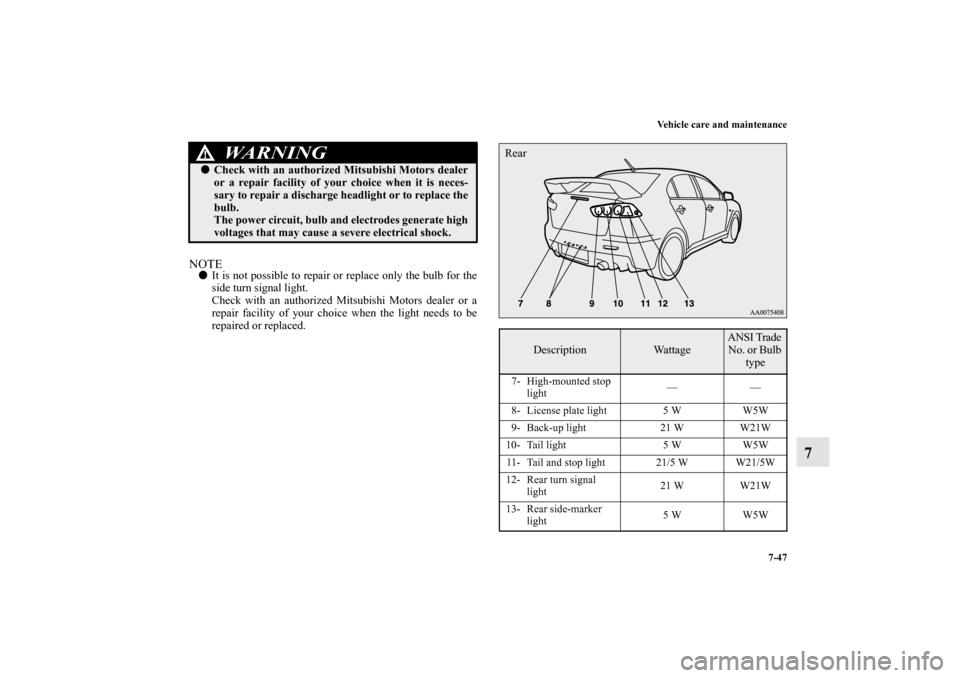

7- High-mounted stop
light——
8- License plate light 5 W W5W
9- Back-up light 21 W W21W
10- Tail light 5 W W5W
11- Tail and stop light 21/5 W W21/5W
12- Rear turn signal
light21 W W21W
13- Rear side-marker
light5 W W5WRear
BK0150900US.book 47 ページ ２０１２年５月７日　月曜日　午後１２時９分

7-48 Vehicle care and maintenance
7
NOTE
The high-mounted stop light uses LEDs rather than bulbs.
For repair and replacement, contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.

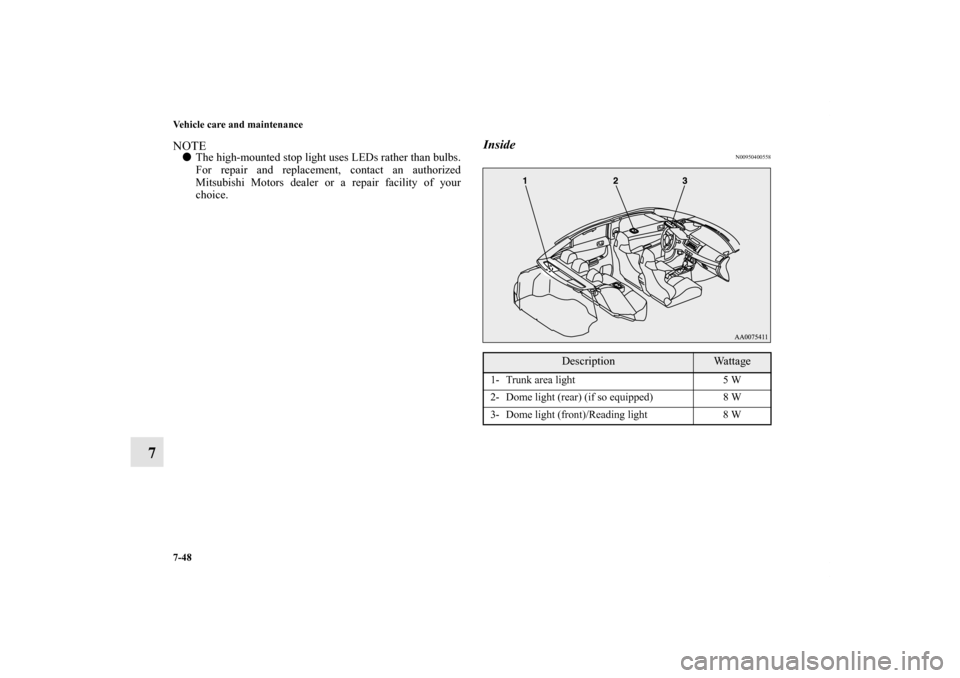

Inside
N00950400558
Description
Wa t t a g e
1- Trunk area light 5 W
2- Dome light (rear) (if so equipped) 8 W
3- Dome light (front)/Reading light 8 W
BK0150900US.book 48 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-49
7
Headlights (low beam, except for vehicles with
high intensity discharge headlights)
N00901800105

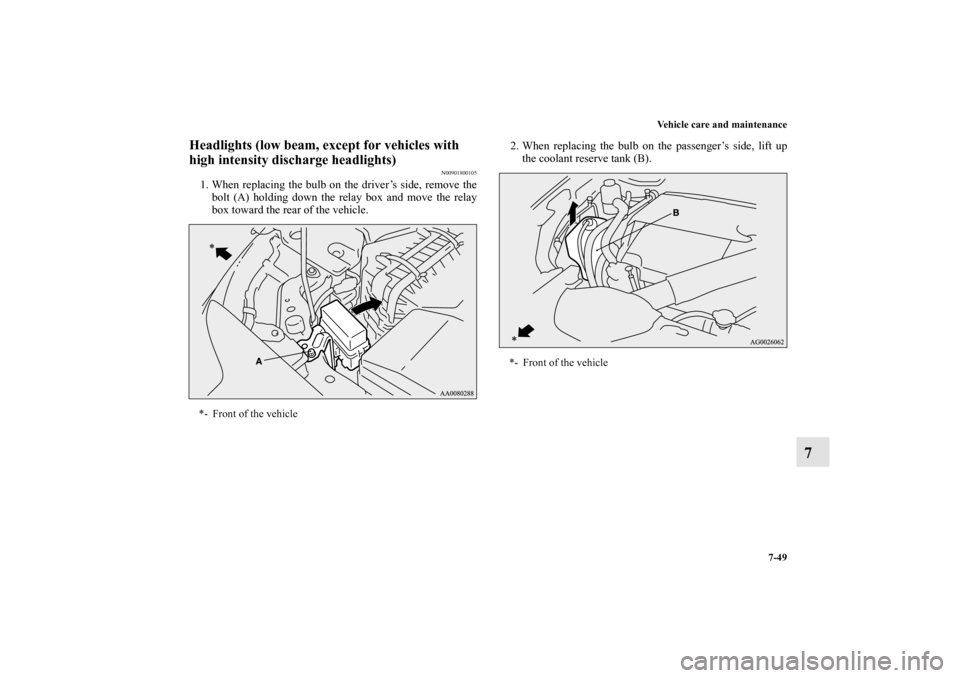

1. When replacing the bulb on the driver’s side, remove the
bolt (A) holding down the relay box and move the relay
box toward the rear of the vehicle.2. When replacing the bulb on the passenger’s side, lift up
the coolant reserve tank (B).*- Front of the vehicle
*- Front of the vehicle
BK0150900US.book 49 ページ ２０１２年５月７日　月曜日　午後１２時９分

7-50 Vehicle care and maintenance
7

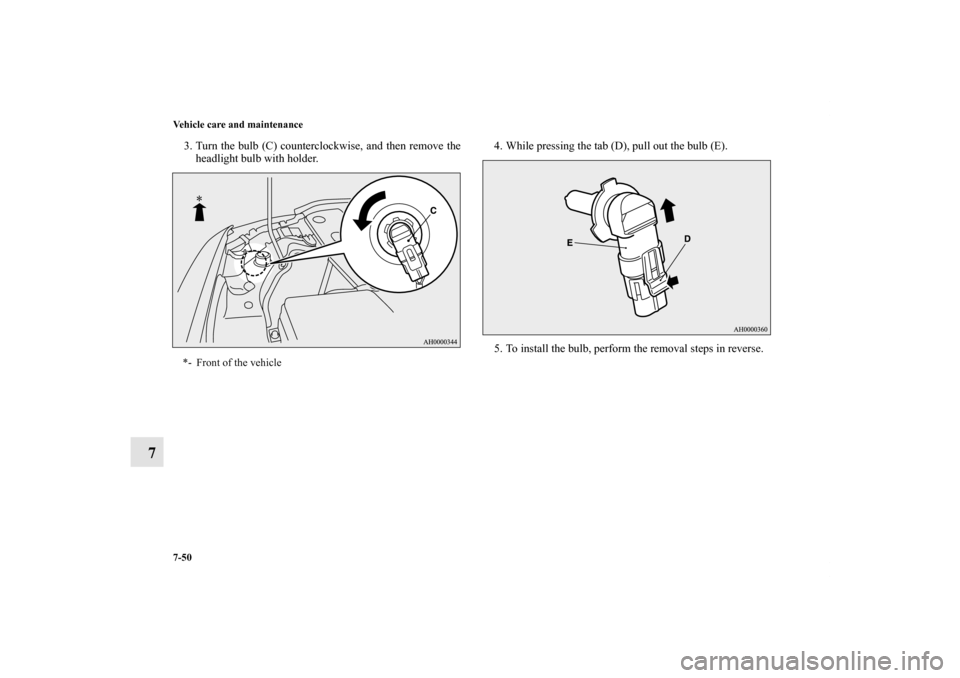

3. Turn the bulb (C) counterclockwise, and then remove the
headlight bulb with holder.4. While pressing the tab (D), pull out the bulb (E).
5. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0150900US.book 50 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-51
7
Headlights (high beam, except for vehicles with
high intensity discharge headlights)
N00901900076

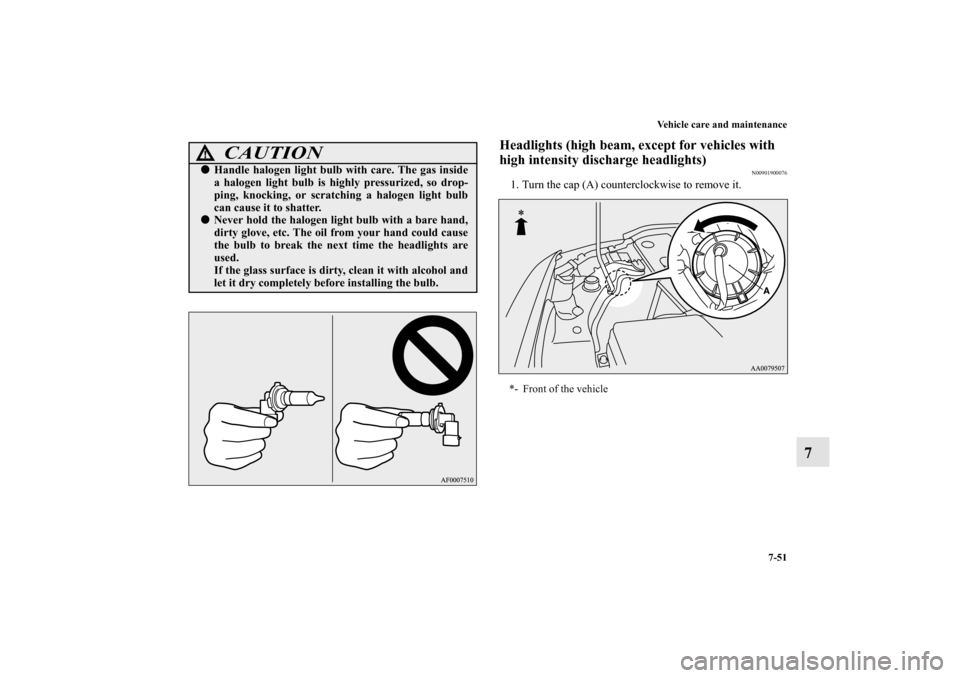

1. Turn the cap (A) counterclockwise to remove it.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the headlights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
