MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual

7-52 Vehicle care and maintenance
7

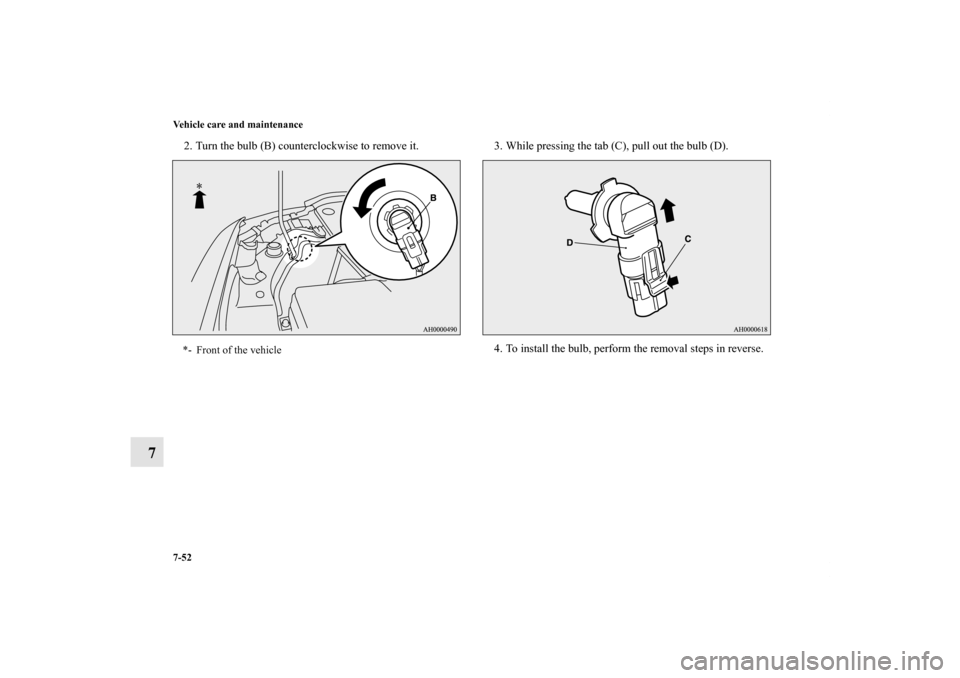

2. Turn the bulb (B) counterclockwise to remove it. 3. While pressing the tab (C), pull out the bulb (D).
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0150900US.book 52 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-53
7

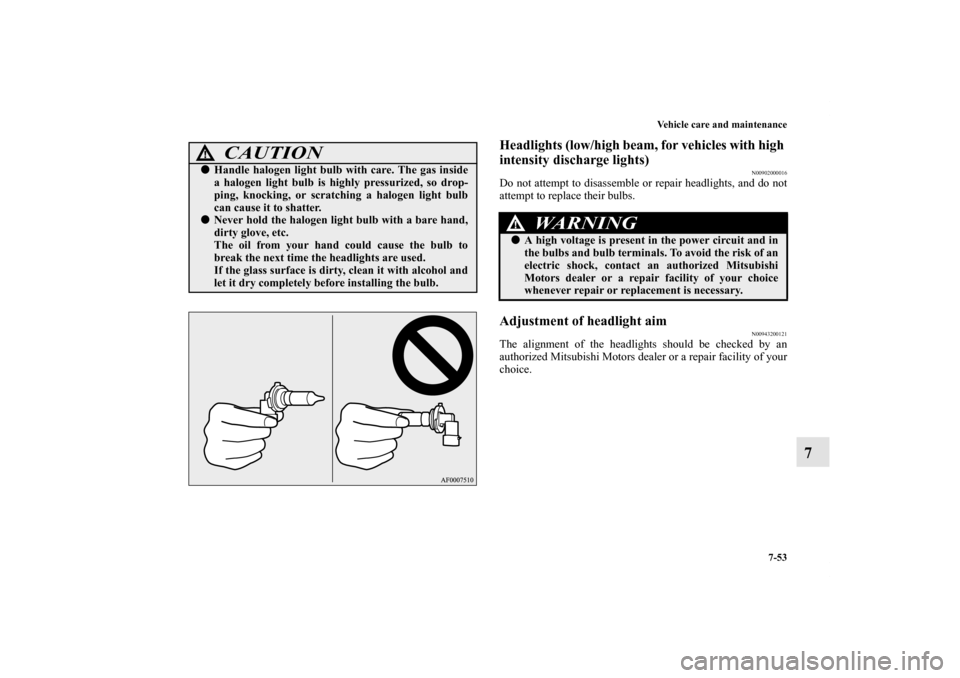

Headlights (low/high beam, for vehicles with high
intensity discharge lights)
N00902000016
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice
whenever repair or replacement is necessary.
BK0150900US.book 53 ページ ２０１２年５月７日　月曜日　午後１２時９分

7-54 Vehicle care and maintenance
7

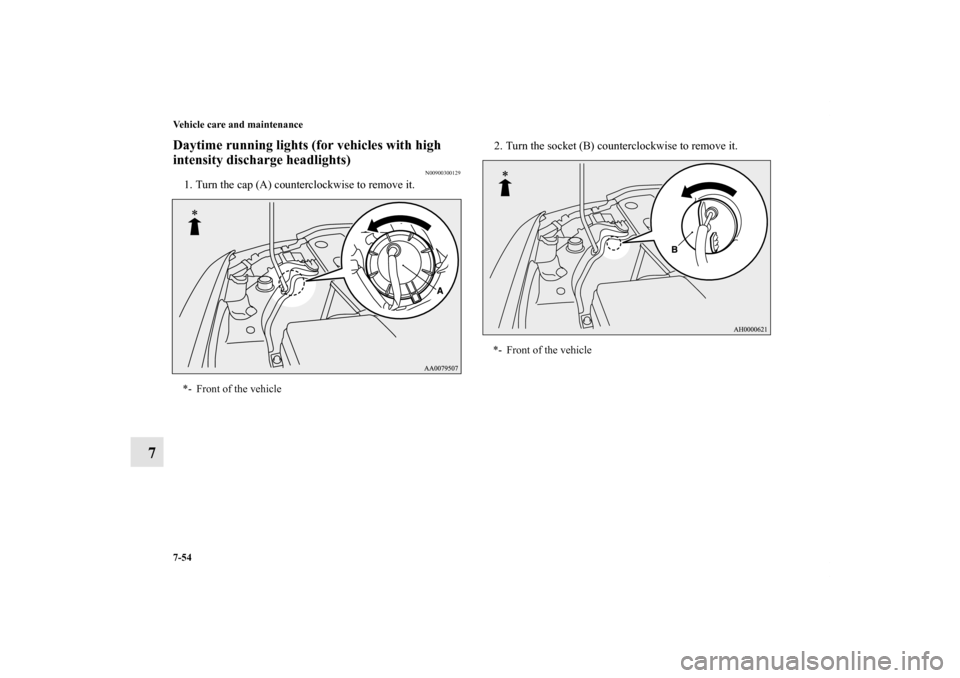

Daytime running lights (for vehicles with high
intensity discharge headlights)
N00900300129
1. Turn the cap (A) counterclockwise to remove it.2. Turn the socket (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0150900US.book 54 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-55
7

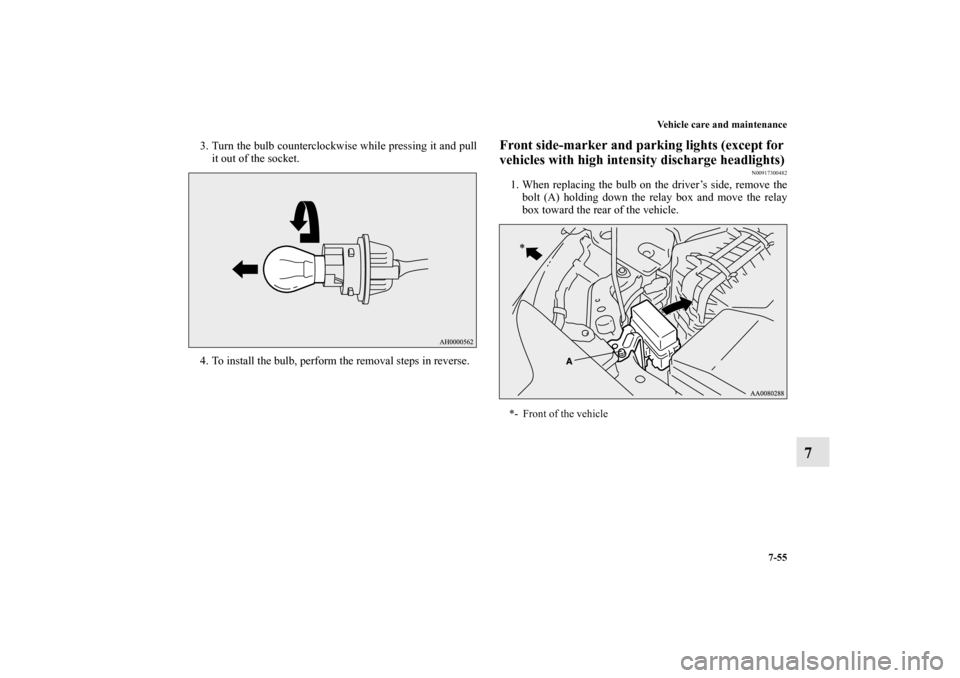

3. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
4. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (except for
vehicles with high intensity discharge headlights)
N00917300482
1. When replacing the bulb on the driver’s side, remove the
bolt (A) holding down the relay box and move the relay
box toward the rear of the vehicle.*- Front of the vehicle
BK0150900US.book 55 ページ ２０１２年５月７日　月曜日　午後１２時９分

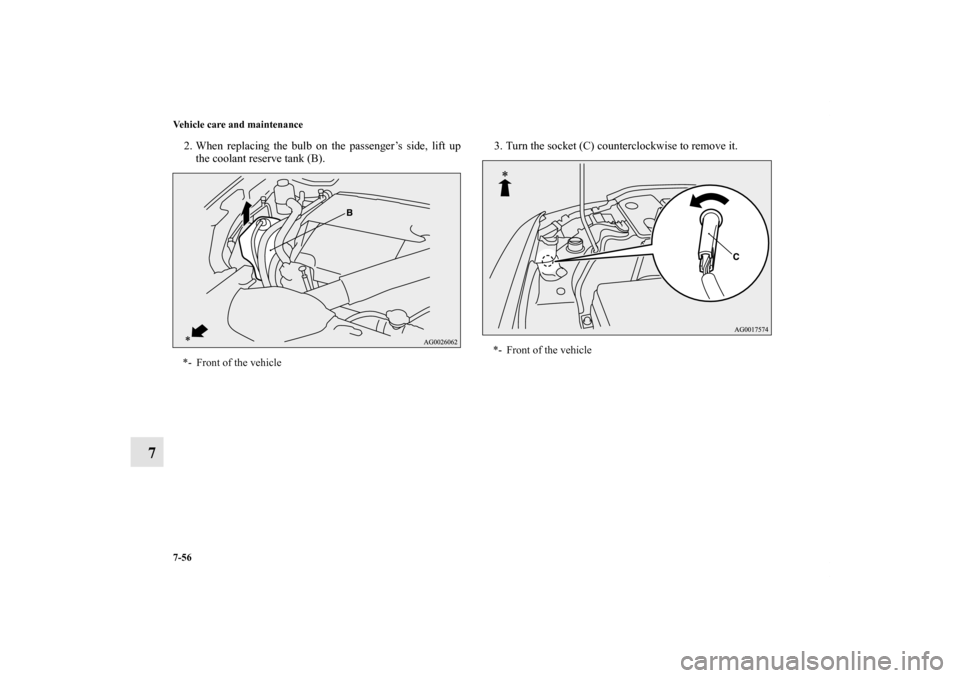

7-56 Vehicle care and maintenance
7
2. When replacing the bulb on the passenger’s side, lift up
the coolant reserve tank (B).3. Turn the socket (C) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0150900US.book 56 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-57
7

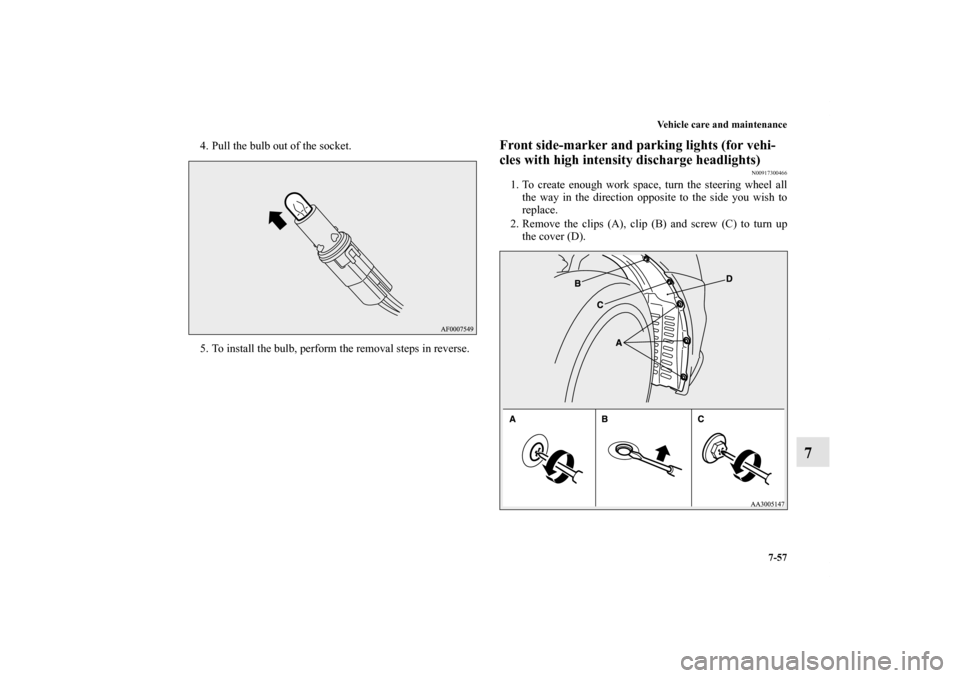

4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (for vehi-
cles with high intensity discharge headlights)
N00917300466
1. To create enough work space, turn the steering wheel all
the way in the direction opposite to the side you wish to
replace.
2. Remove the clips (A), clip (B) and screw (C) to turn up
the cover (D).
BK0150900US.book 57 ページ ２０１２年５月７日　月曜日　午後１２時９分

7-58 Vehicle care and maintenance
7

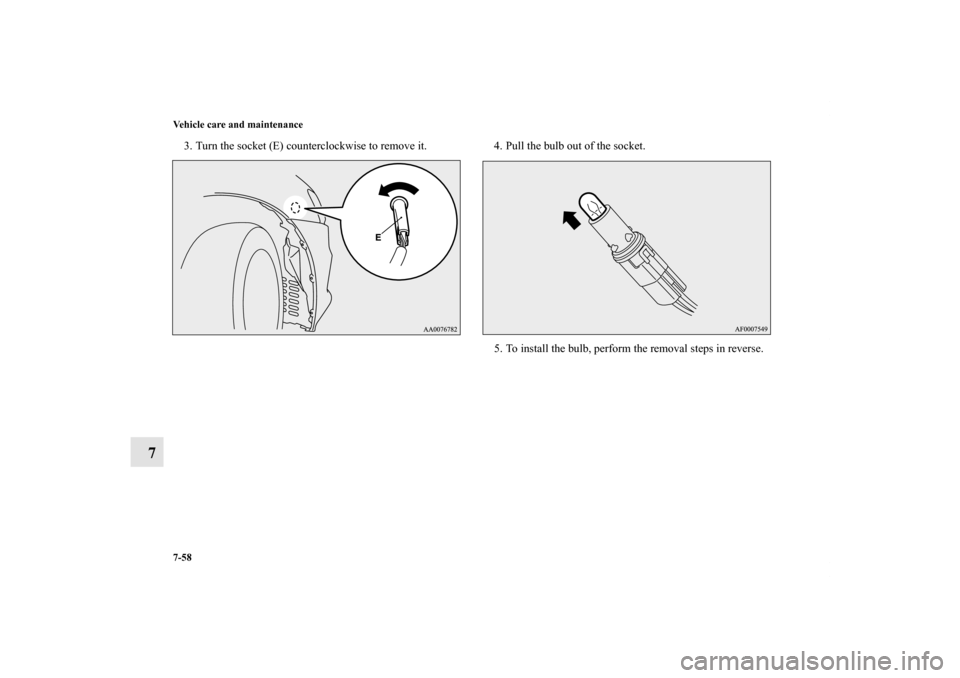

3. Turn the socket (E) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
BK0150900US.book 58 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-59
7

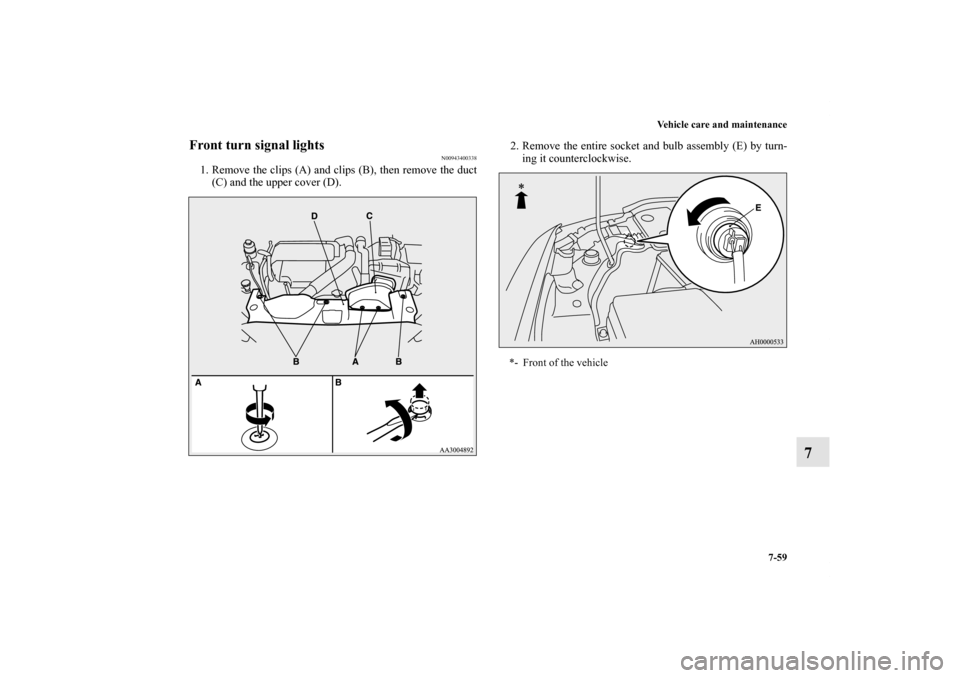

Front turn signal lights
N00943400338
1. Remove the clips (A) and clips (B), then remove the duct
(C) and the upper cover (D).2. Remove the entire socket and bulb assembly (E) by turn-
ing it counterclockwise.
*- Front of the vehicle
BK0150900US.book 59 ページ ２０１２年５月７日　月曜日　午後１２時９分

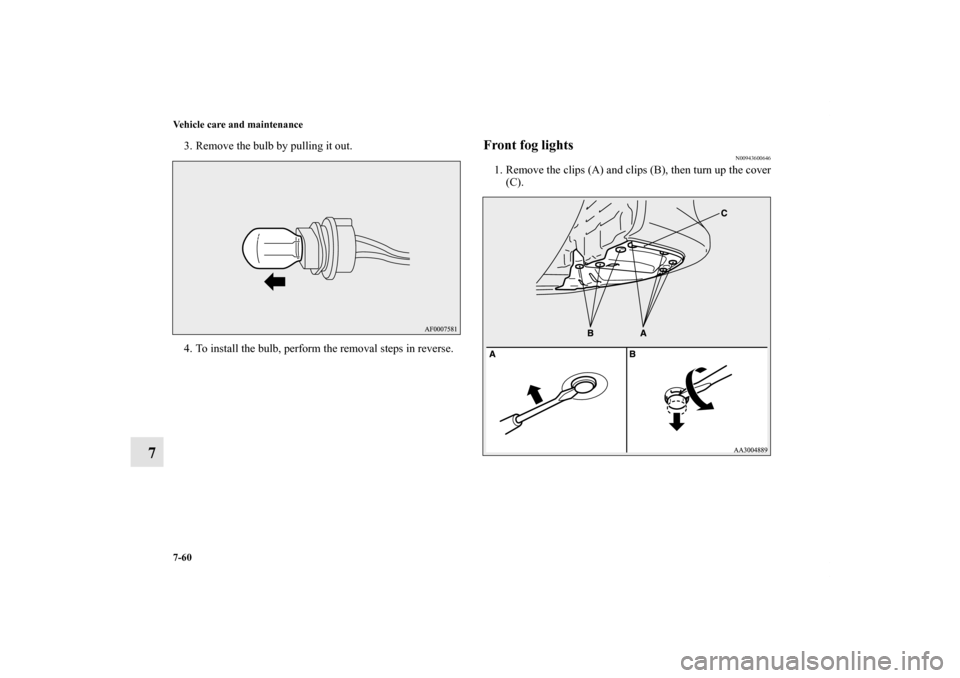

7-60 Vehicle care and maintenance
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front fog lights
N00943600646
1. Remove the clips (A) and clips (B), then turn up the cover
(C).
BK0150900US.book 60 ページ ２０１２年５月７日　月曜日　午後１２時９分

Vehicle care and maintenance
7-61
7

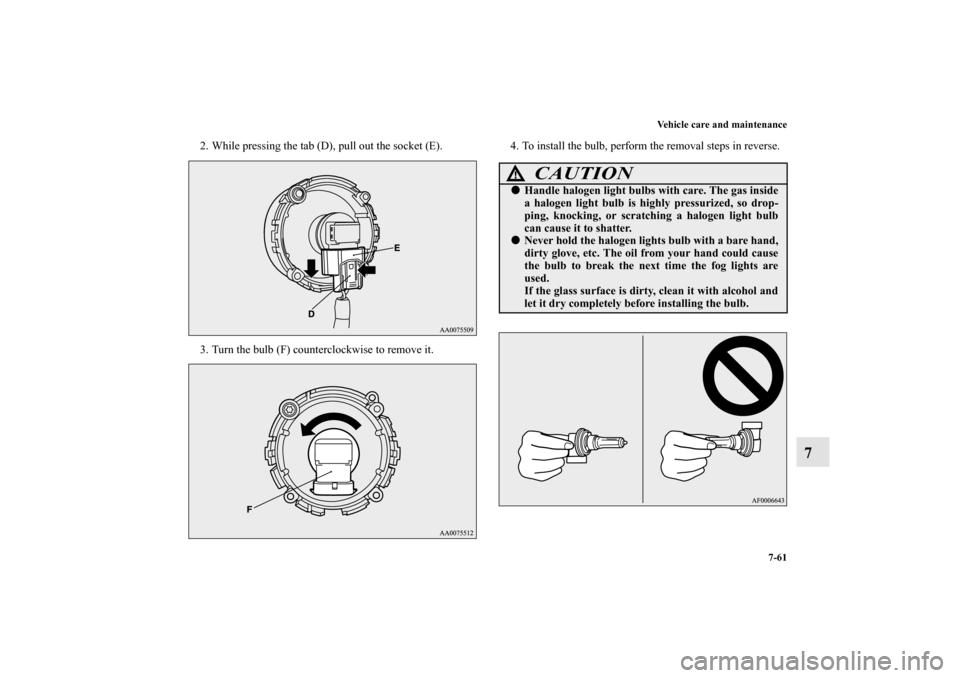

2. While pressing the tab (D), pull out the socket (E).
3. Turn the bulb (F) counterclockwise to remove it.4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
