spark plugs replace MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual

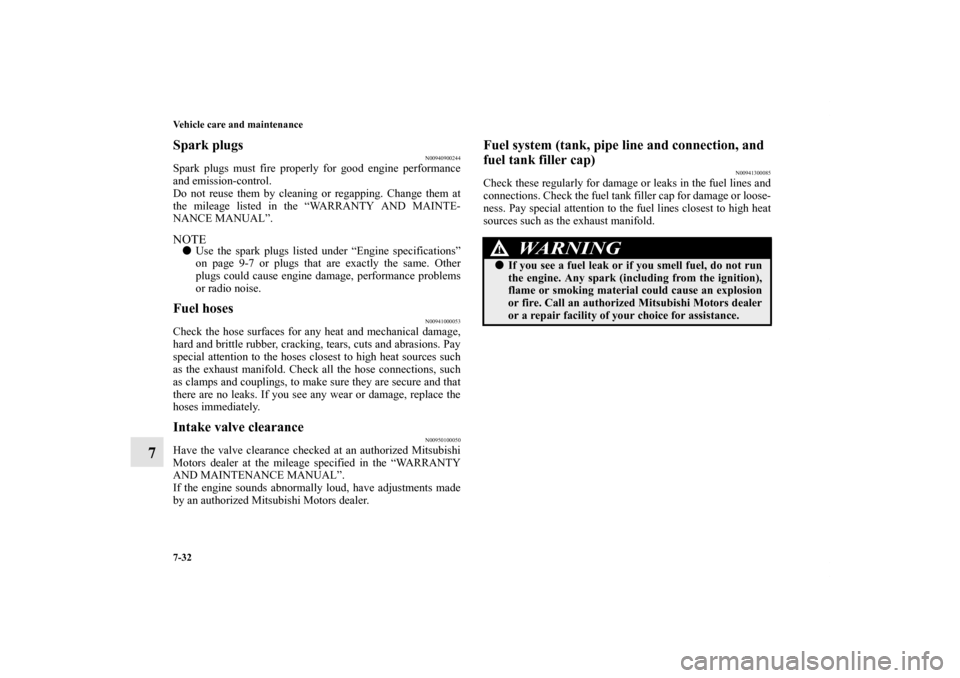

7-32 Vehicle care and maintenance
7
Spark plugs
N00940900244
Spark plugs must fire properly for good engine performance
and emission-control.
Do not reuse them by cleaning or regapping. Change them at
the mileage listed in the “WARRANTY AND MAINTE-
NANCE MANUAL”. NOTE
Use the spark plugs listed under “Engine specifications”
on page 9-7 or plugs that are exactly the same. Other
plugs could cause engine damage, performance problems
or radio noise.Fuel hoses
N00941000053
Check the hose surfaces for any heat and mechanical damage,
hard and brittle rubber, cracking, tears, cuts and abrasions. Pay
special attention to the hoses closest to high heat sources such
as the exhaust manifold. Check all the hose connections, such
as clamps and couplings, to make sure they are secure and that
there are no leaks. If you see any wear or damage, replace the
hoses immediately.Intake valve clearance
N00950100050
Have the valve clearance checked at an authorized Mitsubishi
Motors dealer at the mileage specified in the “WARRANTY
AND MAINTENANCE MANUAL”.
If the engine sounds abnormally loud, have adjustments made
by an authorized Mitsubishi Motors dealer.
Fuel system (tank, pipe line and connection, and
fuel tank filler cap)
N00941300085
Check these regularly for damage or leaks in the fuel lines and
connections. Check the fuel tank filler cap for damage or loose-
ness. Pay special attention to the fuel lines closest to high heat
sources such as the exhaust manifold.
WA R N I N G
!
If you see a fuel leak or if you smell fuel, do not run
the engine. Any spark (including from the ignition),
flame or smoking material could cause an explosion
or fire. Call an authorized Mitsubishi Motors dealer
or a repair facility of your choice for assistance.
BK0150900US.book 32 ページ ２０１２年５月７日　月曜日　午後１２時９分

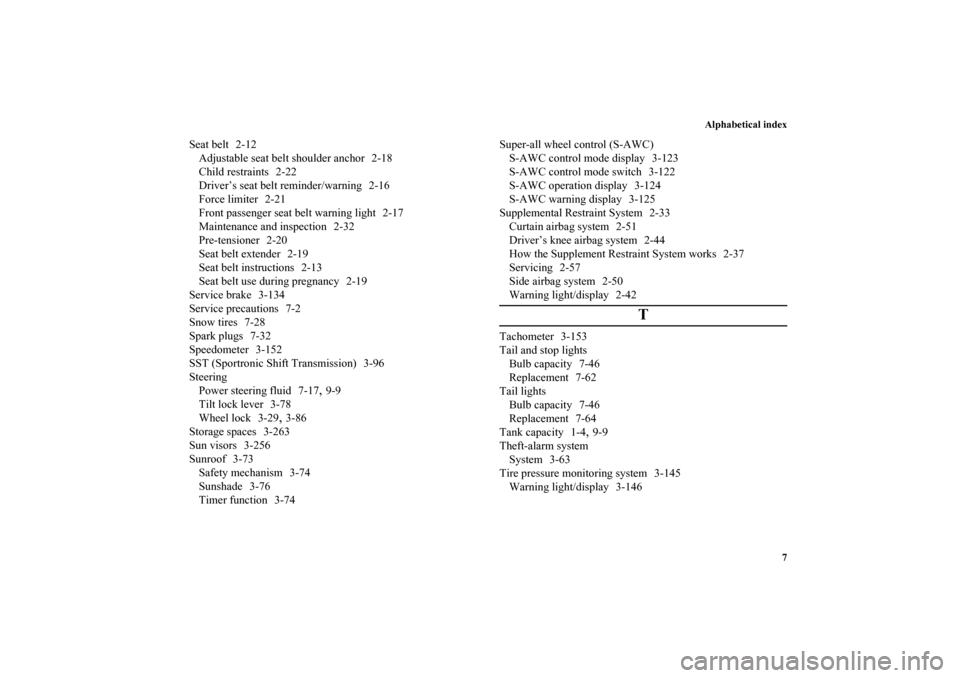

Alphabetical index
7
Seat belt 2-12
Adjustable seat belt shoulder anchor 2-18
Child restraints 2-22
Driver’s seat belt reminder/warning 2-16
Force limiter 2-21
Front passenger seat belt warning light 2-17
Maintenance and inspection 2-32
Pre-tensioner 2-20
Seat belt extender 2-19
Seat belt instructions 2-13
Seat belt use during pregnancy 2-19
Service brake 3-134
Service precautions 7-2
Snow tires 7-28
Spark plugs 7-32
Speedometer 3-152
SST (Sportronic Shift Transmission) 3-96
Steering
Power steering fluid 7-17
,9-9
Tilt lock lever 3-78
Wheel lock 3-29
,3-86
Storage spaces 3-263
Sun visors 3-256
Sunroof 3-73
Safety mechanism 3-74
Sunshade 3-76
Timer function 3-74Super-all wheel control (S-AWC)
S-AWC control mode display 3-123
S-AWC control mode switch 3-122
S-AWC operation display 3-124
S-AWC warning display 3-125
Supplemental Restraint System 2-33
Curtain airbag system 2-51
Driver’s knee airbag system 2-44
How the Supplement Restraint System works 2-37
Servicing 2-57
Side airbag system 2-50
Warning light/display 2-42
T
Tachometer 3-153
Tail and stop lights
Bulb capacity 7-46
Replacement 7-62
Tail lights
Bulb capacity 7-46
Replacement 7-64
Tank capacity 1-4
,9-9
Theft-alarm system
System 3-63
Tire pressure monitoring system 3-145
Warning light/display 3-146
BK0150900US.book 7 ページ ２０１２年５月７日　月曜日　午後１２時９分
