warning light MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual
[x] Cancel search | Manufacturer: MITSUBISHI, Model Year: 2013, Model line: LANCER EVOLUTION, Model: MITSUBISHI LANCER EVOLUTION 2013 10.GPages: 626, PDF Size: 19.71 MB
Page 5 of 626
Overview
Center panel
N00100700196
Ty p e 1 Ty p e 2
Hazard warning flasher
switch P.3-213
Heater (if so equipped)
P. 5 - 6
Air conditioning (if so equipped)
P.5-12, 5-22
Front console tray P.3-265Front console box
P. 3 - 2 6 6Hazard warning flasher
switch P.3-213
Air conditioning
P.5-12, 5-22
Auxiliary Audio connecter
(RCA) (if so equipped)
P. 5 - 1 0 3
Auxiliary Video connecter
(RCA) (if so equipped)
P. 5 - 1 0 3 Auxiliary Audio connecter (RCA)
(if so equipped) P.5-103
Auxiliary Video connecter (RCA)
(if so equipped) P.5-10312 V power outlet
P. 3 - 2 5 8 Audio (if so equipped) P.5-33, 5-52
Digital clock (if so equipped) P.5-119
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”Audio (if so equipped) P.5-33, 5-52
Digital clock (if so equipped) P.5-119
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”
Electric rear
window defogger
switch P.3-222Electric rear
window
defogger switch
P. 3 - 2 2 2 Front passenger seat belt
warning light P.2-17 Front passenger seat belt
warning light P.2-17
12 V power outlet P.3-258 Passenger’s airbag
off indicator P.2-41Passenger’s airbag
off indicator P.2-41BK0150900US.book 3 ページ 2012年5月7日 月曜日 午後12時9分
Page 12 of 626

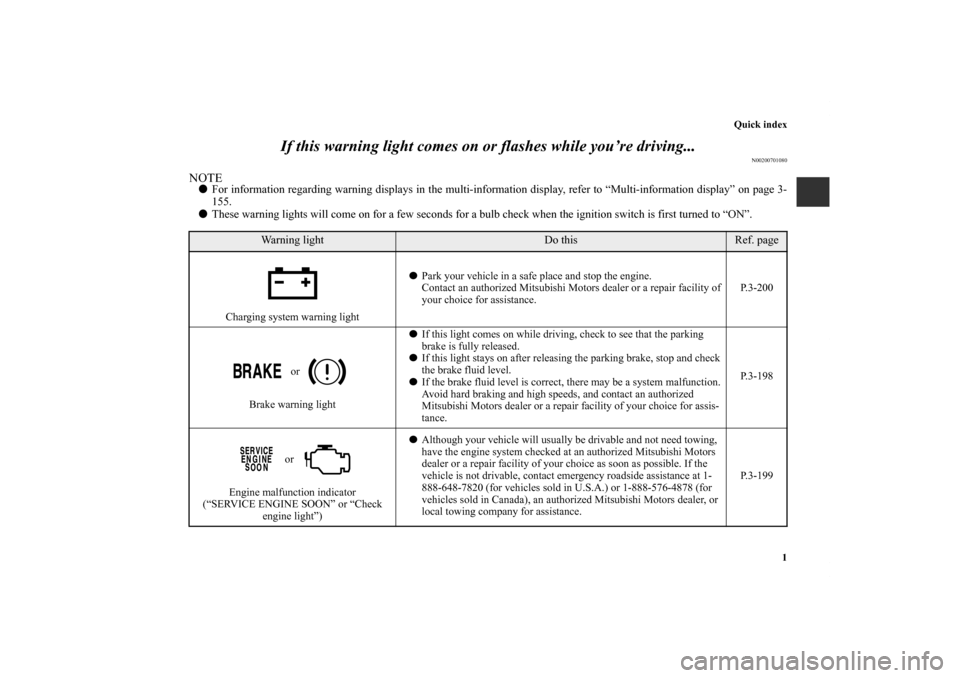

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701080
NOTEFor information regarding warning displays in the multi-information display, refer to “Multi-information display” on page 3-
155.
These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning lightPark your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.P.3-200
or
Brake warning lightIf this light comes on while driving, check to see that the parking
brake is fully released.
If this light stays on after releasing the parking brake, stop and check
the brake fluid level.
If the brake fluid level is correct, there may be a system malfunction.
Avoid hard braking and high speeds, and contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for assis-
tance.P.3-198
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or “Check
engine light”)Although your vehicle will usually be drivable and not need towing,
have the engine system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible. If the
vehicle is not drivable, contact emergency roadside assistance at 1-
888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for
vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or
local towing company for assistance.P.3-199
BK0150900US.book 1 ページ 2012年5月7日 月曜日 午後12時9分
Page 13 of 626

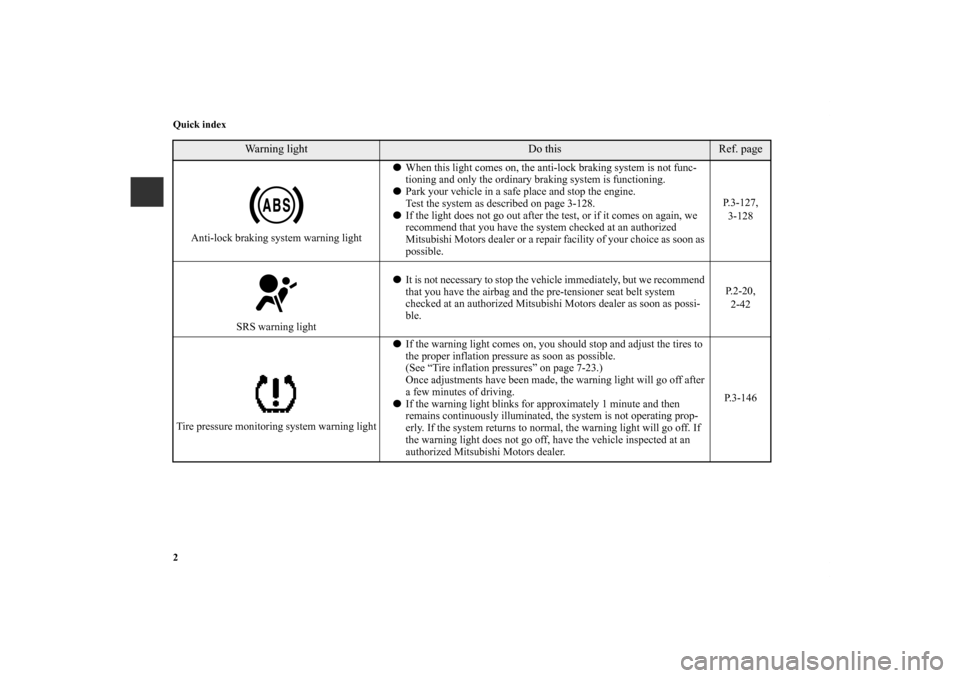

2 Quick index
Anti-lock braking system warning lightWhen this light comes on, the anti-lock braking system is not func-
tioning and only the ordinary braking system is functioning.
Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-128.
If the light does not go out after the test, or if it comes on again, we
recommend that you have the system checked at an authorized
Mitsubishi Motors dealer or a repair facility of your choice as soon as
possible.P.3-127,
3-128
SRS warning lightIt is not necessary to stop the vehicle immediately, but we recommend
that you have the airbag and the pre-tensioner seat belt system
checked at an authorized Mitsubishi Motors dealer as soon as possi-
ble.P. 2 - 2 0 ,
2-42
Tire pressure monitoring system warning lightIf the warning light comes on, you should stop and adjust the tires to
the proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-23.)
Once adjustments have been made, the warning light will go off after
a few minutes of driving.
If the warning light blinks for approximately 1 minute and then
remains continuously illuminated, the system is not operating prop-
erly. If the system returns to normal, the warning light will go off. If
the warning light does not go off, have the vehicle inspected at an
authorized Mitsubishi Motors dealer.P.3-146
Warning light
Do this
Ref. page
BK0150900US.book 2 ページ 2012年5月7日 月曜日 午後12時9分
Page 43 of 626

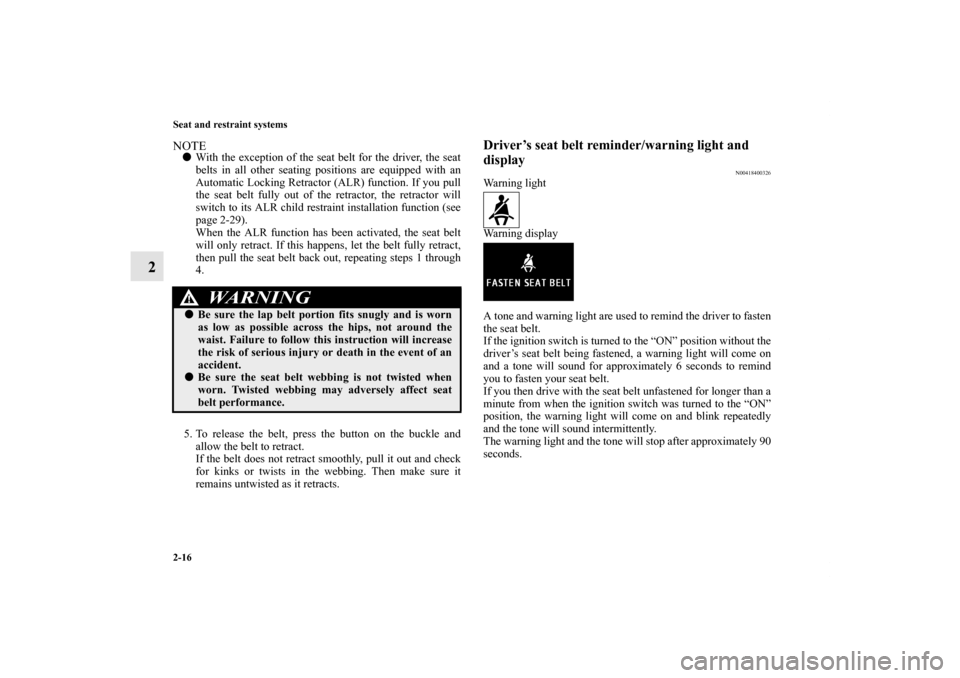

2-16 Seat and restraint systems
2
NOTEWith the exception of the seat belt for the driver, the seat
belts in all other seating positions are equipped with an
Automatic Locking Retractor (ALR) function. If you pull
the seat belt fully out of the retractor, the retractor will
switch to its ALR child restraint installation function (see
page 2-29).
When the ALR function has been activated, the seat belt
will only retract. If this happens, let the belt fully retract,
then pull the seat belt back out, repeating steps 1 through
4.
5. To release the belt, press the button on the buckle and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists in the webbing. Then make sure it
remains untwisted as it retracts.
Driver’s seat belt reminder/warning light and
display
N00418400326
Warning light
Warning display
A tone and warning light are used to remind the driver to fasten
the seat belt.
If the ignition switch is turned to the “ON” position without the
driver’s seat belt being fastened, a warning light will come on
and a tone will sound for approximately 6 seconds to remind
you to fasten your seat belt.
If you then drive with the seat belt unfastened for longer than a
minute from when the ignition switch was turned to the “ON”
position, the warning light will come on and blink repeatedly
and the tone will sound intermittently.
The warning light and the tone will stop after approximately 90
seconds.
WA R N I N G
!Be sure the lap belt portion fits snugly and is worn
as low as possible across the hips, not around the
waist. Failure to follow this instruction will increase
the risk of serious injury or death in the event of an
accident.Be sure the seat belt webbing is not twisted when
worn. Twisted webbing may adversely affect seat
belt performance.
BK0150900US.book 16 ページ 2012年5月7日 月曜日 午後12時9分
Page 44 of 626

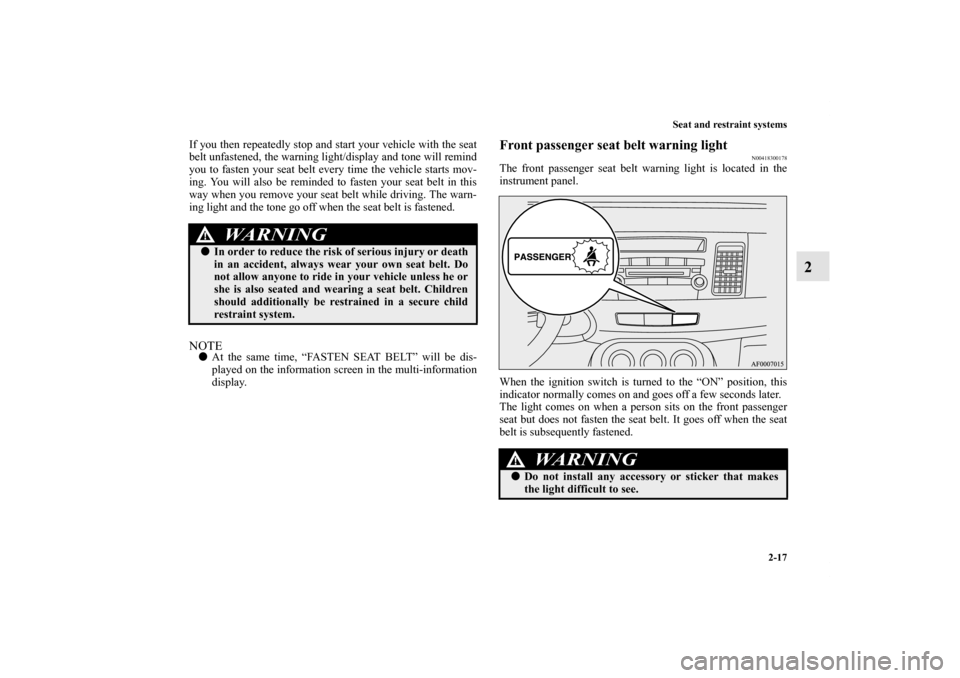

Seat and restraint systems
2-17
2
If you then repeatedly stop and start your vehicle with the seat
belt unfastened, the warning light/display and tone will remind
you to fasten your seat belt every time the vehicle starts mov-
ing. You will also be reminded to fasten your seat belt in this
way when you remove your seat belt while driving. The warn-
ing light and the tone go off when the seat belt is fastened.NOTEAt the same time, “FASTEN SEAT BELT” will be dis-
played on the information screen in the multi-information
display.
Front passenger seat belt warning light
N00418300178
The front passenger seat belt warning light is located in the
instrument panel.
When the ignition switch is turned to the “ON” position, this
indicator normally comes on and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
WA R N I N G
!In order to reduce the risk of serious injury or death
in an accident, always wear your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and wearing a seat belt. Children
should additionally be restrained in a secure child
restraint system.
WA R N I N G
!Do not install any accessory or sticker that makes
the light difficult to see.
BK0150900US.book 17 ページ 2012年5月7日 月曜日 午後12時9分
Page 47 of 626

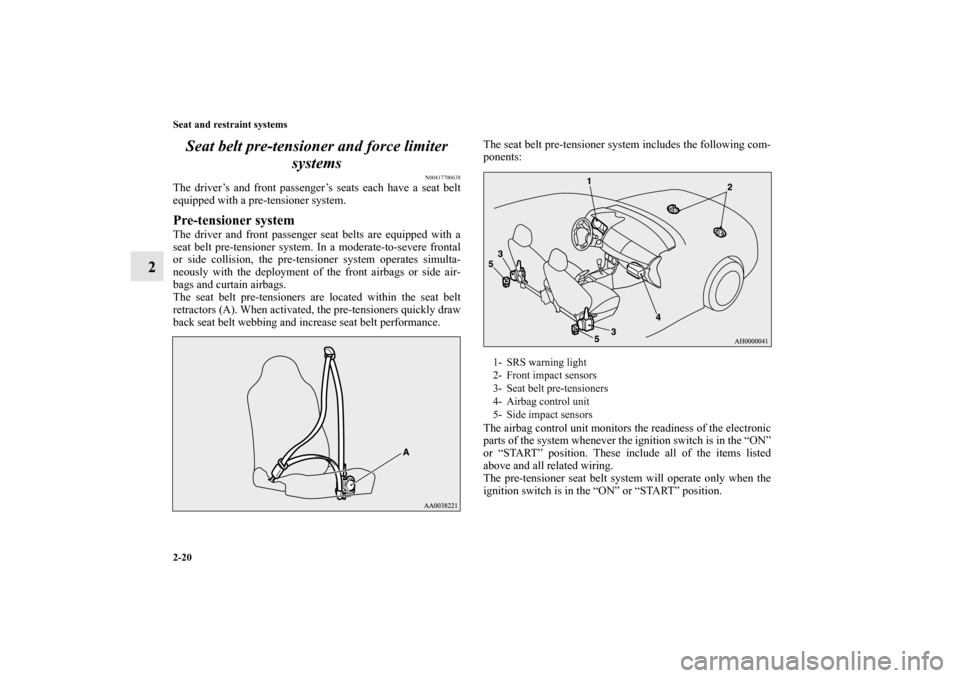

2-20 Seat and restraint systems
2Seat belt pre-tensioner and force limiter
systems
N00417700638
The driver’s and front passenger’s seats each have a seat belt
equipped with a pre-tensioner system.Pre-tensioner system The driver and front passenger seat belts are equipped with a
seat belt pre-tensioner system. In a moderate-to-severe frontal
or side collision, the pre-tensioner system operates simulta-
neously with the deployment of the front airbags or side air-
bags and curtain airbags.
The seat belt pre-tensioners are located within the seat belt
retractors (A). When activated, the pre-tensioners quickly draw
back seat belt webbing and increase seat belt performance.The seat belt pre-tensioner system includes the following com-
ponents:
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The pre-tensioner seat belt system will operate only when the
ignition switch is in the “ON” or “START” position.
1- SRS warning light
2- Front impact sensors
3- Seat belt pre-tensioners
4- Airbag control unit
5- Side impact sensors
BK0150900US.book 20 ページ 2012年5月7日 月曜日 午後12時9分
Page 48 of 626
Seat and restraint systems
2-21
2
When the seat belt pre-tensioners activate, some smoke is
released and a loud noise will be heard. The smoke is not harm-
ful, but care should be taken not to intentionally inhale it, as it
may cause some temporary irritation to people with respiratory
problems.
The pre-tensioners activate in the event of moderate-to-severe
frontal or side impact, even if the seat belt is not being worn.
The seat belt pre-tensioners may not activate in certain types of
collisions, even though the vehicle may appear to be severely
damaged. Such non-activation does not mean something is
wrong with the seat belt pre-tensioner system, but rather that
the collision forces were not severe enough or not of the type to
activate the system.
SRS warning
N00408700108
This warning tells you if there is a problem involving the SRS
airbags and the pre-tensioner seat belts. Refer to “SRS warning
light/display” on page 2-42.Force limiter system
N00408900113
In the event of an accident, the seat belt force limiter system
will help reduce the force applied to the driver and front seat
passenger.
WA R N I N G
!The seat belt pre-tensioner system is designed to
work only once. After the seat belt pre-tensioners
have been activated, they will not work again. They
must promptly be replaced and the entire seat belt
pre-tensioner system inspected by an authorized
Mitsubishi Motors dealer.
BK0150900US.book 21 ページ 2012年5月7日 月曜日 午後12時9分
Page 64 of 626
Seat and restraint systems
2-37
2

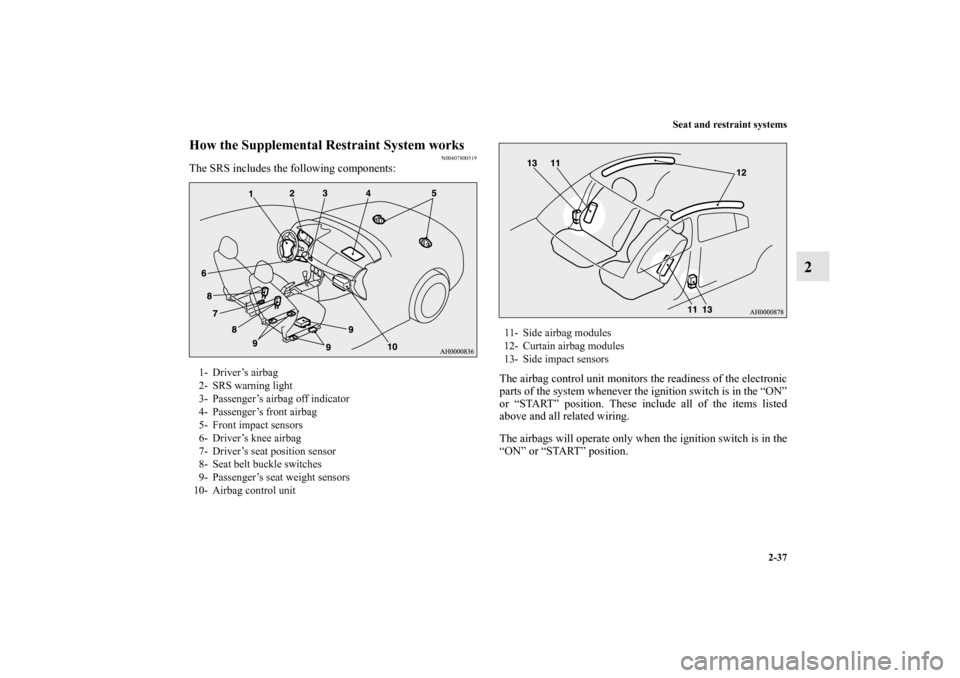

How the Supplemental Restraint System works
N00407800519
The SRS includes the following components:
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The airbags will operate only when the ignition switch is in the
“ON” or “START” position. 1- Driver’s airbag
2- SRS warning light
3- Passenger’s airbag off indicator
4- Passenger’s front airbag
5- Front impact sensors
6- Driver’s knee airbag
7- Driver’s seat position sensor
8- Seat belt buckle switches
9- Passenger’s seat weight sensors
10- Airbag control unit
11- Side airbag modules
12- Curtain airbag modules
13- Side impact sensors
BK0150900US.book 37 ページ 2012年5月7日 月曜日 午後12時9分
Page 66 of 626
Seat and restraint systems

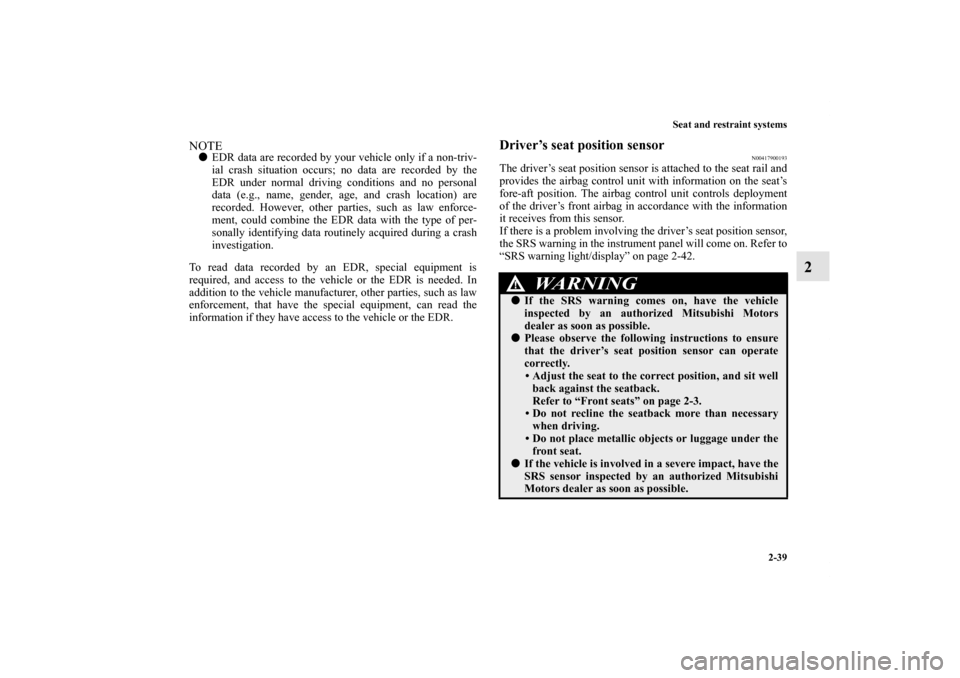

2-39
2
NOTEEDR data are recorded by your vehicle only if a non-triv-
ial crash situation occurs; no data are recorded by the
EDR under normal driving conditions and no personal
data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforce-
ment, could combine the EDR data with the type of per-
sonally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is
required, and access to the vehicle or the EDR is needed. In
addition to the vehicle manufacturer, other parties, such as law
enforcement, that have the special equipment, can read the
information if they have access to the vehicle or the EDR.
Driver’s seat position sensor
N00417900193
The driver’s seat position sensor is attached to the seat rail and
provides the airbag control unit with information on the seat’s
fore-aft position. The airbag control unit controls deployment
of the driver’s front airbag in accordance with the information
it receives from this sensor.
If there is a problem involving the driver’s seat position sensor,
the SRS warning in the instrument panel will come on. Refer to
“SRS warning light/display” on page 2-42.
WA R N I N G
!If the SRS warning comes on, have the vehicle
inspected by an authorized Mitsubishi Motors
dealer as soon as possible.Please observe the following instructions to ensure
that the driver’s seat position sensor can operate
correctly.
• Adjust the seat to the correct position, and sit well
back against the seatback.
Refer to “Front seats” on page 2-3.
• Do not recline the seatback more than necessary
when driving.
• Do not place metallic objects or luggage under the
front seat.
If the vehicle is involved in a severe impact, have the
SRS sensor inspected by an authorized Mitsubishi
Motors dealer as soon as possible.
BK0150900US.book 39 ページ 2012年5月7日 月曜日 午後12時9分
Page 67 of 626

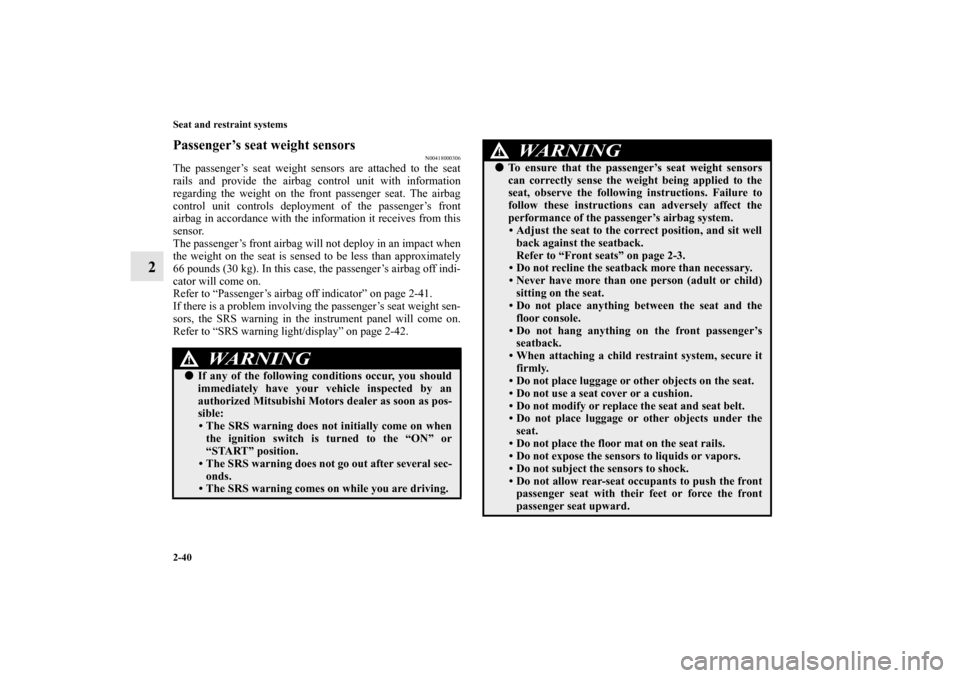

2-40 Seat and restraint systems
2
Passenger’s seat weight sensors
N00418000306
The passenger’s seat weight sensors are attached to the seat
rails and provide the airbag control unit with information
regarding the weight on the front passenger seat. The airbag
control unit controls deployment of the passenger’s front
airbag in accordance with the information it receives from this
sensor.
The passenger’s front airbag will not deploy in an impact when
the weight on the seat is sensed to be less than approximately
66 pounds (30 kg). In this case, the passenger’s airbag off indi-
cator will come on.
Refer to “Passenger’s airbag off indicator” on page 2-41.
If there is a problem involving the passenger’s seat weight sen-
sors, the SRS warning in the instrument panel will come on.
Refer to “SRS warning light/display” on page 2-42.
WA R N I N G
!If any of the following conditions occur, you should
immediately have your vehicle inspected by an
authorized Mitsubishi Motors dealer as soon as pos-
sible:
• The SRS warning does not initially come on when
the ignition switch is turned to the “ON” or
“START” position.
• The SRS warning does not go out after several sec-
onds.
• The SRS warning comes on while you are driving.
To ensure that the passenger’s seat weight sensors
can correctly sense the weight being applied to the
seat, observe the following instructions. Failure to
follow these instructions can adversely affect the
performance of the passenger’s airbag system.
• Adjust the seat to the correct position, and sit well
back against the seatback.
Refer to “Front seats” on page 2-3.
• Do not recline the seatback more than necessary.
• Never have more than one person (adult or child)
sitting on the seat.
• Do not place anything between the seat and the
floor console.
• Do not hang anything on the front passenger’s
seatback.
• When attaching a child restraint system, secure it
firmly.
• Do not place luggage or other objects on the seat.
• Do not use a seat cover or a cushion.
• Do not modify or replace the seat and seat belt.
• Do not place luggage or other objects under the
seat.
• Do not place the floor mat on the seat rails.
• Do not expose the sensors to liquids or vapors.
• Do not subject the sensors to shock.
• Do not allow rear-seat occupants to push the front
passenger seat with their feet or force the front
passenger seat upward.
WA R N I N G
!
BK0150900US.book 40 ページ 2012年5月7日 月曜日 午後12時9分
