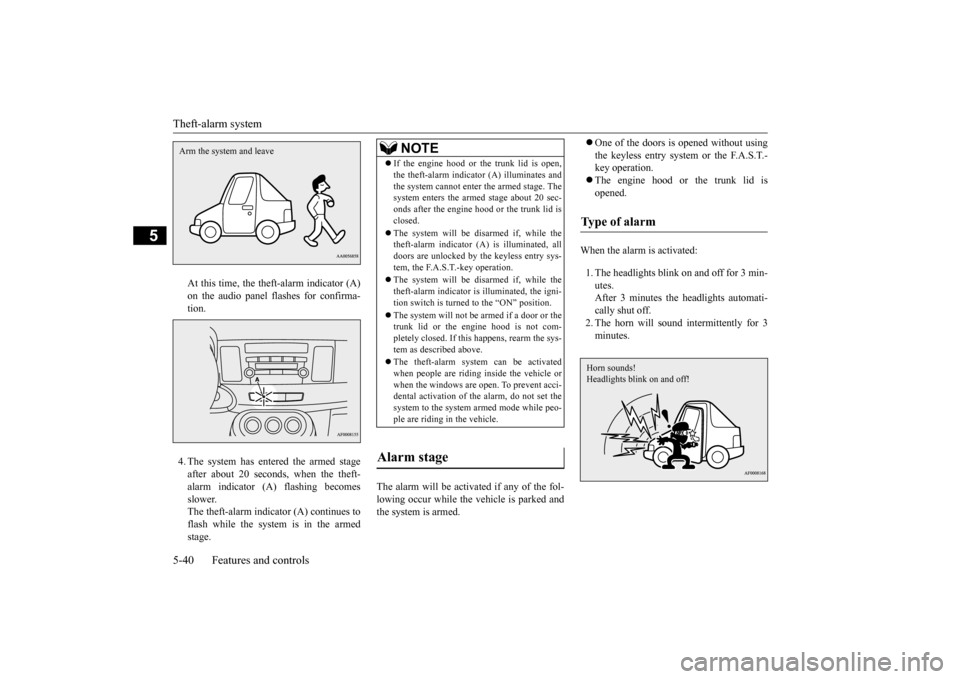

Theft-alarm system 5-40 Features and controls
5
At this time, the theft-alarm indicator (A) on the audio panel flashes for confirma- tion. 4. The system has entered the armed stage after about 20 seconds, when the theft-alarm indicator (A) flashing becomes slower. The theft-alarm indicator (A) continues toflash while the system is in the armed stage.
The alarm will be activated if any of the fol- lowing occur while the vehicle is parked andthe system is armed.
 One of the doors is opened without using the keyless entry system or the F.A.S.T.- key operation.  The engine hood or the trunk lid is opened.
When the alarm is activated: 1. The headlights blink on and off for 3 min- utes.After 3 minutes the headlights automati- cally shut off. 2. The horn will sound intermittently for 3minutes.
Arm the system and leave
NOTE
 If the engine hood or the trunk lid is open, the theft-alarm indicator (A) illuminates and the system cannot enter the armed stage. The system enters the armed stage about 20 sec- onds after the engine hood or the trunk lid isclosed.  The system will be disarmed if, while the theft-alarm indicator (A) is illuminated, all doors are unlocked by the keyless entry sys- tem, the F.A.S.T.-key operation.  The system will be disarmed if, while the theft-alarm indicator is illuminated, the igni-tion switch is turned to the “ON” position.  The system will not be
armed if a door or the
trunk lid or the engine hood is not com- pletely closed. If this happens, rearm the sys- tem as described above.  The theft-alarm system can be activated when people are riding inside the vehicle orwhen the windows are open. To prevent acci- dental activation of the alarm, do not set the system to the system armed mode while peo-ple are riding in the vehicle.
Alarm stage
Type of alarm Horn sounds!Headlights blink on and off!
BK0210800US.bo
ok 40 ページ ２０１４年４月８日　火曜日　午前１１時２８分

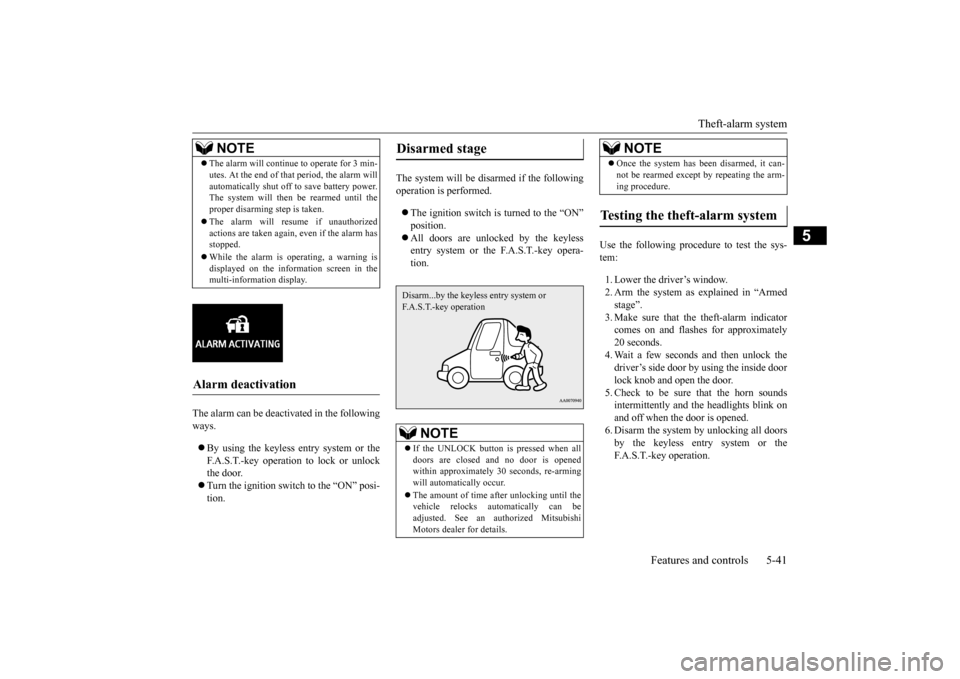

Theft-alarm system
Features and controls 5-41
5
The alarm can be deactivated in the following ways.  By using the keyless entry system or the F.A.S.T.-key operation to lock or unlock the door.  Turn the ignition switch to the “ON” posi- tion.
The system will be disarmed if the following operation is performed.  The ignition switch is turned to the “ON” position.  All doors are unlocked by the keyless entry system or the F.A.S.T.-key opera-tion.
Use the following procedure to test the sys- tem: 1. Lower the driver’s window. 2. Arm the system as explained in “Armedstage”. 3. Make sure that the theft-alarm indicator comes on and flashes for approximately20 seconds. 4. Wait a few seconds and then unlock the driver’s side door by using the inside doorlock knob and open the door. 5. Check to be sure that the horn sounds intermittently and the headlights blink onand off when the door is opened. 6. Disarm the system by unlocking all doors by the keyless entry system or theF.A.S.T.-key operation.
NOTE
 The alarm will continue to operate for 3 min- utes. At the end of that period, the alarm will automatically shut off to save battery power. The system will then
be rearmed until the
proper disarming step is taken.  The alarm will resume if unauthorized actions are taken again, even if the alarm hasstopped.  While the alarm is operating, a warning is displayed on the information screen in the multi-information display.
Alarm deactivation
Disarmed stage
NOTE
 If the UNLOCK button is pressed when all doors are closed and no door is opened within approximately 30 seconds, re-arming will automatically occur.  The amount of time after unlocking until the vehicle relocks automatically can beadjusted. See an authorized Mitsubishi Motors dealer for details.Disarm...by the keyless entry system or F.A.S.T.-key operation
 Once the system has been disarmed, it can- not be rearmed except by repeating the arm- ing procedure.
Testing the theft-alarm system
NOTE
BK0210800US.bo
ok 41 ページ ２０１４年４月８日　火曜日　午前１１時２８分

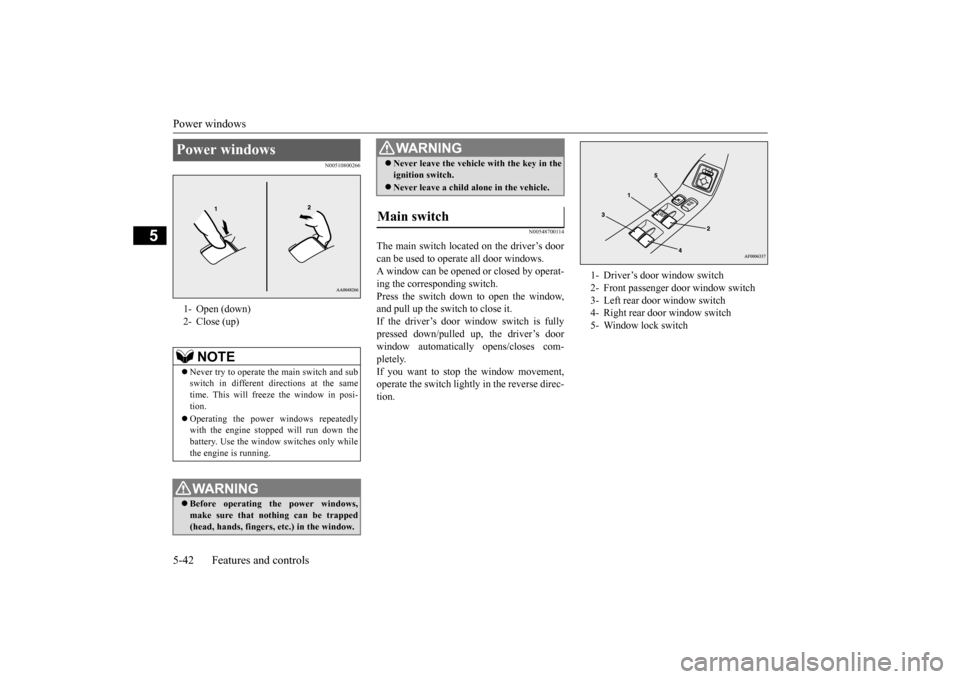

Power windows 5-42 Features and controls
5
N00510800266
N00548700114
The main switch located on the driver’s door can be used to operate all door windows. A window can be opened or closed by operat-ing the corresponding switch.Press the switch down to open the window, and pull up the switch to close it. If the driver’s door window switch is fullypressed down/pulled up, the driver’s door window automatically opens/closes com- pletely.If you want to stop the window movement, operate the switch lightly in the reverse direc- tion.
Power windows 1- Open (down) 2- Close (up)
NOTE
 Never try to operate the main switch and sub switch in different directions at the sametime. This will freeze the window in posi- tion.  Operating the power windows repeatedly with the engine stopped will run down the battery. Use the window switches only whilethe engine is running. WA R N I N G Before operating the power windows, make sure that nothing can be trapped(head, hands, fingers, etc.) in the window.
 Never leave the vehicle with the key in the ignition switch.  Never leave a child alone in the vehicle.
Main switch
WA R N I N G
1- Driver’s door window switch 2- Front passenger door window switch 3- Left rear door window switch 4- Right rear door window switch 5- Window lock switch
BK0210800US.bo
ok 42 ページ ２０１４年４月８日　火曜日　午前１１時２８分

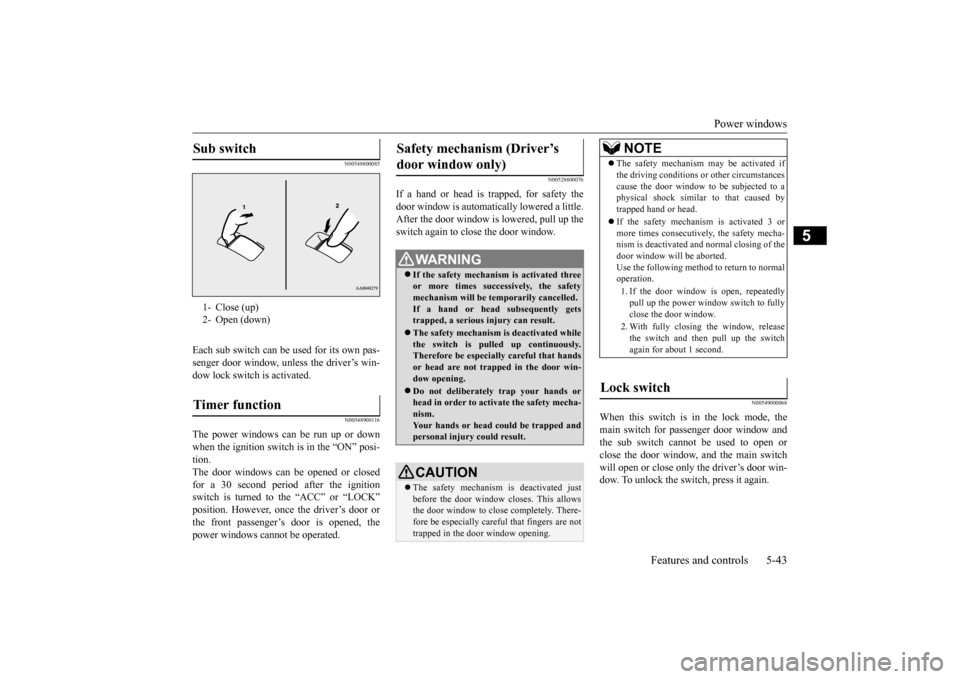

Power windows
Features and controls 5-43
5
N00548800085
Each sub switch can be used for its own pas-
senger door window, unless the driver’s win-
dow lock switch is activated.
N00548900116
The power windows can be run up or down
when the ignition switch is in the “ON” posi-
tion.
The door windows can be opened or closed
for a 30 second period after the ignition
switch is turned to the “ACC” or “LOCK”
position. However, once the driver’s door or
the front passenger’s door is opened, the
power windows cannot be operated.
N00528800076
If a hand or head is trapped, for safety the
door window is automatically lowered a little.
After the door window is lowered, pull up the
switch again to close the door window.
N00549000068
When this switch is in the lock mode, the
main switch for passenger door window and
the sub switch cannot be used to open or
close the door window, and the main switch
will open or close only the driver’s door win-
dow. To unlock the switch, press it again.
Sub switch 1- Close (up)
2- Open (down)Timer function
Safety mechanism (Driver’s
door window only)
WA R N I N G If the safety mechanism is activated three
or more times successively, the safety
mechanism will be temporarily cancelled.
If a hand or head subsequently gets
trapped, a serious injury can result.The safety mechanism is deactivated while
the switch is pulled up continuously.
Therefore be especially careful that hands
or head are not trapped in the door win-
dow opening.Do not deliberately trap your hands or
head in order to activate the safety mecha-
nism.
Your hands or head could be trapped and
personal injury could result.CAUTIONThe safety mechanism is deactivated just
before the door window closes. This allows
the door window to close completely. There-
fore be especially careful that fingers are not
trapped in the door window opening.
NOTE
The safety mechanism may be activated if
the driving conditions or other circumstances
cause the door window to be subjected to a
physical shock similar to that caused by
trapped hand or head.
 If the safety mechanism is activated 3 or
more times consecutively, the safety mecha-
nism is deactivated and normal closing of the
door window will be aborted.
Use the following method to return to normal
operation.
1. If the door window is open, repeatedly pull up the power window switch to fully
close the door window.
2. With fully closing the window, release the switch and then pull up the switch
again for about 1 second.Lock switch
SC00000600-3.fm 43 ページ ２０１４年４月１６日　水曜日　午後２時６分

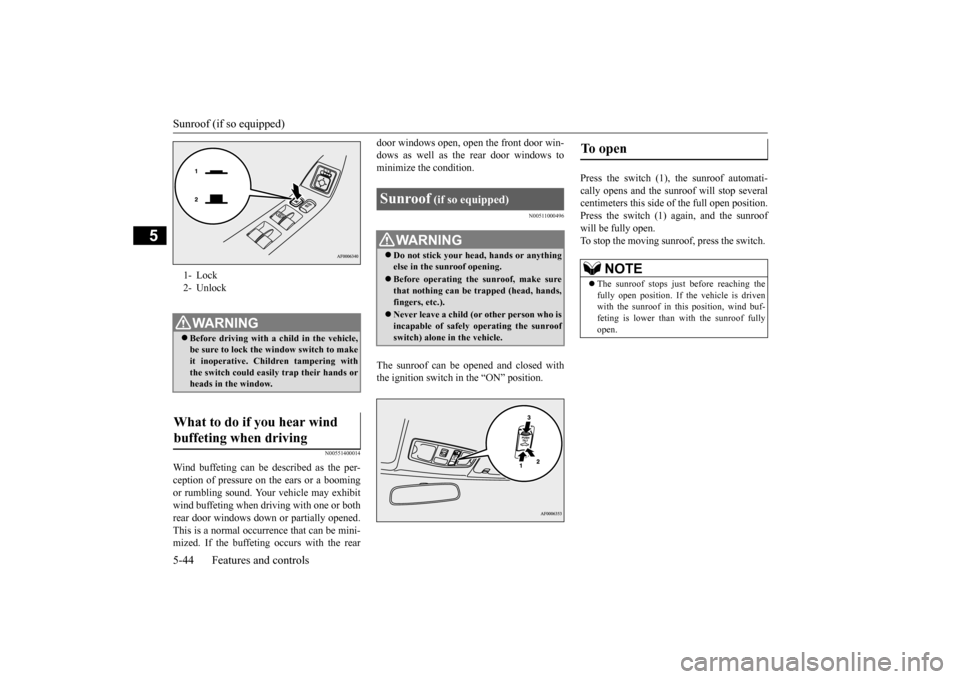

Sunroof (if so equipped)
5-44 Features and controls
5
N00551400014
Wind buffeting can be described as the per-
ception of pressure on the ears or a booming
or rumbling sound. Your vehicle may exhibit
wind buffeting when driving with one or both
rear door windows down or partially opened.
This is a normal occurrence that can be mini-
mized. If the buffeting occurs with the reardoor windows open, open the front door win-
dows as well as the rear door windows to
minimize the condition.
N00511000496
The sunroof can be opened and closed with
the ignition switch in the “ON” position.
Press the switch (1), the sunroof automati-
cally opens and the sunroof will stop several
centimeters this side of
the full open position.
Press the switch (1) again, and the sunroof
will be fully open.
To stop the moving sunroo f, press the switch.
1- Lock
2- Unlock
WA R N I N G Before driving with a child in the vehicle,
be sure to lock the window switch to make
it inoperative. Children tampering with
the switch could easily trap their hands or
heads in the window. What to do if you hear wind
buffeting when driving
Sunroof
(if so equipped)
WA R N I N GDo not stick your head, hands or anything
else in the sunroof opening. Before operating the sunroof, make sure
that nothing can be trapped (head, hands,
fingers, etc.).Never leave a child (or other person who is
incapable of safely operating the sunroof
switch) alone in the vehicle.
To open

NOTE
The sunroof stops just before reaching the
fully open position. If the vehicle is driven
with the sunroof in this position, wind buf-
feting is lower than with the sunroof fully
open.
SC00000600-3.fm 44 ページ ２０１４年４月１６日　水曜日　午後２時６分

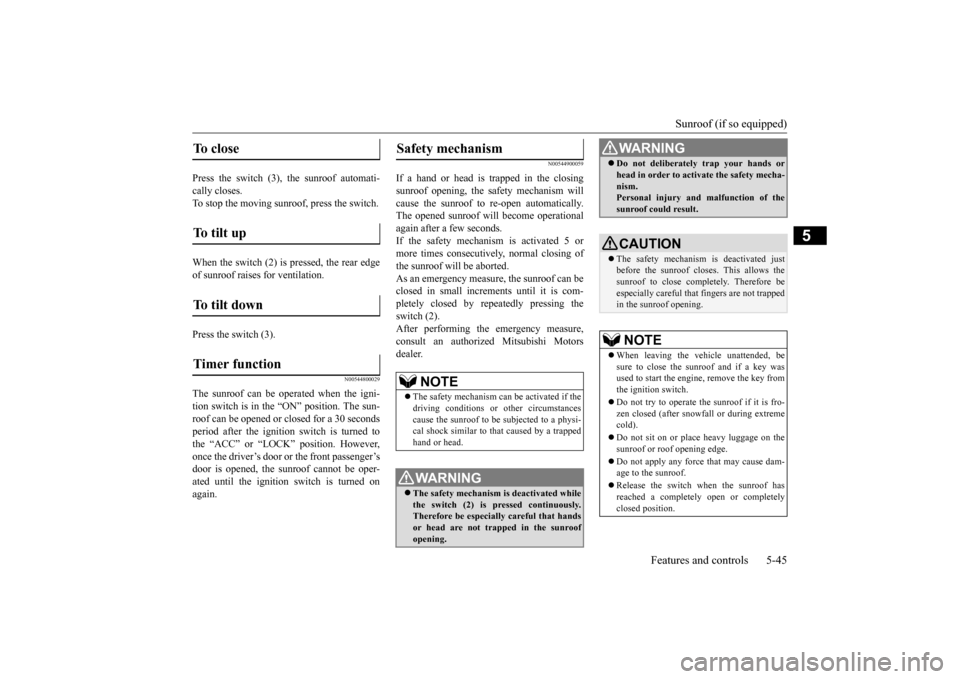

Sunroof (if so equipped)
Features and controls 5-45
5
Press the switch (3), the sunroof automati- cally closes.To stop the moving sunroof, press the switch. When the switch (2) is pressed, the rear edge of sunroof raises for ventilation. Press the switch (3).
N00544800029
The sunroof can be oper
ated when the igni-
tion switch is in the “ON” position. The sun- roof can be opened or closed for a 30 secondsperiod after the ignition
switch is turned to
the “ACC” or “LOCK” position. However, once the driver’s door or the front passenger’sdoor is opened, the sunroof cannot be oper- ated until the ignition switch is turned on again.
N00544900059
If a hand or head is trapped in the closingsunroof opening, the safety mechanism willcause the sunroof to re-open automatically. The opened sunroof will become operational again after a few seconds.If the safety mechanism is activated 5 or more times consecutively, normal closing of the sunroof will be aborted.As an emergency measure, the sunroof can beclosed in small increments until it is com- pletely closed by repeatedly pressing the switch (2).After performing the emergency measure, consult an authorized Mitsubishi Motors dealer.
To close

To tilt up

To tilt down

Timer function

Safety mechanism

NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the sunroof to be subjected to a physi-cal shock similar to that caused by a trapped hand or head.WA R N I N G The safety mechanism is deactivated while the switch (2) is pressed continuously. Therefore be especially careful that handsor head are not trapped in the sunroof opening.
 Do not deliberately trap your hands or head in order to activate the safety mecha- nism. Personal injury and malfunction of the sunroof could result.CAUTION The safety mechanism is deactivated just before the sunroof closes. This allows the sunroof to close completely. Therefore be especially careful that fingers are not trappedin the sunroof opening.NOTE
 When leaving the vehicle unattended, be sure to close the sunr
oof and if a key was
used to start the engine, remove the key from the ignition switch.  Do not try to operate the sunroof if it is fro- zen closed (after snowfall or during extreme cold).  Do not sit on or place heavy luggage on the sunroof or roof opening edge.  Do not apply any force that may cause dam- age to the sunroof.  Release the switch when the sunroof has reached a completely open or completely closed position.WA R N I N G
BK0210800US.bo
ok 45 ページ ２０１４年４月８日　火曜日　午前１１時２８分

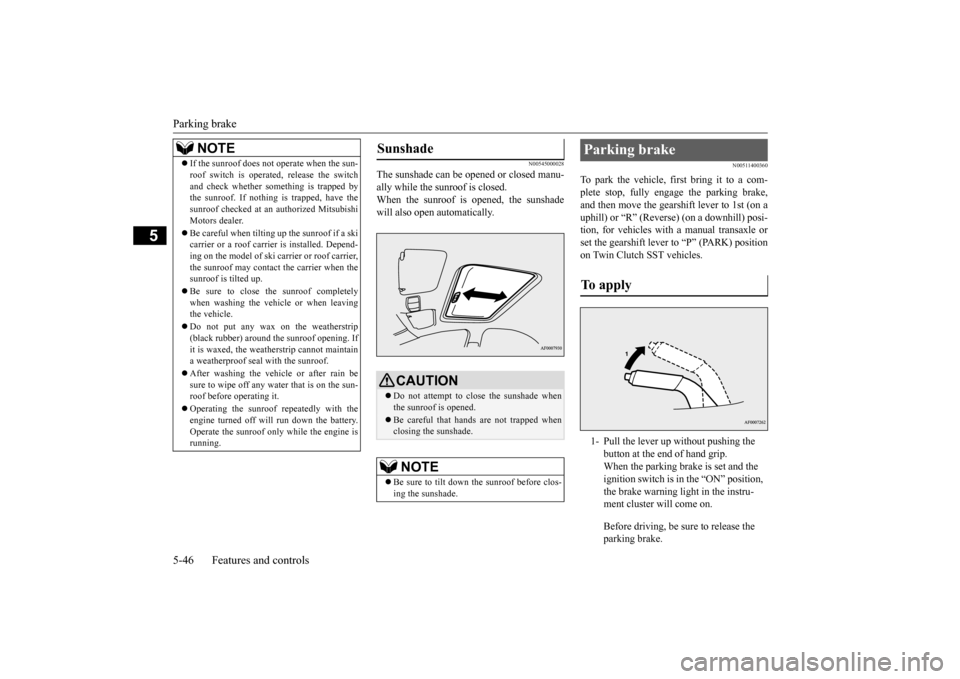

Parking brake 5-46 Features and controls
5
N00545000028
The sunshade can be opened or closed manu- ally while the sunroof is closed.When the sunroof is opened, the sunshade will also open automatically.
N00511400360
To park the vehicle, first bring it to a com- plete stop, fully engage the parking brake,and then move the gearshift lever to 1st (on a uphill) or “R” (Reverse) (on a downhill) posi- tion, for vehicles with a manual transaxle orset the gearshift lever to “P” (PARK) position on Twin Clutch SST vehicles.
 If the sunroof does not operate when the sun- roof switch is operated, release the switch and check whether something is trapped by the sunroof. If nothing is trapped, have the sunroof checked at an authorized MitsubishiMotors dealer.  Be careful when tilting
up the sunroof if a ski
carrier or a roof carrier is installed. Depend- ing on the model of ski car
rier or roof carrier,
the sunroof may contact the carrier when thesunroof is tilted up.  Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.  Do not put any wax on the weatherstrip (black rubber) around the sunroof opening. If it is waxed, the weatherstrip cannot maintaina weatherproof seal with the sunroof.  After washing the vehicle or after rain be sure to wipe off any water that is on the sun- roof before operating it.  Operating the sunroof repeatedly with the engine turned off will run down the battery. Operate the sunroof only while the engine isrunning.NOTE
Sunshade

CAUTION Do not attempt to close the sunshade when the sunroof is opened. Be careful that hands are not trapped when closing the sunshade.NOTE
 Be sure to tilt down the sunroof before clos- ing the sunshade.
Parking brake To apply 1- Pull the lever up without pushing the
button at the end of hand grip. When the parking brake is set and the ignition switch is in the “ON” position, the brake warning light in the instru-ment cluster will come on. Before driving, be sure to release the parking brake.
BK0210800US.bo
ok 46 ページ ２０１４年４月８日　火曜日　午前１１時２８分

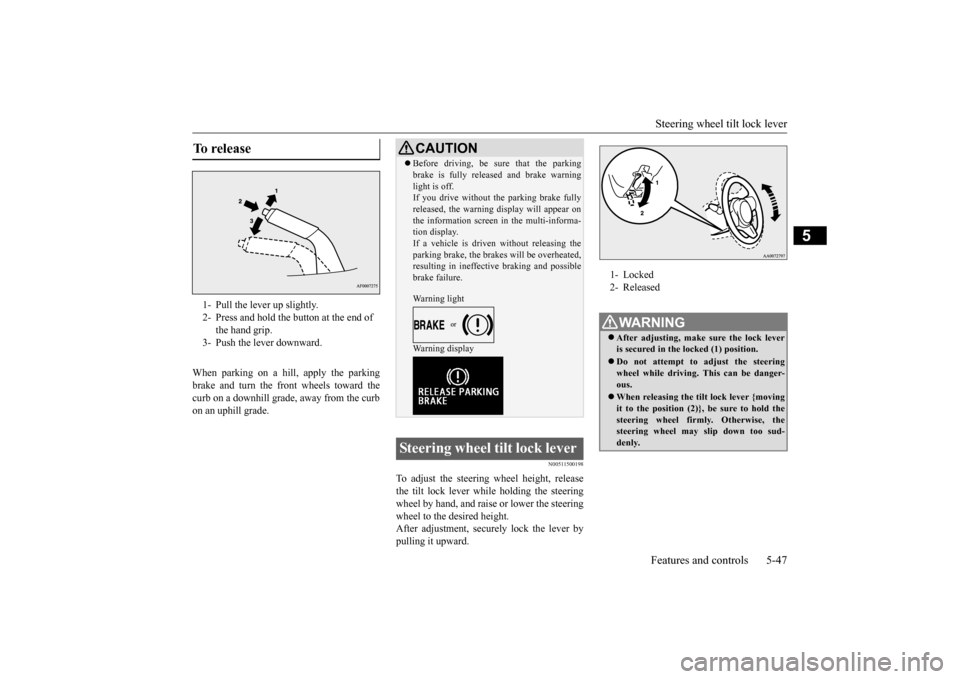

Steering wheel tilt lock lever Features and controls 5-47
5
When parking on a hill, apply the parking brake and turn the front wheels toward thecurb on a downhill grade, away from the curb on an uphill grade.
N00511500198
To adjust the steering wheel height, releasethe tilt lock lever while holding the steering wheel by hand, and raise or lower the steeringwheel to the desired height. After adjustment, securely lock the lever by pulling it upward.
To release 1- Pull the lever up slightly. 2- Press and hold the button at the end of
the hand grip.
3- Push the lever downward.
CAUTION Before driving, be sure that the parking brake is fully released and brake warning light is off. If you drive without the parking brake fully released, the warning display will appear onthe information screen in the multi-informa- tion display. If a vehicle is driven without releasing theparking brake, the brakes will be overheated, resulting in ineffective braking and possible brake failure. Warning light Warning display
Steering wheel tilt lock lever
1- Locked 2- ReleasedWA R N I N G After adjusting, make sure the lock lever is secured in the locked (1) position.  Do not attempt to adjust the steering wheel while driving. This can be danger- ous. When releasing the tilt lock lever {moving it to the position (2)}, be sure to hold thesteering wheel firmly. Otherwise, the steering wheel may slip down too sud- denly.
ç
BK0210800US.bo
ok 47 ページ ２０１４年４月８日　火曜日　午前１１時２８分

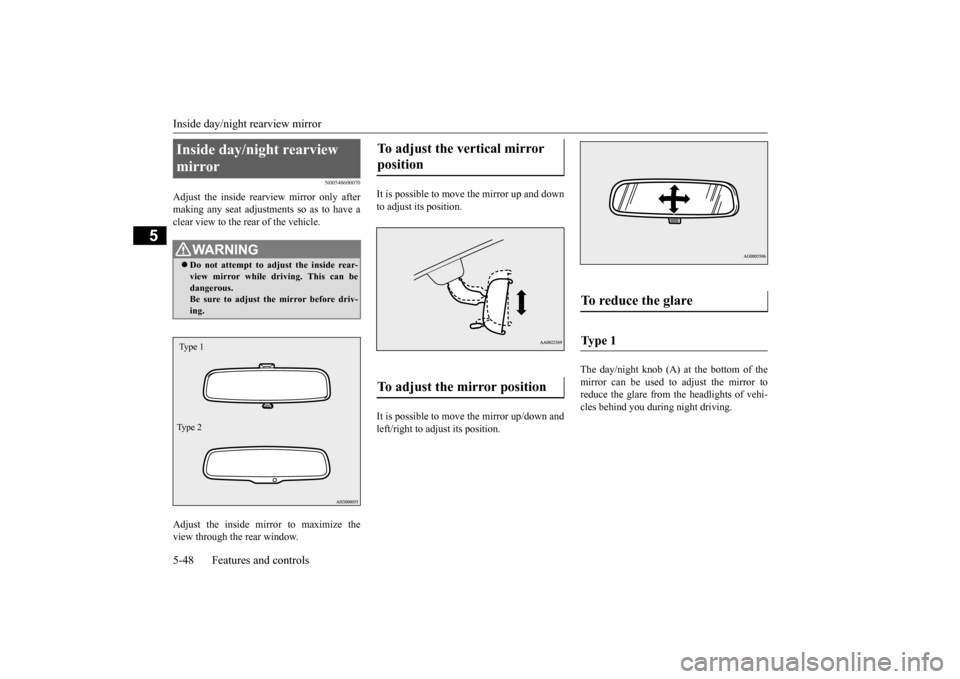

Inside day/night rearview mirror 5-48 Features and controls
5
N00548600070
Adjust the inside rear
view mirror only after
making any seat adjustme
nts so as to have a
clear view to the rear of the vehicle. Adjust the inside mirror to maximize the view through the rear window.
It is possible to move
the mirror up and down
to adjust its position. It is possible to move the mirror up/down and left/right to adjust its position.
The day/night knob (A) at the bottom of the mirror can be used to adjust the mirror toreduce the glare from the headlights of vehi-cles behind you during night driving.
Inside day/night rearview mirror
WA R N I N G Do not attempt to adjust the inside rear- view mirror while driving. This can be dangerous.Be sure to adjust the mirror before driv- ing.Type 1 Ty p e 2
To adjust the vertical mirror position To adjust the mirror position
To reduce the glare Ty p e 1
BK0210800US.bo
ok 48 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Outside rearview mirrors
Features and controls 5-49
5
When the headlights of the vehicles behind you are very bright, the reflection factor of the rearview mirror is automatically changedto reduce the glare.
Normally, use the automatic mode. When the ignition switch is turned to the “ON” posi- tion, the reflection fact
or of the mirror is
automatically changed.
N00512201258
Adjust the outside rearview mirrors only aftermaking any seat adjustments so you have aclear view to the rear of the vehicle.
The outside rearview mirrors can be adjusted when the ignition switch is in the “ON” or “ACC” position.Move the lever (A) to the same side as the mirror you wish to adjust. Press the switch (B) to adjust the mirror posi- tion.
1- Daytime position 2- Night positionTy p e 2
NOTE
 Do not hang items on, or spray glass cleaner on the sensor (1), as reduced sensitivitycould result.
Outside rearview mirrors
WA R N I N G Do not attempt to adjust the outside rear- view mirrors while driving. This can be dangerous. Be sure to adjust the mirrors before driv-ing. Your passenger’s side mirror is convex. The objects you see in the mirror will look smaller and farther away than theyappear in a regular flat mirror. Do not use this mirror to estimate the dis- tance of vehicles following you whenchanging lanes.
To adjust the mirror position L- Left outside mirror adjustment R- Right outside mirror adjustment 1- Up 2- Down 3- Right4- Left
BK0210800US.bo
