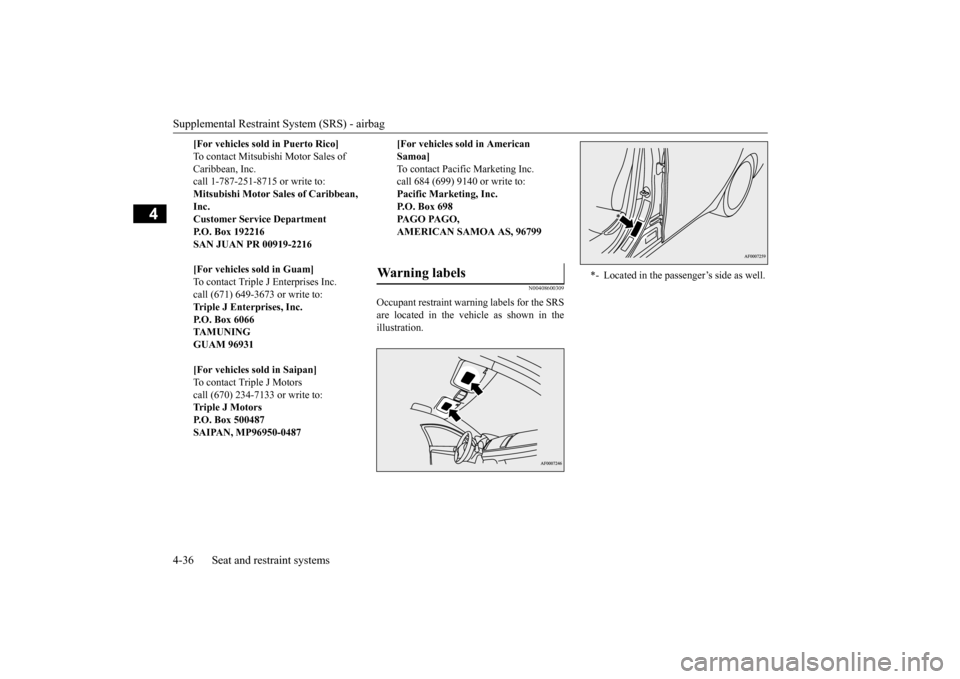

Supplemental Restraint System (SRS) - airbag 4-36 Seat and restraint systems
4
N00408600309
Occupant restraint warning labels for the SRS are located in the vehicle as shown in the illustration.
[For vehicles sold in Puerto Rico] To contact Mitsubishi Motor Sales of Caribbean, Inc. call 1-787-251-8715 or write to: Mitsubishi Motor Sales of Caribbean, Inc. Customer Service Department P.O. Box 192216SAN JUAN PR 00919-2216 [For vehicles sold in Guam] To contact Triple J Enterprises Inc.call (671) 649-3673 or write to: Triple J Enterprises, Inc. P.O. Box 6066TAMUNING GUAM 96931 [For vehicles sold in Saipan] To contact Triple J Motors call (670) 234-7133 or write to:Triple J Motors P.O. Box 500487 SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]To contact Pacific Marketing Inc. call 684 (699) 9140 or write to: Pacific Marketing, Inc.P.O. Box 698 PA G O PA G O , AMERICAN SAMOA AS, 96799
Warning labels
*- Located in the passenger’s side as well.
BK0210800US.bo
ok 36 ページ ２０１４年４月８日　火曜日　午前１１時２８分

5

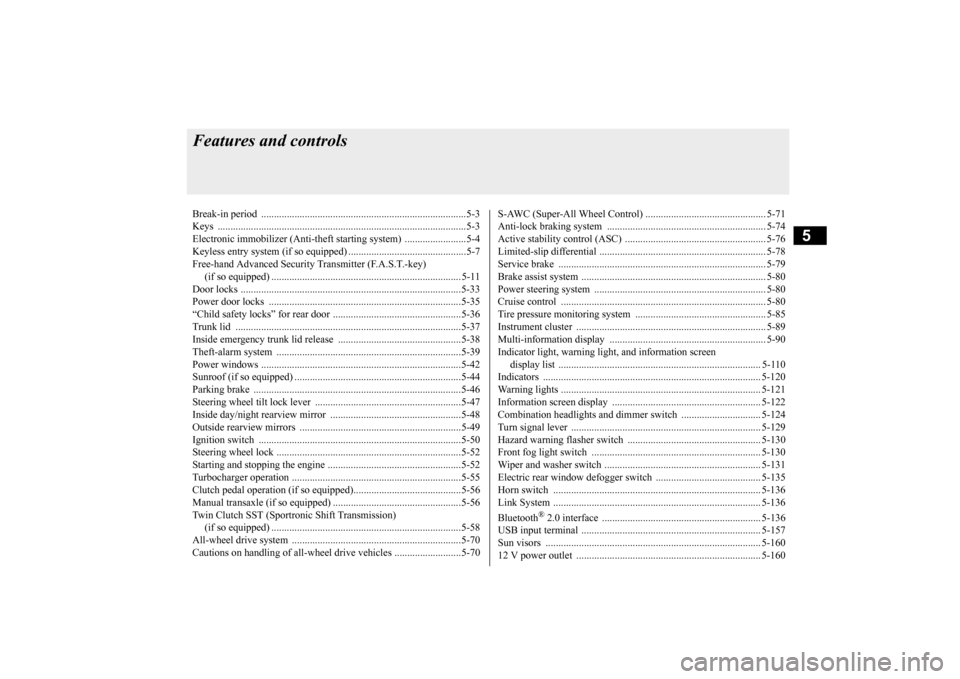

Features and controlsBreak-in period ...............
.................................................................5-3
Keys ..........................................
.......................................................5-3
Electronic immobilizer (Anti-thef
t starting system) ........................5-4
Keyless entry system (if so equipped) ..............................................5-7Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) .
.................................................
........................ 5-11
Door locks .......................
...............................................................5-33
Power door locks ............
...............................................................5-35
“Child safety locks” for
rear door ..................................................5-36
Trunk lid ...................................
.....................................................5-37
Inside emergency trunk lid
release ................................................5-38
Theft-alarm system
................................................
........................5-39
Power windows ...............
...............................................................5-42
Sunroof (if so equipped
) .........................................
........................5-44
Parking brake ..................
...............................................................5-46
Steering wheel tilt lock lever .........................................................5-47Inside day/night rearview
mirror ...................................................5-48
Outside rearview mirr
ors ...............................................................5-49
Ignition switch ......
.................................................
........................5-50
Steering wheel lock
................................................
........................5-52
Starting and stopping the e
ngine ....................................................5-52
Turbocharger operation
..........................................
........................5-55
Clutch pedal operation (if so equipped)..........................................5-56Manual transaxle (if so equipped) ..................................................5-56 Twin Clutch SST (Sportronic Shift Transmission) (if so equipped) .
.................................................
........................5-58
All-wheel drive system
..........................................
........................5-70
Cautions on handling of all-wheel drive vehicles ..........................5-70
S-AWC (Super-All Wheel C
ontrol) ............................................... 5-71
Anti-lock braking syst
em .....................................
......................... 5-74
Active stability control
(ASC) ....................
................................... 5-76
Limited-slip differenti
al ..............................
................................... 5-78
Service brake .................
.................................................
............... 5-79
Brake assist system
...............................................
......................... 5-80
Power steering system
..........................................
......................... 5-80
Cruise control ................
.................................................
............... 5-80
Tire pressure monitoring
system ................................................... 5-85
Instrument cluster
.................................................
......................... 5-89
Multi-information disp
lay ....................................
......................... 5-90
Indicator light, warning light, and information screen display list ...........................
.................................................... 5-110
Indicators .................................
.................................................... 5-120
Warning lights ................
.................................................
............. 5-121
Information screen disp
lay ...................................
....................... 5-122
Combination headlights and dimmer switch ............................... 5-124 Turn signal lever ..
.................................................
....................... 5-129
Hazard warning flasher
switch .................................................... 5-130
Front fog light switch
...........................................
....................... 5-130
Wiper and washer swit
ch ......................................
....................... 5-131
Electric rear window def
ogger switch ......................................... 5-135
Horn switch .............................
.................................................... 5-136
Link System .............................
.................................................... 5-136
Bluetooth
® 2.0 interface ..........
.................................................... 5-136
USB input terminal
...............................................
....................... 5-157
Sun visors ......................
.................................................
............. 5-160
12 V power outlet ..........
.................................................
............. 5-160
BK0210800US.bo
ok 1 ページ ２０１４年４月８日　火曜日　午前１１時２８分

5

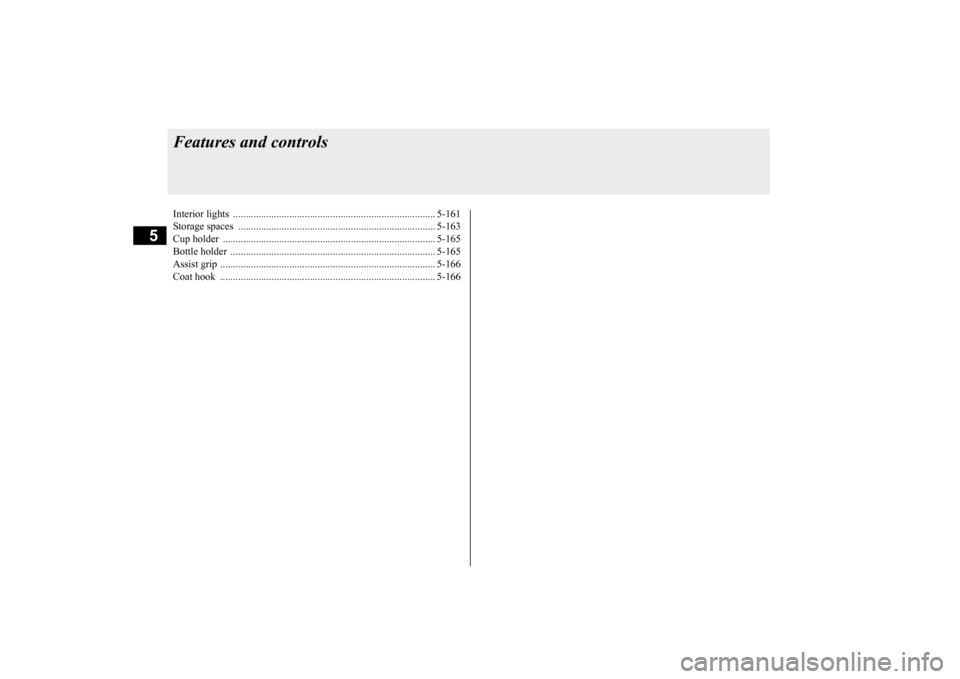

Features and controlsInterior lights ......
.................................................
........................ 5-161
Storage spaces ..............
............................................................... 5-163
Cup holder ..............................
..................................................... 5-165
Bottle holder .................
............................................................... 5-165
Assist grip .....................
............................................................... 5-166
Coat hook ...............................
..................................................... 5-166
BK0210800US.bo
ok 2 ページ ２０１４年４月８日　火曜日　午前１１時２８分

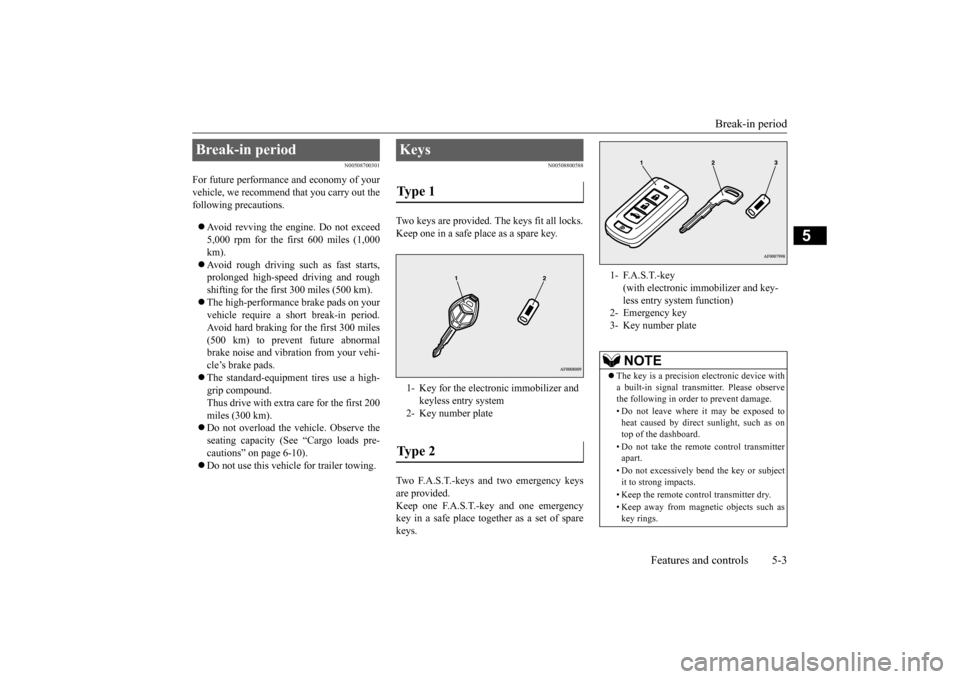

Break-in period
Features and controls 5-3
5
N00508700301
For future performance and economy of your vehicle, we recommend that you carry out thefollowing precautions.  Avoid revving the engine. Do not exceed 5,000 rpm for the first 600 miles (1,000 km). Avoid rough driving such as fast starts, prolonged high-speed driving and rough shifting for the first 300 miles (500 km).  The high-performance brake pads on your vehicle require a short break-in period. Avoid hard braking fo
r the first 300 miles
(500 km) to prevent future abnormalbrake noise and vibration from your vehi- cle’s brake pads.  The standard-equipment tires use a high- grip compound. Thus drive with extra care for the first 200 miles (300 km). Do not overload the vehicle. Observe the seating capacity (See “Cargo loads pre- cautions” on page 6-10). Do not use this vehicle for trailer towing.
N00508800588
Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key. Two F.A.S.T.-keys and two emergency keys are provided.Keep one F.A.S.T.-key and one emergency key in a safe place together as a set of spare keys.
Break-in period
Keys Type 1 1- Key for the electronic immobilizer and
keyless entry system
2- Key number plateType 2
1- F.A.S.T.-key
(with electronic immobilizer and key- less entry system function)
2- Emergency key3- Key number plate
NOTE
 The key is a precision electronic device with a built-in signal transmitter. Please observe the following in order to prevent damage. • Do not leave where it may be exposed to heat caused by direct sunlight, such as on top of the dashboard. • Do not take the remote control transmitter apart. • Do not excessively bend the key or subject it to strong impacts. • Keep the remote control transmitter dry. • Keep away from magnetic objects such as key rings.
BK0210800US.bo
ok 3 ページ ２０１４年４月８日　火曜日　午前１１時２８分

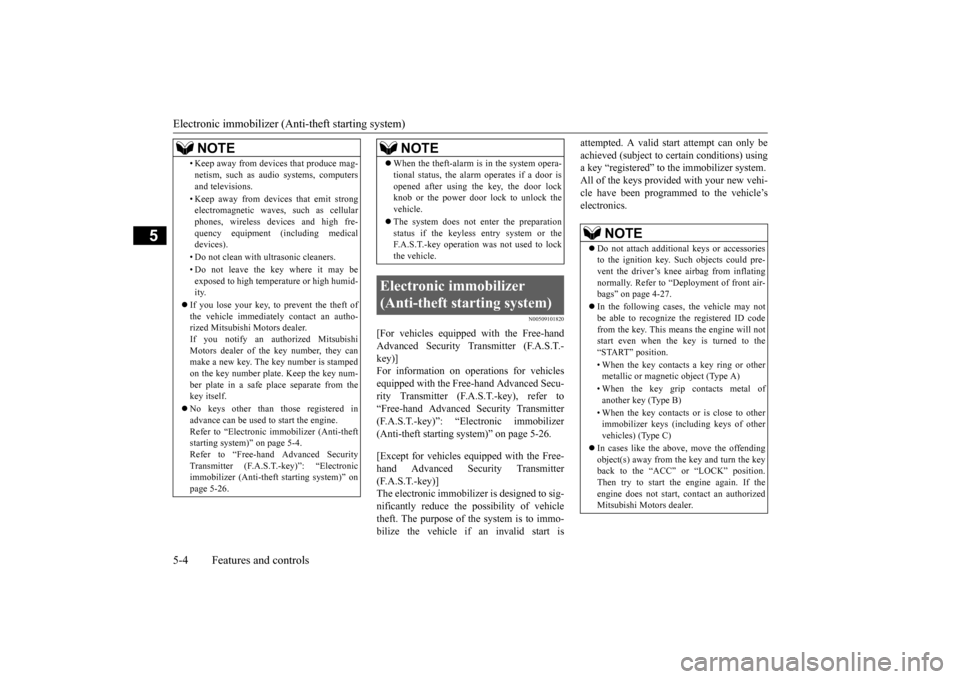

Electronic immobilizer (Anti-theft starting system) 5-4 Features and controls
5
N00509101820
[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.- key)] For information on operations for vehiclesequipped with the Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Security Transmitter(F.A.S.T.-key)”: “Electronic immobilizer (Anti-theft starting system)” on page 5-26. [Except for vehicles equipped with the Free- hand Advanced Security Transmitter(F.A.S.T.-key)] The electronic immobilizer is designed to sig- nificantly reduce the possibility of vehicletheft. The purpose of the system is to immo- bilize the vehicle if an invalid start is
attempted. A valid start attempt can only be achieved (subject to certain conditions) using a key “registered” to the immobilizer system. All of the keys provided with your new vehi-cle have been programmed to the vehicle’s electronics.
• Keep away from devices that produce mag- netism, such as audio systems, computers and televisions. • Keep away from devices that emit strong electromagnetic waves, such as cellular phones, wireless devices and high fre- quency equipment (including medicaldevices). • Do not clean with ultrasonic cleaners.• Do not leave the key where it may be exposed to high temperature or high humid-ity.
 If you lose your key, to prevent the theft of the vehicle immediately contact an autho- rized Mitsubishi Motors dealer. If you notify an authorized MitsubishiMotors dealer of the key number, they can make a new key. The key number is stamped on the key number plate. Keep the key num-ber plate in a safe place separate from the key itself.  No keys other than those registered in advance can be used to start the engine. Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-4. Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key)”: “Electronic immobilizer (Anti-theft starting system)” on page 5-26.NOTE
 When the theft-alarm is in the system opera- tional status, the alarm operates if a door is opened after using the key, the door lock knob or the power door lock to unlock the vehicle.  The system does not enter the preparation status if the keyless entry system or theF.A.S.T.-key operation was not used to lock the vehicle.
Electronic immobilizer (Anti-theft starting system)
NOTE
NOTE
 Do not attach additional keys or accessories to the ignition key. Such objects could pre- vent the driver’s knee airbag from inflating normally. Refer to “Deployment of front air-bags” on page 4-27.  In the following cases, the vehicle may not be able to recognize the registered ID code from the key. This means the engine will not start even when the key is turned to the“START” position. • When the key contacts a key ring or other metallic or magnetic object (Type A) • When the key grip contacts metal of another key (Type B) • When the key contacts or is close to other immobilizer keys (including keys of other vehicles) (Type C)
 In cases like the above, move the offending object(s) away from the key and turn the key back to the “ACC” or “LOCK” position. Then try to start the engine again. If the engine does not start,
contact an authorized
Mitsubishi Motors dealer.
BK0210800US.bo
ok 4 ページ ２０１４年４月８日　火曜日　午前１１時２８分

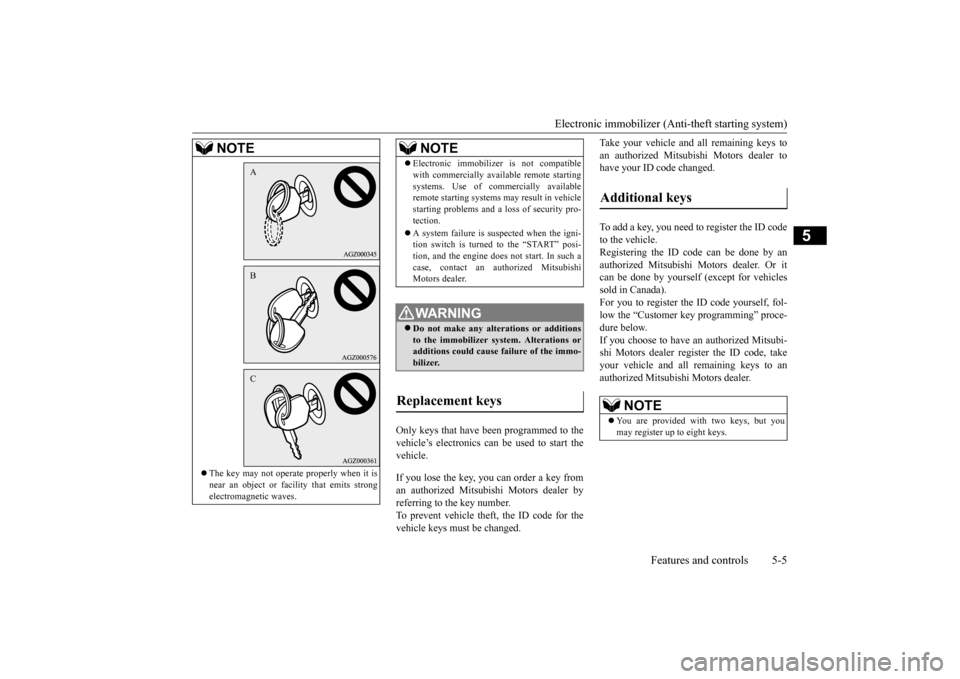

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
Only keys that have been programmed to the vehicle’s electronics can be used to start thevehicle. If you lose the key, you can order a key from an authorized Mitsubishi Motors dealer by referring to the key number.To prevent vehicle theft, the ID code for the vehicle keys must be changed.
Take your vehicle and all remaining keys to an authorized Mitsubishi Motors dealer to have your ID code changed. To add a key, you need to register the ID code to the vehicle. Registering the ID code can be done by anauthorized Mitsubishi Motors dealer. Or itcan be done by yourself (except for vehicles sold in Canada). For you to register the ID code yourself, fol-low the “Customer key programming” proce- dure below. If you choose to have an authorized Mitsubi-shi Motors dealer register the ID code, take your vehicle and all remaining keys to an authorized Mitsubishi Motors dealer.
 The key may not operate properly when it is near an object or facility that emits strongelectromagnetic waves.NOTE
ABC
 Electronic immobilizer is not compatible with commercially available remote starting systems. Use of commercially available remote starting systems may result in vehicle starting problems and a lo
ss of security pro-
tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi- tion, and the engine does not start. In such a case, contact an authorized MitsubishiMotors dealer.WA R N I N G Do not make any alterations or additions to the immobilizer system. Alterations or additions could cause failure of the immo-bilizer.
Replacement keys
NOTE
Additional keys
NOTE
 You are provided with two keys, but you may register up to eight keys.
BK0210800US.bo
ok 5 ページ ２０１４年４月８日　火曜日　午前１１時２８分

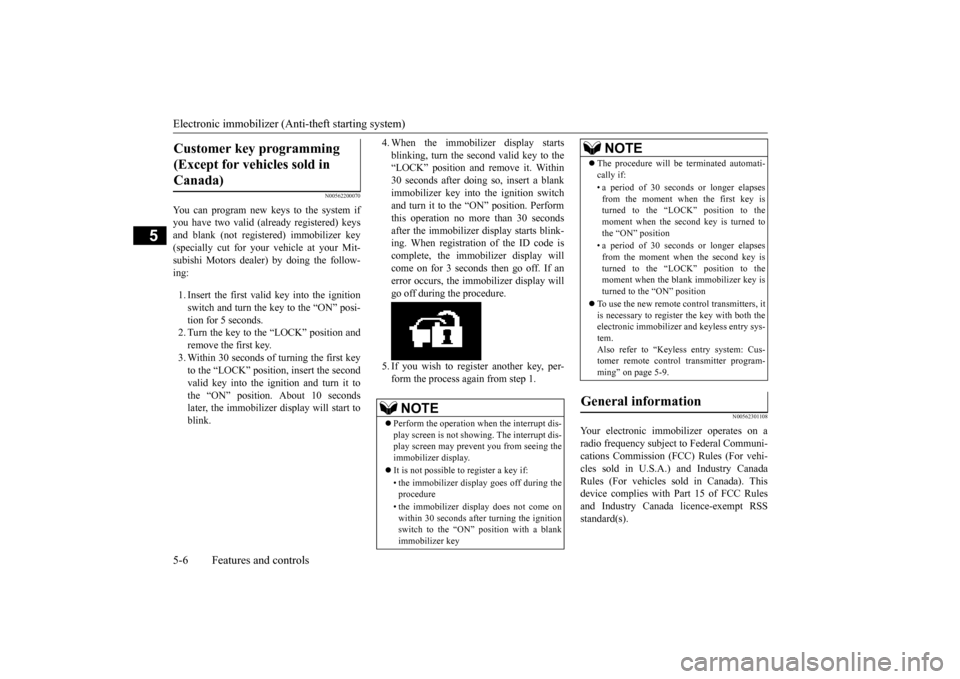

Electronic immobilizer (Anti-theft starting system) 5-6 Features and controls
5
N00562200070
You can program new keys to the system if you have two valid (already registered) keys and blank (not registered) immobilizer key(specially cut for your vehicle at your Mit- subishi Motors dealer) by doing the follow- ing: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi-tion for 5 seconds. 2. Turn the key to the “LOCK” position and remove the first key.3. Within 30 seconds of turning the first key to the “LOCK” position, insert the second valid key into the ignition and turn it tothe “ON” position. About 10 seconds later, the immobilizer display will start to blink.
4. When the immobilizer display starts blinking, turn the second valid key to the “LOCK” position and remove it. Within 30 seconds after doing so, insert a blankimmobilizer key into the ignition switch and turn it to the “ON” position. Perform this operation no more than 30 secondsafter the immobilizer display starts blink- ing. When registration of the ID code is complete, the immobilizer display willcome on for 3 seconds then go off. If anerror occurs, the immobilizer display will go off during the procedure. 5. If you wish to register another key, per- form the process again from step 1.
N00562301108
Your electronic immobilizer operates on a radio frequency subject to Federal Communi- cations Commission (FCC) Rules (For vehi- cles sold in U.S.A.) and Industry CanadaRules (For vehicles sold in Canada). This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSSstandard(s).
Customer key programming (Except for vehicles sold in Canada)
NOTE
 Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.  It is not possible to register a key if: • the immobilizer display goes off during the procedure • the immobilizer display does not come on within 30 seconds after turning the ignition switch to the “ON” position with a blankimmobilizer key
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first key isturned to the “LOCK” position to the moment when the second key is turned to the “ON” position • a period of 30 seconds or longer elapses from the moment when the second key isturned to the “LOCK” position to the moment when the blank immobilizer key is turned to the “ON” position
 To use the new remote control transmitters, it is necessary to register the key with both theelectronic immobilizer and keyless entry sys- tem. Also refer to “Keyless entry system: Cus-tomer remote control transmitter program- ming” on page 5-9.
General information
NOTE
BK0210800US.bo
ok 6 ページ ２０１４年４月８日　火曜日　午前１１時２８分

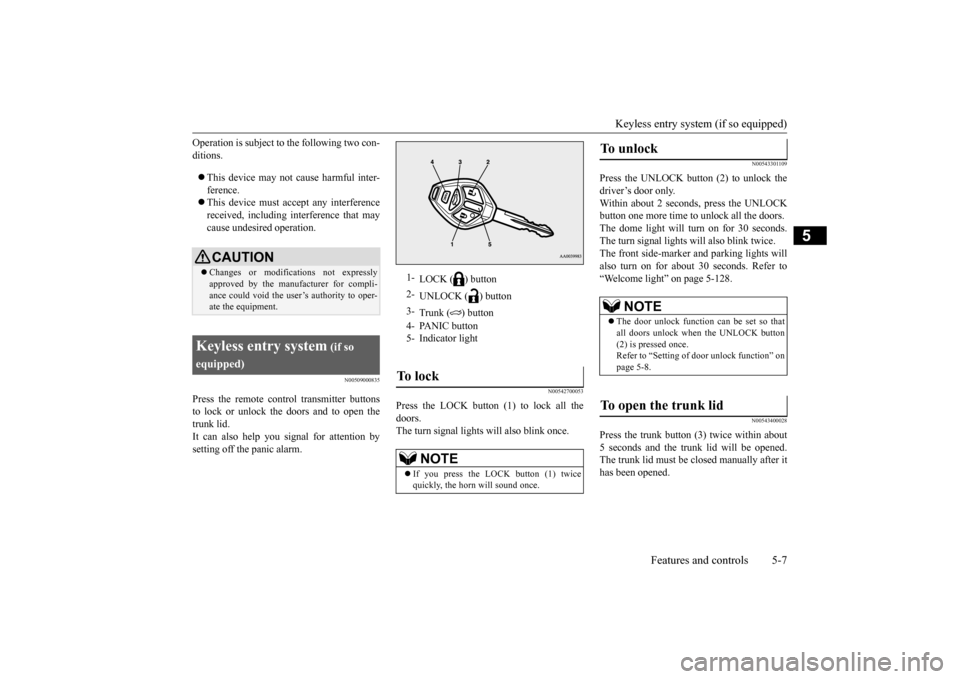

Keyless entry system (if so equipped)
Features and controls 5-7
5
Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that may cause undesired operation.
N00509000835
Press the remote control transmitter buttonsto lock or unlock the doors and to open the trunk lid.It can also help you signal for attention by setting off the panic alarm.
N00542700053
Press the LOCK button (1) to lock all the doors.The turn signal lights will also blink once.
N00543301109
Press the UNLOCK button (2) to unlock thedriver’s door only.Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors. The dome light will turn on for 30 seconds.The turn signal lights will also blink twice. The front side-marker and parking lights will also turn on for about 30 seconds. Refer to“Welcome light” on page 5-128.
N00543400028
Press the trunk button (3) twice within about 5 seconds and the trunk lid will be opened. The trunk lid must be closed manually after ithas been opened.
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Keyless entry system
(if so
equipped)
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4- PANIC button 5- Indicator lightTo l o c k

NOTE
 If you press the LOCK button (1) twice quickly, the horn will sound once.
To u n l o c k

NOTE
 The door unlock function can be set so that all doors unlock when the UNLOCK button (2) is pressed once.Refer to “Setting of door unlock function” on page 5-8.
To open the trunk lid

BK0210800US.bo
ok 7 ページ ２０１４年４月８日　火曜日　午前１１時２８分

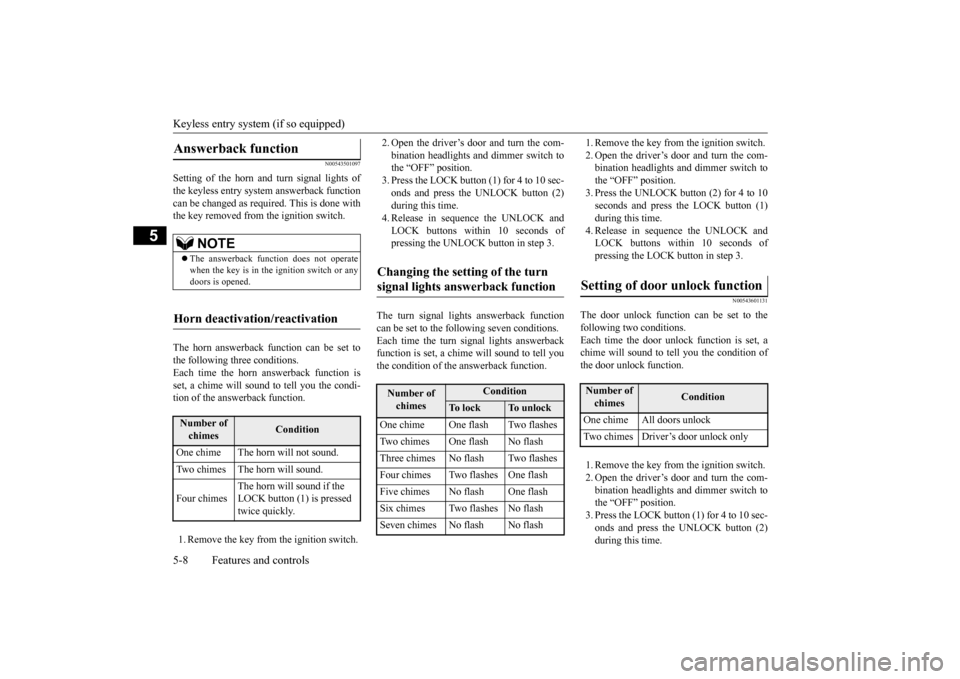

Keyless entry system (if so equipped) 5-8 Features and controls
5
N00543501097
Setting of the horn and turn signal lights of the keyless entry system answerback functioncan be changed as required. This is done with the key removed from the ignition switch. The horn answerback function can be set to the following three conditions. Each time the horn answerback function isset, a chime will sound to tell you the condi- tion of the answerback function. 1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
The turn signal lights answerback function can be set to the following seven conditions.Each time the turn signal lights answerback function is set, a chime will sound to tell you the condition of the answerback function.
1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time.4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00543601131
The door unlock function can be set to the following two conditions. Each time the door unlock function is set, achime will sound to te
ll you the condition of
the door unlock function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time.
Answerback function

NOTE
 The answerback function does not operate when the key is in the ignition switch or any doors is opened.
Horn deactivation/reactivation

Number of chimes
Condition
One chime The horn will not sound. Two chimes The horn will sound. Four chimes
The horn will sound if the LOCK button (1) is pressed twice quickly.
Changing the setting of the turn signal lights answerback function

Number of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashesTwo chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes No flash No flash
Setting of door unlock function

Number of chimes
Condition
One chime All doors unlock Two chimes Driver’s door unlock only
BK0210800US.bo
ok 8 ページ ２０１４年４月８日　火曜日　午前１１時２８分

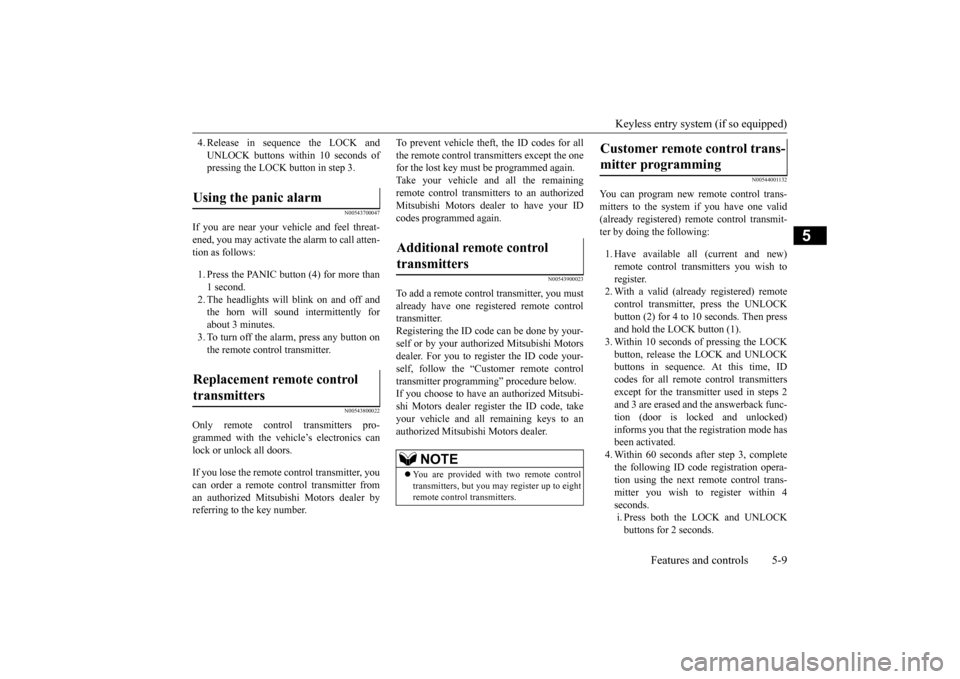

Keyless entry system (if so equipped)
Features and controls 5-9
5
4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00543700047
If you are near your vehicle and feel threat-ened, you may activate the alarm to call atten- tion as follows: 1. Press the PANIC button (4) for more than 1 second.2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes.3. To turn off the alarm, press any button on the remote control transmitter.
N00543800022
Only remote control transmitters pro- grammed with the vehicle’s electronics canlock or unlock all doors. If you lose the remote control transmitter, you can order a remote control transmitter from an authorized Mitsubishi Motors dealer byreferring to the key number.
To prevent vehicle theft, the ID codes for all the remote control transmitters except the one for the lost key must be programmed again. Take your vehicle and all the remainingremote control transmitters to an authorized Mitsubishi Motors dealer to have your ID codes programmed again.
N00543900023
To add a remote control transmitter, you mustalready have one registered remote controltransmitter. Registering the ID code can be done by your- self or by your authorized Mitsubishi Motorsdealer. For you to register the ID code your- self, follow the “Customer remote control transmitter programming” procedure below.If you choose to have an authorized Mitsubi- shi Motors dealer register the ID code, take your vehicle and all remaining keys to anauthorized Mitsubishi Motors dealer.
N00544001132
You can program new remote control trans-mitters to the system if you have one valid (already registered) remote control transmit- ter by doing the following: 1. Have available all (current and new) remote control transmitters you wish toregister. 2. With a valid (already registered) remote control transmitter, press the UNLOCKbutton (2) for 4 to 10 seconds. Then press and hold the LOCK button (1). 3. Within 10 seconds of pressing the LOCKbutton, release the LOCK and UNLOCK buttons in sequence. At this time, ID codes for all remote control transmittersexcept for the transmitter used in steps 2 and 3 are erased and the answerback func- tion (door is locked and unlocked)informs you that the registration mode has been activated. 4. Within 60 seconds after step 3, completethe following ID code registration opera- tion using the next remote control trans- mitter you wish to register within 4seconds. i. Press both the LOCK and UNLOCK buttons for 2 seconds.
Using the panic alarm

Replacement remote control transmitters

Additional remote control transmitters

NOTE
 You are provided with two remote control transmitters, but you may register up to eight remote control transmitters.
Customer remote control trans- mitter programming

BK0210800US.bo
