Twin Clutch SST (Sportronic Shif
t Transmission) (if so equipped)
5-60 Features and controls
5
N00562500031

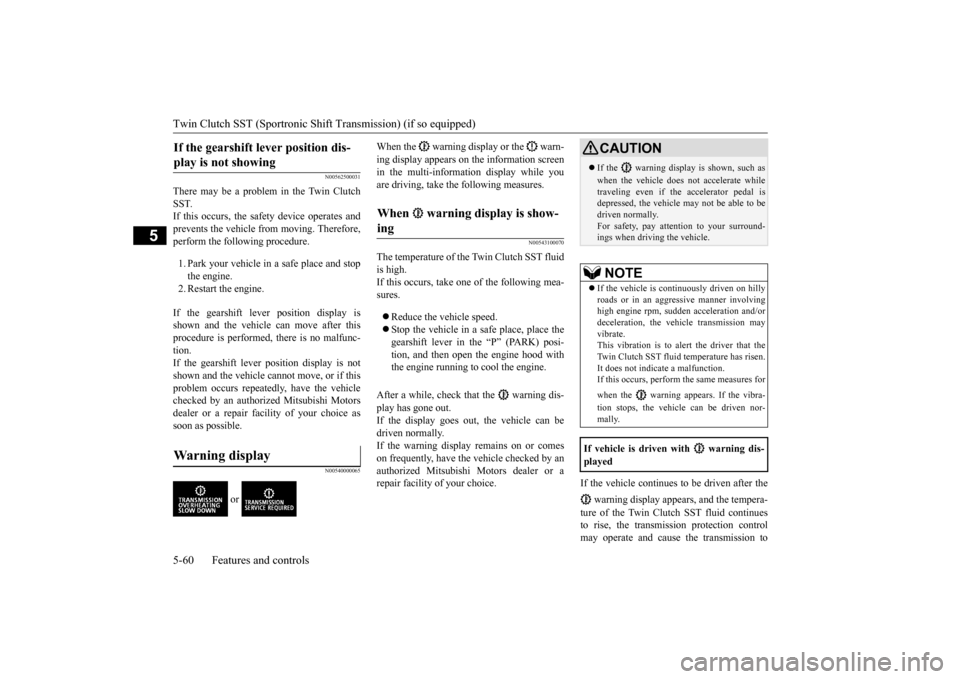

There may be a problem in the Twin Clutch SST. If this occurs, the safety device operates andprevents the vehicle from moving. Therefore, perform the following procedure. 1. Park your vehicle in a safe place and stop the engine.2. Restart the engine. If the gearshift lever position display is shown and the vehicle can move after this procedure is performed, there is no malfunc- tion.If the gearshift lever position display is not shown and the vehicle cannot move, or if this problem occurs repeatedly, have the vehiclechecked by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.
N00540000065
or
When the warning display or the warn- ing display appears on the information screen in the multi-information display while you are driving, take the following measures.
N00543100070
The temperature of the Twin Clutch SST fluidis high. If this occurs, take one of the following mea- sures.  Reduce the vehicle speed.  Stop the vehicle in a safe place, place the gearshift lever in the “P” (PARK) posi- tion, and then open the engine hood withthe engine running to cool the engine.
After a while, check that the warning dis- play has gone out. If the display goes out, the vehicle can be driven normally.If the warning display remains on or comes on frequently, have the vehicle checked by an authorized Mitsubishi Motors dealer or arepair facility of your choice.
If the vehicle continues to be driven after the warning display appears, and the tempera- ture of the Twin Clutch SST fluid continues to rise, the transmission protection controlmay operate and cause the transmission to
If the gearshift lever position dis- play is not showing

Warning display

When warning display is show- ing

CAUTION If the warning display is shown, such as when the vehicle does not accelerate while traveling even if the accelerator pedal is depressed, the vehicle may not be able to bedriven normally. For safety, pay attention to your surround- ings when driving the vehicle.NOTE
 If the vehicle is continuously driven on hilly roads or in an aggressive manner involving high engine rpm, sudden acceleration and/or deceleration, the vehicle transmission may vibrate.This vibration is to alert the driver that the Twin Clutch SST fluid temperature has risen. It does not indicate a malfunction.If this occurs, perform the same measures for when the warning appears. If the vibra- tion stops, the vehicle can be driven nor- mally.
If vehicle is driven with warning dis- played
