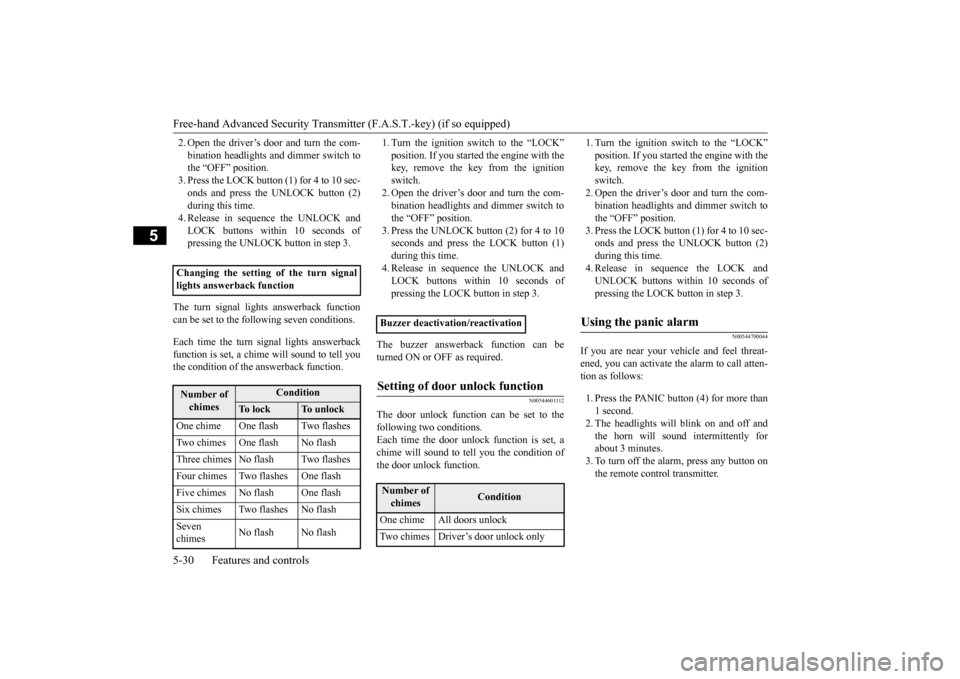

MITSUBISHI LANCER EVOLUTION 2015 10.G Owners Manual

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-30 Features and controls
5
2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
The turn signal lights answerback function can be set to the following seven conditions. Each time the turn signal lights answerback function is set, a chime will sound to tell you the condition of the answerback function.
1. Turn the ignition switch to the “LOCK” position. If you started the engine with the key, remove the key from the ignition switch.2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time.4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
The buzzer answerback function can be turned ON or OFF as required.
N00544601112
The door unlock function can be set to thefollowing two conditions.Each time the door unlock function is set, a chime will sound to te
ll you the condition of
the door unlock function.
1. Turn the ignition switch to the “LOCK” position. If you started the engine with the key, remove the key from the ignition switch.2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2) during this time.4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00544700044
If you are near your vehicle and feel threat-ened, you can activate the alarm to call atten- tion as follows: 1. Press the PANIC button (4) for more than 1 second. 2. The headlights will blink on and off and the horn will sound intermittently forabout 3 minutes. 3. To turn off the alarm, press any button on the remote control transmitter.
Changing the setting of the turn signal lights answerback functionNumber of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashesTwo chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
Buzzer deactivation/reactivationSetting of door unlock function

Number of chimes
Condition
One chime All doors unlock Two chimes Driver’s door unlock only
Using the panic alarm

BK0210800US.bo
ok 30 ページ ２０１４年４月８日　火曜日　午前１１時２８分

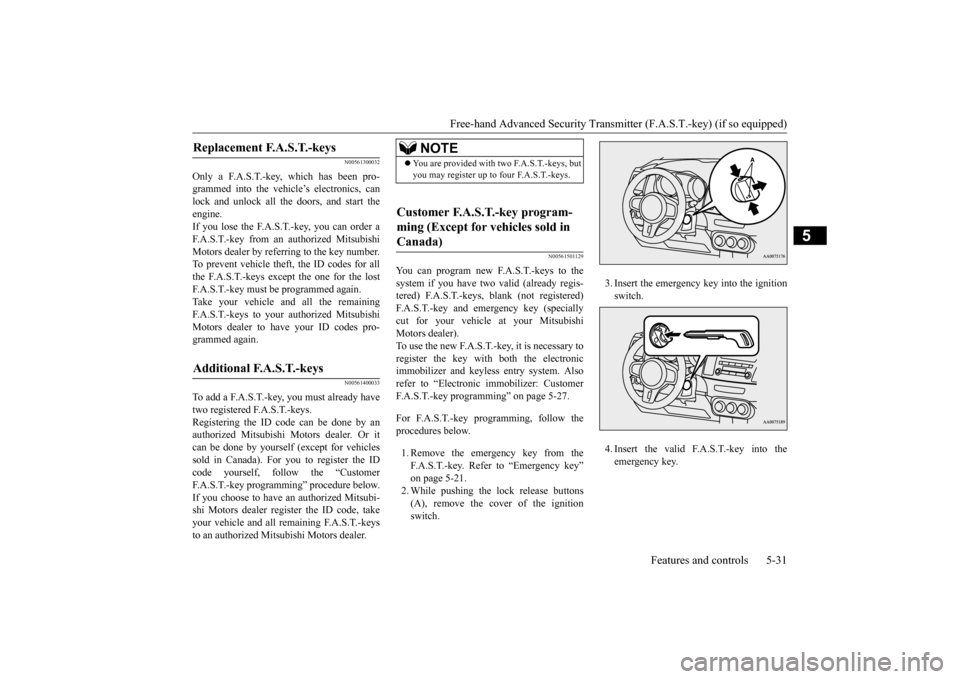

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-31
5
N00561300032
Only a F.A.S.T.-key, which has been pro- grammed into the vehicle’s electronics, canlock and unlock all the doors, and start the engine. If you lose the F.A.S.T.-key, you can order aF.A.S.T.-key from an authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID codes for allthe F.A.S.T.-keys except the one for the lostF.A.S.T.-key must be programmed again. Take your vehicle and all the remaining F.A.S.T.-keys to your authorized MitsubishiMotors dealer to have your ID codes pro- grammed again.
N00561400033
To add a F.A.S.T.-key, you must already havetwo registered F.A.S.T.-keys. Registering the ID code can be done by anauthorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehicles sold in Canada). For you to register the IDcode yourself, follow the “Customer F.A.S.T.-key programming” procedure below. If you choose to have an authorized Mitsubi-shi Motors dealer register the ID code, take your vehicle and all remaining F.A.S.T.-keys to an authorized Mitsubishi Motors dealer.
N00561501129
You can program new F.A.S.T.-keys to the system if you have two valid (already regis- tered) F.A.S.T.-keys, blank (not registered)F.A.S.T.-key and emergency key (specially cut for your vehicle at your Mitsubishi Motors dealer).To use the new F.A.S.T.-key, it is necessary to register the key with both the electronic immobilizer and keyless entry system. Alsorefer to “Electronic immobilizer: Customer F.A.S.T.-key programming” on page 5-27. For F.A.S.T.-key programming, follow the procedures below. 1. Remove the emergency key from the F.A.S.T.-key. Refer to “Emergency key” on page 5-21. 2. While pushing the lock release buttons(A), remove the cover of the ignition switch.
3. Insert the emergency key into the ignition switch. 4. Insert the valid F.A.S.T.-key into the emergency key.
Replacement F.A.S.T.-keys

Additional F.A.S.T.-keys

NOTE
 You are provided with two F.A.S.T.-keys, but you may register up to four F.A.S.T.-keys.
Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)

BK0210800US.bo
ok 31 ページ ２０１４年４月８日　火曜日　午前１１時２８分

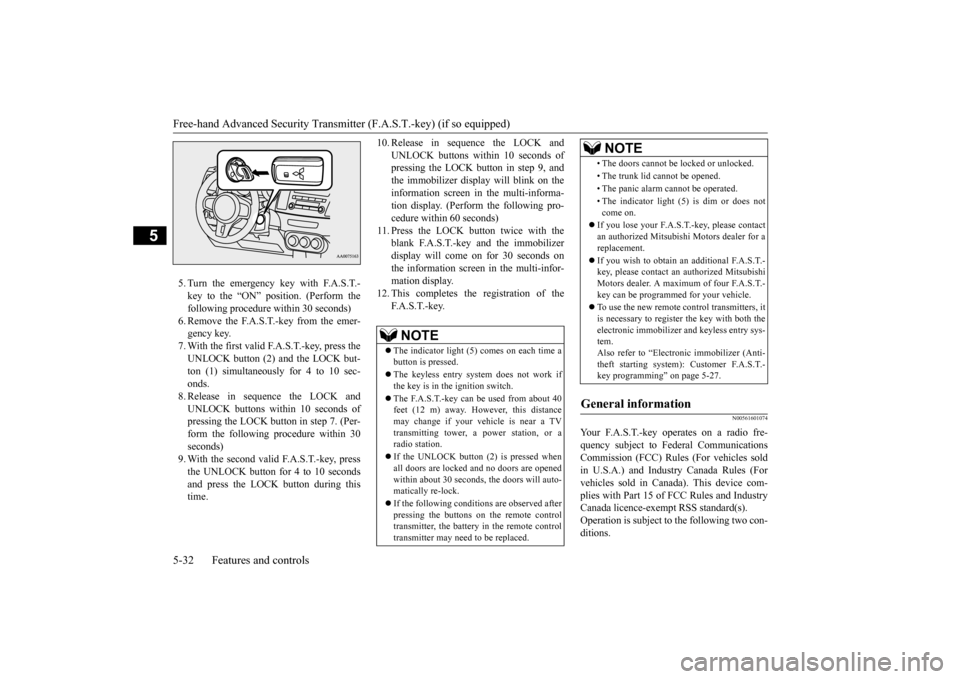

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-32 Features and controls
5
5. Turn the emergency key with F.A.S.T.- key to the “ON” position. (Perform the following procedure within 30 seconds)6. Remove the F.A.S.T.-key from the emer- gency key. 7. With the first valid F.A.S.T.-key, press theUNLOCK button (2) and the LOCK but- ton (1) simultaneously for 4 to 10 sec- onds.8. Release in sequence the LOCK andUNLOCK buttons within 10 seconds of pressing the LOCK button in step 7. (Per- form the following procedure within 30seconds) 9. With the second valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 secondsand press the LOCK button during this time.
10. Release in sequence the LOCK and
UNLOCK buttons within 10 seconds of pressing the LOCK button in step 9, and the immobilizer display will blink on theinformation screen in the multi-informa- tion display. (Perform the following pro- cedure within 60 seconds)
11. Press the LOCK button twice with the
blank F.A.S.T.-key and the immobilizer display will come on for 30 seconds onthe information screen in the multi-infor-mation display.
12. This completes the registration of the
F. A . S . T. - k e y.
N00561601074
Your F.A.S.T.-key operates on a radio fre-quency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (Forvehicles sold in Canada). This device com- plies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s).Operation is subject to the following two con- ditions.
NOTE
 The indicator light (5) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The F.A.S.T.-key can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TVtransmitting tower, a power station, or a radio station.  If the UNLOCK button (2) is pressed when all doors are locked and no doors are openedwithin about 30 seconds, the doors will auto- matically re-lock.  If the following conditions are observed after pressing the buttons on the remote control transmitter, the battery in the remote controltransmitter may need to be replaced.
• The doors cannot be locked or unlocked. • The trunk lid cannot be opened.• The panic alarm cannot be operated.• The indicator light (5) is dim or does not come on.
 If you lose your F.A.S.T.-key, please contact an authorized Mitsubishi Motors dealer for areplacement.  If you wish to obtain an
additional F.A.S.T.-
key, please contact an authorized Mitsubishi Motors dealer. A maximum of four F.A.S.T.- key can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with both theelectronic immobilizer and keyless entry sys- tem. Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer F.A.S.T.- key programming” on page 5-27.
General information

NOTE
BK0210800US.bo
ok 32 ページ ２０１４年４月８日　火曜日　午前１１時２８分

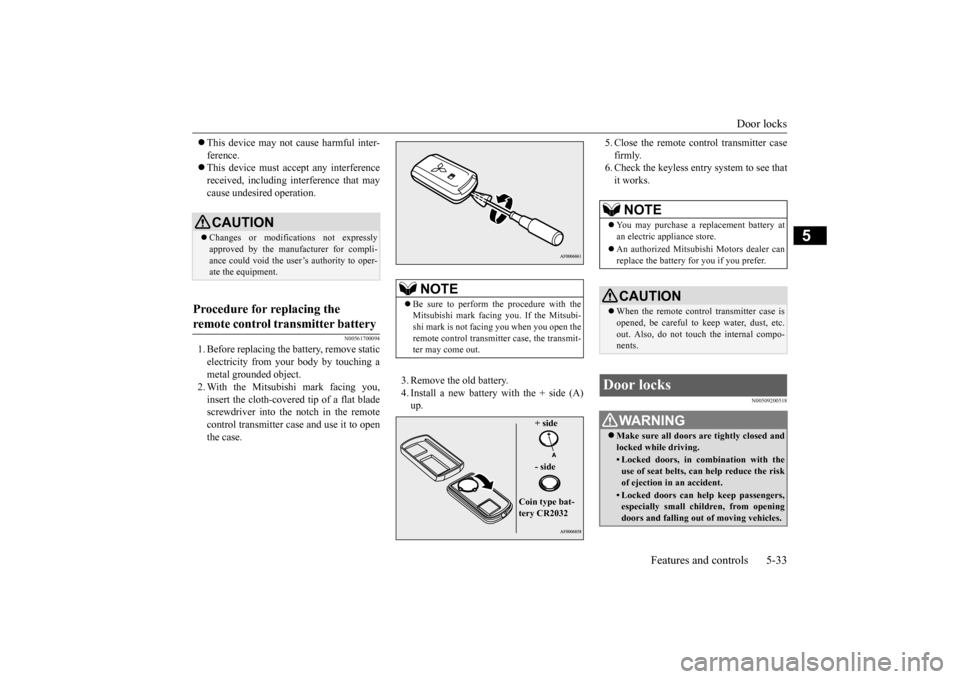

Door locks
Features and controls 5-33
5
 This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that maycause undesired operation.
N00561700094
1. Before replacing the battery, remove static electricity from your body by touching a metal grounded object.2. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the remotecontrol transmitter case and use it to open the case.
3. Remove the old battery. 4. Install a new battery with the + side (A) up.
5. Close the remote control transmitter case firmly. 6. Check the keyless entry system to see that it works.
N00509200518
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper-ate the equipment.
Procedure for replacing the remote control transmitter battery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubi- shi mark is not facing you when you open the remote control transmitter case, the transmit-ter may come out.
+ side - side
Coin type bat- tery CR2032
NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-nents.
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in combination with theuse of seat belts, can help reduce the risk of ejection in an accident.• Locked doors can help keep passengers,especially small children, from opening doors and falling out of moving vehicles.
BK0210800US.bo
ok 33 ページ ２０１４年４月８日　火曜日　午前１１時２８分

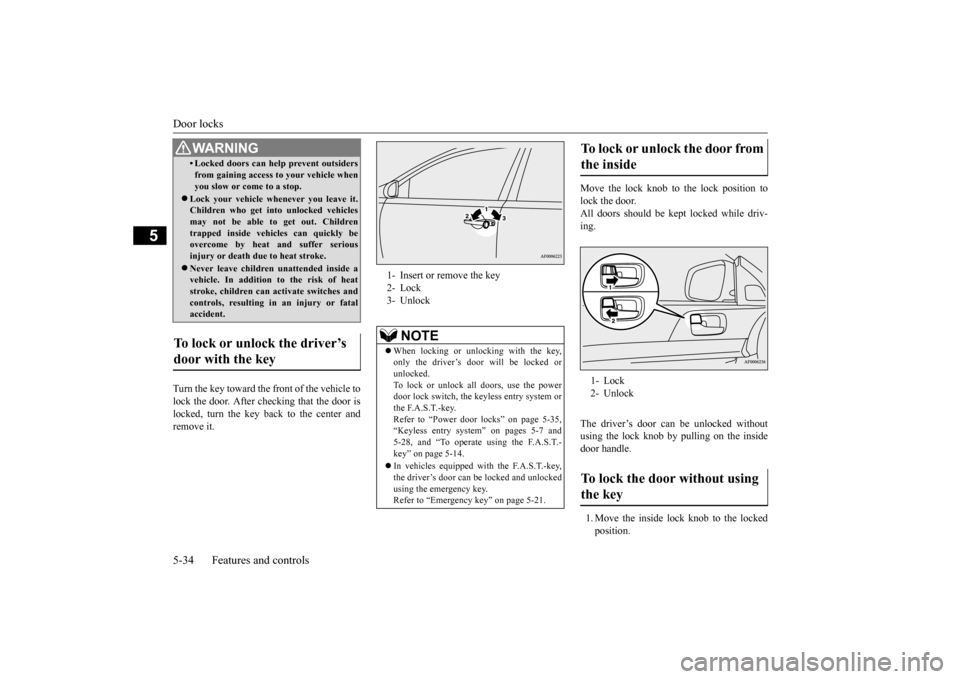

Door locks 5-34 Features and controls
5
Turn the key toward the front of the vehicle to lock the door. After checking that the door is locked, turn the key back to the center andremove it.
Move the lock knob to the lock position to lock the door.All doors should be kept locked while driv- ing. The driver’s door can be unlocked without using the lock knob by pulling on the inside door handle. 1. Move the inside lock knob to the locked position.
• Locked doors can help prevent outsiders from gaining access to your vehicle when you slow or come to a stop.
 Lock your vehicle whenever you leave it. Children who get into unlocked vehicles may not be able to get out. Children trapped inside vehicles can quickly beovercome by heat and suffer serious injury or death due to heat stroke. Never leave children unattended inside a vehicle. In addition to the risk of heat stroke, children can activate switches andcontrols, resulting in an injury or fatal accident.
To lock or unlock the driver’s door with the key
WA R N I N G
1- Insert or remove the key 2- Lock 3- Unlock
NOTE
 When locking or unlocking with the key, only the driver’s door will be locked orunlocked. To lock or unlock all doors, use the power door lock switch, the keyless entry system orthe F.A.S.T.-key. Refer to “Power door locks” on page 5-35, “Keyless entry system” on pages 5-7 and5-28, and “To operate using the F.A.S.T.- key” on page 5-14.  In vehicles equipped with the F.A.S.T.-key, the driver’s door can be locked and unlocked using the emergency key.Refer to “Emergency key” on page 5-21.
To lock or unlock the door from the inside 1- Lock 2- Unlock To lock the door without using the key
BK0210800US.bo
ok 34 ページ ２０１４年４月８日　火曜日　午前１１時２８分

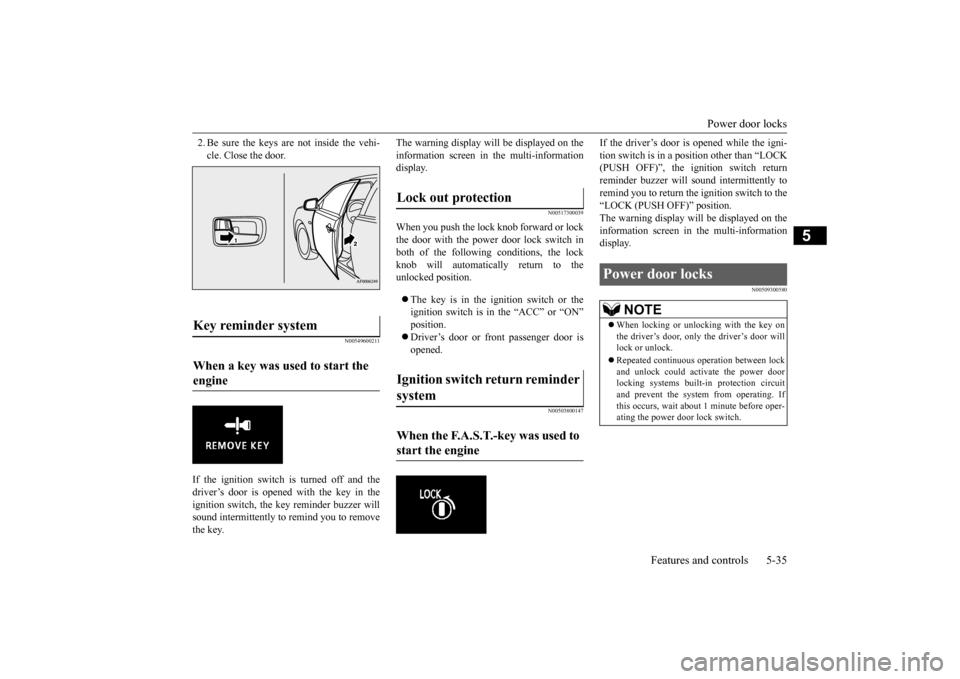

Power door locks
Features and controls 5-35
5
2. Be sure the keys are not inside the vehi- cle. Close the door.
N00549600211
If the ignition switch is turned off and the driver’s door is opened with the key in the ignition switch, the key reminder buzzer willsound intermittently to remind you to remove the key.
The warning display will be displayed on the information screen in the multi-information display.
N00517300039
When you push the lock knob forward or lockthe door with the power door lock switch in both of the following conditions, the lockknob will automatically return to theunlocked position.  The key is in the ignition switch or the ignition switch is in the “ACC” or “ON” position. Driver’s door or front passenger door is opened.
N00503800147
If the driver’s door is opened while the igni- tion switch is in a position other than “LOCK (PUSH OFF)”, the ignition switch return reminder buzzer will sound intermittently toremind you to return th
e ignition switch to the
“LOCK (PUSH OFF)” position. The warning display will be displayed on theinformation screen in the multi-information display.
N00509300580
Key reminder system When a key was used to start the engine
Lock out protection Ignition switch return reminder system When the F.A.S.T.-key was used to start the engine
Power door locks
NOTE
 When locking or unlocking with the key on the driver’s door, only the driver’s door will lock or unlock.  Repeated continuous operation between lock and unlock could activate the power doorlocking systems built-in protection circuit and prevent the system from operating. If this occurs, wait about 1 minute before oper-ating the power door lock switch.
BK0210800US.bo
ok 35 ページ ２０１４年４月８日　火曜日　午前１１時２８分

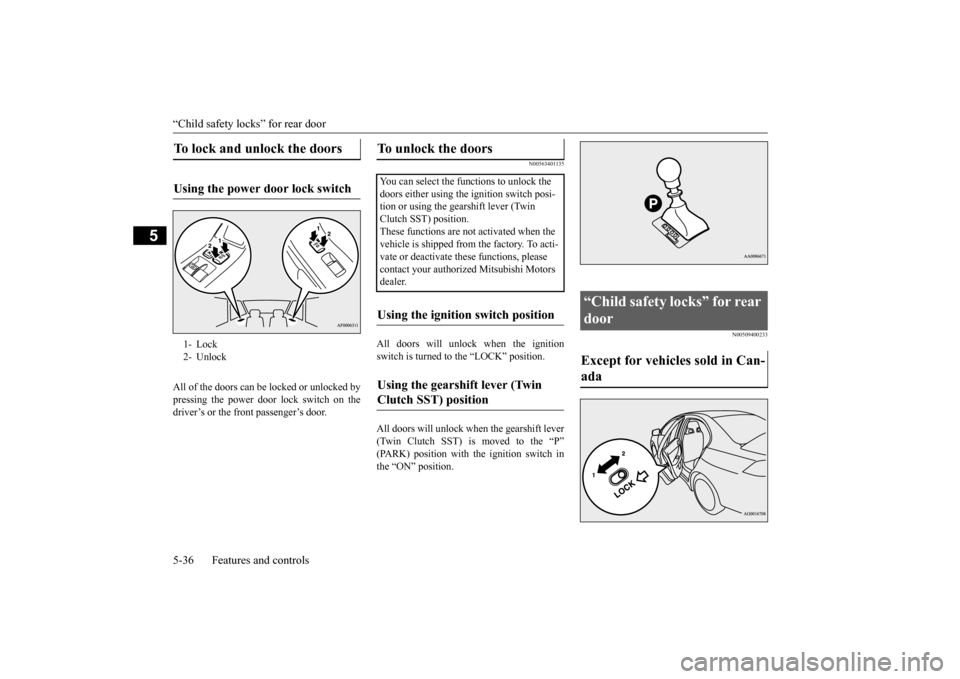

“Child safety locks” for rear door 5-36 Features and controls
5
All of the doors can be locked or unlocked by pressing the power door lock switch on the driver’s or the front passenger’s door.
N00563401135
All doors will unlock when the ignitionswitch is turned to the “LOCK” position. All doors will unlock when the gearshift lever (Twin Clutch SST) is moved to the “P” (PARK) position with the ignition switch in the “ON” position.
N00509400233
To lock and unlock the doors Using the power door lock switch 1- Lock 2- Unlock
To unlock the doors You can select the functions to unlock the doors either using the ignition switch posi- tion or using the gearshift lever (Twin Clutch SST) position.These functions are not activated when the vehicle is shipped from the factory. To acti- vate or deactivate these functions, please contact your authorized Mitsubishi Motors dealer.Using the ignition switch position Using the gearshift lever (Twin Clutch SST) position
“Child safety locks” for rear door Except for vehicles sold in Can- ada
BK0210800US.bo
ok 36 ページ ２０１４年４月８日　火曜日　午前１１時２８分

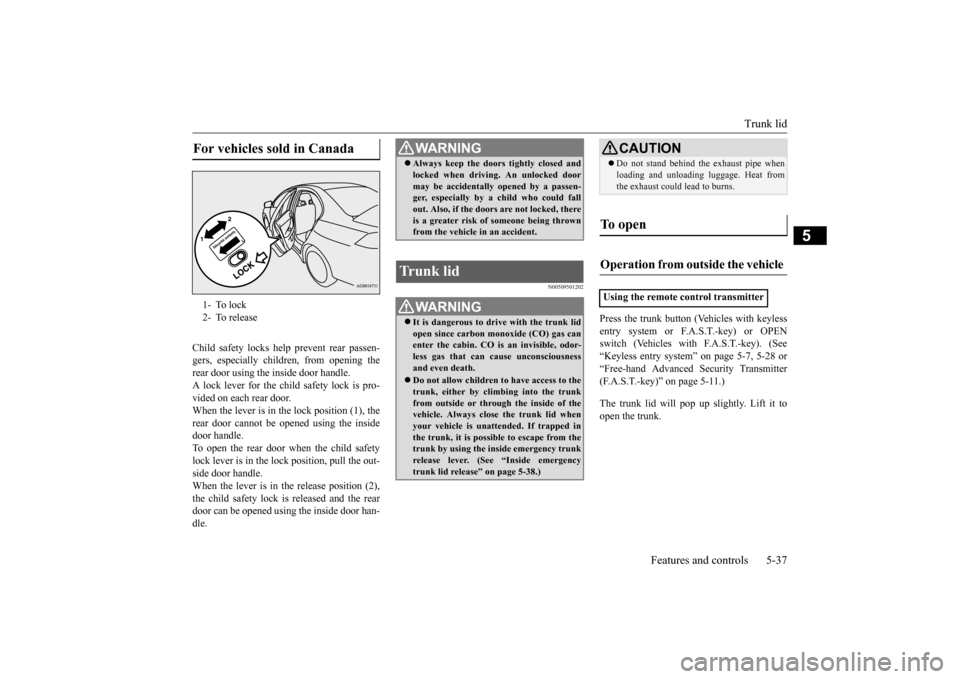

Trunk lid
Features and controls 5-37
5
Child safety locks help prevent rear passen- gers, especially children, from opening therear door using the inside door handle. A lock lever for the child safety lock is pro- vided on each rear door.When the lever is in the lock position (1), the rear door cannot be opened using the inside door handle.To open the rear door when the child safety lock lever is in the lock position, pull the out- side door handle.When the lever is in th
e release position (2),
the child safety lock is released and the rear door can be opened using the inside door han-dle.
N00509501202
Press the trunk button (Vehicles with keyless entry system or F.A.S.T.-key) or OPEN switch (Vehicles with F.A.S.T.-key). (See“Keyless entry system” on page 5-7, 5-28 or “Free-hand Advanced Security Transmitter (F.A.S.T.-key)” on page 5-11.) The trunk lid will pop up
slightly. Lift it to
open the trunk.
For vehicles sold in Canada 1- To lock 2- To release
WA R N I N G Always keep the doors tightly closed and locked when driving. An unlocked door may be accidentally opened by a passen- ger, especially by a child who could fall out. Also, if the doors are not locked, thereis a greater risk of someone being thrown from the vehicle in an accident.
Trunk lid
WA R N I N G It is dangerous to drive with the trunk lid open since carbon monoxide (CO) gas can enter the cabin. CO is an invisible, odor- less gas that can cause unconsciousnessand even death. Do not allow children to have access to the trunk, either by climbing into the trunk from outside or through the inside of the vehicle. Always clos
e the trunk lid when
your vehicle is unattended. If trapped in the trunk, it is possible to escape from the trunk by using the inside emergency trunk release lever. (See “Inside emergency trunk lid release” on page 5-38.)
CAUTION Do not stand behind the exhaust pipe when loading and unloading luggage. Heat from the exhaust could lead to burns.
To open Operation from outside the vehicle Using the remote control transmitter
BK0210800US.bo
ok 37 ページ ２０１４年４月８日　火曜日　午前１１時２８分

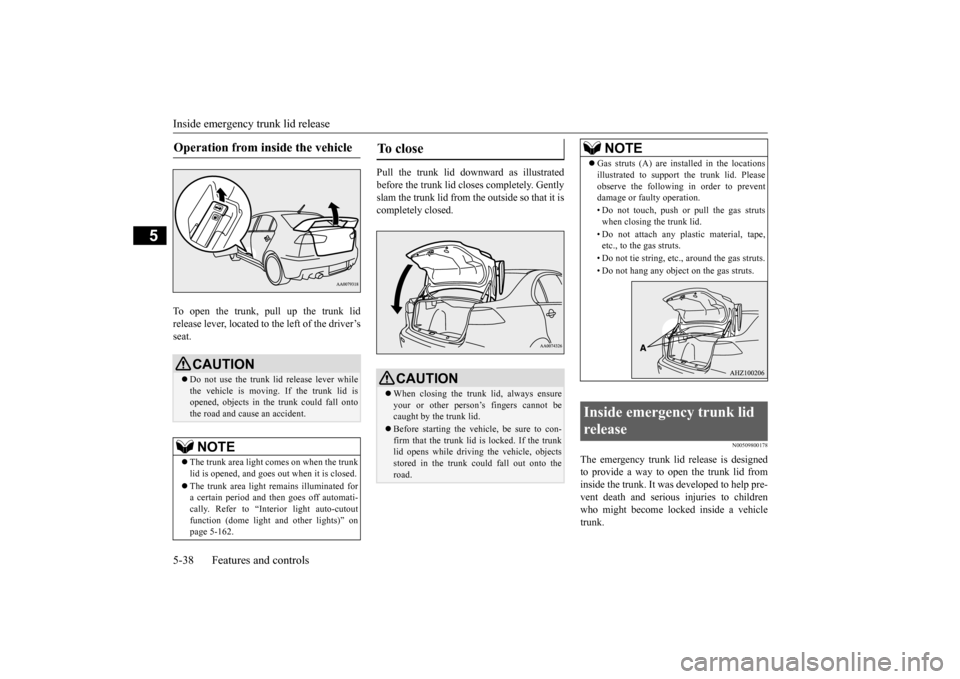

Inside emergency trunk lid release 5-38 Features and controls
5
To open the trunk, pull up the trunk lid release lever, located to
the left of the driver’s
seat.
Pull the trunk lid downward as illustrated before the trunk lid closes completely. Gently slam the trunk lid from th
e outside so that it is
completely closed.
N00509800178
The emergency trunk lid release is designedto provide a way to open the trunk lid from inside the trunk. It was developed to help pre- vent death and serious injuries to childrenwho might become locked inside a vehicle trunk.
Operation from inside the vehicle
CAUTION Do not use the trunk lid release lever while the vehicle is moving. If the trunk lid is opened, objects in the trunk could fall ontothe road and cause an accident.NOTE
 The trunk area light comes on when the trunk lid is opened, and goes out when it is closed.  The trunk area light remains illuminated for a certain period and then goes off automati- cally. Refer to “Interior light auto-cutout function (dome light and other lights)” onpage 5-162.
To close
CAUTION When closing the trunk lid, always ensure your or other person’s fingers cannot becaught by the trunk lid. Before starting the vehicle, be sure to con- firm that the trunk lid is locked. If the trunk lid opens while driving the vehicle, objects stored in the trunk could fall out onto theroad.
NOTE
 Gas struts (A) are installed in the locations illustrated to support the trunk lid. Please observe the following in order to prevent damage or faulty operation. • Do not touch, push or pull the gas struts when closing the trunk lid. • Do not attach any plastic material, tape, etc., to the gas struts. • Do not tie string, etc., around the gas struts. • Do not hang any object on the gas struts.
Inside emergency trunk lid release
BK0210800US.bo
ok 38 ページ ２０１４年４月８日　火曜日　午前１１時２８分

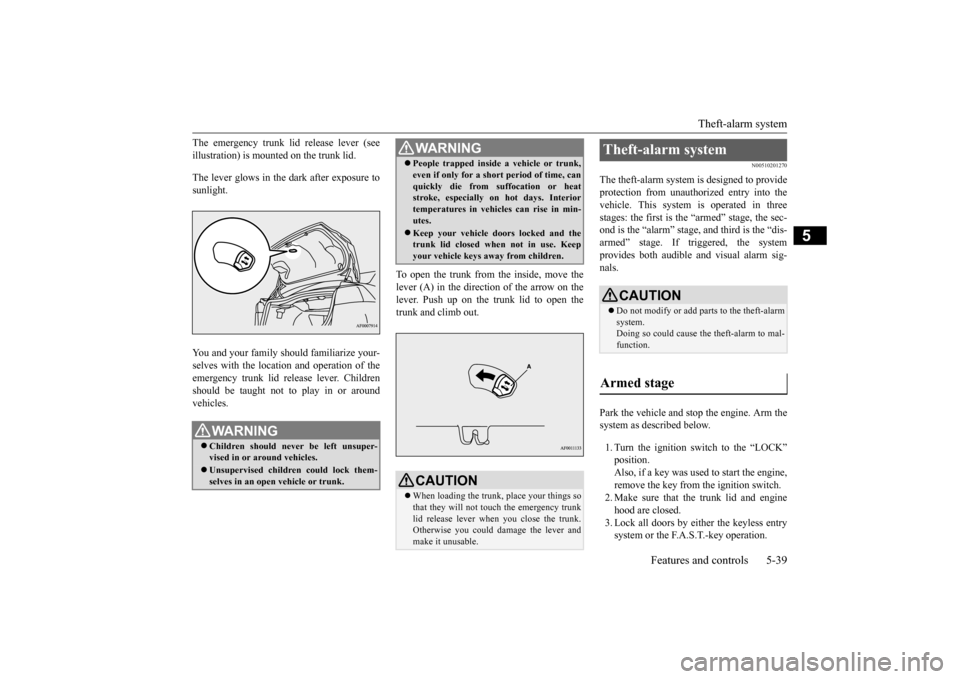

Theft-alarm system
Features and controls 5-39
5
The emergency trunk lid release lever (see illustration) is mounted on the trunk lid. The lever glows in the dark after exposure to sunlight. You and your family should familiarize your- selves with the location and operation of the emergency trunk lid release lever. Childrenshould be taught not to play in or aroundvehicles.
To open the trunk from the inside, move the lever (A) in the direction of the arrow on thelever. Push up on the trunk lid to open the trunk and climb out.
N00510201270
The theft-alarm system is designed to provide protection from unauthorized entry into thevehicle. This system is operated in three stages: the first is the “armed” stage, the sec- ond is the “alarm” stage,
and third is the “dis-
armed” stage. If triggered, the system provides both audible and visual alarm sig- nals. Park the vehicle and stop the engine. Arm the system as described below. 1. Turn the ignition switch to the “LOCK” position.Also, if a key was used to start the engine, remove the key from the ignition switch. 2. Make sure that the trunk lid and enginehood are closed. 3. Lock all doors by either the keyless entry system or the F.A.S.T.-key operation.
WA R N I N G Children should never be left unsuper- vised in or around vehicles. Unsupervised children could lock them- selves in an open vehicle or trunk.
 People trapped inside a vehicle or trunk, even if only for a short period of time, can quickly die from suffocation or heat stroke, especially on hot days. Interior temperatures in vehicles can rise in min-utes. Keep your vehicle doors locked and the trunk lid closed when not in use. Keep your vehicle keys away from children.CAUTION When loading the trunk, place your things so that they will not touch the emergency trunk lid release lever when you close the trunk. Otherwise you could damage the lever and make it unusable.WA R N I N G
Theft-alarm system
CAUTION Do not modify or add parts to the theft-alarm system.Doing so could cause the theft-alarm to mal- function.
Armed stage
