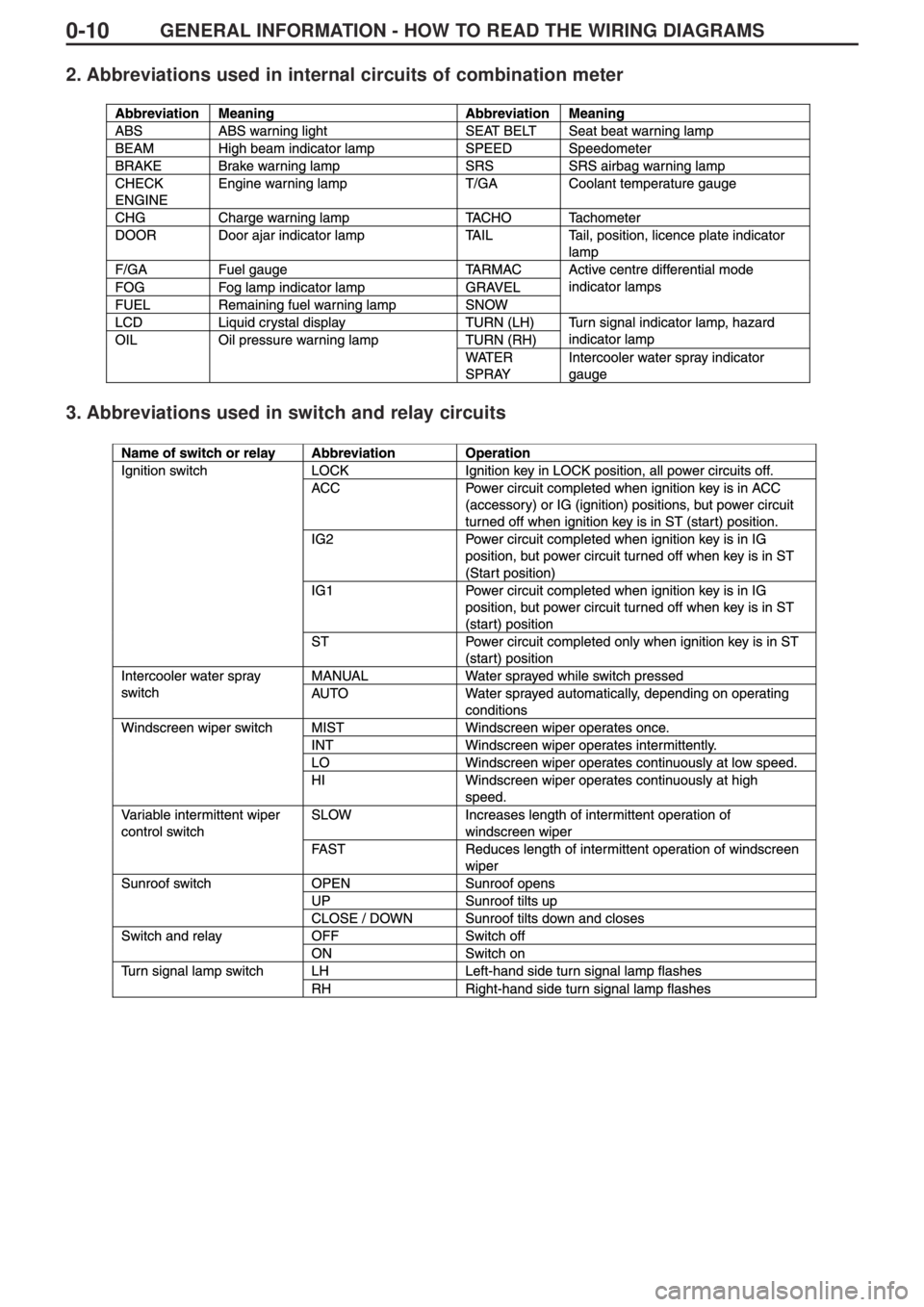

GENERAL INFORMATION - HOW TO READ THE WIRING DIAGRAMS0-10
2. Abbreviations used in internal circuits of combination meter
3. Abbreviations used in switch and relay circuits

LAYOUT DIAGRAMS - ENGINE COMPARTMENT1-4
A-01 (2-grey) Side turn signal lamp (RH)
A-02 (2-grey) Brake fluid level switch
A-04 (2-grey) Side turn signal lamp (LH)
A-05 (2-black) Front ABS sensor (LH)
A-06X Fog lamp relay or spare connector for fog
lamp relay
A-07X Horn relay
A-08X Condenser fan relay (LO)
A-09X Condenser fan relay (HI)
A-11X Radiator fan control relay
A-12X Front ECUA-13X (11) Front ECU
A-14 (2-black) Junction between front harness (LH) and
control harness
A-16 (2-black) Headlamp (HI : LH)
A-19 (3-grey) Radiator fan controller
A-20 (1-black) Horn (HI)
A-21 (2-brown) External air temperature sensor (vehicle
fitted with fully automatic A/C)
A-22 (1-black) Horn (LO)
A-23 (2-black) Headlamp (HI: RH)
A-28 Spare connector for fog lamp
A-29 Dummy connector
ENGINE COMPARTMENT
Connector Symbol
Front harness (RH)

LAYOUT DIAGRAMS - ENGINE / TRANSMISSION1-6
B-01 (1-black) Engine oil pressure switch
B-02 Alternator
B-03 (4-grey) Alternator
B-04 Starter
B-05 (1-black) Starter
B-06 (4-black) Throttle position sensorB-07 (2-black) Purge control solenoid valve
B-08 (7-black) Airflow sensor
B-12 (5-grey) Windscreen wiper motor
B-13X Engine speed detection connector
B-14X Starter relay
B-17X Ignition coil relay
ENGINE / TRANSMISSION
Connector Symbol
Control harnessGround cable
Battery
harness

1-7
B-19X (4) Engine control relay
B-20X (4) A/C compressor relay
B-21 (10-black) Control panel / battery harness junction
B-25 (4-black) O
2sensor
B-26 (2-black) Injector 4
B-27 (2-black) Injector 3
B-28 (2-black) Injector 2B-29 (2-black) Injector 1
B-30 (2-grey) Waste gate solenoid valve 1
B-31 (8-black) Control harness / transmission harness
junction
B-32 (2-black) Waste gate solenoid valve 1
B-33 (3-black) Intake cam position sensor
B-34 (2-black) Air temperature sensor
LAYOUT DIAGRAMS - ENGINE / TRANSMISSION
Ground cable

LAYOUT DIAGRAMS - ENGINE / TRANSMISSION1-9
B-126 (6-black) Idle speed control servo
B-127 (4) Electric pump relay
B-128 (4) Fuel pump relay 3
B-129 (6-black) Register (for injector)
B-130 (2-black) Fuel pump register
B-131 (3-black) Vehicle speed sensorB-132 (2-black) Back-up lamp switch
B-133 (2-black) Secondary air control solenoid valve
B-134 (2-black) Oil feeder control valve
B-135 (3-black) Manifold absolute pressure sensor
Ground cable
Transmission harness

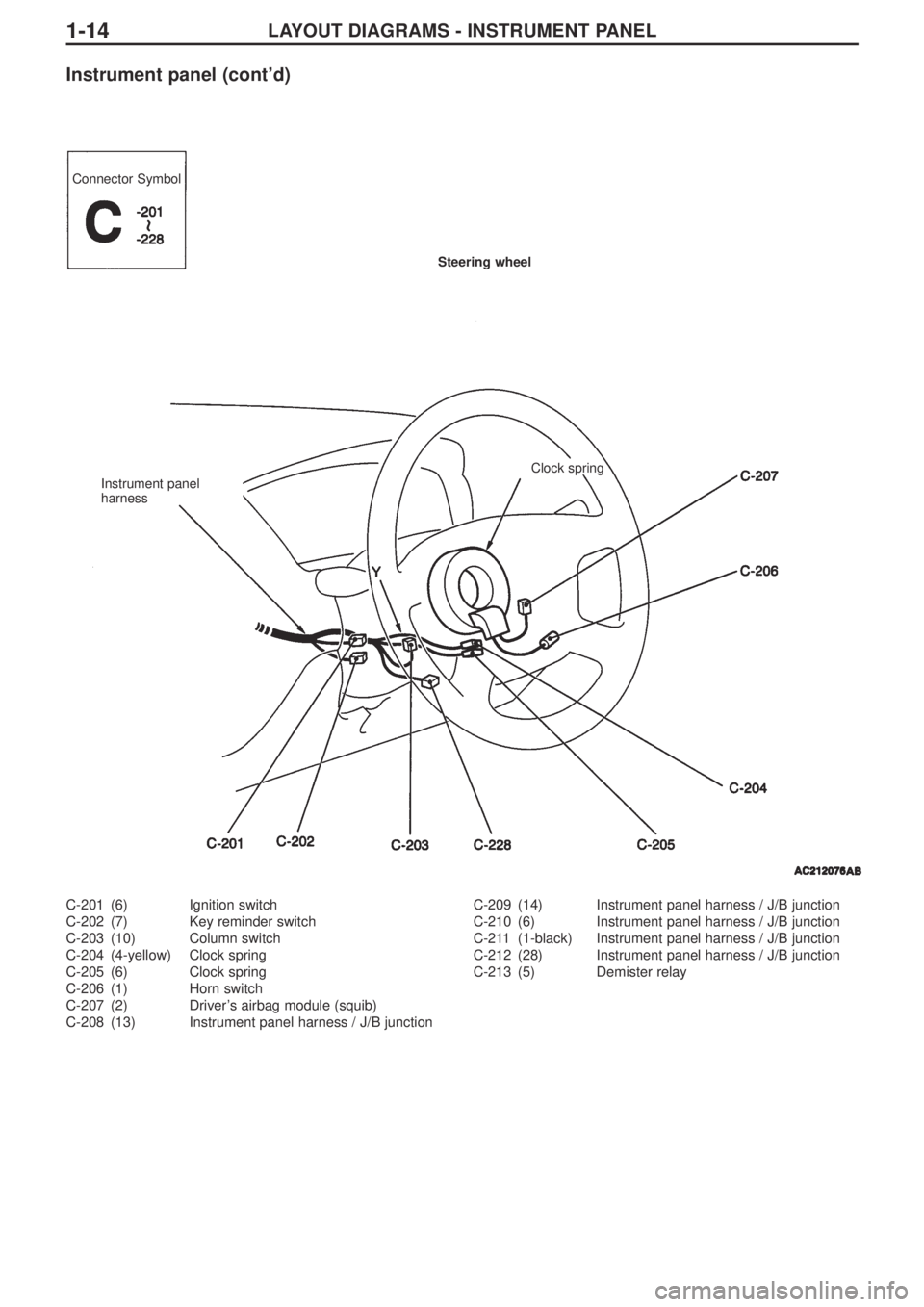

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-14
C-201 (6) Ignition switch
C-202 (7) Key reminder switch
C-203 (10) Column switch
C-204 (4-yellow) Clock spring
C-205 (6) Clock spring
C-206 (1) Horn switch
C-207 (2) Driver’s airbag module (squib)
C-208 (13) Instrument panel harness / J/B junctionC-209 (14) Instrument panel harness / J/B junction
C-210 (6) Instrument panel harness / J/B junction
C-211 (1-black) Instrument panel harness / J/B junction
C-212 (28) Instrument panel harness / J/B junction
C-213 (5) Demister relay
Instrument panel (cont’d)
Connector Symbol
Steering wheel
Clock spring
Instrument panel
harness

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-15
C-214 (5) Blower relay
C-215 (15) Floor harness (RH) / J/B junction
C-216 (3) Roof harness / J/B junction
C-217 (4) Dummy connector
C-218 (4) Dummy connector
C-219 (4) Fuel pump relay 2
C-220 (4) Intercooler water spray relay
C-221 (4) Fuel pump relay 1C-222 (5) Power window relay
C-223 (2) Instrument panel harness / J/B junction
C-224 (20) ETACS-ECU
C-225 (24-grey) ETACS-ECU
C-226 (24) ETACS-ECU
C-228 (5) Steer sensor
(Front side)
Instrument panel harness
Dedicated fuse
Floor harness (RH)
Roof harness(Rear side)

2-1
SECTION 2
INDIVIDUAL PART
INSTALLATION POSITIONS
CONTENTS
Sensors ...................................................2-2
ECU ..........................................................2-6
Relays ......................................................2-9
Solenoid valves.....................................2-10Fusible links / Fuses ............................2-12
Inspection connectors /
Spare connectors .................................2-13
Ground cables.......................................2-14
Earths.....................................................2-15

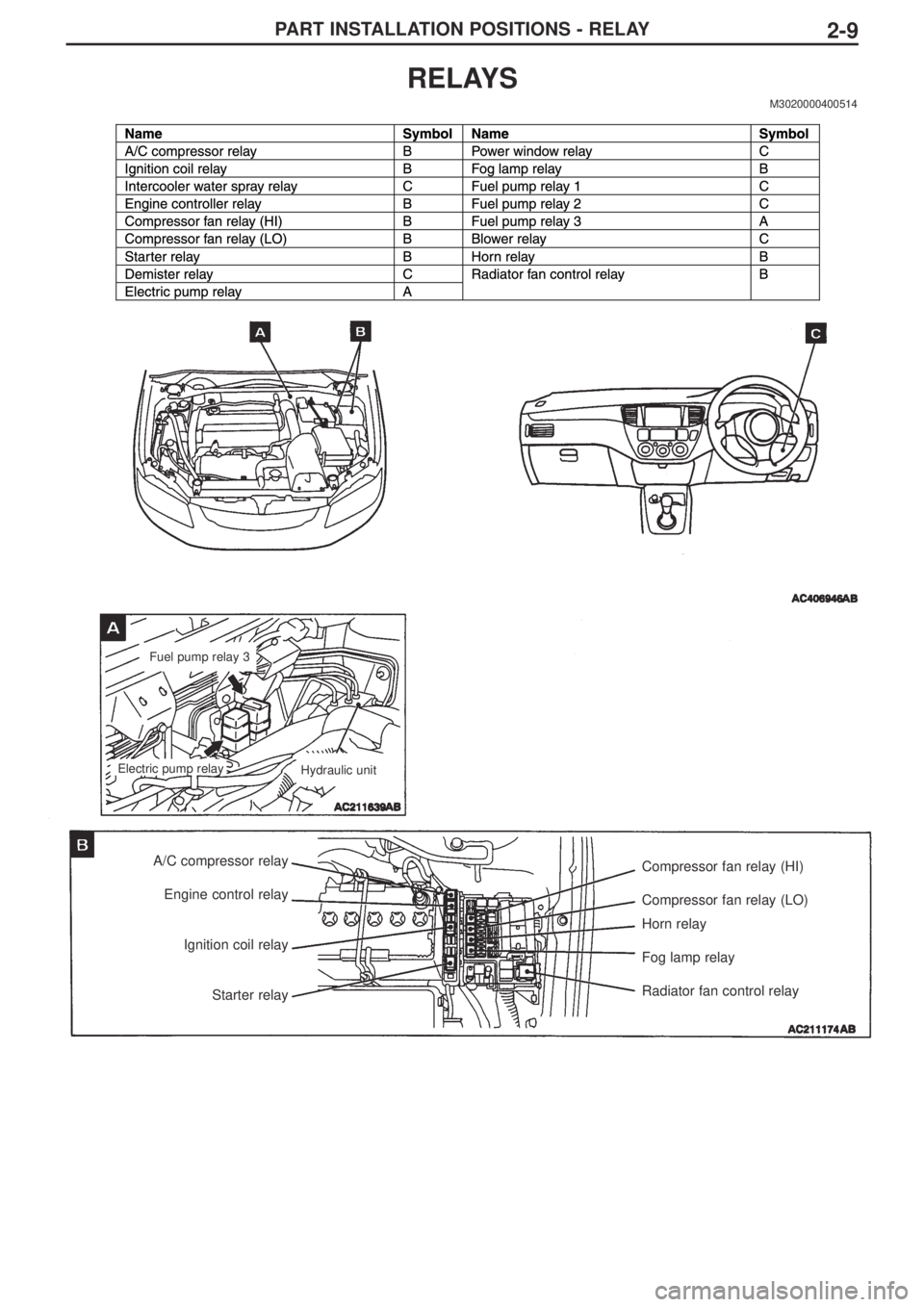

PART INSTALLATION POSITIONS - RELAY2-9
RELAYS
Fuel pump relay 3
Electric pump relay
Hydraulic unit
A/C compressor relay
Engine control relay
Ignition coil relay
Starter relayCompressor fan relay (HI)
Compressor fan relay (LO)
Horn relay
Fog lamp relay
Radiator fan control relay
M3020000400514

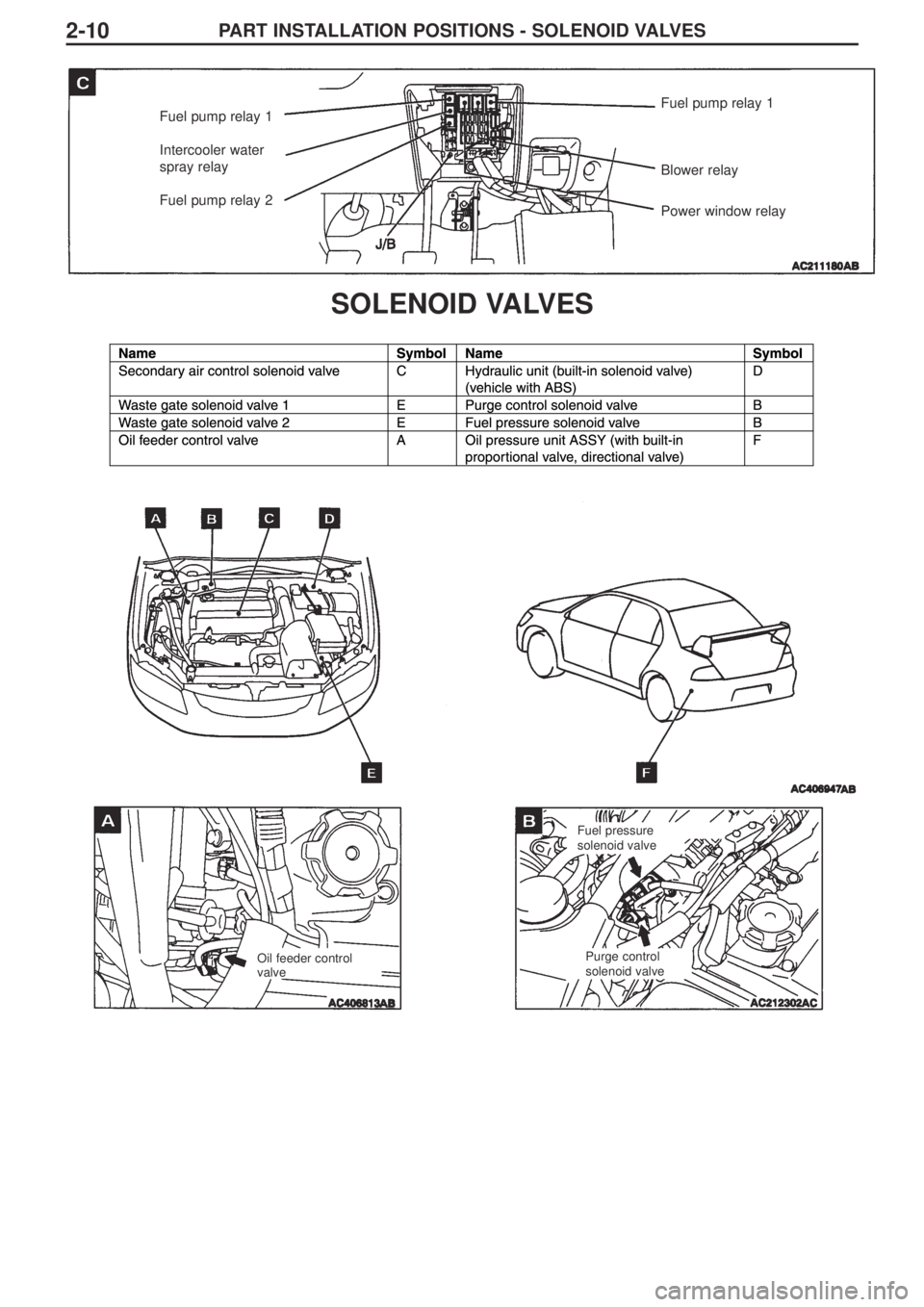

PART INSTALLATION POSITIONS - SOLENOID VALVES2-10
SOLENOID VALVES
Fuel pump relay 1
Intercooler water
spray relay
Fuel pump relay 2Fuel pump relay 1
Blower relay
Power window relay
Oil feeder control
valveFuel pressure
solenoid valve
Purge control
solenoid valve
