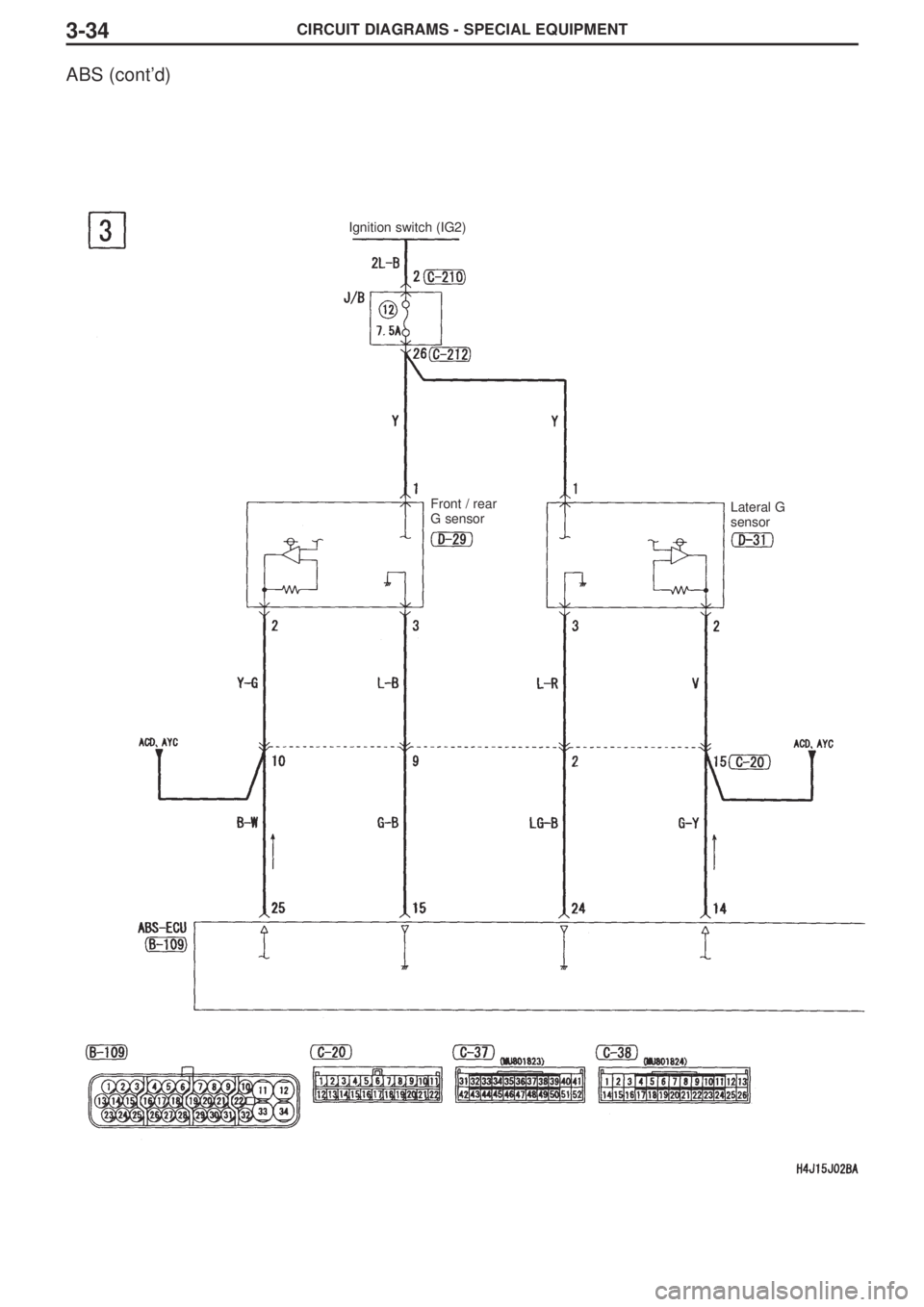

Page 141 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-34 ABS (cont’d) Ignition switch (IG2) Front / rear G sensorLateral G sensor

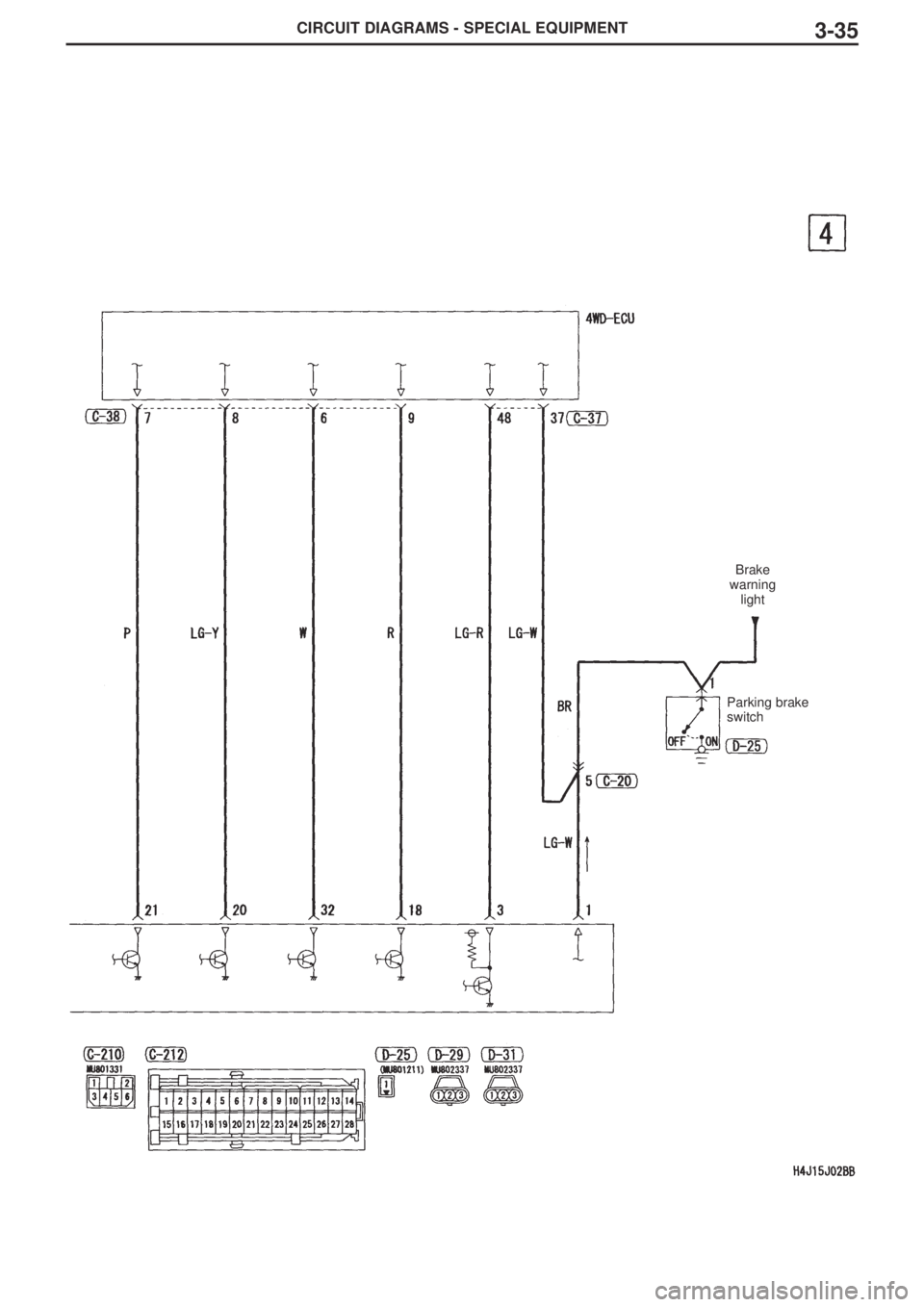

Page 142 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-35 Brake warning light Parking brake switch

Page 143 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-36 ABS (cont’d) Ignition switch (IG2) •Intercooler water spray •Heater •Full auto A/C •Manual A/C Steering sensor

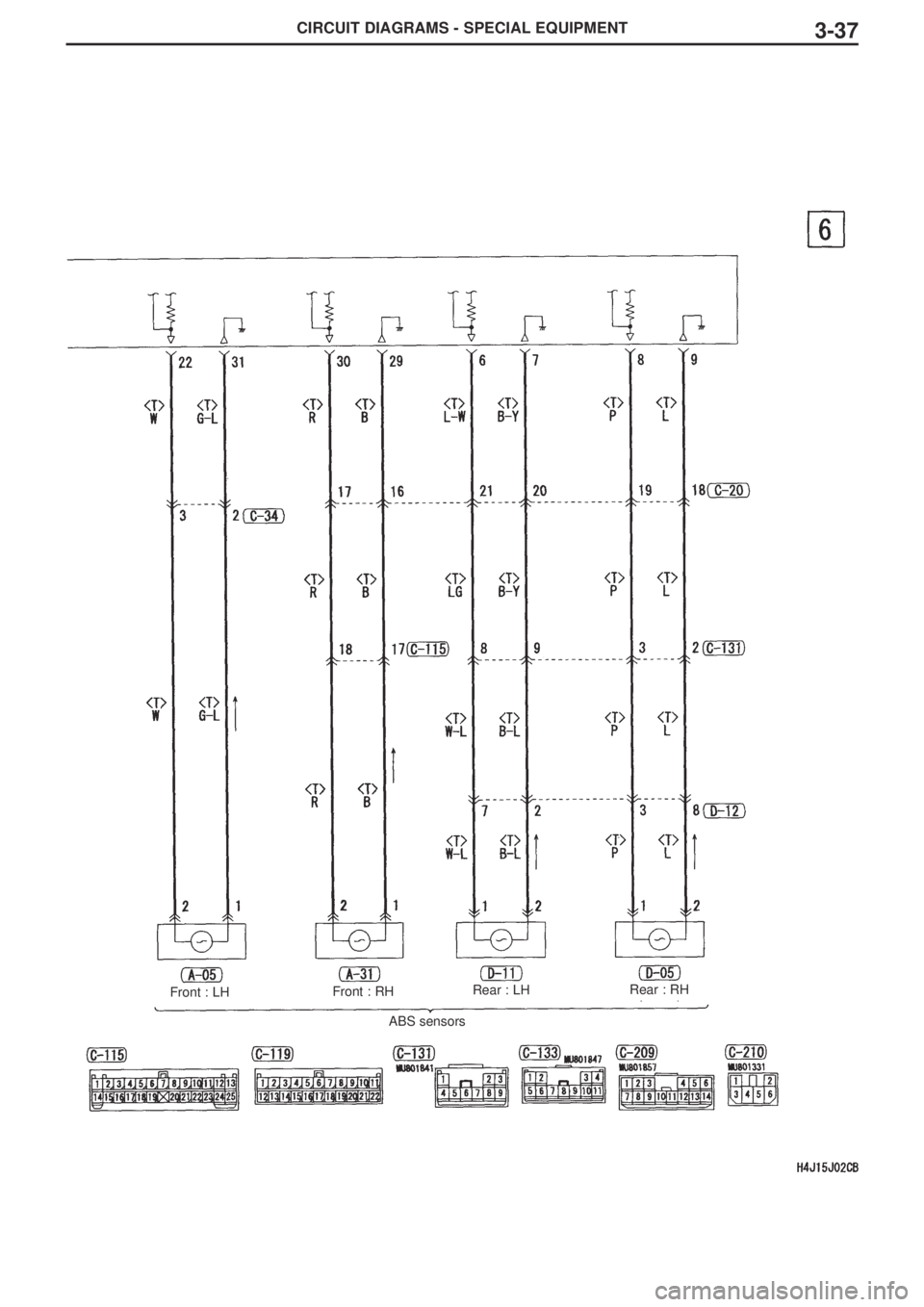

Page 144 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-37 Front : LHFront : RHRear : LHRear : RH ABS sensors

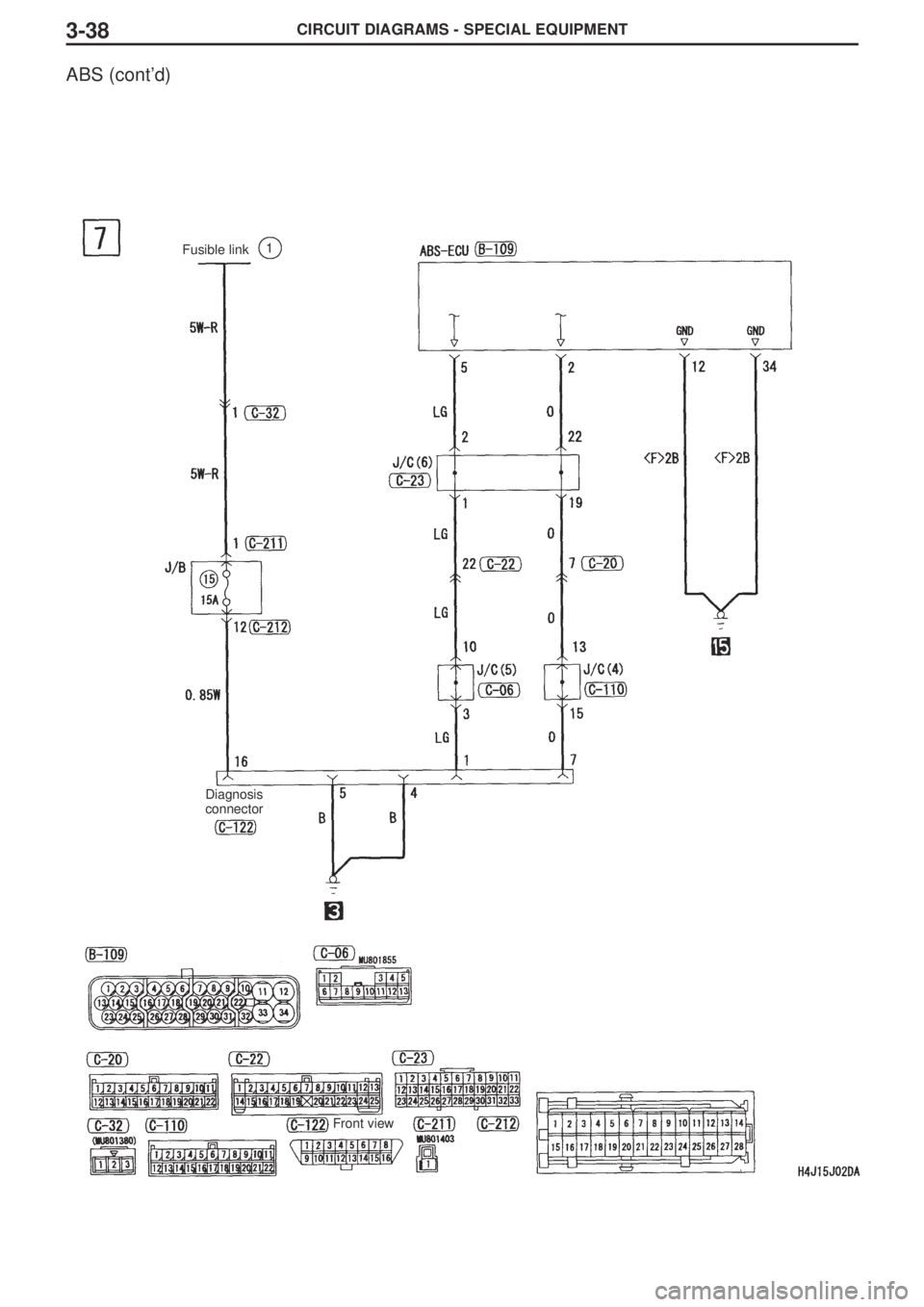

Page 145 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-38 ABS (cont’d) Fusible link1 Diagnosis connector Front view

Page 146 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS3-39 (Notes)

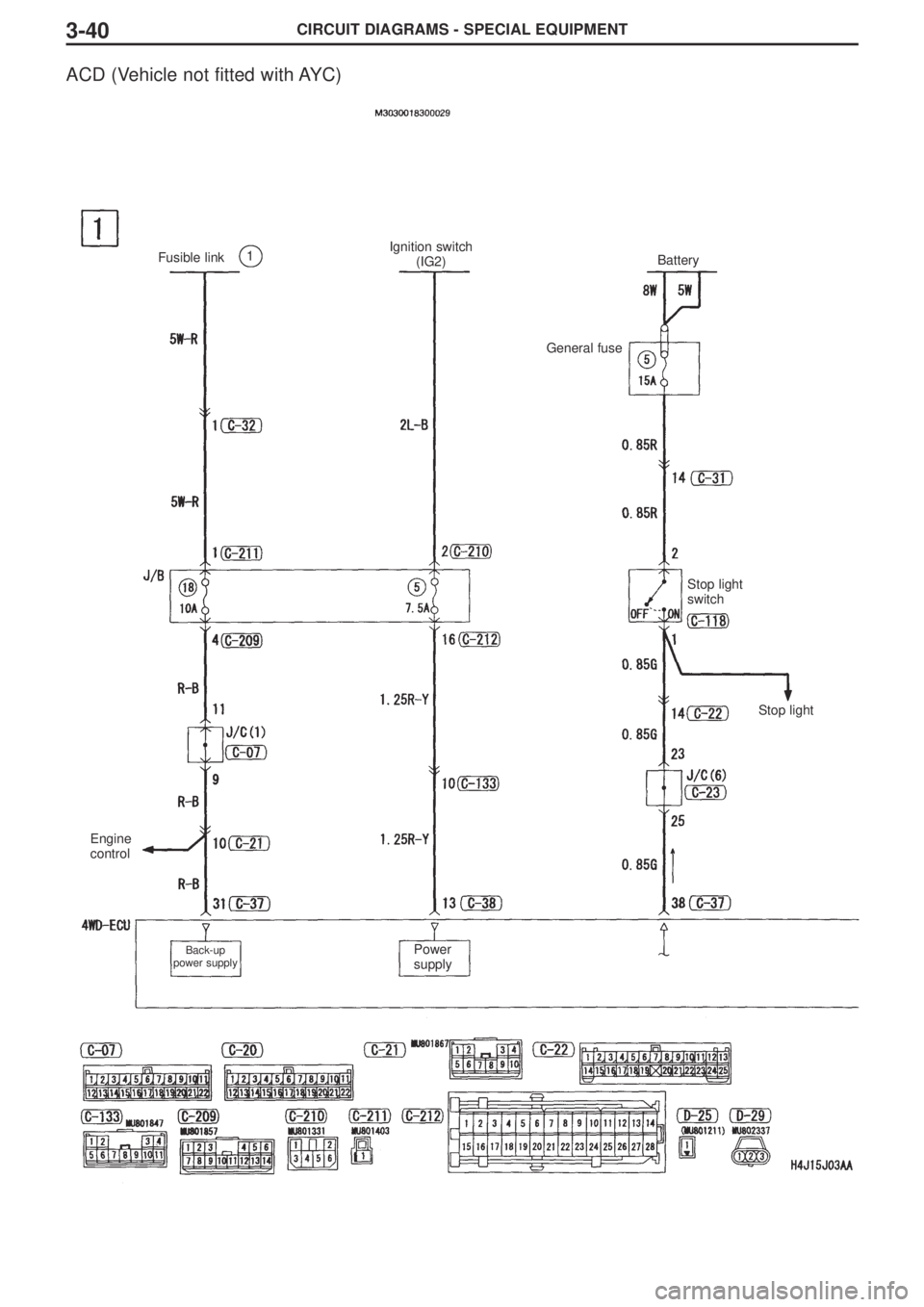

Page 147 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-40 ACD (Vehicle not fitted with AYC) Fusible link1Ignition switch (IG2)Battery General fuse Stop light switch Stop light Back-up power supply Engine control Power

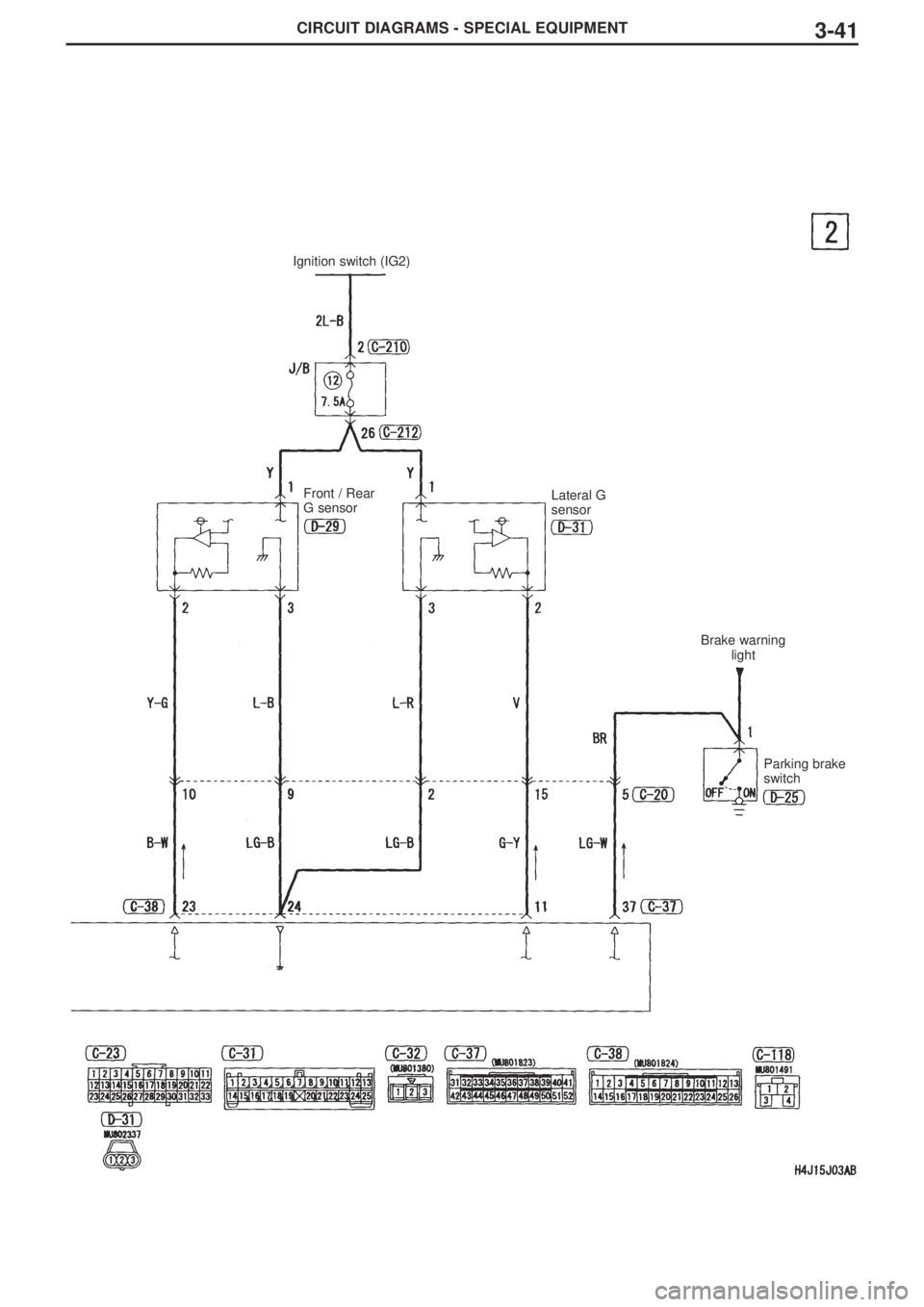

Page 148 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-41 Ignition switch (IG2) Front / Rear G sensorLateral G sensor Brake warning light Parking brake switch

Page 149 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-42 ACD (Vehicle not fitted with AYC) (cont’d) Front ECU (tail light relay) Special fuse Tail lights, side lights, licence plate lights, lighting monitoring war

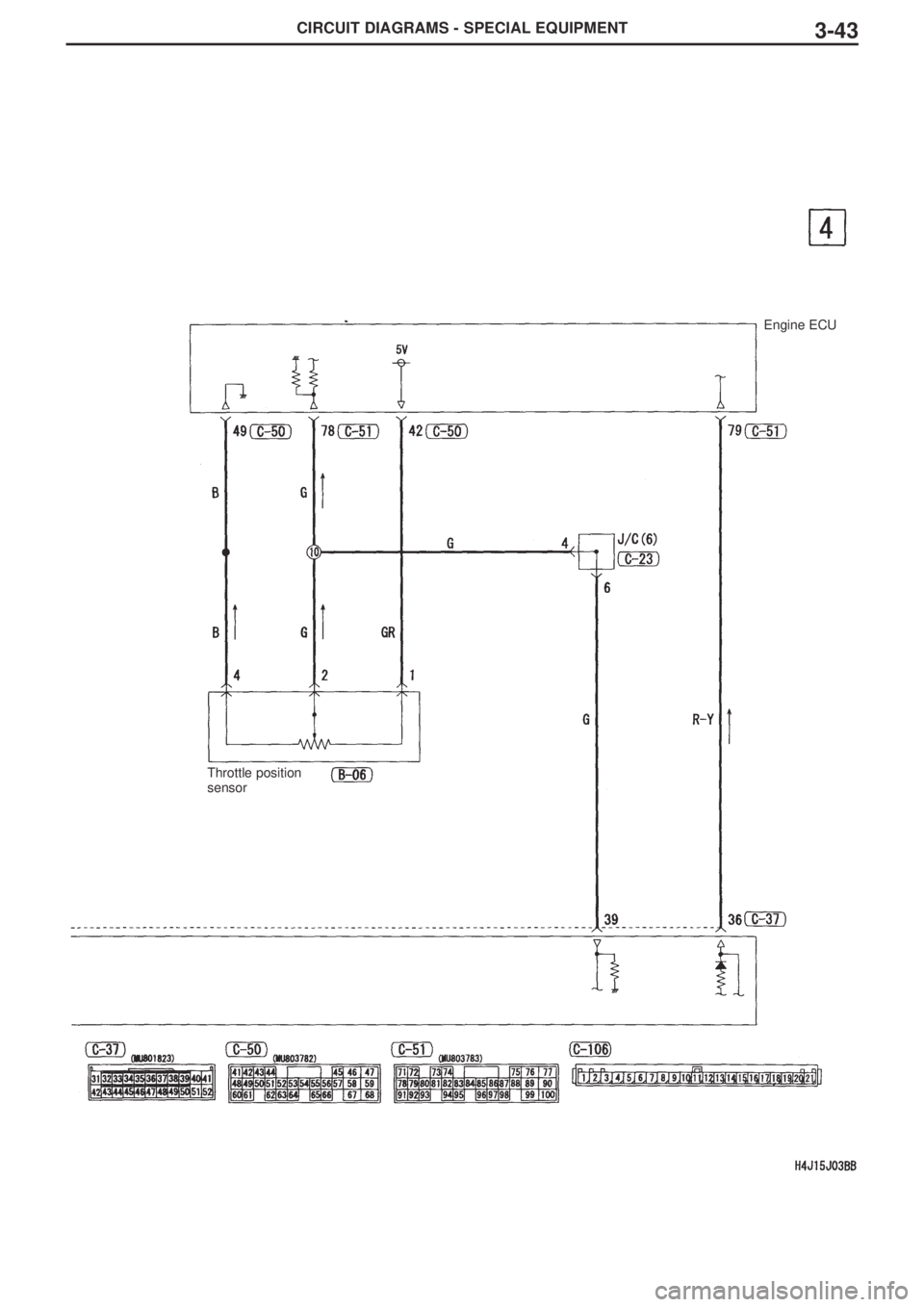

Page 150 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-43 Engine ECU Throttle position sensor
