MITSUBISHI LANCER IX 2006 Service Manual

AC502050AC
9
10
11
13
B-103B-104
B-106
B-112B-108
Battery wiring
harness
B-111
B-110B-107
Earth cable
B-109
B-111(2-B)Water temperature sensor unit
B-112(1-B)Water temperature gauge unit
B-113(3-GR)Ignition coil 2
B-114(1-B)A/C compressor
B-115(1-B)Power steering fluid pressure switch
B-116(3-B)Engine crank angle sensor
B-117(2-GR)Engine control detonation sensor
B-118(28-GR)ABS-ECU
ENGINE AND TRA N SMISSION
CONF IGURA TION D I A G RA MS80-21

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-22
ENGINE AND TRANSMISSION <4G6-MPI (RHD)>
M1801000401972
AC301138
AD
B-02 B-03B-04
B-25
B-26
Control wiring
harness
B-09
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
-01
thru
-26
B
B-01(5-GR)Windshield wiper motor
B-02(2-GR)Fuel injector 1
B-03(2-GR)Fuel injector 2
B-04(2-GR)Fuel injector 3
B-05(2-GR)Fuel injector 4
B-06(4-B)Throttle body throttle sensor
B-07(3-B)Vehicle speed sensor
B-08(7-B)Air cleaner air flow sensor
B-09(2-GR)Brake fluid level indicator switch
B-10X(1)Engine speed detection connector
B-14X(4)Ignition coil relay

AC301139AB
9
10
11
13
B-05B-07B-01
B-10X
B-14X
B-16X
B-17X
B-18
Battery wiring
harness
B-22
B-24B-06
B-08
B-23B-21
Earth
cable
B-16X(4)Engine control relay
B-17X(4)A/C compressor relay
B-18(6-B)Control wiring harness and battery wiring
harness combination
B-21(4-B)Engine control oxygen sensor (Front)
B-22(1)Sta rt er
B-23(1-B)Sta rt er
B-24(1-B)Engine oil pressure switch
B-25(1)Alternator
B-26(4-GR)Alternator
ENGINE AND TRA
N SMISSION
CONF IGURA TION D I A G RA MS80-23

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-24
ENGINE AND TRANSMISSION <4G6-MPI (RHD)> (CONTINUED)
AC301138AE
B-117B-105 B-101
B-113
B-114
B-115
B-116
Control wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
-101
thru
-118
B

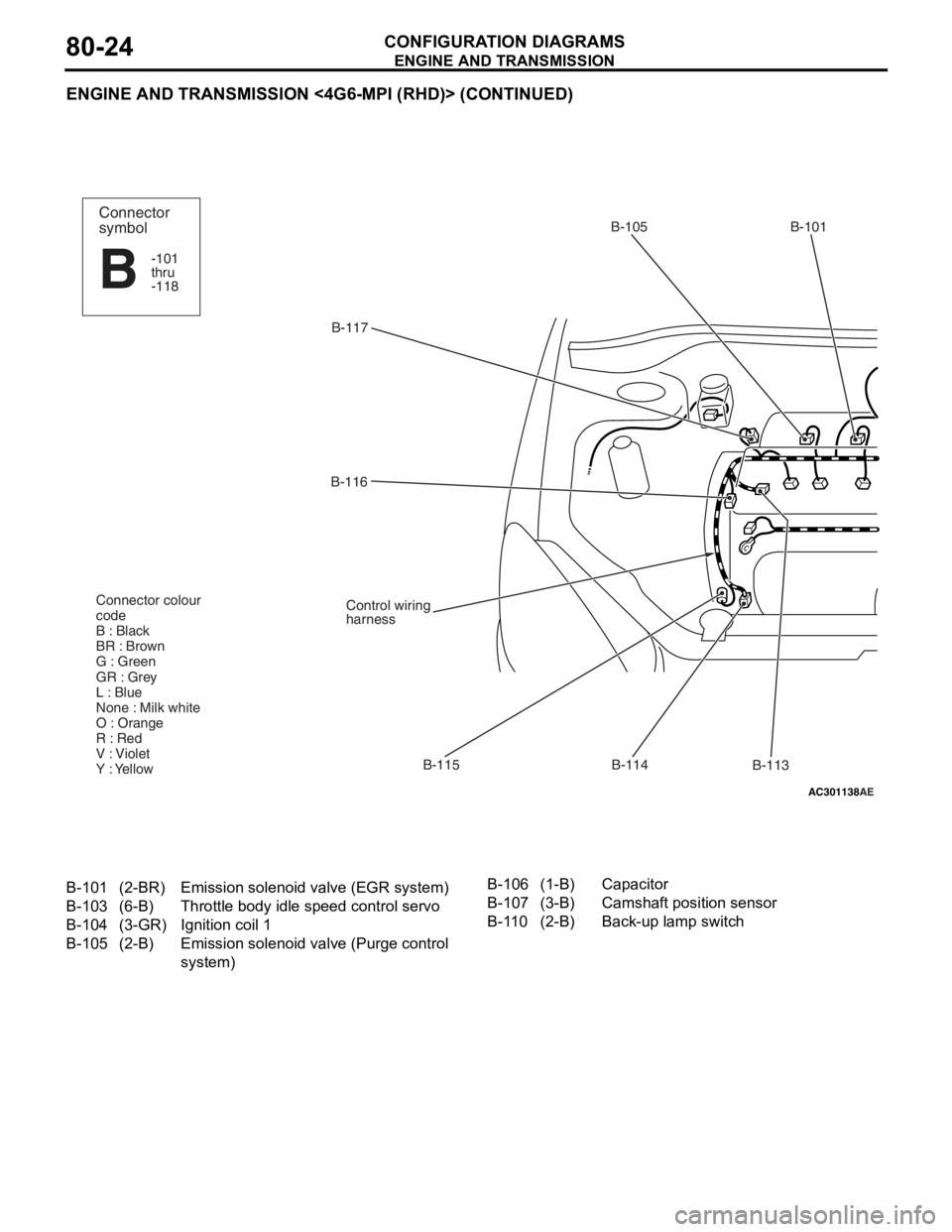

B-101(2-BR)Emission solenoid
valve (EGR system)
B-103(6-B)Throttle body idle speed control servo
B-104(3-GR)Ignition coil 1
B-105(2-B)Emission solenoid va lve (Purge control
system)
B-106(1-B)Capacitor
B-107(3-B)Camshaft position sensor
B-110(2-B)Back-up lamp switch

AC301139AC
9
11
13
B-103B-106
B-118
B-112
Battery wiring
harness
B-110
B-111
B-107
B-104
10
Earth cable

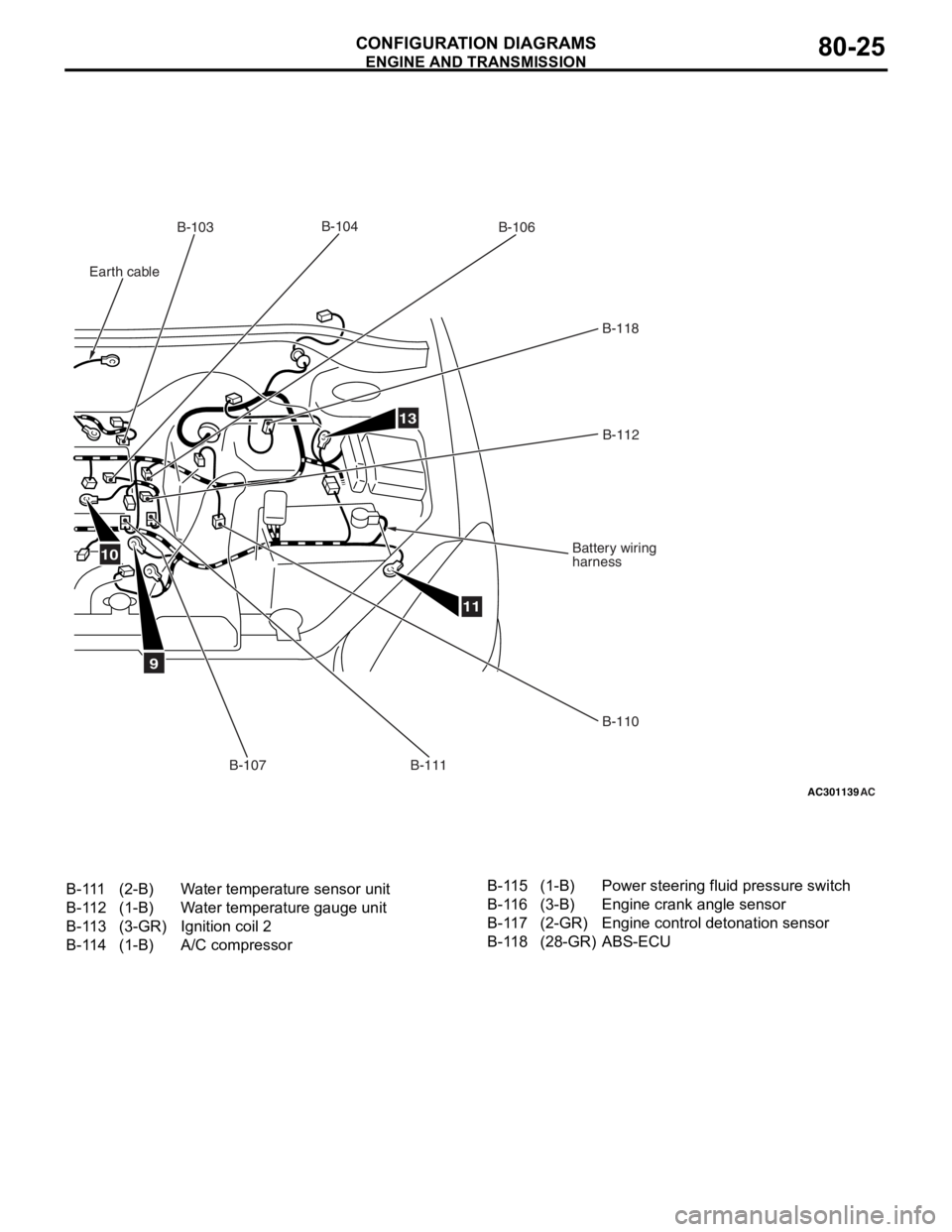

B-111(2-B)Water temperature sensor unit
B-112(1-B)Water temperature gauge unit
B-113(3-GR)Ignition coil 2
B-114(1-B)A/C compressor
B-115(1-B)Power steering fluid pressure switch
B-116(3-B)Engine crank angle sensor
B-117(2-GR)Engine control detonation sensor
B-118(28-GR)ABS-ECU
ENGINE AND TRA N SMISSION
CONF IGURA TION D I A G RA MS80-25

DASH PANEL
CONFIGURATION DIAGRAMS80-26
DASH PANEL
DASH PANEL M1801000601761
AC502051
16
C-38C-06
C-05
C-02
C-01
C-34
C-32 C-31
C-29
C-40
C-27
C-25 C-24C-22
C-21
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
-01
thru
-40
C
C-04
C-03
C-36
C-33
C-35
6
J/B
AB

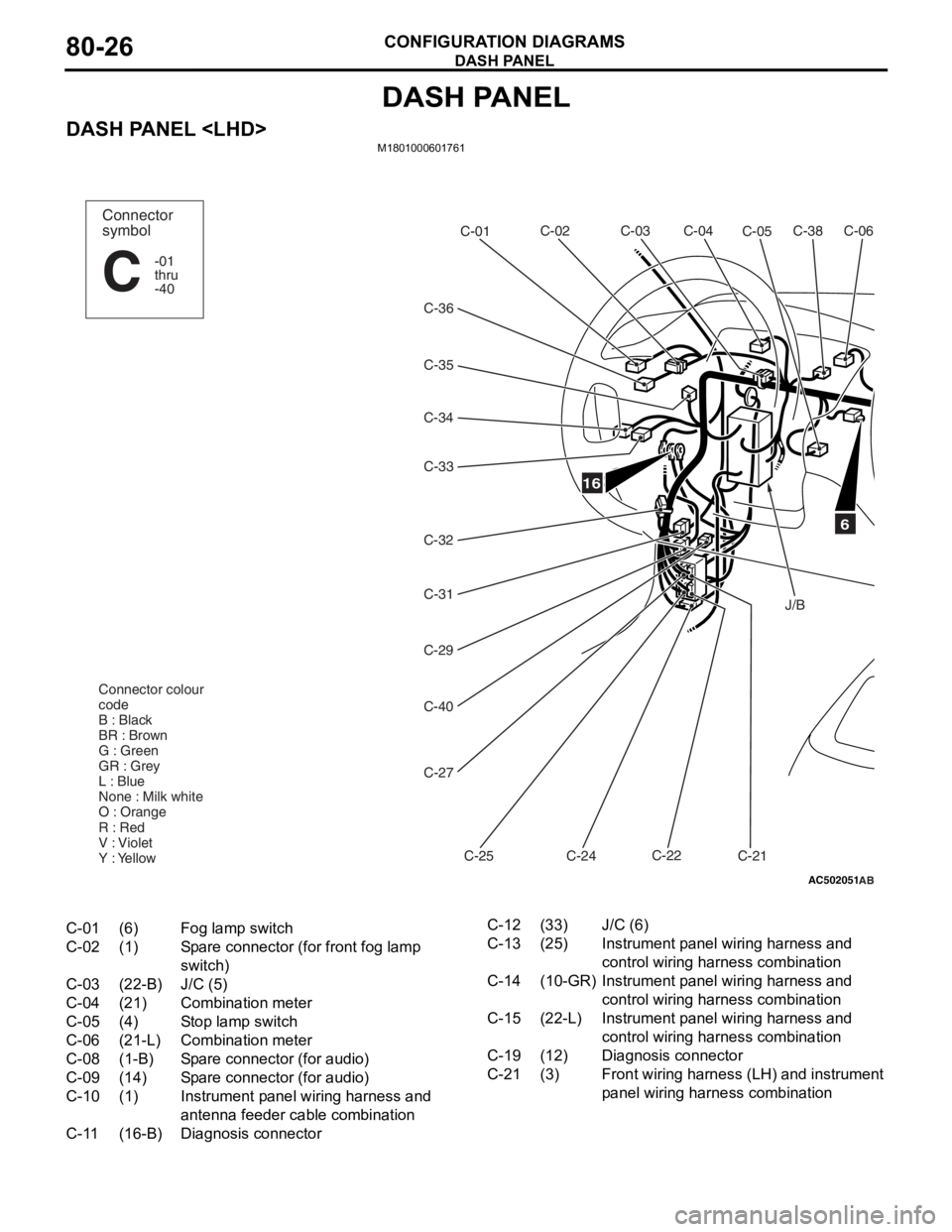

C-01(6)Fog lamp switch
C-02(1)Spare connector (for front fog lamp
switch)
C-03(22-B)J/C (5)
C-04(21)Combination meter
C-05(4)Stop lamp switch
C-06(21-L)Combination meter
C-08(1-B)Spare connector (for audio)
C-09(14)Spare connector (for audio)
C-10(1)Instrument panel wiring harness and
antenna feeder cable combination
C-11(16-B)Diagnosis connector
C-12(33)J/C (6)
C-13(25)Instrument panel wiring harness and
control wiring harness combination
C-14(10-GR)Instrument panel wiring harness and
control wiring harness combination
C-15(22-L)Instrument panel wiring harness and
control wiring harness combination
C-19(12)Diagnosis connector
C-21(3)Front wiring harness (LH) and instrument
panel wiring har ness combination

AC502052AB
5
14
15
C-08C-39C-09
C-11C-12
C-10
C-14
C-15
C-13
Instrument panel
wiring harness
Control wiring
harness
C-19
C-22(13)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-24(6-L)Instrument panel wiring harness and roof
wiring harness combination
C-25(11-B*)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-27(25)Front wiring harness (LH) and instrument
panel wiring harn ess combination
C-29(20)Instrument panel wiring harness and front
door wiring harness (LH) combination
C-31(6)Instrument panel wiring harness and roof
wiring harness combination
C-32(22-B)J/C (4)
C-33(6-L)Rheostat
C-34(6-GR)Headlamp levelling switch
C-35(22-L)J/C (2)
C-36(11-B)Remote controlled mirror switch
C-38(5)Photo sensor
C-39(2-B)Inside air temperature sensor A/C>
C-40(2)Front wiring harness (LH) and instrument
panel wiring harness combination

DASH P ANEL
CONF IGURA TION D I A G RA MS80-27
NOTE: The conn ecto r colour marked by * is fo r the
female side. F
o
r the male
side, the
colour is grey for
Se
dan, a
nd milk white f
o
r W
a
g
on.

DASH PANEL
CONFIGURATION DIAGRAMS80-28
DASH PANEL (CONTINUED)
AC502053
C-140C-102
C-103
C-141
C-101
C-132
C-139
C-148
C-130
C-146C-145
Y
4
Connector
symbol
-101
thru
-149
C
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Instrument panel
wiring harness
C-131
C-133
C-147
AB
C-101(4)Hazard warning lamp switch
C-102(4)Clock
C-103(22-GR)J/C (1)
C-104(22-GR)J/C (3)
C-106(7)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-107(7)Outside /Inside air selection damper
control motor
C-108(2-R)Air bag module (squib) side>
C-109(4)Resistor
C-110(2)Blower motor
C-112(16)Instrument panel wiring harness and front
door wiring harness (RH) combination
C-114(25)Front wiring harness (RH) and instrument
panel wiring har
ness combination
C-116(9-GR*)Instrument panel wiring harness and floor
wiring harness (RH) combination
C-119(13)Instrument panel wiring harness and floor
wiring harness (RH) combination
C-122(35-GR)Engine-A/T-ECU
C-123(26-Y)Engine-ECU
C-124(26-GR)Engine-A/T-ECU
C-125(16-Y)Engine-ECU
C-126(28-GR)Engine-A/T-ECU
C-127(12-Y)Engine-ECU
C-128(30-GR)Engine-A/T-ECU
C-129(22-Y)Engine-ECU
C-130(4)Engine control oxygen sensor (Rear)
C-131(20-Y)SRS-ECU

AC502054
C-142
AB
C-104C-106
C-143
C-107
C-109
C-149
C-110
C-144
C-112
C-114
C-116
C-119
C-126
C-127
C-128
C-129
2
C-108
C-124
C-125C-122
C-123
3

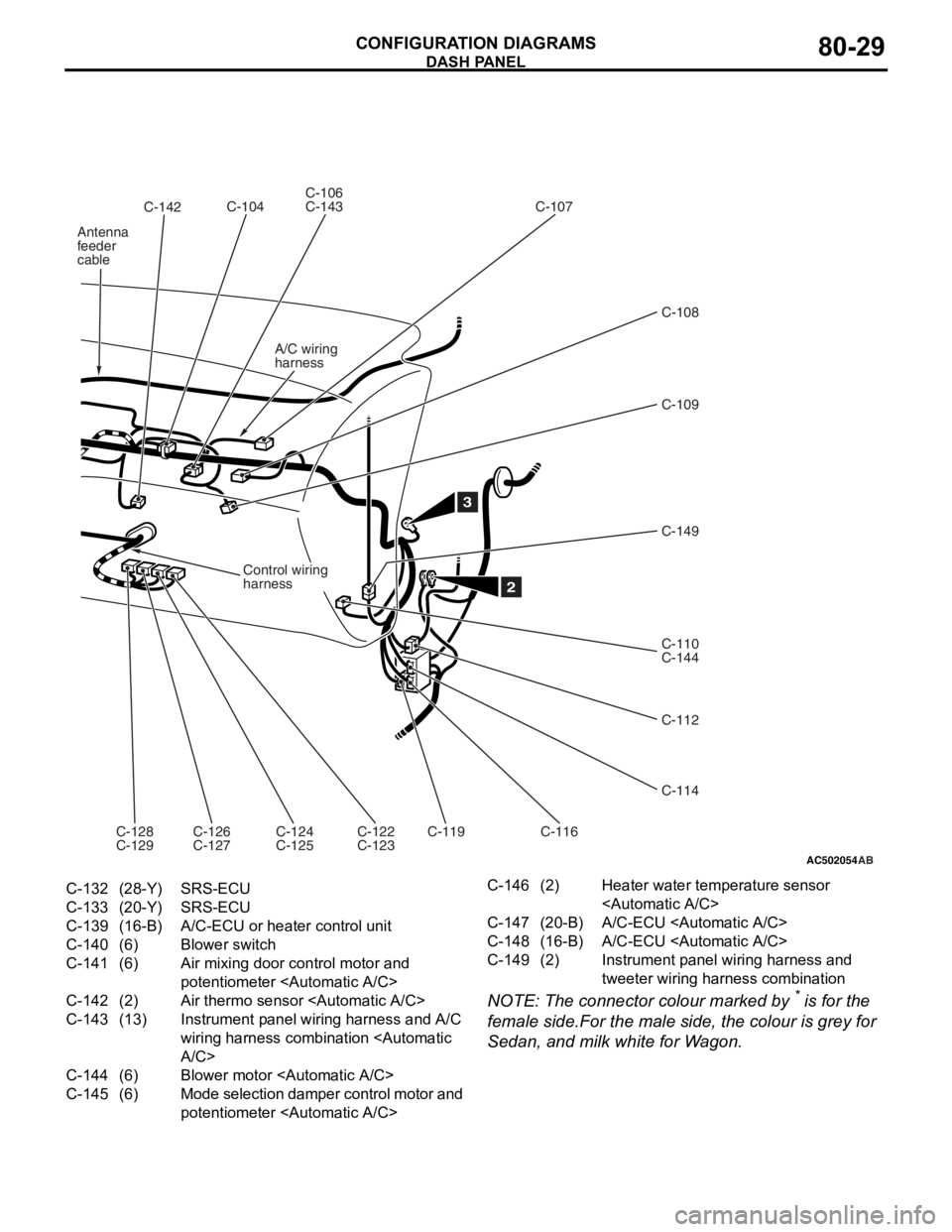

Control wiring
harness
A/C wiring
harness
Antenna
feeder
cable
C-132(28-Y)SRS-ECU
C-133(20-Y)SRS-ECU
C-139(16-B)A/C-ECU or heater control unit
C-140(6)Blower switch
C-141(6)Air mixing door control motor and
potentiometer
C-142(2)Air thermo sensor
C-143(13)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-144(6)Blower motor
C-145(6)Mode selection damper control motor and
potentiometer
C-146(2)Heater water temperature sensor

C-147(20-B)A/C-ECU
C-148(16-B)A/C-ECU
C-149(2)Instrument panel wiring harness and
tweeter wiring harn
ess combination
DASH P ANEL
CONF IGURA TION D I A G RA MS80-29
NOTE: The conn ecto r colour marked by * is fo r the
female side.F
o
r the male
sid
e
, the
colour is grey for
Se
dan, a
nd milk white f
o
r W
a
g
on.

DASH PANEL
CONFIGURATION DIAGRAMS80-30
DASH PANEL (CONTINUED)
AC301179
Connector
symbol
-201
thru
-227
C
AB
STEERING COLUMN
C-207
C-206 C-201
C-202
C-203C-203
C-204
C-205 Instrument panel
wiring harness
Clock spring
Y
C-201(6)Ignition switch
C-202(7)Key reminder switch
C-203(10)Column switch
C-204(6)Clock spring
C-205(4-Y)Clock spring
C-206(1)Horn switch
C-207(2)Air bag module (squib)
C-208(13)Instrument panel wiring harness and J/B
combination
C-209(14)Instrument panel wiring harness and J/B
combination
C-210(6)Instrument panel wiring harness and J/B
combination
C-211(1-B)Instrument panel wiring harness and J/B
combination
C-212(28)Instrument panel wiring harness and J/B
combination
