MITSUBISHI LANCER IX 2006 Service Manual

AC302010AC
(Front view)(Rear view)
C-208 C-209 C-210 C-211
C-212
C-213
C-214
C-215
C-217
C-218
C-219
C-220 C-221 C-222 C-223 C-224 C-225
C-226
C-227

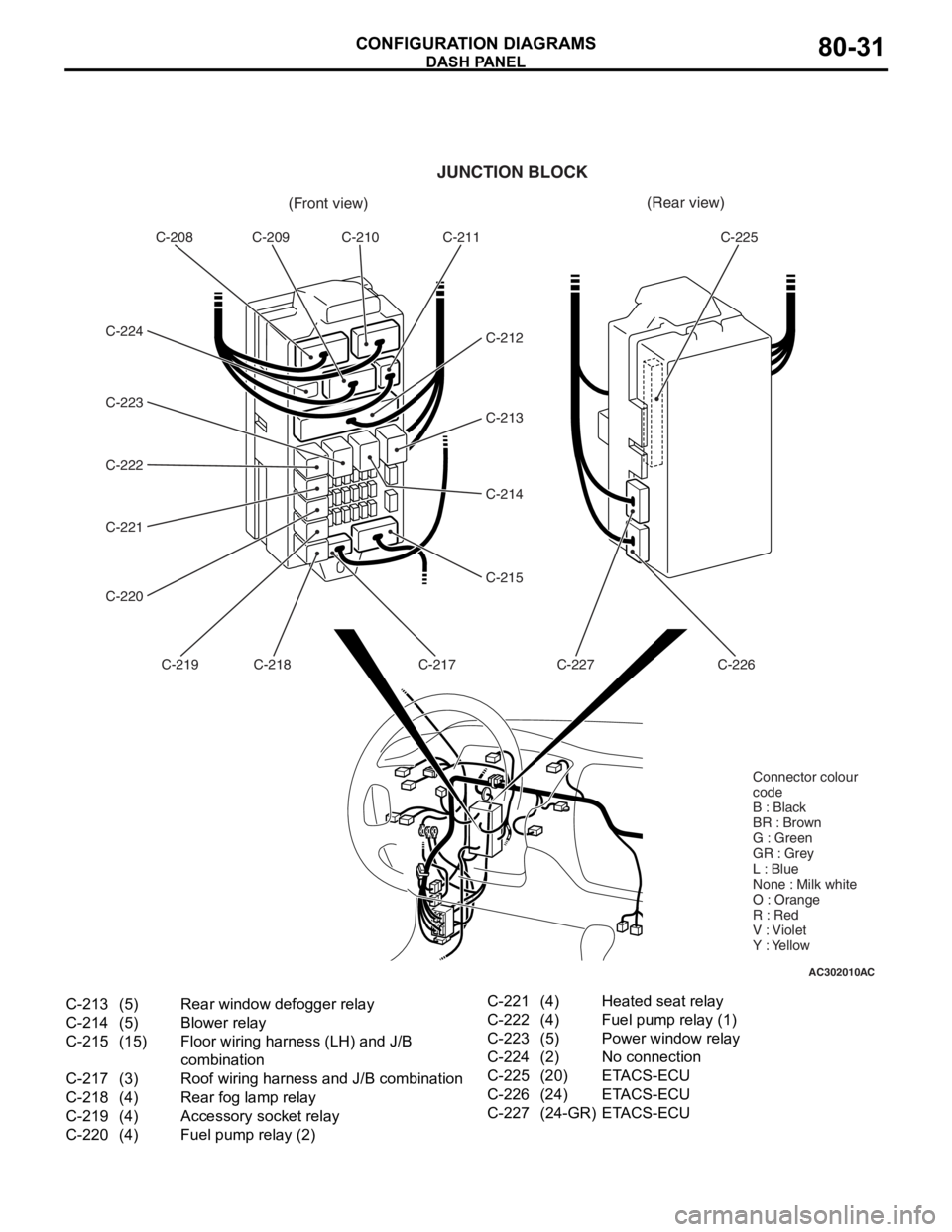

JUNCTION BLOCK
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
C-213(5)Rear window defogger relay
C-214(5)Blower relay
C-215(15)Floor wiring harness (LH) and J/B
combination
C-217(3)Roof wiring harness and J/B combination
C-218(4)Rear fog lamp relay
C-219(4)Accessory socket relay
C-220(4)Fuel pump relay (2)
C-221(4)Heated seat relay
C-222(4)Fuel pump relay (1)
C-223(5)Power window relay
C-224(2)No connection
C-225(20)ETACS-ECU
C-226(24)ETACS-ECU
C-227(24-GR)ETACS-ECU
DASH P ANEL
CONF IGURA TION D I A G RA MS80-31

DASH PANEL
CONFIGURATION DIAGRAMS80-32
DASH PANEL

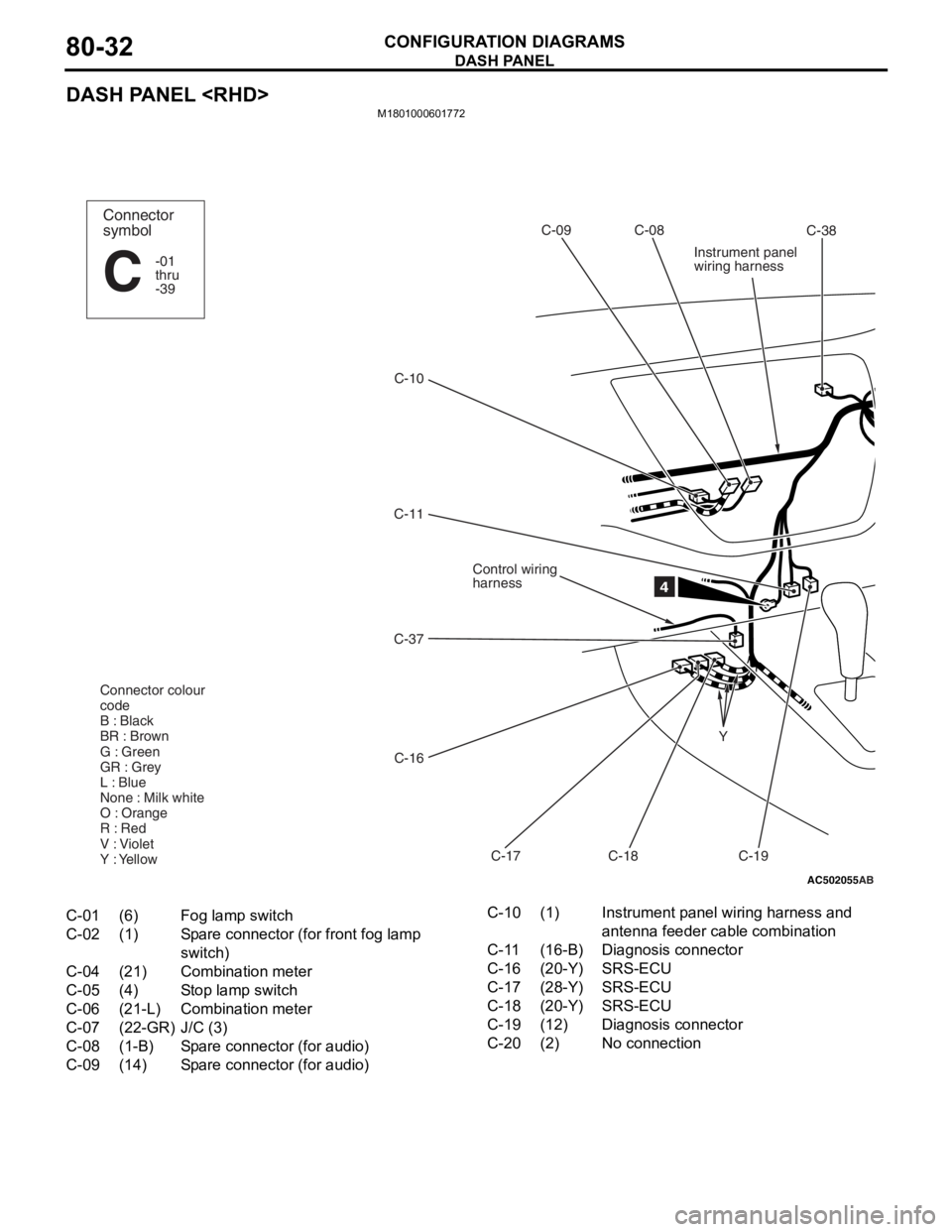

M1801000601772
AC502055
C-10C-09 C-08
Control wiring
harness
C-37
C-16 C-17 C-18
C-11
C-19
Y
4
Connector
symbol
-01
thru
-39
C
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Instrument panel
wiring harness
C-38
AB
C-01(6)Fog lamp switch
C-02(1)Spare connector (for front fog lamp
switch)
C-04(21)Combination meter
C-05(4)Stop lamp switch
C-06(21-L)Combination meter
C-07(22-GR)J/C (3)
C-08(1-B)Spare connector (for audio)
C-09(14)Spare connector (for audio)
C-10(1)Instrument panel wiring harness and
antenna feeder cable combination
C-11(16-B)Diagnosis connector
C-16(20-Y)SRS-ECU
C-17(28-Y)SRS-ECU
C-18(20-Y)SRS-ECU
C-19(12)Diagnosis connector
C-20(2)No connection

AC502056
C-39
AB
C-04 C-07 C-06 C-05 C-02 C-01J/B C-34
C-33
C-31
C-30
C-28
C-26
C-23 C-24
C-20 C-32
C-35
2
C-36
6
C-23(13)Instrument panel wiring harness and floor
wiring harness ( RH) combination
C-24(6-L)Instrument panel wiring harness and roof
wiring harness combination
C-26(9-GR)Instrument panel wiring harness and floor
wiring harness (RH) combination
C-28(25)Front wiring harness (RH) and instrument
panel wiring harn ess combination
C-30(20)Instrument panel wiring harness and front
door wiring harness (RH) combination
C-31(6)Instrument panel wiring harness and roof
wiring harness combination
C-32(22-B)J/C (4)
C-33(6-L)Rheostat
C-34(6-GR)Headlamp levelling switch
C-35(22-L)J/C (2)
C-36(11-B)Remote controlled mirror switch
C-37(4)Engine control oxygen sensor (Rear)
C-38(5)Photo sensor
C-39(2-B)Inside air temperature sensor A/C>
DASH P ANEL
CONF IGURA TION D I A G RA MS80-33

DASH PANEL
CONFIGURATION DIAGRAMS80-34
DASH PANEL (CONTINUED)
AC502057
Y
16
C-105
C-106
C-143
C-107
C-108
A/C wiring
harness
C-109
C-149
C-110
C-144
C-111
C-113
C-115
C-117
Instrument panel
wiring harness
Control wiring
harness
C-118 C-120
C-121C-128
C-129 C-126
C-127C-124
C-125
C-122
C-123
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
3
Connector
symbol
-101
thru
-149
C
Antenna
feeder
cable
AB
C-142
C-101(4)Hazard warning lamp switch
C-102(4)Clock
C-103(22-GR)J/C (1)
C-105(13)J/C (5)
C-106(7)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-107(7)Outside /Inside air selection damper
control motor
C-108(2-R)Air bag module (squib) side>
C-109(4)Resistor <
C-110(2)Blower motor
C-111(12)Front wiring harness (LH) and control
wiring harness combination
C-113(16)Instrument panel wiring harness and front
door wiring harness (LH) combination
C-115(25)Front wiring harness (LH) and instrument
panel wiring harn
ess combination
C-117(11-B*)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-118(6-L)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-120(13)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-121(3)Front wiring harness (LH) and instrument
panel wiring harness combination
C-122(35-GR)Engine-A/T-ECU
C-123(26-Y)Engine-ECU
C-124(26-GR)Engine-A/T-ECU
C-125(16-Y)Engine-ECU
C-126(28-GR)Engine-A/T-ECU
C-127(12-Y)Engine-ECU
C-128(30-GR)Engine-A/T-ECU
C-129(22-Y)Engine-ECU
C-134(33)J/C (6)
C-135(22-L)Instrument panel wiring harness and
control wiring harness combination

AC502058AB
5
14
15
C-103C-102
C-101
C-148
C-147C-138
C-146
C-137 C-140
C-139
C-136
C-135
C-134
C-145
C-141
C-136(10-GR)Instrument panel wiring harness and
control wiring harness combination
C-137(25)Instrument panel wiring harness and
control wiring harness combination
C-138(3)Instrument panel wiring harness and
Instrument panel wiring harness
combination
C-139(12-B)A/C-ECU or heater control unit
C-140(6)Blower switch
C-141(6)Air mixing door control motor and
potentiometer
C-142(2)Air thermo sensor
C-143(13)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-144(6)Blower motor
C-145(6)Mode selection damper control motor and
potentiometer
C-146(2)Heater water temperature sensor

C-147(20-B)A/C-ECU
C-148(16-B)A/C-ECU
C-149(2)Instrument panel wiring harness and
tweeter wiring harn ess combination
DASH P ANEL
CONF IGURA TION D I A G RA MS80-35
NOTE: The conn ecto r colour marked by * is fo r the
female side.F
o
r the male
sid
e
, the
colour is grey .

DASH PANEL
CONFIGURATION DIAGRAMS80-36
DASH PANEL (CONTINUED)
AC206572
Connector
symbol
-201
thru
-227
C
AC
STEERING COLUMN
C-207
C-206
C-205
C-204
C-203C-203
C-202
C-201
Instrument panel
wiring harness
Clock spring
Y
C-201(6)Ignition switch
C-202(7)Key reminder switch
C-203(10)Column switch
C-204(6)Clock spring
C-205(4-Y)Clock spring
C-206(1)Horn switch
C-207(2)Air bag module (squib)
C-208(13)Instrument panel wiring harness and J/B
combination
C-209(14)Instrument panel wiring harness and J/B
combination
C-210(6)Instrument panel wiring harness and J/B
combination
C-211(1-B)Instrument panel wiring harness and J/B
combination
C-212(28)Instrument panel wiring harness and J/B
combination

AC302011AC
(Front view)(Rear view)
C-208 C-209 C-210 C-211
C-212
C-213
C-214
C-216
C-217
C-218
C-219
C-220 C-221 C-222 C-223 C-224 C-225
C-226
C-227

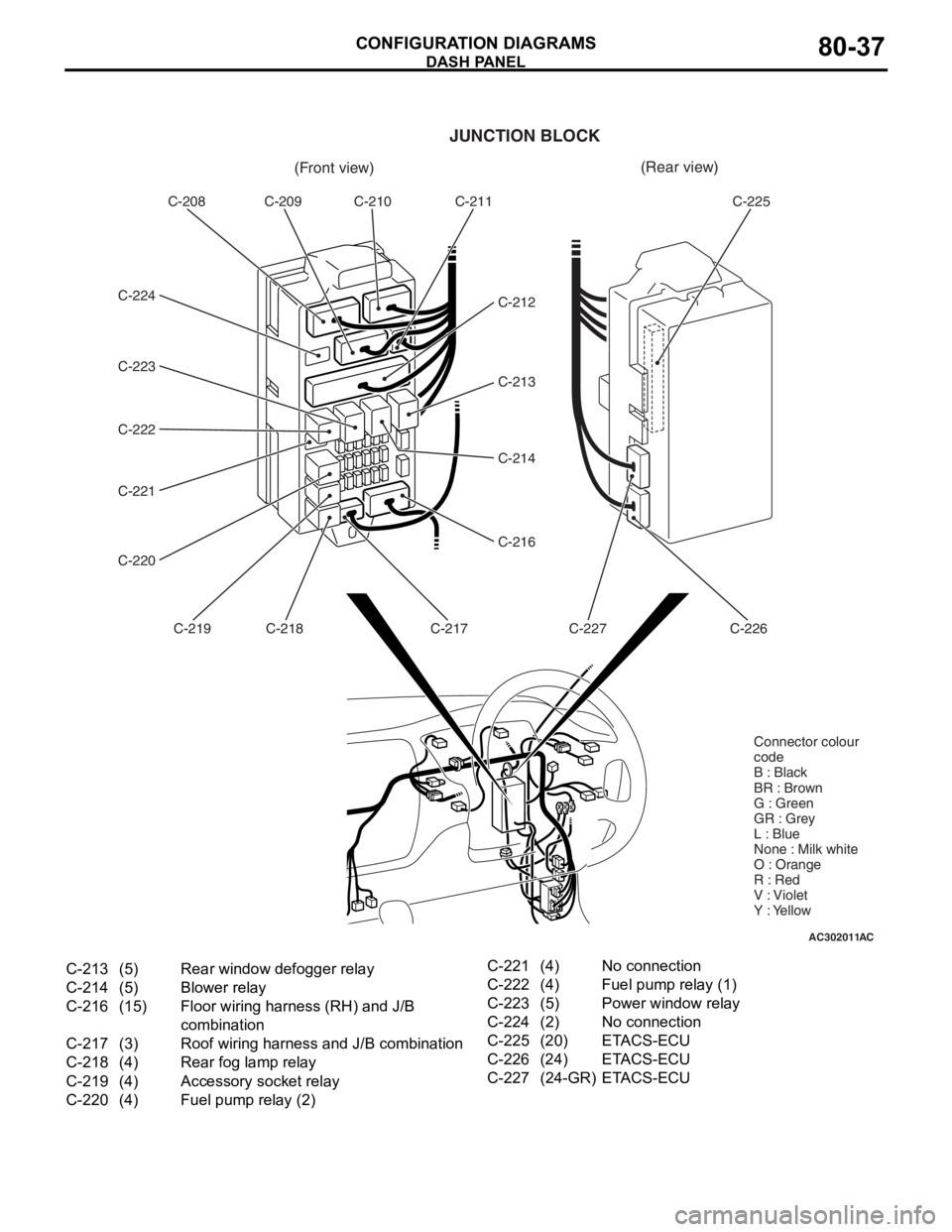

JUNCTION BLOCK
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
C-213(5)Rear window defogger relay
C-214(5)Blower relay
C-216(15)Floor wiring harness (RH) and J/B
combination
C-217(3)Roof wiring harness and J/B combination
C-218(4)Rear fog lamp relay
C-219(4)Accessory socket relay
C-220(4)Fuel pump relay (2)
C-221(4)No connection
C-222(4)Fuel pump relay (1)
C-223(5)Power window relay
C-224(2)No connection
C-225(20)ETACS-ECU
C-226(24)ETACS-ECU
C-227(24-GR)ETACS-ECU
DASH P ANEL
CONF IGURA TION D I A G RA MS80-37

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-38
FLOOR AND ROOF
FLOOR AND ROOF M1801000901557
AC502059
D-06
D-07
D-05
D-04
D-03
D-02
D-01
D-35
D-39D-33
D-38D-32
D-34
D-31
D-30
D-29
D-25
D-28 D-27 D-24
D-23Y
Y Floor wiring
harness (LH)
Floor wiring
harness (RH)
Instrument panel
wiring harness
Connector
symbol
D
D-26
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Antenna
feeder cable
AB
Y
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
D-19(8)Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20(3)Door switch (Front: LH)

AC301180

AB
D-08D-13
D-14
D-15
D-16
D-17
D-18
D-19
D-20
D-21
D-22 Y Y
Y
D-04 D-36 D-06 D-37
Roof wiring
harness
YFuel wiring
harness
7
17
Y
Y
Antenna
feeder cable
D-21(2)Side impact sensor (Front: LH)
D-22(2-B)Seat belt pre-tensioner (LH)
D-23(2-R)Side air bag module (squib) (LH)
D-24(3)Heated seat assembly (LH)
D-25(9)Heated seat switch
D-26(4)Instrument panel wiring harness and
console wiring harness combination
D-27(6)Shift switch assembly
D-28(1)Cigarette lighter
D-29(1-B)Cigarette lighter
D-30(2-B)Cigarette lighter
illumination lamp
D-31(2-B)Ashtray illumination lamp
D-32(3)Heated seat assembly (RH)
D-33(2-R)Side air bag module (squib) (RH)
D-34(1-B)Parking brake switch
D-35(2-B)Seat belt pre-tensioner (RH)
D-36(2-B)Curtain air bag module (squib) (RH)
D-37(2-B)Curtain air bag module (squib) (LH)
D-38(2)Tw e et er (L H )
D-39(2)Tw e et er (R H )
FLOOR AND ROOF
CONF IGURA TION D I A G RA MS80-39

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-40

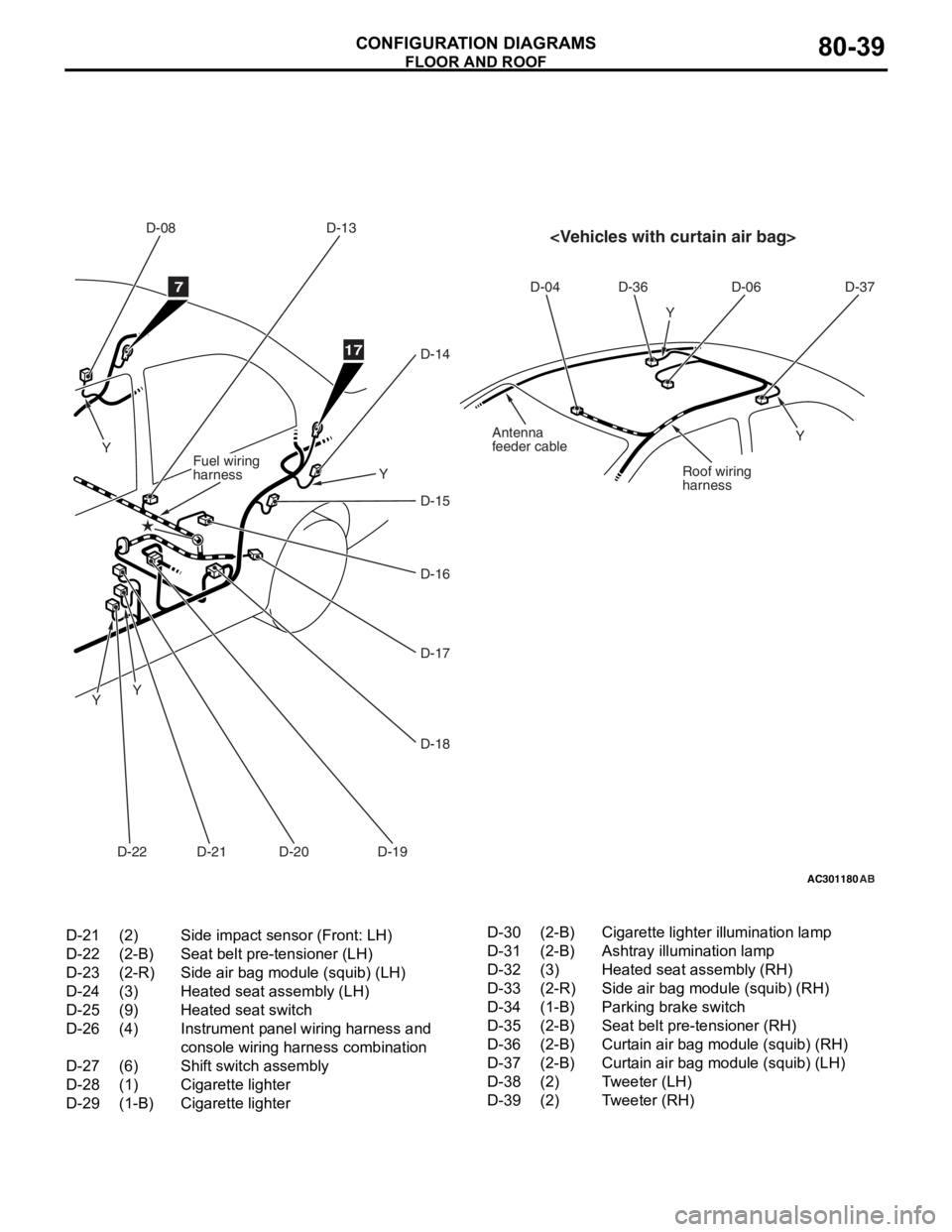

FLOOR AND ROOF
M1801000901568
AC502060
D-06
D-07
D-05
D-04
D-03
D-02
D-01
D-35
D-34D-33
D-39
D-38
D-31 D-30
D-29 D-28D-27
D-23Y
Y
YFloor wiring
harness (LH)
Floor wiring
harness (RH)
Instrument panel
wiring harness
Connector
symbol
D
D-26
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
AB
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
D-19(8)Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20(3)Door switch (Front: LH)
