sensor MITSUBISHI LANCER IX 2006 Workshop Manual

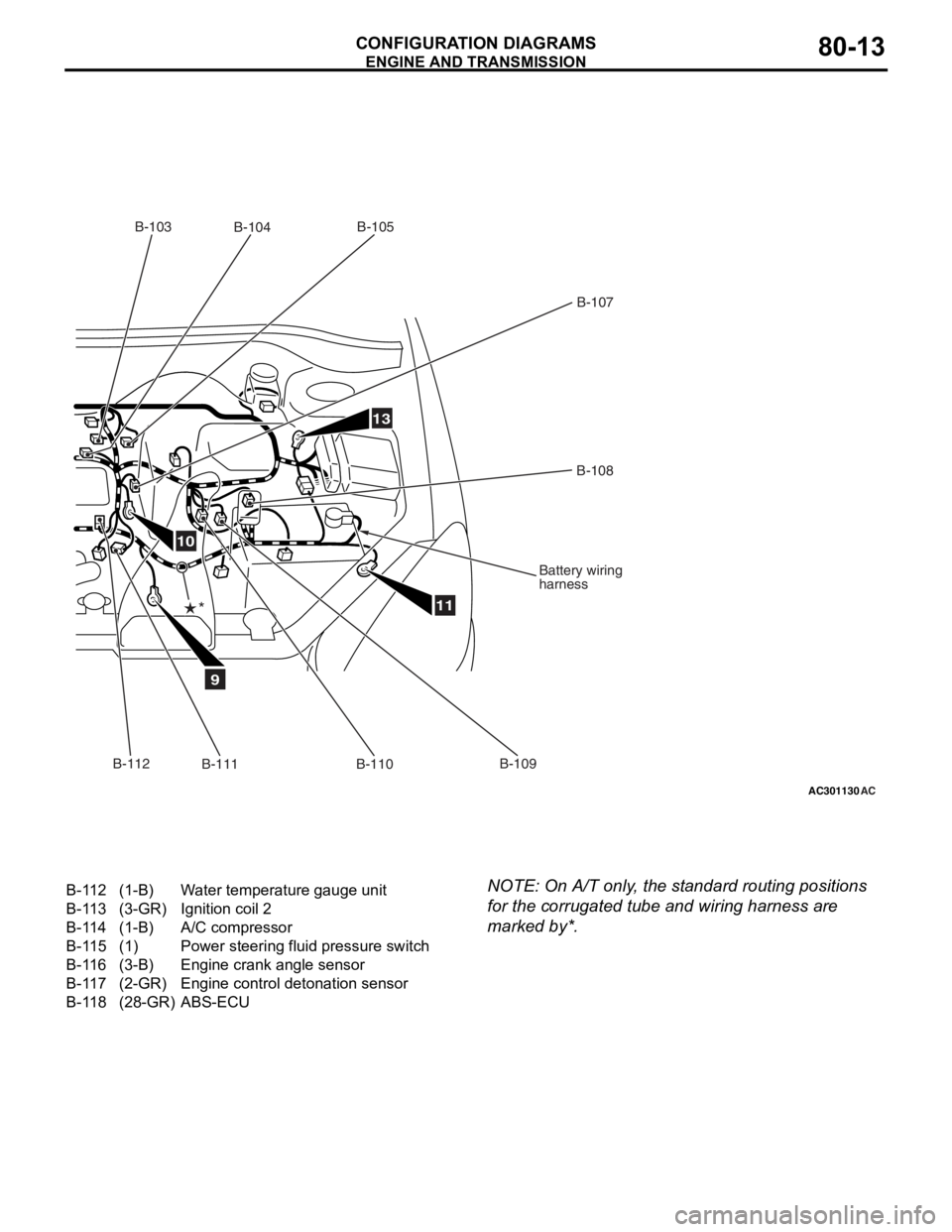

AC301130AC
9
10
11
13
B-103B-104 B-105
B-107
B-108
Battery wiring
harness
B-109
B-110
B-111
*
B-112
B-112(1-B)Water temperature gauge unit
B-113(3-GR)Ignition coil 2
B-114(1-B)A/C compressor
B-115(1)Power steering fluid pressure switch
B-116(3-B)Engine crank angle sensor
B-117(2-GR)Engine control detonation sensor
B-118(28-GR)ABS-ECU
ENGINE AND TRA
N SMISSION
CONF IGURA TION D I A G RA MS80-13
NOTE: On A/T only , the st andard routing positions
for the
corrug a ted tu be and wiring harne ss are
marked by*.

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-14
ENGINE AND TRANSMISSION <4G1-MPI (RHD)>
M1801000401950
AC301132AD
B-02
B-03B-04 B-05
B-22
B-23
B-24
B-25
B-26
Control wiring
harnessB-09
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow*
Connector
symbol
-01
thru
-26
B
Earth cable
B-01(5-GR)Windshield wiper motor
B-02(2-GR)Fuel injector 1
B-03(2-GR)Fuel injector 2
B-04(2-GR)Fuel injector 3
B-05(2-GR)Fuel injector 4
B-06(3-GR)Throttle body throttle sensor
B-07(3-B)Vehicle speed sensor
B-09(2-GR)Brake fluid level indicator switch
B-10X(1)Engine speed detection connector
B-14X(4)Ignition coil relay
B-15X(4)A/T control relay
B-16X(4)Engine control relay

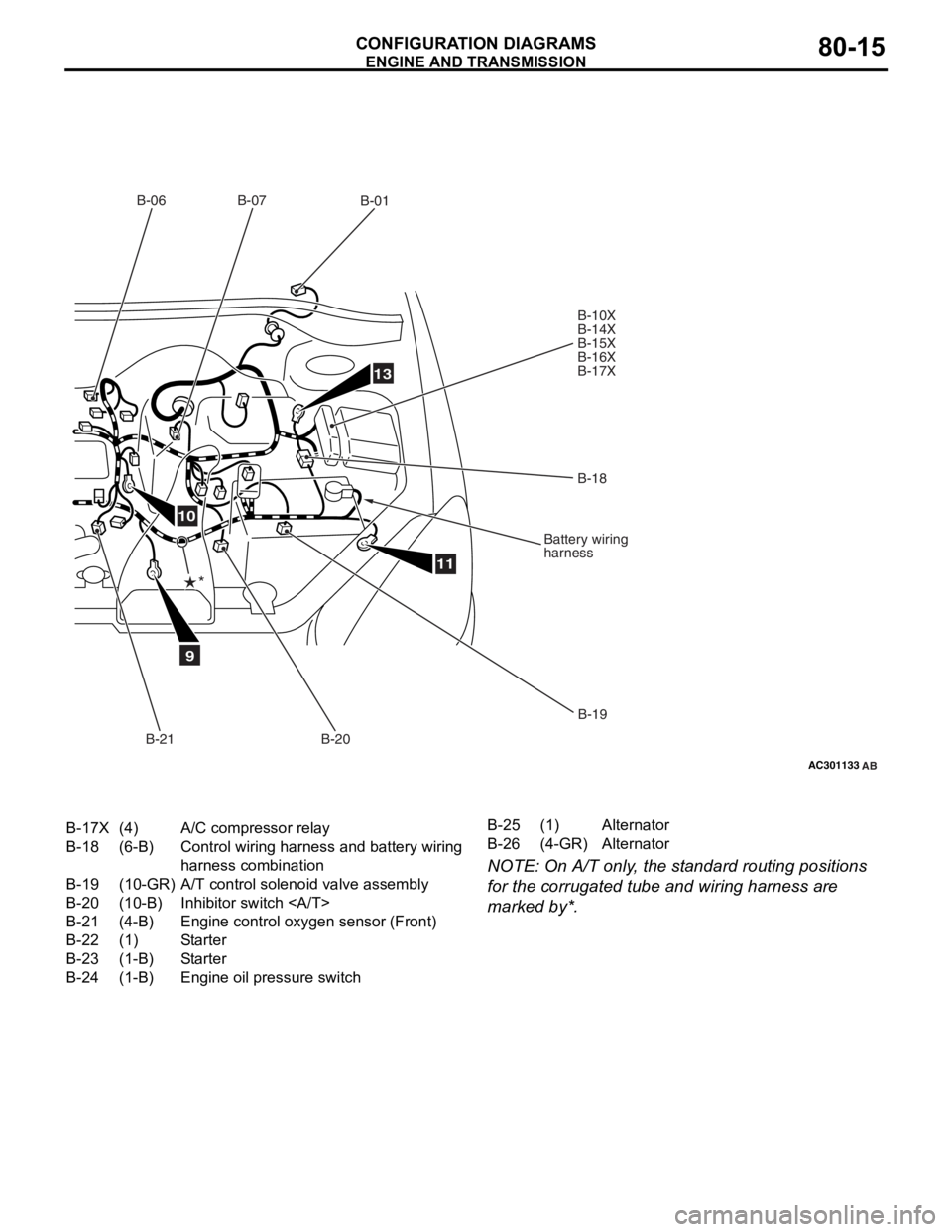

AC301133AB
9
10
11
13
B-06B-07
B-01
B-10X
B-14X
B-15X
B-16X
B-17X
B-18
Battery wiring
harness
B-19
B-20
B-21
*
B-17X(4)A/C compressor relay
B-18(6-B)Control wiring harness and battery wiring
harness combination
B-19(10-GR)A/T control solenoid valve assembly
B-20(10-B)Inhibitor switch
B-21(4-B)Engine control oxygen sensor (Front)
B-22(1)Sta rt er
B-23(1-B)Sta rt er
B-24(1-B)Engine oil pressure switch
B-25(1)Alternator
B-26(4-GR)Alternator
ENGINE AND TRA
N SMISSION
CONF IGURA TION D I A G RA MS80-15
NOTE: On A/T only , the st andard routing positions
for the
corrug a ted tu be and wiring harne ss are
marked by*.

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-16
ENGINE AND TRANSMISSION <4G1-MPI (RHD)> (CONTINUED)
AC301132AE
B-117B-101 B-102
B-113
B-114
B-115
B-116
Earth cable
Control wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
-101
thru
-118
B
*
B-101(2-BR)Emission solenoid valve (EGR system)
B-102(4-GR)Inlet manifold absolu te pressure sensor
B-103(6-B)Throttle body idle speed control servo
B-104(3-GR)Ignition coil 1
B-105(2-B)Emission solenoid va lve (Purge control
system)
B-107(3-B)Camshaft position sensor
B-108(3-GR)Output shaft speed sensor
B-109(3-B)Input shaft speed sensor
B-110(2-B)Back-up lamp switch

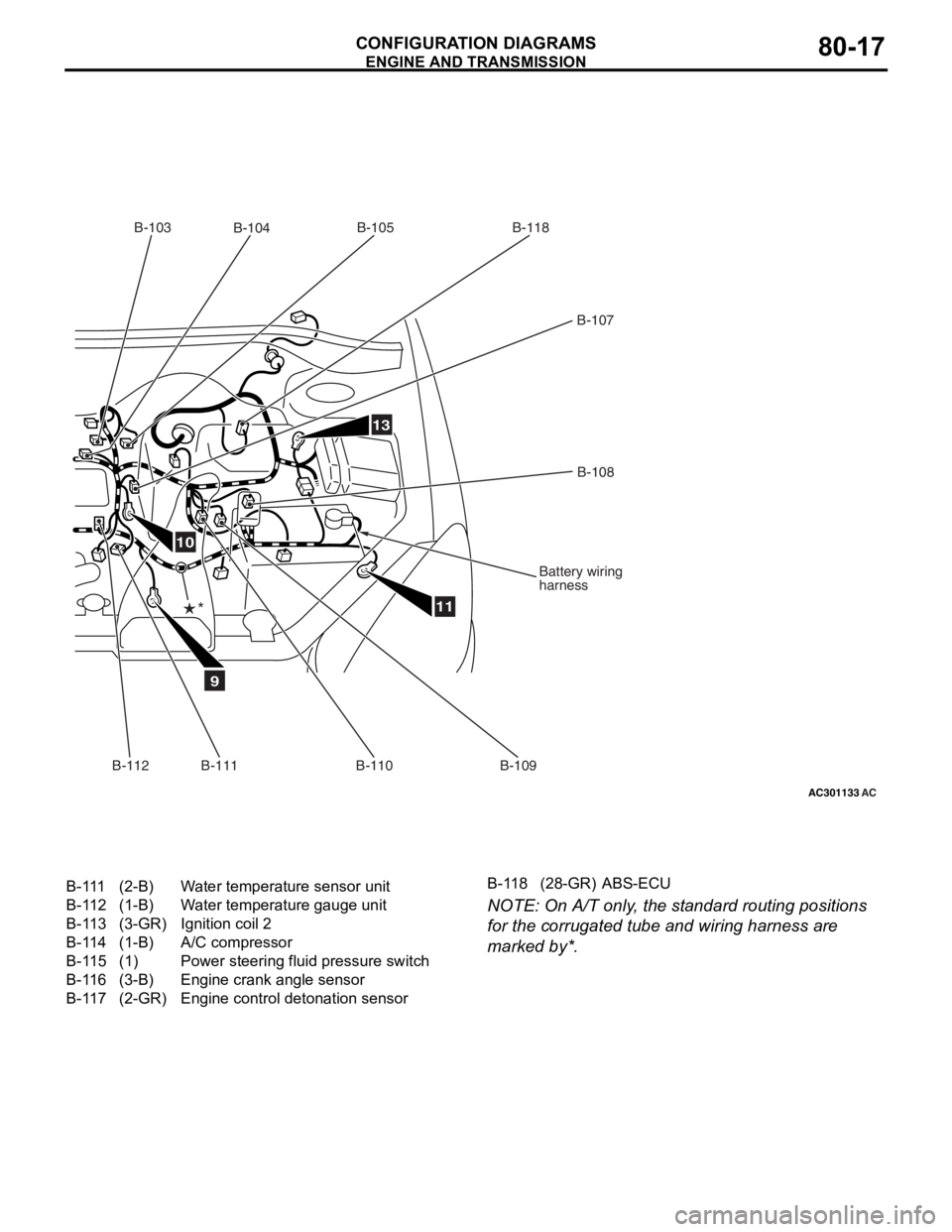

AC301133AC
9
10
11
13
B-103B-104 B-105
B-107
B-108
Battery wiring
harness
B-109
B-110
B-111
*
B-112
B-118
B-111(2-B)Water temperature sensor unit
B-112(1-B)Water temperature gauge unit
B-113(3-GR)Ignition coil 2
B-114(1-B)A/C compressor
B-115(1)Power steering fluid pressure switch
B-116(3-B)Engine crank angle sensor
B-117(2-GR)Engine control detonation sensor
B-118(28-GR)ABS-ECU
ENGINE AND TRA
N SMISSION
CONF IGURA TION D I A G RA MS80-17
NOTE: On A/T only , the st andard routing positions
for the
corrug a ted tu be and wiring harne ss are
marked by*.

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-18
ENGINE AND TRANSMISSION <4G6-MPI (LHD)>
M1801000401961
AC301135AD
B-02
B-03B-04
B-25
B-26
Control wiring
harnessB-01
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : YellowConnector
symbol
-01
thru
-26
B
B-01(5-GR)Windshield wiper motor
B-02(2-GR)Fuel injector 1
B-03(2-GR)Fuel injector 2
B-04(2-GR)Fuel injector 3
B-05(2-GR)Fuel injector 4
B-06(4-B)Throttle body throttle sensor
B-07(3-B)Vehicle speed sensor
B-08(7-B)Air cleaner air flow sensor
B-09(2-GR)Brake fluid level indicator switch
B-10X(1)Engine speed detection connector
B-15X(4)A/T control relay

AC502050
B-07
AB
910
11
13
B-06B-09
B-10X
B-15X
B-16X
B-17X
B-18
Battery wiring
harness
B-21
B-22
B-23
B-19
B-20
B-05B-08
B-24
Earth
cable
B-16X(4)Engine control relay
B-17X(4)A/C compressor relay
B-18(6-B)Control wiring harness and battery wiring
harness combination
B-19(10-GR)A/T control solenoid valve assembly
B-20(10-B)Inhibitor switch
B-21(4-B)Engine control oxygen sensor (Front)
B-22(1)Sta rt er
B-23(1-B)Sta rt er
B-24(1-B)Engine oil pressure switch
B-25(1)Alternator
B-26(4-GR)Alternator
ENGINE AND TRA N SMISSION
CONF IGURA TION D I A G RA MS80-19

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-20

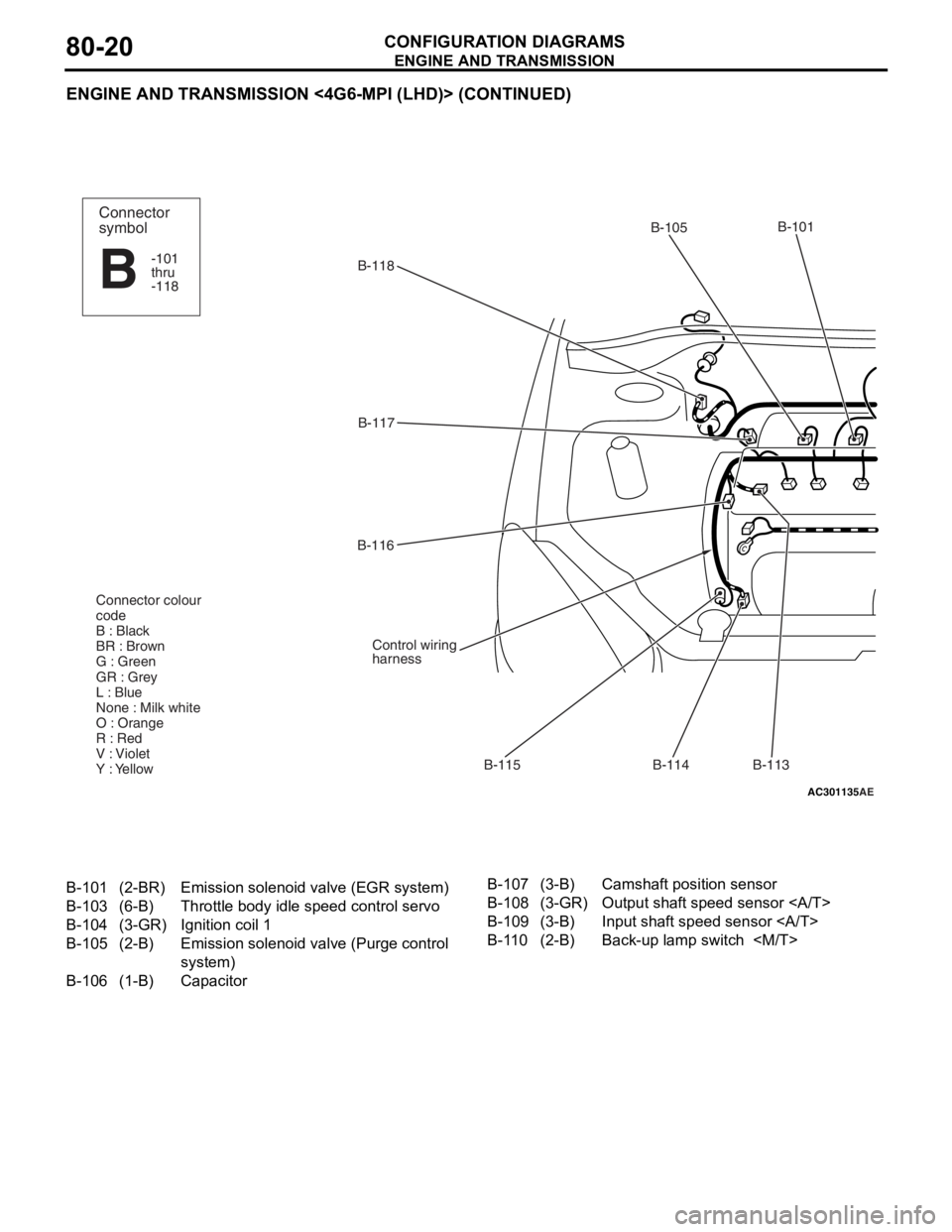

ENGINE AND TRANSMISSION <4G6-MPI (LHD)> (CONTINUED)
AC301135AE
B-118B-101
B-114
B-115
B-116
B-117
Control wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
B-113
B-105Connector
symbol
-101
thru
-118
B
B-101(2-BR)Emission solenoid
valve (EGR system)
B-103(6-B)Throttle body idle speed control servo
B-104(3-GR)Ignition coil 1
B-105(2-B)Emission solenoid va lve (Purge control
system)
B-106(1-B)Capacitor
B-107(3-B)Camshaft position sensor
B-108(3-GR)Output shaft speed sensor
B-109(3-B)Input shaft speed sensor
B-110(2-B)Back-up lamp switch

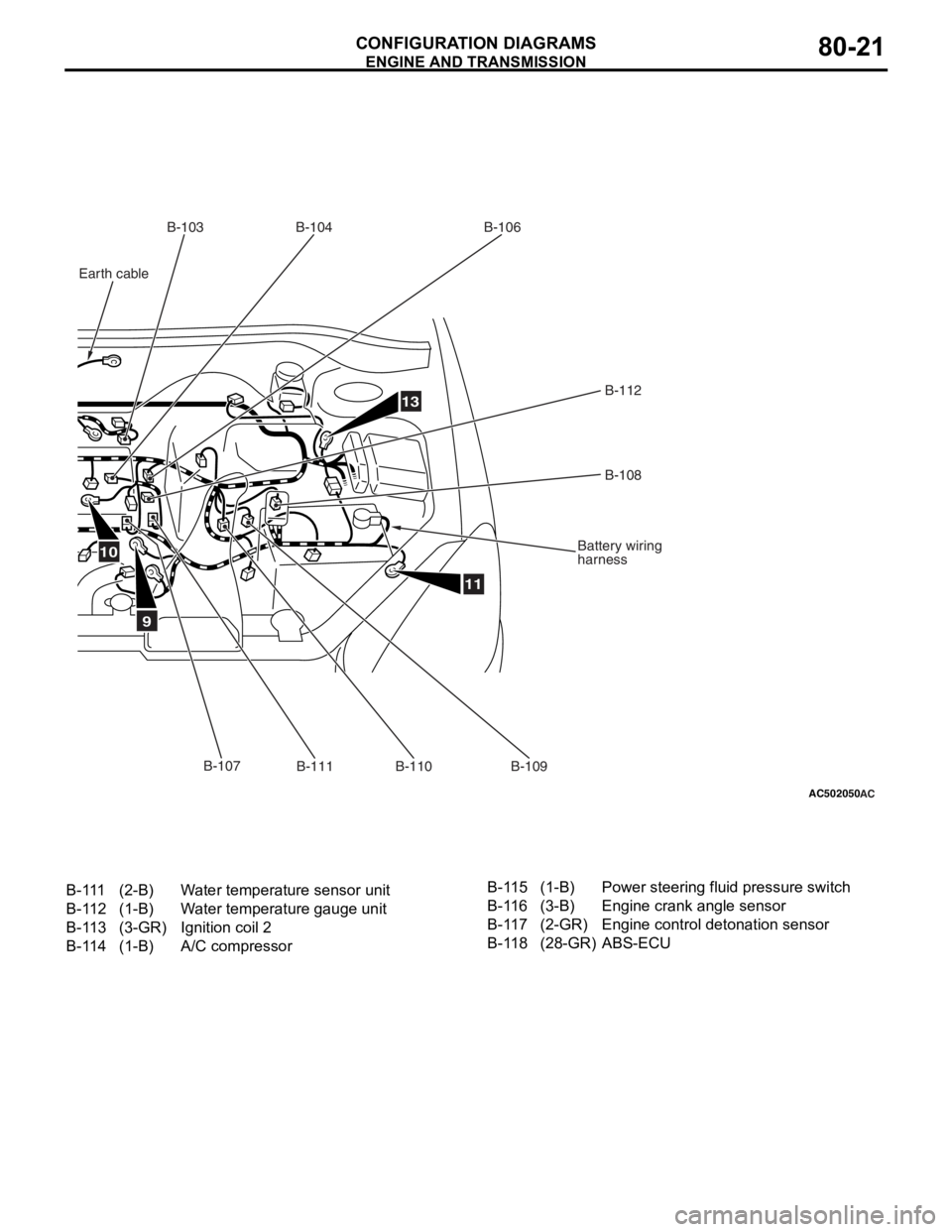

AC502050AC
9
10
11
13
B-103B-104
B-106
B-112B-108
Battery wiring
harness
B-111
B-110B-107
Earth cable
B-109
B-111(2-B)Water temperature sensor unit
B-112(1-B)Water temperature gauge unit
B-113(3-GR)Ignition coil 2
B-114(1-B)A/C compressor
B-115(1-B)Power steering fluid pressure switch
B-116(3-B)Engine crank angle sensor
B-117(2-GR)Engine control detonation sensor
B-118(28-GR)ABS-ECU
ENGINE AND TRA N SMISSION
CONF IGURA TION D I A G RA MS80-21

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-22
ENGINE AND TRANSMISSION <4G6-MPI (RHD)>
M1801000401972
AC301138
AD
B-02 B-03B-04
B-25
B-26
Control wiring
harness
B-09
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
-01
thru
-26
B
B-01(5-GR)Windshield wiper motor
B-02(2-GR)Fuel injector 1
B-03(2-GR)Fuel injector 2
B-04(2-GR)Fuel injector 3
B-05(2-GR)Fuel injector 4
B-06(4-B)Throttle body throttle sensor
B-07(3-B)Vehicle speed sensor
B-08(7-B)Air cleaner air flow sensor
B-09(2-GR)Brake fluid level indicator switch
B-10X(1)Engine speed detection connector
B-14X(4)Ignition coil relay
