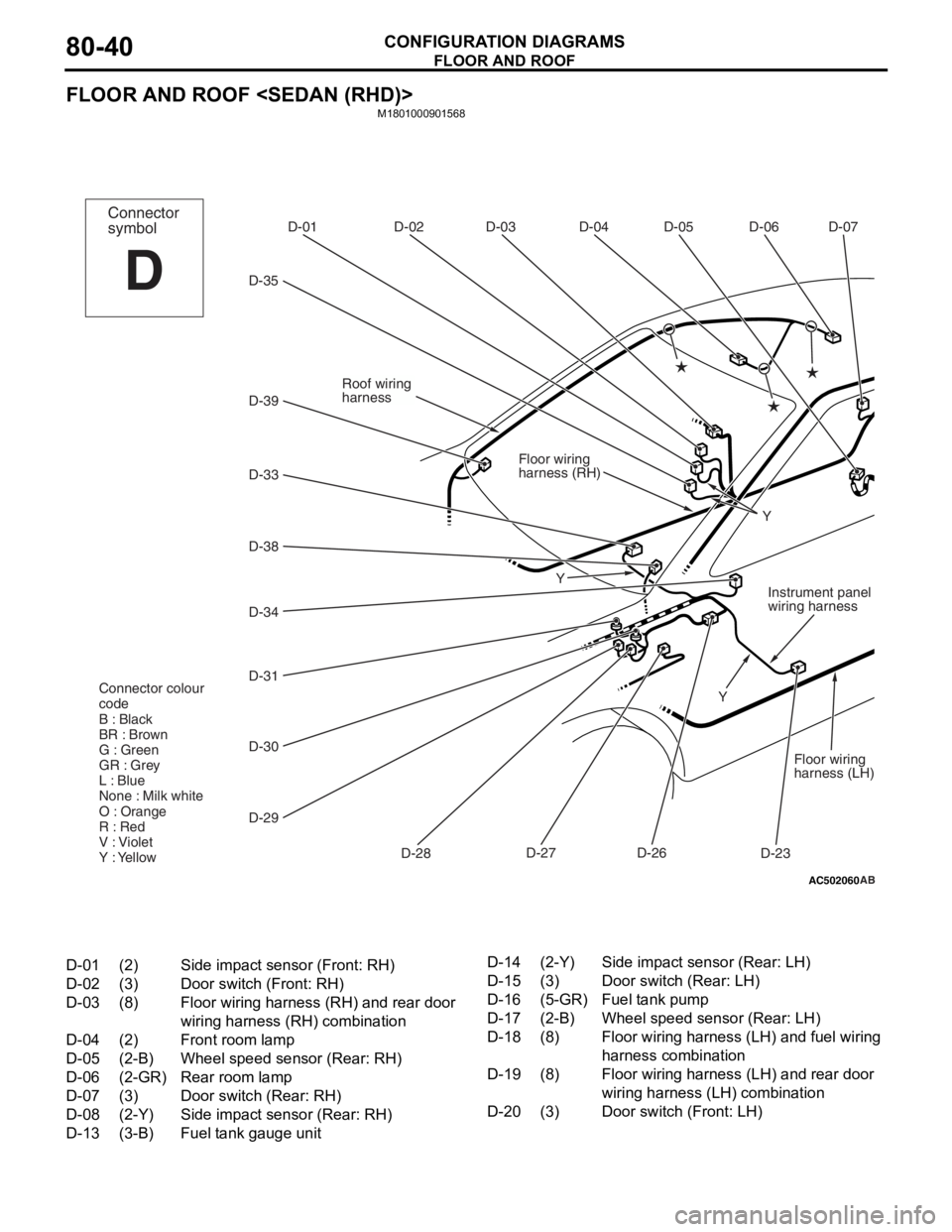

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-40
FLOOR AND ROOF
M1801000901568
AC502060
D-06
D-07
D-05
D-04
D-03
D-02
D-01
D-35
D-34D-33
D-39
D-38
D-31 D-30
D-29 D-28D-27
D-23Y
Y
YFloor wiring
harness (LH)
Floor wiring
harness (RH)
Instrument panel
wiring harness
Connector
symbol
D
D-26
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
AB
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
D-19(8)Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20(3)Door switch (Front: LH)
Page 451 of 800

AC301181
AB
D-08D-13
D-14
D-15
D-16
D-17
D-18
D-19
D-20
D-21
D-22 Y Y
Y
D-04 D-36 D-06 D-37
Roof wiring
harness
YFuel wiring
harness
7
17
Y
Y
Antenna
feeder cable
Antenna
feeder cable
D-21(2)Side impact sensor (Front: LH)
D-22(2-B)Seat belt pre-tensioner (LH)
D-23(2-R)Side air bag module (squib) (LH)
D-26(4)Instrument panel wiring harness and
console wiring harness combination
D-27(6)Shift switch assembly
D-28(1)Cigarette lighter
D-29(1-B)Cigarette lighter
D-30(2-B)Cigarette lighter
illumination lamp
D-31(2-B)Ashtray illumination lamp
D-33(2-R)Side air bag module (squib) (RH)
D-34(1-B)Parking brake switch
D-35(2-B)Seat belt pre-tensioner (RH)
D-36(2-B)Curtain air bag module (squib) (RH)
D-37(2-B)Curtain air bag module (squib) (LH)
D-38(2)Tw e et er (L H )
D-39(2)Tw e et er (R H )

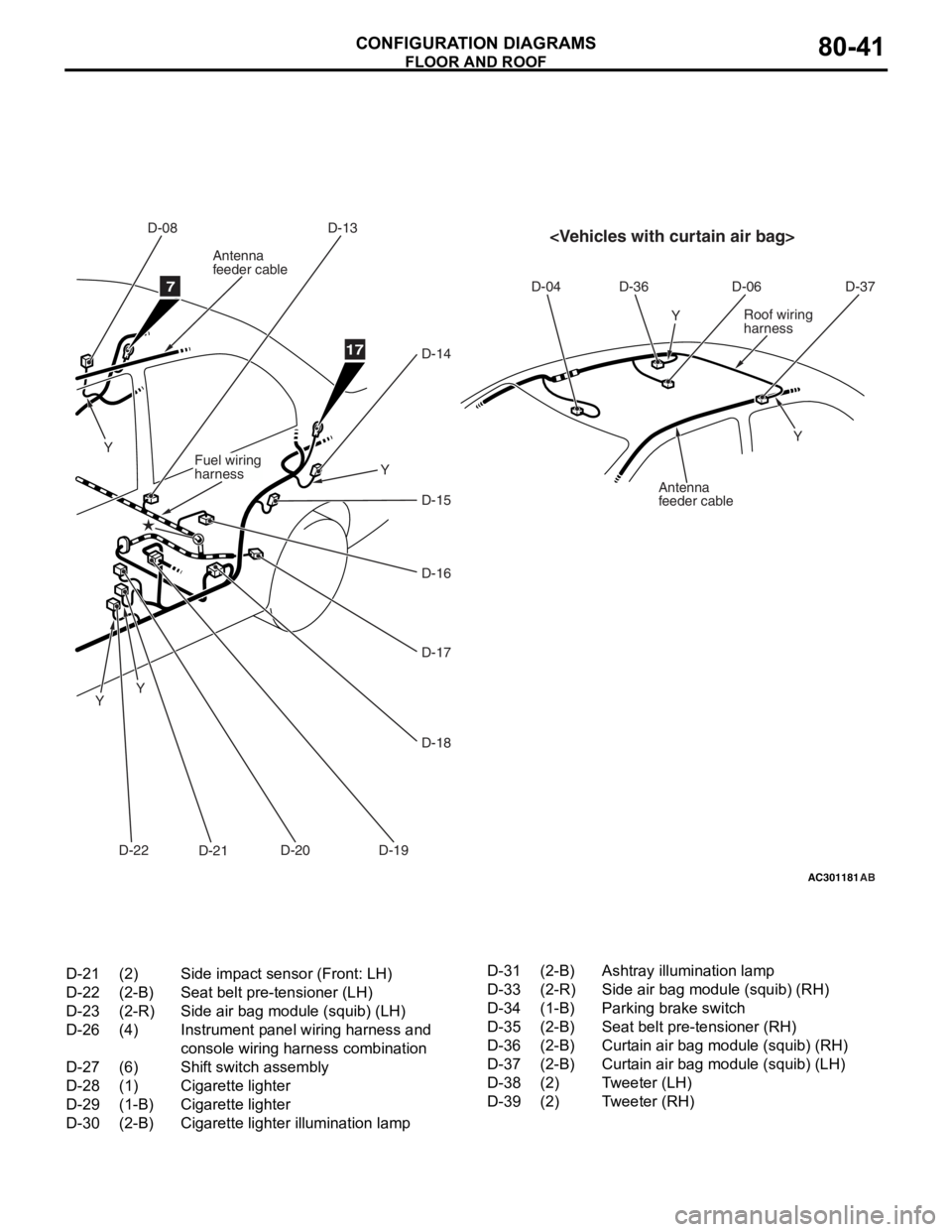

FLOOR AND ROOF
CONF IGURA TION D I A G RA MS80-41
Page 452 of 800

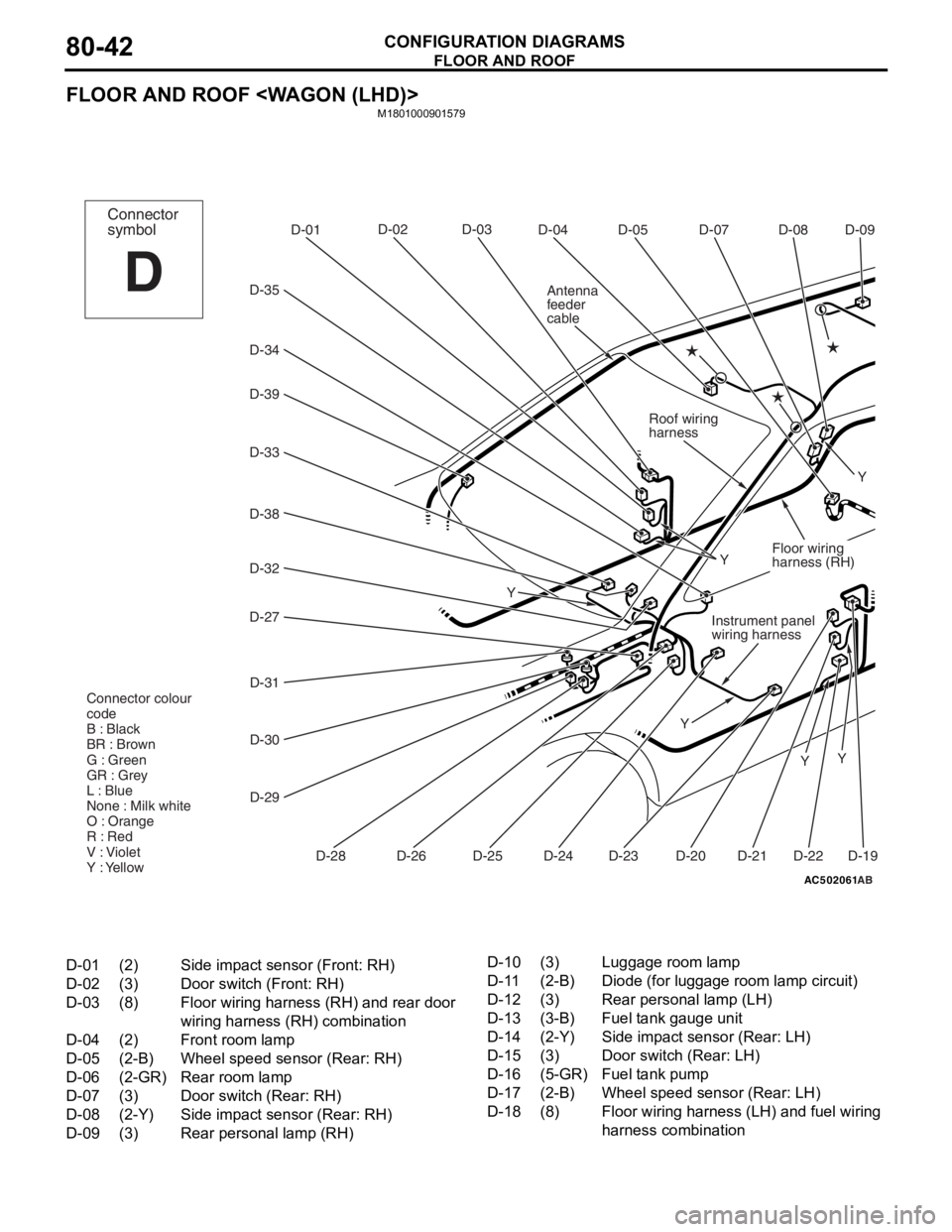

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-42
FLOOR AND ROOF
M1801000901579
AC502061
D-07D-08
D-05
D-04
D-03
D-02
D-01
D-35
D-34
D-33
D-38
D-32
D-39
D-31
D-30
D-29
D-28 D-24 D-19
Y
Y Y
Connector
symbol
D
D-20
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
D-09
D-22D-21D-23D-25D-26
D-27
Y
YInstrument panel
wiring harness
Floor wiring
harness (RH)
Y
Antenna
feeder
cable
AB
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-09(3)Rear personal lamp (RH)
D-10(3)Luggage room lamp
D-11(2-B)Diode (for luggage room lamp circuit)
D-12(3)Rear personal lamp (LH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
Page 453 of 800

AC301824
AB
D-10D-12
D-14
D-15
D-16
D-17
D-18 Y
Y
D-04 D-36 D-06 D-37
Roof wiring
harness
Fuel wiring
harness
7
17
Y
D-11
D-13
Floor wiring
harness (LH)
Antenna
feeder cable
D-19(8)Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20(3)Door switch (Front: LH)
D-21(2)Side impact sensor (Front: LH)
D-22(2-B)Seat belt pre-tensioner (LH)
D-23(2-R)Side air bag module (squib) (LH)
D-24(3)Heated seat assembly (LH)
D-25(9)Heated seat switch
D-26(4)Instrument panel wiring harness and
console wiring harness combination
D-27(6)Shift switch assembly
D-28(1)Cigarette lighter
D-29(1-B)Cigarette lighter
D-30(2-B)Cigarette lighter
illumination lamp
D-31(2-B)Ashtray illumination lamp
D-32(3)Heated seat assembly (RH)
D-33(2-R)Side air bag module (squib) (RH)
D-34(1-B)Parking brake switch
D-35(2-B)Seat belt pre-tensioner (RH)
D-36(2-B)Curtain air bag module (squib) (RH)
D-37(2-B)Curtain air bag module (squib) (LH)
D-38(2)Tw e et er (L H )
D-39(2)Tw e et er (R H )

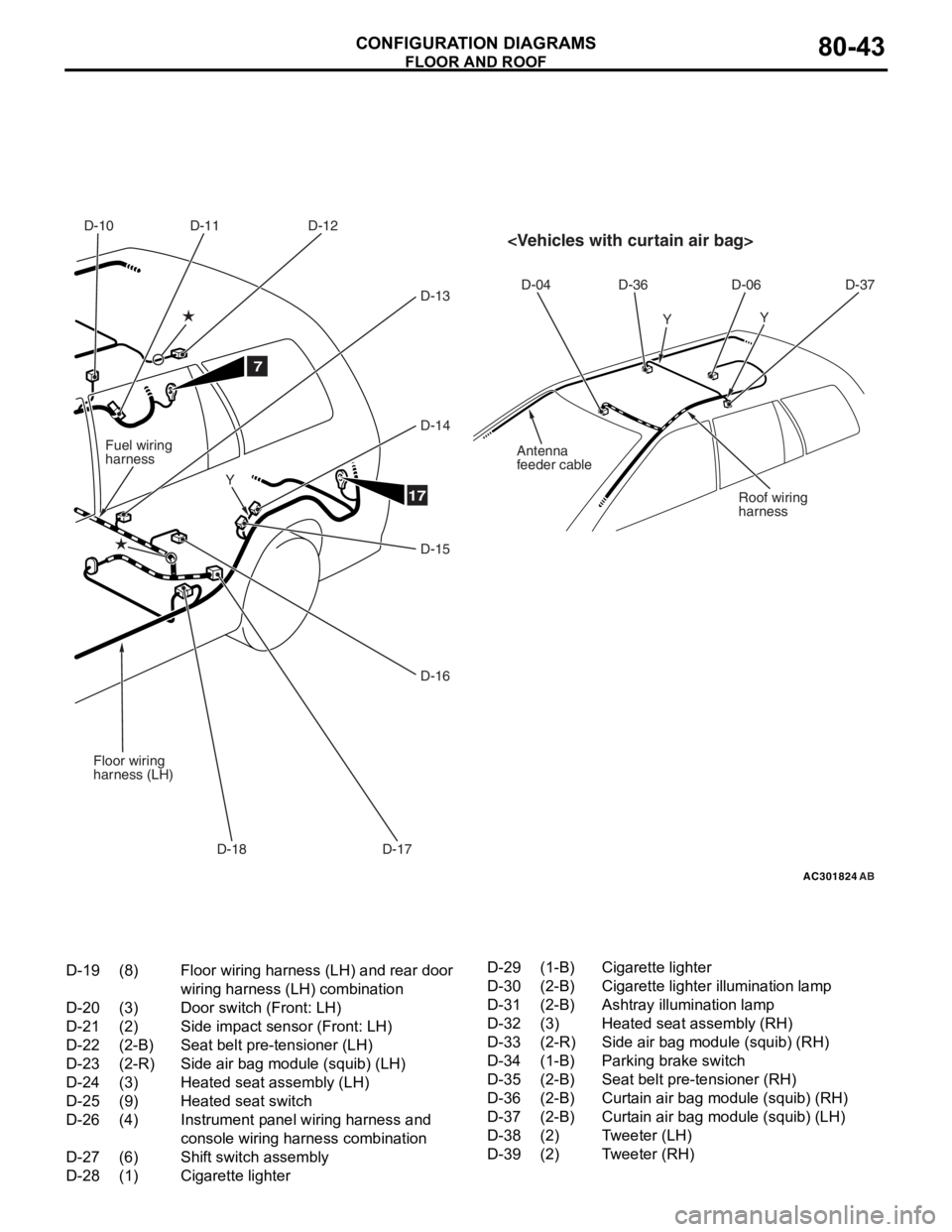

FLOOR AND ROOF
CONF IGURA TION D I A G RA MS80-43
Page 454 of 800

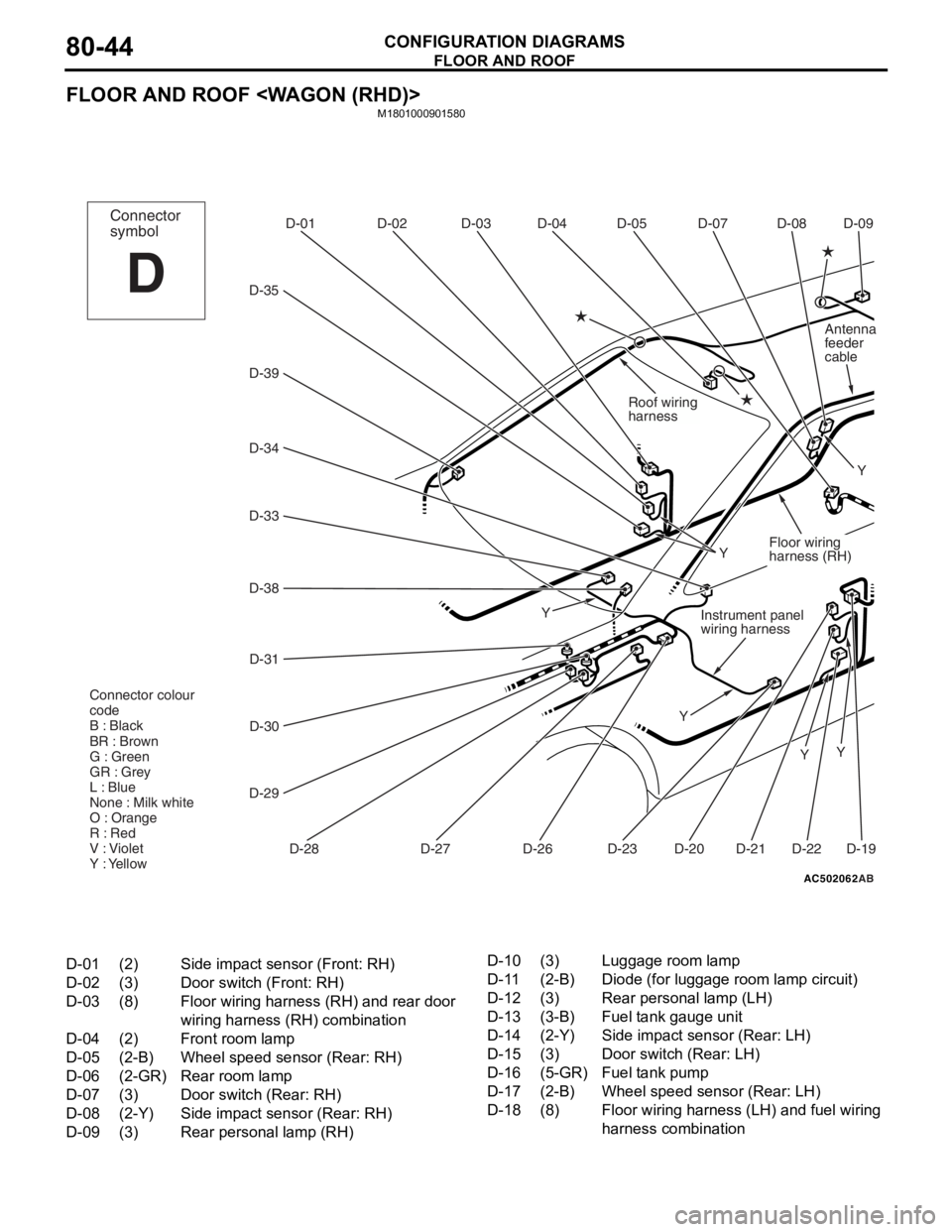

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-44
FLOOR AND ROOF
M1801000901580
AC502062
D-07
D-08
D-05
D-04
D-03
D-02
D-01
D-35
D-34
D-33
D-39
D-38
D-31
D-30
D-29 D-28 D-19
Y
Y Y
Connector
symbol
D
D-20
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
D-09
D-22D-21D-23D-26D-27 Y
Y
Instrument panel
wiring harness
Floor wiring
harness (RH)
Y
Antenna
feeder
cable
AB
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-09(3)Rear personal lamp (RH)
D-10(3)Luggage room lamp
D-11(2-B)Diode (for luggage room lamp circuit)
D-12(3)Rear personal lamp (LH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
Page 455 of 800

AC301825
AB
D-10D-12
D-14
D-15
D-16
D-17
D-18 Y
Y
D-04 D-36 D-06 D-37
Roof wiring
harnessFuel wiring
harness
7
17Y
D-11
D-13
Floor wiring
harness (LH)
Antenna
feeder cable
D-19(8)Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20(3)Door switch (Front: LH)
D-21(2)Side impact sensor (Front: LH)
D-22(2-B)Seat belt pre-tensioner (LH)
D-23(2-R)Side air bag module (squib) (LH)
D-26(4)Instrument panel wiring harness and
console wiring harness combination
D-27(6)Shift switch assembly
D-28(1)Cigarette lighter
D-29(1-B)Cigarette lighter
D-30(2-B)Cigarette lighter
illumination lamp
D-31(2-B)Ashtray illumination lamp
D-33(2-R)Side air bag module (squib) (RH)
D-34(1-B)Parking brake switch
D-35(2-B)Seat belt pre-tensioner (RH)
D-36(2-B)Curtain air bag module (squib) (RH)
D-37(2-B)Curtain air bag module (squib) (LH)
D-38(2)Tw e et er (L H )
D-39(2)Tw e et er (R H )

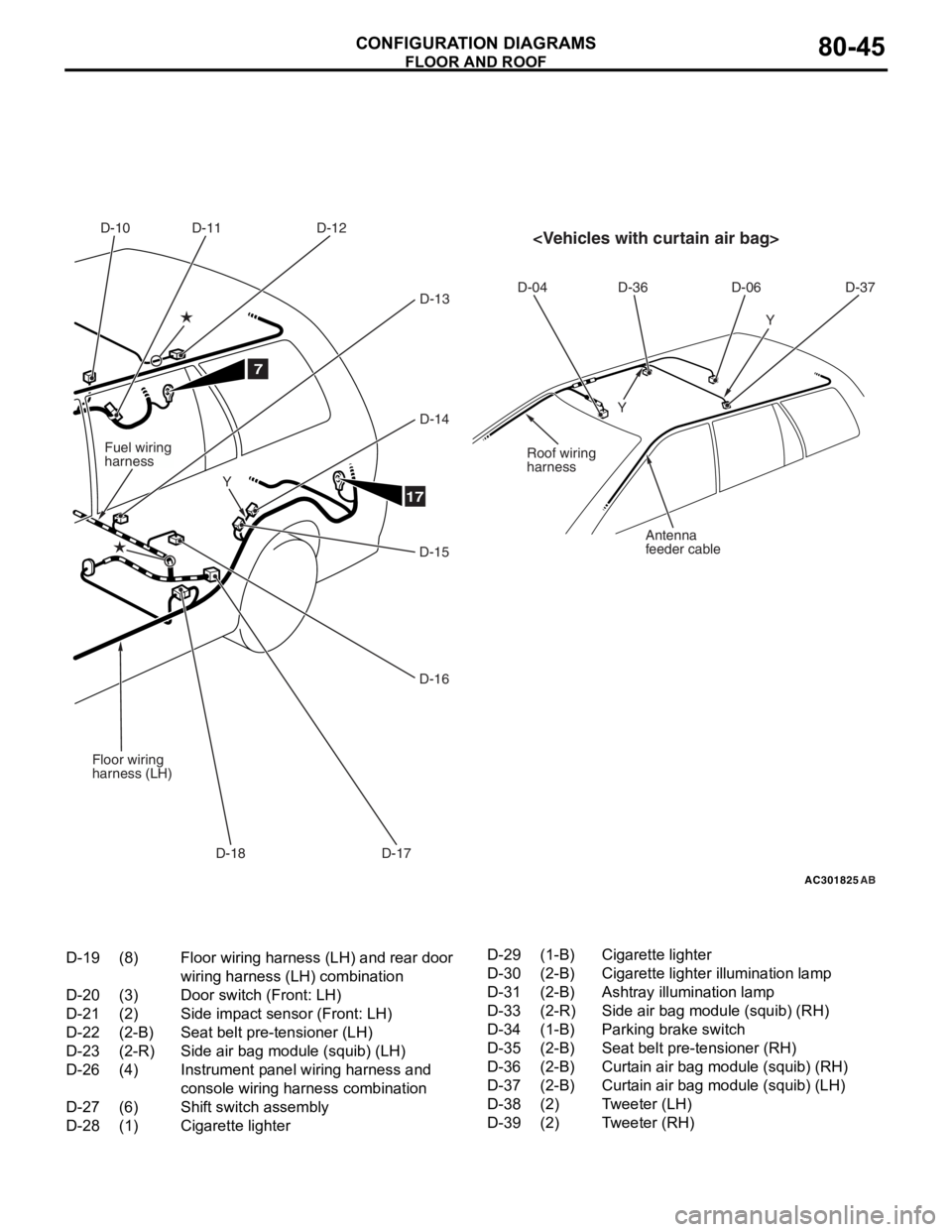

FLOOR AND ROOF
CONF IGURA TION D I A G RA MS80-45
Page 482 of 800

CENTRALIZED JUNCTION
CIRCUIT DIAGRAMS90-18
CENTRALIZED JUNCTION
M1901000301477
FUSIBLE LINK AND FUSE
ENGINE COMPARTMENT
No.Power supply circuitNameRated
capacity (A)Housing
colourLoad circuit
1Battery/ Alternator
(Fusible link No.26)Fusible
link60YellowFuse No.15, 16, 18, 19, 20 (in junction
block) circuit
250RedFan controller
360YellowABS-ECU
440GreenIgnition switch circuit
530PinkPower window main switch and power
window sub switch
6Fuse15BlueFront fog lamp, front fog lamp
indicator lamp, front fog lamp relay
and spare connector (for front fog
lamp)
710RedHorn relay and horn
820YellowAir cleaner air flow sensor, camshaft
position sensor, emission solenoid
valve (EGR system), emission
solenoid valve (purge control system),
engine-A/T-ECU, engine-ECU, engine
control oxygen sensor, engine control
relay, engine crank angle sensor, fan
control relay, fuel injector, ignition coil
relay, immobilizer-ECU and throttle
body idle speed control servo
910RedA/C compressor
1015BlueABS-ECU, engine-A/T-ECU, high
mount stop lamp and rear combination
lamp
1115BlueAccessory socket
127.5BrownAlternator
1310RedETACS-ECU, front turn signal lamp,
rear combination lamp, side turn
signal lamp and turn signal indicator
lamp
1420YellowA/T control solenoid valve assembly
and engine-A/T-ECU
1515BlueFuel pump
16Front-ECU
(Headlamp relay: HI)10RedHeadlamp (RH)
1710RedHeadlamp (LH) and high beam
indicator lamp
18Front-ECU
(Headlamp relay: LO)10RedHeadlamp (RH)
1910RedHeadlamp (LH), headlamp assembly
and headlamp levelling switch
Page 484 of 800

CENTRALIZED JUNCTION
CIRCUIT DIAGRAMS90-20
PASSENGER COMPARTMENT
AC207745
(Connected directly to battery positive terminal)
Front of vehicle26
AF
No.Power supply circuitNameRated
capacity (A)Housing
colourLoad circuit
1Ignition switch (IG1)Fuse10RedCapacitor and ignition coil
27.5BrownABS warning lamp, brake warning
lamp, charging warning lamp, check
engine warning lamp, column switch,
combination meter, ETACS-ECU, low
fuel warning lamp, oil pressure
warning lamp, SRS air bag warning
lamp, SRS-ECU and vehicle speed
sensor
37.5BrownA/T control relay, combination meter,
engine-A/T-ECU, ETACS-ECU, input
shaft speed sensor, output shaft
speed sensor, rear combination lamp
and SRS-ECU
4−−−
5Ignition switch (IG2)7.5BrownA/C compressor relay, A/C-ECU,
blower relay, rear window defogger
relay, front-ECU, heated seat relay,
heater control unit and outside/inside
air selection damper control motor
6Rear window
defogger relay7.5BrownRemote controlled mirror
7Ignition switch (ACC)20YellowFront-ECU and windshield wiper
motor
8Ignition switch (IG1)7.5BrownEngine-A/T-ECU, engine-ECU, fuel
pump relay (1) and fuel pump relay (2)
9Ignition switch (ACC)15BlueCigarette lighter
10−−−
117.5BrownAccessory socket relay and Remote
controlled mirror
12Ignition switch (IG2)7.5BrownABS-ECU
13Ignition switch (ACC)−−−
1415BlueETACS-ECU and rear wiper motor
Page 502 of 800

IGNITION SYSTEM

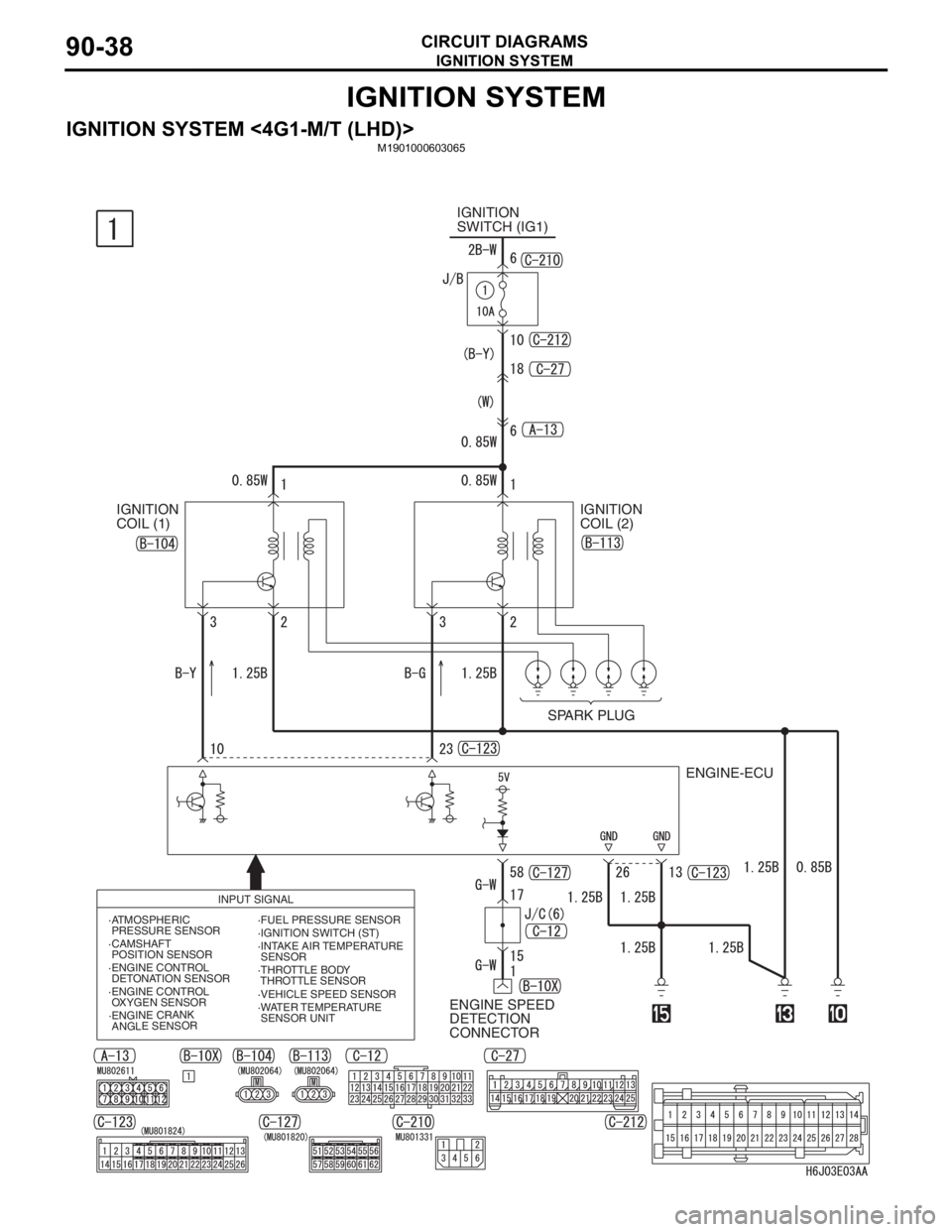

CIRCUIT DIAGRAMS90-38
IGNITION SYSTEM
IGNITION SYSTEM <4G1-M/T (LHD)>M1901000603065
IGNITION
SWITCH (IG1)
IGNITION
COIL (1)IGNITION
COIL (2)
SPARK PLUG
ENGINE-ECU
ENGINE SPEED
DETECTION
CONNECTOR
INPUT SIGNAL
·ATMOSPHERIC
PRESSURE SENSOR
·CAMSHAFT
POSITION SENSOR
·ENGINE CRANK
ANGLE SENSOR·WATER TEMPERATURE
SENSOR UNIT ·ENGINE CONTROL
DETONATION SENSOR·FUEL PRESSURE SENSOR
·IGNITION SWITCH (ST)
·INTAKE AIR TEMPERATURE
SENSOR
·ENGINE CONTROL
OXYGEN SENSOR·VEHICLE SPEED SENSOR ·THROTTLE BODY
THROTTLE SENSOR
Page 503 of 800

IGNITION SYSTEM

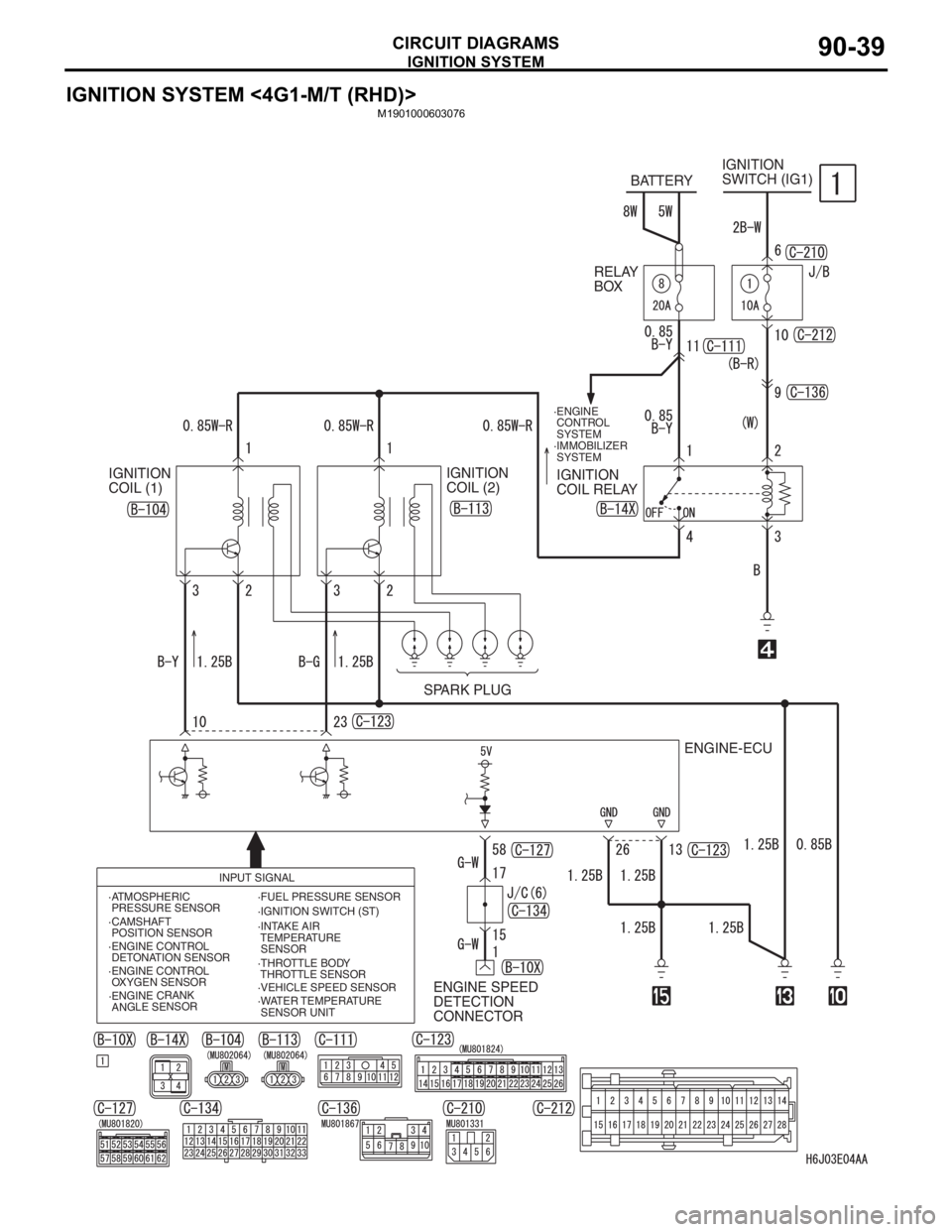

CIRCUIT DIAGRAMS90-39
IGNITION SYSTEM <4G1-M/T (RHD)>
M1901000603076
IGNITION
SWITCH (IG1)
IGNITION
COIL (1)IGNITION
COIL (2)
SPARK PLUG
ENGINE-ECU
ENGINE SPEED
DETECTION
CONNECTOR
INPUT SIGNAL
BATTERY
IGNITION
COIL RELAYRELAY
BOX
·ENGINE
CONTROL
SYSTEM
·IMMOBILIZER
SYSTEM
·ATMOSPHERIC
PRESSURE SENSOR
·CAMSHAFT
POSITION SENSOR
·ENGINE CRANK
ANGLE SENSOR·WATER TEMPERATURE
SENSOR UNIT ·ENGINE CONTROL
DETONATION SENSOR·FUEL PRESSURE SENSOR
·IGNITION SWITCH (ST)
·INTAKE AIR
TEMPERATURE
SENSOR
·ENGINE CONTROL
OXYGEN SENSOR
·VEHICLE SPEED SENSOR ·THROTTLE BODY
THROTTLE SENSOR
