MITSUBISHI LANCER RALLIART 2010 8.G Owners Manual

3-40 Features and controls
3
4. Press and hold the brake pedal down with your right foot.
5. Press and hold the clutch pedal all the way down (manual
transaxle).NOTE
For models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.
6. On vehicles with manual transaxle, place the gearshift
lever in the “N” (Neutral) position.
On vehicles with CVT or Twin Clutch SST, make sure the
selector lever (CVT) or the gearshift lever (Twin Clutch
SST) is in the “P” (PARK) position.NOTE
On vehicles with continuously variable transmission
(CVT) or Twin Clutch SST, the starter will not operate
unless the selector lever (CVT) or the gearshift lever
(Twin Clutch SST) is in the “P” (PARK) position or the
selector lever (CVT) or the gearshift lever (Twin Clutch
SST) is in the “N” (NEUTRAL) position with the brake
pedal depressed.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
7. Turn the emergency key with the F.A.S.T.-key to the
“ON” position and make certain that all warning lights
and warning displays are functioning properly before
starting the engine.8. Turn the emergency key with the F.A.S.T.-key to the
“START” position without pressing the accelerator pedal.
Release the emergency key with the F.A.S.T.-key when
the engine starts.
9. Remove the F.A.S.T.-key from the emergency key.
NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up. NOTE
When using the emergency key to start the engine, first
remove the key from the key holder. If the emergency key
is attached to a key holder (key ring), it may become
impossible to insert the keyless operation key into the
emergency key, and it may prevent the engine from being
started.
WARNING
!
Make sure to remove the F.A.S.T.-key from the
emergency key after the engine is started.
If not removed, the F.A.S.T.-key could fall to the
floor, which may interfere with pedal operation.
Furthermore, the F.A.S.T.-key could prevent the
driver’s knee airbag from inflating normally or
could be propelled to cause serious injury if the
airbag inflates.
BK0102103US.book 40 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-41
3

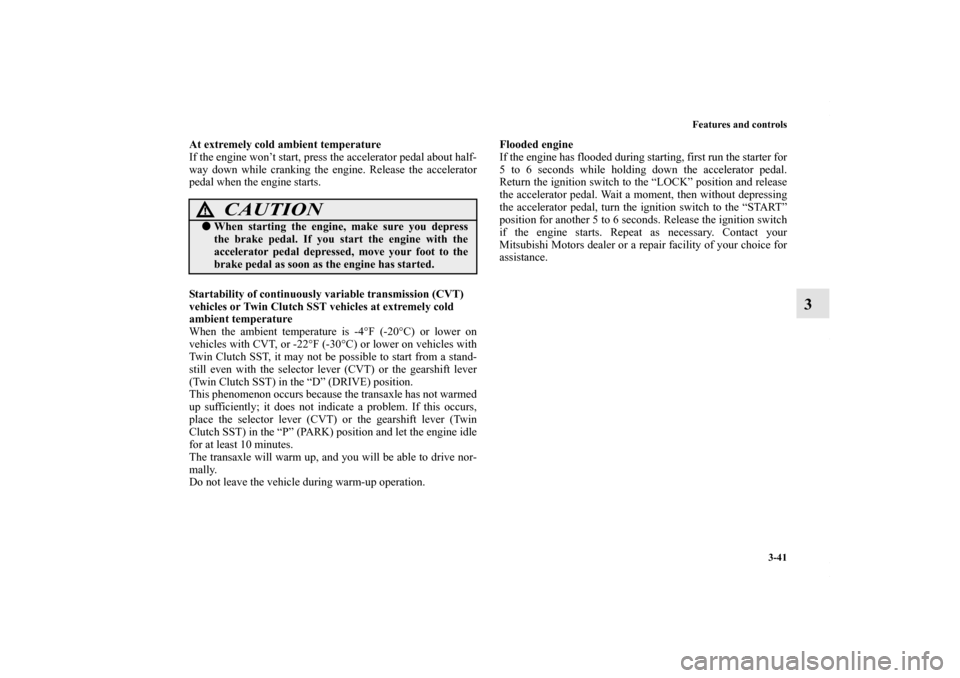

At extremely cold ambient temperature
If the engine won’t start, press the accelerator pedal about half-
way down while cranking the engine. Release the accelerator
pedal when the engine starts.
Startability of continuously variable transmission (CVT)
vehicles or Twin Clutch SST vehicles at extremely cold
ambient temperature
When the ambient temperature is -4°F (-20°C) or lower on
vehicles with CVT, or -22°F (-30°C) or lower on vehicles with
Twin Clutch SST, it may not be possible to start from a stand-
still even with the selector lever (CVT) or the gearshift lever
(Twin Clutch SST) in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) in the “P” (PARK) position and let the engine idle
for at least 10 minutes.
The transaxle will warm up, and you will be able to drive nor-
mally.
Do not leave the vehicle during warm-up operation.Flooded engine
If the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Return the ignition switch to the “LOCK” position and release
the accelerator pedal. Wait a moment, then without depressing
the accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition switch
if the engine starts. Repeat as necessary. Contact your
Mitsubishi Motors dealer or a repair facility of your choice for
assistance.
CAUTION
!
When starting the engine, make sure you depress
the brake pedal. If you start the engine with the
accelerator pedal depressed, move your foot to the
brake pedal as soon as the engine has started.
BK0102103US.book 41 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-42 Features and controls
3

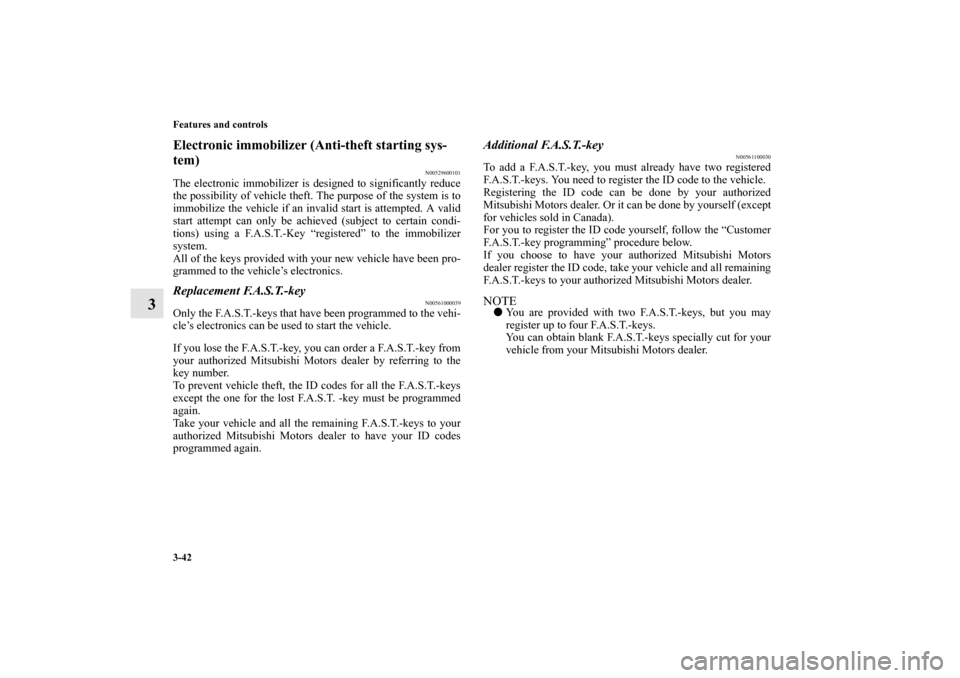

Electronic immobilizer (Anti-theft starting sys-
tem)
N00529600101
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a F.A.S.T.-Key “registered” to the immobilizer
system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.Replacement F.A.S.T.-key
N00561000039
Only the F.A.S.T.-keys that have been programmed to the vehi-
cle’s electronics can be used to start the vehicle.
If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from
your authorized Mitsubishi Motors dealer by referring to the
key number.
To prevent vehicle theft, the ID codes for all the F.A.S.T.-keys
except the one for the lost F.A.S.T. -key must be programmed
again.
Take your vehicle and all the remaining F.A.S.T.-keys to your
authorized Mitsubishi Motors dealer to have your ID codes
programmed again.
Additional F.A.S.T.-key
N00561100030
To add a F.A.S.T.-key, you must already have two registered
F.A.S.T.-keys. You need to register the ID code to the vehicle.
Registering the ID code can be done by your authorized
Mitsubishi Motors dealer. Or it can be done by yourself (except
for vehicles sold in Canada).
For you to register the ID code yourself, follow the “Customer
F.A.S.T.-key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
F.A.S.T.-keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with two F.A.S.T.-keys, but you may
register up to four F.A.S.T.-keys.
You can obtain blank F.A.S.T.-keys specially cut for your
vehicle from your Mitsubishi Motors dealer.
BK0102103US.book 42 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-43
3

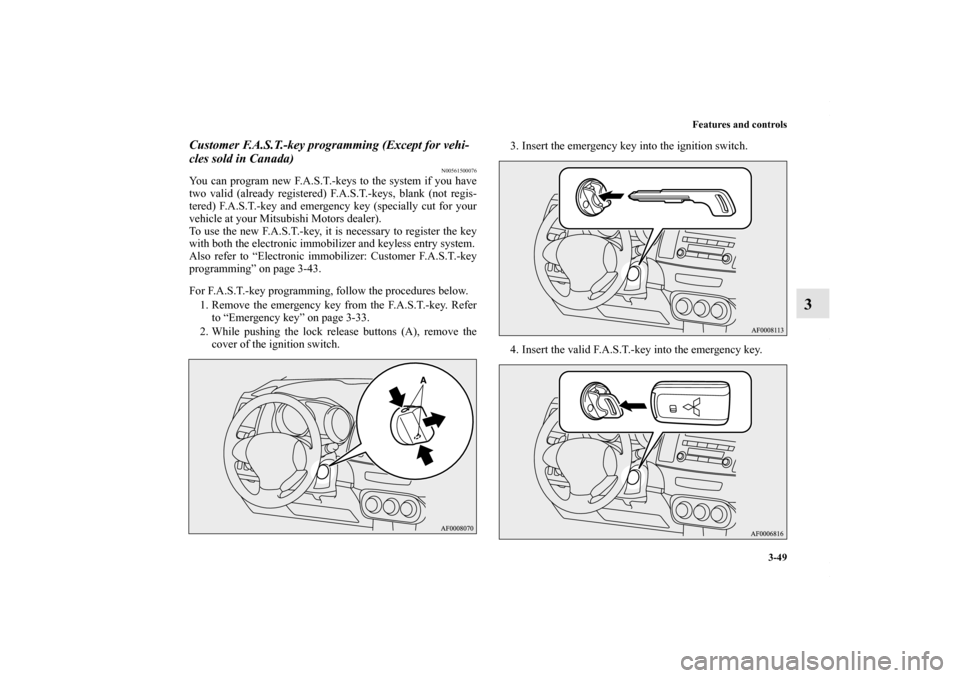

Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561200073
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys, blank (not regis-
tered) F.A.S.T.-key and emergency key (specially cut for your
vehicle at your Mitsubishi Motors dealer).
To use the new F.A.S.T.-key, it is necessary to register the key
with both the electronic immobilizer and keyless entry system.
Also refer to “Keyless entry system: Customer F.A.S.T.-key
programming” on page 3-49.
For F.A.S.T.-key programming, follow the procedures below.
1. Remove the emergency key from the F.A.S.T.-key. Refer
to “Emergency key” on page 3-33.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.3. Insert the emergency key into the ignition switch.
4. Insert the first valid F.A.S.T.-key into the emergency key.
BK0102103US.book 43 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-44 Features and controls
3
5. Turn the emergency key with the F.A.S.T.-key to the
“ON” position for 5 seconds.
6. Turn the emergency key with the F.A.S.T.-key to the
“LOCK” position. Within 30 seconds after doing so,
remove the F.A.S.T.-key from the emergency key, insert
the second valid F.A.S.T.-key into the emergency key and
turn it to the “ON” position. About 10 seconds later, the
immobilizer display will start to blink.
7. When the immobilizer display starts blinking, turn the
second valid F.A.S.T.-key to the “LOCK” position and
remove it. Within 30 seconds after doing so, insert a blank
F.A.S.T.-key into the emergency key and turn it to the
“ON” position. Perform this operation no more than 30
seconds after the immobilizer display starts blinking.
When registration of the ID code is complete, the immobi-
lizer display will come on for 3 seconds then go off. If an
error occurs, the immobilizer display will go off during
the procedure.
8. If you wish to register another F.A.S.T.-key, repeat the
process from step 1.
NOTE
Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.

It is not possible to register a F.A.S.T.-key if:
• the immobilizer display goes off during the procedure
• the immobilizer display does not come on within 30 sec-
onds after turning the ignition switch to the “ON” posi-
tion with a blank F.A.S.T.-key

The procedure will be terminated automatically if:
• a period of 30 seconds or longer elapses from the
moment when the first F.A.S.T.-key is turned to the
“LOCK” position to the moment when the second
F.A.S.T.-key is turned to the “ON” position
• a period of 30 seconds or longer elapses from the
moment when the second F.A.S.T.-key is turned to the
“LOCK” position to the moment when the blank
F.A.S.T.-key is turned to the “ON” position

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer F.A.S.T.-
key programming” on page 3-49.
BK0102103US.book 44 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-45
3
Keyless entry system
N00515500141
Press the remote control transmitter buttons to lock or unlock
the doors and to open the trunk lid.
It can also help you signal for attention by setting off the panic
alarm.
To lock the doors
N00544200036
Press the LOCK button (1) to lock all the doors.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice quickly, the horn
will sound once.To unlock the doors
N00544300053
Press the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
For vehicles equipped with the color multi-information
display，the front side-marker and parking lights will also turn
on for about 30 seconds.
Refer to “Welcome light” on page 3-222.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

The door unlock function can be set so that all doors
unlock when the UNLOCK button (2) is pressed once.
Refer to “Setting of door unlock function” on page 3-47.To open the trunk lid
N00544400012
Press the trunk button (3) twice within about 5 seconds and the
trunk lid will be opened. The trunk lid must be closed manually
after it has been opened.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4-
PANIC ( ) button
5- Indicator light
BK0102103US.book 45 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-46 Features and controls
3

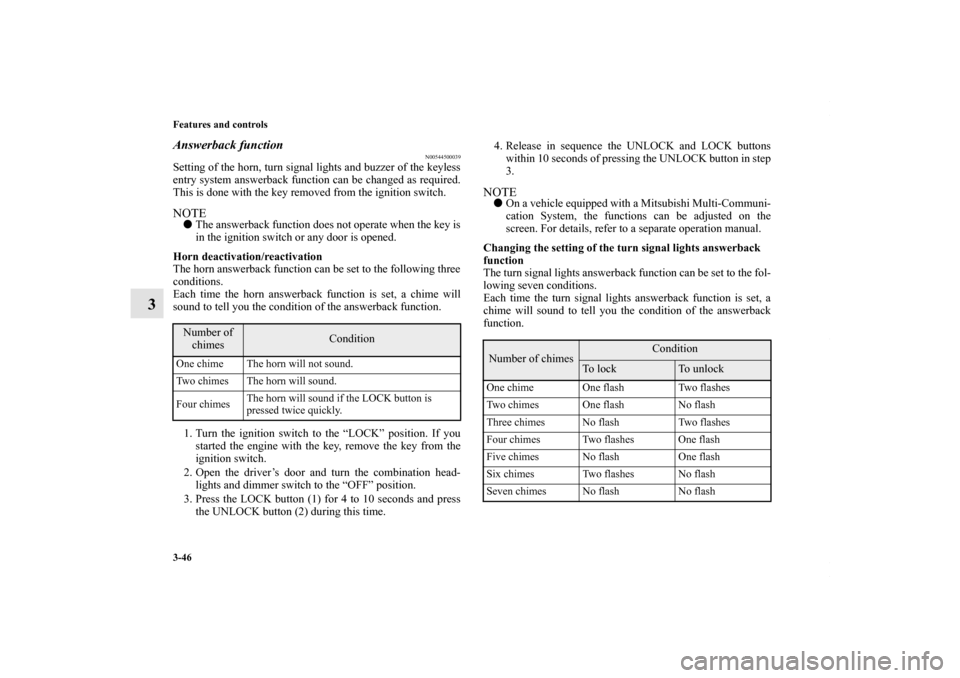

Answerback function
N00544500039
Setting of the horn, turn signal lights and buzzer of the keyless
entry system answerback function can be changed as required.
This is done with the key removed from the ignition switch.NOTE
The answerback function does not operate when the key is
in the ignition switch or any door is opened.
Horn deactivation/reactivation
The horn answerback function can be set to the following three
conditions.
Each time the horn answerback function is set, a chime will
sound to tell you the condition of the answerback function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Changing the setting of the turn signal lights answerback
function
The turn signal lights answerback function can be set to the fol-
lowing seven conditions.
Each time the turn signal lights answerback function is set, a
chime will sound to tell you the condition of the answerback
function.
Number of
chimes
Condition
One chime The horn will not sound.
Two chimes The horn will sound.
Four chimesThe horn will sound if the LOCK button is
pressed twice quickly.
Number of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0102103US.book 46 ページ ２００９年１０月２６日　月曜日　午後１時３８分

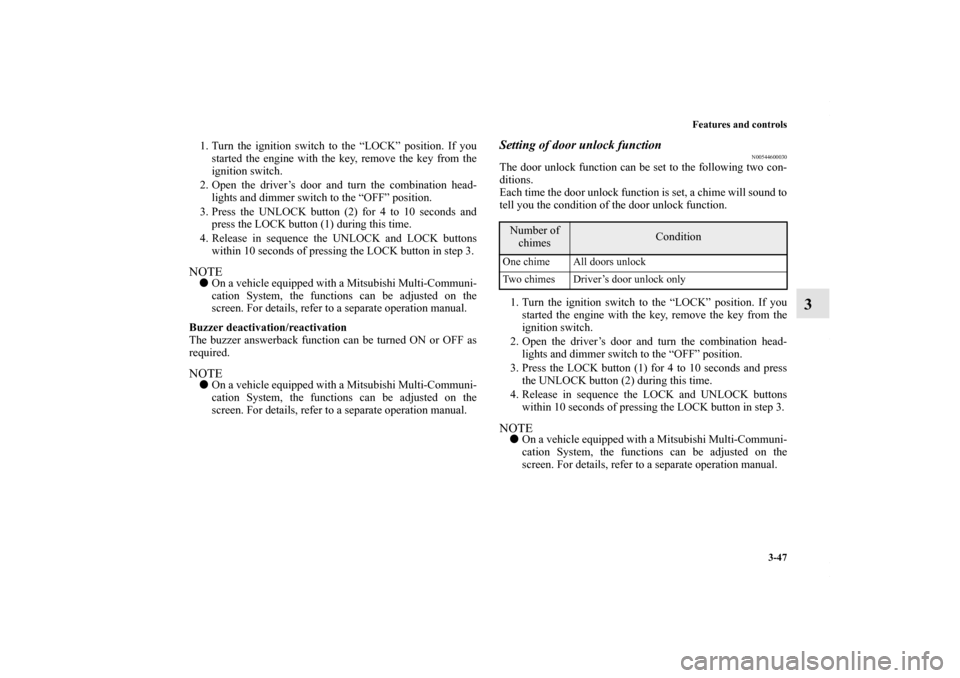

Features and controls
3-47
3
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Buzzer deactivation/reactivation
The buzzer answerback function can be turned ON or OFF as
required.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Setting of door unlock function
N00544600030
The door unlock function can be set to the following two con-
ditions.
Each time the door unlock function is set, a chime will sound to
tell you the condition of the door unlock function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Number of
chimes
Condition
One chime All doors unlock
Two chimes Driver’s door unlock only
BK0102103US.book 47 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-48 Features and controls
3
Using the panic alarm
N00544700015
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement F.A.S.T.-keys
N00561300029
Only a F.A.S.T.-key, which has been programmed into the
vehicle’s electronics, can lock and unlock all the doors, and
start the engine.
If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from
your authorized Mitsubishi Motors dealer by referring to the
key number.
To prevent vehicle theft, the ID codes for all the F.A.S.T.-keys
except the one for the lost F.A.S.T.-key must be programmed
again.
Take your vehicle and all the remaining F.A.S.T.-keys to your
authorized Mitsubishi Motors dealer to have your ID codes
programmed again.Additional F.A.S.T.-keys
N00561400020
To add a F.A.S.T.-key, you must already have two registered
F. A . S . T. - k e y s .
Registering the ID code can be done by your authorized
Mitsubishi Motors dealer. Or it can be done by yourself (except
for vehicles sold in Canada). For you to register the ID code
yourself, follow the “Customer F.A.S.T.-key programming”
procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
F.A.S.T.-keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with two F.A.S.T.-keys, but you may
register up to four F.A.S.T.-keys.
BK0102103US.book 48 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-49
3
Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561500076
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys, blank (not regis-
tered) F.A.S.T.-key and emergency key (specially cut for your
vehicle at your Mitsubishi Motors dealer).
To use the new F.A.S.T.-key, it is necessary to register the key
with both the electronic immobilizer and keyless entry system.
Also refer to “Electronic immobilizer: Customer F.A.S.T.-key
programming” on page 3-43.
For F.A.S.T.-key programming, follow the procedures below.
1. Remove the emergency key from the F.A.S.T.-key. Refer
to “Emergency key” on page 3-33.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.3. Insert the emergency key into the ignition switch.
4. Insert the valid F.A.S.T.-key into the emergency key.
BK0102103US.book 49 ページ ２００９年１０月２６日　月曜日　午後１時３８分
