MITSUBISHI LANCER RALLIART 2010 8.G Owners Manual

3-50 Features and controls
3
5. Turn the emergency key with F.A.S.T.-key to the “ON”
position. (Perform the following procedure within 30 sec-
onds)
6. Remove the F.A.S.T.-key from the emergency key.
7. With the first valid F.A.S.T.-key, press the UNLOCK but-
ton for 4 to 10 seconds and press the LOCK button during
this time.
8. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 7.
(Perform the following procedure within 30 seconds)
9. With the second valid F.A.S.T.-key, press the UNLOCK
button for 4 to 10 seconds and press the LOCK button
during this time.
10. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 9,
and the immobilizer display will blink on the information
screen in the multi-information display. (Perform the fol-
lowing procedure within 60 seconds)
11. Press the LOCK button twice with the blank F.A.S.T.-key
and the immobilizer display will come on for 30 seconds
on the information screen in the multi-information dis-
play.
12. This completes the registration of the F.A.S.T.-key.NOTE
The indicator light (5) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.
The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.

If the UNLOCK button (2) is pressed when all doors are
locked and no doors are opened within about 30 seconds,
the doors will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing the
buttons on the remote control transmitter, the battery in
the remote control transmitter may need to be replaced.
• The doors cannot be locked or unlocked.
• The trunk lid cannot be opened.
• The panic alarm cannot be operated.
• The indicator light (5) is dim or does not come on.

If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer F.A.S.T.-key programming” on page
3-43.
BK0102103US.book 50 ページ ２００９年１０月２６日　月曜日　午後１時３８分

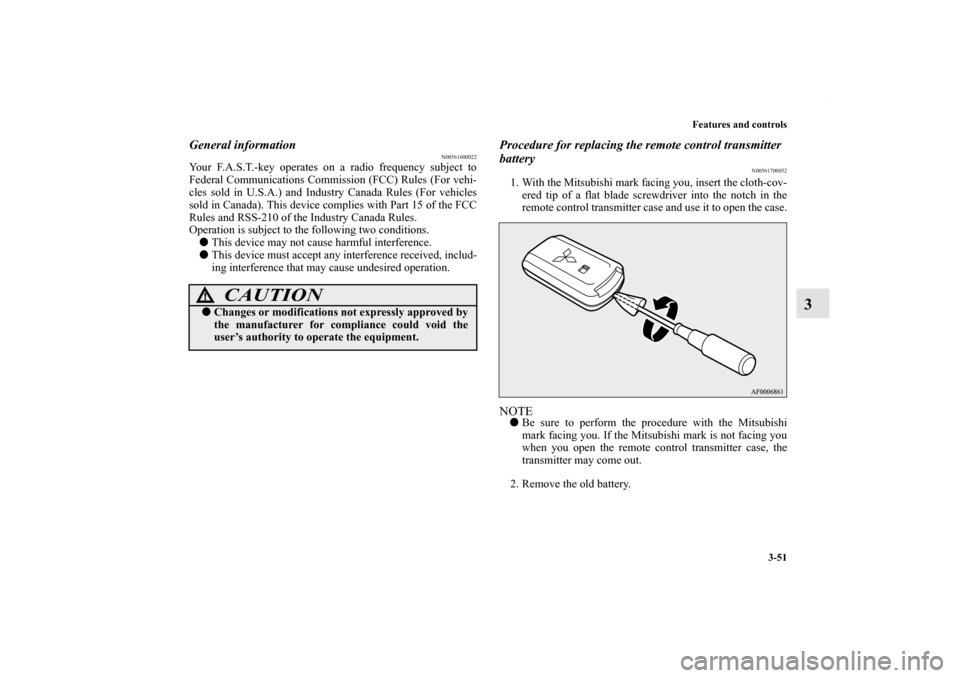

Features and controls
3-51
3
General information
N00561600022
Your F.A.S.T.-key operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of the FCC
Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Procedure for replacing the remote control transmitter
battery
N00561700052
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
transmitter may come out.
2. Remove the old battery.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0102103US.book 51 ページ ２００９年１０月２６日　月曜日　午後１時３８分

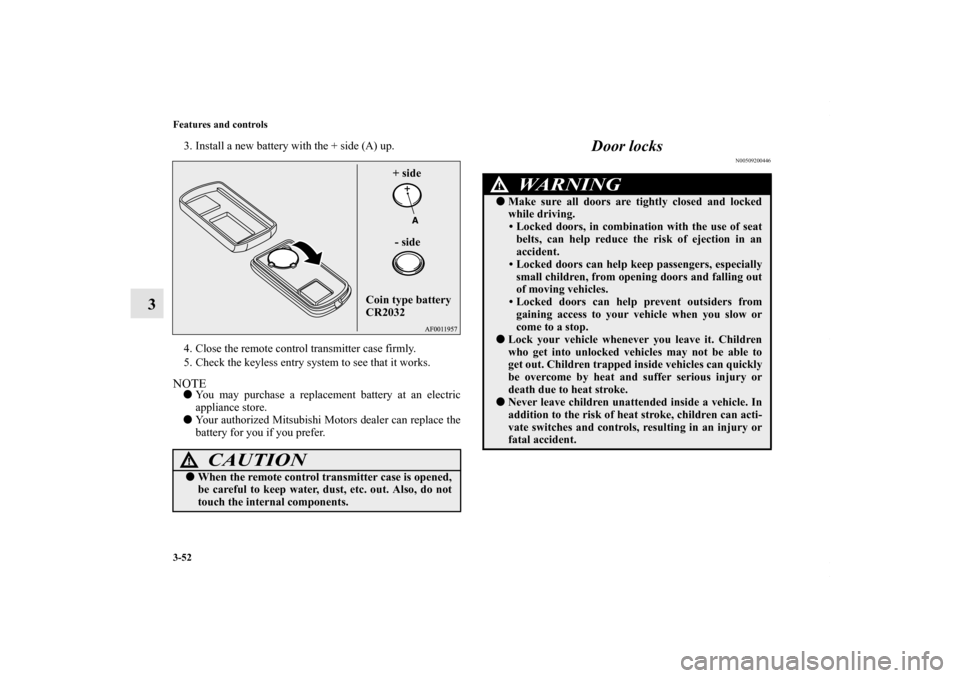

3-52 Features and controls
3
3. Install a new battery with the + side (A) up.
4. Close the remote control transmitter case firmly.
5. Check the keyless entry system to see that it works.NOTE
You may purchase a replacement battery at an electric
appliance store.

Your authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
Door locks
N00509200446
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
Coin type battery
CR2032+ side
- side
WARNING
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave children unattended inside a vehicle. In
addition to the risk of heat stroke, children can acti-
vate switches and controls, resulting in an injury or
fatal accident.
BK0102103US.book 52 ページ ２００９年１０月２６日　月曜日　午後１時３８分

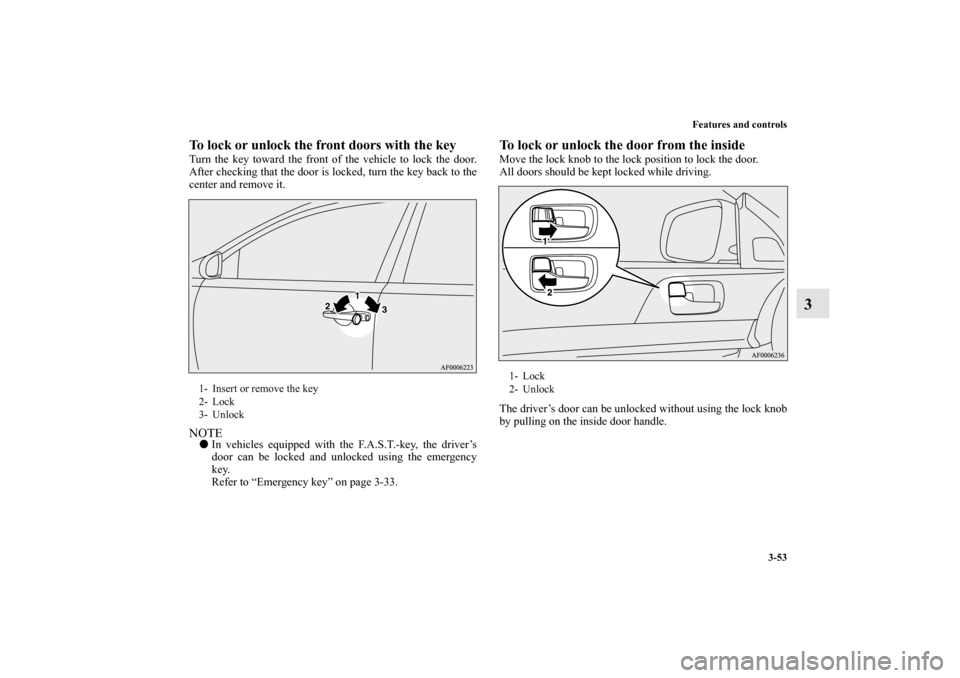

Features and controls
3-53
3
To lock or unlock the front doors with the keyTurn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.NOTE
In vehicles equipped with the F.A.S.T.-key, the driver’s
door can be locked and unlocked using the emergency
key.
Refer to “Emergency key” on page 3-33.
To lock or unlock the door from the insideMove the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.
1- Insert or remove the key
2- Lock
3- Unlock
1- Lock
2- Unlock
BK0102103US.book 53 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-54 Features and controls
3
To lock the door without using the key1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.
Key reminder system
N00549600178
When a key was used to start the engineTy p e 1
Ty p e 2
If the ignition switch is turned off and the driver’s door is
opened with the key in the ignition switch, the key reminder
buzzer will sound intermittently to remind you to remove the
key.
The warning display will be displayed on the information
screen in the multi-information display.Lock out protection
N00517300039
When you push the lock knob forward or lock the door with the
power door lock switch in both of the following conditions, the
lock knob will automatically return to the unlocked position.

The key is in the ignition switch or the ignition switch is
in the “ACC” or “ON” position.

Driver’s door or front passenger door is opened.
BK0102103US.book 54 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-55
3
Ignition switch return reminder system
N00503800059
When the F.A.S.T.-key was used to start the engineType 1
Type 2
If the driver’s door is opened while the ignition switch is in a
position other than “LOCK” (PUSH OFF), the ignition switch
return reminder buzzer will sound intermittently to remind you
to return the ignition switch to the “LOCK” (PUSH OFF) posi-
tion.
The warning display will be displayed on the information
screen in the multi-information display.
Power door locks
N00509300519
NOTE
Repeated continuous operation between lock and unlock
could activate the power door locking systems built-in
protection circuit and prevent the system from operating.
If this occurs, wait about 1 minute before operating the
inside lock knob or the key.To lock and unlock the doorsUsing the power door lock switchAll of the doors can be locked or unlocked by pressing the
power door lock switch on the driver’s or the front passenger’s
door. 1- Lock
2- Unlock
BK0102103US.book 55 ページ ２００９年１０月２６日　月曜日　午後１時３８分

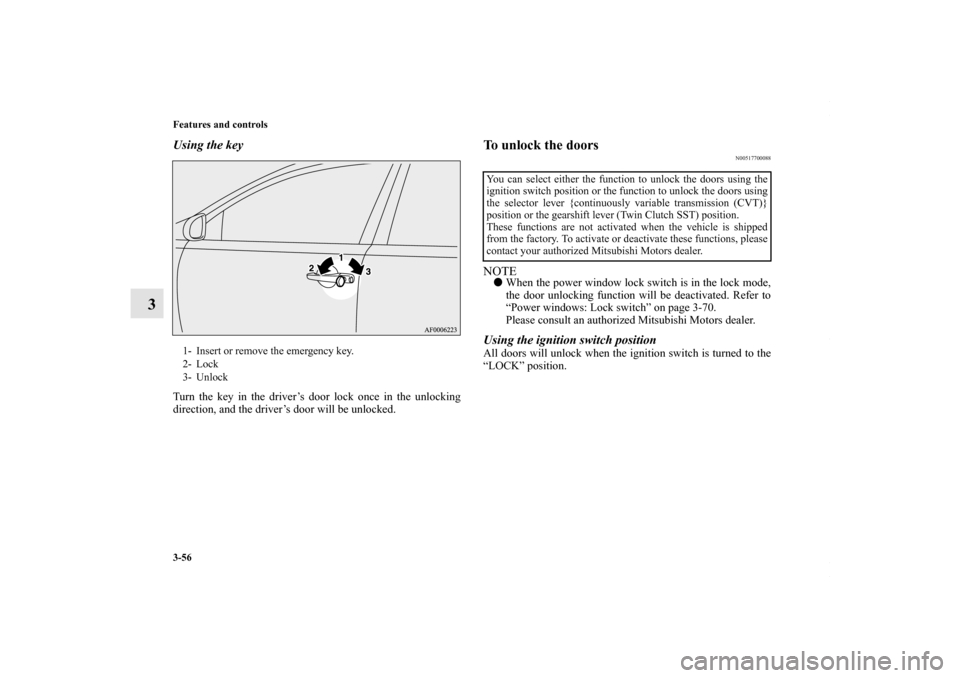

3-56 Features and controls
3
Using the keyTurn the key in the driver’s door lock once in the unlocking
direction, and the driver’s door will be unlocked.
To unlock the doors
N00517700088
NOTE
When the power window lock switch is in the lock mode,
the door unlocking function will be deactivated. Refer to
“Power windows: Lock switch” on page 3-70.
Please consult an authorized Mitsubishi Motors dealer.Using the ignition switch positionAll doors will unlock when the ignition switch is turned to the
“LOCK” position.
1- Insert or remove the emergency key.
2- Lock
3- Unlock
You can select either the function to unlock the doors using the
ignition switch position or the function to unlock the doors using
the selector lever {continuously variable transmission (CVT)}
position or the gearshift lever (Twin Clutch SST) position.
These functions are not activated when the vehicle is shipped
from the factory. To activate or deactivate these functions, please
contact your authorized Mitsubishi Motors dealer.
BK0102103US.book 56 ページ ２００９年１０月２６日　月曜日　午後１時３８分

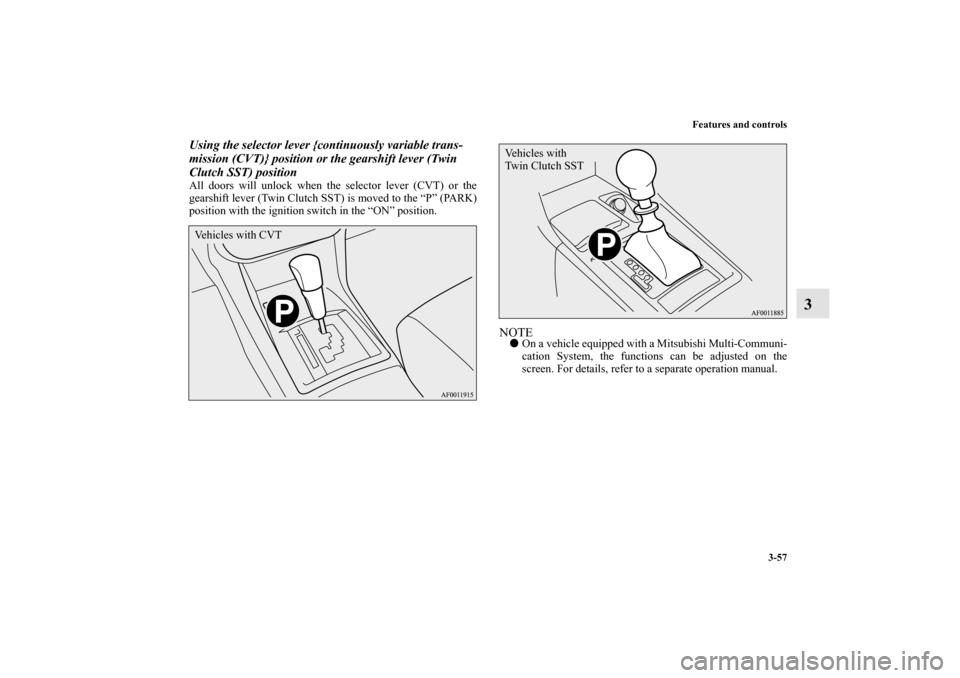

Features and controls
3-57
3
Using the selector lever {continuously variable trans-
mission (CVT)} position or the gearshift lever (Twin
Clutch SST) positionAll doors will unlock when the selector lever (CVT) or the
gearshift lever (Twin Clutch SST) is moved to the “P” (PARK)
position with the ignition switch in the “ON” position.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Vehicles with CVT
Vehicles with
Tw i n C l u t c h S S T
BK0102103US.book 57 ページ ２００９年１０月２６日　月曜日　午後１時３８分

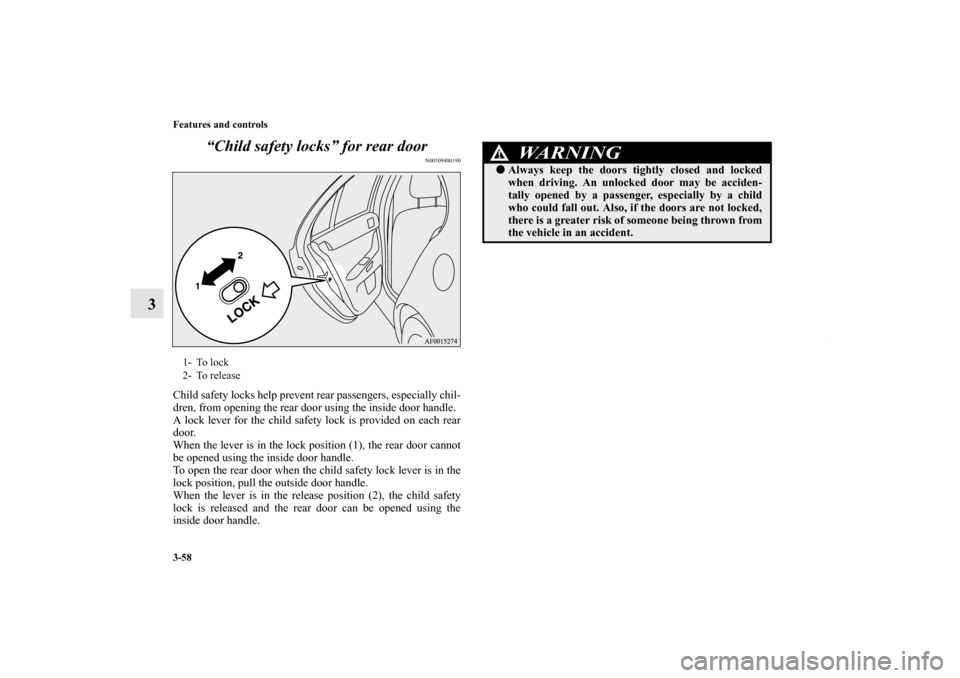

3-58 Features and controls
3“Child safety locks” for rear door
N00509400190
Child safety locks help prevent rear passengers, especially chil-
dren, from opening the rear door using the inside door handle.
A lock lever for the child safety lock is provided on each rear
door.
When the lever is in the lock position (1), the rear door cannot
be opened using the inside door handle.
To open the rear door when the child safety lock lever is in the
lock position, pull the outside door handle.
When the lever is in the release position (2), the child safety
lock is released and the rear door can be opened using the
inside door handle.1- To lock
2- To release
WARNING
!
Always keep the doors tightly closed and locked
when driving. An unlocked door may be acciden-
tally opened by a passenger, especially by a child
who could fall out. Also, if the doors are not locked,
there is a greater risk of someone being thrown from
the vehicle in an accident.
BK0102103US.book 58 ページ ２００９年１０月２６日　月曜日　午後１時３８分

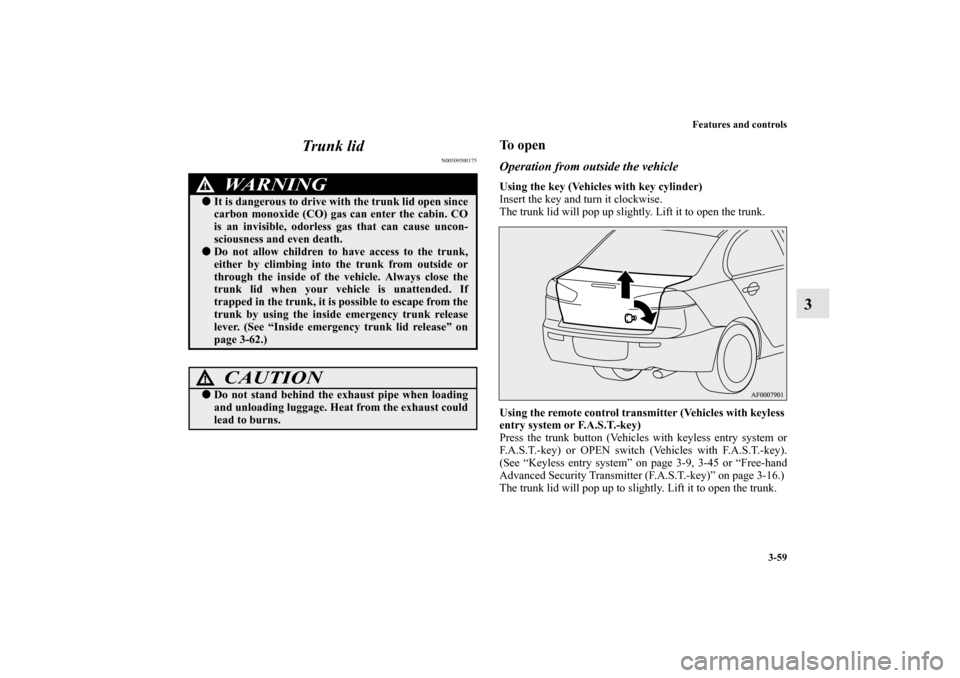

Features and controls
3-59
3 Trunk lid
N00509500175
To openOperation from outside the vehicleUsing the key (Vehicles with key cylinder)
Insert the key and turn it clockwise.
The trunk lid will pop up slightly. Lift it to open the trunk.
Using the remote control transmitter (Vehicles with keyless
entry system or F.A.S.T.-key)
Press the trunk button (Vehicles with keyless entry system or
F.A.S.T.-key) or OPEN switch (Vehicles with F.A.S.T.-key).
(See “Keyless entry system” on page 3-9, 3-45 or “Free-hand
Advanced Security Transmitter (F.A.S.T.-key)” on page 3-16.)
The trunk lid will pop up to slightly. Lift it to open the trunk.
WARNING
!
It is dangerous to drive with the trunk lid open since
carbon monoxide (CO) gas can enter the cabin. CO
is an invisible, odorless gas that can cause uncon-
sciousness and even death.
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. If
trapped in the trunk, it is possible to escape from the
trunk by using the inside emergency trunk release
lever. (See “Inside emergency trunk lid release” on
page 3-62.)
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
BK0102103US.book 59 ページ ２００９年１０月２６日　月曜日　午後１時３８分
