MITSUBISHI LANCER RALLIART 2010 8.G Owners Manual

3-10 Features and controls
3
To lock the doors
N00542700024
Press the LOCK button (1) to lock all the doors.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice quickly, the horn
will sound once.To unlock the doors
N00543300043
Press the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
For vehicles equipped with the color multi-information
display，the front side-marker and parking lights will also turn
on for about 30 seconds.
Refer to “Welcome light” on page 3-222.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

The door unlock function can be set so that all doors
unlock when the UNLOCK button (2) is pressed once.
Refer to “Setting of door unlock function” on page 3-11.To open the trunk lid
N00543400015
Press the trunk button (3) twice within about 5 seconds and the
trunk lid will be opened. The trunk lid must be closed manually
after it has been opened.
Answerback function
N00543500032
Setting of the horn, turn signal lights and buzzer of the keyless
entry system answerback function can be changed as required.
This is done with the key removed from the ignition switch.NOTE
The answerback function does not operate when the key is
in the ignition switch or any doors is opened.Horn deactivation/reactivationThe horn answerback function can be set to the following three
conditions.
Each time the horn answerback function is set, a chime will
sound to tell you the condition of the answerback function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.Number of
chimes
Condition
One chime The horn will not sound.
Two chimes The horn will sound.
Four chimesThe horn will sound if the LOCK button is
pressed twice quickly.
BK0102103US.book 10 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-11
3

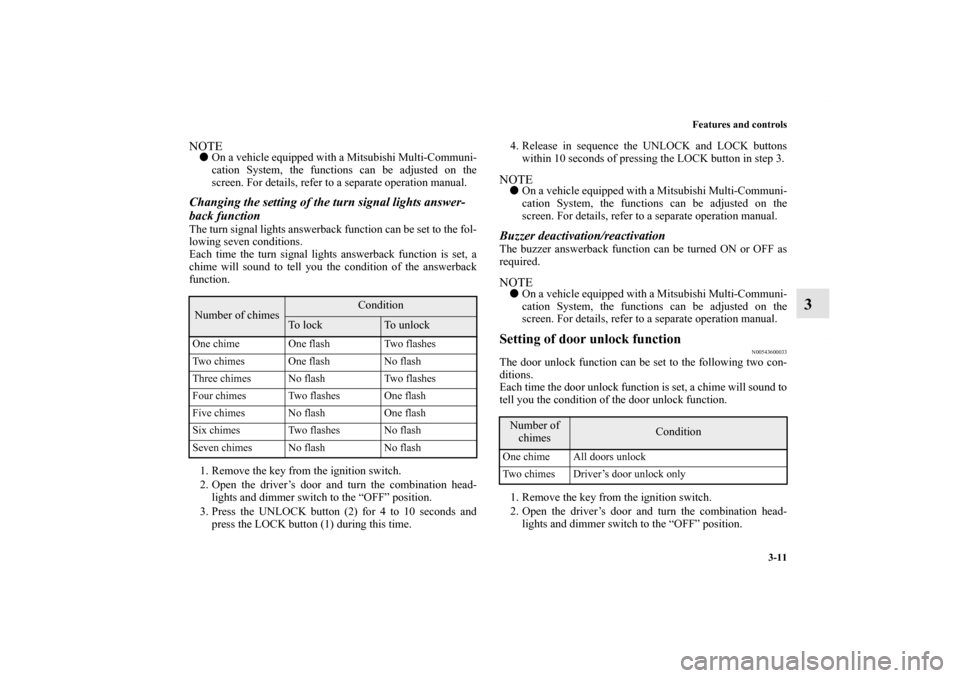

NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Changing the setting of the turn signal lights answer-
back functionThe turn signal lights answerback function can be set to the fol-
lowing seven conditions.
Each time the turn signal lights answerback function is set, a
chime will sound to tell you the condition of the answerback
function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Buzzer deactivation/reactivationThe buzzer answerback function can be turned ON or OFF as
required.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Setting of door unlock function
N00543600033
The door unlock function can be set to the following two con-
ditions.
Each time the door unlock function is set, a chime will sound to
tell you the condition of the door unlock function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
Number of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
Number of
chimes
Condition
One chime All doors unlock
Two chimes Driver’s door unlock only
BK0102103US.book 11 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-12 Features and controls
3
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Using the panic alarm
N00543700018
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement remote control transmitters
N00543800019
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID codes for all the remote control
transmitters except the one for the lost key must be pro-
grammed again.
Take your vehicle and all the remaining remote control trans-
mitters to your authorized Mitsubishi Motors dealer to have
your ID codes programmed again.Additional remote control transmitters
N00543900010
To add a remote control transmitter, you must already have one
registered remote control transmitter.
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. For you to register the ID
code yourself, follow the “Customer remote control transmitter
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with two remote control transmitters,
but you may register up to eight remote control transmit-
ters.
BK0102103US.book 12 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-13
3

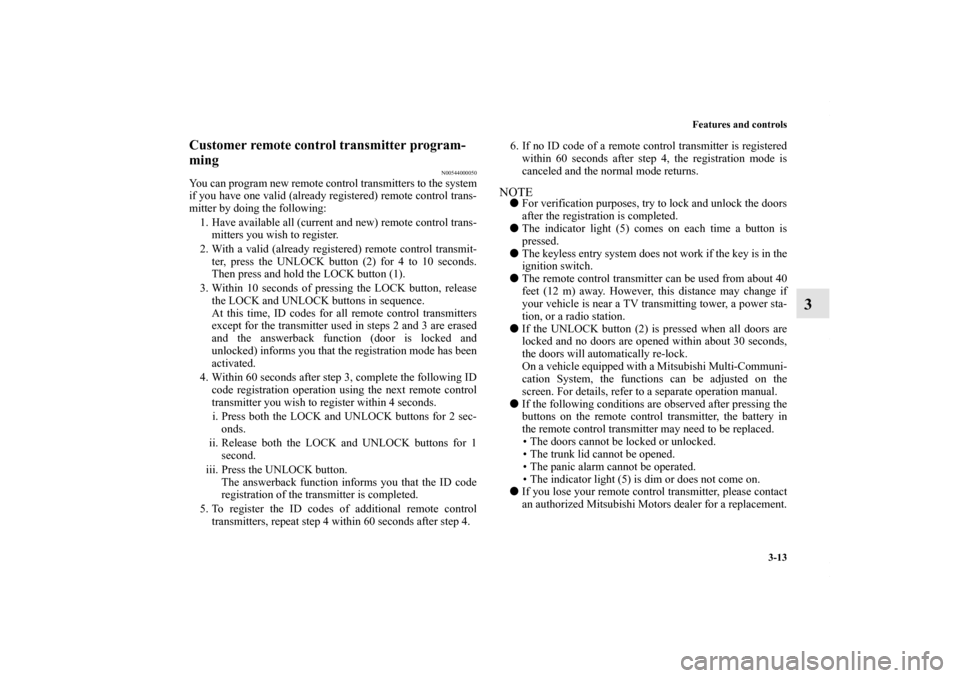

Customer remote control transmitter program-
ming
N00544000050
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i. Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii. Release both the LOCK and UNLOCK buttons for 1
second.
iii. Press the UNLOCK button.
The answerback function informs you that the ID code
registration of the transmitter is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE
For verification purposes, try to lock and unlock the doors
after the registration is completed.

The indicator light (5) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors are
locked and no doors are opened within about 30 seconds,
the doors will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing the
buttons on the remote control transmitter, the battery in
the remote control transmitter may need to be replaced.
• The doors cannot be locked or unlocked.
• The trunk lid cannot be opened.
• The panic alarm cannot be operated.
• The indicator light (5) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0102103US.book 13 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-14 Features and controls
3

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of eight remote control transmitters
can be programmed for your vehicle.

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-8.General information
N00546100013
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Procedure for replacing the remote control trans-
mitter battery
N00544100019
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0102103US.book 14 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-15
3

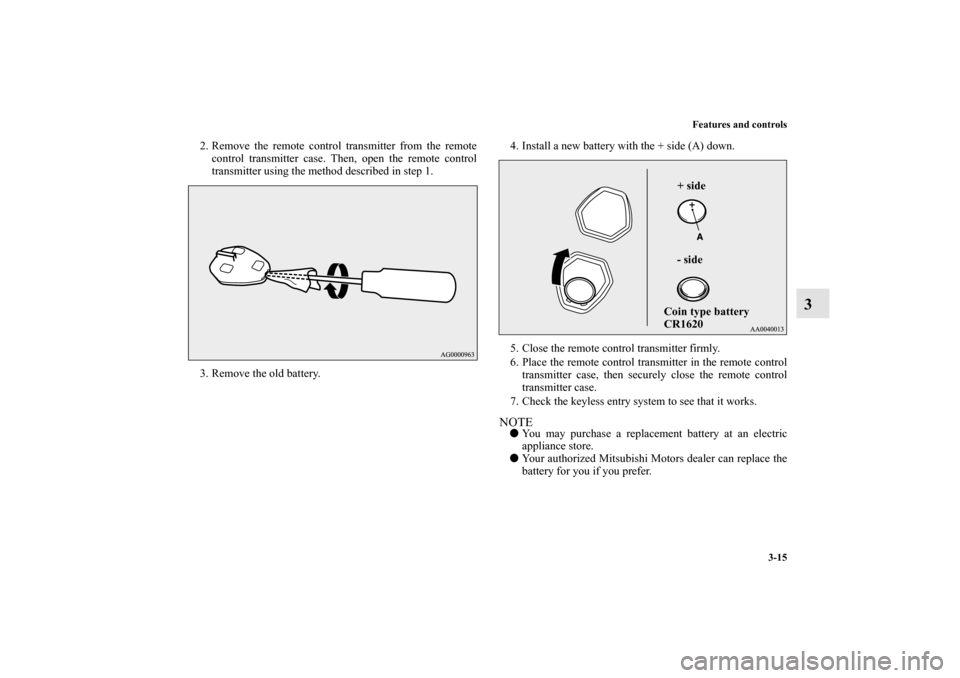

2. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 1.
3. Remove the old battery.4. Install a new battery with the + side (A) down.
5. Close the remote control transmitter firmly.
6. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
7. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.

Your authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
Coin type battery
CR1620+ side
- side
BK0102103US.book 15 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-16 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100052
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors to be locked and unlocked, the trunk lid to be
opened, and the engine to be started simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key)”: “Keyless entry system” on page 3-45.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors, opening the trunk lid, and starting the
engine. When leaving the vehicle, make sure you are carrying
the F.A.S.T.-key and then lock the vehicle.
WARNING
!
Individuals who use implantable pacemakers or
implantable cardioverter-defibrillators should keep
away from the external and internal transmitters.
The electromagnetic waves used in the F.A.S.T.-key
may affect the operation of implantable pacemakers
and implantable cardioverter-defibrillators.
BK0102103US.book 16 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-17
3
The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors dealer.
• Enabling only the locking and unlocking of the doors
and the opening of the trunk lid
• Enabling only the starting of the engine
• Deactivating the F.A.S.T.-key

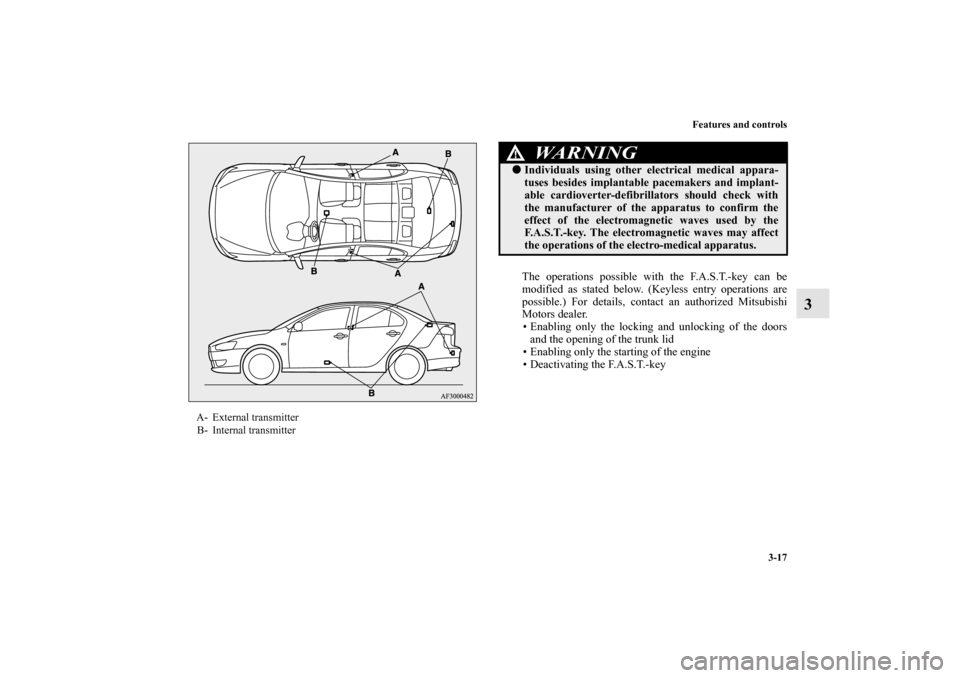

A- External transmitter
B- Internal transmitter
WARNING
!
Individuals using other electrical medical appara-
tuses besides implantable pacemakers and implant-
able cardioverter-defibrillators should check with
the manufacturer of the apparatus to confirm the
effect of the electromagnetic waves used by the
F.A.S.T.-key. The electromagnetic waves may affect
the operations of the electro-medical apparatus.
BK0102103US.book 17 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-18 Features and controls
3
NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
• The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
• The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
• The F.A.S.T.-key touches or is covered by a metal object
• A keyless entry system is being used nearby
• The battery of the F.A.S.T.-key is run down
• The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate using the emergency key” on page 3-
33.

The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.

Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near electrical appliances such as televisions or
computers.

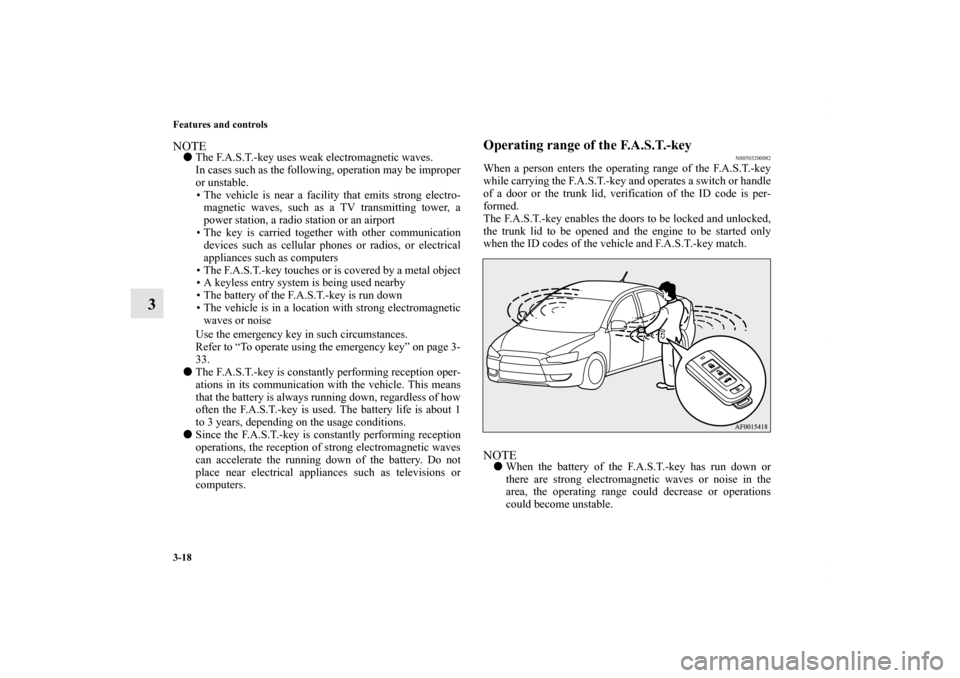

Operating range of the F.A.S.T.-key
N00503200082
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and operates a switch or handle
of a door or the trunk lid, verification of the ID code is per-
formed.
The F.A.S.T.-key enables the doors to be locked and unlocked,
the trunk lid to be opened and the engine to be started only
when the ID codes of the vehicle and F.A.S.T.-key match.NOTE
When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0102103US.book 18 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-19
3

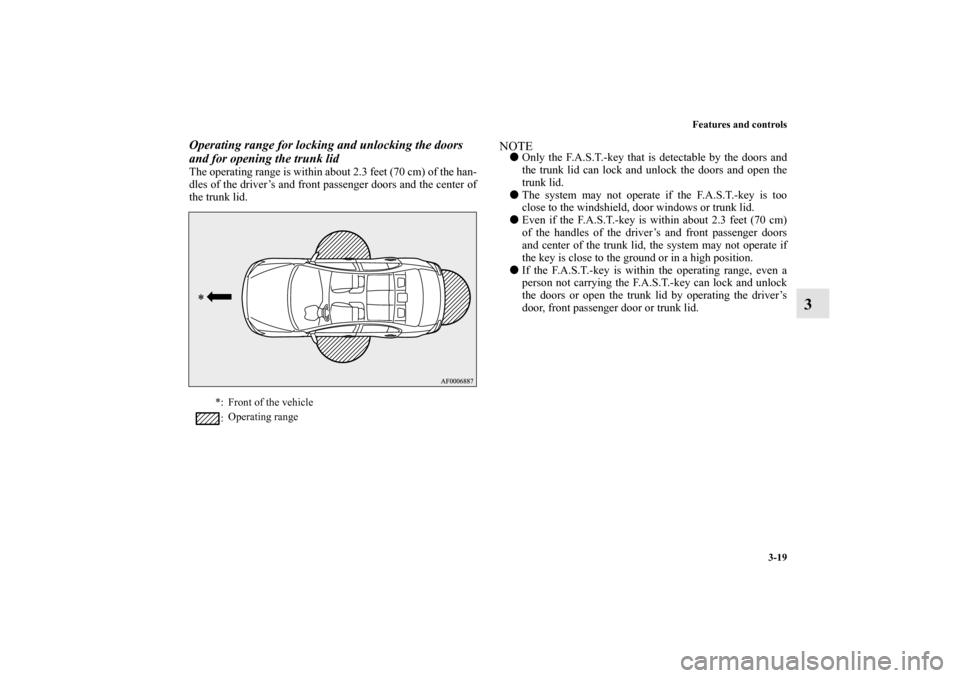

Operating range for locking and unlocking the doors
and for opening the trunk lidThe operating range is within about 2.3 feet (70 cm) of the han-
dles of the driver’s and front passenger doors and the center of
the trunk lid.
NOTE
Only the F.A.S.T.-key that is detectable by the doors and
the trunk lid can lock and unlock the doors and open the
trunk lid.

The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or trunk lid.

Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the handles of the driver’s and front passenger doors
and center of the trunk lid, the system may not operate if
the key is close to the ground or in a high position.

If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or open the trunk lid by operating the driver’s
door, front passenger door or trunk lid.
*: Front of the vehicle
:Operating range
BK0102103US.book 19 ページ ２００９年１０月２６日　月曜日　午後１時３８分
