2-50 Seat and restraint systems
2

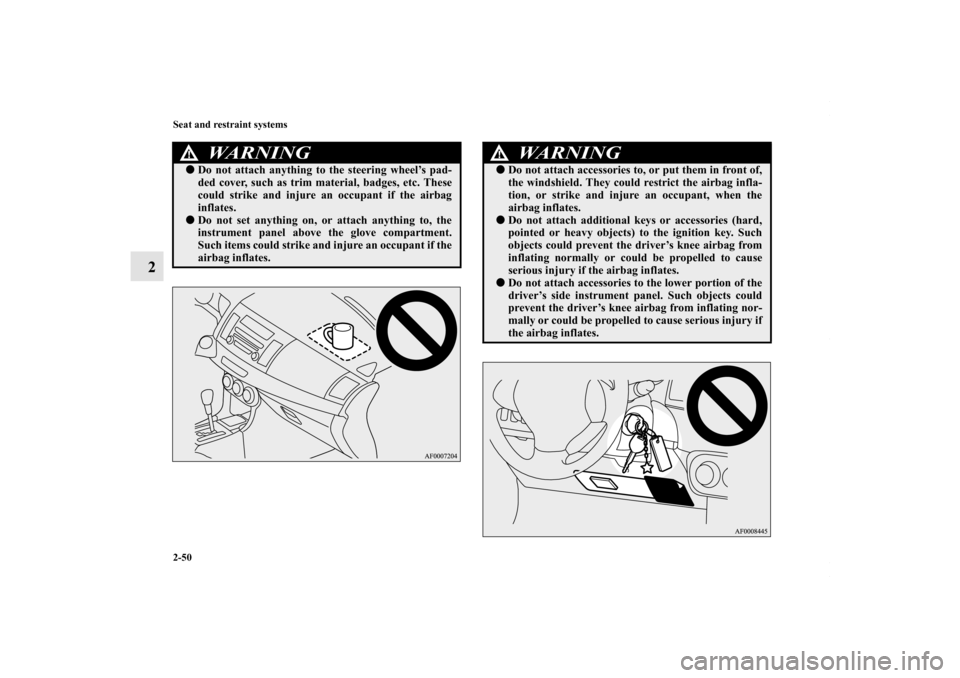

WARNING
!
Do not attach anything to the steering wheel’s pad-
ded cover, such as trim material, badges, etc. These
could strike and injure an occupant if the airbag
inflates.
Do not set anything on, or attach anything to, the
instrument panel above the glove compartment.
Such items could strike and injure an occupant if the
airbag inflates.
WARNING
!
Do not attach accessories to, or put them in front of,
the windshield. They could restrict the airbag infla-
tion, or strike and injure an occupant, when the
airbag inflates.
Do not attach additional keys or accessories (hard,
pointed or heavy objects) to the ignition key. Such
objects could prevent the driver’s knee airbag from
inflating normally or could be propelled to cause
serious injury if the airbag inflates.
Do not attach accessories to the lower portion of the
driver’s side instrument panel. Such objects could
prevent the driver’s knee airbag from inflating nor-
mally or could be propelled to cause serious injury if
the airbag inflates.
BK0102103US.book 50 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Seat and restraint systems
2-51
2

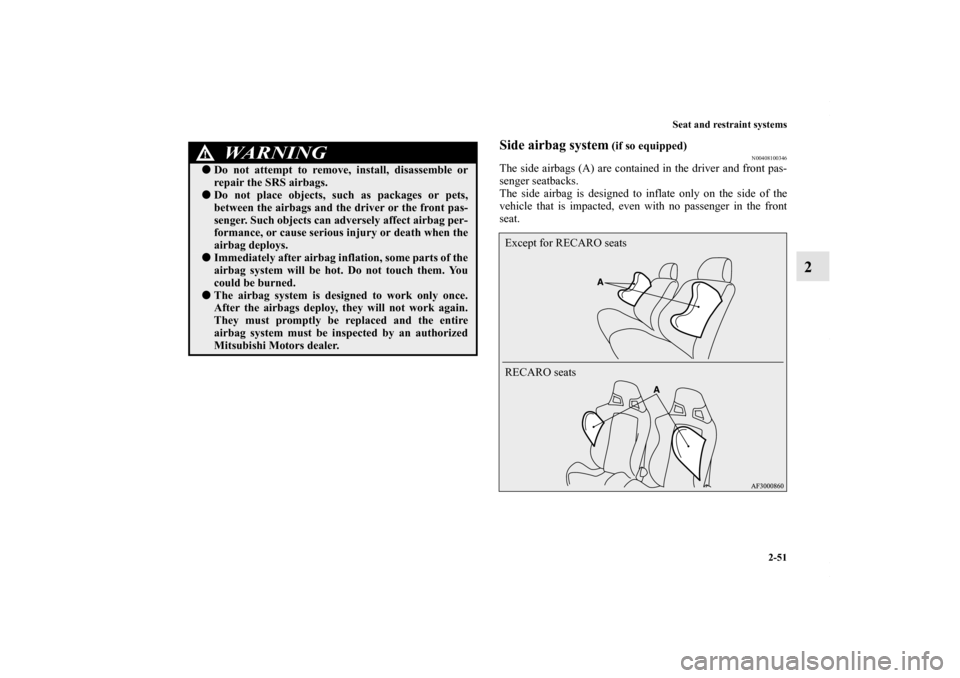

Side airbag system
(if so equipped)
N00408100346
The side airbags (A) are contained in the driver and front pas-
senger seatbacks.
The side airbag is designed to inflate only on the side of the
vehicle that is impacted, even with no passenger in the front
seat.
WARNING
!
Do not attempt to remove, install, disassemble or
repair the SRS airbags.
Do not place objects, such as packages or pets,
between the airbags and the driver or the front pas-
senger. Such objects can adversely affect airbag per-
formance, or cause serious injury or death when the
airbag deploys.
Immediately after airbag inflation, some parts of the
airbag system will be hot. Do not touch them. You
could be burned.
The airbag system is designed to work only once.
After the airbags deploy, they will not work again.
They must promptly be replaced and the entire
airbag system must be inspected by an authorized
Mitsubishi Motors dealer.
Except for RECARO seats
RECARO seats
BK0102103US.book 51 ページ ２００９年１０月２６日　月曜日　午後１時３８分

2-52 Seat and restraint systems
2

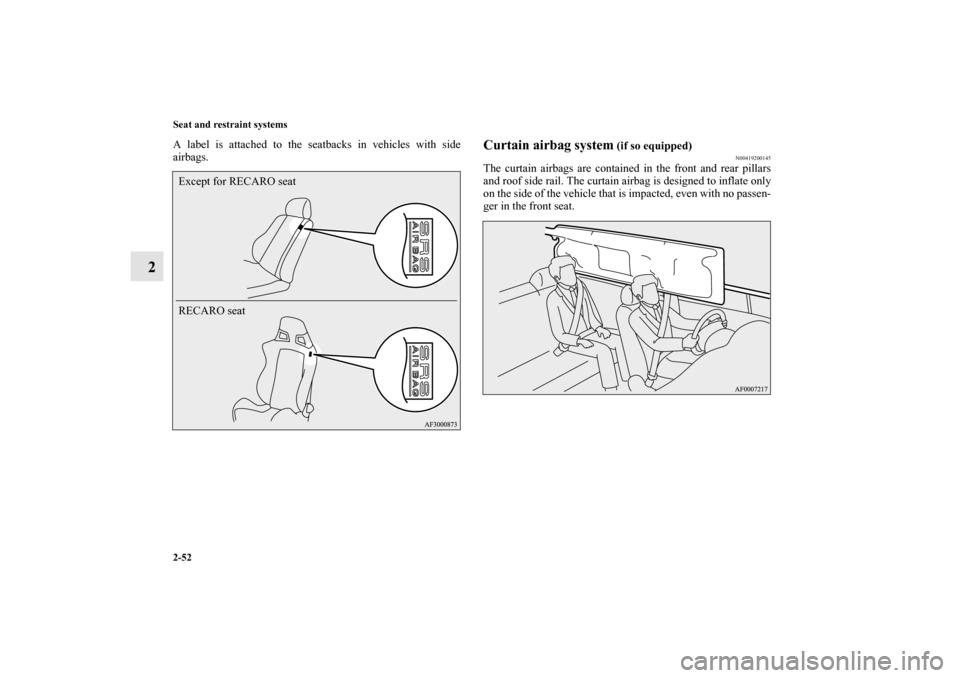

A label is attached to the seatbacks in vehicles with side
airbags.
Curtain airbag system
(if so equipped)
N00419200145
The curtain airbags are contained in the front and rear pillars
and roof side rail. The curtain airbag is designed to inflate only
on the side of the vehicle that is impacted, even with no passen-
ger in the front seat.
Except for RECARO seat
RECARO seatBK0102103US.book 52 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Seat and restraint systems
2-53
2

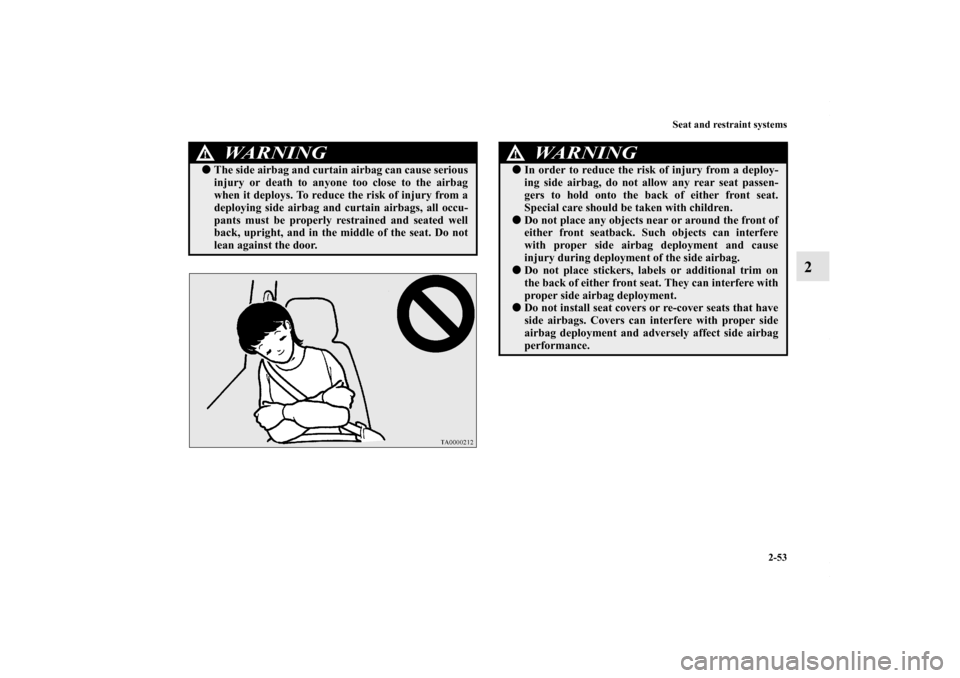

WARNING
!
The side airbag and curtain airbag can cause serious
injury or death to anyone too close to the airbag
when it deploys. To reduce the risk of injury from a
deploying side airbag and curtain airbags, all occu-
pants must be properly restrained and seated well
back, upright, and in the middle of the seat. Do not
lean against the door.
WARNING
!
In order to reduce the risk of injury from a deploy-
ing side airbag, do not allow any rear seat passen-
gers to hold onto the back of either front seat.
Special care should be taken with children.
Do not place any objects near or around the front of
either front seatback. Such objects can interfere
with proper side airbag deployment and cause
injury during deployment of the side airbag.
Do not place stickers, labels or additional trim on
the back of either front seat. They can interfere with
proper side airbag deployment.
Do not install seat covers or re-cover seats that have
side airbags. Covers can interfere with proper side
airbag deployment and adversely affect side airbag
performance.
BK0102103US.book 53 ページ ２００９年１０月２６日　月曜日　午後１時３８分

2-54 Seat and restraint systems
2
WARNING
!

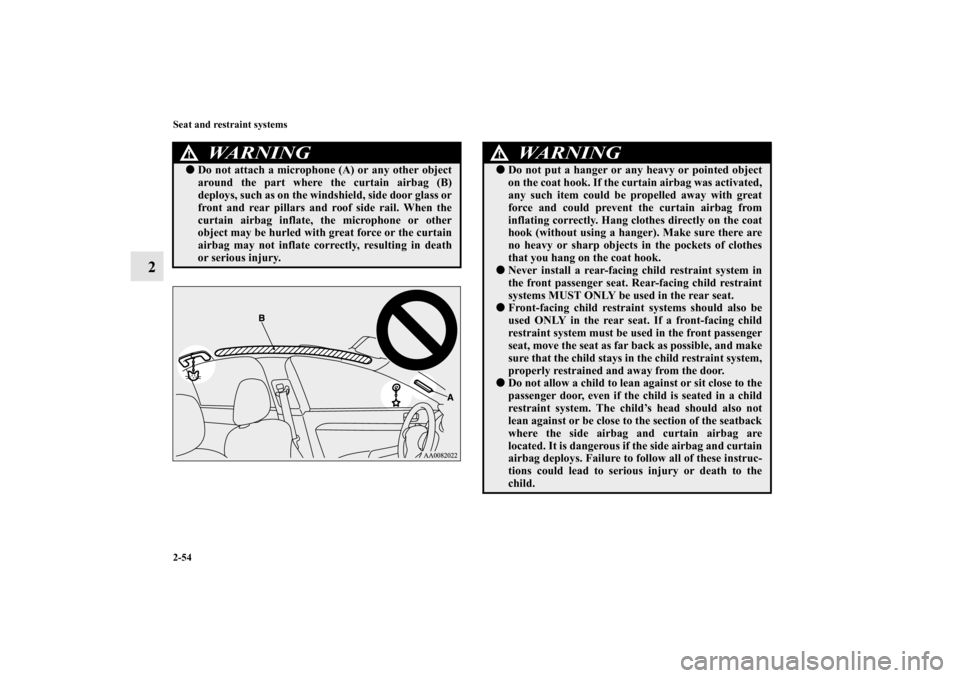

Do not attach a microphone (A) or any other object
around the part where the curtain airbag (B)
deploys, such as on the windshield, side door glass or
front and rear pillars and roof side rail. When the
curtain airbag inflate, the microphone or other
object may be hurled with great force or the curtain
airbag may not inflate correctly, resulting in death
or serious injury.
WARNING
!
Do not put a hanger or any heavy or pointed object
on the coat hook. If the curtain airbag was activated,
any such item could be propelled away with great
force and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on the coat
hook (without using a hanger). Make sure there are
no heavy or sharp objects in the pockets of clothes
that you hang on the coat hook.
Never install a rear-facing child restraint system in
the front passenger seat. Rear-facing child restraint
systems MUST ONLY be used in the rear seat.
Front-facing child restraint systems should also be
used ONLY in the rear seat. If a front-facing child
restraint system must be used in the front passenger
seat, move the seat as far back as possible, and make
sure that the child stays in the child restraint system,
properly restrained and away from the door.
Do not allow a child to lean against or sit close to the
passenger door, even if the child is seated in a child
restraint system. The child’s head should also not
lean against or be close to the section of the seatback
where the side airbag and curtain airbag are
located. It is dangerous if the side airbag and curtain
airbag deploys. Failure to follow all of these instruc-
tions could lead to serious injury or death to the
child.
BK0102103US.book 54 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Seat and restraint systems
2-55
2

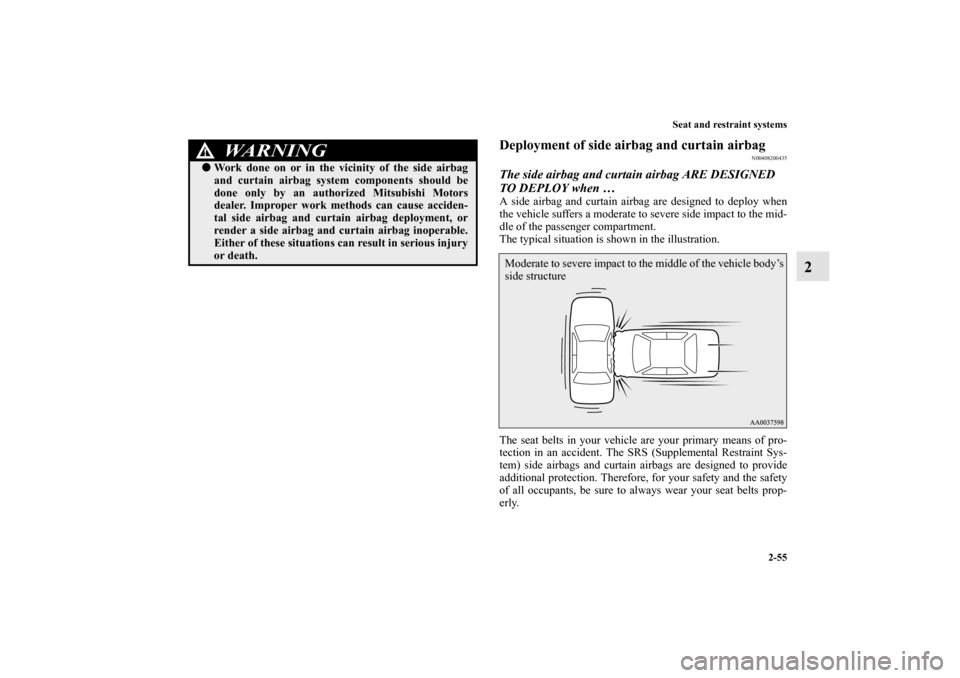

Deployment of side airbag and curtain airbag
N00408200435
The side airbag and curtain airbag ARE DESIGNED
TO DEPLOY when … A side airbag and curtain airbag are designed to deploy when
the vehicle suffers a moderate to severe side impact to the mid-
dle of the passenger compartment.
The typical situation is shown in the illustration.
The seat belts in your vehicle are your primary means of pro-
tection in an accident. The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain airbags are designed to provide
additional protection. Therefore, for your safety and the safety
of all occupants, be sure to always wear your seat belts prop-
erly.

Work done on or in the vicinity of the side airbag
and curtain airbag system components should be
done only by an authorized Mitsubishi Motors
dealer. Improper work methods can cause acciden-
tal side airbag and curtain airbag deployment, or
render a side airbag and curtain airbag inoperable.
Either of these situations can result in serious injury
or death.
WARNING
!
Moderate to severe impact to the middle of the vehicle body’s
side structure
BK0102103US.book 55 ページ ２００９年１０月２６日　月曜日　午後１時３８分

2-56 Seat and restraint systems
2

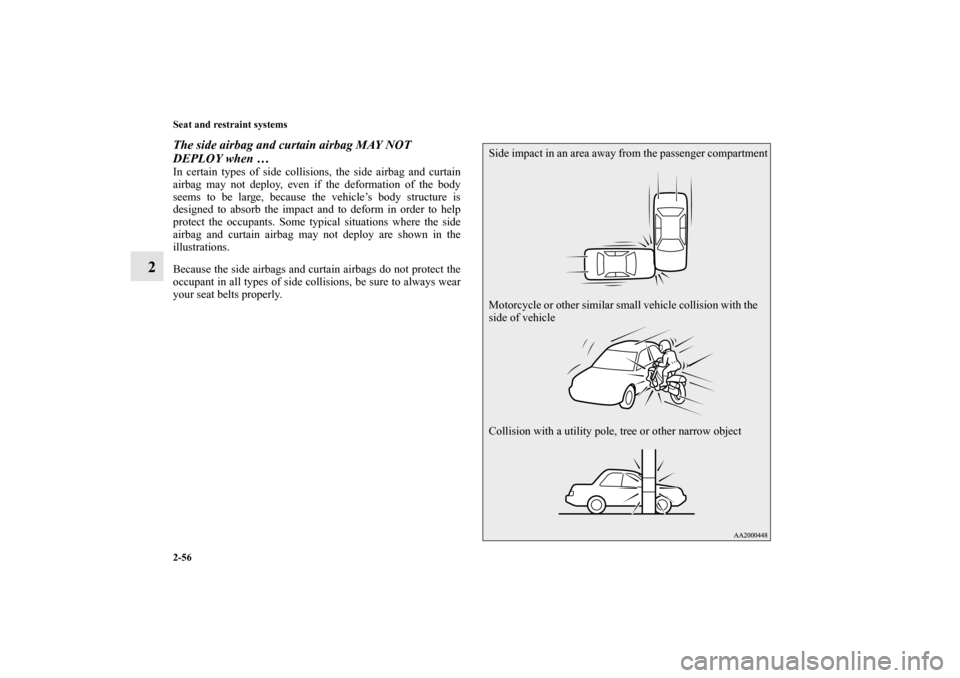

The side airbag and curtain airbag MAY NOT
DEPLOY when … In certain types of side collisions, the side airbag and curtain
airbag may not deploy, even if the deformation of the body
seems to be large, because the vehicle’s body structure is
designed to absorb the impact and to deform in order to help
protect the occupants. Some typical situations where the side
airbag and curtain airbag may not deploy are shown in the
illustrations.
Because the side airbags and curtain airbags do not protect the
occupant in all types of side collisions, be sure to always wear
your seat belts properly.
Side impact in an area away from the passenger compartment
Motorcycle or other similar small vehicle collision with the
side of vehicle
Collision with a utility pole, tree or other narrow object
BK0102103US.book 56 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Seat and restraint systems
2-57
2

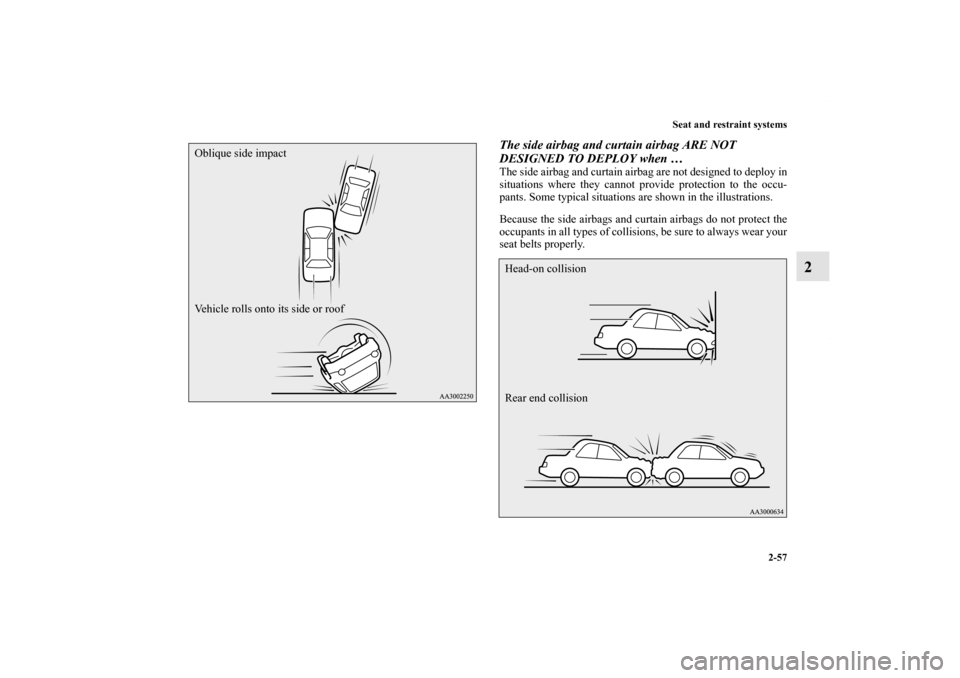

The side airbag and curtain airbag ARE NOT
DESIGNED TO DEPLOY when …The side airbag and curtain airbag are not designed to deploy in
situations where they cannot provide protection to the occu-
pants. Some typical situations are shown in the illustrations.
Because the side airbags and curtain airbags do not protect the
occupants in all types of collisions, be sure to always wear your
seat belts properly.
Oblique side impact
Vehicle rolls onto its side or roof
Head-on collision
Rear end collision
BK0102103US.book 57 ページ ２００９年１０月２６日　月曜日　午後１時３８分

2-58 Seat and restraint systems
2

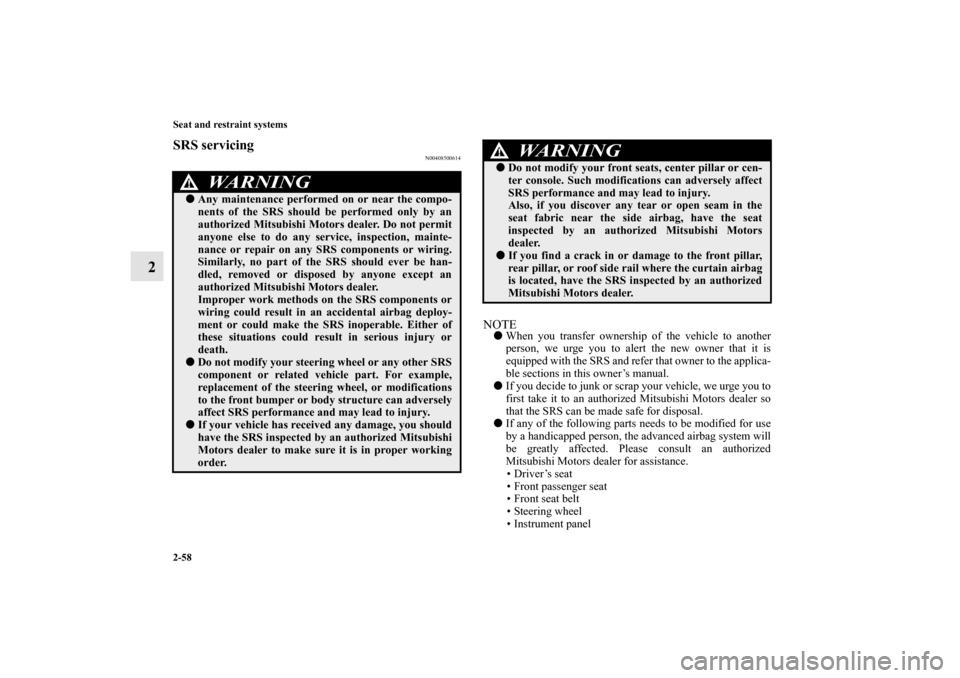

SRS servicing
N00408500614
NOTE
When you transfer ownership of the vehicle to another
person, we urge you to alert the new owner that it is
equipped with the SRS and refer that owner to the applica-
ble sections in this owner’s manual.

If you decide to junk or scrap your vehicle, we urge you to
first take it to an authorized Mitsubishi Motors dealer so
that the SRS can be made safe for disposal.

If any of the following parts needs to be modified for use
by a handicapped person, the advanced airbag system will
be greatly affected. Please consult an authorized
Mitsubishi Motors dealer for assistance.
• Driver’s seat
• Front passenger seat
• Front seat belt
• Steering wheel
• Instrument panel
WARNING
!
Any maintenance performed on or near the compo-
nents of the SRS should be performed only by an
authorized Mitsubishi Motors dealer. Do not permit
anyone else to do any service, inspection, mainte-
nance or repair on any SRS components or wiring.
Similarly, no part of the SRS should ever be han-
dled, removed or disposed by anyone except an
authorized Mitsubishi Motors dealer.
Improper work methods on the SRS components or
wiring could result in an accidental airbag deploy-
ment or could make the SRS inoperable. Either of
these situations could result in serious injury or
death.
Do not modify your steering wheel or any other SRS
component or related vehicle part. For example,
replacement of the steering wheel, or modifications
to the front bumper or body structure can adversely
affect SRS performance and may lead to injury.
If your vehicle has received any damage, you should
have the SRS inspected by an authorized Mitsubishi
Motors dealer to make sure it is in proper working
order.

Do not modify your front seats, center pillar or cen-
ter console. Such modifications can adversely affect
SRS performance and may lead to injury.
Also, if you discover any tear or open seam in the
seat fabric near the side airbag, have the seat
inspected by an authorized Mitsubishi Motors
dealer.
If you find a crack in or damage to the front pillar,
rear pillar, or roof side rail where the curtain airbag
is located, have the SRS inspected by an authorized
Mitsubishi Motors dealer.
WARNING
!
BK0102103US.book 58 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Seat and restraint systems
2-59
2

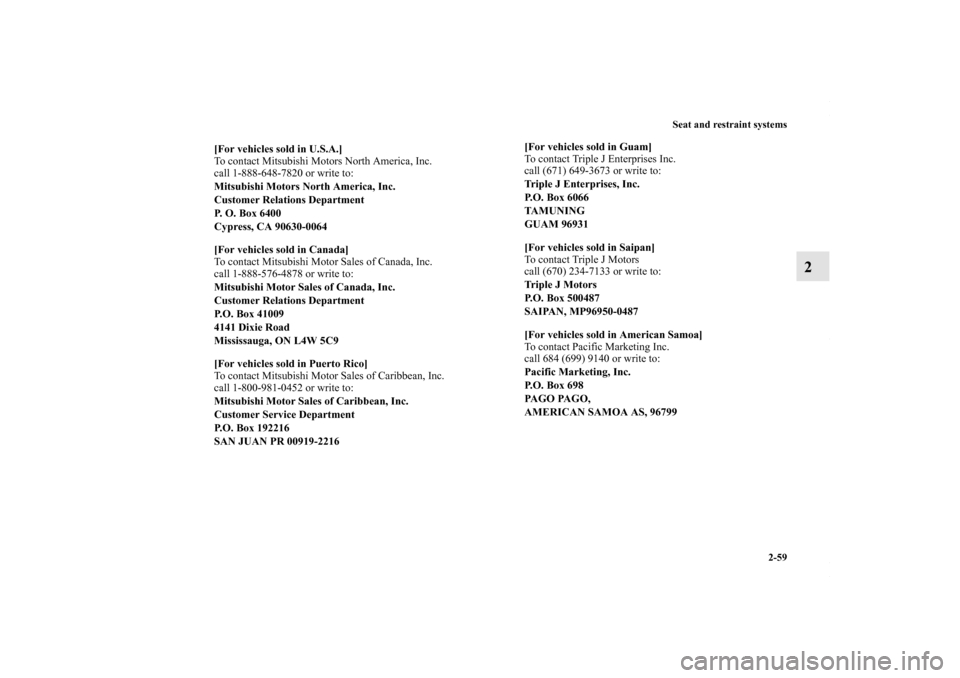

[For vehicles sold in U.S.A.]
To contact Mitsubishi Motors North America, Inc.
call 1-888-648-7820 or write to:
Mitsubishi Motors North America, Inc.
Customer Relations Department
P. O. Box 6400
Cypress, CA 90630-0064
[For vehicles sold in Canada]
To contact Mitsubishi Motor Sales of Canada, Inc.
call 1-888-576-4878 or write to:
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
[For vehicles sold in Puerto Rico]
To contact Mitsubishi Motor Sales of Caribbean, Inc.
call 1-800-981-0452 or write to:
Mitsubishi Motor Sales of Caribbean, Inc.
Customer Service Department
P.O. Box 192216
SAN JUAN PR 00919-2216[For vehicles sold in Guam]
To contact Triple J Enterprises Inc.
call (671) 649-3673 or write to:
Triple J Enterprises, Inc.
P.O. Box 6066
TA M U N I N G
GUAM 96931
[For vehicles sold in Saipan]
To contact Triple J Motors
call (670) 234-7133 or write to:
Triple J Motors
P.O. Box 500487
SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]
To contact Pacific Marketing Inc.
call 684 (699) 9140 or write to:
Pacific Marketing, Inc.
P.O. Box 698
PAGO PAGO,
AMERICAN SAMOA AS, 96799
BK0102103US.book 59 ページ ２００９年１０月２６日　月曜日　午後１時３８分
