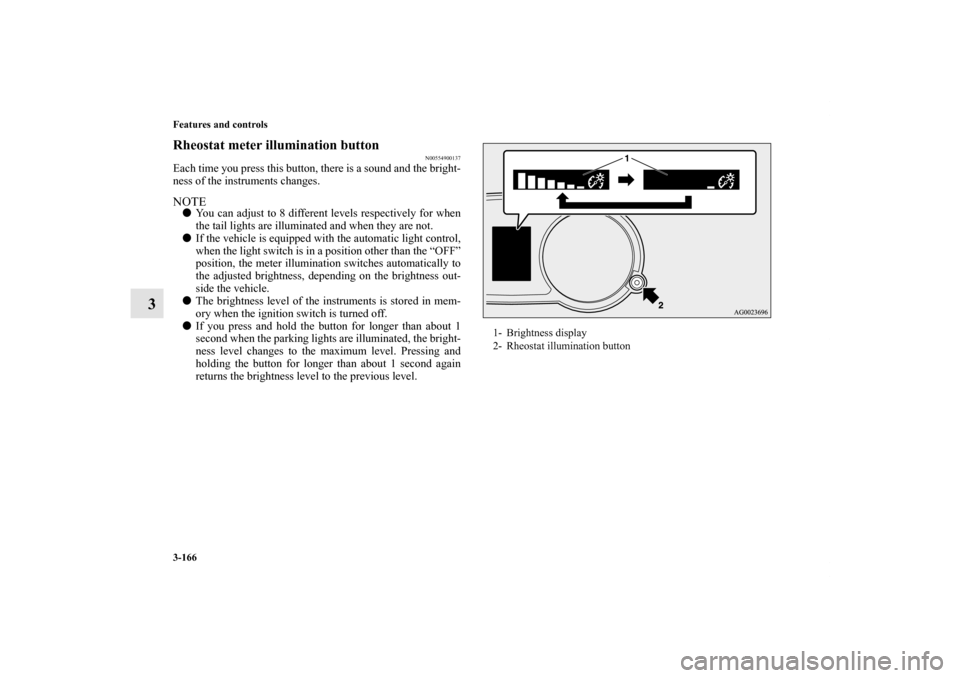

Rheostat meter illumination button
N00554900137
Each time you press this button, there is a sound and the bright-
ness of the instruments changes.NOTE
You can adjust to 8 different levels respectively for when
the tail lights are illuminated and when they are not.

If the vehicle is equipped with the automatic light control,
when the light switch is in a position other than the “OFF”
position, the meter illumination switches automatically to
the adjusted brightness, depending on the brightness out-
side the vehicle.

The brightness level of the instruments is stored in mem-
ory when the ignition switch is turned off.

If you press and hold the button for longer than about 1
second when the parking lights are illuminated, the bright-
ness level changes to the maximum level. Pressing and
holding the button for longer than about 1 second again
returns the brightness level to the previous level.
1- Brightness display
2- Rheostat illumination button
BK0119300US.book 166 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-167

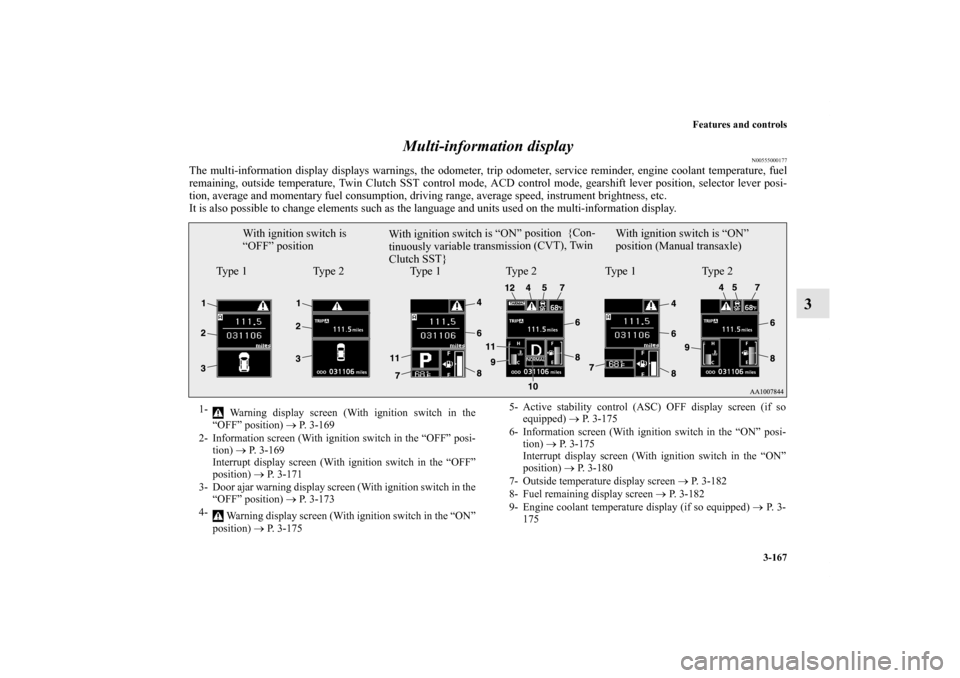

3 Multi-information display
N00555000177
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, ACD control mode, gearshift lever position, selector lever posi-
tion, average and momentary fuel consumption, driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch is
“OFF” position
W
it
h

i
gn
i
t
i
on

s
wi
t
c
h
i
s

“O
N
”
p
o
si
t
i
o
n

{
Co
n
-
t
i
nu
o
us
l
y

va
r
i
ab
l
e

tr
a
n
sm
i
s
si
o
n
(
C
VT
)
,

Tw
i
n
Cl
u
t
ch

SS
T
}
With ignition switch is “ON”
position (Manual transaxle)
Type 1 Type 2 Type 1 Type 2 Type 1 Type 2
1-
Warning display screen (With ignition switch in the
“OFF” position) → P. 3 - 1 6 9
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P. 3-169
Interrupt display screen (With ignition switch in the “OFF”
position) → P. 3 - 1 7 1
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P. 3 - 1 7 3
4-
Warning display screen (With ignition switch in the “ON”
position) → P. 3 - 1 7 5
5- Active stability control (ASC) OFF display screen (if so
equipped) → P. 3-175
6- Information screen (With ignition switch in the “ON” posi-
tion) → P. 3-175
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3-180
7- Outside temperature display screen → P. 3-182
8- Fuel remaining display screen → P. 3-182
9- Engine coolant temperature display (if so equipped) → P. 3 -
175
BK0119300US.book 167 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-168 Features and controls
3
NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-169.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-203.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON” position)” on page 3-173.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-175.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-205.

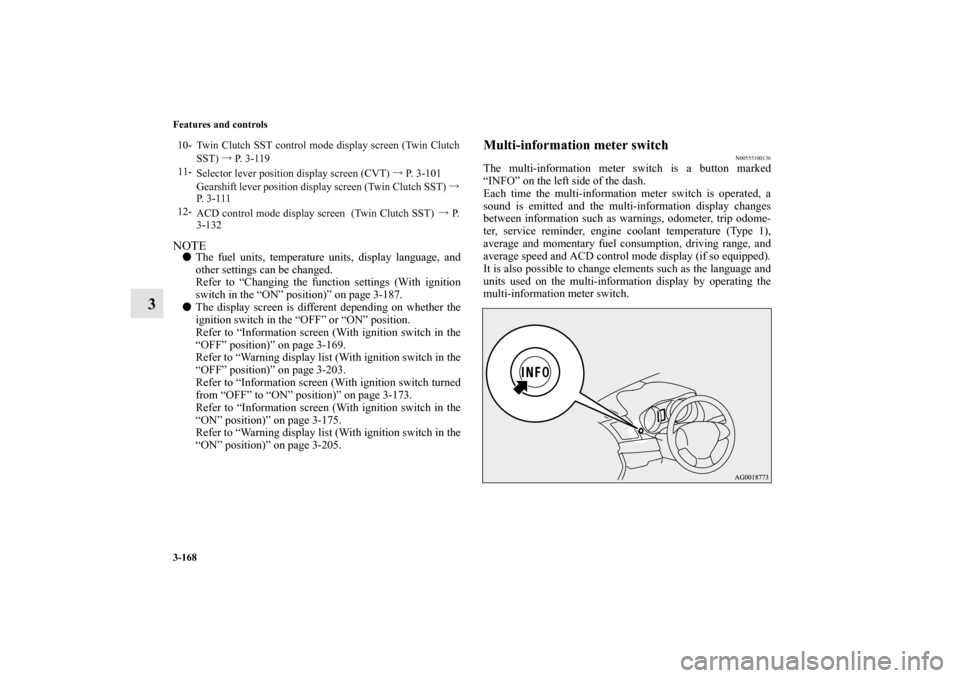

Multi-information meter switch
N00555100136
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer, trip odome-
ter, service reminder, engine coolant temperature (Type 1),
average and momentary fuel consumption, driving range, and
average speed and ACD control mode display (if so equipped).
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
10- Twin Clutch SST control mode display screen (Twin Clutch
SST) → P. 3 - 1 1 9
11-
Selector lever position display screen (CVT) → P. 3-101
Gearshift lever position display screen (Twin Clutch SST) →
P. 3 - 1 1 1
12-
ACD control mode display screen (Twin Clutch SST) → P.
3-132BK0119300US.book 168 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-169
3

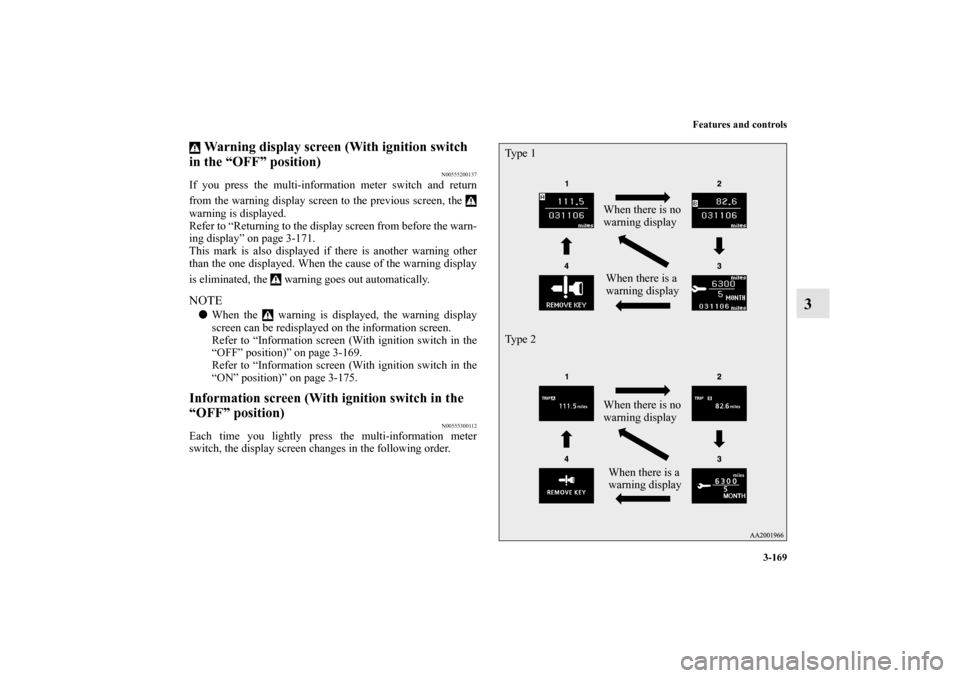

Warning display screen (With ignition switch
in the “OFF” position)
N00555200137
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-171.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the warning goes out automatically.NOTE
When the warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-169.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-175.Information screen (With ignition switch in the
“OFF” position)
N00555300112
Each time you lightly press the multi-information meter
switch, the display screen changes in the following order.
Ty p e 1
Ty p e 2When there is a
warning display
When there is no
warning display
When there is a
warning display When there is no
warning display
BK0119300US.book 169 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-170 Features and controls
3

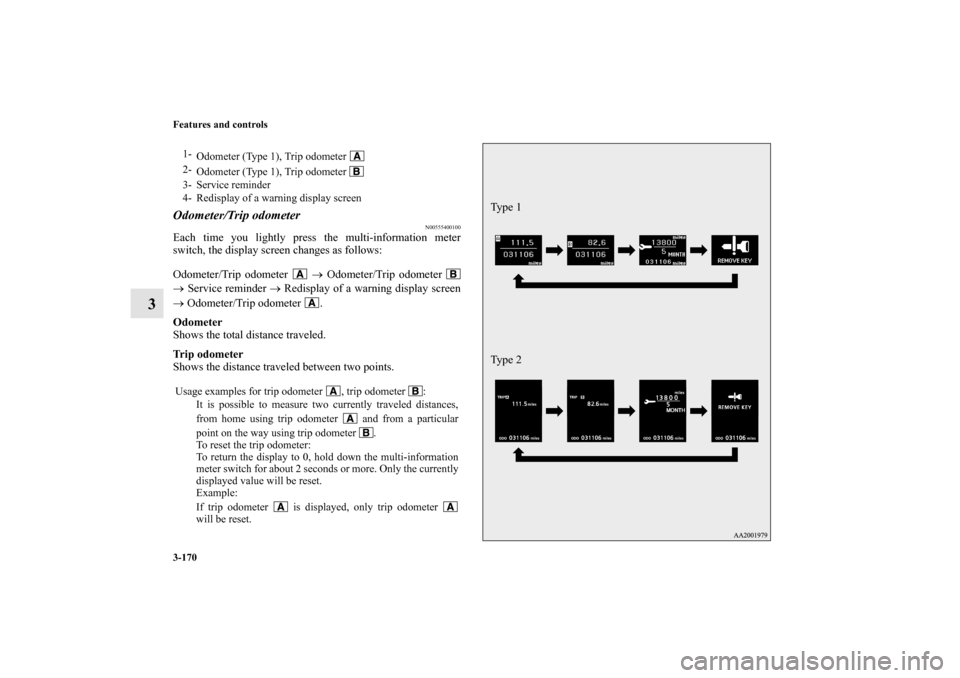

Odometer/Trip odometer
N00555400100
Each time you lightly press the multi-information meter
switch, the display screen changes as follows:
Odometer/Trip odometer → Odometer/Trip odometer
→ Service reminder → Redisplay of a warning display screen
→ Odometer/Trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.1-
Odometer (Type 1), Trip odometer
2-
Odometer (Type 1), Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
Usage examples for trip odometer , trip odometer :
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .
To reset the trip odometer:
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example:
If trip odometer is displayed, only trip odometer
will be reset.
Ty p e 1
Ty p e 2
BK0119300US.book 170 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-171
3

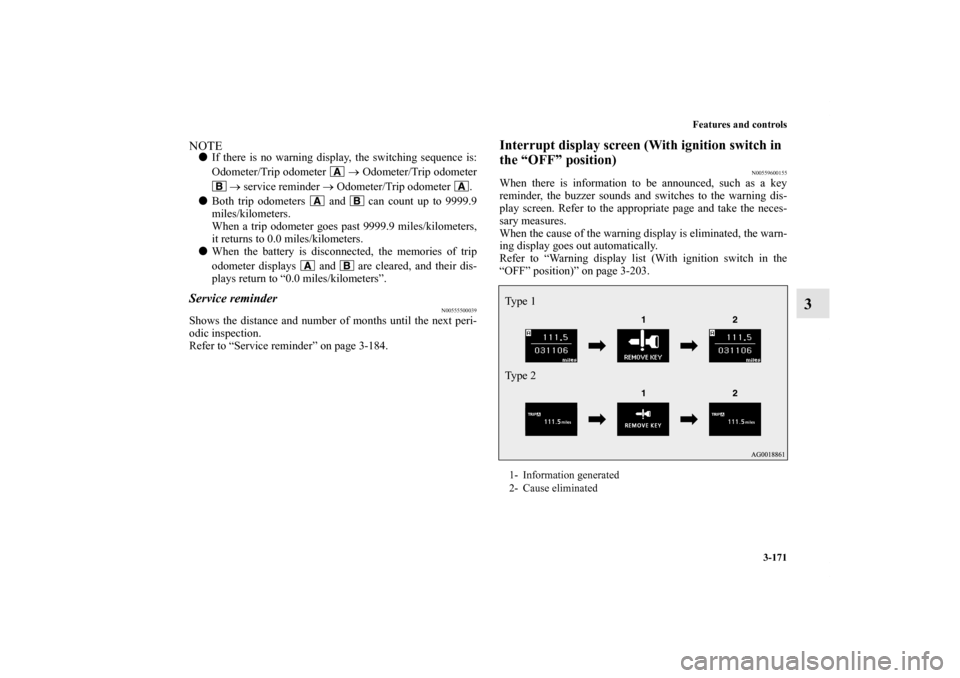

NOTE
If there is no warning display, the switching sequence is:
Odometer/Trip odometer → Odometer/Trip odometer
→ service reminder → Odometer/Trip odometer .

Both trip odometers and can count up to 9999.9
miles/kilometers.
When a trip odometer goes past 9999.9 miles/kilometers,
it returns to 0.0 miles/kilometers.

When the battery is disconnected, the memories of trip
odometer displays and are cleared, and their dis-
plays return to “0.0 miles/kilometers”.Service reminder
N00555500039
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-184.
Interrupt display screen (With ignition switch in
the “OFF” position)
N00559600155
When there is information to be announced, such as a key
reminder, the buzzer sounds and switches to the warning dis-
play screen. Refer to the appropriate page and take the neces-
sary measures.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-203.1- Information generated
2- Cause eliminatedTy p e 1
Ty p e 2
BK0119300US.book 171 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-172 Features and controls
3

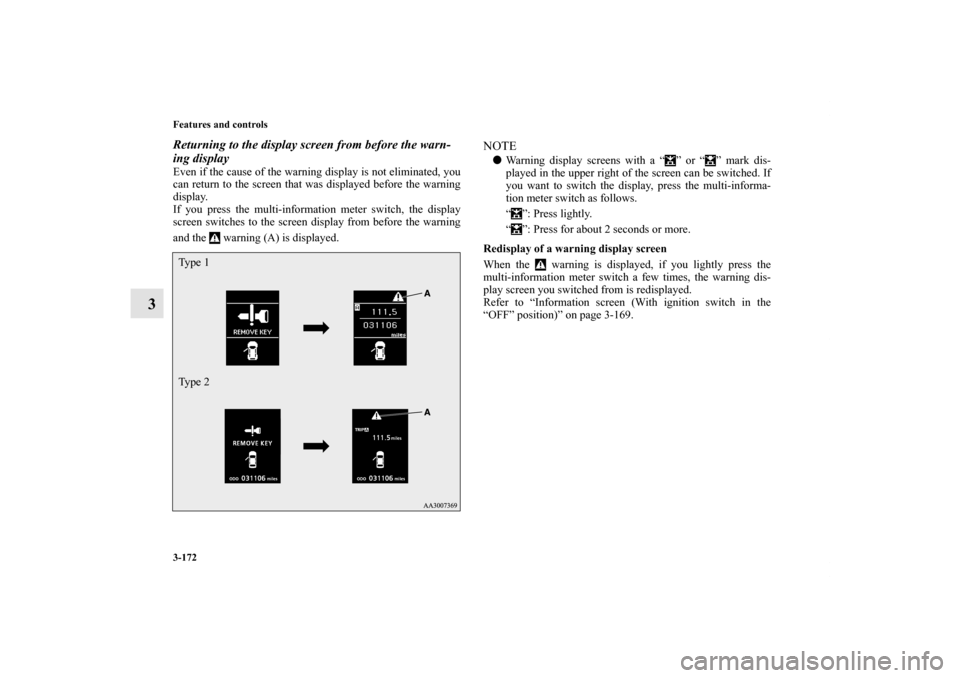

Returning to the display screen from before the warn-
ing displayEven if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the screen display from before the warning
and the warning (A) is displayed.
NOTE
Warning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screen
When the warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-169.
Ty p e 1
Ty p e 2BK0119300US.book 172 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-173
3

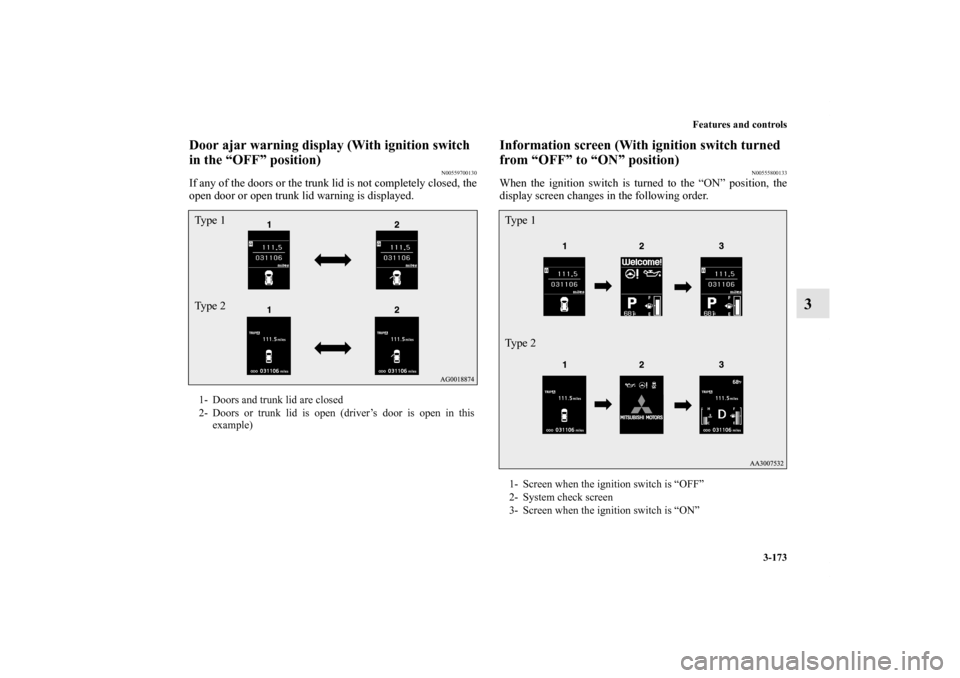

Door ajar warning display (With ignition switch
in the “OFF” position)
N00559700130
If any of the doors or the trunk lid is not completely closed, the
open door or open trunk lid warning is displayed.
Information screen (With ignition switch turned
from “OFF” to “ON” position)
N00555800133
When the ignition switch is turned to the “ON” position, the
display screen changes in the following order.
1- Doors and trunk lid are closed
2- Doors or trunk lid is open (driver’s door is open in this
example)Ty p e 1
Ty p e 2
1- Screen when the ignition switch is “OFF”
2- System check screen
3- Screen when the ignition switch is “ON”Ty p e 1
Ty p e 2
BK0119300US.book 173 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-174 Features and controls
3

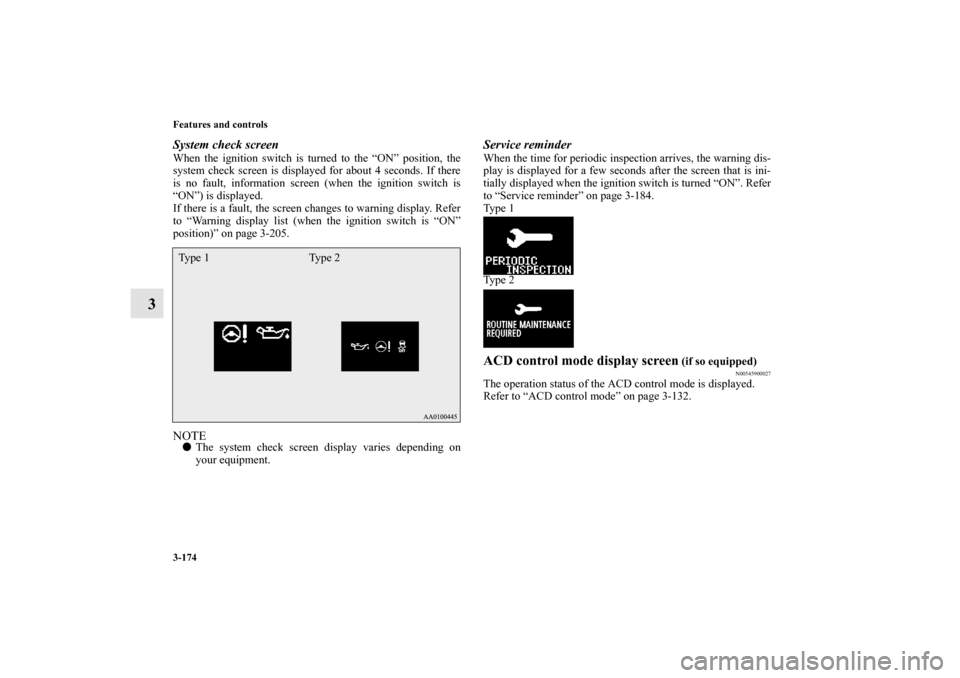

System check screenWhen the ignition switch is turned to the “ON” position, the
system check screen is displayed for about 4 seconds. If there
is no fault, information screen (when the ignition switch is
“ON”) is displayed.
If there is a fault, the screen changes to warning display. Refer
to “Warning display list (when the ignition switch is “ON”
position)” on page 3-205.NOTE
The system check screen display varies depending on
your equipment.
Service reminderWhen the time for periodic inspection arrives, the warning dis-
play is displayed for a few seconds after the screen that is ini-
tially displayed when the ignition switch is turned “ON”. Refer
to “Service reminder” on page 3-184.
Ty p e 1
Ty p e 2ACD control mode display screen
(if so equipped)
N00545900027
The operation status of the ACD control mode is displayed.
Refer to “ACD control mode” on page 3-132.
Type 1 Type 2BK0119300US.book 174 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-175
3

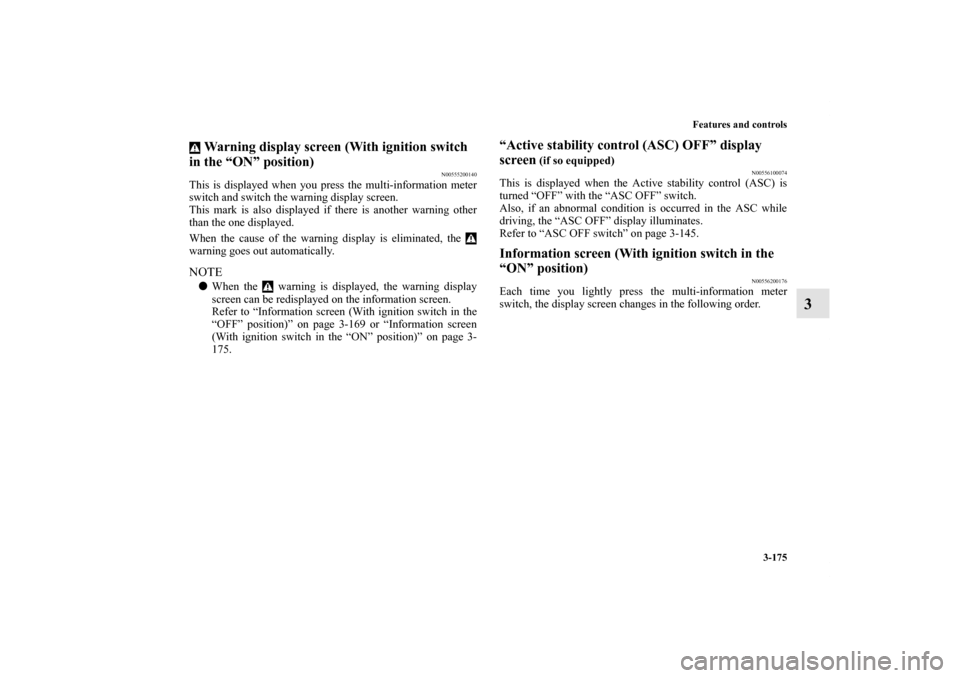

Warning display screen (With ignition switch
in the “ON” position)
N00555200140
This is displayed when you press the multi-information meter
switch and switch the warning display screen.
This mark is also displayed if there is another warning other
than the one displayed.
When the cause of the warning display is eliminated, the
warning goes out automatically.NOTE
When the warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-169 or “Information screen
(With ignition switch in the “ON” position)” on page 3-
175.
“Active stability control (ASC) OFF” display
screen
(if so equipped)
N00556100074
This is displayed when the Active stability control (ASC) is
turned “OFF” with the “ASC OFF” switch.
Also, if an abnormal condition is occurred in the ASC while
driving, the “ASC OFF” display illuminates.
Refer to “ASC OFF switch” on page 3-145.Information screen (With ignition switch in the
“ON” position)
N00556200176
Each time you lightly press the multi-information meter
switch, the display screen changes in the following order.
BK0119300US.book 175 ページ ２０１０年５月２１日　金曜日　午前１０時１３分
