3-196 Features and controls
3

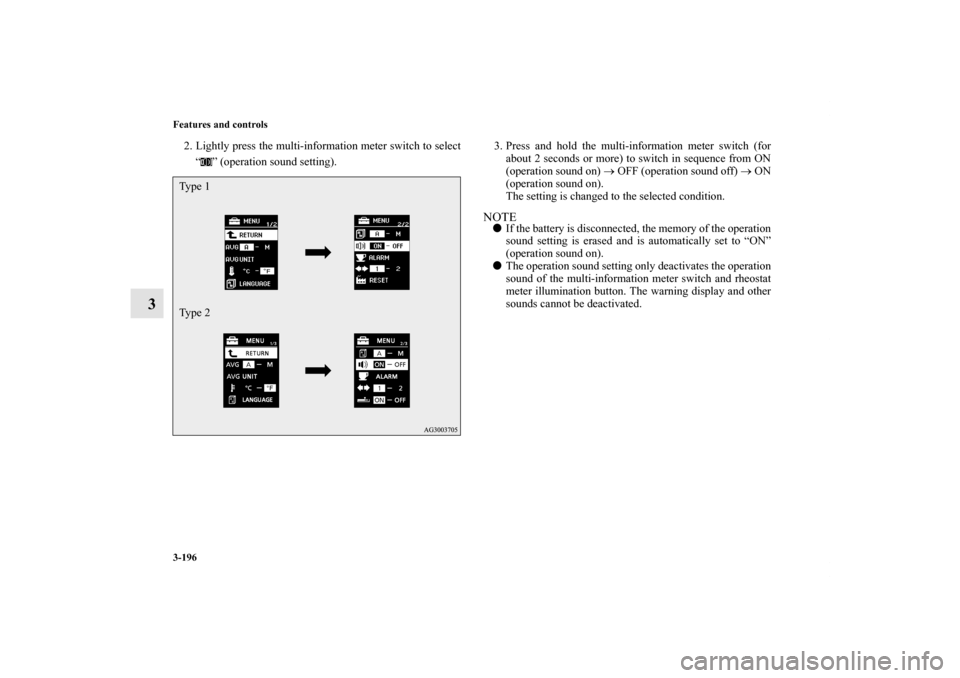

2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting). 3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.
NOTE
If the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).

The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Ty p e 1
Ty p e 2BK0119300US.book 196 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-197
3

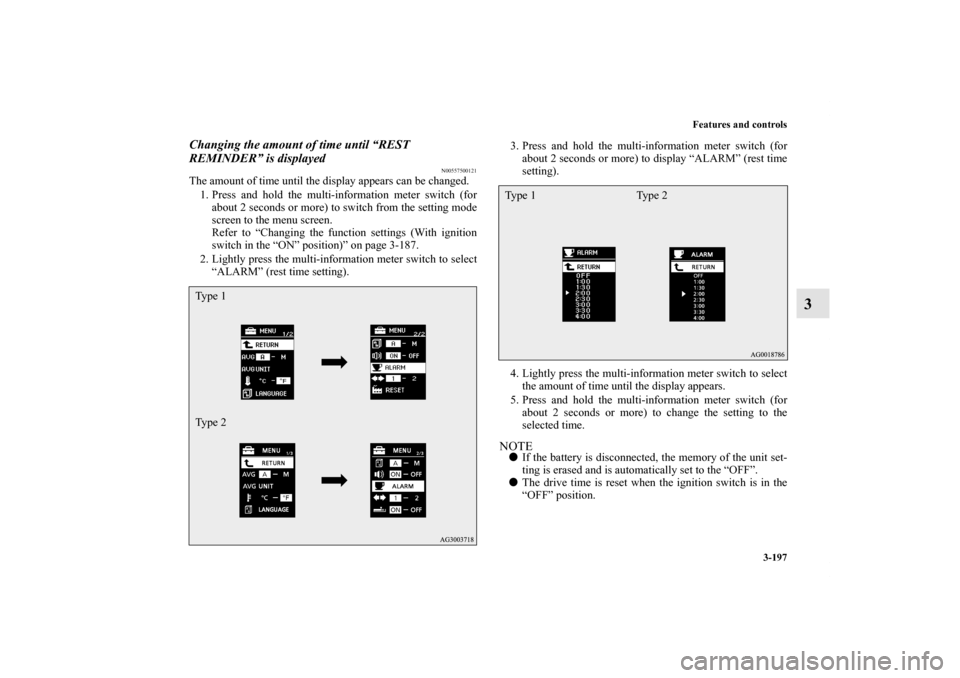

Changing the amount of time until “REST
REMINDER” is displayed
N00557500121
The amount of time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the amount of time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.
NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.

The drive time is reset when the ignition switch is in the
“OFF” position.
Ty p e 1
Ty p e 2
Type 1 Type 2
BK0119300US.book 197 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-198 Features and controls
3

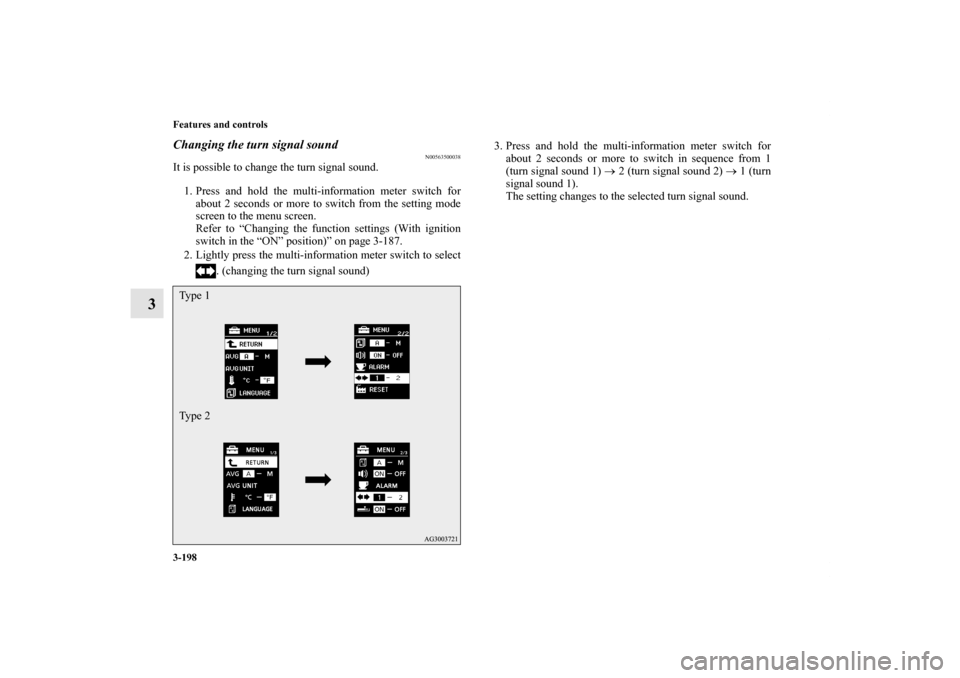

Changing the turn signal sound
N00563500038
It is possible to change the turn signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
. (changing the turn signal sound)3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn
signal sound 1).
The setting changes to the selected turn signal sound.Ty p e 1
Ty p e 2BK0119300US.book 198 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-199
3

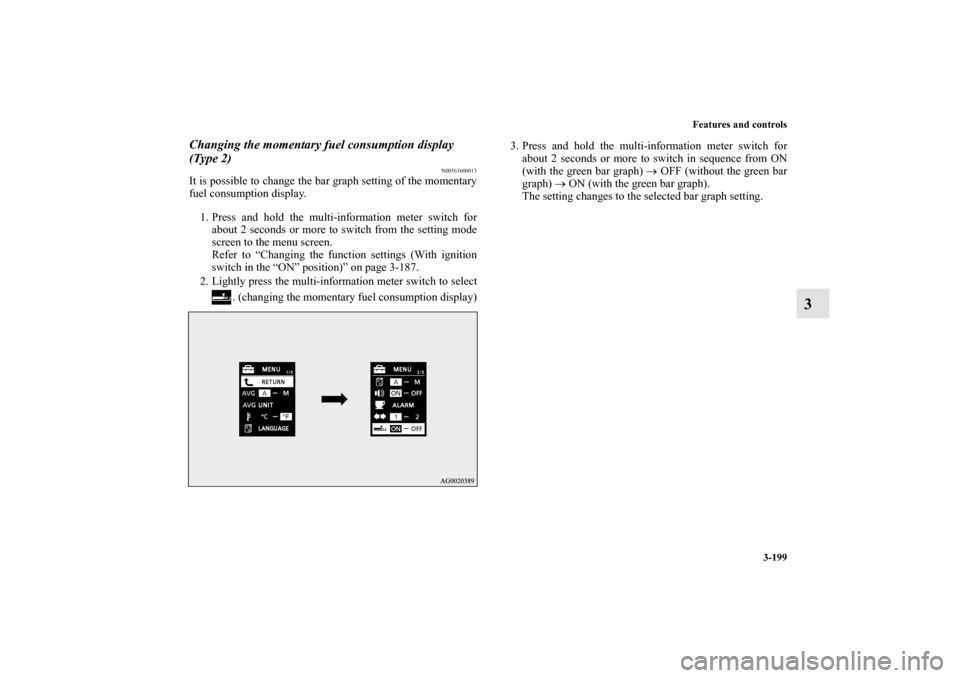

Changing the momentary fuel consumption display
(Type 2)
N00563600013
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.
BK0119300US.book 199 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-200 Features and controls
3

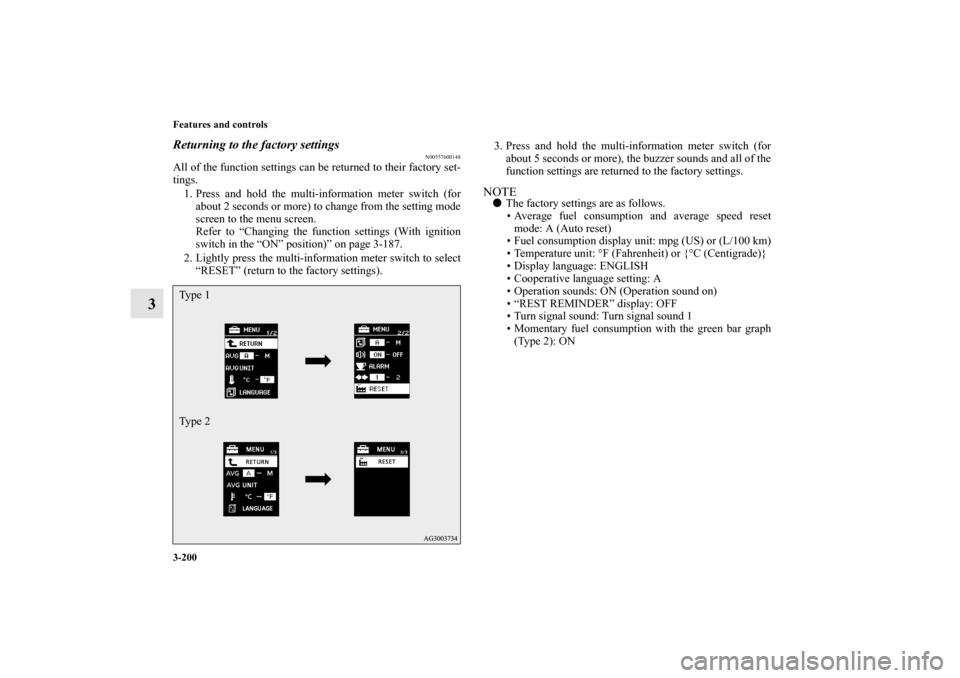

Returning to the factory settings
N00557600148
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings). 3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.
NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or {°C (Centigrade)}
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph
(Type 2): ON
Ty p e 1
Ty p e 2BK0119300US.book 200 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-201

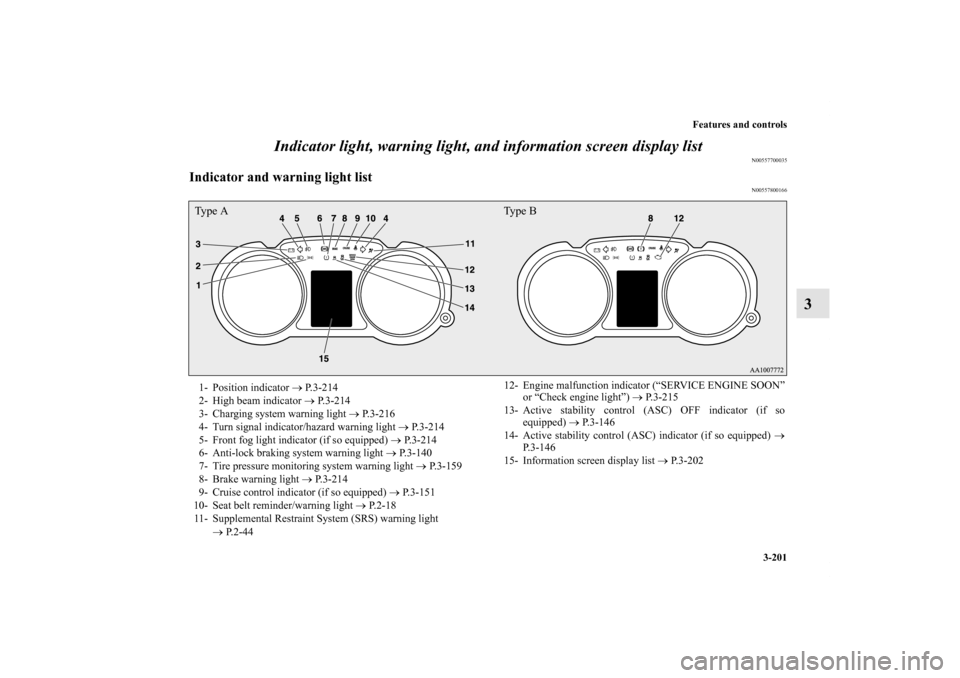

3 Indicator light, warning light, and information screen display list
N00557700035
Indicator and warning light list
N00557800166
Ty p e A Ty p e B1- Position indicator → P.3-214
2- High beam indicator → P.3-214
3- Charging system warning light → P.3-216
4- Turn signal indicator/hazard warning light → P.3-214
5- Front fog light indicator (if so equipped) → P.3-214
6- Anti-lock braking system warning light → P.3-140
7- Tire pressure monitoring system warning light → P.3-159
8- Brake warning light → P.3-214
9- Cruise control indicator (if so equipped) → P.3-151
10- Seat belt reminder/warning light → P.2-18
11- Supplemental Restraint System (SRS) warning light
→ P.2-4412- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-215
13- Active stability control (ASC) OFF indicator (if so
equipped) → P. 3 - 1 4 6
14- Active stability control (ASC) indicator (if so equipped) →
P.3-146
15- Information screen display list → P.3-202
BK0119300US.book 201 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-202 Features and controls
3

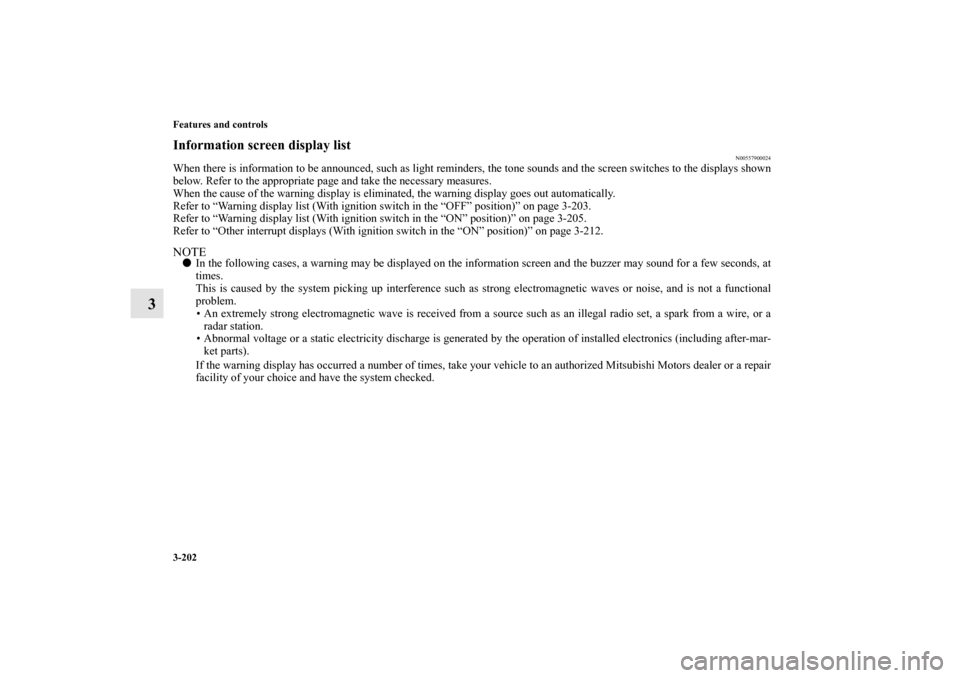

Information screen display list
N00557900024
When there is information to be announced, such as light reminders, the tone sounds and the screen switches to the displays shown
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (With ignition switch in the “OFF” position)” on page 3-203.
Refer to “Warning display list (With ignition switch in the “ON” position)” on page 3-205.
Refer to “Other interrupt displays (With ignition switch in the “ON” position)” on page 3-212.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of installed electronics (including after-mar-
ket parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
BK0119300US.book 202 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-203
3

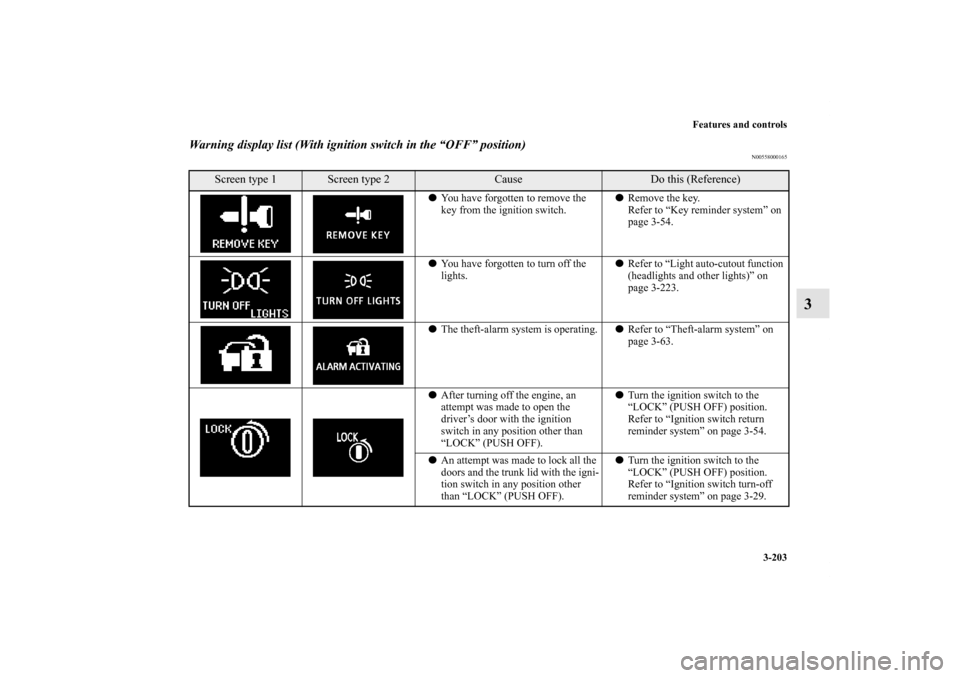

Warning display list (With ignition switch in the “OFF” position)
N00558000165
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the
key from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-54.

You have forgotten to turn off the
lights.
Refer to “Light auto-cutout function
(headlights and other lights)” on
page 3-223.

The theft-alarm system is operating.
Refer to “Theft-alarm system” on
page 3-63.

After turning off the engine, an
attempt was made to open the
driver’s door with the ignition
switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch return
reminder system” on page 3-54.

An attempt was made to lock all the
doors and the trunk lid with the igni-
tion switch in any position other
than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-29.
BK0119300US.book 203 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-204 Features and controls
3

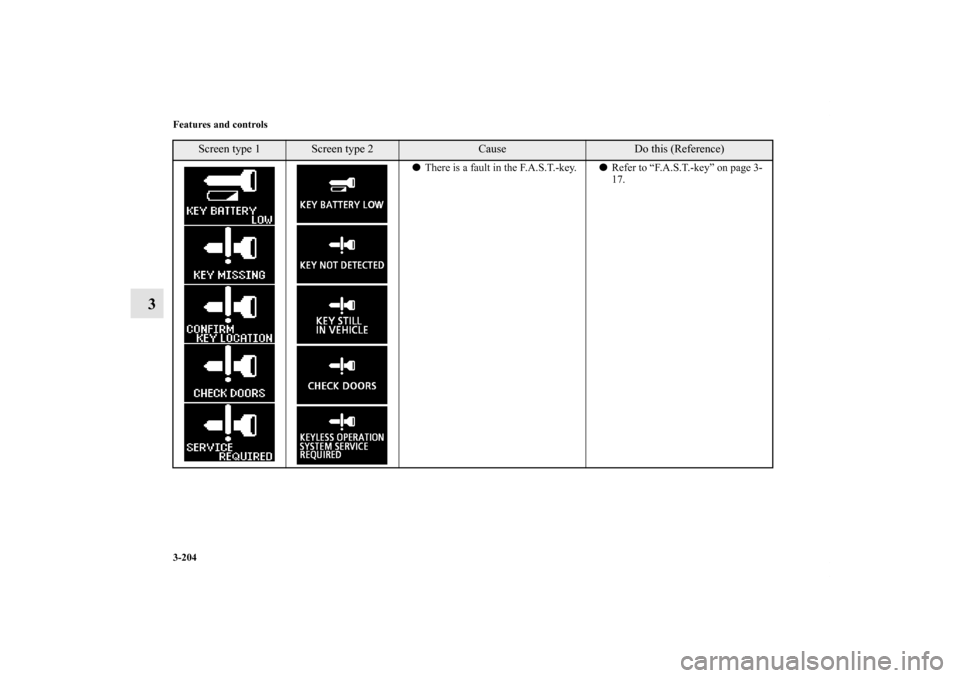

There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 3-
17.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0119300US.book 204 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-205
3

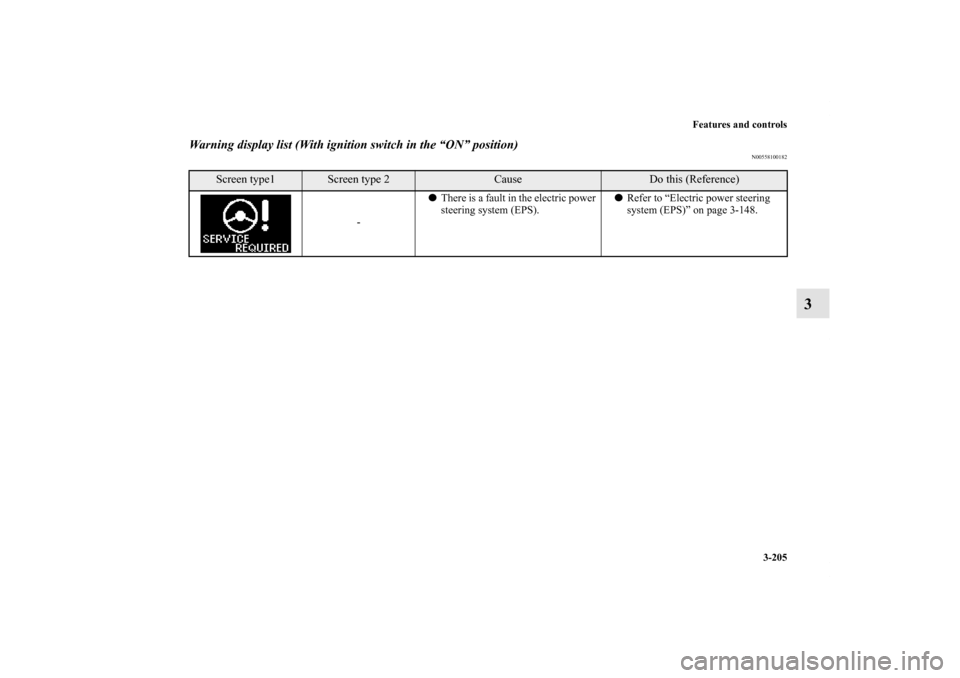

Warning display list (With ignition switch in the “ON” position)
N00558100182
Screen type1
Screen type 2
Cause
Do this (Reference)
-
There is a fault in the electric power
steering system (EPS).
Refer to “Electric power steering
system (EPS)” on page 3-148.
