MITSUBISHI LANCER RALLIART 2013 8.G MMCS Manual

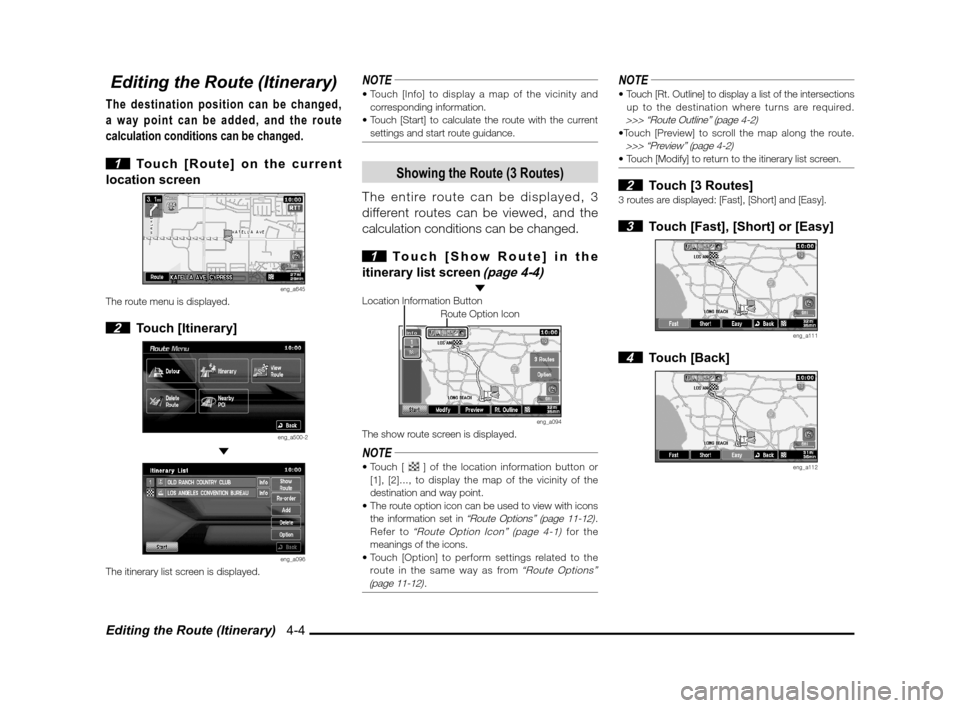

Editing the Route (Itinerary) 4-4
Editing the Route (Itinerary)
The destination position can be changed,
a way point can be added, and the route
calculation conditions can be changed.

1 Touch [Route] on the current
location screen
eng_a645The route menu is displayed.
2 Touch [Itinerary]
eng_a500-2
eng_a096The itinerary list screen is displayed.
NOTE
corresponding information.
settings and start route guidance.
Showing the Route (3 Routes)
The entire route can be displayed, 3
different routes can be viewed, and the
calculation conditions can be changed.

1 Touch [Show Route] in the
itinerary list screen
(page 4-4) Location Information Button
Route Option Icon
eng_a094The show route screen is displayed.
NOTE [ ] of the location information button or
[1], [2]..., to display the map of the vicinity of the
destination and way point.
the information set in
“Route Options” (page 11-12).
Refer to “Route Option Icon” (page 4-1) for the
meanings of the icons.
route in the same way as from
“Route Options”
(page 11-12).
NOTE up to the destination where turns are required.
>>> “Route Outline” (page 4-2)>>> “Preview” (page 4-2)
2 Touch [3 Routes]3 routes are displayed: [Fast], [Short] and [Easy].
3 Touch [Fast], [Short] or [Easy]
eng_a111
4 Touch [Back]
eng_a112
\b \b
\f \

 \b\b \b
\b\f

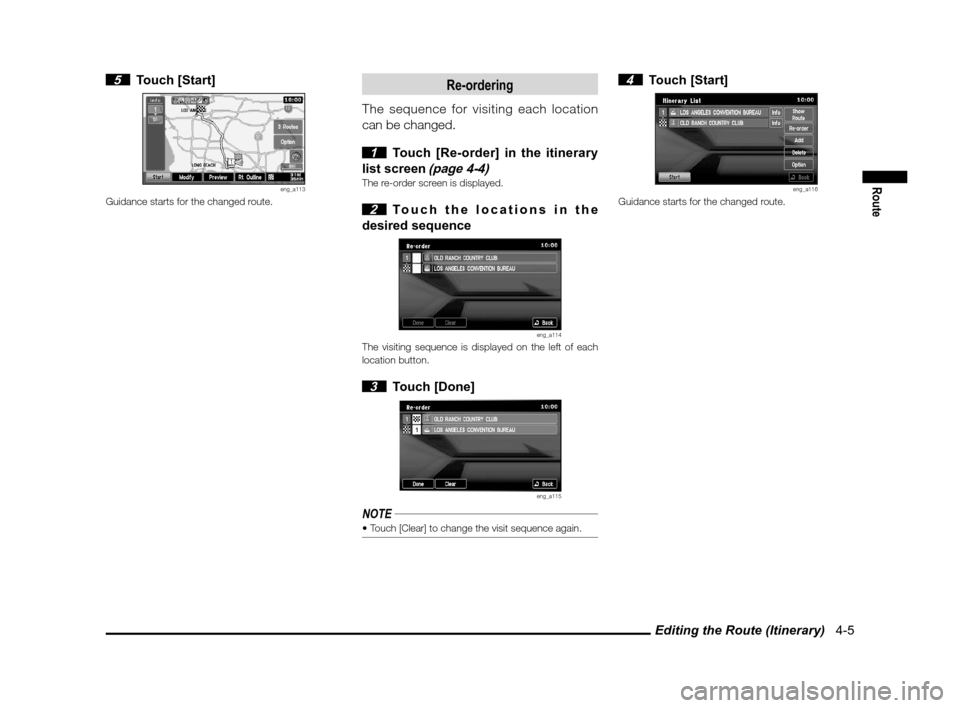

Editing the Route (Itinerary) 4-5
Route
5 Touch [Start]
eng_a113Guidance starts for the changed route.
Re-ordering
The sequence for visiting each location
can be changed.

1 Touch [Re-order] in the itinerary
list screen
(page 4-4)The re-order screen is displayed.
2 Touch the locations in the
desired sequence
eng_a114The visiting sequence is displayed on the left of each
location button.
3 Touch [Done]
eng_a115
NOTE
4 Touch [Start]
eng_a116Guidance starts for the changed route.
\b \b
\f \

 \b  \b
\b\f

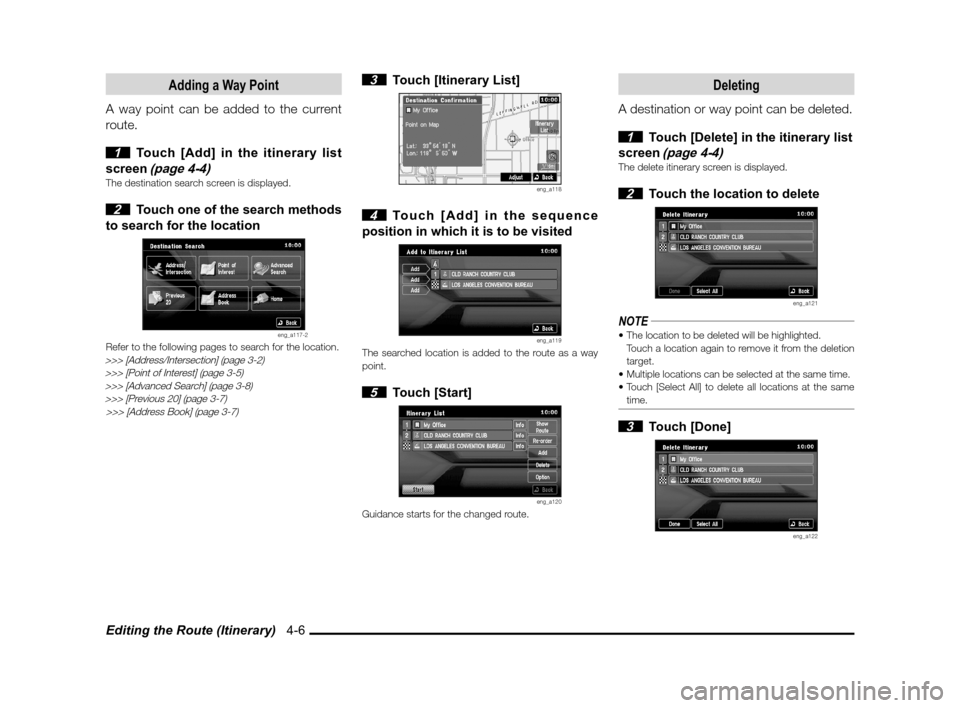

Editing the Route (Itinerary) 4-6
Adding a Way Point
A way point can be added to the current
route.

1 Touch [Add] in the itinerary list
screen
(page 4-4)The destination search screen is displayed.
2 Touch one of the search methods
to search for the location
eng_a117-2Refer to the following pages to search for the location.>>> [Address/Intersection] (page 3-2)
>>> [Point of Interest] (page 3-5)>>> [Advanced Search] (page 3-8)>>> [Previous 20] (page 3-7) >>> [Address Book] (page 3-7)
3 Touch [Itinerary List]
eng_a118
4 Touch [Add] in the sequence
position in which it is to be visited
eng_a119The searched location is added to the route as a way
point.
5 Touch [Start]
eng_a120Guidance starts for the changed route.
Deleting
A destination or way point can be deleted.

1 Touch [Delete] in the itinerary list
screen
(page 4-4)The delete itinerary screen is displayed.
2 Touch the location to delete
eng_a121
NOTE
Touch a location again to remove it from the deletion
target.

time.
3 Touch [Done]
eng_a122
\b \b
\f \

 \b \b
\b\f

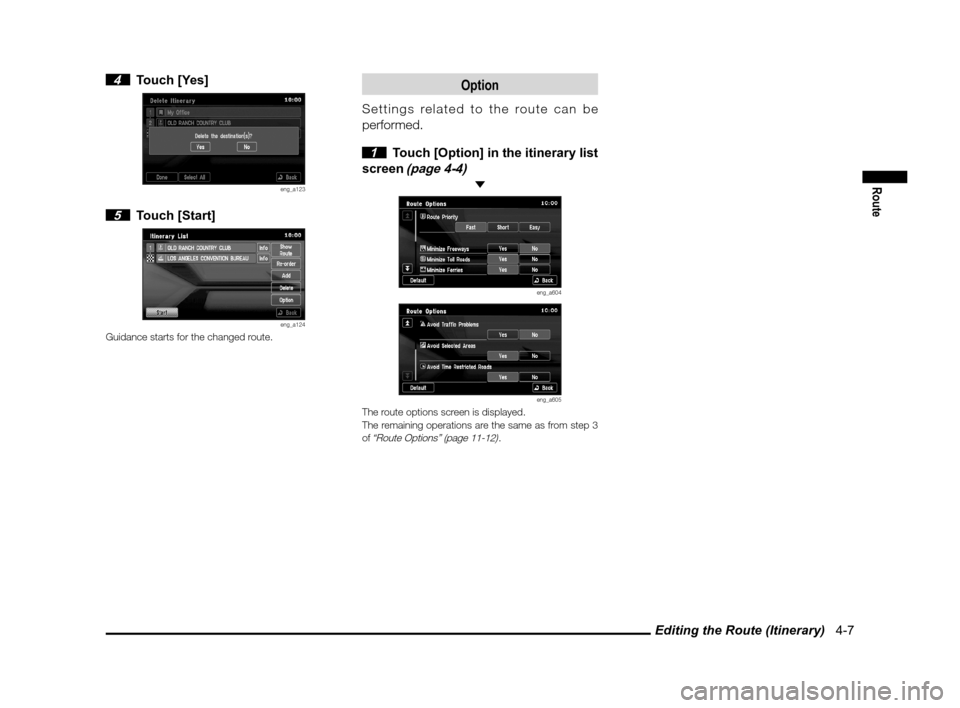

Editing the Route (Itinerary) 4-7
Route
4 Touch [Yes]
eng_a123
5 Touch [Start]
eng_a124Guidance starts for the changed route.
Option
Settings related to the route can be
performed.

1 Touch [Option] in the itinerary list
screen
(page 4-4)
eng_a604
eng_a605The route options screen is displayed.
The remaining operations are the same as from step 3
of
“Route Options” (page 11-12).
\b \b
\f \

 \b \b
\b\f

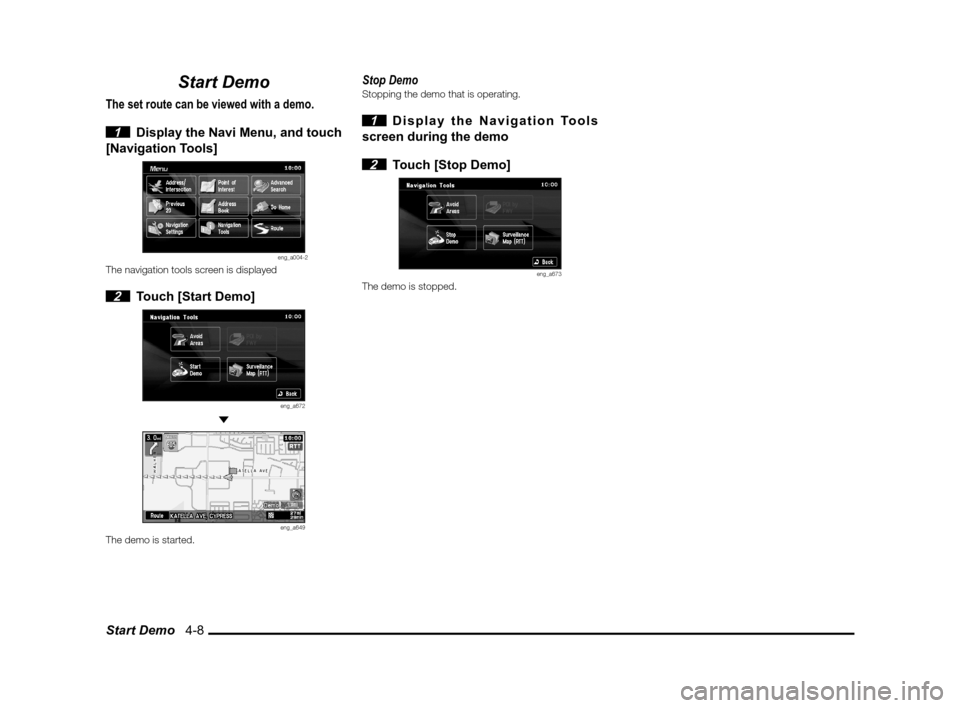

Start Demo 4-8
Start Demo
The set route can be viewed with a demo.

1 Display the Navi Menu, and touch
[Navigation Tools]
eng_a004-2The navigation tools screen is displayed
2 Touch [Start Demo]
eng_a672
eng_a649The demo is started.
Stop DemoStopping the demo that is operating.
1 Display the Navigation Tools
screen during the demo

2 Touch [Stop Demo]
eng_a673The demo is stopped.
\b \b
\f \

 \b \b
\b\f


Deleting the Route 4-9
Route
Deleting the Route
Deleting a created route.

1 Touch [Route] on the current
location screen
eng_a645The route menu is displayed.
2 Touch [Delete Route]
eng_a500-2
3 Touch [Yes]
eng_a126
The route is deleted.
\b \b
\f \

 \b \b
\b
\f

Deleting the Route 4-10
\b \b
\f \

 \b
 \b
\b
\f

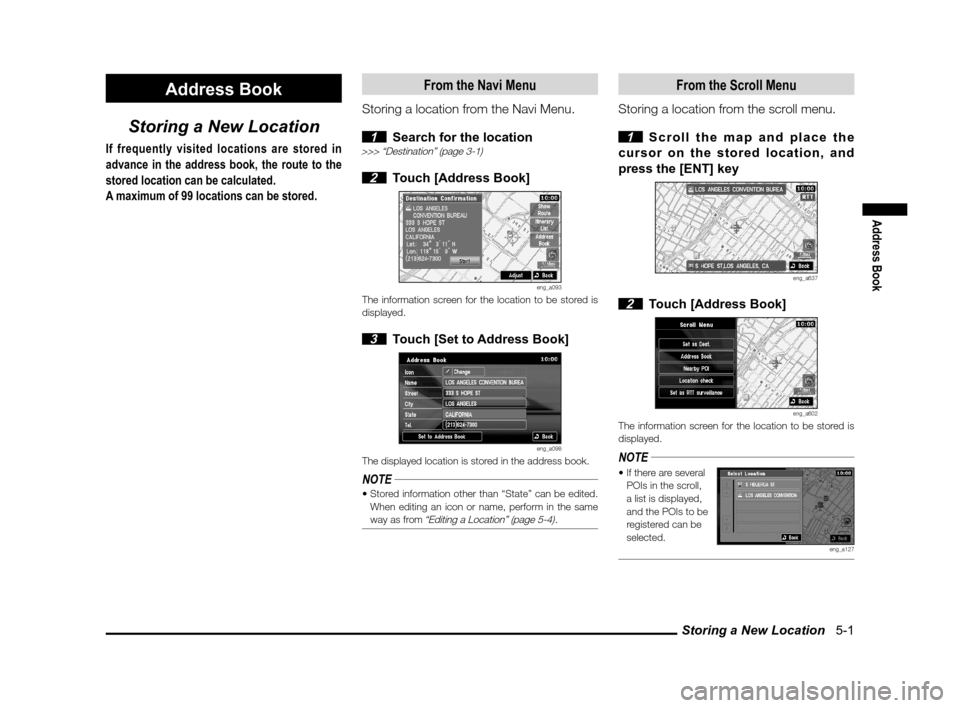

Storing a New Location 5-1
Address Book
Address Book
Storing a New Location
If frequently visited locations are stored in
advance in the address book, the route to the
stored location can be calculated.
A maximum of 99 locations can be stored.
From the Navi Menu
Storing a location from the Navi Menu.

1 Search for the location>>> “Destination” (page 3-1)
2 Touch [Address Book]
eng_a093The information screen for the location to be stored is
displayed.
3 Touch [Set to Address Book]
eng_a098The displayed location is stored in the address book.
NOTE When editing an icon or name, perform in the same
way as from
“Editing a Location” (page 5-4).
From the Scroll Menu
Storing a location from the scroll menu.

1 Scroll the map and place the
cursor on the stored location, and
press the [ENT] key
eng_a637
2 Touch [Address Book]
eng_a602The information screen for the location to be stored is
displayed.
NOTE

POIs in the scroll,
a list is displayed,
and the POIs to be
registered can be
selected.
eng_a127
\b \b
\f \


 \b
\b
\f

Storing a New Location 5-2
3 Touch [Set to Address Book]
eng_a098The displayed location is stored in the address book.
NOTE
When editing an icon or name, perform in the same
way as from
“Editing a Location” (page 5-4).
To Customize/Modify Address
The screen displays information about the
stored location.
Icon A n i con can be selected from 24
different types to use as a mark for the
stored location when it is set.
>>> “Icons” (page 5-3)
[Adjust] A stored location can be changed to a
different location.If location was stored
from “Scroll Menu”
(page 2-3), editing
cannot be performed.
Name The name of a stored location can be
input. The name input here is displayed
on the map.
Street The name of a street can be input.
City The name of a city can be input.
State The name of the state of the currently
stored location is displayed. This cannot
be edited.
Tel. A telephone number can be input.
NOTE “Editing a Location” (page 5-4) for details on
editing information.
When Storing Your Home
Storing the home location.

1 Display the Navi Menu and touch
[Go Home]
eng_a502-2
2 Touch [Yes]
eng_a037
3 Touch [New] of “Home Location”
eng_a128-1
\b \b
\f \

  \b
\b
\f

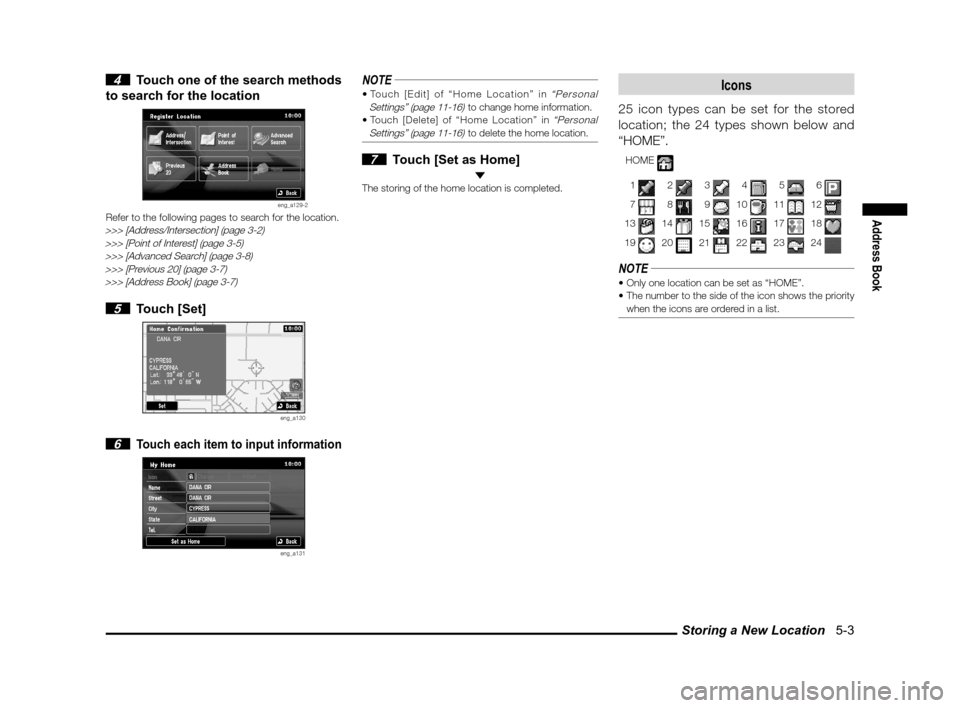

Storing a New Location 5-3
Address Book
4 Touch one of the search methods
to search for the location
eng_a129-2Refer to the following pages to search for the location.>>> [Address/Intersection] (page 3-2)
>>> [Point of Interest] (page 3-5)>>> [Advanced Search] (page 3-8)>>> [Previous 20] (page 3-7)>>> [Address Book] (page 3-7)
5 Touch [Set]
eng_a130
6 Touch each item to input information
eng_a131
NOTE“Personal
Settings” (page 11-16) to change home information.
“Personal
Settings” (page 11-16) to delete the home location.
7 Touch [Set as Home] The storing of the home location is completed.
Icons
25 icon types can be set for the stored
location; the 24 types shown below and
“HOME”.
HOME
123456
789101112
131415161718
192021222324
NOTE
when the icons are ordered in a list.
\b \b
\f \

  \b
\b
\f
