MITSUBISHI LANCER RALLIART 2013 8.G MMCS Manual

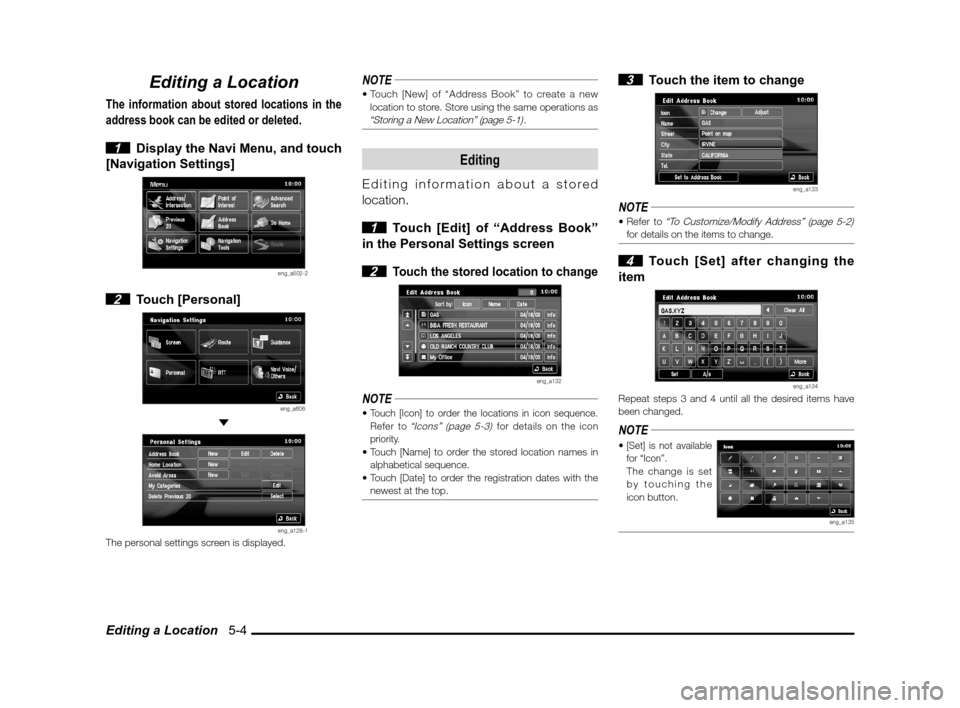

Editing a Location 5-4
Editing a Location
The information about stored locations in the
address book can be edited or deleted.

1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Personal]
eng_a606
eng_a128-1The personal settings screen is displayed.
NOTE
location to store. Store using the same operations as
“Storing a New Location” (page 5-1).
Editing
Editing information about a stored
location.

1 Touch [Edit] of “Address Book”
in the Personal Settings screen

2 Touch the stored location to change
eng_a132
NOTETouch [Icon] to order the locations in icon sequence.
Refer to “Icons” (page 5-3) for details on the icon
priority.
alphabetical sequence.
newest at the top.
3 Touch the item to change
eng_a133
NOTE to “To Customize/Modify Address” (page 5-2)
for details on the items to change.
4 Touch [Set] after changing the
item
eng_a134Repeat steps 3 and 4 until all the desired items have
been changed.
NOTE
[Set] is not available
for “Icon”.
The change is set
by touching the
icon button.
eng_a135
\b \b
\f \

 \b \b
\b
\f

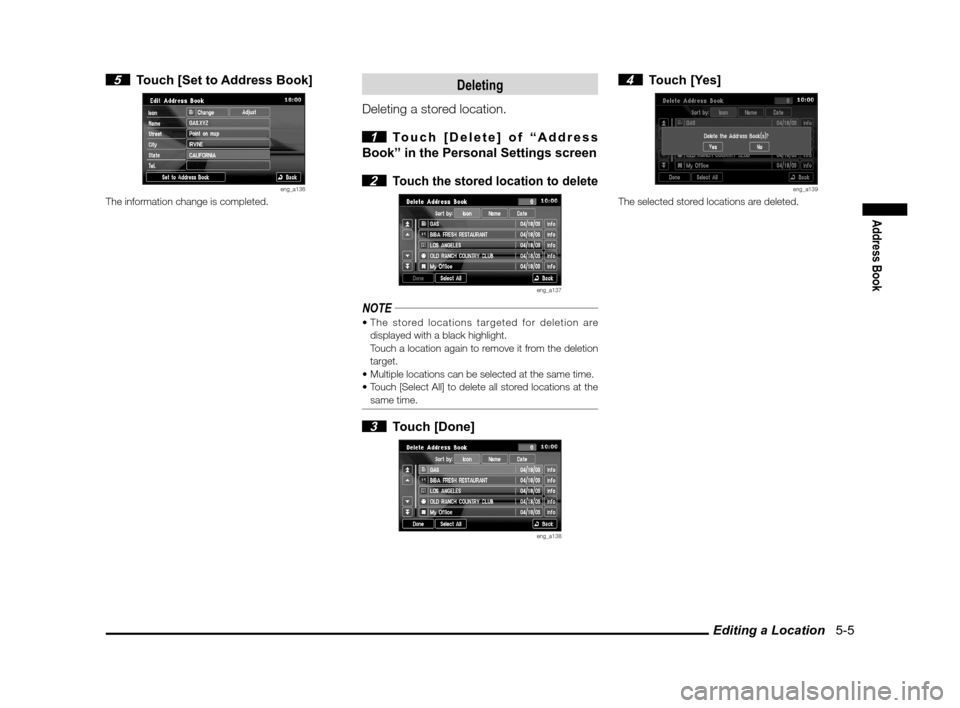

Editing a Location 5-5
Address Book
5 Touch [Set to Address Book]
eng_a136The information change is completed.
Deleting
Deleting a stored location.

1 Touch [Delete] of “Address
Book” in the Personal Settings screen

2 Touch the stored location to delete
eng_a137
NOTE
displayed with a black highlight.
Touch a location again to remove it from the deletion target.

same time.
3 Touch [Done]
eng_a138
4 Touch [Yes]
eng_a139The selected stored locations are deleted.
\b \b
\f \

   \b
\b
 \f

Editing a Location 5-6
\b \b
\f \

  \b
\b
 \f

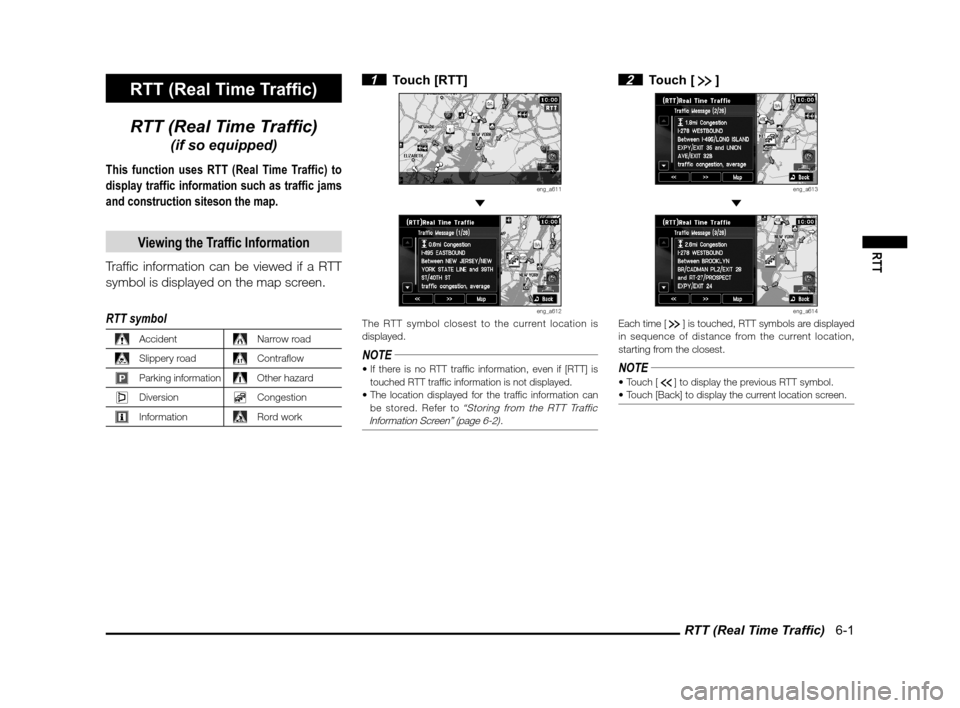

RTT (Real Time Traffi c) 6-1
RTT
RTT (Real Time Traffi c)
RTT (Real Time Traffi c)
(if so equipped)
This function uses RTT (Real Time Traffic) to
display traffic information such as traffic jams
and construction siteson the map.
Viewing the Traffic Information
Traf c information can be viewed if a RTT
symbol is displayed on the map screen.
RTT symbol
AccidentNarrow road
Slippery roadContra ow
Parking informationOther hazard
DiversionCongestion
InformationRord work
1 Touch [RTT]
eng_a611
eng_a612The RTT symbol closest to the current location is
displayed.
NOTEIf there is no RTT traf c information, even if [RTT] is
touched RTT traf c information is not displayed.
The location displayed for the traf c information can
be stored. Refer to “Storing from the RTT Traffic
Information Screen” (page 6-2).
2 Touch [ ]
eng_a613
eng_a614Each time [ ] is touched, RTT symbols are displayed
in sequence of distance from the current location,
starting from the closest.
NOTE ] to display the previous RTT symbol.

\b \b
\f \


 \b
\b
 \f

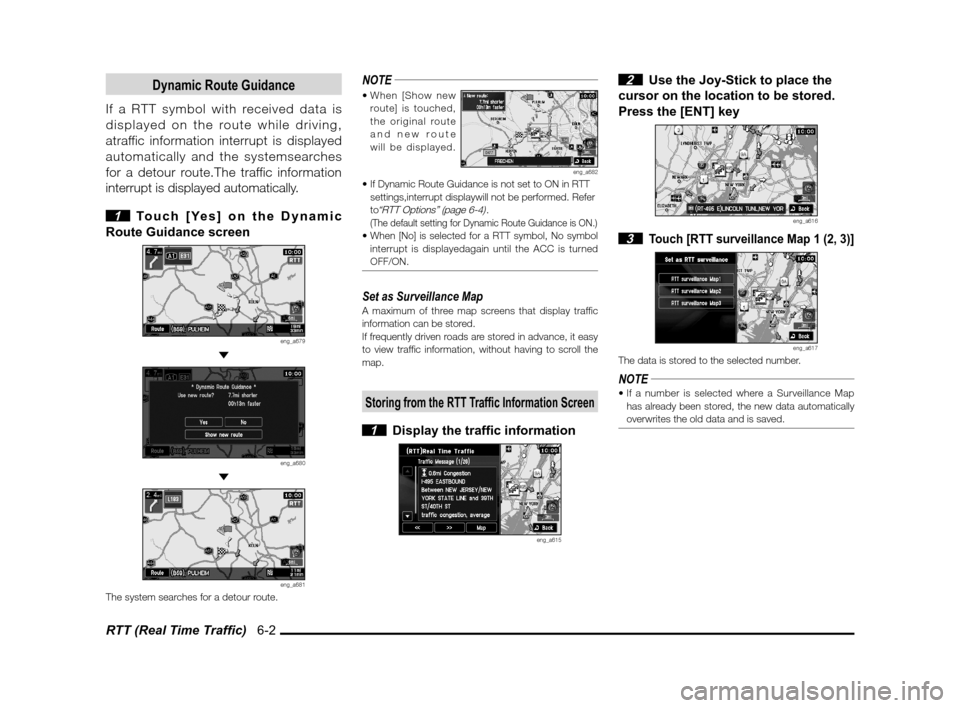

RTT (Real Time Traffi c) 6-2
Dynamic Route Guidance
If a RTT symbol with received data is
displayed on the route while driving,
atraffic information interrupt is displayed
automatically and the systemsearches
for a detour route.The traffic information
interrupt is displayed automatically.

1 Touch [Yes] on the Dynamic
Route Guidance screen
eng_a679
eng_a680
eng_a681The system searches for a detour route.
NOTE

route] is touched,
the original route
and new route
will be displayed.
eng_a682settings,interrupt displaywill not be performed. Refer
to
“RTT Options” (page 6-4).(The default setting for Dynamic Route Guidance is ON.)interrupt is displayedagain until the ACC is turned
OFF/ON.
Set as Surveillance MapA maximum of three map screens that display traf c
information can be stored.
If frequently driven roads are stored in advance, it easy
to view traf c information, without having to scroll the
map.
Storing from the RTT Traffic Information Screen
1 Display the traffi c information
eng_a615
2 Use the Joy-Stick to place the
cursor on the location to be stored.
Press the [ENT] key
eng_a616
3 Touch [RTT surveillance Map 1 (2, 3)]
eng_a617The data is stored to the selected number.
NOTE
has already been stored, the new data automatically
overwrites the old data and is saved.
\b \b
\f \

  \b
\b
 \f

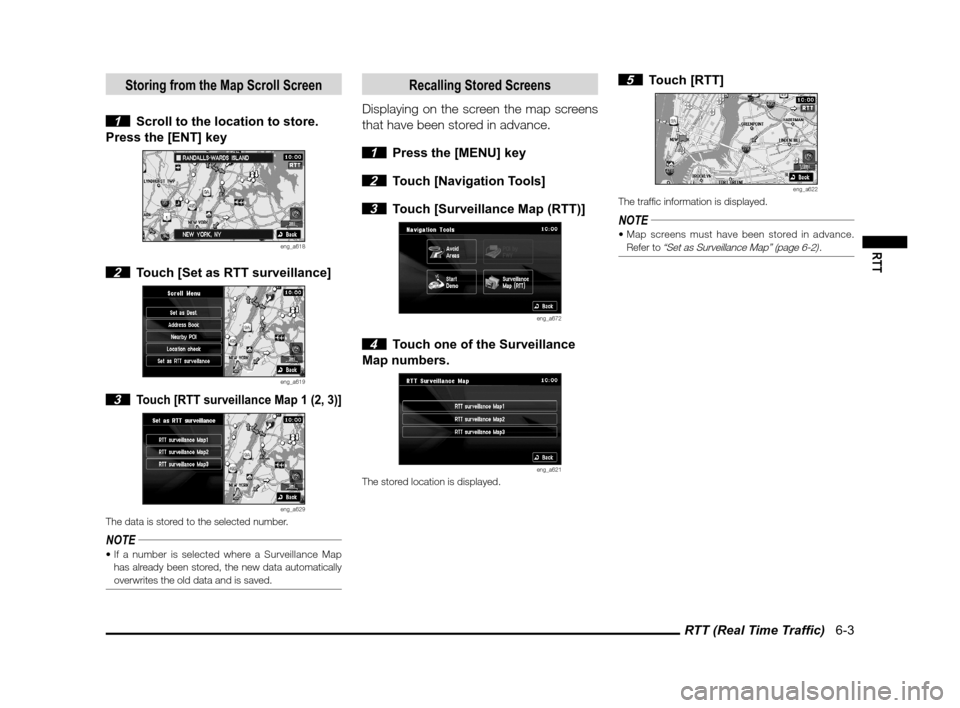

RTT (Real Time Traffi c) 6-3
RTT
Storing from the Map Scroll Screen
1 Scroll to the location to store.
Press the [ENT] key
eng_a618
2 Touch [Set as RTT surveillance]
eng_a619
3 Touch [RTT surveillance Map 1 (2, 3)]
eng_a629The data is stored to the selected number.
NOTE
has already been stored, the new data automatically
overwrites the old data and is saved.
Recalling Stored Screens
Displaying on the screen the map screens
that have been stored in advance.

1 Press the [MENU] key

2 Touch [Navigation Tools]

3 Touch [Surveillance Map (RTT)]
eng_a672
4 Touch one of the Surveillance
Map numbers.
eng_a621The stored location is displayed.
5 Touch [RTT]
eng_a622The traf c information is displayed.
NOTE
Refer to “Set as Surveillance Map” (page 6-2).
\b \b
\f \

  \b
\b
 \f

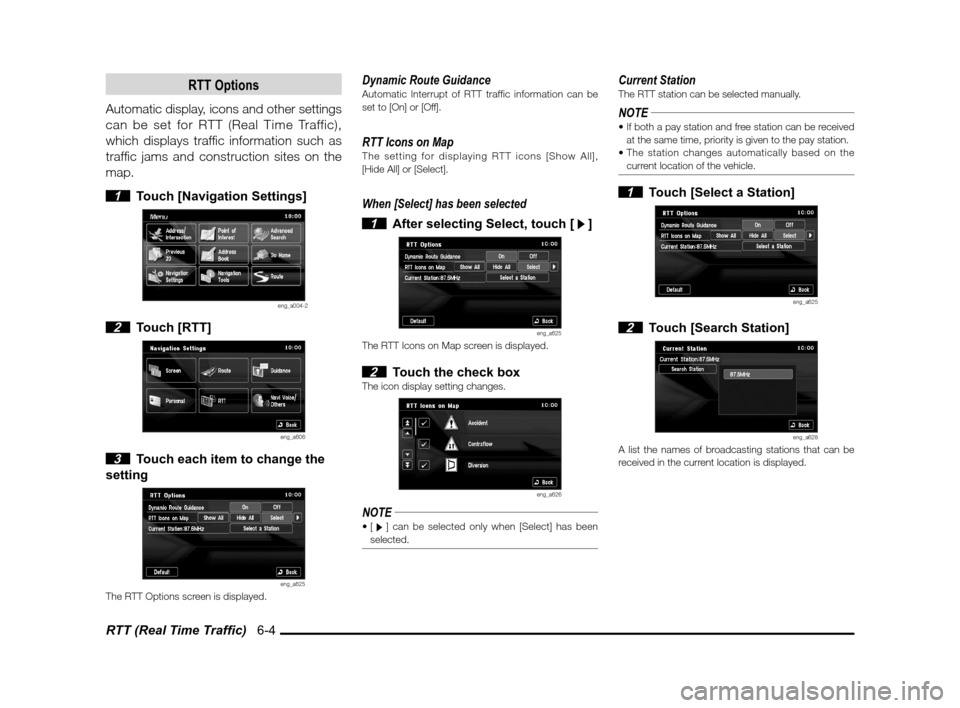

RTT (Real Time Traffi c) 6-4
RTT Options
Automatic display, icons and other settings
can be set for RTT (Real Time Traffic),
which displays traf c information such as
traf c jams and construction sites on the
map.

1 Touch [Navigation Settings]
eng_a004-2
2 Touch [RTT]
eng_a606
3 Touch each item to change the
setting
eng_a625The RTT Options screen is displayed.
Dynamic Route GuidanceAutomatic Interrupt of RTT traf c information can be
set to [On] or [Off].
RTT Icons on MapThe setting for displaying RTT icons [Show All],
[Hide All] or [Select].
When [Select] has been selected

1 After selecting Select, touch [ ]
eng_a625The RTT Icons on Map screen is displayed.
2 Touch the check boxThe icon display setting changes.
eng_a626
NOTE ] can be selected only when [Select] has been
selected.
Current StationThe RTT station can be selected manually.
NOTEat the same time, priority is given to the pay station.
current location of the vehicle.
1 Touch [Select a Station]
eng_a625
2 Touch [Search Station]
eng_a628A list the names of broadcasting stations that can be
received in the current location is displayed.
\b \b
\f \

 \b \b
\b
 \f

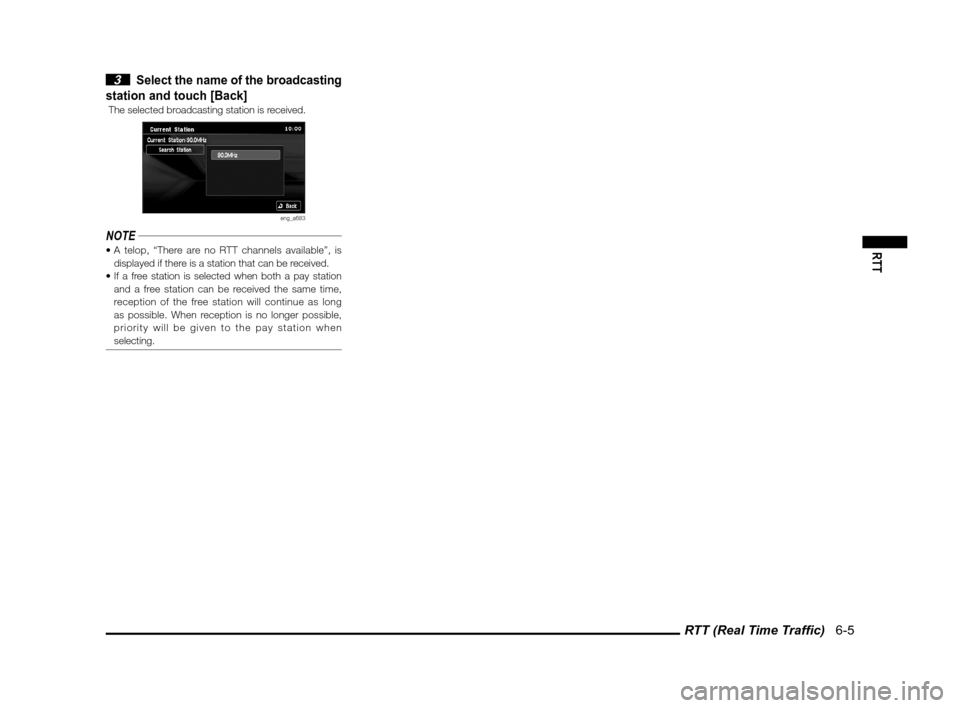

RTT (Real Time Traffi c) 6-5
RTT
3 Select the name of the broadcasting
station and touch [Back]
The selected broadcasting station is received.
eng_a683
NOTE
displayed if there is a station that can be received.
and a free station can be received the same time,
reception of the free station will continue as long
as possible. When reception is no longer possible,
priority will be given to the pay station when
selecting.
\b \b
\f \

   \b
\b
 \f

RTT (Real Time Traffi c) 6-6
\b \b
\f \

  \b
\b
 \f

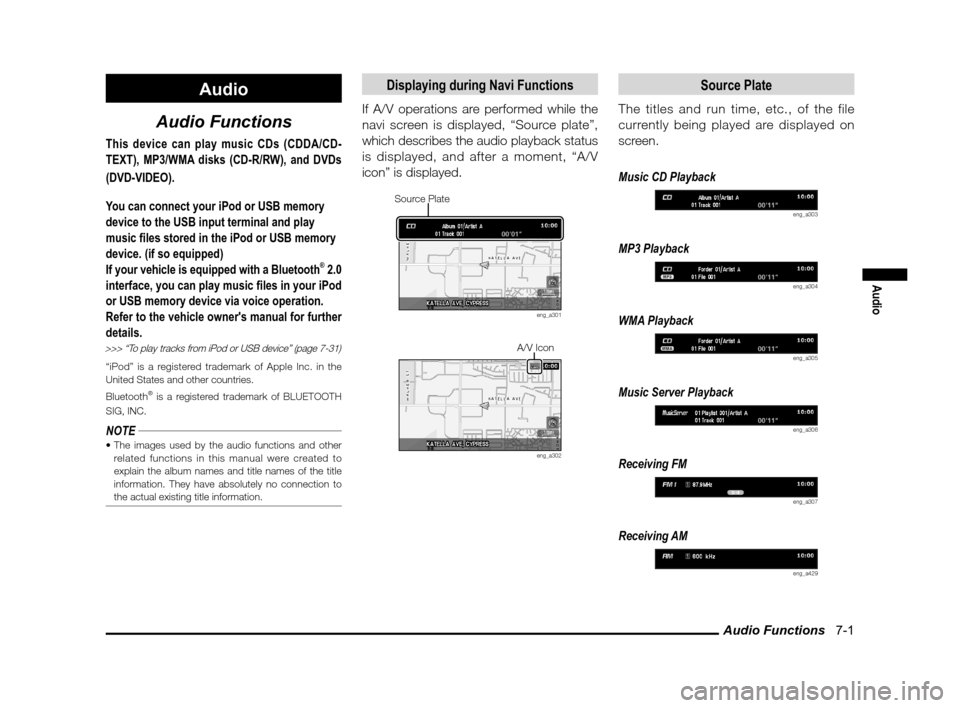

Audio Functions 7-1
Audio
Audio
Audio Functions
This device can play music CDs (CDDA/CD-
TEXT), MP3/WMA disks (CD-R/RW), and DVDs
(DVD-VIDEO).
You can connect your iPod or USB memory
device to the USB input terminal and play
music files stored in the iPod or USB memory
device. (if so equipped)
If your vehicle is equipped with a Bluetooth
® 2.0
interface, you can play music files in your iPod
or USB memory device via voice operation.
Refer to the vehicle owner's manual for further
details.
>>> “To play tracks from iPod or USB device” (page 7-31)
“iPod” is a registered trademark of Apple Inc. in the
United States and other countries.
Bluetooth
® is a registered trademark of BLUETOOTH
SIG, INC.
NOTE related functions in this manual were created to
explain the album names and title names of the title
information. They have absolutely no connection to
the actual existing title information.
Displaying during Navi Functions
If A/V operations are performed while the
navi screen is displayed, “Source plate”,
which describes the audio playback status
is displayed, and after a moment, “A/V
icon” is displayed.
Source Plate
eng_a301
A/V Icon
eng_a302
Source Plate
The titles and run time, etc., of the file
currently being played are displayed on
screen.
Music CD Playback
eng_a303
MP3 Playback
eng_a304
WMA Playback
eng_a305
Music Server Playback
eng_a306
Receiving FM
eng_a307
Receiving AM
eng_a429
