2-58 Seat and restraint systems
2

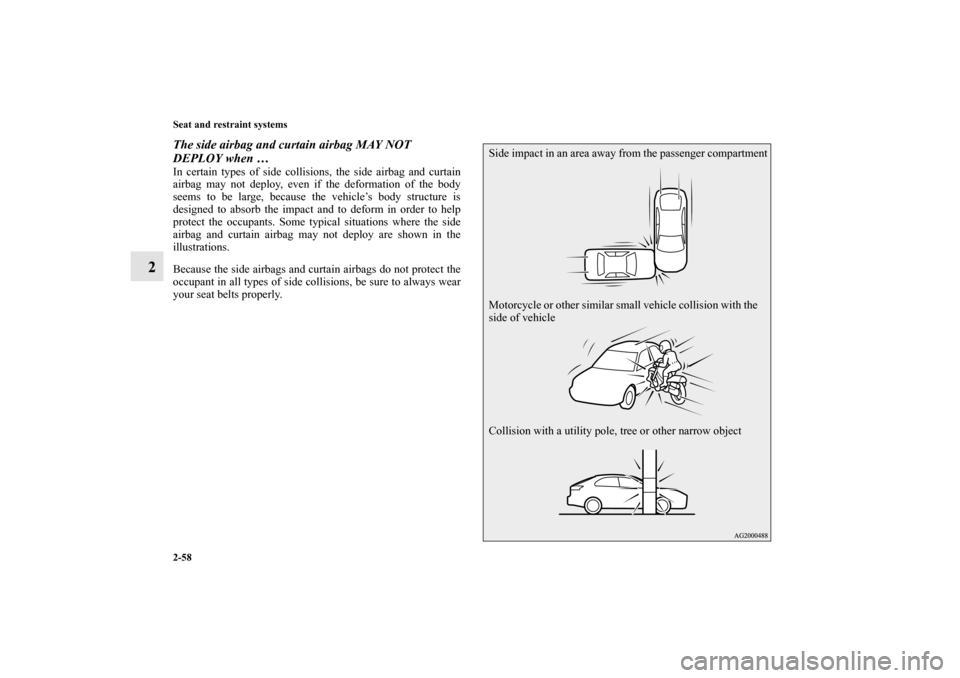

The side airbag and curtain airbag MAY NOT
DEPLOY when … In certain types of side collisions, the side airbag and curtain
airbag may not deploy, even if the deformation of the body
seems to be large, because the vehicle’s body structure is
designed to absorb the impact and to deform in order to help
protect the occupants. Some typical situations where the side
airbag and curtain airbag may not deploy are shown in the
illustrations.
Because the side airbags and curtain airbags do not protect the
occupant in all types of side collisions, be sure to always wear
your seat belts properly.
Side impact in an area away from the passenger compartment
Motorcycle or other similar small vehicle collision with the
side of vehicle
Collision with a utility pole, tree or other narrow object
BK0125300US.book 58 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Seat and restraint systems
2-59
2

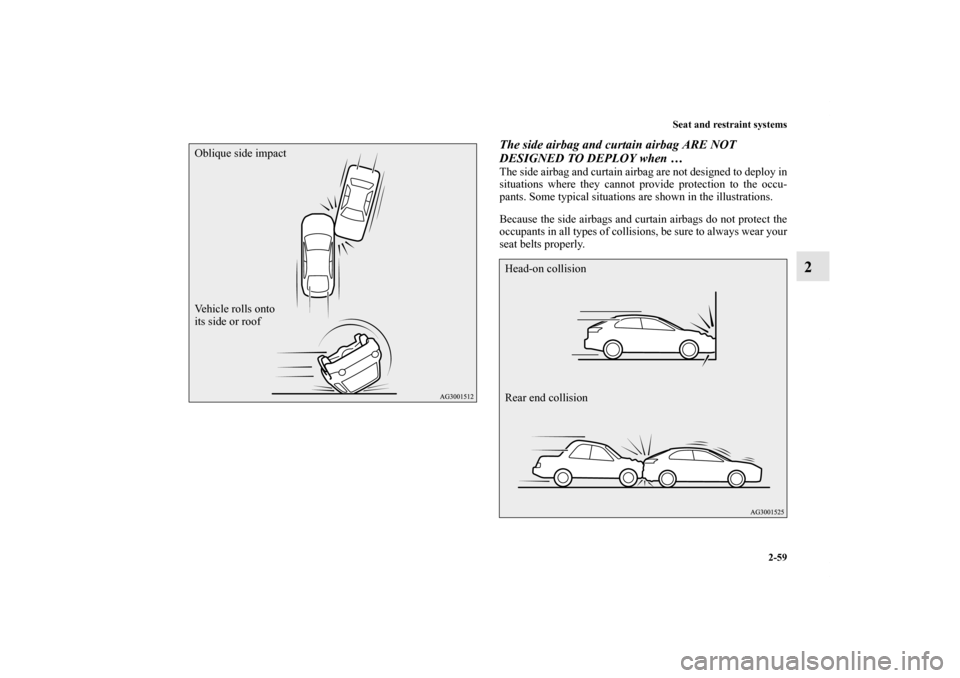

The side airbag and curtain airbag ARE NOT
DESIGNED TO DEPLOY when …The side airbag and curtain airbag are not designed to deploy in
situations where they cannot provide protection to the occu-
pants. Some typical situations are shown in the illustrations.
Because the side airbags and curtain airbags do not protect the
occupants in all types of collisions, be sure to always wear your
seat belts properly.
Oblique side impact
Vehicle rolls onto
its side or roof
Head-on collision
Rear end collision
BK0125300US.book 59 ページ ２０１０年５月１８日　火曜日　午後１時５３分

2-60 Seat and restraint systems
2
SRS servicing
N00408500614
NOTE
When you transfer ownership of the vehicle to another
person, we urge you to alert the new owner that it is
equipped with the SRS and refer that owner to the applica-
ble sections in this owner’s manual.

If you decide to junk or scrap your vehicle, we urge you to
first take it to an authorized Mitsubishi Motors dealer so
that the SRS can be made safe for disposal.

If any of the following parts needs to be modified for use
by a handicapped person, the advanced airbag system will
be greatly affected. Please consult an authorized Mitsub-
ishi Motors dealer for assistance.
• Driver’s seat
• Front passenger seat
• Front seat belt
• Steering wheel
• Instrument panel
WA R N I N G
!
Any maintenance performed on or near the compo-
nents of the SRS should be performed only by an
authorized Mitsubishi Motors dealer. Do not permit
anyone else to do any service, inspection, mainte-
nance or repair on any SRS components or wiring.
Similarly, no part of the SRS should ever be han-
dled, removed or disposed by anyone except an
authorized Mitsubishi Motors dealer.
Improper work methods on the SRS components or
wiring could result in an accidental airbag deploy-
ment or could make the SRS inoperable. Either of
these situations could result in serious injury or
death.
Do not modify your steering wheel or any other SRS
component or related vehicle part. For example,
replacement of the steering wheel, or modifications
to the front bumper or body structure can adversely
affect SRS performance and may lead to injury.
If your vehicle has received any damage, you should
have the SRS inspected by an authorized Mitsubishi
Motors dealer to make sure it is in proper working
order.

Do not modify your front seats, center pillar or cen-
ter console. Such modifications can adversely affect
SRS performance and may lead to injury.
Also, if you discover any tear or open seam in the
seat fabric near the side airbag, have the seat
inspected by an authorized Mitsubishi Motors
dealer.
If you find a crack in or damage to the front pillar,
rear pillar, or roof side rail where the curtain airbag
is located, have the SRS inspected by an authorized
Mitsubishi Motors dealer.
WA R N I N G
!
BK0125300US.book 60 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Seat and restraint systems
2-61
2

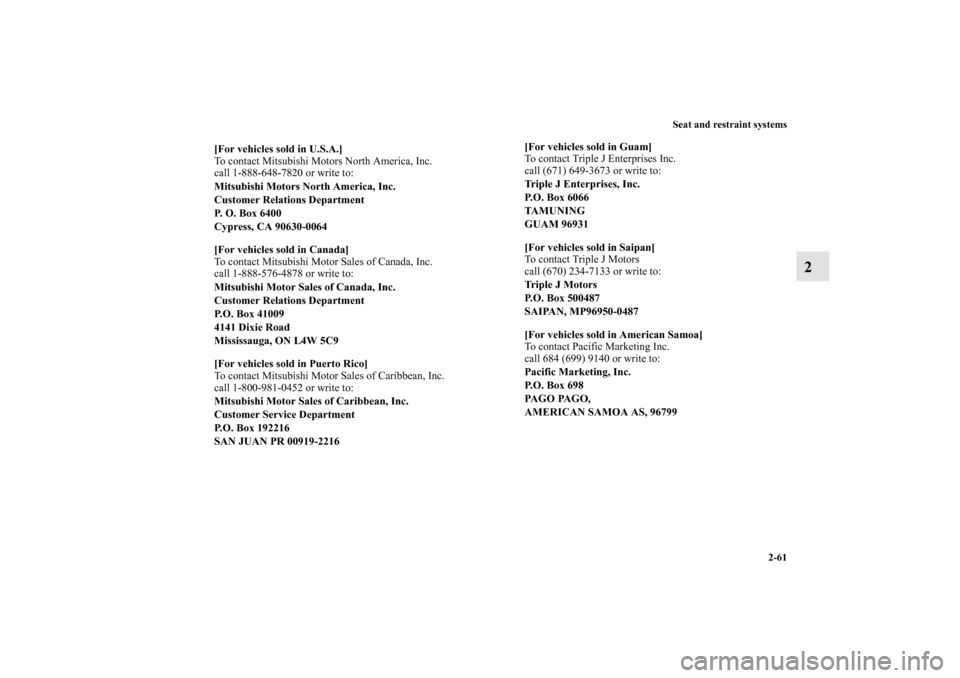

[For vehicles sold in U.S.A.]
To contact Mitsubishi Motors North America, Inc.
call 1-888-648-7820 or write to:
Mitsubishi Motors North America, Inc.
Customer Relations Department
P. O. Box 6400
Cypress, CA 90630-0064
[For vehicles sold in Canada]
To contact Mitsubishi Motor Sales of Canada, Inc.
call 1-888-576-4878 or write to:
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
[For vehicles sold in Puerto Rico]
To contact Mitsubishi Motor Sales of Caribbean, Inc.
call 1-800-981-0452 or write to:
Mitsubishi Motor Sales of Caribbean, Inc.
Customer Service Department
P.O. Box 192216
SAN JUAN PR 00919-2216[For vehicles sold in Guam]
To contact Triple J Enterprises Inc.
call (671) 649-3673 or write to:
Triple J Enterprises, Inc.
P.O. Box 6066
TAMUNING
GUAM 96931
[For vehicles sold in Saipan]
To contact Triple J Motors
call (670) 234-7133 or write to:
Triple J Motors
P.O. Box 500487
SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]
To contact Pacific Marketing Inc.
call 684 (699) 9140 or write to:
Pacific Marketing, Inc.
P. O . B o x 6 9 8
PA G O PA G O ,
AMERICAN SAMOA AS, 96799
BK0125300US.book 61 ページ ２０１０年５月１８日　火曜日　午後１時５３分

2-62 Seat and restraint systems
2
Warning labels
N00408600338
Occupant restraint warning labels for the SRS are located in
the vehicle as shown in the illustration.
* - Located in the passenger’s side as well.
BK0125300US.book 62 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3

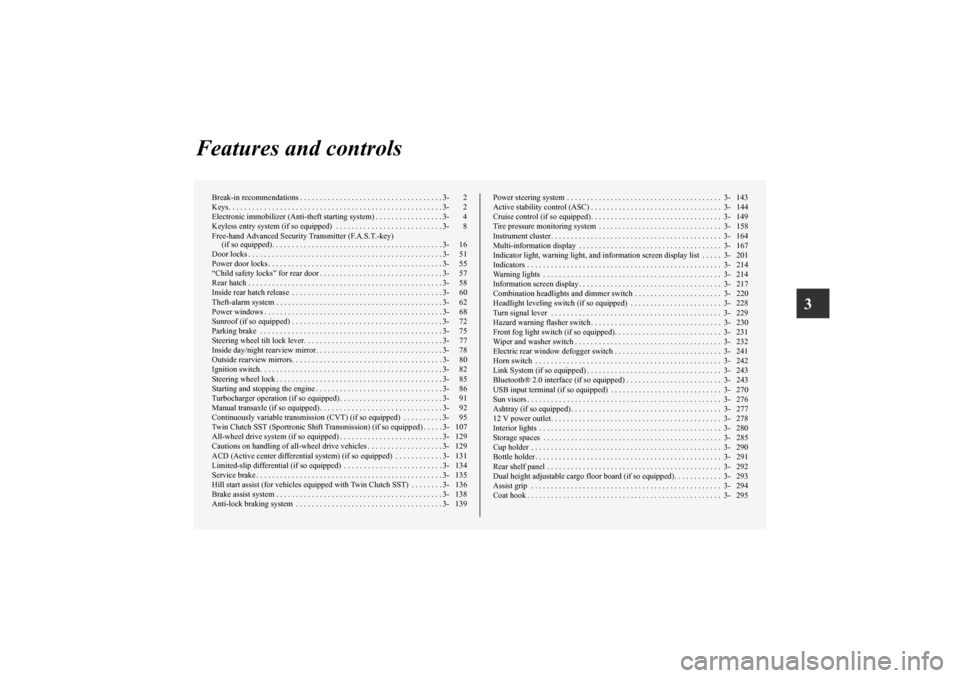

Features and controls

Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . . . . . . 3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 51
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 57
Rear hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Inside rear hatch release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 60
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 62
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 68
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 72
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 75
Steering wheel tilt lock lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Inside day/night rearview mirror. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Outside rearview mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 80
Ignition switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 82
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 86
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 91
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 92
Continuously variable transmission (CVT) (if so equipped) . . . . . . . . . . 3- 95
Twin Clutch SST (Sportronic Shift Transmission) (if so equipped) . . . . . 3- 107
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 129
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . . . . . . 3- 129
ACD (Active center differential system) (if so equipped) . . . . . . . . . . . . 3- 131
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135
Hill start assist (for vehicles equipped with Twin Clutch SST) . . . . . . . . 3- 136
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 138
Anti-lock braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 144
Cruise control (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 149
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 158
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 167
Indicator light, warning light, and information screen display list . . . . . 3- 201
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 217
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . . . . . 3- 220
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 229
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 230
Front fog light switch (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 231
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 232
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 241
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 242
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 243
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 243
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
Ashtray (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
12 V power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 278
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 280
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 285
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 291
Rear shelf panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 292
Dual height adjustable cargo floor board (if so equipped). . . . . . . . . . . . 3- 293
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 294
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 295
BK0125300US.book 1 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-2 Features and controls
3Break-in recommendations
N00508700314
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine. For vehicles equipped with tur-
bocharger, do not exceed 5,000 rpm for the first 600 miles
(1,000 km).

Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.

Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-12).

Do not use this vehicle for trailer towing.
Keys
N00508800591
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0125300US.book 2 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-3
3
Ty p e 2Two Free-hand Advanced Security Transmitter (F.A.S.T.-key)
and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place
together as a set of spare keys.
NOTE
The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key rings.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Keep away from devices that emit strong electromag-
netic waves, such as cellular phones, wireless devices
and high frequency equipment (including medical
devices.)
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.

If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
1- Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(with electronic immobilizer and keyless entry system func-
tion)
2- Emergency key
3- Key number plate
BK0125300US.book 3 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-4 Features and controls
3

No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-4.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): Electronic immobilizer (Anti-theft starting
system)” on page 3-41.

When the theft-alarm is in the system operational status,
the alarm operates if a door or rear hatch is opened after
using the key, the door lock knob or the power door lock
to unlock the vehicle.

The system does not enter the preparation status if the
keyless entry system or the F.A.S.T.-key was not used to
lock the vehicle.
Electronic immobilizer (Anti-theft starting
system)
N00509100735
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Electronic immobilizer (Anti-theft starting system)” on page 3-
41.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
BK0125300US.book 4 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-5
3
NOTE
Do not attach additional keys or accessories to the ignition
key. Such objects could prevent the driver’s knee airbag
from inflating normally. Refer to “Deployment of front
airbags” on page 2-48.

In the following cases, the vehicle may not be able to rec-
ognize the registered ID code from the key. This means
the engine will not start even when the key is turned to the
“START” position.
• When the key contacts a key ring or other metallic or
magnetic object (Type A)
• When the key grip contacts metal of another key (Type
B)
• When the key contacts or is close to other immobilizer
keys (including keys of other vehicles) (Type C)

In cases like the above, move the offending object(s) away
from the key and turn the key back to the “ACC” or
“LOCK” position. Then try to start the engine again. If the
engine does not start, contact an authorized Mitsubishi
Motors dealer.
