MITSUBISHI MIRAGE 2014 6.G Owners Manual

Features and controls
3-13
3 Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100124
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the liftgate to be locked and unlocked,
the engine to be started and the operation mode to be changed
simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-31.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the liftgate, starting the engine, and
changing the operation mode. When leaving the vehicle,
make sure you are carrying the F.A.S.T.-key and then lock
the vehicle.
WA R N I N G
!
Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
BK0162600US.book 13 ページ ２０１３年３月２２日　金曜日　午後２時４１分

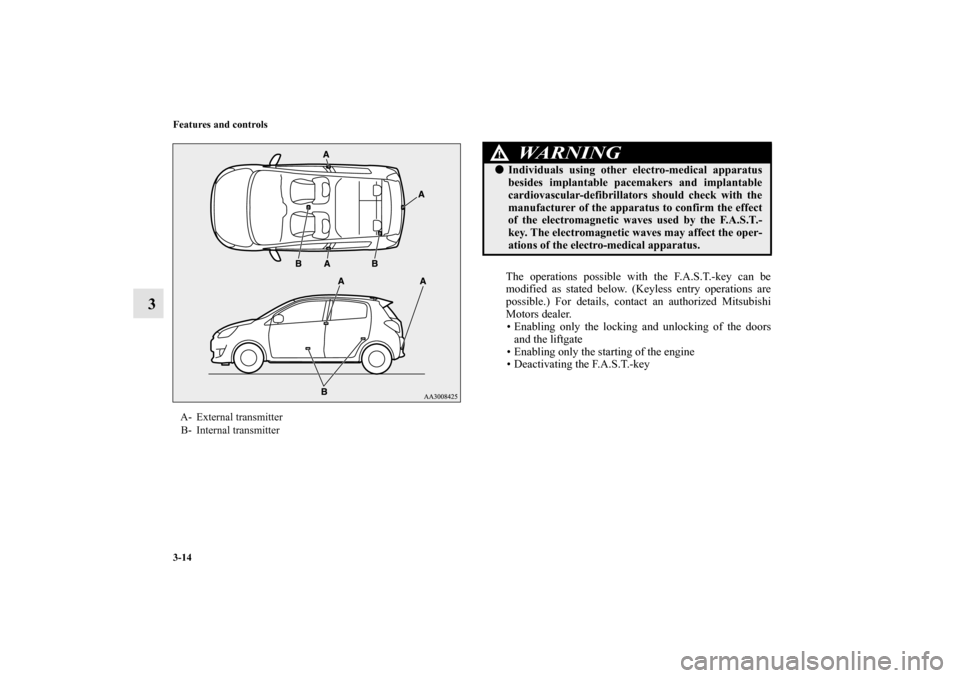

3-14 Features and controls
3
The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors dealer.
• Enabling only the locking and unlocking of the doors
and the liftgate
• Enabling only the starting of the engine
• Deactivating the F.A.S.T.-key
A- External transmitter
B- Internal transmitter
WA R N I N G
!
Individuals using other electro-medical apparatus
besides implantable pacemakers and implantable
cardiovascular-defibrillators should check with the
manufacturer of the apparatus to confirm the effect
of the electromagnetic waves used by the F.A.S.T.-
key. The electromagnetic waves may affect the oper-
ations of the electro-medical apparatus.
BK0162600US.book 14 ページ ２０１３年３月２２日　金曜日　午後２時４１分

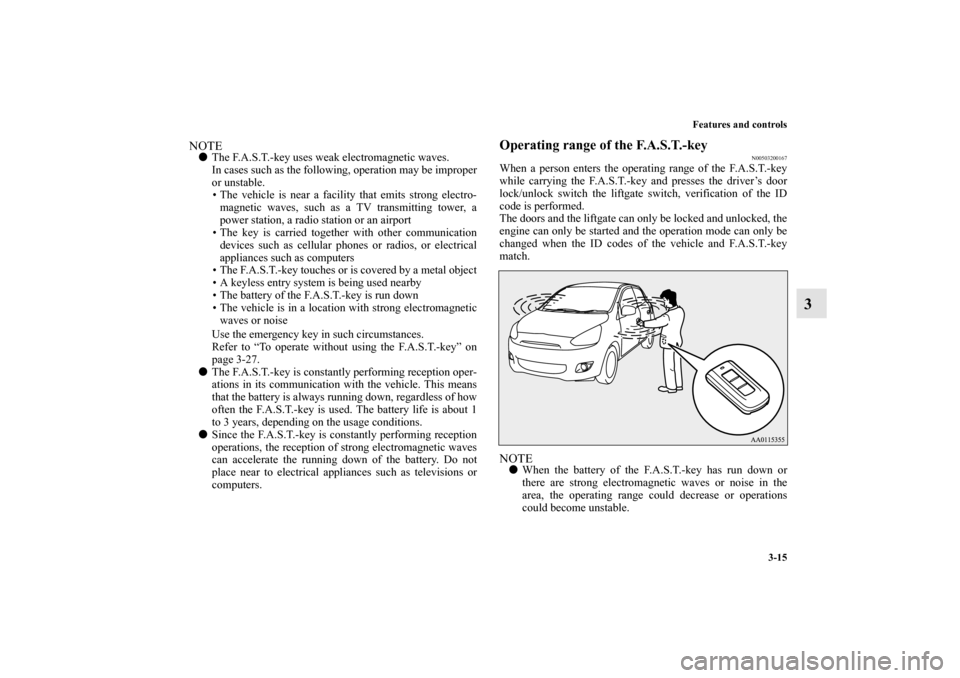

Features and controls
3-15
3
NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
• The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
• The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
• The F.A.S.T.-key touches or is covered by a metal object
• A keyless entry system is being used nearby
• The battery of the F.A.S.T.-key is run down
• The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate without using the F.A.S.T.-key” on
page 3-27.

The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.

Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near to electrical appliances such as televisions or
computers.
Operating range of the F.A.S.T.-key
N00503200167
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and presses the driver’s door
lock/unlock switch the liftgate switch, verification of the ID
code is performed.
The doors and the liftgate can only be locked and unlocked, the
engine can only be started and the operation mode can only be
changed when the ID codes of the vehicle and F.A.S.T.-key
match.NOTE
When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0162600US.book 15 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-16 Features and controls
3
Operating range for locking and unlocking the doors
and the liftgateThe operating range is within about 2.3 feet (70 cm) of the
driver’s door lock/unlock switch and the liftgate switch.
NOTE
Only the doors and the liftgate that detect the F.A.S.T.-key
can be locked and unlocked.

The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or liftgate.

Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the driver’s door switch or the tailgate switch, the sys-
tem may not operate if the key is close to the ground or in
a high position.

If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or the liftgate by pressing the driver’s door
switch or the tailgate switch.
*: Front of the vehicle
:Operating range
BK0162600US.book 16 ページ ２０１３年３月２２日　金曜日　午後２時４１分

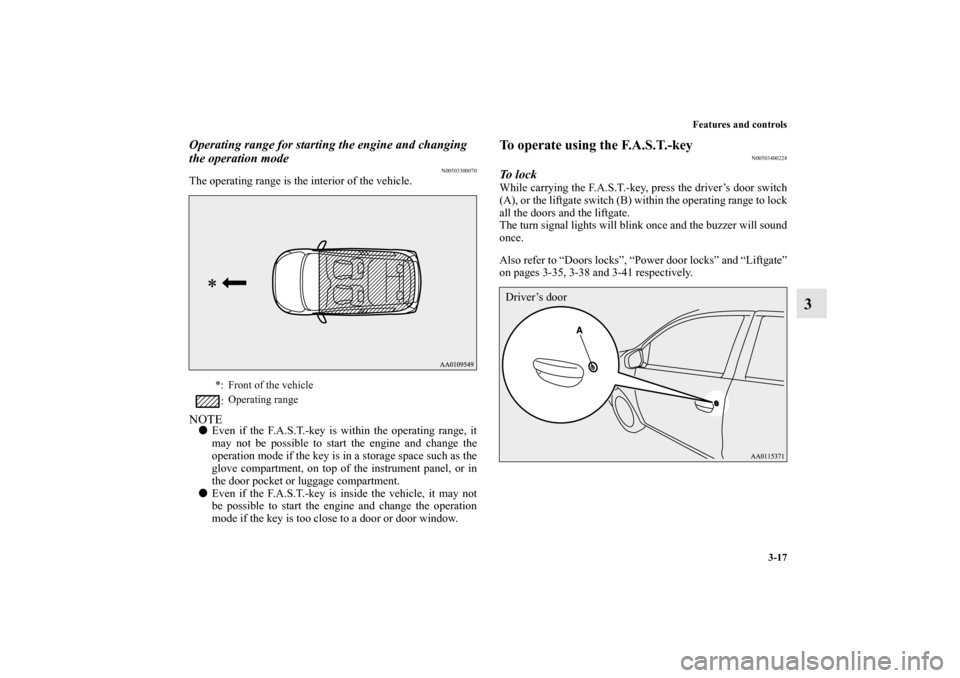

Features and controls
3-17
3
Operating range for starting the engine and changing
the operation mode
N00503300070
The operating range is the interior of the vehicle.NOTE
Even if the F.A.S.T.-key is within the operating range, it
may not be possible to start the engine and change the
operation mode if the key is in a storage space such as the
glove compartment, on top of the instrument panel, or in
the door pocket or luggage compartment.

Even if the F.A.S.T.-key is inside the vehicle, it may not
be possible to start the engine and change the operation
mode if the key is too close to a door or door window.
To operate using the F.A.S.T.-key
N00503400228
To l o c kWhile carrying the F.A.S.T.-key, press the driver’s door switch
(A), or the liftgate switch (B) within the operating range to lock
all the doors and the liftgate.
The turn signal lights will blink once and the buzzer will sound
once.
Also refer to “Doors locks”, “Power door locks” and “Liftgate”
on pages 3-35, 3-38 and 3-41 respectively.
*: Front of the vehicle
:Operating range
Driver’s door
BK0162600US.book 17 ページ ２０１３年３月２２日　金曜日　午後２時４１分

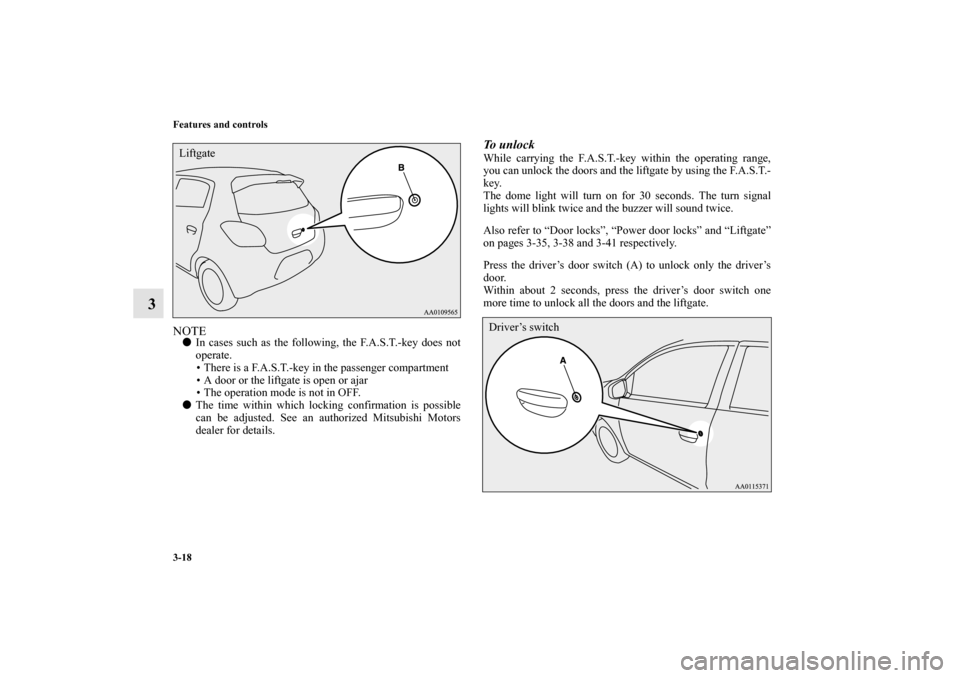

3-18 Features and controls
3
NOTE
In cases such as the following, the F.A.S.T.-key does not
operate.
• There is a F.A.S.T.-key in the passenger compartment
• A door or the liftgate is open or ajar
• The operation mode is not in OFF.

The time within which locking confirmation is possible
can be adjusted. See an authorized Mitsubishi Motors
dealer for details.
To unlockWhile carrying the F.A.S.T.-key within the operating range,
you can unlock the doors and the liftgate by using the F.A.S.T.-
key.
The dome light will turn on for 30 seconds. The turn signal
lights will blink twice and the buzzer will sound twice.
Also refer to “Door locks”, “Power door locks” and “Liftgate”
on pages 3-35, 3-38 and 3-41 respectively.
Press the driver’s door switch (A) to unlock only the driver’s
door.
Within about 2 seconds, press the driver’s door switch one
more time to unlock all the doors and the liftgate.
Liftgate
Driver’s switch
BK0162600US.book 18 ページ ２０１３年３月２２日　金曜日　午後２時４１分

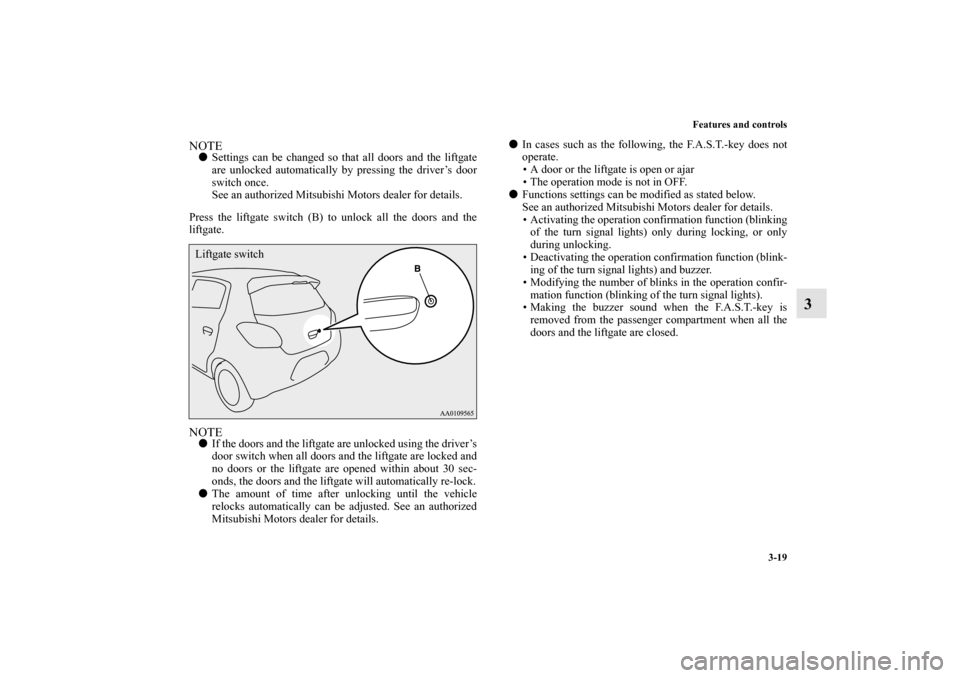

Features and controls
3-19
3
NOTE
Settings can be changed so that all doors and the liftgate
are unlocked automatically by pressing the driver’s door
switch once.
See an authorized Mitsubishi Motors dealer for details.
Press the liftgate switch (B) to unlock all the doors and the
liftgate.NOTE
If the doors and the liftgate are unlocked using the driver’s
door switch when all doors and the liftgate are locked and
no doors or the liftgate are opened within about 30 sec-
onds, the doors and the liftgate will automatically re-lock.

The amount of time after unlocking until the vehicle
relocks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
In cases such as the following, the F.A.S.T.-key does not
operate.
• A door or the liftgate is open or ajar
• The operation mode is not in OFF.

Functions settings can be modified as stated below.
See an authorized Mitsubishi Motors dealer for details.
• Activating the operation confirmation function (blinking
of the turn signal lights) only during locking, or only
during unlocking.
• Deactivating the operation confirmation function (blink-
ing of the turn signal lights) and buzzer.
• Modifying the number of blinks in the operation confir-
mation function (blinking of the turn signal lights).
• Making the buzzer sound when the F.A.S.T.-key is
removed from the passenger compartment when all the
doors and the liftgate are closed.Liftgate switch
BK0162600US.book 19 ページ ２０１３年３月２２日　金曜日　午後２時４１分

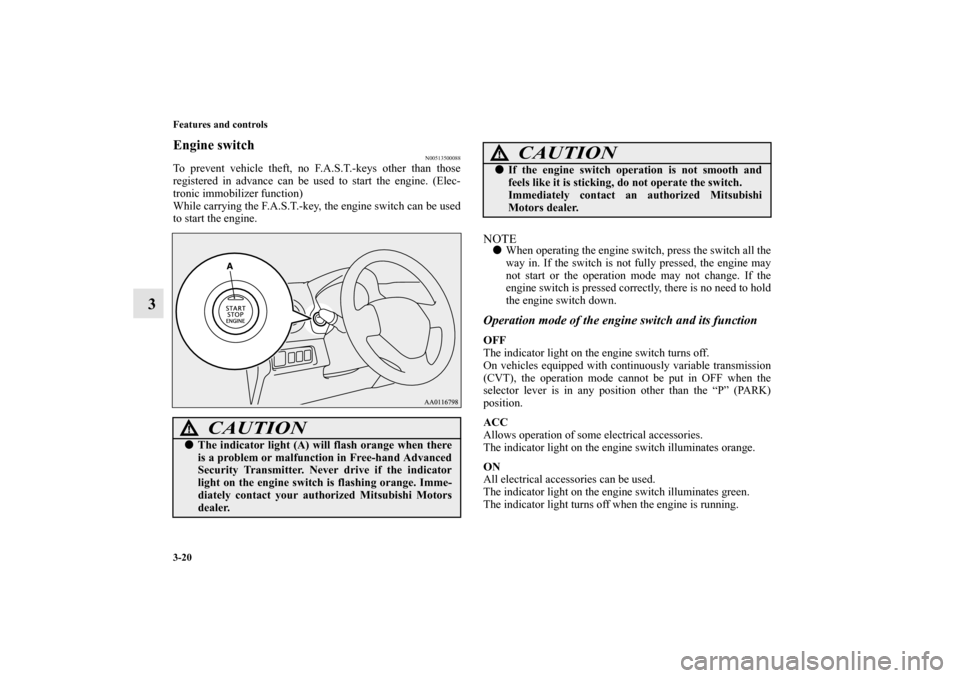

3-20 Features and controls
3
Engine switch
N00513500088
To prevent vehicle theft, no F.A.S.T.-keys other than those
registered in advance can be used to start the engine. (Elec-
tronic immobilizer function)
While carrying the F.A.S.T.-key, the engine switch can be used
to start the engine.
NOTE
When operating the engine switch, press the switch all the
way in. If the switch is not fully pressed, the engine may
not start or the operation mode may not change. If the
engine switch is pressed correctly, there is no need to hold
the engine switch down.Operation mode of the engine switch and its functionOFF
The indicator light on the engine switch turns off.
On vehicles equipped with continuously variable transmission
(CVT), the operation mode cannot be put in OFF when the
selector lever is in any position other than the “P” (PARK)
position.
ACC
Allows operation of some electrical accessories.
The indicator light on the engine switch illuminates orange.
ON
All electrical accessories can be used.
The indicator light on the engine switch illuminates green.
The indicator light turns off when the engine is running.
CAUTION
!
The indicator light (A) will flash orange when there
is a problem or malfunction in Free-hand Advanced
Security Transmitter. Never drive if the indicator
light on the engine switch is flashing orange. Imme-
diately contact your authorized Mitsubishi Motors
dealer.
CAUTION
!
If the engine switch operation is not smooth and
feels like it is sticking, do not operate the switch.
Immediately contact an authorized Mitsubishi
Motors dealer.
BK0162600US.book 20 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-21
3
NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the F.A.S.T.-key
sends must match the one registered to the immobilizer
computer. (Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-28)Changing the operation mode
N00568000025
If you press the engine switch without pressing the brake pedal
{continuously variable transmission (CVT)} or the clutch
pedal (manual transaxle) while the vehicle is stationary, you
can change the operation mode in the order of OFF, ACC, ON,
OFF.
Warning activation
N00503500216
With the F.A.S.T.-key, warnings are given through buzzers and
displayed symbols in order to prevent mistaken operations or
vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also shown if there is a problem in
the F.A.S.T.-key.
If the following warning shows, contact an authorized
Mitsubishi Motors dealer.
CAUTION
!
When the engine is not running, put the operation
mode in OFF. Leaving the operation mode in ON or
ACC for a long time when the engine is not running
may cause the battery to be discharged, making it
impossible to start the engine.
When the battery is disconnected, the current oper-
ation mode is memorized. After reconnecting the
battery, the memorized mode is selected automati-
cally. Before disconnecting the battery for repair or
replacement, make sure to put the operation mode
in OFF.
Be careful if you are not sure which operation mode
the vehicle is in when the battery is run down.
The operation mode cannot be changed from OFF to
ACC or ON if the F.A.S.T.-key is not detected to be
in the vehicle. Refer to “Operating range for start-
ing the engine and changing the operation mode” on
page 3-17.
BK0162600US.book 21 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-22 Features and controls
3
If the following warnings show, the light goes off if the correct
action is taken.

The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified

A door or the liftgate cannot be locked even when the
driver’s door switch or the liftgate switch is pressed.
There is a problem in the F.A.S.T.-key
Put the operation mode in OFF and then start the
engine again.
If the warning is not cancelled, there is a fault in
the electronic immobilizer (Anti-theft starting sys-
tem).
Please contact an authorized Mitsubishi Motors
dealer.
Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range
Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-23.
The battery of the F.A.S.T.-key is run down
Refer to “Key lock-in prevention system” on page
3-23.
Refer to “Door ajar prevention system” on page 3-
23.
Refer to “Operation mode OFF reminder system”
on page 3-24.
BK0162600US.book 22 ページ ２０１３年３月２２日　金曜日　午後２時４１分
