MITSUBISHI MIRAGE 2014 6.G Owners Manual

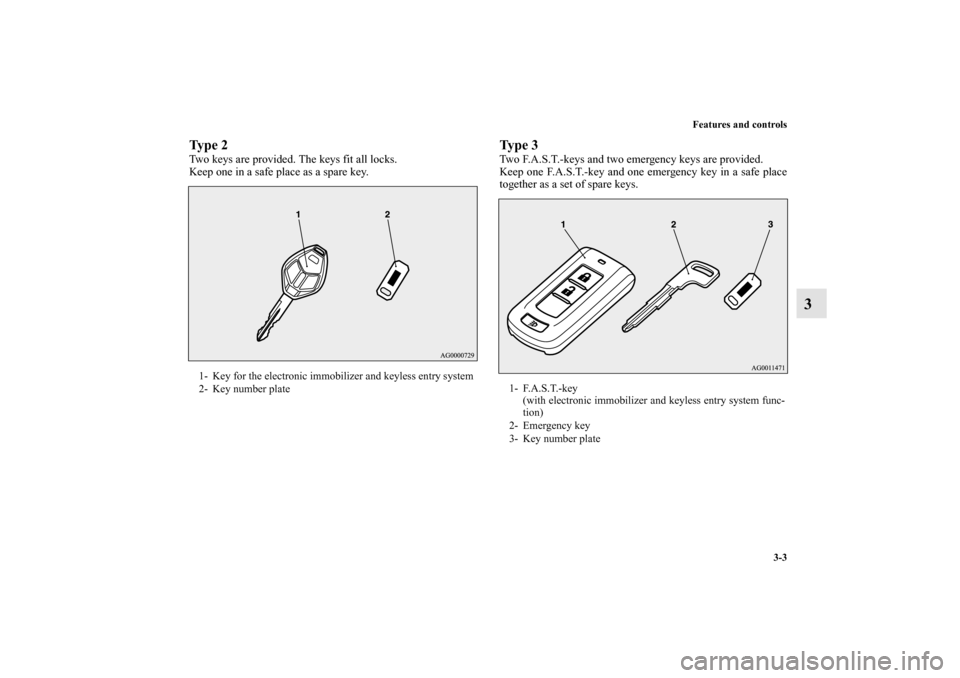

Features and controls
3-3
3
Ty p e 2Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.
Ty p e 3Two F.A.S.T.-keys and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place
together as a set of spare keys.
1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
1- F.A.S.T.-key
(with electronic immobilizer and keyless entry system func-
tion)
2- Emergency key
3- Key number plate
BK0162600US.book 3 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-4 Features and controls
3
NOTE
The keyless entry key and F.A.S.T.-key are a precision
electronic device with a built-in signal transmitter. Please
observe the following in order to prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key rings.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Keep away from devices that emit strong electromag-
netic waves, such as cellular phones, wireless devices
and high frequency equipment (including medical
devices).
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.

If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-5.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-28.

When the theft-alarm is in the system operational status,
the alarm operates if a door or liftgate is opened after
using the key, the door lock knob or the power door lock
switch to unlock the vehicle.

The system does not enter the preparation status if the
keyless entry system or the F.A.S.T.-key was not used to
lock the vehicle.
BK0162600US.book 4 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-5
3 Electronic immobilizer (Anti-theft starting
system)
N00509100780
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Electronic immobilizer (Anti-theft starting system)” on page 3-
28.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
NOTE
In the following cases, the vehicle may not be able to rec-
ognize the registered ID code from the key. This means
the engine will not start even when the key is turned to the
“START” position.
• When the key contacts a key ring or other metallic or
magnetic object (Type A)
• When the key grip contacts metal of another key (Type
B)
• When the key contacts or is close to other immobilizer
keys (including keys of other vehicles) (Type C)

In cases like the above, move the offending object(s) away
from the key and turn the key back to the “ACC” or
“OFF” position. Then try to start the engine again. If the
engine does not start, contact an authorized Mitsubishi
Motors dealer.
BK0162600US.book 5 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-6 Features and controls
3
NOTE
The key may not operate properly when it is near an
object or facility that emits strong electromagnetic waves.

Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.

A system failure is suspected when the ignition switch is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.Replacement keysOnly keys that have been programmed to the vehicle’s elec-
tronics can be used to start the vehicle.
If you lose the key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.Additional keysTo add a key, you must already have 2 registered keys. You
need to register the ID code to the vehicle.
CAUTION
!
Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

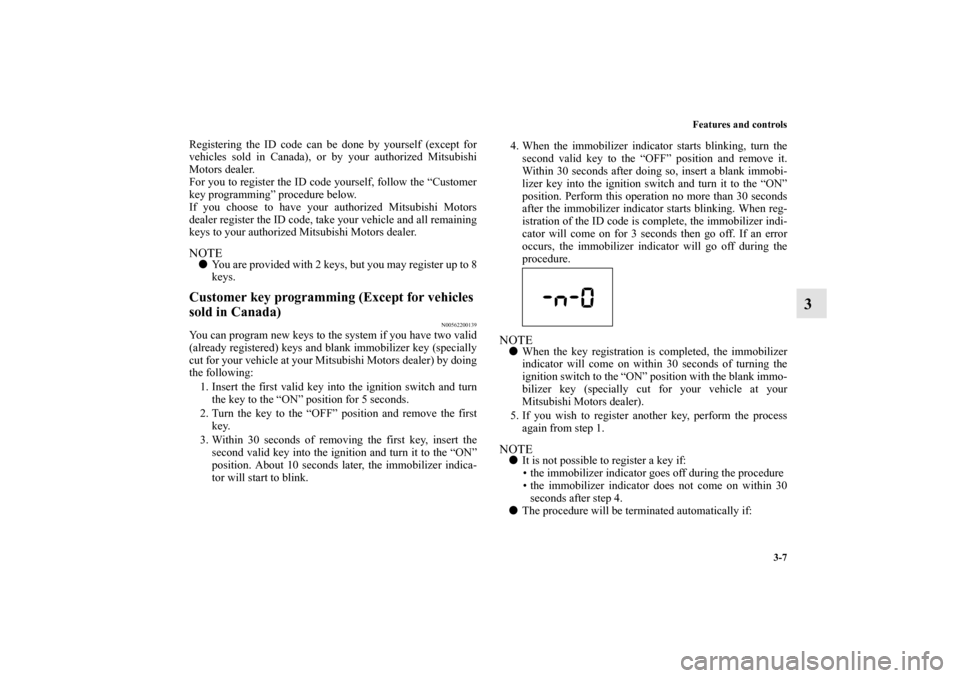

Features and controls
3-7
3
Registering the ID code can be done by yourself (except for
vehicles sold in Canada), or by your authorized Mitsubishi
Motors dealer.
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 keys, but you may register up to 8
keys.Customer key programming (Except for vehicles
sold in Canada)
N00562200139
You can program new keys to the system if you have two valid
(already registered) keys and blank immobilizer key (specially
cut for your vehicle at your Mitsubishi Motors dealer) by doing
the following:
1. Insert the first valid key into the ignition switch and turn
the key to the “ON” position for 5 seconds.
2. Turn the key to the “OFF” position and remove the first
key.
3. Within 30 seconds of removing the first key, insert the
second valid key into the ignition and turn it to the “ON”
position. About 10 seconds later, the immobilizer indica-
tor will start to blink.4. When the immobilizer indicator starts blinking, turn the
second valid key to the “OFF” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition switch and turn it to the “ON”
position. Perform this operation no more than 30 seconds
after the immobilizer indicator starts blinking. When reg-
istration of the ID code is complete, the immobilizer indi-
cator will come on for 3 seconds then go off. If an error
occurs, the immobilizer indicator will go off during the
procedure.
NOTE
When the key registration is completed, the immobilizer
indicator will come on within 30 seconds of turning the
ignition switch to the “ON” position with the blank immo-
bilizer key (specially cut for your vehicle at your
Mitsubishi Motors dealer).
5. If you wish to register another key, perform the process
again from step 1.NOTE
It is not possible to register a key if:
• the immobilizer indicator goes off during the procedure
• the immobilizer indicator does not come on within 30
seconds after step 4.

The procedure will be terminated automatically if:
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

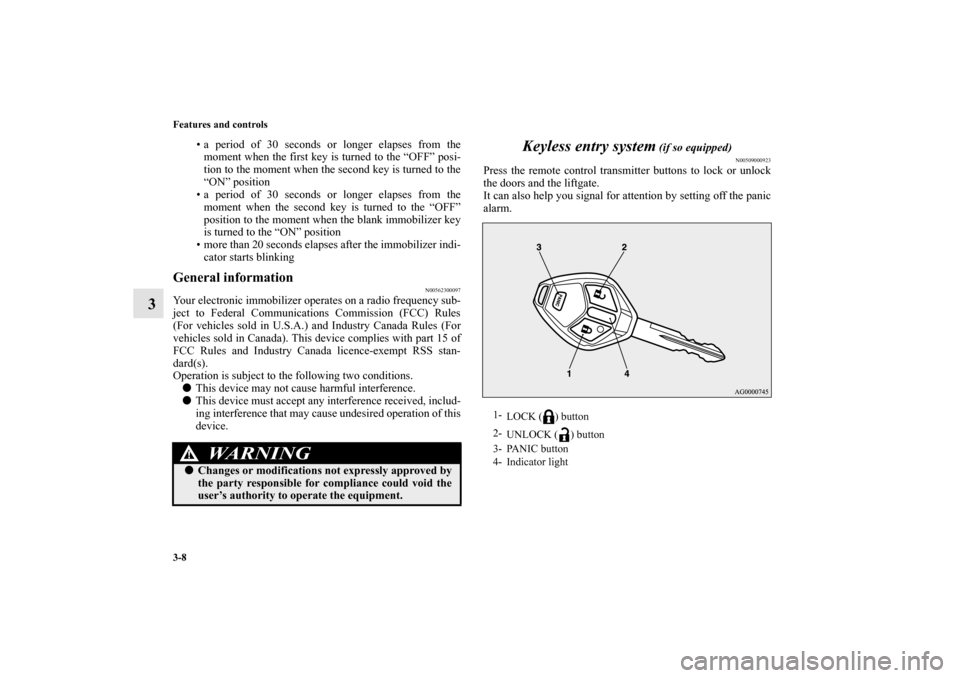

3-8 Features and controls
3
• a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “OFF” posi-
tion to the moment when the second key is turned to the
“ON” position
• a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “OFF”
position to the moment when the blank immobilizer key
is turned to the “ON” position
• more than 20 seconds elapses after the immobilizer indi-
cator starts blinking
General information
N00562300097
Your electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with part 15 of
FCC Rules and Industry Canada licence-exempt RSS stan-
dard(s).
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation of this
device.
Keyless entry system
(if so equipped)
N00509000923
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.
WA R N I N G
!
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Indicator light
BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分

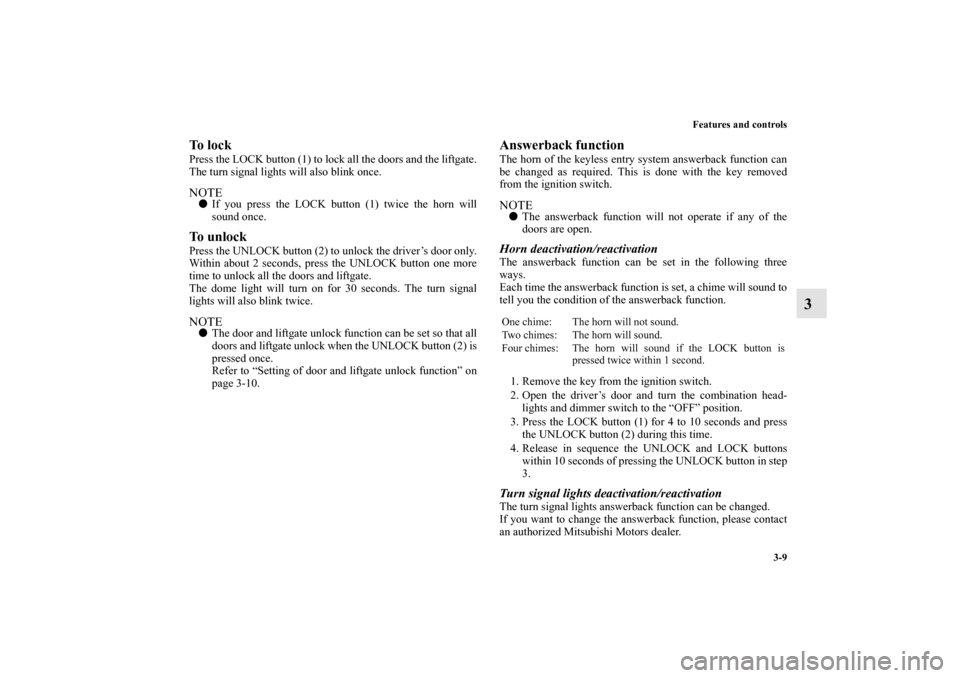

Features and controls
3-9
3
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice the horn will
sound once.To u n l o c kPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.NOTE
The door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-10.
Answerback functionThe horn of the keyless entry system answerback function can
be changed as required. This is done with the key removed
from the ignition switch.NOTE
The answerback function will not operate if any of the
doors are open.Horn deactivation/reactivationThe answerback function can be set in the following three
ways.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.Turn signal lights deactivation/reactivationThe turn signal lights answerback function can be changed.
If you want to change the answerback function, please contact
an authorized Mitsubishi Motors dealer.One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
BK0162600US.book 9 ページ ２０１３年３月２２日　金曜日　午後２時４１分

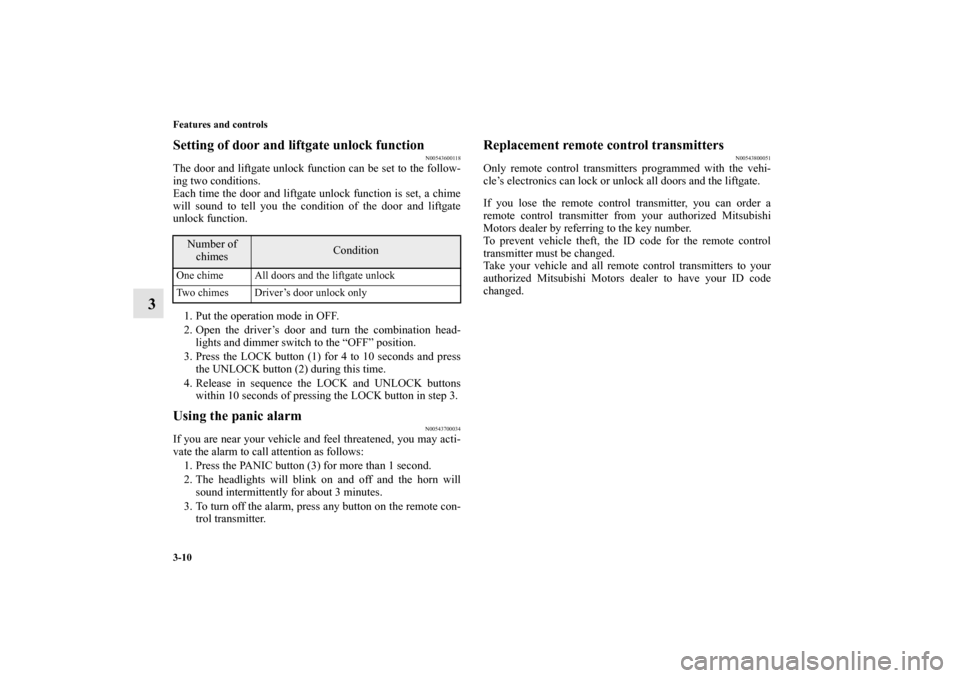

3-10 Features and controls
3
Setting of door and liftgate unlock function
N00543600118
The door and liftgate unlock function can be set to the follow-
ing two conditions.
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.Using the panic alarm
N00543700034
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement remote control transmitters
N00543800051
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the liftgate.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the remote control
transmitter must be changed.
Take your vehicle and all remote control transmitters to your
authorized Mitsubishi Motors dealer to have your ID code
changed.
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock onlyBK0162600US.book 10 ページ ２０１３年３月２２日　金曜日　午後２時４１分

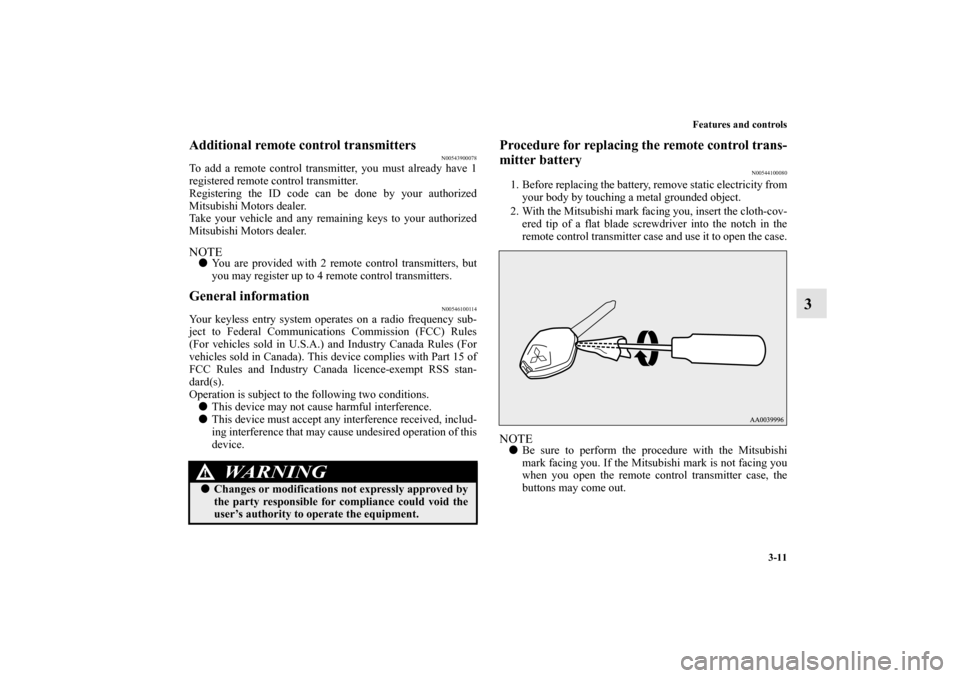

Features and controls
3-11
3
Additional remote control transmitters
N00543900078
To add a remote control transmitter, you must already have 1
registered remote control transmitter.
Registering the ID code can be done by your authorized
Mitsubishi Motors dealer.
Take your vehicle and any remaining keys to your authorized
Mitsubishi Motors dealer.NOTE
You are provided with 2 remote control transmitters, but
you may register up to 4 remote control transmitters.General information
N00546100114
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
FCC Rules and Industry Canada licence-exempt RSS stan-
dard(s).
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation of this
device.
Procedure for replacing the remote control trans-
mitter battery
N00544100080
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
WA R N I N G
!
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
BK0162600US.book 11 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-12 Features and controls
3
3. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 2.
4. Remove the old battery.5. Install a new battery with the + side (A) down.
6. Close the remote control transmitter firmly.
7. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
8. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.

An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
+ side
- side
Coin type battery CR1620
BK0162600US.book 12 ページ ２０１３年３月２２日　金曜日　午後２時４１分
