Features and controls
3-33
3
Using the panic alarm
N00544700060
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.NOTE
The indicator light (4) comes on each time a button is
pressed.

The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the buttery in the F.A.S.T.-key may need to be
replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.
To use the new remote control transmitters, it is necessary
to register the key with the electronic immobilizer and
keyless entry system.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem): Customer F.A.S.T.-key programming” on page 3-
29.
General information
N00562000065
Your F.A.S.T.-key operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of FCC
Rules and Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation of this
device.Procedure for replacing the remote control trans-
mitter battery
N00562100066
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
WA R N I N G
!
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
BK0162600US.book 33 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-34 Features and controls
3
2. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the case, the transmitter may come out.
3. Remove the old battery.4. Install a new battery with the + side (A) up.
5. Close the case firmly.
6. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.

An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
+ side
- side
Coin type battery
CR2032
BK0162600US.book 34 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-35
3 Door locks
N00509200547
To lock and unlock with the key (driver’s door)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.
WA R N I N G
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave a child alone in the vehicle. In addition
to the risk of heat stroke, children can activate
switches and controls, resulting in an injury or fatal
accident.
When closing a door, make sure that the door is fully
closed and the door-ajar warning display goes out
on the information screen on the multi-information
display. If the door is ajar it could open while driv-
ing and cause an accident.
1- Lock
2- Unlock
BK0162600US.book 35 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-36 Features and controls
3
NOTE
When locking or unlocking with the key, only the driver’s
door will be locked or unlocked.
To lock or unlock all doors and the liftgate, use the power
door lock switches, the keyless entry system or the
F.A.S.T-key operation. (if so equipped)
Refer to “Power door locks” on page 3-38, “Keyless entry
system” on pages 3-8 and 3-31, and “To operate using the
F.A.S.T.-key” on page 3-17.

In vehicles equipped with the F.A.S.T.-key, the passen-
ger’s door can be locked and unlocked using the emer-
gency key.
Refer to “Emergency key” on page 3-27.

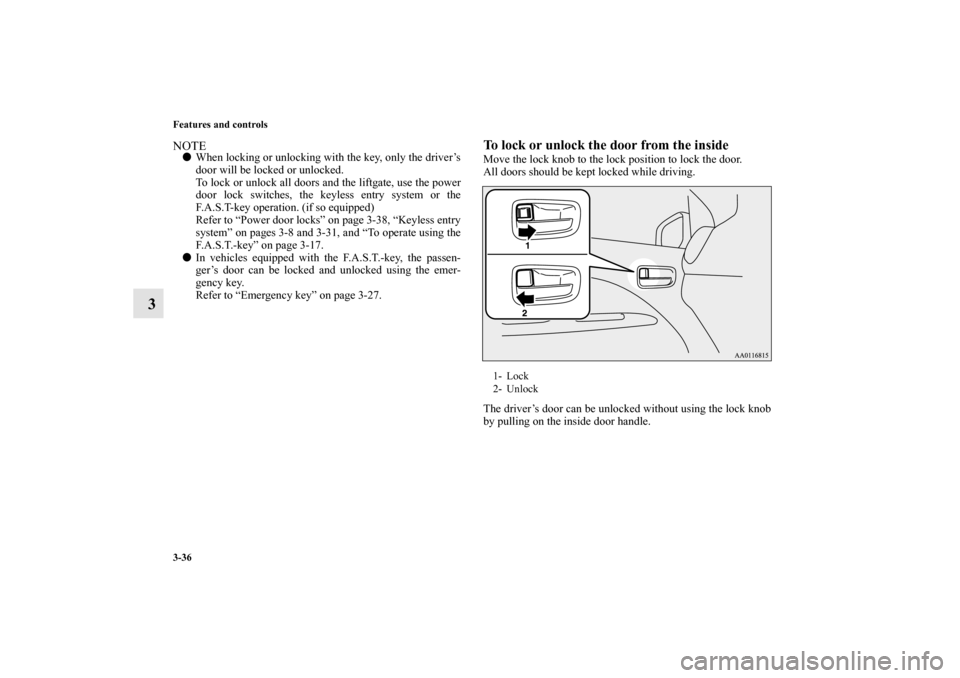

To lock or unlock the door from the insideMove the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.1- Lock
2- Unlock
BK0162600US.book 36 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-37
3

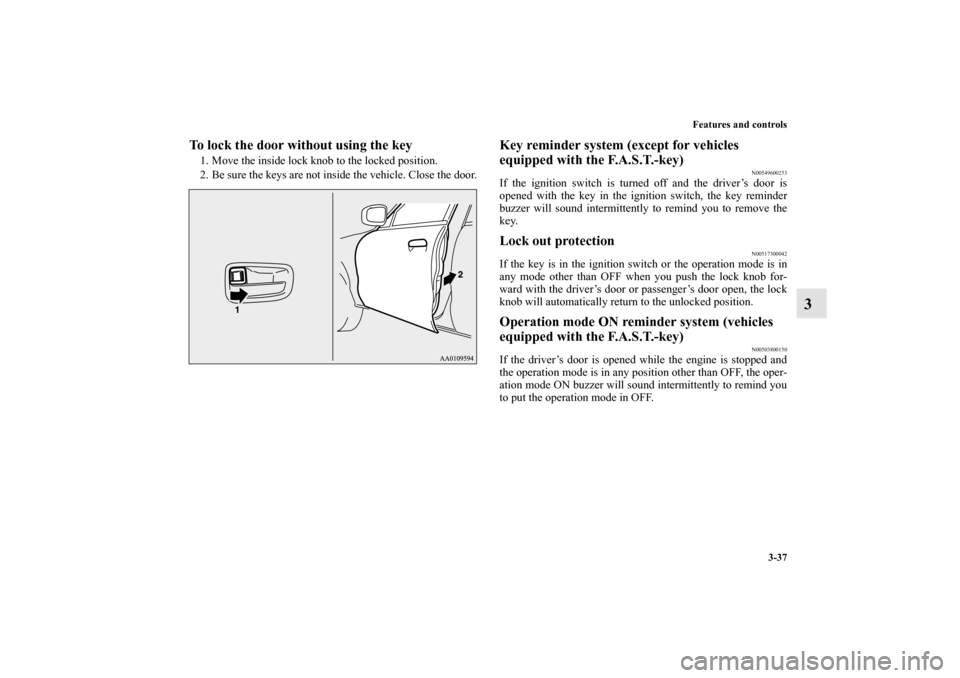

To lock the door without using the key1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.
Key reminder system (except for vehicles
equipped with the F.A.S.T.-key)
N00549600253
If the ignition switch is turned off and the driver’s door is
opened with the key in the ignition switch, the key reminder
buzzer will sound intermittently to remind you to remove the
key.Lock out protection
N00517300042
If the key is in the ignition switch or the operation mode is in
any mode other than OFF when you push the lock knob for-
ward with the driver’s door or passenger’s door open, the lock
knob will automatically return to the unlocked position.Operation mode ON reminder system (vehicles
equipped with the F.A.S.T.-key)
N00503800150
If the driver’s door is opened while the engine is stopped and
the operation mode is in any position other than OFF, the oper-
ation mode ON buzzer will sound intermittently to remind you
to put the operation mode in OFF.
BK0162600US.book 37 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-38 Features and controls

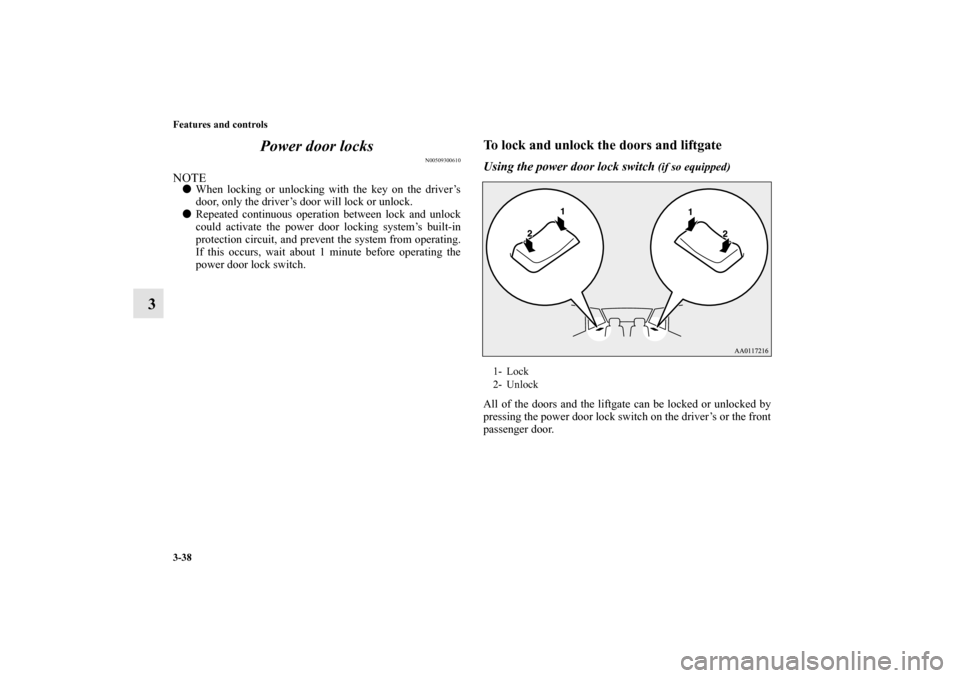

3Power door locks
N00509300610
NOTE
When locking or unlocking with the key on the driver’s
door, only the driver’s door will lock or unlock.

Repeated continuous operation between lock and unlock
could activate the power door locking system’s built-in
protection circuit, and prevent the system from operating.
If this occurs, wait about 1 minute before operating the
power door lock switch.
To lock and unlock the doors and liftgateUsing the power door lock switch
(if so equipped)
All of the doors and the liftgate can be locked or unlocked by
pressing the power door lock switch on the driver’s or the front
passenger door.
1- Lock
2- Unlock
BK0162600US.book 38 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-39
3

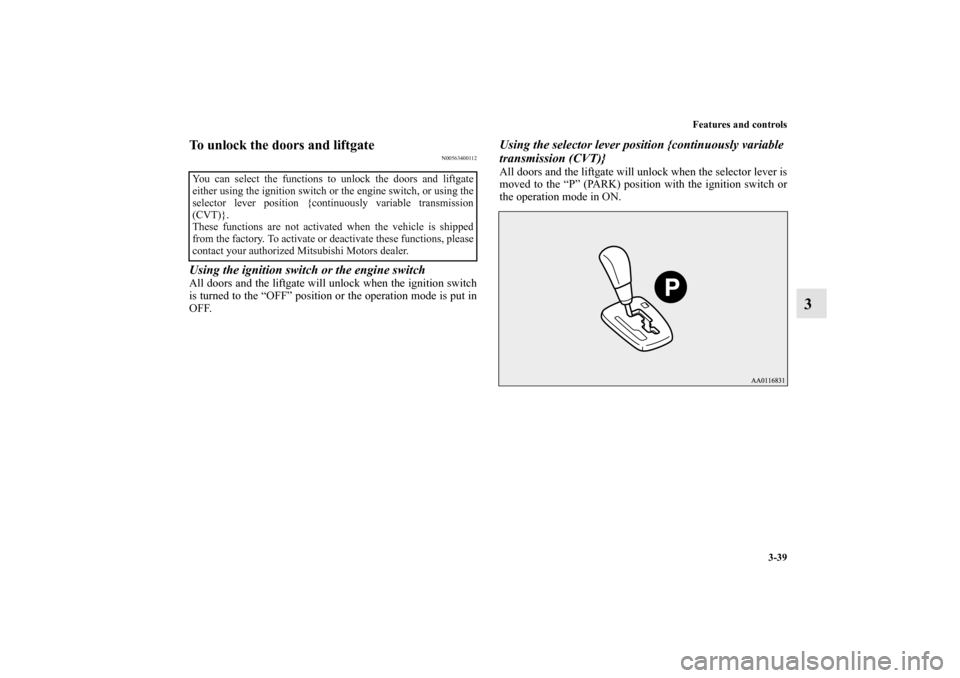

To unlock the doors and liftgate
N00563400112
Using the ignition switch or the engine switchAll doors and the liftgate will unlock when the ignition switch
is turned to the “OFF” position or the operation mode is put in
OFF.
Using the selector lever position {continuously variable
transmission (CVT)}All doors and the liftgate will unlock when the selector lever is
moved to the “P” (PARK) position with the ignition switch or
the operation mode in ON.
You can select the functions to unlock the doors and liftgate
either using the ignition switch or the engine switch, or using the
selector lever position {continuously variable transmission
(CVT)}.
These functions are not activated when the vehicle is shipped
from the factory. To activate or deactivate these functions, please
contact your authorized Mitsubishi Motors dealer.
BK0162600US.book 39 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-40 Features and controls

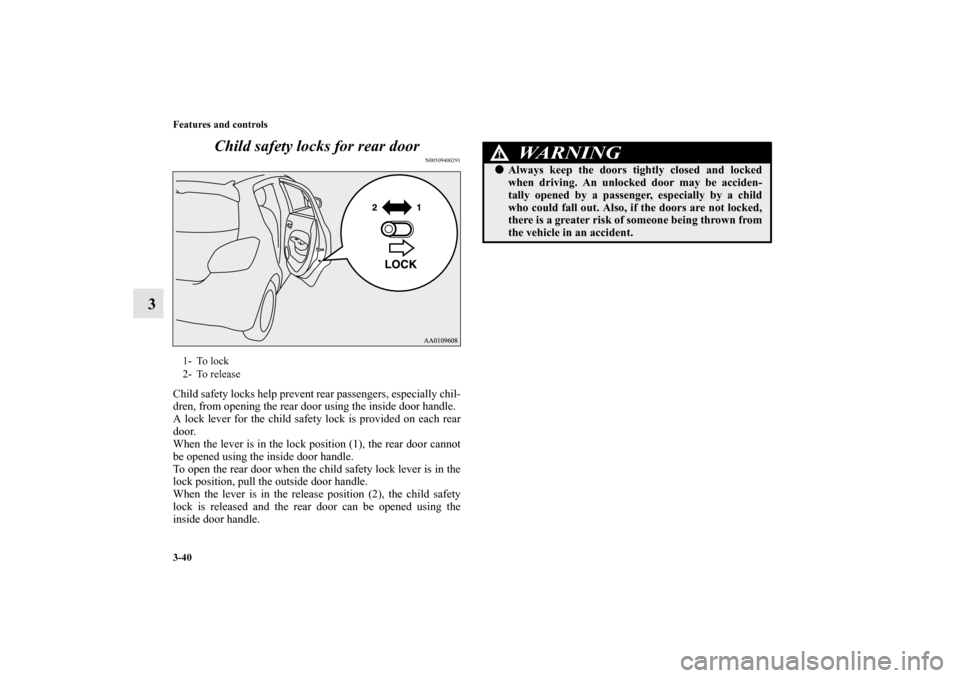

3Child safety locks for rear door
N00509400291
Child safety locks help prevent rear passengers, especially chil-
dren, from opening the rear door using the inside door handle.
A lock lever for the child safety lock is provided on each rear
door.
When the lever is in the lock position (1), the rear door cannot
be opened using the inside door handle.
To open the rear door when the child safety lock lever is in the
lock position, pull the outside door handle.
When the lever is in the release position (2), the child safety
lock is released and the rear door can be opened using the
inside door handle.1- To lock
2- To release
WA R N I N G
!
Always keep the doors tightly closed and locked
when driving. An unlocked door may be acciden-
tally opened by a passenger, especially by a child
who could fall out. Also, if the doors are not locked,
there is a greater risk of someone being thrown from
the vehicle in an accident.
BK0162600US.book 40 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-41

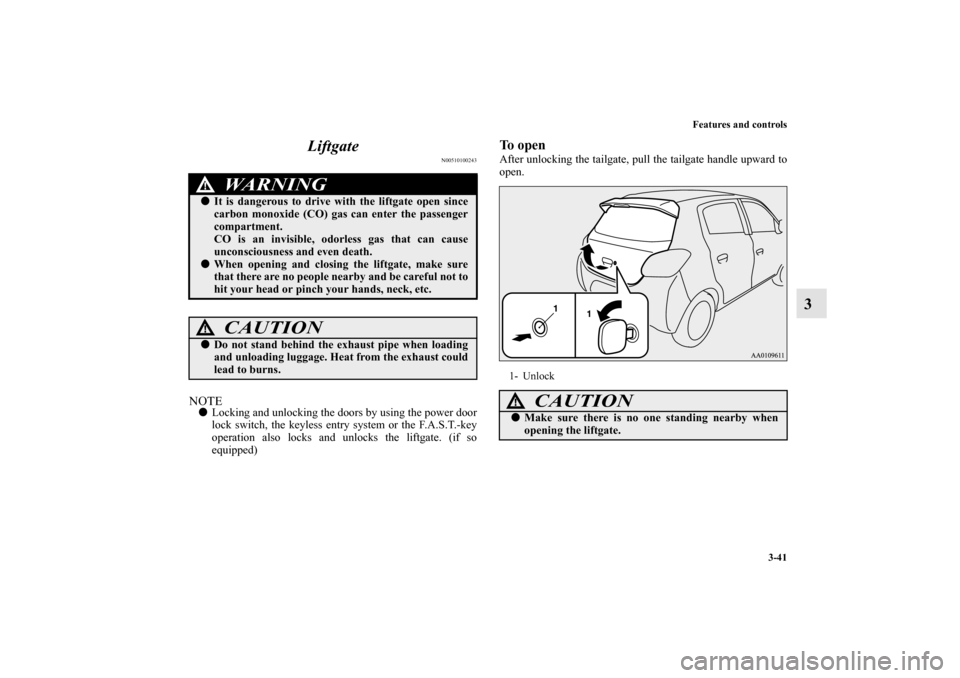

3 Liftgate
N00510100243
NOTE
Locking and unlocking the doors by using the power door
lock switch, the keyless entry system or the F.A.S.T.-key
operation also locks and unlocks the liftgate. (if so
equipped)
To openAfter unlocking the tailgate, pull the tailgate handle upward to
open.
WA R N I N G
!
It is dangerous to drive with the liftgate open since
carbon monoxide (CO) gas can enter the passenger
compartment.
CO is an invisible, odorless gas that can cause
unconsciousness and even death.
When opening and closing the liftgate, make sure
that there are no people nearby and be careful not to
hit your head or pinch your hands, neck, etc.
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
1- Unlock
CAUTION
!
Make sure there is no one standing nearby when
opening the liftgate.
BK0162600US.book 41 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-42 Features and controls
3
To closePull the liftgate grip (A) downward as illustrated and release it
before the liftgate closes completely. Gently slam the liftgate
from the outside so that it is completely closed.
NOTE
Gas struts (B) are installed in the locations illustrated in
order to support the liftgate. Please observe the following
in order to prevent damage or faulty operation:
• Do not touch, push or pull the gas struts when closing
the liftgate.
• Do not attach any plastic material, tape, etc., to the gas
struts.
• Do not tie string, etc., around the gas struts.
• Do not hang objects on the gas struts.
CAUTION
!
To avoid injuring your hand or arm, do not attempt
to close the liftgate without releasing the liftgate grip
(A).
Before starting the vehicle, be sure to confirm that
the liftgate is locked. If the liftgate opens while driv-
ing the vehicle, objects stored in the luggage com-
partment could fall out into the road.
BK0162600US.book 42 ページ ２０１３年３月２２日　金曜日　午後２時４１分
